Multilume SlimRecessed
Multilume is a family of energy-efficient recessed ergonomic lighting luminaires that are easily adapted to suit different ceilings. Multilume Slim has a lower recess depth and a height of only 23 mm.
White RAL 9016

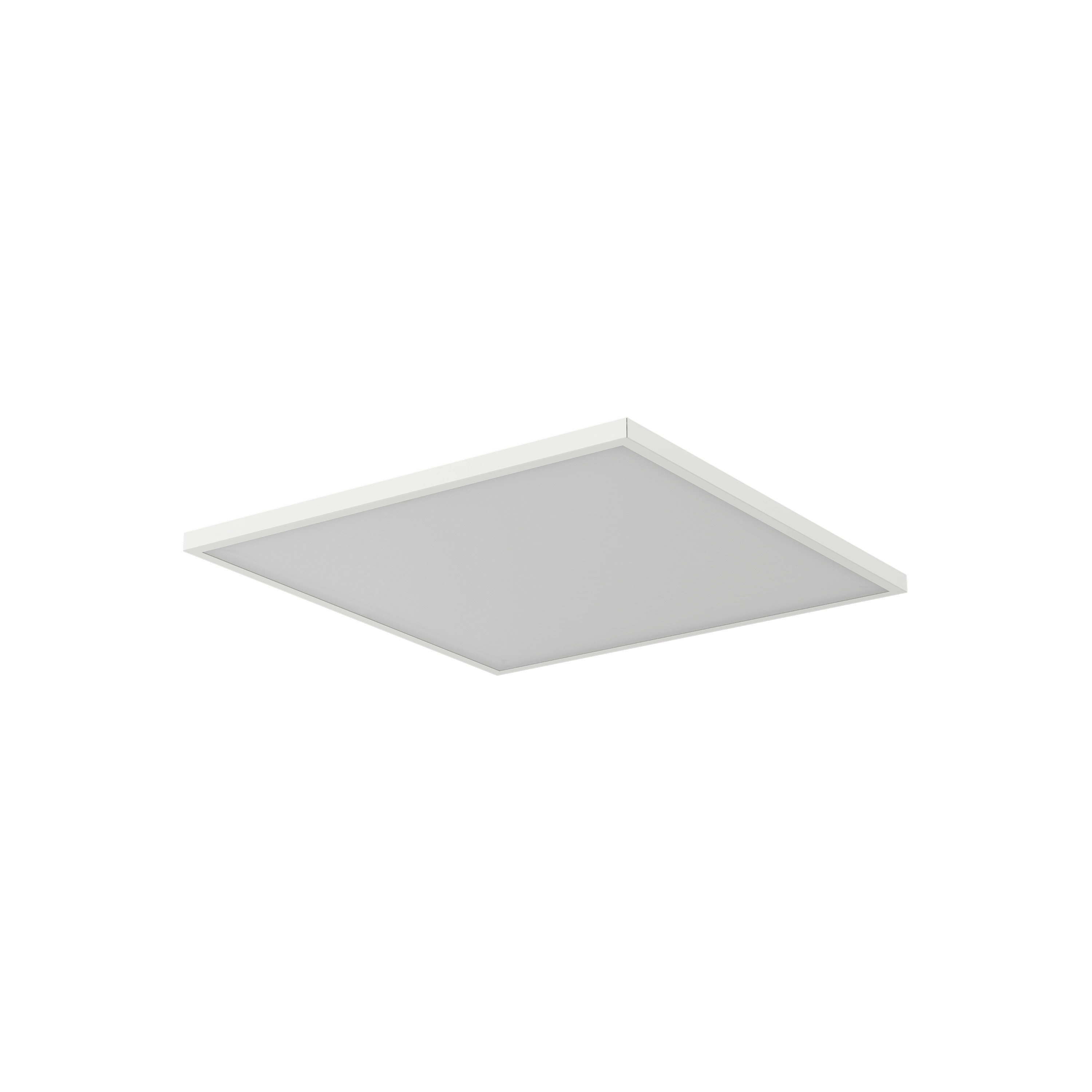

Multilume SlimRecessed
Multilume is a family of energy-efficient recessed ergonomic lighting luminaires that are easily adapted to suit different ceilings. Multilume Slim has a lower recess depth and a height of only 23 mm.
Installation
Luminaire for recessed installation in suspended ceilings. Unventilated or ventilated suspended ceilings. VTB – for suspended ceilings with visible T-bars (15 or 24 mm). HB – for suspended ceilings with concealed T-bars and symmetrical ceiling tile mount (thickness 20-22 mm). IP44 under a suspended ceiling, IP20 above a suspended ceiling. For detailed information, see the installation instructions.
Connection
For permanent connection in separate driver box. Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis mounted snap-in connector in the driver where a T-splitter or earthed mains cable and plug are possible. The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III. The supplied driver must be connected to the protective earth. CLO (Constant Light Output).
Design
Luminaire body made of sheet steel. Lacquered in white (RAL 9016 G40).

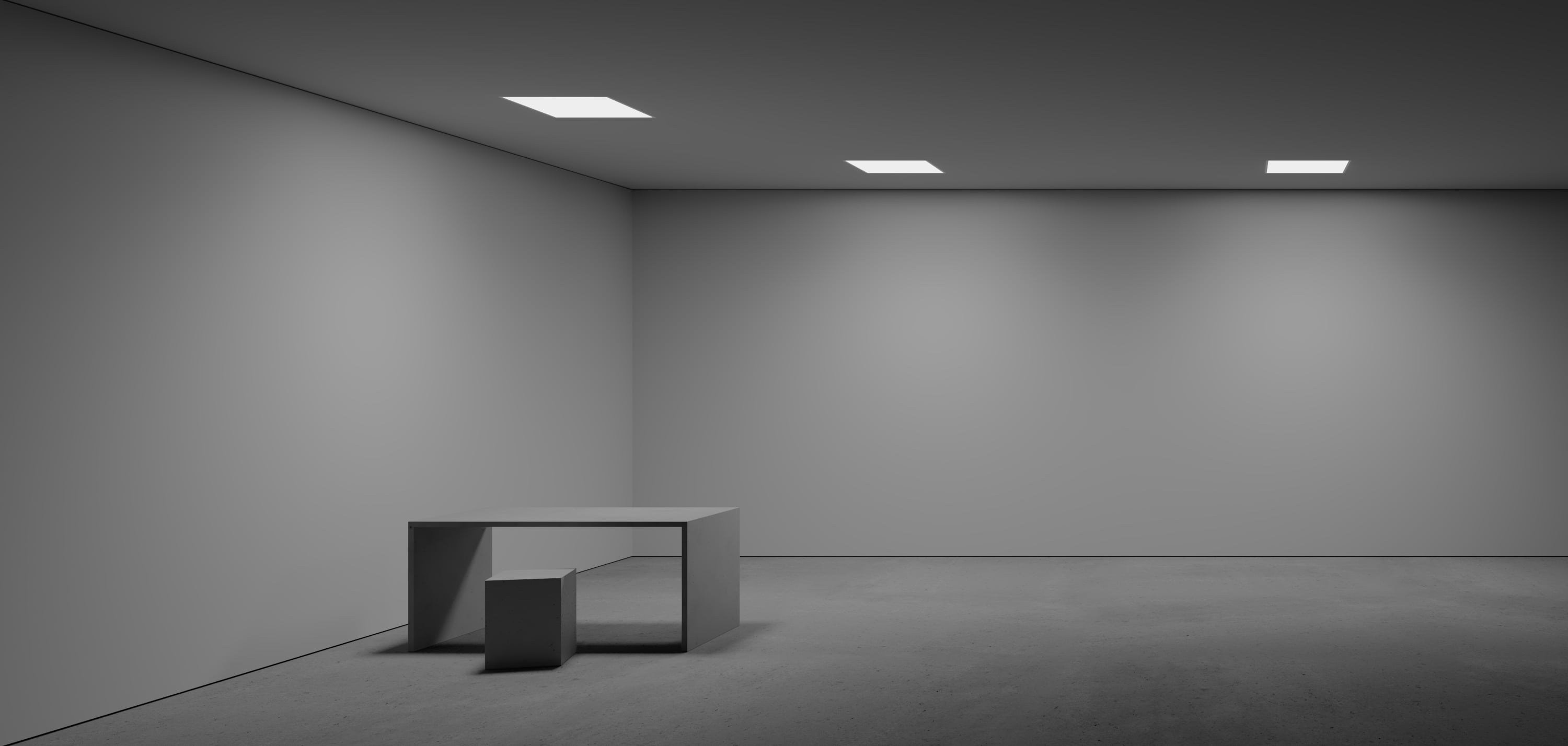

Light Distribution
Direct.
Light data
CCT, K:
3000 K, 4000 K, 2700-6500 K (TW)
CRI/Rf:
80, 90
SDCM:
3
Lumen output:
1687-4612 lm
CLO:
100 000 h
Optics
Delta – micro-prism louvre in UV-stable polystyrene. Opal – louvre in UV-stable polystyrene.
Less waste material
The material that has been cut out for the light opening is used as a top cover. By reducing the amount of waste and optimising resource use, we are able to save materials and reduce overall waste. At the same time, the product benefits from a lower carbon footprint.
Optimised packaging
Multiple products can be packaged together, reducing the amount of packaging material and cutting resource use and climate impact in both production and transportation. This makes the logistics more efficient and simplifies the handling and recycling of the packaging, as fewer types of material are used.
Twin Dual Driver
The product can be powered by the Twin Dual Driver, a driver that powers two luminaires. With streamlined electronics and an updated material composition, we have reduced the overall climate impact of the driver by 49%, while maintaining safety, faster installation and easier product use.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Organic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read moreOn/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
Articles
Showing 562 of 562 Articles
| Art.no. | System Wattage | Lumen output | CCT, K | CRI | Module | Louvre | Installation | Light control | Connection | CLO time, h | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 23166 | 19 | 2093 | 3000 | 80 | 300x600 | Delta | VTB | On/off | Fixed connection |
|
|||
| 23166-111 | 19 | 2093 | 3000 | 80 | 300x600 | Delta | VTB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23166-3 | 19 | 2093 | 3000 | 80 | 300x600 | Delta | VTB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23166-340 | 19 | 2093 | 3000 | 80 | 300x600 | Delta | VTB | On/off | Wago Winsta 3-way male |
|
|||
| 23166-402 | 18 | 2004 | 3000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23166-519 | 19 | 2093 | 3000 | 80 | 300x600 | Delta | VTB | On/off | Ensto 3-way male |
|
|||
| 23166-520 | 18 | 2004 | 3000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23166-528 | 18 | 2004 | 3000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23166-529 | 18 | 2004 | 3000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23166T1L-402 | 37 | 2004 (x2) | 3000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23166T1L-520 | 37 | 2004 (x2) | 3000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23166T1L-528 | 37 | 2004 (x2) | 3000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23166T1L-529 | 37 | 2004 (x2) | 3000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23167 | 19 | 2206 | 4000 | 80 | 300x600 | Delta | VTB | On/off | Fixed connection |
|
|||
| 23167-111 | 19 | 2206 | 4000 | 80 | 300x600 | Delta | VTB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23167-3 | 19 | 2206 | 4000 | 80 | 300x600 | Delta | VTB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23167-340 | 19 | 2206 | 4000 | 80 | 300x600 | Delta | VTB | On/off | Wago Winsta 3-way male |
|
|||
| 23167-402 | 18 | 2112 | 4000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23167-519 | 19 | 2206 | 4000 | 80 | 300x600 | Delta | VTB | On/off | Ensto 3-way male |
|
|||
| 23167-520 | 18 | 2112 | 4000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23167-528 | 18 | 2112 | 4000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23167-529 | 18 | 2112 | 4000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23167T1L-402 | 37 | 2112 (x2) | 4000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23167T1L-520 | 37 | 2112 (x2) | 4000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23167T1L-528 | 37 | 2112 (x2) | 4000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23167T1L-529 | 37 | 2112 (x2) | 4000 | 80 | 300x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23199 | 28 | 4076 | 3000 | 80 | 600x600 | Opal | HB | On/off | Fixed connection |
|
|||
| 23199-111 | 28 | 4076 | 3000 | 80 | 600x600 | Opal | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23199-3 | 28 | 4076 | 3000 | 80 | 600x600 | Opal | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23199-340 | 28 | 4076 | 3000 | 80 | 600x600 | Opal | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23199-402 | 25 | 3642 | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23199-519 | 28 | 4076 | 3000 | 80 | 600x600 | Opal | HB | On/off | Ensto 3-way male |
|
|||
| 23199-520 | 25 | 3642 | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23199-528 | 25 | 3642 | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23199-529 | 25 | 3642 | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23199T1L-402 | 51 | 3642 (x2) | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1L |
|
|
| 23199T1L-520 | 51 | 3642 (x2) | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1L |
|
|
| 23199T1L-528 | 51 | 3642 (x2) | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1L |
|
|
| 23199T1L-529 | 51 | 3642 (x2) | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1L |
|
|
| 23200 | 28 | 4076 | 4000 | 80 | 600x600 | Opal | HB | On/off | Fixed connection |
|
|||
| 23200-111 | 28 | 4076 | 4000 | 80 | 600x600 | Opal | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23200-3 | 28 | 4076 | 4000 | 80 | 600x600 | Opal | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23200-340 | 28 | 4076 | 4000 | 80 | 600x600 | Opal | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23200-402 | 25 | 3642 | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23200-519 | 28 | 4076 | 4000 | 80 | 600x600 | Opal | HB | On/off | Ensto 3-way male |
|
|||
| 23200-520 | 25 | 3642 | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23200-528 | 25 | 3642 | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23200-529 | 25 | 3642 | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23200T1L-402 | 51 | 3642 (x2) | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1L |
|
|
| 23200T1L-520 | 51 | 3642 (x2) | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1L |
|
|
| 23200T1L-528 | 51 | 3642 (x2) | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1L |
|
|
| 23200T1L-529 | 51 | 3642 (x2) | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1L |
|
|
| 23201 | 28 | 4024 | 3000 | 80 | 600x600 | Delta | HB | On/off | Fixed connection |
|
|||
| 23201-111 | 28 | 4024 | 3000 | 80 | 600x600 | Delta | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23201-3 | 28 | 4024 | 3000 | 80 | 600x600 | Delta | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23201-340 | 28 | 4024 | 3000 | 80 | 600x600 | Delta | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23201-402 | 25 | 3597 | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23201-519 | 28 | 4024 | 3000 | 80 | 600x600 | Delta | HB | On/off | Ensto 3-way male |
|
|||
| 23201-520 | 25 | 3597 | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23201-528 | 25 | 3597 | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23201-529 | 25 | 3597 | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23201T1L-402 | 51 | 3597 (x2) | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23201T1L-520 | 51 | 3597 (x2) | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23201T1L-528 | 51 | 3597 (x2) | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23201T1L-529 | 51 | 3597 (x2) | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23202 | 28 | 4024 | 4000 | 80 | 600x600 | Delta | HB | On/off | Fixed connection |
|
|||
| 23202-111 | 28 | 4024 | 4000 | 80 | 600x600 | Delta | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23202-3 | 28 | 4024 | 4000 | 80 | 600x600 | Delta | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23202-340 | 28 | 4024 | 4000 | 80 | 600x600 | Delta | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23202-402 | 25 | 3597 | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23202-519 | 28 | 4024 | 4000 | 80 | 600x600 | Delta | HB | On/off | Ensto 3-way male |
|
|||
| 23202-520 | 25 | 3597 | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23202-528 | 25 | 3597 | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23202-529 | 25 | 3597 | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23202T1L-402 | 51 | 3597 (x2) | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23202T1L-520 | 51 | 3597 (x2) | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23202T1L-528 | 51 | 3597 (x2) | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23202T1L-529 | 51 | 3597 (x2) | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23207 | 32 | 3593 | 3000 | 90 | 600x600 | Opal | HB | On/off | Fixed connection |
|
|||
| 23207-111 | 32 | 3593 | 3000 | 90 | 600x600 | Opal | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23207-3 | 32 | 3593 | 3000 | 90 | 600x600 | Opal | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23207-340 | 32 | 3593 | 3000 | 90 | 600x600 | Opal | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23207-402 | 30 | 3507 | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23207-519 | 32 | 3593 | 3000 | 90 | 600x600 | Opal | HB | On/off | Ensto 3-way male |
|
|||
| 23207-520 | 30 | 3507 | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23207-528 | 30 | 3507 | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23207-529 | 30 | 3507 | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23207T1L-402 | 60 | 3507 (x2) | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1L |
|
|
| 23207T1L-520 | 60 | 3507 (x2) | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1L |
|
|
| 23207T1L-528 | 60 | 3507 (x2) | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1L |
|
|
| 23207T1L-529 | 60 | 3507 (x2) | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1L |
|
|
| 23208 | 32 | 3686 | 4000 | 90 | 600x600 | Opal | HB | On/off | Fixed connection |
|
|||
| 23208-111 | 32 | 3686 | 4000 | 90 | 600x600 | Opal | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23208-3 | 32 | 3686 | 4000 | 90 | 600x600 | Opal | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23208-340 | 32 | 3686 | 4000 | 90 | 600x600 | Opal | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23208-402 | 30 | 3596 | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23208-519 | 32 | 3686 | 4000 | 90 | 600x600 | Opal | HB | On/off | Ensto 3-way male |
|
|||
| 23208-520 | 30 | 3596 | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23208-528 | 30 | 3596 | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23208-529 | 30 | 3596 | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23208T1L-402 | 60 | 3596 (x2) | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1L |
|
|
| 23208T1L-520 | 60 | 3596 (x2) | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1L |
|
|
| 23208T1L-528 | 60 | 3596 (x2) | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1L |
|
|
| 23208T1L-529 | 60 | 3596 (x2) | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1L |
|
|
| 23209 | 32 | 3554 | 3000 | 90 | 600x600 | Delta | HB | On/off | Fixed connection |
|
|||
| 23209-111 | 32 | 3554 | 3000 | 90 | 600x600 | Delta | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23209-3 | 32 | 3554 | 3000 | 90 | 600x600 | Delta | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23209-340 | 32 | 3554 | 3000 | 90 | 600x600 | Delta | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23209-402 | 30 | 3462 | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23209-519 | 32 | 3554 | 3000 | 90 | 600x600 | Delta | HB | On/off | Ensto 3-way male |
|
|||
| 23209-520 | 30 | 3462 | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23209-528 | 30 | 3462 | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23209-529 | 30 | 3462 | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23209T1L-402 | 60 | 3462 (x2) | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23209T1L-520 | 60 | 3462 (x2) | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23209T1L-528 | 60 | 3462 (x2) | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23209T1L-529 | 60 | 3462 (x2) | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23210 | 32 | 3645 | 4000 | 90 | 600x600 | Delta | HB | On/off | Fixed connection |
|
|||
| 23210-111 | 32 | 3645 | 4000 | 90 | 600x600 | Delta | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23210-3 | 32 | 3645 | 4000 | 90 | 600x600 | Delta | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23210-340 | 32 | 3645 | 4000 | 90 | 600x600 | Delta | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23210-402 | 30 | 3550 | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23210-519 | 32 | 3645 | 4000 | 90 | 600x600 | Delta | HB | On/off | Ensto 3-way male |
|
|||
| 23210-520 | 30 | 3550 | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23210-528 | 30 | 3550 | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23210-529 | 30 | 3550 | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23210T1L-402 | 60 | 3550 (x2) | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23210T1L-520 | 60 | 3550 (x2) | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23210T1L-528 | 60 | 3550 (x2) | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23210T1L-529 | 60 | 3550 (x2) | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23215 | 32 | 3509 | 3000 | 90 | 600x600 | Delta | VTB | On/off | Fixed connection |
|
|||
| 23215-111 | 32 | 3509 | 3000 | 90 | 600x600 | Delta | VTB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23215-3 | 32 | 3509 | 3000 | 90 | 600x600 | Delta | VTB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23215-340 | 32 | 3509 | 3000 | 90 | 600x600 | Delta | VTB | On/off | Wago Winsta 3-way male |
|
|||
| 23215-402 | 30 | 3422 | 3000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23215-519 | 32 | 3509 | 3000 | 90 | 600x600 | Delta | VTB | On/off | Ensto 3-way male |
|
|||
| 23215-520 | 30 | 3422 | 3000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23215-528 | 30 | 3422 | 3000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23215-529 | 30 | 3422 | 3000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23215T1L-402 | 60 | 3422 (x2) | 3000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23215T1L-520 | 60 | 3422 (x2) | 3000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23215T1L-528 | 60 | 3422 (x2) | 3000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23215T1L-529 | 60 | 3422 (x2) | 3000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23216 | 32 | 3599 | 4000 | 90 | 600x600 | Delta | VTB | On/off | Fixed connection |
|
|||
| 23216-111 | 32 | 3599 | 4000 | 90 | 600x600 | Delta | VTB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23216-3 | 32 | 3599 | 4000 | 90 | 600x600 | Delta | VTB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23216-340 | 32 | 3599 | 4000 | 90 | 600x600 | Delta | VTB | On/off | Wago Winsta 3-way male |
|
|||
| 23216-402 | 30 | 3510 | 4000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23216-519 | 32 | 3599 | 4000 | 90 | 600x600 | Delta | VTB | On/off | Ensto 3-way male |
|
|||
| 23216-520 | 30 | 3510 | 4000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23216-528 | 30 | 3510 | 4000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23216-529 | 30 | 3510 | 4000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23216T1L-402 | 60 | 3510 (x2) | 4000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23216T1L-520 | 60 | 3510 (x2) | 4000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23216T1L-528 | 60 | 3510 (x2) | 4000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23216T1L-529 | 60 | 3510 (x2) | 4000 | 90 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23217 | 32 | 3597 | 3000 | 90 | 600x600 | Opal | VTB | On/off | Fixed connection |
|
|||
| 23217-111 | 32 | 3597 | 3000 | 90 | 600x600 | Opal | VTB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23217-3 | 32 | 3597 | 3000 | 90 | 600x600 | Opal | VTB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23217-340 | 32 | 3597 | 3000 | 90 | 600x600 | Opal | VTB | On/off | Wago Winsta 3-way male |
|
|||
| 23217-402 | 30 | 3516 | 3000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23217-519 | 32 | 3597 | 3000 | 90 | 600x600 | Opal | VTB | On/off | Ensto 3-way male |
|
|||
| 23217-520 | 30 | 3516 | 3000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23217-528 | 30 | 3516 | 3000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23217-529 | 30 | 3516 | 3000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23217T1L-402 | 60 | 3516 (x2) | 3000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1L |
|
|
| 23217T1L-520 | 60 | 3516 (x2) | 3000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1L |
|
|
| 23217T1L-528 | 60 | 3516 (x2) | 3000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1L |
|
|
| 23217T1L-529 | 60 | 3516 (x2) | 3000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1L |
|
|
| 23218 | 32 | 3690 | 4000 | 90 | 600x600 | Opal | VTB | On/off | Fixed connection |
|
|||
| 23218-111 | 32 | 3690 | 4000 | 90 | 600x600 | Opal | VTB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23218-3 | 32 | 3690 | 4000 | 90 | 600x600 | Opal | VTB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23218-340 | 32 | 3690 | 4000 | 90 | 600x600 | Opal | VTB | On/off | Wago Winsta 3-way male |
|
|||
| 23218-402 | 30 | 3606 | 4000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23218-519 | 32 | 3690 | 4000 | 90 | 600x600 | Opal | VTB | On/off | Ensto 3-way male |
|
|||
| 23218-520 | 30 | 3606 | 4000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23218-528 | 30 | 3606 | 4000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23218-529 | 30 | 3606 | 4000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23218T1L-402 | 60 | 3606 (x2) | 4000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1L |
|
|
| 23218T1L-520 | 60 | 3606 (x2) | 4000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1L |
|
|
| 23218T1L-528 | 60 | 3606 (x2) | 4000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1L |
|
|
| 23218T1L-529 | 60 | 3606 (x2) | 4000 | 90 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1L |
|
|
| 23404 | 23 | 2562 | 3000 | 90 | 600x600 | Opal | HB | On/off | Fixed connection |
|
|||
| 23404-111 | 23 | 2562 | 3000 | 90 | 600x600 | Opal | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23404-3 | 23 | 2562 | 3000 | 90 | 600x600 | Opal | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23404-340 | 23 | 2562 | 3000 | 90 | 600x600 | Opal | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23404-402 | 21 | 2390 | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23404-519 | 23 | 2562 | 3000 | 90 | 600x600 | Opal | HB | On/off | Ensto 3-way male |
|
|||
| 23404-520 | 21 | 2390 | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23404-528 | 21 | 2390 | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23404-529 | 21 | 2390 | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23404T1L-402 | 41 | 2390 (x2) | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1L |
|
|
| 23404T1L-520 | 41 | 2390 (x2) | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1L |
|
|
| 23404T1L-528 | 41 | 2390 (x2) | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1L |
|
|
| 23404T1L-529 | 41 | 2390 (x2) | 3000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1L |
|
|
| 23405 | 23 | 2628 | 4000 | 90 | 600x600 | Opal | HB | On/off | Fixed connection |
|
|||
| 23405-111 | 23 | 2628 | 4000 | 90 | 600x600 | Opal | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23405-3 | 23 | 2628 | 4000 | 90 | 600x600 | Opal | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23405-340 | 23 | 2628 | 4000 | 90 | 600x600 | Opal | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23405-402 | 21 | 2451 | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23405-519 | 23 | 2628 | 4000 | 90 | 600x600 | Opal | HB | On/off | Ensto 3-way male |
|
|||
| 23405-520 | 21 | 2451 | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23405-528 | 21 | 2451 | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23405-529 | 21 | 2451 | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23405T1L-402 | 41 | 2451 (x2) | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1L |
|
|
| 23405T1L-520 | 41 | 2451 (x2) | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1L |
|
|
| 23405T1L-528 | 41 | 2451 (x2) | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1L |
|
|
| 23405T1L-529 | 41 | 2451 (x2) | 4000 | 90 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1L |
|
|
| 23406 | 23 | 2527 | 3000 | 90 | 600x600 | Delta | HB | On/off | Fixed connection |
|
|||
| 23406-111 | 23 | 2527 | 3000 | 90 | 600x600 | Delta | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23406-3 | 23 | 2527 | 3000 | 90 | 600x600 | Delta | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23406-340 | 23 | 2527 | 3000 | 90 | 600x600 | Delta | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23406-402 | 21 | 2359 | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23406-519 | 23 | 2527 | 3000 | 90 | 600x600 | Delta | HB | On/off | Ensto 3-way male |
|
|||
| 23406-520 | 21 | 2359 | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23406-528 | 21 | 2359 | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23406-529 | 21 | 2359 | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23406T1L-402 | 41 | 2359 (x2) | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23406T1L-520 | 41 | 2359 (x2) | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23406T1L-528 | 41 | 2359 (x2) | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23406T1L-529 | 41 | 2359 (x2) | 3000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23407 | 23 | 2592 | 4000 | 90 | 600x600 | Delta | HB | On/off | Fixed connection |
|
|||
| 23407-111 | 23 | 2592 | 4000 | 90 | 600x600 | Delta | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23407-3 | 23 | 2592 | 4000 | 90 | 600x600 | Delta | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23407-340 | 23 | 2592 | 4000 | 90 | 600x600 | Delta | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23407-402 | 21 | 2419 | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23407-519 | 23 | 2592 | 4000 | 90 | 600x600 | Delta | HB | On/off | Ensto 3-way male |
|
|||
| 23407-520 | 21 | 2419 | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23407-528 | 21 | 2419 | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23407-529 | 21 | 2419 | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23407T1L-402 | 41 | 2419 (x2) | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23407T1L-520 | 41 | 2419 (x2) | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23407T1L-528 | 41 | 2419 (x2) | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23407T1L-529 | 41 | 2419 (x2) | 4000 | 90 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23425 | 31 | 4388 | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Fixed connection | 100000 |
|
||
| 23425-111 | 32 | 4388 | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 |
|
||
| 23425-3 | 31 | 4388 | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 |
|
||
| 23425-340 | 32 | 4388 | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 |
|
||
| 23425-519 | 32 | 4388 | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 |
|
||
| 23425T1L | 61 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Fixed connection | 100000 | Twin 1 L |
|
|
| 23425T1L-111 | 61 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 1 L |
|
|
| 23425T1L-3 | 61 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 1 L |
|
|
| 23425T1L-340 | 61 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 1 L |
|
|
| 23425T1L-519 | 61 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 1 L |
|
|
| 23425T2L | 61 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Fixed connection | 100000 | Twin 2L |
|
|
| 23425T2L-111 | 61 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 2L |
|
|
| 23425T2L-3 | 61 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 2L |
|
|
| 23425T2L-340 | 61 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 2L |
|
|
| 23425T2L-519 | 61 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 2L |
|
|
| 23426 | 31.5 | 4388 | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Fixed connection | 100000 |
|
||
| 23426-111 | 32 | 4388 | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 |
|
||
| 23426-3 | 31 | 4388 | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 |
|
||
| 23426-340 | 32 | 4388 | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 |
|
||
| 23426-519 | 32 | 4388 | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 |
|
||
| 23426T1L | 61 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Fixed connection | 100000 | Twin 1 L |
|
|
| 23426T1L-111 | 61 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 1 L |
|
|
| 23426T1L-3 | 61 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 1 L |
|
|
| 23426T1L-340 | 61 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 1 L |
|
|
| 23426T1L-519 | 61 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 1 L |
|
|
| 23426T2L | 61 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Fixed connection | 100000 | Twin 2L |
|
|
| 23426T2L-111 | 61 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 2L |
|
|
| 23426T2L-3 | 61 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 2L |
|
|
| 23426T2L-340 | 61 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 2L |
|
|
| 23426T2L-519 | 61 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 2L |
|
|
| 23427 | 31 | 3422 | 3000 | 90 | 600x600 | Delta | VTB | Organic Response | Fixed connection | 100000 |
|
||
| 23427-111 | 32 | 3422 | 3000 | 90 | 600x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 |
|
||
| 23427-3 | 31 | 3422 | 3000 | 90 | 600x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 |
|
||
| 23427-340 | 32 | 3422 | 3000 | 90 | 600x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 |
|
||
| 23427-519 | 32 | 3422 | 3000 | 90 | 600x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 |
|
||
| 23427T1L | 61 | 3422 (x2) | 3000 | 90 | 600x600 | Delta | VTB | Organic Response | Fixed connection | 100000 | Twin 1 L |
|
|
| 23427T1L-111 | 61 | 3422 (x2) | 3000 | 90 | 600x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 1 L |
|
|
| 23427T1L-3 | 61 | 3422 (x2) | 3000 | 90 | 600x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 1 L |
|
|
| 23427T1L-340 | 61 | 3422 (x2) | 3000 | 90 | 600x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 1 L |
|
|
| 23427T1L-519 | 61 | 3422 (x2) | 3000 | 90 | 600x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 1 L |
|
|
| 23428 | 31 | 3510 | 4000 | 90 | 600x600 | Delta | VTB | Organic Response | Fixed connection | 100000 |
|
||
| 23428-111 | 32 | 3510 | 4000 | 90 | 600x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 |
|
||
| 23428-3 | 31 | 3510 | 4000 | 90 | 600x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 |
|
||
| 23428-340 | 32 | 3510 | 4000 | 90 | 600x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 |
|
||
| 23428-519 | 32 | 3510 | 4000 | 90 | 600x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 |
|
||
| 23428T1L | 61 | 3510 (x2) | 4000 | 90 | 600x600 | Delta | VTB | Organic Response | Fixed connection | 100000 | Twin 1 L |
|
|
| 23428T1L-111 | 61 | 3510 (x2) | 4000 | 90 | 600x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 1 L |
|
|
| 23428T1L-3 | 61 | 3510 (x2) | 4000 | 90 | 600x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 1 L |
|
|
| 23428T1L-340 | 61 | 3510 (x2) | 4000 | 90 | 600x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 1 L |
|
|
| 23428T1L-519 | 61 | 3510 (x2) | 4000 | 90 | 600x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 1 L |
|
|
| 23435 | 19 | 2004 | 3000 | 80 | 300x600 | Delta | VTB | Organic Response | Fixed connection | 100000 |
|
||
| 23435-111 | 19 | 2004 | 3000 | 80 | 300x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 |
|
||
| 23435-3 | 19 | 2004 | 3000 | 80 | 300x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 |
|
||
| 23435-340 | 19 | 2004 | 3000 | 80 | 300x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 |
|
||
| 23435-519 | 19 | 2004 | 3000 | 80 | 300x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 |
|
||
| 23435T1L | 37 | 2004 (x2) | 3000 | 80 | 300x600 | Delta | VTB | Organic Response | Fixed connection | 100000 | Twin 1 L |
|
|
| 23435T1L-111 | 37 | 2004 (x2) | 3000 | 80 | 300x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 1 L |
|
|
| 23435T1L-3 | 37 | 2004 (x2) | 3000 | 80 | 300x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 1 L |
|
|
| 23435T1L-340 | 37 | 2004 (x2) | 3000 | 80 | 300x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 1 L |
|
|
| 23435T1L-519 | 37 | 2004 (x2) | 3000 | 80 | 300x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 1 L |
|
|
| 23436 | 19 | 2112 | 4000 | 80 | 300x600 | Delta | VTB | Organic Response | Fixed connection | 100000 |
|
||
| 23436-111 | 19 | 2112 | 4000 | 80 | 300x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 |
|
||
| 23436-3 | 19 | 2112 | 4000 | 80 | 300x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 |
|
||
| 23436-340 | 19 | 2112 | 4000 | 80 | 300x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 |
|
||
| 23436-519 | 19 | 2112 | 4000 | 80 | 300x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 |
|
||
| 23436T1L | 37 | 2112 (x2) | 4000 | 80 | 300x600 | Delta | VTB | Organic Response | Fixed connection | 100000 | Twin 1 L |
|
|
| 23436T1L-111 | 37 | 2112 (x2) | 4000 | 80 | 300x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 1 L |
|
|
| 23436T1L-3 | 37 | 2112 (x2) | 4000 | 80 | 300x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 1 L |
|
|
| 23436T1L-340 | 37 | 2112 (x2) | 4000 | 80 | 300x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 1 L |
|
|
| 23436T1L-519 | 37 | 2112 (x2) | 4000 | 80 | 300x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 1 L |
|
|
| 23437 | 19 | 1678 | 3000 | 90 | 300x600 | Delta | VTB | Organic Response | Fixed connection | 100000 |
|
||
| 23437-111 | 19 | 1678 | 3000 | 90 | 300x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 |
|
||
| 23437-3 | 19 | 1678 | 3000 | 90 | 300x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 |
|
||
| 23437-340 | 19 | 1678 | 3000 | 90 | 300x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 |
|
||
| 23437-519 | 19 | 1678 | 3000 | 90 | 300x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 |
|
||
| 23437T1L | 37 | 1678 (x2) | 3000 | 90 | 300x600 | Delta | VTB | Organic Response | Fixed connection | 100000 | Twin 1 L |
|
|
| 23437T1L-111 | 37 | 1678 (x2) | 3000 | 90 | 300x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 1 L |
|
|
| 23437T1L-3 | 37 | 1678 (x2) | 3000 | 90 | 300x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 1 L |
|
|
| 23437T1L-340 | 37 | 1678 (x2) | 3000 | 90 | 300x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 1 L |
|
|
| 23437T1L-519 | 37 | 1678 (x2) | 3000 | 90 | 300x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 1 L |
|
|
| 23438 | 19 | 1787 | 4000 | 90 | 300x600 | Delta | VTB | Organic Response | Fixed connection | 100000 |
|
||
| 23438-111 | 19 | 1787 | 4000 | 90 | 300x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 |
|
||
| 23438-3 | 19 | 1787 | 4000 | 90 | 300x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 |
|
||
| 23438-340 | 19 | 1787 | 4000 | 90 | 300x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 |
|
||
| 23438-519 | 19 | 1787 | 4000 | 90 | 300x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 |
|
||
| 23438T1L | 37 | 1787 (x2) | 4000 | 90 | 300x600 | Delta | VTB | Organic Response | Fixed connection | 100000 | Twin 1 L |
|
|
| 23438T1L-111 | 37 | 1787 (x2) | 4000 | 90 | 300x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 1 L |
|
|
| 23438T1L-3 | 37 | 1787 (x2) | 4000 | 90 | 300x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 1 L |
|
|
| 23438T1L-340 | 37 | 1787 (x2) | 4000 | 90 | 300x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 1 L |
|
|
| 23438T1L-519 | 37 | 1787 (x2) | 4000 | 90 | 300x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 1 L |
|
|
| 23491 | 21 | 3011 | 3000 | 80 | 600x600 | Opal | HB | On/off | Fixed connection |
|
|||
| 23491-111 | 21 | 3011 | 3000 | 80 | 600x600 | Opal | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23491-3 | 21 | 3011 | 3000 | 80 | 600x600 | Opal | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23491-340 | 21 | 3011 | 3000 | 80 | 600x600 | Opal | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23491-402 | 18 | 2719 | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23491-519 | 21 | 3011 | 3000 | 80 | 600x600 | Opal | HB | On/off | Ensto 3-way male |
|
|||
| 23491-520 | 18 | 2719 | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23491-528 | 18 | 2719 | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23491-529 | 18 | 2719 | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23491T1L-402 | 38 | 2719 (x2) | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1L |
|
|
| 23491T1L-520 | 38 | 2719 (x2) | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1L |
|
|
| 23491T1L-528 | 38 | 2719 (x2) | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1L |
|
|
| 23491T1L-529 | 38 | 2719 (x2) | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1L |
|
|
| 23492 | 21 | 3011 | 4000 | 80 | 600x600 | Opal | HB | On/off | Fixed connection |
|
|||
| 23492-111 | 21 | 3011 | 4000 | 80 | 600x600 | Opal | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23492-3 | 21 | 3011 | 4000 | 80 | 600x600 | Opal | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23492-340 | 21 | 3011 | 4000 | 80 | 600x600 | Opal | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23492-402 | 18 | 2719 | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23492-519 | 21 | 3011 | 4000 | 80 | 600x600 | Opal | HB | On/off | Ensto 3-way male |
|
|||
| 23492-520 | 18 | 2719 | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23492-528 | 18 | 2719 | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23492-529 | 18 | 2719 | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23492T1L-402 | 38 | 2719 (x2) | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1L |
|
|
| 23492T1L-520 | 38 | 2719 (x2) | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1L |
|
|
| 23492T1L-528 | 38 | 2719 (x2) | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1L |
|
|
| 23492T1L-529 | 38 | 2719 (x2) | 4000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1L |
|
|
| 23493 | 21 | 2692 | 3000 | 80 | 600x600 | Delta | HB | On/off | Fixed connection |
|
|||
| 23493-111 | 21 | 2692 | 3000 | 80 | 600x600 | Delta | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23493-3 | 21 | 2692 | 3000 | 80 | 600x600 | Delta | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23493-340 | 21 | 2692 | 3000 | 80 | 600x600 | Delta | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23493-402 | 18 | 2677 | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23493-519 | 21 | 2692 | 3000 | 80 | 600x600 | Delta | HB | On/off | Ensto 3-way male |
|
|||
| 23493-520 | 18 | 2677 | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23493-528 | 18 | 2677 | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23493-529 | 18 | 2677 | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23493T1L-402 | 38 | 2677 (x2) | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23493T1L-520 | 38 | 2677 (x2) | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23493T1L-528 | 38 | 2677 (x2) | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23493T1L-529 | 38 | 2677 (x2) | 3000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23494 | 21 | 2692 | 4000 | 80 | 600x600 | Delta | HB | On/off | Fixed connection |
|
|||
| 23494-111 | 21 | 2692 | 4000 | 80 | 600x600 | Delta | HB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23494-3 | 21 | 2692 | 4000 | 80 | 600x600 | Delta | HB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23494-340 | 21 | 2692 | 4000 | 80 | 600x600 | Delta | HB | On/off | Wago Winsta 3-way male |
|
|||
| 23494-402 | 18 | 2677 | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23494-519 | 21 | 2692 | 4000 | 80 | 600x600 | Delta | HB | On/off | Ensto 3-way male |
|
|||
| 23494-520 | 18 | 2677 | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23494-528 | 18 | 2677 | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23494-529 | 18 | 2677 | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23494T1L-402 | 38 | 2677 (x2) | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23494T1L-520 | 38 | 2677 (x2) | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23494T1L-528 | 38 | 2677 (x2) | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23494T1L-529 | 38 | 2677 (x2) | 4000 | 80 | 600x600 | Delta | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23505 | 32 | 4612 | 3000 | 80 | 600x600 | Opal | VTB | On/off | Fixed connection |
|
|||
| 23505-111 | 32 | 4612 | 3000 | 80 | 600x600 | Opal | VTB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23505-3 | 32 | 4612 | 3000 | 80 | 600x600 | Opal | VTB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23505-340 | 32 | 4612 | 3000 | 80 | 600x600 | Opal | VTB | On/off | Wago Winsta 3-way male |
|
|||
| 23505-402 | 30 | 4508 | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23505-519 | 32 | 4612 | 3000 | 80 | 600x600 | Opal | VTB | On/off | Ensto 3-way male |
|
|||
| 23505-520 | 30 | 4508 | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23505-528 | 30 | 4508 | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23505-529 | 30 | 4508 | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23505T1L-402 | 60 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1L |
|
|
| 23505T1L-520 | 60 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1L |
|
|
| 23505T1L-528 | 60 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1L |
|
|
| 23505T1L-529 | 60 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1L |
|
|
| 23505T2L-402 | 60 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 2L |
|
|
| 23505T2L-520 | 60 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 2L |
|
|
| 23505T2L-528 | 60 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 2L |
|
|
| 23505T2L-529 | 60 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 2L |
|
|
| 23506 | 32 | 4612 | 4000 | 80 | 600x600 | Opal | VTB | On/off | Fixed connection |
|
|||
| 23506-111 | 32 | 4612 | 4000 | 80 | 600x600 | Opal | VTB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23506-3 | 32 | 4612 | 4000 | 80 | 600x600 | Opal | VTB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23506-340 | 32 | 4612 | 4000 | 80 | 600x600 | Opal | VTB | On/off | Wago Winsta 3-way male |
|
|||
| 23506-402 | 30 | 4508 | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23506-519 | 32 | 4612 | 4000 | 80 | 600x600 | Opal | VTB | On/off | Ensto 3-way male |
|
|||
| 23506-520 | 30 | 4508 | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23506-528 | 30 | 4508 | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23506-529 | 30 | 4508 | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23506T1L-402 | 60 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1L |
|
|
| 23506T1L-520 | 60 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1L |
|
|
| 23506T1L-528 | 60 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1L |
|
|
| 23506T1L-529 | 60 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1L |
|
|
| 23506T2L-402 | 60 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 2L |
|
|
| 23506T2L-520 | 60 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 2L |
|
|
| 23506T2L-528 | 60 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 2L |
|
|
| 23506T2L-529 | 60 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 2L |
|
|
| 23508 | 32 | 4499 | 3000 | 80 | 600x600 | Delta | VTB | On/off | Fixed connection |
|
|||
| 23508-111 | 32 | 4499 | 3000 | 80 | 600x600 | Delta | VTB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23508-3 | 32 | 4499 | 3000 | 80 | 600x600 | Delta | VTB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23508-340 | 32 | 4499 | 3000 | 80 | 600x600 | Delta | VTB | On/off | Wago Winsta 3-way male |
|
|||
| 23508-402 | 30 | 4388 | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23508-519 | 32 | 4499 | 3000 | 80 | 600x600 | Delta | VTB | On/off | Ensto 3-way male |
|
|||
| 23508-520 | 30 | 4388 | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23508-528 | 30 | 4388 | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23508-529 | 30 | 4388 | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23508T1L-402 | 60 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23508T1L-520 | 60 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23508T1L-528 | 60 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23508T1L-529 | 60 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23508T2L-402 | 60 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 2L |
|
|
| 23508T2L-520 | 60 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 2L |
|
|
| 23508T2L-528 | 60 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 2L |
|
|
| 23508T2L-529 | 60 | 4388 (x2) | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 2L |
|
|
| 23509 | 32 | 4499 | 4000 | 80 | 600x600 | Delta | VTB | On/off | Fixed connection |
|
|||
| 23509-111 | 32 | 4499 | 4000 | 80 | 600x600 | Delta | VTB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23509-3 | 32 | 4499 | 4000 | 80 | 600x600 | Delta | VTB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23509-340 | 32 | 4499 | 4000 | 80 | 600x600 | Delta | VTB | On/off | Wago Winsta 3-way male |
|
|||
| 23509-402 | 30 | 4388 | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23509-519 | 32 | 4499 | 4000 | 80 | 600x600 | Delta | VTB | On/off | Ensto 3-way male |
|
|||
| 23509-520 | 30 | 4388 | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23509-528 | 30 | 4388 | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23509-529 | 30 | 4388 | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23509T1L-402 | 60 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23509T1L-520 | 60 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23509T1L-528 | 60 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23509T1L-529 | 60 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23509T2L-402 | 60 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 2L |
|
|
| 23509T2L-520 | 60 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 2L |
|
|
| 23509T2L-528 | 60 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 2L |
|
|
| 23509T2L-529 | 60 | 4388 (x2) | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 2L |
|
|
| 23510 | 23 | 3303 | 3000 | 80 | 600x600 | Opal | VTB | On/off | Fixed connection |
|
|||
| 23510-111 | 23 | 3303 | 3000 | 80 | 600x600 | Opal | VTB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23510-3 | 23 | 3303 | 3000 | 80 | 600x600 | Opal | VTB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23510-340 | 23 | 3303 | 3000 | 80 | 600x600 | Opal | VTB | On/off | Wago Winsta 3-way male |
|
|||
| 23510-402 | 21 | 3258 | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23510-519 | 23 | 3303 | 3000 | 80 | 600x600 | Opal | VTB | On/off | Ensto 3-way male |
|
|||
| 23510-520 | 21 | 3258 | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23510-528 | 21 | 3258 | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23510-529 | 21 | 3258 | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23510T1L-402 | 43 | 3258 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1L |
|
|
| 23510T1L-520 | 43 | 3258 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1L |
|
|
| 23510T1L-528 | 43 | 3258 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1L |
|
|
| 23510T1L-529 | 43 | 3258 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1L |
|
|
| 23511 | 23 | 3303 | 4000 | 80 | 600x600 | Opal | VTB | On/off | Fixed connection |
|
|||
| 23511-111 | 23 | 3303 | 4000 | 80 | 600x600 | Opal | VTB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23511-3 | 23 | 3303 | 4000 | 80 | 600x600 | Opal | VTB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23511-340 | 23 | 3303 | 4000 | 80 | 600x600 | Opal | VTB | On/off | Wago Winsta 3-way male |
|
|||
| 23511-402 | 21 | 3258 | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23511-519 | 23 | 3303 | 4000 | 80 | 600x600 | Opal | VTB | On/off | Ensto 3-way male |
|
|||
| 23511-520 | 21 | 3258 | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23511-528 | 21 | 3258 | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23511-529 | 21 | 3258 | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23511T1L-402 | 43 | 3258 (x2) | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1L |
|
|
| 23511T1L-520 | 43 | 3258 (x2) | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1L |
|
|
| 23511T1L-528 | 43 | 3258 (x2) | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1L |
|
|
| 23511T1L-529 | 43 | 3258 (x2) | 4000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1L |
|
|
| 23512 | 31 | 4108 | 600x600 | Delta | VTB | DALI | Fixed connection | 100000 | Tunable White |
|
|||
| 23513 | 23 | 3199 | 3000 | 80 | 600x600 | Delta | VTB | On/off | Fixed connection |
|
|||
| 23513-111 | 23 | 3199 | 3000 | 80 | 600x600 | Delta | VTB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23513-3 | 23 | 3199 | 3000 | 80 | 600x600 | Delta | VTB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23513-340 | 23 | 3199 | 3000 | 80 | 600x600 | Delta | VTB | On/off | Wago Winsta 3-way male |
|
|||
| 23513-402 | 21 | 3153 | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23513-519 | 23 | 3199 | 3000 | 80 | 600x600 | Delta | VTB | On/off | Ensto 3-way male |
|
|||
| 23513-520 | 21 | 3153 | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23513-528 | 21 | 3153 | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23513-529 | 21 | 3153 | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23513T1L-402 | 43 | 3153 (x2) | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23513T1L-520 | 43 | 3153 (x2) | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23513T1L-528 | 43 | 3153 (x2) | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23513T1L-529 | 43 | 3153 (x2) | 3000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23514 | 23 | 3199 | 4000 | 80 | 600x600 | Delta | VTB | On/off | Fixed connection |
|
|||
| 23514-111 | 23 | 3199 | 4000 | 80 | 600x600 | Delta | VTB | On/off | Wieland GST18i3 3-way male |
|
|||
| 23514-3 | 23 | 3199 | 4000 | 80 | 600x600 | Delta | VTB | On/off | Connection cable with plug, L=2.5 m |
|
|||
| 23514-340 | 23 | 3199 | 4000 | 80 | 600x600 | Delta | VTB | On/off | Wago Winsta 3-way male |
|
|||
| 23514-402 | 21 | 3153 | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 |
|
||
| 23514-519 | 23 | 3199 | 4000 | 80 | 600x600 | Delta | VTB | On/off | Ensto 3-way male |
|
|||
| 23514-520 | 21 | 3153 | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 |
|
||
| 23514-528 | 21 | 3153 | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 |
|
||
| 23514-529 | 21 | 3153 | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 |
|
||
| 23514T1L-402 | 43 | 3153 (x2) | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Fixed connection | 100000 | Twin 1 L |
|
|
| 23514T1L-520 | 43 | 3153 (x2) | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Ensto 5-way male | 100000 | Twin 1 L |
|
|
| 23514T1L-528 | 43 | 3153 (x2) | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 100000 | Twin 1 L |
|
|
| 23514T1L-529 | 43 | 3153 (x2) | 4000 | 80 | 600x600 | Delta | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 100000 | Twin 1 L |
|
|
| 23595 | 32 | 4108 | 600x600 | Delta | VTB | Organic Response | Fixed connection | 100000 | Tunable White |
|
|||
| 23595-111 | 32 | 4108 | 600x600 | Delta | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Tunable White |
|
|||
| 23595-3 | 32 | 4108 | 600x600 | Delta | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Tunable White |
|
|||
| 23595-340 | 32 | 4108 | 600x600 | Delta | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Tunable White |
|
|||
| 23595-519 | 32 | 4108 | 600x600 | Delta | VTB | Organic Response | Ensto 3-way male | 100000 | Tunable White |
|
|||
| 27970 | 31 | 4508 | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Fixed connection | 100000 |
|
||
| 27970-111 | 32 | 4508 | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 |
|
||
| 27970-3 | 31 | 4508 | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 |
|
||
| 27970-340 | 32 | 4508 | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Wago Winsta 3-way male | 100000 |
|
||
| 27970-519 | 32 | 4508 | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Ensto 3-way male | 100000 |
|
||
| 27970T1L | 61 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Fixed connection | 100000 | Twin 1L |
|
|
| 27970T1L-111 | 61 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 1L |
|
|
| 27970T1L-3 | 61 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 1L |
|
|
| 27970T1L-340 | 61 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 1L |
|
|
| 27970T1L-519 | 61 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 1L |
|
|
| 27970T2L | 61 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Fixed connection | 100000 | Twin 2L |
|
|
| 27970T2L-111 | 61 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 2L |
|
|
| 27970T2L-3 | 61 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 2L |
|
|
| 27970T2L-340 | 61 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 2L |
|
|
| 27970T2L-519 | 61 | 4508 (x2) | 3000 | 80 | 600x600 | Opal | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 2L |
|
|
| 27971 | 31 | 4508 | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Fixed connection | 100000 |
|
||
| 27971-111 | 32 | 4508 | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 |
|
||
| 27971-3 | 31 | 4508 | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 |
|
||
| 27971-340 | 32 | 4508 | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Wago Winsta 3-way male | 100000 |
|
||
| 27971-519 | 32 | 4508 | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Ensto 3-way male | 100000 |
|
||
| 27971T1L | 61 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Fixed connection | 100000 | Twin 1L |
|
|
| 27971T1L-111 | 61 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 1L |
|
|
| 27971T1L-3 | 61 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 1L |
|
|
| 27971T1L-340 | 61 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 1L |
|
|
| 27971T1L-519 | 61 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 1L |
|
|
| 27971T2L | 61 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Fixed connection | 100000 | Twin 2L |
|
|
| 27971T2L-111 | 61 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 2L |
|
|
| 27971T2L-3 | 61 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 2L |
|
|
| 27971T2L-340 | 61 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 2L |
|
|
| 27971T2L-519 | 61 | 4508 (x2) | 4000 | 80 | 600x600 | Opal | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 2L |
|
|
| 27972 | 26 | 3597 | 3000 | 80 | 600x600 | Delta | HB | Organic Response | Fixed connection | 100000 |
|
||
| 27972-111 | 26 | 3597 | 3000 | 80 | 600x600 | Delta | HB | Organic Response | Wieland GST18i3 3-way male | 100000 |
|
||
| 27972-3 | 26 | 3597 | 3000 | 80 | 600x600 | Delta | HB | Organic Response | Connection cable with plug, L=2.5 m | 100000 |
|
||
| 27972-340 | 26 | 3597 | 3000 | 80 | 600x600 | Delta | HB | Organic Response | Wago Winsta 3-way male | 100000 |
|
||
| 27972-519 | 26 | 3597 | 3000 | 80 | 600x600 | Delta | HB | Organic Response | Ensto 3-way male | 100000 |
|
||
| 27972T1L | 52 | 3597 (x2) | 3000 | 80 | 600x600 | Delta | HB | Organic Response | Fixed connection | 100000 | Twin 1 L |
|
|
| 27972T1L-111 | 52 | 3597 (x2) | 3000 | 80 | 600x600 | Delta | HB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 1 L |
|
|
| 27972T1L-3 | 52 | 3597 (x2) | 3000 | 80 | 600x600 | Delta | HB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 1 L |
|
|
| 27972T1L-340 | 52 | 3597 (x2) | 3000 | 80 | 600x600 | Delta | HB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 1 L |
|
|
| 27972T1L-519 | 52 | 3597 (x2) | 3000 | 80 | 600x600 | Delta | HB | Organic Response | Ensto 3-way male | 100000 | Twin 1 L |
|
|
| 27973 | 26 | 3597 | 4000 | 80 | 600x600 | Delta | HB | Organic Response | Fixed connection | 100000 |
|
||
| 27973-111 | 26 | 3597 | 4000 | 80 | 600x600 | Delta | HB | Organic Response | Wieland GST18i3 3-way male | 100000 |
|
||
| 27973-3 | 26 | 3597 | 4000 | 80 | 600x600 | Delta | HB | Organic Response | Connection cable with plug, L=2.5 m | 100000 |
|
||
| 27973-340 | 26 | 3597 | 4000 | 80 | 600x600 | Delta | HB | Organic Response | Wago Winsta 3-way male | 100000 |
|
||
| 27973-519 | 26 | 3597 | 4000 | 80 | 600x600 | Delta | HB | Organic Response | Ensto 3-way male | 100000 |
|
||
| 27973T1L | 52 | 3597 (x2) | 4000 | 80 | 600x600 | Delta | HB | Organic Response | Fixed connection | 100000 | Twin 1 L |
|
|
| 27973T1L-111 | 52 | 3597 (x2) | 4000 | 80 | 600x600 | Delta | HB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 1 L |
|
|
| 27973T1L-3 | 52 | 3597 (x2) | 4000 | 80 | 600x600 | Delta | HB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 1 L |
|
|
| 27973T1L-340 | 52 | 3597 (x2) | 4000 | 80 | 600x600 | Delta | HB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 1 L |
|
|
| 27973T1L-519 | 52 | 3597 (x2) | 4000 | 80 | 600x600 | Delta | HB | Organic Response | Ensto 3-way male | 100000 | Twin 1 L |
|
|
| 27978 | 31 | 3516 | 3000 | 90 | 600x600 | Opal | VTB | Organic Response | Fixed connection | 100000 |
|
||
| 27978-111 | 32 | 3516 | 3000 | 90 | 600x600 | Opal | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 |
|
||
| 27978-3 | 31 | 3516 | 3000 | 90 | 600x600 | Opal | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 |
|
||
| 27978-340 | 32 | 3516 | 3000 | 90 | 600x600 | Opal | VTB | Organic Response | Wago Winsta 3-way male | 100000 |
|
||
| 27978-519 | 32 | 3516 | 3000 | 90 | 600x600 | Opal | VTB | Organic Response | Ensto 3-way male | 100000 |
|
||
| 27978T1L | 61 | 3516 (x2) | 3000 | 90 | 600x600 | Opal | VTB | Organic Response | Fixed connection | 100000 | Twin 1L |
|
|
| 27978T1L-111 | 61 | 3516 (x2) | 3000 | 90 | 600x600 | Opal | VTB | Organic Response | Wieland GST18i3 3-way male | 100000 | Twin 1L |
|
|
| 27978T1L-3 | 61 | 3516 (x2) | 3000 | 90 | 600x600 | Opal | VTB | Organic Response | Connection cable with plug, L=2.5 m | 100000 | Twin 1L |
|
|
| 27978T1L-340 | 61 | 3516 (x2) | 3000 | 90 | 600x600 | Opal | VTB | Organic Response | Wago Winsta 3-way male | 100000 | Twin 1L |
|
|
| 27978T1L-519 | 61 | 3516 (x2) | 3000 | 90 | 600x600 | Opal | VTB | Organic Response | Ensto 3-way male | 100000 | Twin 1L |
|
Showing 45 of 45 Accessories
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, suspended pipe conduit installation, 1 m cable. pipe not included. | 86409 | |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, surface mounted, 1 m cable | 86408 | |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, recessed, 3.2 m cable | 86410 | |
|
|
External Organic Response sensor incl. DALI PSU | Extern sensor incl. DALI PSU, suspended pipe conduit installation, 3.2 m cable. Pipe not included. | 86412 | |
|
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, surface mounted, 3.2 m cable | 86411 | |
|
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, recessed, 1 m cable | 86407 | |
|
WAGO T-connector | WAGO T-connector, 5-way, 2 locking levers, blue | 88228 | |
|
WAGO T-connector | WAGO T-Connector, 3-way, white | 91067 | |
|
Wieland T-connector | Wieland 5-way T-connector | 91026 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, labeled, white | 86437 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, labeled, white | 86436 | |
|
Organic Response I/O box | I/O box with potential-free 16A relay for controlling external units. | 86413 | |
|
Organic Response IoT Gateway | Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. | 86296 | |
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. | 92788 | |
|
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. | 92787 | |
|
|
Ensto connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92785 | |
|
|
Ensto connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92786 | |
|
Frame for surface mounting | Frame for surface mounting (600x600 VTB). Fits Multilume Flat (only standard and DALI), Dwide as well as Multilume Slim, Multilume Slim Hygiene & Multilume Re:Think with Organic Response. | 41026 | |
|
WAGO connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 91243 | |
|
Wieland T-connector | Wieland 3-way T-connector | 91025 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, white | 86417 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, white | 86416 | |
|
WAGO connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 91244 | |
|
Frame for surface mounting | Frame for surface mounting, H=60 (600x600). Fits Multilume Slim & Multilume Re:Think. Also with Organic Response (only with a fixed connection or cord and plug). | 41028 | |
|
Wieland connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92799 | |
|
Ensto T-connector | Ensto T-connector 3-way, white | 92783 | |
|
Ensto T-connector | Ensto T-connector 5-way, grey | 92784 | |
|
Wieland connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92793 | |
|
IR dongle for Organic Response | IR dongle for Organic Response equipped luminaire. | 86279 | |
|
Frame for surface mounting | Dwide Multilume Re:Think & Multilume Slim, Surface mounted frame, 600x600. | 41033 | |
|
Fence | Fence 600x600 white. Only for T-bars T24. | 41252 | |
|
Sky frame | Sky frame for ceiling window effect 600x600, white. Only for T-bars T24. | 41245 | |
|
Circle Ice | Circle Ice 600x600 White. | 41248 | |
|
Circle Edge | Circle with bevelled edge 600x600, White. | 41246 | |
|
Circle | Circle with straight edge 600x600, White. | 41247 | |
|
Compago | Compago framework 600x600, Grey. Only for T-bars T24. | 41250 | |
|
Compago | Compago framework 600x600, white. Only for T-bars T24. | 41249 | |
|
Cover plate for flat upper surface | Cover plate for flat upper surface, white (RAL 9016). | 41039 | |
|
Fence | Fence 600x600 champagne. Only for T-bars T24. | 41254 | |
|
Fence | Fence 600x600 black. Only for T-bars T24. | 41253 | |
|
Frame for pendant installation H=60 mm | Dwide & Multilume Slim pendant frame 600x600 incl. wires | 41034 | |
|
|
Organic Response I/O box | I/O box with potential-free 8A relay for controlling external units. | 86433 | |
|
Recessed frame solid ceiling | Recessed frame for VTB frame 600x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4,5kg | 41051 | |
|
Recessed frame solid ceiling | Recessed frame for VTB frame 300x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 3kg | 41048 | |
|
External Organic Response G3 Sensor excl. PSU. | External sensor excl. PSU. | 86519 |
Downloads
Return to top
