Multilume DroppedRecessed

Multiple mounting options

Multilume is a family of energy-efficient recessed luminaires that are easy to adapt to different ceilings. Multilume Dropped has a dropped louvre for increased ceiling luminance and pleasant ambient light.

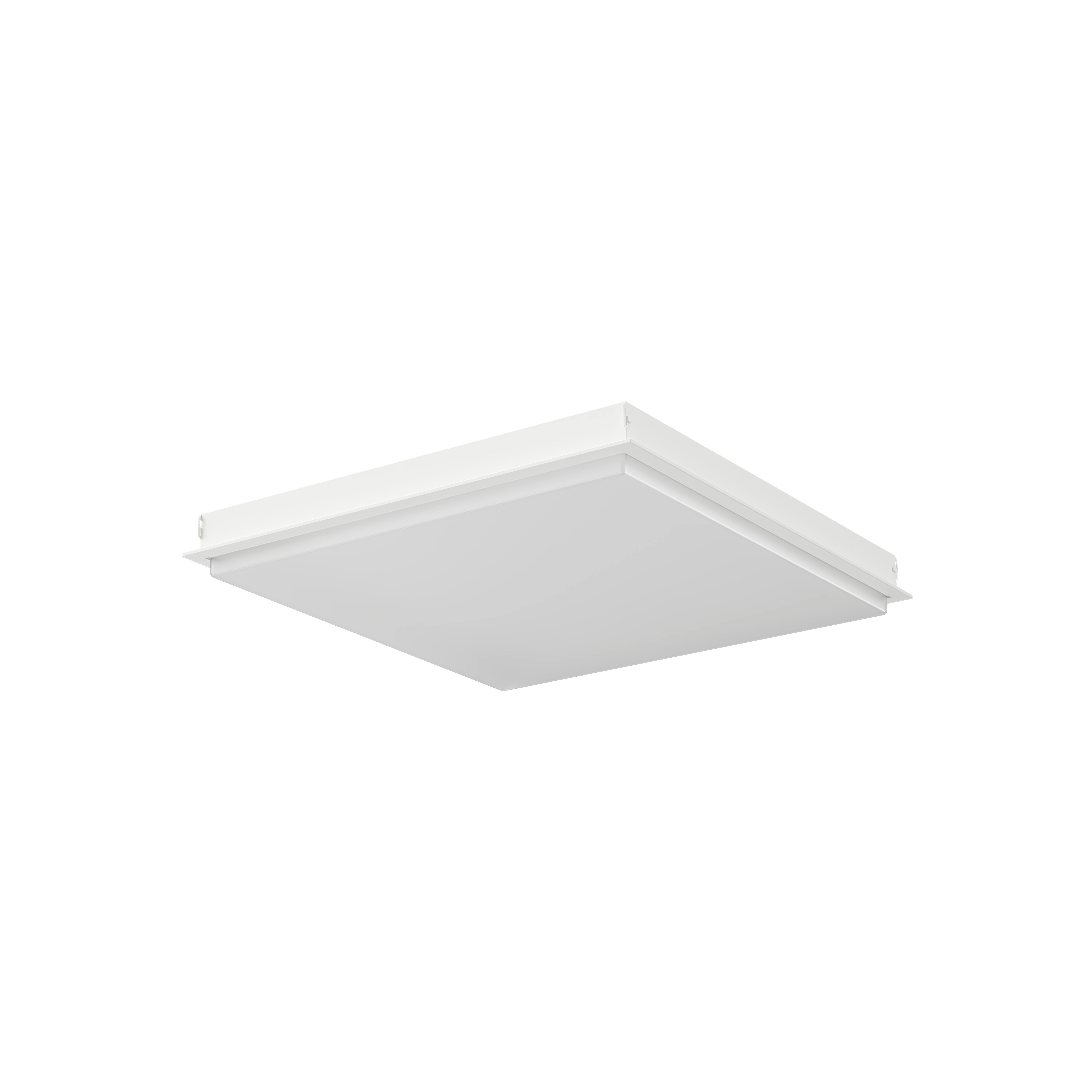

Multilume Dropped recessed 600x600 VTB opal

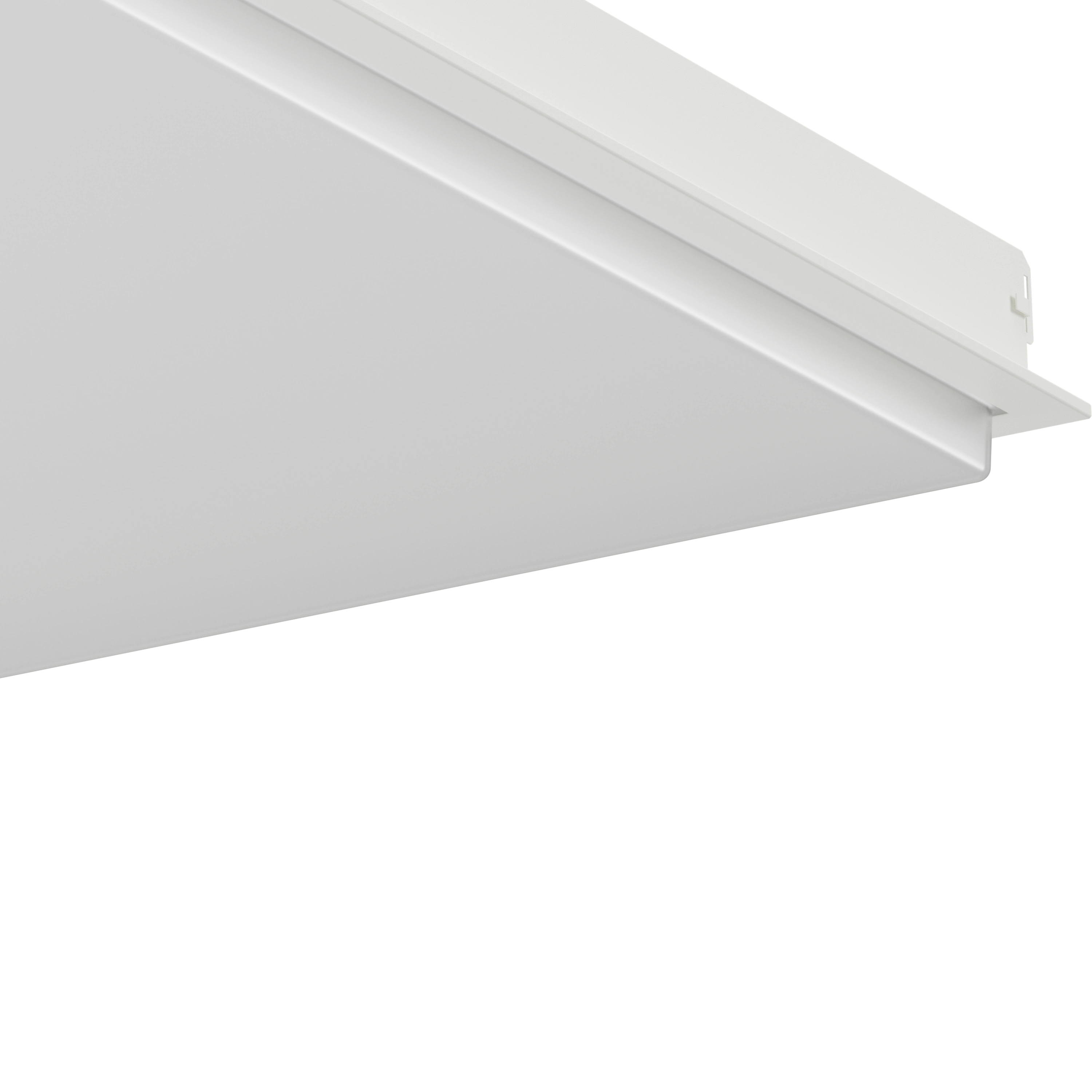

Multilume Dropped recessed 600x600 VTB opal Multilume Dropped Recessed Opal

Multilume DroppedRecessed

Multiple mounting options

Multilume is a family of energy-efficient recessed luminaires that are easy to adapt to different ceilings. Multilume Dropped has a dropped louvre for increased ceiling luminance and pleasant ambient light.


Installation

Luminaire for recessed installation in suspended ceilings. Unventilated or ventilated suspended ceilings.
VTB – for suspended ceilings with visible T-bars (15 or 24 mm).
HB – for suspended ceilings with concealed T-bars and symmetrical ceiling tile mount (thickness 20-22 mm). Supplement with suspension fittings for fixed suspended ceilings, see Accessories.
IP44 under a suspended ceiling, IP20 above a suspended ceiling. For detailed information, see the installation instructions.

Connection

For permanent connection in separate driver box. Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis mounted snap-in connector in the driver where a T-splitter or earthed mains cable and plug are possible. The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III. The supplied driver must be connected to the protective earth. CLO (Constant Light Output).

Design

Luminaire body made of sheet steel. Lacquered in white (RAL 9016 G40).


Light Distribution

Direct.

Light data

CCT, K:
3000 K, 4000 K
CRI/Rf:
80
SDCM:
3
Lumen output:
2772-4951lm
CLO:
50 000 h

Optics

Opal – frosted acrylic (PMMA) disc.

160lm/W

Energy efficiency from the most efficient article.

Read more about our products lifecycle

Less waste material

The material that has been cut out for the light opening is used as a top cover. By reducing the amount of waste and optimising resource use, we are able to save materials and reduce overall waste. At the same time, the product benefits from a lower carbon footprint.

High efficiency & reduced energy consumption

The product family includes models with very high efficiency – without compromising on light comfort. High efficiency gives rise to reductions in energy consumption, climate impact and operating costs. The luminaire’s good light comfort also means that fewer luminaires are needed to achieve the desired light level.

Constant Light Output (CLO)

The luminaire is available with Constant Light Output (CLO), providing the right level of light throughout it’s working life and thereby reducing energy consumption. CLO can save up to 36% energy compared to L70. It is also often the case that fewer luminaires are needed, reducing investment and operating costs as well as climate impact.


DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

On/Off

Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.

Articles

Showing 156 of 156 Articles
Art.no. System Wattage Lumen output CCT, K CRI Module Louvre Installation Light control Connection CLO time, h Miscellaneous Light data files Article PDF
23840 20 3080 3000 80 600x600 Opal VTB On/off Fixed connection
23840-111 20 3080 3000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23840-3 20 3080 3000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23840-340 20 3080 3000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23840-402 18 2772 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23840-519 20 3080 3000 80 600x600 Opal VTB On/off Ensto 3-way male
23840-520 18 2772 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23840-528 18 2772 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23840-529 18 2772 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23840T1L-402 36 2772 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23840T1L-520 36 2772 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23840T1L-528 36 2772 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23840T1L-529 36 2772 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23841 20 3080 3000 80 600x600 Opal HB On/off Fixed connection
23841-111 20 3080 3000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23841-3 20 3080 3000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23841-340 20 3080 3000 80 600x600 Opal VTB Wago Winsta 3-way male
23841-402 18 2772 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23841-519 20 3080 3000 80 600x600 Opal VTB On/off Ensto 3-way male
23841-520 18 2772 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23841-528 18 2772 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23841-529 18 2772 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23841T1L-402 36 2772 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23841T1L-520 36 2772 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23841T1L-528 36 2772 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23841T1L-529 36 2772 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23842 20 3169 4000 80 600x600 Opal VTB On/off Fixed connection
23842-111 20 3169 4000 80 600x600 Opal VTB Wieland GST18i3 3-way male
23842-3 20 3169 4000 80 600x600 Opal VTB Connection cable with plug, L=2.5 m
23842-340 20 3169 4000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23842-402 18 2852 4000 80 600x600 Opal VTB DALI/Phase-pulse 50000
23842-519 20 3169 4000 80 600x600 Opal VTB On/off Ensto 3-way male
23842-520 18 2852 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23842-528 18 2852 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23842-529 18 2852 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23842T1L-402 36 2852 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23842T1L-520 36 2852 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23842T1L-528 36 2852 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23842T1L-529 36 2852 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23843 20 3169 4000 80 600x600 Opal HB
23843-111 20 3169 4000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23843-3 20 3169 4000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23843-340 20 3169 4000 80 600x600 Opal HB Wago Winsta 3-way male
23843-402 18 2852 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23843-519 20 3169 4000 80 600x600 Opal HB On/off Ensto 3-way male
23843-520 18 2852 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23843-528 18 2852 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23843-529 18 2852 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23843T1L-402 36 2852 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23843T1L-520 36 2852 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23843T1L-528 36 2852 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23843T1L-529 36 2852 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23844 32 4951 3000 80 600x600 Opal VTB On/off Fixed connection
23844-111 32 4951 3000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23844-3 32 4951 3000 80 600x600 Opal VTB Connection cable with plug, L=2.5 m
23844-340 32 4951 3000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23844-402 29 4463 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23844-519 32 4951 3000 80 600x600 Opal VTB On/off Ensto 3-way male
23844-520 29 4463 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23844-528 29 4463 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23844-529 29 4463 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23844T1L-402 57 4463 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse 50000 Twin 1L
23844T1L-520 57 4463 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23844T1L-528 57 4463 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23844T1L-529 57 4463 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23845 32 4951 3000 80 600x600 Opal HB On/off Fixed connection
23845-111 32 4951 3000 80 600x600 Opal HB Wieland GST18i3 3-way male
23845-3 32 4951 3000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23845-340 32 4951 3000 80 600x600 Opal HB On/off Wago Winsta 3-way male
23845-402 29 4463 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23845-519 32 4951 3000 80 600x600 Opal HB On/off Ensto 3-way male
23845-520 29 4463 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23845-528 29 4463 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23845-529 29 4463 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23845T1L-402 57 4463 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23845T1L-520 57 4463 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23845T1L-528 57 4463 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23845T1L-529 57 4463 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23846 32 5094 4000 80 600x600 Opal VTB On/off Fixed connection
23846-111 32 5094 4000 80 600x600 Opal VTB Wieland GST18i3 3-way male
23846-3 32 5094 4000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23846-340 32 5094 4000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23846-402 29 4592 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23846-519 32 5094 4000 80 600x600 Opal VTB On/off Ensto 3-way male
23846-520 29 4592 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23846-528 29 4592 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23846-529 29 4592 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23846T1L-402 57 4592 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23846T1L-520 57 4592 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23846T1L-528 57 4592 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23846T1L-529 57 4592 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23847 32 5094 4000 80 600x600 Opal HB
23847-111 32 5094 4000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23847-3 32 5094 4000 80 600x600 Opal HB Connection cable with plug, L=2.5 m
23847-340 32 5094 4000 80 600x600 Opal HB Wago Winsta 3-way male
23847-402 29 4592 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23847-519 32 5094 4000 80 600x600 Opal HB On/off Ensto 3-way male
23847-520 29 4592 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23847-528 29 4592 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23847-529 29 4592 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23847T1L-402 57 4592 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23847T1L-520 57 4592 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23847T1L-528 57 4592 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23847T1L-529 57 4592 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23884 28 4253 3000 80 600x600 Opal VTB On/off Fixed connection
23884-111 28 4253 3000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23884-3 28 4253 3000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23884-340 28 4253 3000 80 600x600 Opal VTB Wago Winsta 3-way male
23884-402 25 3832 3000 80 600x600 Opal VTB DALI/Phase-pulse 50000
23884-519 28 4253 3000 80 600x600 Opal VTB On/off Ensto 3-way male
23884-520 25 3832 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23884-528 25 3832 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23884-529 25 3832 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23884T1L-402 49 3832 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23884T1L-520 49 3832 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23884T1L-528 49 3832 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23884T1L-529 49 3832 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23885 28 4253 3000 80 600x600 Opal HB On/off Fixed connection
23885-111 28 4253 3000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23885-3 28 4253 3000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23885-340 28 4253 3000 80 600x600 Opal HB Wago Winsta 3-way male
23885-402 25 3832 3000 80 600x600 Opal HB DALI/Phase-pulse 50000
23885-519 28 4253 3000 80 600x600 Opal HB Ensto 3-way male
23885-520 25 3832 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23885-528 25 3832 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23885-529 25 3832 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23885T1L-402 49 3832 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23885T1L-520 49 3832 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23885T1L-528 49 3832 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23885T1L-529 49 3832 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23886 28 4375 4000 80 600x600 Opal VTB On/off Fixed connection
23886-111 28 4375 4000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23886-3 28 4375 4000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23886-340 28 4375 4000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23886-402 25 3943 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23886-519 28 4375 4000 80 600x600 Opal VTB On/off Ensto 3-way male
23886-520 25 3943 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23886-528 25 3943 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23886-529 25 3943 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23886T1L-402 49 3943 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23886T1L-520 49 3943 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23886T1L-528 49 3943 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23886T1L-529 49 3943 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23887 28 4375 4000 80 600x600 Opal HB On/off Fixed connection
23887-111 28 4375 4000 80 600x600 Opal HB Wieland GST18i3 3-way male
23887-3 28 4375 4000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23887-340 28 4375 4000 80 600x600 Opal HB On/off Wago Winsta 3-way male
23887-402 25 3943 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23887-519 28 4375 4000 80 600x600 Opal HB On/off Ensto 3-way male
23887-520 25 3943 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23887-528 25 3943 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23887-529 25 3943 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23887T1L-402 49 3943 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23887T1L-520 49 3943 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23887T1L-528 49 3943 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23887T1L-529 49 3943 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L


Showing 22 of 22 Accessories
Name Description Art.no. Article PDF
Fixing brackets Fixing brackets/4 pcs. For fixed ceiling. Only for concealed T-bars (HB-body). 91279
WAGO T-connector WAGO T-connector, 5-way, 2 locking levers, blue 88228
WAGO T-connector WAGO T-Connector, 3-way, white 91067
Wieland T-connector Wieland 5-way T-connector 91026
no-image placeholder Ensto power cable Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. 92788
no-image placeholder Ensto power cable Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. 92787
no-image placeholder Ensto connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92785
no-image placeholder Ensto connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92786
Frame for surface mounting Frame for surface mounting (600x600 VTB). Fits Multilume Flat (only standard and DALI), Dwide as well as Multilume Slim, Multilume Slim Hygiene & Multilume Re:Think with Organic Response. 41026
WAGO connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 91243
Wieland T-connector Wieland 3-way T-connector 91025
WAGO connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 91244
no-image placeholder Recessed frame Recessed frame to Multilume Flat 600x600 VTB body for installation in suspended ceilings with concealed T-bars and symmetrical ceiling tiles (thickness 20-22 mm). 41038
Wieland connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92799
Ensto T-connector Ensto T-connector 3-way, white 92783
Ensto T-connector Ensto T-connector 5-way, grey 92784
Wieland connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92793
Fence Fence 600x600 white. Only for T-bars T24. 41252
Sky frame Sky frame for ceiling window effect 600x600, white. Only for T-bars T24. 41245
Fence Fence 600x600 champagne. Only for T-bars T24. 41254
Fence Fence 600x600 black. Only for T-bars T24. 41253
Recessed frame solid ceiling Recessed frame for VTB frame 600x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4,5kg 41051

Downloads

Multilume Dropped recessed

Documents

Open PDF
Open PDF

3D Models

Manuals

Open PDF
Return to top
