Stelo 75 FixedRecessed
Stelo is a compact, recessed downlight for corridors and communication areas. The luminaire is available in round or square variants, with baffles in several colours, and is IP54-rated for wet areas.
Stelo 75 FixedRecessed
Stelo is a compact, recessed downlight for corridors and communication areas. The luminaire is available in round or square variants, with baffles in several colours, and is IP54-rated for wet areas.
Installation
Luminaire for recessed installation in suspended ceilings. When installing in soft tile ceilings, mounting plates must be used, see Accessories. For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation. Do not cover with insulation. IP44 under a suspended ceiling, IP20 above a suspended ceiling. For detailed information, see the installation instructions.
Connection
The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III. CLO (Constant Light Output).
Design

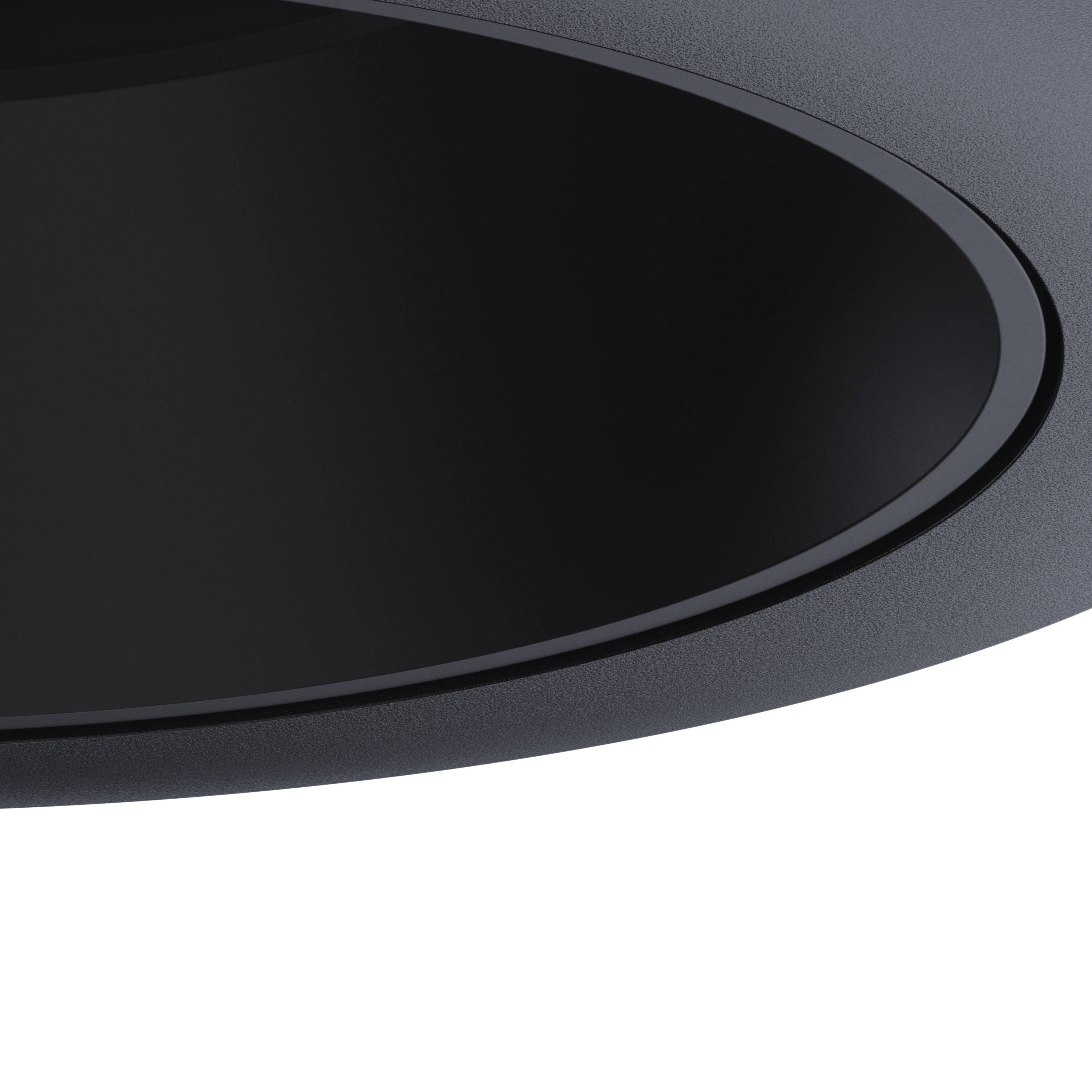

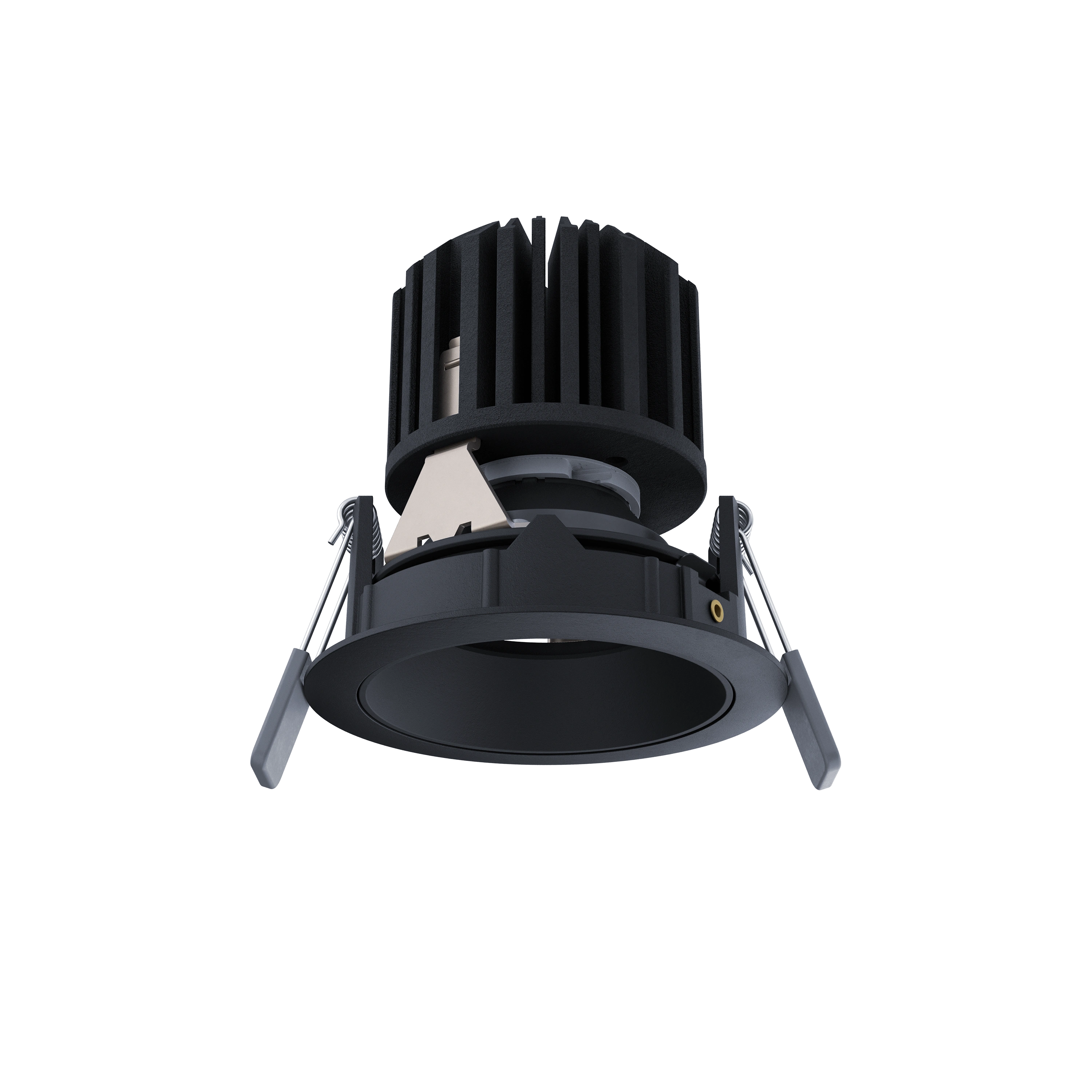

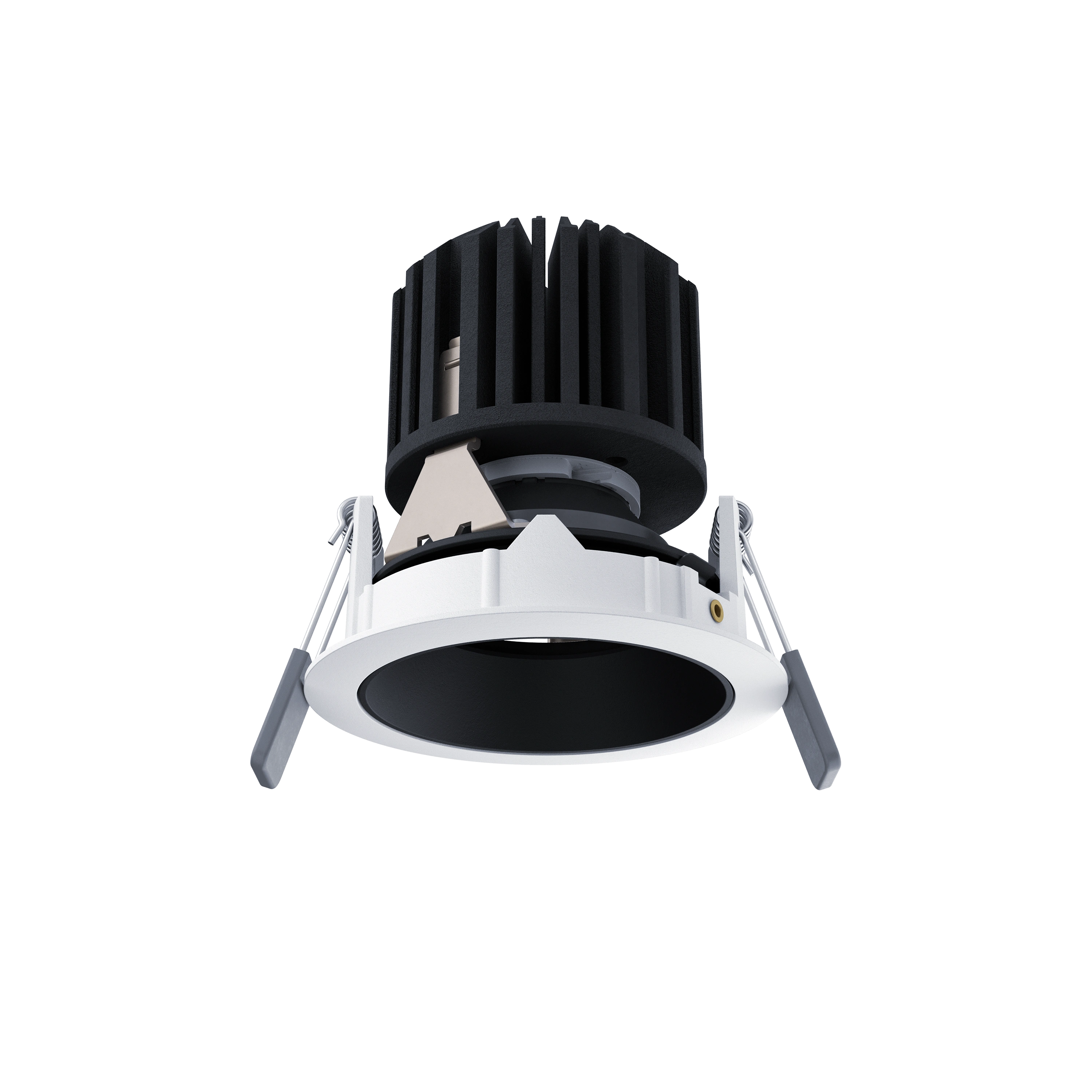

Luminaire housing made of aluminium. Heat sink lacquered black and front ring lacquered white (RAL 9016) or black (RAL 9017). Baffle lacquered in white (RAL 9016) or black (RAL 9017). Front ring in round or square design.
Light Distribution
Wide Beam.
Light data
Optics
Lens.
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
On/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | CRI | Colour | Diameter, mm | Dimensions, mm | Light distribution | Light control | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 69005 | 10 | 783 | 3000 | 90 | White/white | 86 | 100 | Wide Beam, 49° | On/off | Round |
|
|
| 69005-402 | 10 | 783 | 3000 | 90 | White/white | 86 | 100 | Wide Beam, 49° | DALI/Phase-pulse | Round |
|
|
| 69006 | 10 | 755 | 3000 | 90 | White/black | 86 | 100 | Wide Beam, 48° | On/off | Round |
|
|
| 69006-402 | 10 | 755 | 3000 | 90 | White/black | 86 | 100 | Wide Beam, 48° | DALI/Phase-pulse | Round |
|
|
| 69007 | 10 | 783 | 3000 | 90 | White/white | 86 | 100 | Wide Beam, 49° | On/off | Square |
|
|
| 69007-402 | 10 | 783 | 3000 | 90 | White/white | 86 | 100 | Wide Beam, 49° | DALI/Phase-pulse | Square |
|
|
| 69008 | 10 | 755 | 3000 | 90 | White/black | 86 | 100 | Wide Beam, 48° | On/off | Square |
|
|
| 69008-402 | 10 | 755 | 3000 | 90 | White/black | 86 | 100 | Wide Beam, 48° | DALI/Phase-pulse | Square |
|
|
| 69009 | 10 | 740 | 3000 | 90 | White/white | 86 | 100 | Wide Beam, 49° | On/off | Round, IP54 |
|
|
| 69009-402 | 10 | 740 | 3000 | 90 | White/white | 86 | 100 | Wide Beam, 49° | DALI/Phase-pulse | Round, IP54 |
|
|
| 69010 | 10 | 712 | 3000 | 90 | White/black | 86 | 100 | Wide Beam, 49° | On/off | Round, IP54 |
|
|
| 69010-402 | 10 | 712 | 3000 | 90 | White/black | 86 | 100 | Wide Beam, 49° | DALI/Phase-pulse | Round, IP54 |
|
|
| 69011 | 10 | 740 | 3000 | 90 | White/white | 86 | 100 | Wide Beam, 49° | On/off | Square, IP54 |
|
|
| 69011-402 | 10 | 740 | 3000 | 90 | White/white | 86 | 100 | Wide Beam, 49° | DALI/Phase-pulse | Square, IP54 |
|
|
| 69012 | 10 | 712 | 3000 | 90 | White/black | 86 | 100 | Wide Beam, 49° | On/off | Square, IP54 |
|
|
| 69012-402 | 10 | 712 | 3000 | 90 | White/black | 86 | 100 | Wide Beam, 49° | DALI/Phase-pulse | Square, IP54 |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Mounting plate | Mounting plate for soft tile ceiling, Ø 75, Ø 95, Ø 107 | 41982 | |
|
e-Sense Stage RTC Backup | e-Sense Stage Stand-Alone Control Box RTC Backup | 99816 | |
|
|
e-Sense Stage Relay | e-Sense Stage Stand-Alone Control Box Relay | 99814 | |
|
|
e-Sense Stage Trailing Edge | e-Sense Stage Stand-Alone Control Box Trailing Edge | 99813 | |
|
e-Sense Stage 4CH PWM | e-Sense Stage Stand-Alone Control Box 4 CH PWM | 99815 | |
|
|
e-Sense Stage Stand-alone DALI | e-Sense Stage Stand-Alone Control Box DALI | 99812 | |
|
Honeycomb louvre | Honeycomb louvre Ø 50 mm black | 98966 | |
|
Xpress push button panel | Xpress push button panel with long range, white. | 82178 | |
|
Xpress push button panel | Xpress push button panel with long range, black. | 82179 |
