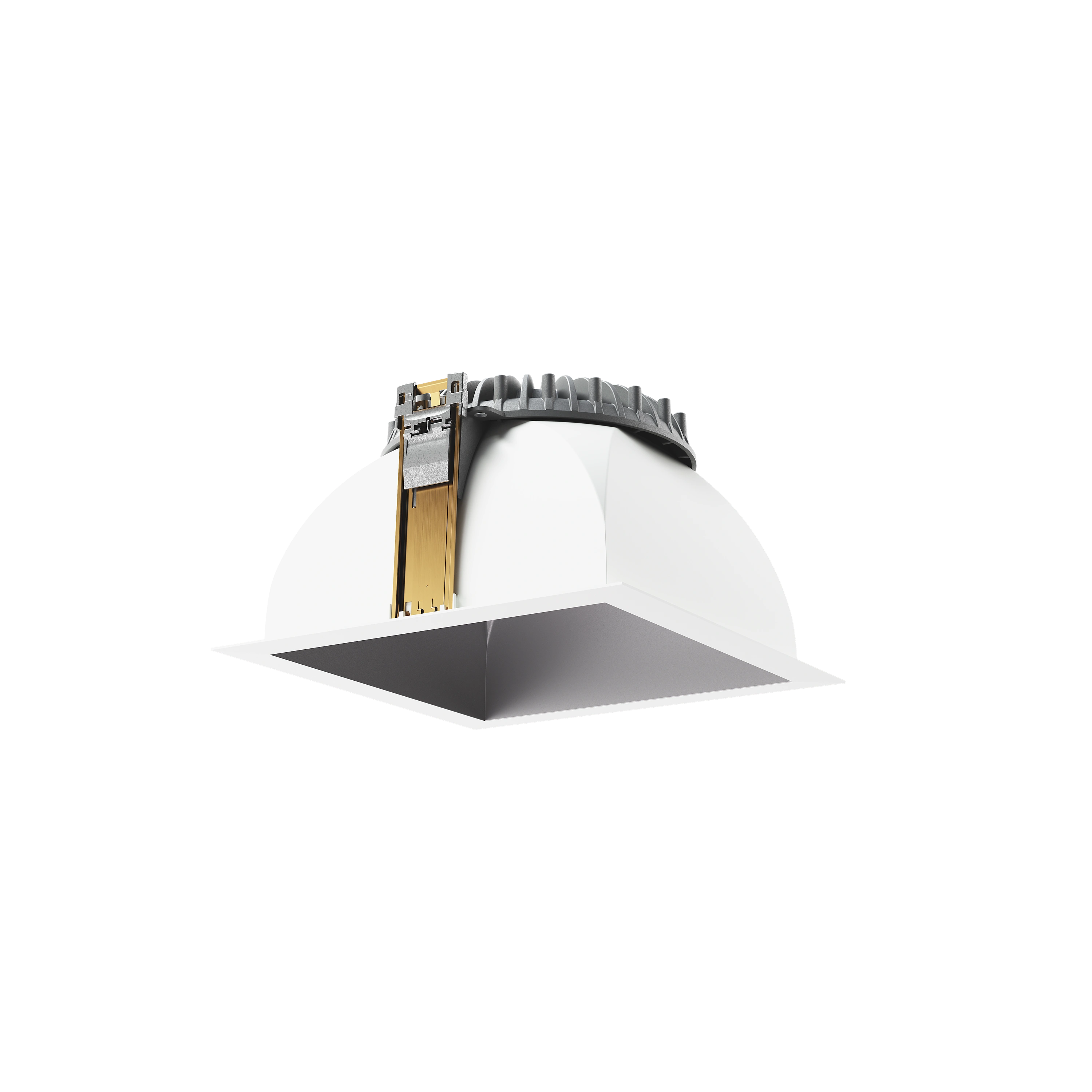

Pleiad G4 SquareRecessed
Pleiad G4 is a classic Fagerhult luminaire that continues to evolve. Square is a square downlight with high luminous fluxes and several reflector options. A versatile luminaire with good light comfort, high energy efficiency and patented quick installation.
Pleiad G4 SquareRecessed
Pleiad G4 is a classic Fagerhult luminaire that continues to evolve. Square is a square downlight with high luminous fluxes and several reflector options. A versatile luminaire with good light comfort, high energy efficiency and patented quick installation.
Installation
Luminaire for recessed installation in suspended ceilings. Unventilated or ventilated suspended ceilings. IP64 under a suspended ceiling, IP20 above a suspended ceiling. A mounting plate must be used when mounting on soft tile ceilings. For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation. For detailed information, see the installation instructions.
See installation video Pleiad G4Connection
For permanent connection in separate driver box. Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis mounted snap-in connector in the driver where a T-splitter or earthed mains cable and plug are possible. The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III. The supplied driver must be connected to the protective earth. CLO (Constant Light Output).
Design

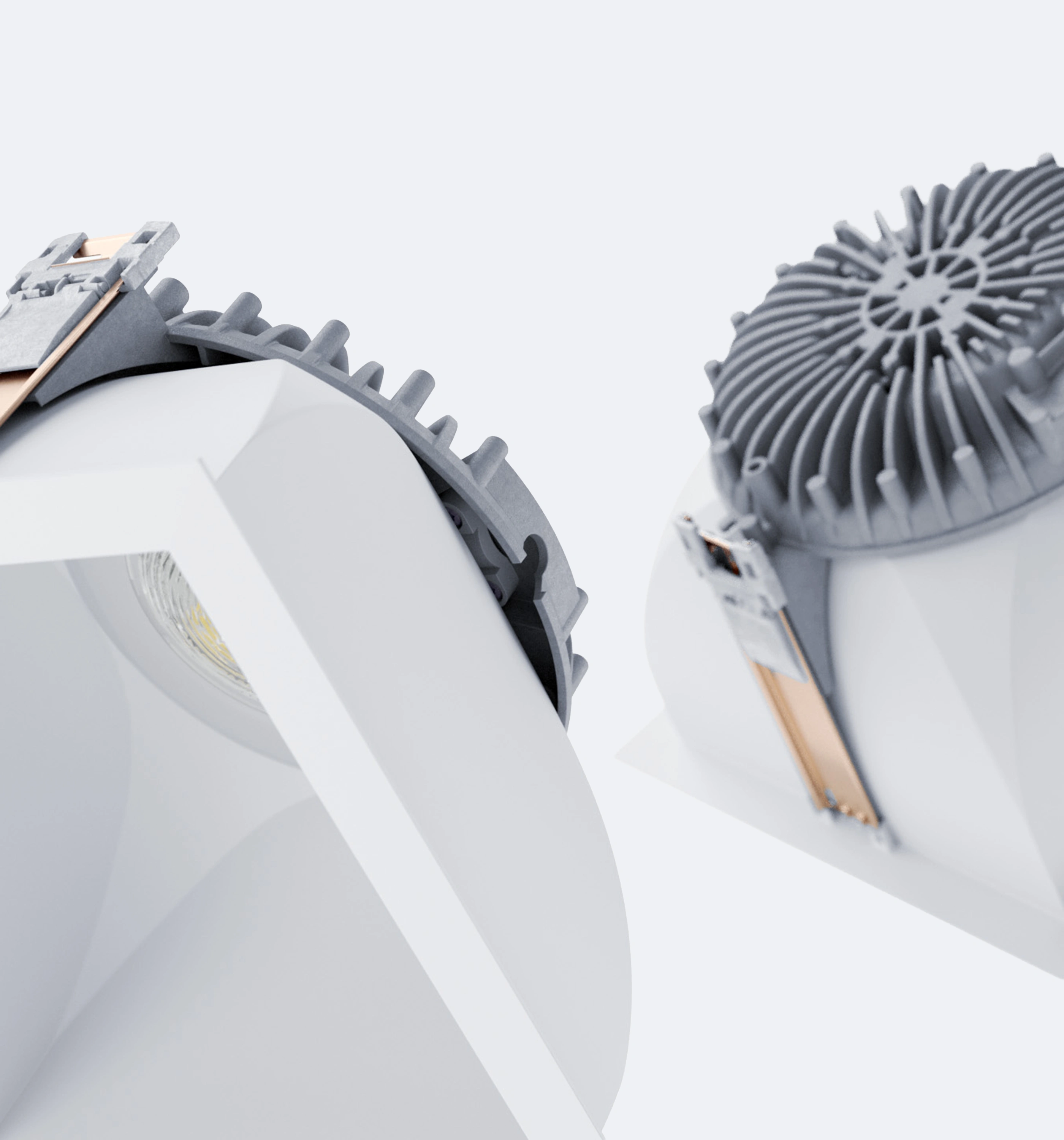

Cast aluminium luminaire body, made from 100% post-consumer recycled material. Visible reflector edge in white (RAL 9003) PBT plastic.
Light Distribution

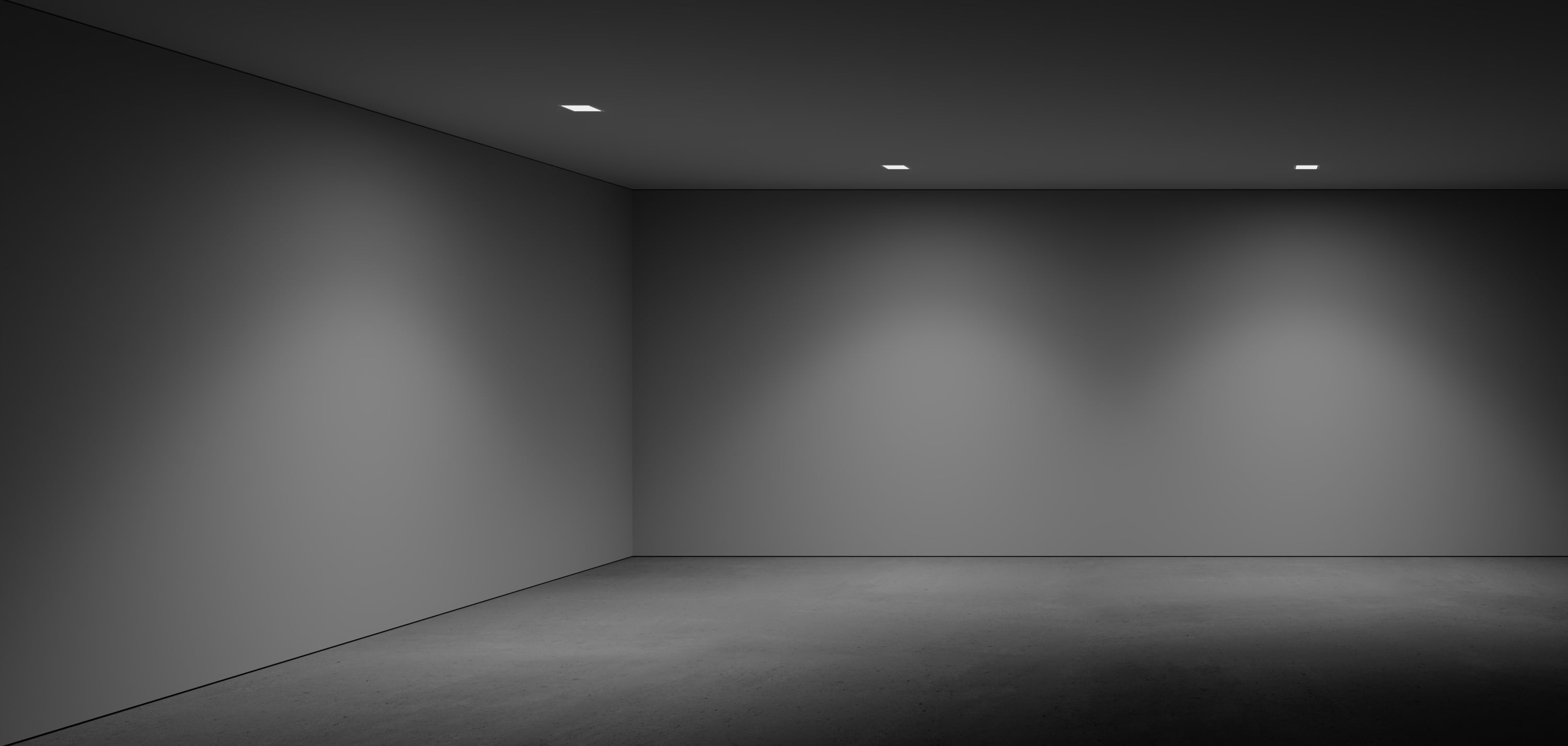

Direct. Medium or wide beam.
Light data
Optics

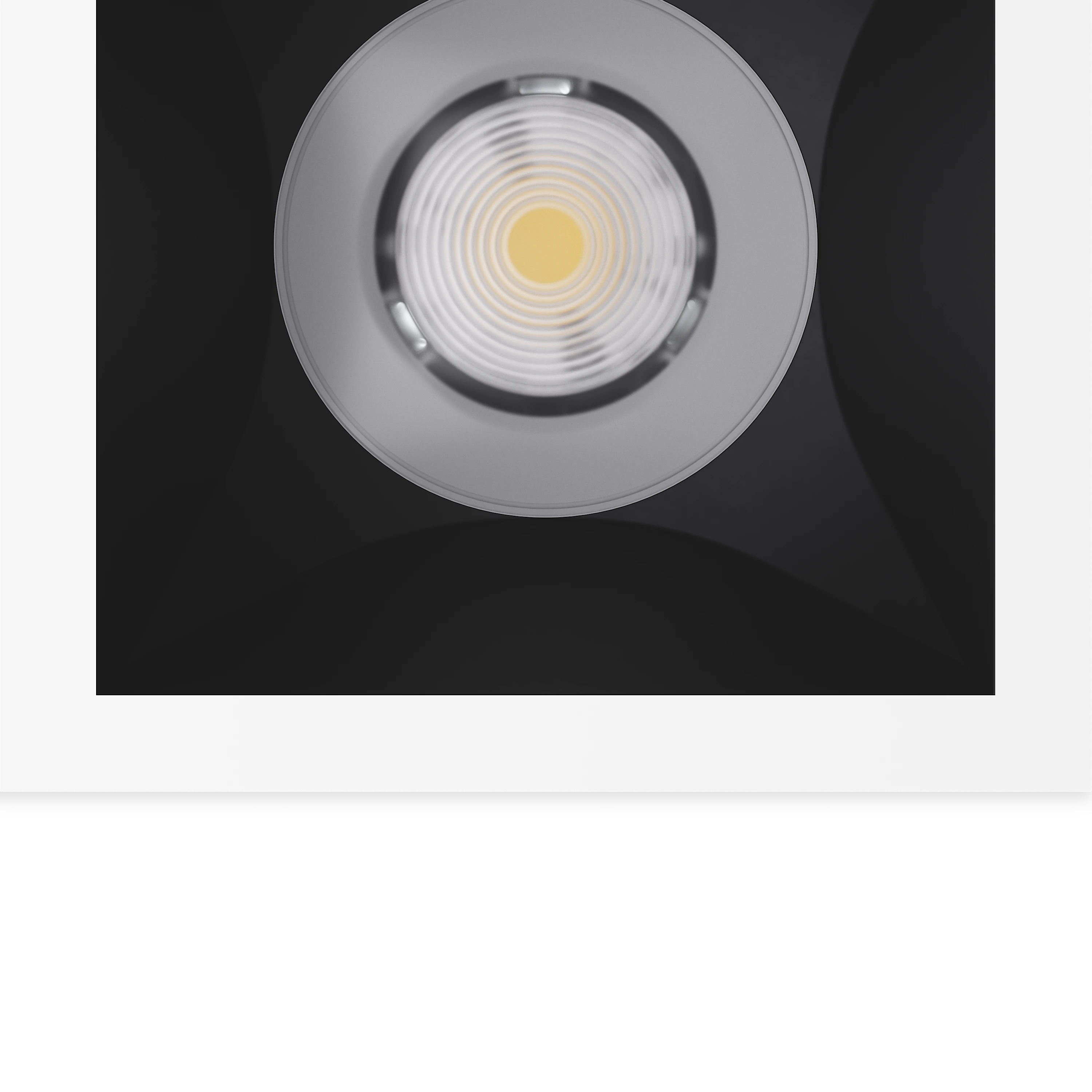

Reflector of matt metallised aluminium, enamelled in white (RAL 9003) or black (RAL 9005) finish.
High efficiency & reduced energy consumption
The product family includes models with very high efficiency – without compromising on light comfort. High efficiency gives rise to reductions in energy consumption, climate impact and operating costs. The luminaire’s good light comfort also means that fewer luminaires are needed to achieve the desired light level.
Made of recycled aluminium
The product contains die-cast aluminium, a material that in our products consists of approximately 85% recycled content. By using recycled aluminium, energy consumption is reduced by up to 95% compared to virgin aluminium (Source: European Aluminium). This entails a significantly lower carbon footprint.
Twin Dual Driver
The product can be powered by the Twin Dual Driver, a driver that powers two luminaires. With streamlined electronics and an updated material composition, we have reduced the overall climate impact of the driver by 49%, while maintaining safety, faster installation and easier product use.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
On/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
Articles
Configure your Pleiad G4 Square
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
WAGO T-connector | WAGO T-connector, 5-way, 2 locking levers, blue | 88228 | |
|
WAGO T-connector | WAGO T-Connector, 3-way, white | 91067 | |
|
Wieland T-connector | Wieland 5-way T-connector | 91026 | |
|
Mounting plate | Mounting plate and support bars 600 mm | 41758 | |
|
|
Mounting plate | Mounting plate | 41682 | |
|
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. | 92788 | |
|
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. | 92787 | |
|
|
Ensto connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92785 | |
|
|
Ensto connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92786 | |
|
WAGO connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 91243 | |
|
Wieland T-connector | Wieland 3-way T-connector | 91025 | |
|
WAGO connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 91244 | |
|
|
Mounting plate | Mounting plate and support bars 625 mm | 41759 | |
|
|
Mounting plate | Mounting plate HB. Adapted for square downlights with recess dimensions 165x165. | 41683 | |
|
Wieland connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92799 | |
|
Ensto T-connector | Ensto T-connector 3-way, white | 92783 | |
|
Ensto T-connector | Ensto T-connector 5-way, grey | 92784 | |
|
Wieland connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92793 | |
|
|
Retrofit kit Square | Retrofit kit Ø 168–270 mm | 41344 | |
|
External Organic Response G3 Sensor excl. PSU. | External sensor excl. PSU. | 86519 |
