emLED-scRecessed

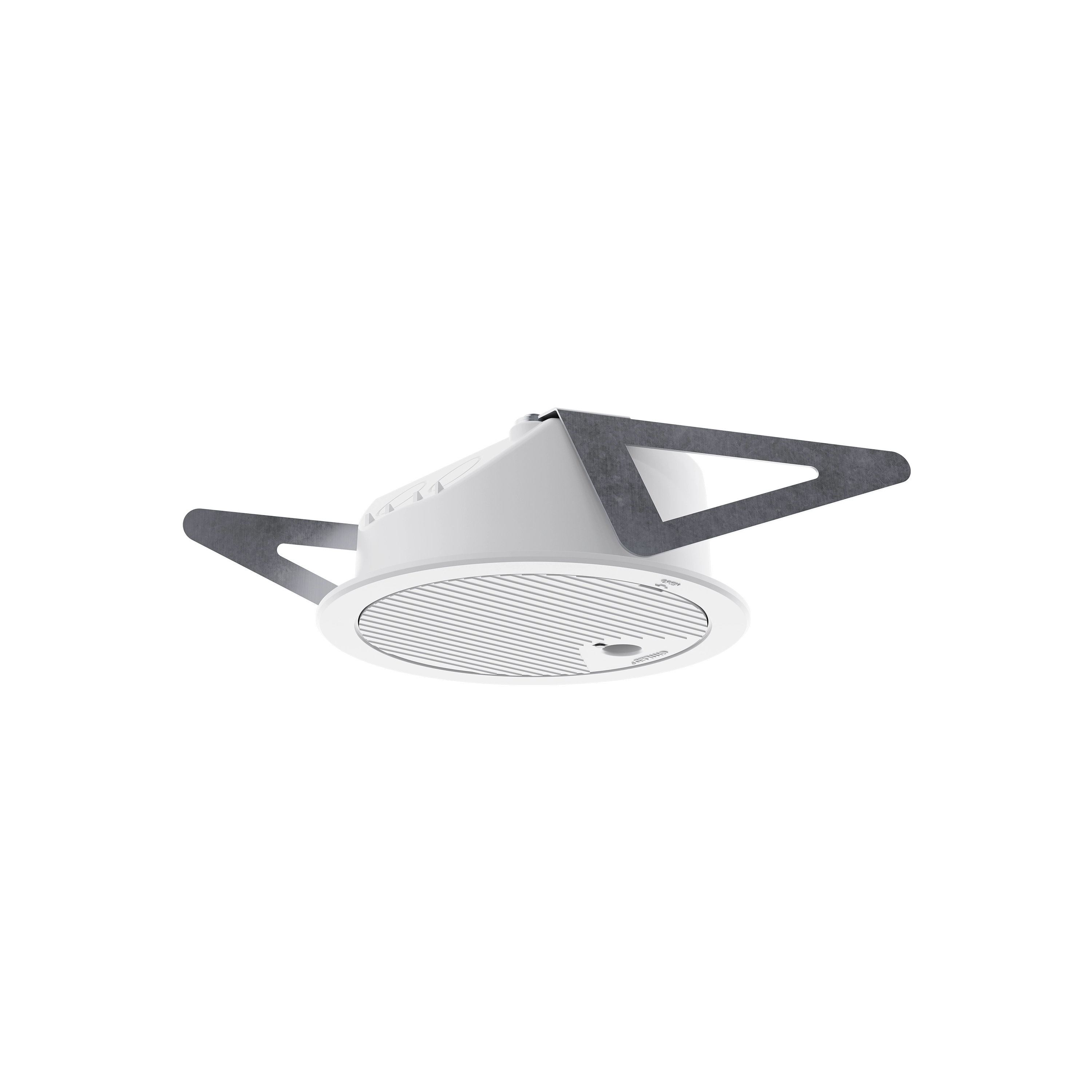

Fagerhult emLED is a family of emergency lighting luminaires with a long lifespan. The emLED-sc variant is an emergency lighting luminaire for recessed or surface mounting. External power supply via central system.
emLED-scRecessed
Fagerhult emLED is a family of emergency lighting luminaires with a long lifespan. The emLED-sc variant is an emergency lighting luminaire for recessed or surface mounting. External power supply via central system.
Installation
Luminaire for recessed mounting or surface mounting. IP40. When recessed, the product accommodates ceiling thicknesses between 5 and 25 mm. Also for ventilated areas. Decor ring for surface mounting enclosed. For detailed information, see the installation instructions.
Connection
Phase, neutral conductor and possible protective earth. The detachable lower section housing the electronics and battery where applicable is connected to the terminal block in the luminaire body with a “plug-in” connection. Through-wiring of 2.5 mm² cable possible (all poles). Cable entries fitted with blanking grommets on the top. Strain relief for movable conductors with recess mounting supplied. Decor ring is prepared for a surface-mounted mains cable. This luminaire is not intended for continuous operation.
Design
Plastic parts of PC/ABS-plastic. Spring clips for recess mounting made of stainless spring steel.
Light Distribution
Direct.
Optics
Lens.
Articles
| Art.no. | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|
| 98155 | 198–264 V/50–60 Hz alt. 154–276 DC. For central supply via e.g. an inverter or another type of uninterrupted power supply (UPS). |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Mounting plate | Mounting plate for soft tile ceiling, Ø 75, Ø 95, Ø 107 | 41982 |
