Multilume Slim HygieneRecessed

Multiple mounting options

Multilume Slim Hygien is an energy-efficient luminaire with a low recess depth, designed for environments with high hygiene requirements. It is cleanroom-rated to the ISO 14644 standard and can withstand alcohol-based cleaning agents.

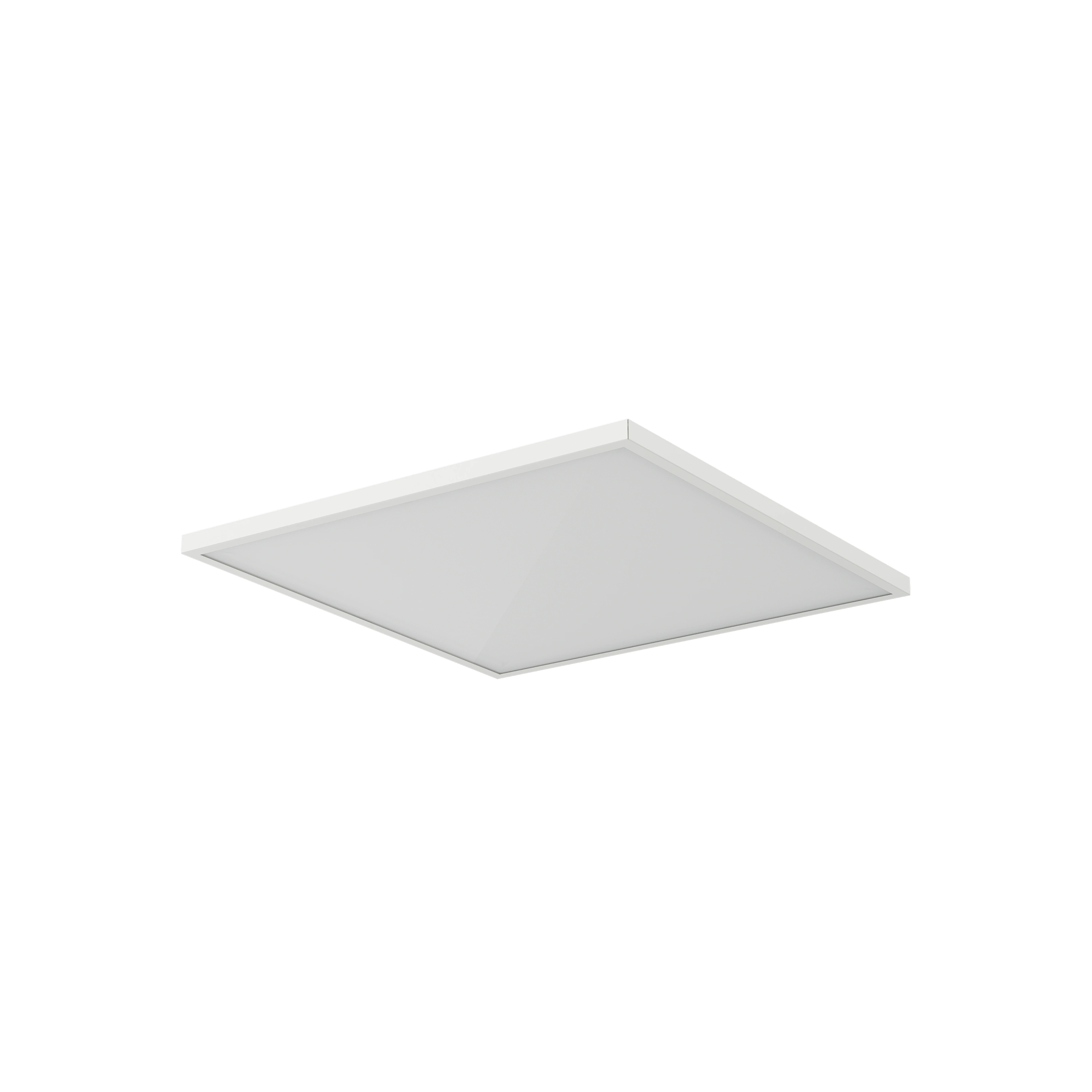

Multilume Slimhygien recessed 600x600 VTB delta
White RAL 9016
Multilume Slimhygien recessed 600x600 VTB delta Multilume Slim Hygien Recessed Delta

Multilume Slim HygieneRecessed

Multiple mounting options

Multilume Slim Hygien is an energy-efficient luminaire with a low recess depth, designed for environments with high hygiene requirements. It is cleanroom-rated to the ISO 14644 standard and can withstand alcohol-based cleaning agents.


Installation

Luminaire for recessed installation in suspended ceilings. Unventilated or ventilated suspended ceilings.
VTB – for suspended ceilings with visible T-bars (15 or 24 mm). IP44 under a suspended ceiling, IP20 above a suspended ceiling. For detailed information, see the installation instructions.

Connection

For permanent connection in separate driver box. Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis mounted snap-in connector in the driver where a T-splitter or earthed mains cable and plug are possible. The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III. The supplied driver must be connected to the protective earth. CLO (Constant Light Output).

Design

Luminaire body made of sheet steel. Lacquered in white (RAL 9016 G40).

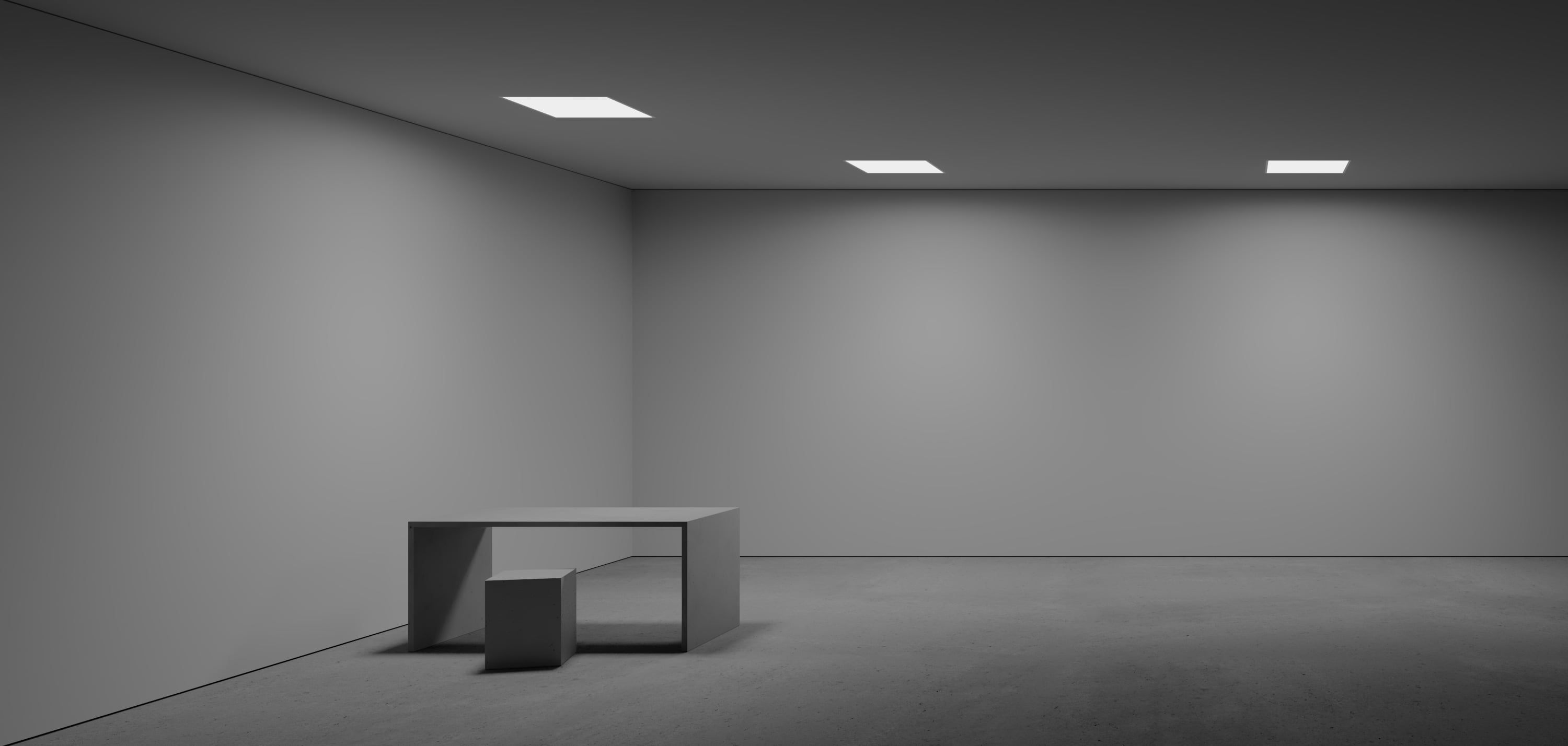

Light Distribution

Direct.

Light data

CCT, K:
3000 K, 4000 K, 2700-6500 K (TW)
CRI/Rf:
80, 90
SDCM:
3
Lumen output:
1787-4268 lm
CLO:
100 000 h

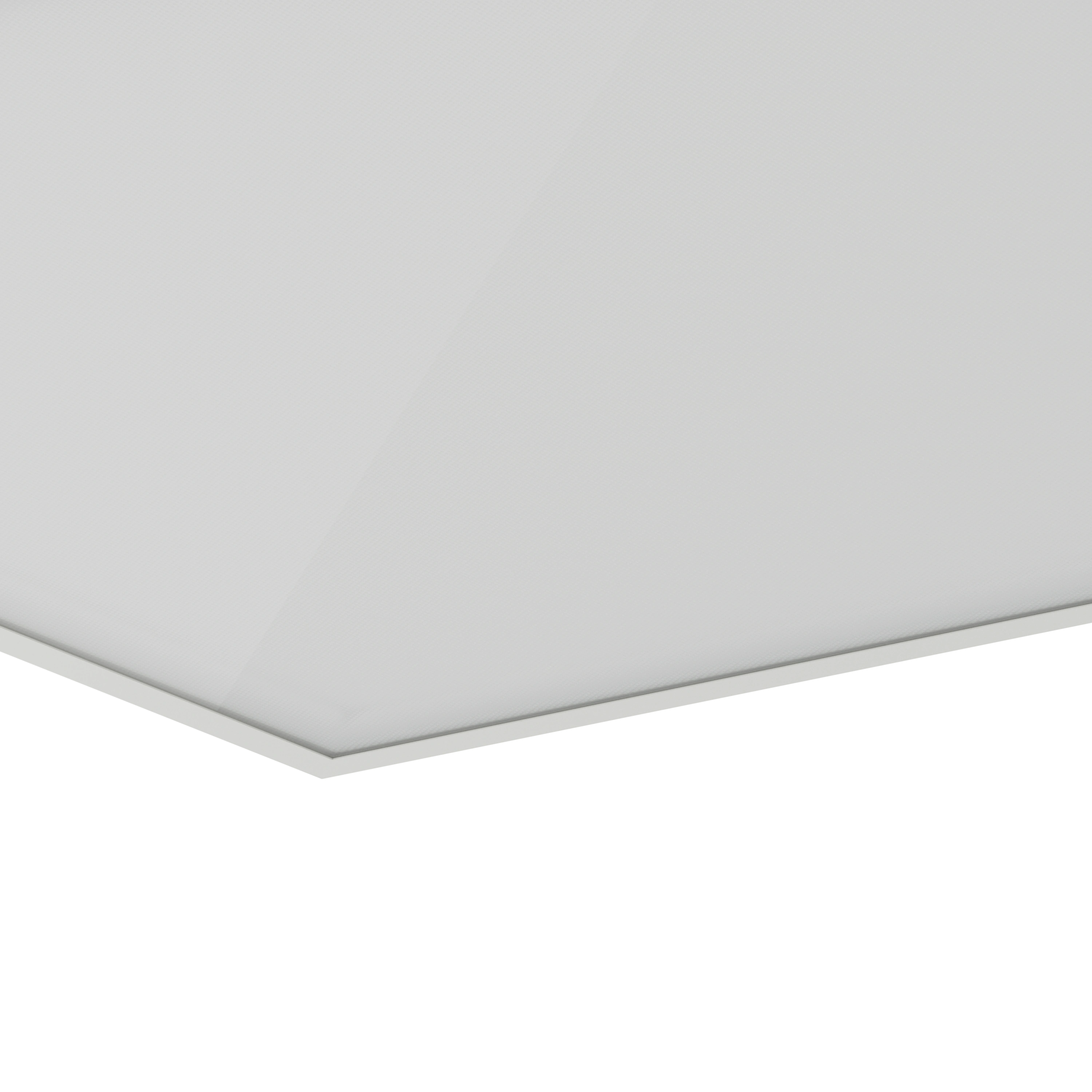

Optics

Delta – micro-prism louvre made of acrylic (PMMA) above hardened 4 mm glass cover.

150lm/W

Energy efficiency from the most efficient article.

Read more about our products lifecycle

Less waste material

The material that has been cut out for the light opening is used as a top cover. By reducing the amount of waste and optimising resource use, we are able to save materials and reduce overall waste. At the same time, the product benefits from a lower carbon footprint.

High efficiency & reduced energy consumption

The product family includes models with very high efficiency – without compromising on light comfort. High efficiency gives rise to reductions in energy consumption, climate impact and operating costs. The luminaire’s good light comfort also means that fewer luminaires are needed to achieve the desired light level.

Twin Dual Driver

The product can be powered by the Twin Dual Driver, a driver that powers two luminaires. With streamlined electronics and an updated material composition, we have reduced the overall climate impact of the driver by 49%, while maintaining safety, faster installation and easier product use.


DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

DALI

Enables flexible and precise control of luminaires – easy installation with two-wire system for both power and control.

Read more

On/Off

Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.

Articles

Showing 161 of 161 Articles
Art.no. System Wattage Lumen output CCT, K CRI Module Louvre Installation Light control Connection CLO time, h Miscellaneous Light data files Article PDF
20358 31 3979 600x600 Delta VTB DALI Fixed connection 100000 Tunable White
20360 32 4268 3000 80 600x600 Delta VTB On/off Fixed connection
20360-111 32 4268 3000 80 600x600 Delta VTB On/off Wieland GST18i3 3-way male
20360-3 32 4268 3000 80 600x600 Delta VTB On/off Connection cable with plug, L=2.5 m
20360-340 32 4268 3000 80 600x600 Delta VTB On/off Wago Winsta 3-way male
20360-402 30 4173 3000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 100000
20360-519 32 4268 3000 80 600x600 Delta VTB On/off Ensto 3-way male
20360-520 30 4173 3000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
20360-528 30 4173 3000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
20360-529 30 4173 3000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
20360T1L-402 60 4173 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 100000 Twin 1L
20360T1L-520 60 4173 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 Twin 1L
20360T1L-528 60 4173 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Twin 1L
20360T1L-529 60 4173 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 Twin 1L
20361 30 4194 4000 80 600x600 Delta VTB On/off Fixed connection
20361-111 32 4268 4000 80 600x600 Delta VTB On/off Wieland GST18i3 3-way male
20361-3 32 4268 4000 80 600x600 Delta VTB On/off Connection cable with plug, L=2.5 m
20361-340 32 4268 4000 80 600x600 Delta VTB On/off Wago Winsta 3-way male
20361-402 30 4173 4000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 100000
20361-519 32 4268 4000 80 600x600 Delta VTB On/off Ensto 3-way male
20361-520 30 4173 4000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
20361-528 30 4173 4000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
20361-529 30 4173 4000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
20361T1L-402 60 4173 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 100000 Twin 1L
20361T1L-520 60 4173 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 Twin 1L
20361T1L-528 60 4173 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Twin 1L
20361T1L-529 60 4173 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 Twin 1L
20362 32 3329 3000 90 600x600 Delta VTB On/off Fixed connection
20362-111 32 3329 3000 90 600x600 Delta VTB On/off Wieland GST18i3 3-way male
20362-3 32 3329 3000 90 600x600 Delta VTB On/off Connection cable with plug, L=2.5 m
20362-340 32 3329 3000 90 600x600 Delta VTB On/off Wago Winsta 3-way male
20362-402 30 3255 3000 90 600x600 Delta VTB DALI/Phase-pulse Fixed connection 100000
20362-519 32 3329 3000 90 600x600 Delta VTB On/off Ensto 3-way male
20362-520 30 3255 3000 90 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
20362-528 30 3255 3000 90 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
20362-529 30 3255 3000 90 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
20362T1L-402 60 3255 (x2) 3000 90 600x600 Delta VTB DALI/Phase-pulse Fixed connection 100000 Twin 1L
20362T1L-520 60 3255 (x2) 3000 90 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 Twin 1L
20362T1L-528 60 3255 (x2) 3000 90 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Twin 1L
20362T1L-529 60 3255 (x2) 3000 90 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 Twin 1L
20363 32 3414 4000 90 600x600 Delta VTB On/off Fixed connection
20363-111 32 3414 4000 90 600x600 Delta VTB On/off Wieland GST18i3 3-way male
20363-3 32 3414 4000 90 600x600 Delta VTB On/off Connection cable with plug, L=2.5 m
20363-340 32 3414 4000 90 600x600 Delta VTB On/off Wago Winsta 3-way male
20363-402 30 3338 4000 90 600x600 Delta VTB DALI/Phase-pulse Fixed connection 100000
20363-519 32 3414 4000 90 600x600 Delta VTB On/off Ensto 3-way male
20363-520 30 3338 4000 90 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
20363-528 30 3338 4000 90 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
20363-529 30 3338 4000 90 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
20363T1L-402 60 3338 (x2) 4000 90 600x600 Delta VTB DALI/Phase-pulse Fixed connection 100000 Twin 1L
20363T1L-520 60 3338 (x2) 4000 90 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 Twin 1L
20363T1L-528 60 3338 (x2) 4000 90 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Twin 1L
20363T1L-529 60 3338 (x2) 4000 90 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 Twin 1L
20364 20 1928 3000 80 300x600 Delta VTB On/off Fixed connection
20364-111 20 1928 3000 80 300x600 Delta VTB On/off Wieland GST18i3 3-way male
20364-3 20 1928 3000 80 300x600 Delta VTB On/off Connection cable with plug, L=2.5 m
20364-340 20 1928 3000 80 300x600 Delta VTB On/off Wago Winsta 3-way male
20364-402 17 1787 3000 80 300x600 Delta VTB DALI/Phase-pulse Fixed connection 100000
20364-519 20 1928 3000 80 300x600 Delta VTB On/off Ensto 3-way male
20364-520 17 1787 3000 80 300x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
20364-528 17 1787 3000 80 300x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
20364-529 17 1787 3000 80 300x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
20364T1L-402 35 1787 (x2) 3000 80 300x600 Delta VTB DALI/Phase-pulse Fixed connection 100000 Twin 1L
20364T1L-520 35 1787 (x2) 3000 80 300x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 Twin 1L
20364T1L-528 35 1787 (x2) 3000 80 300x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Twin 1L
20364T1L-529 35 1787 (x2) 3000 80 300x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 Twin 1L
20365 20 1928 4000 80 300x600 Delta VTB On/off Fixed connection
20365-111 20 1928 4000 80 300x600 Delta VTB On/off Wieland GST18i3 3-way male
20365-3 20 1928 4000 80 300x600 Delta VTB On/off Connection cable with plug, L=2.5 m
20365-340 20 1928 4000 80 300x600 Delta VTB On/off Wago Winsta 3-way male
20365-402 17 1787 4000 80 300x600 Delta VTB DALI/Phase-pulse Fixed connection 100000
20365-519 20 1928 4000 80 300x600 Delta VTB On/off Ensto 3-way male
20365-520 17 1787 4000 80 300x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
20365-528 17 4000 80 300x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
20365-529 17 1787 4000 80 300x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
20365T1L-402 35 1787 (x2) 4000 80 300x600 Delta VTB DALI/Phase-pulse Fixed connection 100000 Twin 1L
20365T1L-520 35 1787 (x2) 4000 80 300x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 Twin 1L
20365T1L-528 35 1787 (x2) 4000 80 300x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Twin 1L
20365T1L-529 35 1787 (x2) 4000 80 300x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 Twin 1L
20366 20 1504 3000 90 300x600 Delta VTB On/off Fixed connection
20366-111 20 1504 3000 90 300x600 Delta VTB On/off Wieland GST18i3 3-way male
20366-3 20 1504 3000 90 300x600 Delta VTB On/off Connection cable with plug, L=2.5 m
20366-340 20 1504 3000 90 300x600 Delta VTB On/off Wago Winsta 3-way male
20366-402 17 1394 3000 90 300x600 Delta VTB DALI/Phase-pulse Fixed connection 100000
20366-519 20 1504 3000 90 300x600 Delta VTB On/off Ensto 3-way male
20366-520 17 1394 3000 90 300x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
20366-528 17 1394 3000 90 300x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
20366-529 17 1394 3000 90 300x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
20366T1L-402 35 1394 (x2) 3000 90 300x600 Delta VTB DALI/Phase-pulse Fixed connection 100000 Twin 1L
20366T1L-520 35 1394 (x2) 3000 90 300x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 Twin 1L
20366T1L-528 35 1394 (x2) 3000 90 300x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Twin 1L
20366T1L-529 35 1394 (x2) 3000 90 300x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 Twin 1L
20367 20 1542 4000 90 300x600 Delta VTB On/off Fixed connection
20367-111 20 1542 4000 90 300x600 Delta VTB On/off Wieland GST18i3 3-way male
20367-3 20 1542 4000 90 300x600 Delta VTB On/off Connection cable with plug, L=2.5 m
20367-340 20 1542 4000 90 300x600 Delta VTB On/off Wago Winsta 3-way male
20367-402 17 1430 4000 90 300x600 Delta VTB DALI/Phase-pulse Fixed connection 100000
20367-519 20 1542 4000 90 300x600 Delta VTB On/off Ensto 3-way male
20367-520 17 1430 4000 90 300x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
20367-528 17 1430 4000 90 300x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
20367-529 17 1430 4000 90 300x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
20367T1L-402 35 1430 (x2) 4000 90 300x600 Delta VTB DALI/Phase-pulse Fixed connection 100000 Twin 1L
20367T1L-520 35 1430 (x2) 4000 90 300x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 Twin 1L
20367T1L-528 35 1430 (x2) 4000 90 300x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Twin 1L
20367T1L-529 35 1430 (x2) 4000 90 300x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 Twin 1L
20369 36 4272 3000 80 300x1200 Delta VTB On/off Fixed connection
20369-111 36 4272 3000 80 300x1200 Delta VTB On/off Wieland GST18i3 3-way male
20369-3 36 4272 3000 80 300x1200 Delta VTB On/off Connection cable with plug, L=2.5 m
20369-340 36 4272 3000 80 300x1200 Delta VTB On/off Wago Winsta 3-way male
20369-402 31 3842 3000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 100000
20369-519 36 4272 3000 80 300x1200 Delta VTB On/off Ensto 3-way male
20369-520 31 3842 3000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
20369-528 31 3842 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
20369-529 31 3842 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
20369T1L-402 62 3842 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 100000 Twin 1L
20369T1L-520 62 3842 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 Twin 1L
20369T1L-528 62 3842 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Twin 1L
20369T1L-529 62 3842 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 Twin 1L
20370 36 4272 4000 80 300x1200 Delta VTB On/off Fixed connection
20370-111 36 4272 4000 80 300x1200 Delta VTB On/off Wieland GST18i3 3-way male
20370-3 36 4272 4000 80 300x1200 Delta VTB On/off Connection cable with plug, L=2.5 m
20370-340 36 4272 4000 80 300x1200 Delta VTB On/off Wago Winsta 3-way male
20370-402 31 3842 4000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 100000
20370-519 36 4272 4000 80 300x1200 Delta VTB On/off Ensto 3-way male
20370-520 31 3842 4000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
20370-528 31 3842 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
20370-529 31 3842 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
20370T1L-402 62 3842 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 100000 Twin 1L
20370T1L-520 62 3842 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 Twin 1L
20370T1L-528 62 3842 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Twin 1L
20370T1L-529 62 3842 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 Twin 1L
20371 36 3332 3000 90 300x1200 Delta VTB On/off Fixed connection
20371-111 36 3332 3000 90 300x1200 Delta VTB On/off Wieland GST18i3 3-way male
20371-3 36 3332 3000 90 300x1200 Delta VTB On/off Connection cable with plug, L=2.5 m
20371-340 36 3332 3000 90 300x1200 Delta VTB On/off Wago Winsta 3-way male
20371-402 31 2997 3000 90 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 100000
20371-519 36 3332 3000 90 300x1200 Delta VTB On/off Ensto 3-way male
20371-520 31 2997 3000 90 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
20371-528 31 2997 3000 90 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
20371-529 31 2997 3000 90 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
20371T1L-402 62 2997 (x2) 3000 90 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 100000 Twin 1L
20371T1L-520 62 2997 (x2) 3000 90 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 Twin 1L
20371T1L-528 62 2997 (x2) 3000 90 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Twin 1L
20371T1L-529 62 2997 (x2) 3000 90 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 Twin 1L
20372 36 3418 4000 90 300x1200 Delta VTB On/off Fixed connection
20372-111 36 3418 4000 90 300x1200 Delta VTB On/off Wieland GST18i3 3-way male
20372-3 36 3418 4000 90 300x1200 Delta VTB On/off Connection cable with plug, L=2.5 m
20372-340 36 3418 4000 90 300x1200 Delta VTB On/off Wago Winsta 3-way male
20372-402 31 3074 4000 90 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 100000
20372-519 36 3418 4000 90 300x1200 Delta VTB On/off Ensto 3-way male
20372-520 31 3074 4000 90 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
20372-528 31 3074 4000 90 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
20372-529 31 3074 4000 90 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
20372T1L-402 62 3074 (x2) 4000 90 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 100000 Twin 1L
20372T1L-520 62 3074 (x2) 4000 90 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 Twin 1L
20372T1L-528 62 3074 (x2) 4000 90 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Twin 1L
20372T1L-529 62 3074 (x2) 4000 90 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 Twin 1L
20373 31 3752 300x1200 Delta VTB DALI Fixed connection 100000 Tunable White
20373-520 31 3752 300x1200 Delta VTB DALI Ensto 5-way male 100000 Tunable White
20373-528 31 3752 300x1200 Delta VTB DALI Wieland GST18i5 5-way male 100000 Tunable White
20373-529 31 3752 300x1200 Delta VTB DALI Wago Winsta 5-way male 100000 Tunable White


Showing 15 of 15 Accessories
Name Description Art.no. Article PDF
WAGO T-connector WAGO T-connector, 5-way, 2 locking levers, blue 88228
WAGO T-connector WAGO T-Connector, 3-way, white 91067
Wieland T-connector Wieland 5-way T-connector 91026
no-image placeholder Ensto power cable Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. 92788
no-image placeholder Ensto power cable Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. 92787
no-image placeholder Ensto connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92785
no-image placeholder Ensto connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92786
Frame for surface mounting Frame for surface mounting (600x600 VTB). Fits Multilume Flat (only standard and DALI), Dwide as well as Multilume Slim, Multilume Slim Hygiene & Multilume Re:Think with Organic Response. 41026
WAGO connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 91243
Wieland T-connector Wieland 3-way T-connector 91025
WAGO connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 91244
Wieland connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92799
Ensto T-connector Ensto T-connector 3-way, white 92783
Ensto T-connector Ensto T-connector 5-way, grey 92784
Wieland connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92793

Downloads

Multilume Slim Hygien recessed

Documents

Open PDF
Open PDF

3D Models

Manuals

Open PDF
Reference case

The Bridge Hospital / Siltasairaala

A modern and energy-efficient hospital

Read more
Return to top
