KaskadRecessed

Kaskad are elegant downlights for representative environments. With several different variants and distribution angles, as well as wallwashers, they create dynamic lighting environments with a high level of comfort. Some models rotate and tilt.

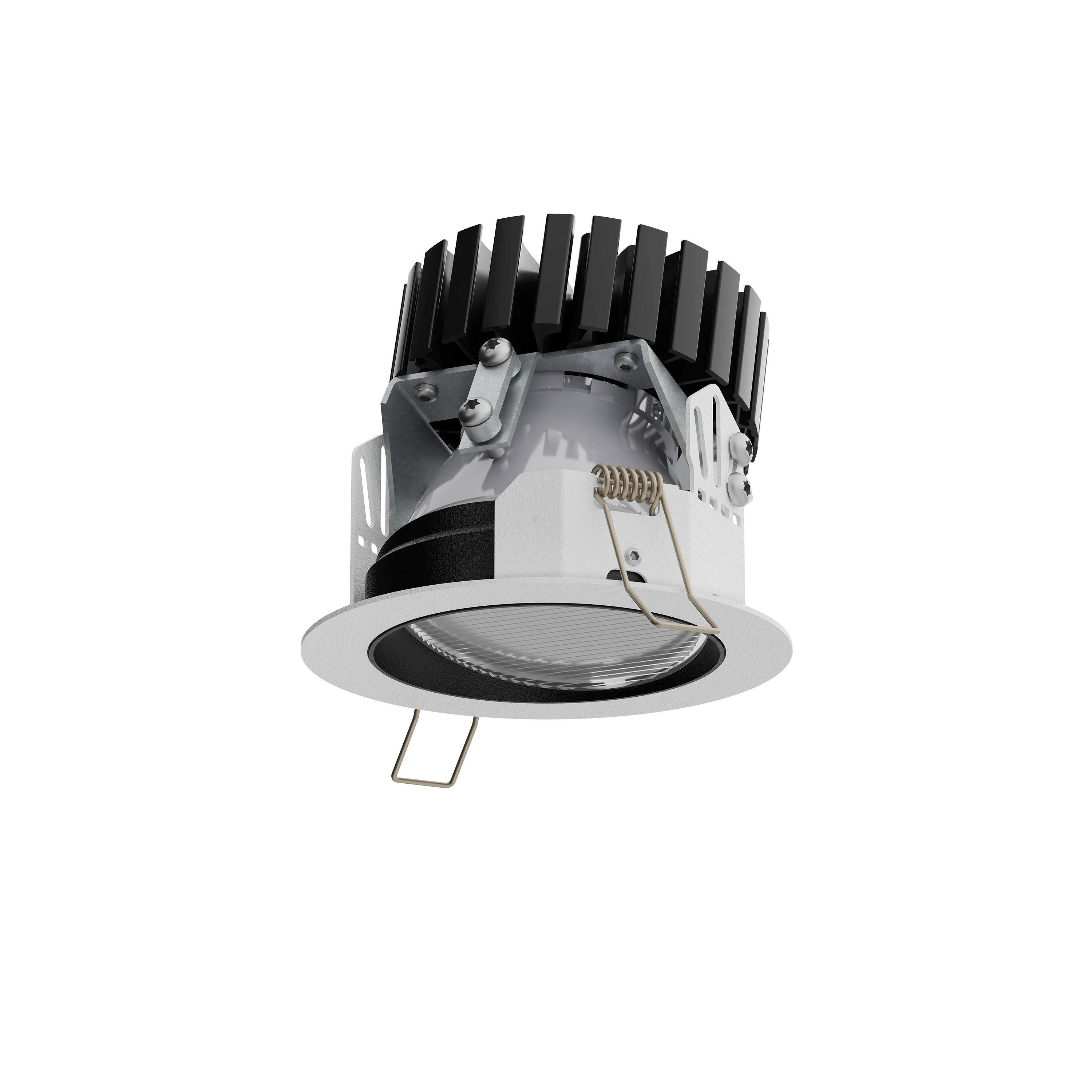

Kaskad recessed wallwasher white edge ring
White RAL 9016 (structure)
Black RAL 9005 (structure)
Kaskad recessed wallwasher white edge ring Kaskad recessed fixed

KaskadRecessed

Kaskad are elegant downlights for representative environments. With several different variants and distribution angles, as well as wallwashers, they create dynamic lighting environments with a high level of comfort. Some models rotate and tilt.

Installation

Luminaire for recessed installation in suspended ceilings. Unventilated or ventilated suspended ceilings.
A mounting plate must be used when mounting on soft tile ceilings. For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation. For detailed information, see the installation instructions.

Connection

For permanent connection in separate driver box. Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis mounted snap-in connector in the driver where a T-splitter or earthed mains cable and plug are possible. The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III. The supplied driver must be connected to the protective earth. CLO (Constant Light Output).

Design

Luminaire body made of sheet steel. White (RAL 9016) or black (RAL 9005) structured lacquer.

Light Distribution

Narrow, medium or wide beam, symmetrical or asymmetrical.

Light data

CCT, K:
2700 K, 3000 K, 4000 K
CRI/Rf:
90, 95, BBBL
SDCM:
3
Lumen output:
632-1825 lm
CLO:
50 000 h, 100 000 h

Optics

Faceted reflector in specular anodised aluminium. Diffusing frosted glass raised in the reflector above structured enamelled black baffle.

Smart Lighting

Find the right lighting control for your project

Optimise your energy savings and create efficient spaces that are easy to manage. Use our guide to find the right lighting control for your project.

Optimise your energy savings and create efficient spaces that are easy to manage. Use our guide to find the right lighting control for your project.

Compare our systems Read more about the value of Smart lighting

DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

On/Off

Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.

Articles

Showing 432 of 432 Articles
Art.no. System Wattage Lumen output CCT, K Colour Diameter, mm Dimensions, mm Light distribution Light control Connection CLO time, h Miscellaneous Light data files Article PDF
73370 11 869 2700 Black 95 Medium Beam, 33° On/off Fixed connection Fixed
73370-111 11 869 2700 Black 95 Medium Beam, 33° On/off Wieland GST18i3 3-way male Fixed
73370-3 11 869 2700 Black 95 Medium Beam, 33° On/off Connection cable with plug, L=2.5 m Fixed
73370-340 11 869 2700 Black 95 Medium Beam, 33° On/off Wago Winsta 3-way male Fixed
73370-402 10 782 2700 Black 95 Medium Beam, 33° DALI/Phase-pulse Fixed connection 100000 Fixed
73370-519 11 869 2700 Black 95 Medium Beam, 33° On/off Ensto 3-way male Fixed
73370-520 10 782 2700 Black 95 Medium Beam, 33° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
73370-528 10 782 2700 Black 95 Medium Beam, 33° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
73370-529 10 782 2700 Black 95 Medium Beam, 33° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
73371 10 1062 3000 BBBL Black 110 95 Medium Beam, 34° On/off Fixed connection Fixed
73371-111 10 1062 3000 BBBL Black 110 95 Medium Beam, 34° On/off Wieland GST18i3 3-way male Fixed
73371-3 10 1062 3000 BBBL Black 110 95 Medium Beam, 34° On/off Connection cable with plug, L=2.5 m Fixed
73371-340 10 1062 3000 BBBL Black 110 95 Medium Beam, 34° On/off Wago Winsta 3-way male Fixed
73371-402 9 956 3000 BBBL Black 110 95 Medium Beam, 34° DALI/Phase-pulse Fixed connection 100000 Fixed
73371-519 10 1062 3000 BBBL Black 110 95 Medium Beam, 34° On/off Ensto 3-way male Fixed
73371-520 9 956 3000 BBBL Black 110 95 Medium Beam, 34° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
73371-528 9 956 3000 BBBL Black 110 95 Medium Beam, 34° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
73371-529 9 956 3000 BBBL Black 110 95 Medium Beam, 34° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
73372 10 1094 4000 Black 110 95 Medium Beam, 34° On/off Fixed connection Fixed
73372-111 10 1094 4000 Black 110 95 Medium Beam, 34° On/off Wieland GST18i3 3-way male Fixed
73372-3 10 1094 4000 Black 110 95 Medium Beam, 34° On/off Connection cable with plug, L=2.5 m Fixed
73372-340 10 1094 4000 Black 110 95 Medium Beam, 34° On/off Wago Winsta 3-way male Fixed
73372-402 9 985 4000 Black 110 95 Medium Beam, 34° DALI/Phase-pulse Fixed connection 100000 Fixed
73372-519 10 1094 4000 Black 110 95 Medium Beam, 34° On/off Ensto 3-way male Fixed
73372-520 9 985 4000 Black 110 95 Medium Beam, 34° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
73372-528 9 985 4000 Black 110 95 Medium Beam, 34° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
73372-529 9 985 4000 Black 110 95 Medium Beam, 34° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
73374 11 831 2700 Black 95 Wide Beam, 55° On/off Fixed connection Fixed
73374-111 11 831 2700 Black 95 Wide Beam, 55° On/off Wieland GST18i3 3-way male Fixed
73374-3 11 831 2700 Black 95 Wide Beam, 55° On/off Connection cable with plug, L=2.5 m Fixed
73374-340 11 831 2700 Black 95 Wide Beam, 55° On/off Wago Winsta 3-way male Fixed
73374-402 10 748 2700 Black 95 Wide Beam, 55° DALI/Phase-pulse Fixed connection 100000 Fixed
73374-519 11 831 2700 Black 95 Wide Beam, 55° On/off Ensto 3-way male Fixed
73374-520 10 748 2700 Black 95 Wide Beam, 55° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
73374-528 10 748 2700 Black 95 Wide Beam, 55° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
73374-529 10 748 2700 Black 95 Wide Beam, 55° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
73375 10 1023 3000 BBBL Black 110 95 Wide Beam, 51° On/off Fixed connection Fixed
73375-111 10 1023 3000 BBBL Black 110 95 Wide Beam, 51° On/off Wieland GST18i3 3-way male Fixed
73375-3 10 1023 3000 BBBL Black 110 95 Wide Beam, 51° On/off Connection cable with plug, L=2.5 m Fixed
73375-340 10 1023 3000 BBBL Black 110 95 Wide Beam, 51° On/off Wago Winsta 3-way male Fixed
73375-402 9 921 3000 BBBL Black 110 95 Wide Beam, 51° DALI/Phase-pulse Fixed connection 100000 Fixed
73375-519 10 1023 3000 BBBL Black 110 95 Wide Beam, 51° On/off Ensto 3-way male Fixed
73375-520 9 921 3000 BBBL Black 110 95 Wide Beam, 51° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
73375-528 9 921 3000 BBBL Black 110 95 Wide Beam, 51° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
73375-529 9 921 3000 BBBL Black 110 95 Wide Beam, 51° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
73376 10 1054 4000 Black 110 95 Wide Beam, 51° On/off Fixed connection Fixed
73376-111 10 1054 4000 Black 110 95 Wide Beam, 51° On/off Wieland GST18i3 3-way male Fixed
73376-3 10 1054 4000 Black 110 95 Wide Beam, 51° On/off Connection cable with plug, L=2.5 m Fixed
73376-340 10 1054 4000 Black 110 95 Wide Beam, 51° On/off Wago Winsta 3-way male Fixed
73376-402 9 949 4000 Black 110 95 Wide Beam, 51° DALI/Phase-pulse Fixed connection 100000 Fixed
73376-519 10 1054 4000 Black 110 95 Wide Beam, 51° On/off Ensto 3-way male Fixed
73376-520 9 949 4000 Black 110 95 Wide Beam, 51° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
73376-528 9 949 4000 Black 110 95 Wide Beam, 51° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
73376-529 9 949 4000 Black 110 95 Wide Beam, 51° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
73378 11 702 2700 Black 100 Asymmetrical On/off Fixed connection Wallwasher
73378-111 11 702 2700 Black 100 Asymmetrical On/off Wieland GST18i3 3-way male Wallwasher
73378-3 11 702 2700 Black 100 Asymmetrical On/off Connection cable with plug, L=2.5 m Wallwasher
73378-340 11 702 2700 Black 100 Asymmetrical On/off Wago Winsta 3-way male Wallwasher
73378-402 10 632 2700 Black 100 Asymmetrical DALI/Phase-pulse Fixed connection 100000 Wallwasher
73378-519 11 702 2700 Black 100 Asymmetrical On/off Ensto 3-way male Wallwasher
73378-520 10 632 2700 Black 100 Asymmetrical DALI/Phase-pulse Ensto 5-way male 100000 Wallwasher
73378-528 10 632 2700 Black 100 Asymmetrical DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Wallwasher
73378-529 10 632 2700 Black 100 Asymmetrical DALI/Phase-pulse Wago Winsta 5-way male 100000 Wallwasher
73379 10 854 3000 BBBL Black 110 100 Asymmetrical On/off Fixed connection Wallwasher
73379-111 10 854 3000 BBBL Black 110 100 Asymmetrical On/off Wieland GST18i3 3-way male Wallwasher
73379-3 10 854 3000 BBBL Black 110 100 Asymmetrical On/off Connection cable with plug, L=2.5 m Wallwasher
73379-340 10 854 3000 BBBL Black 110 100 Asymmetrical On/off Wago Winsta 3-way male Wallwasher
73379-402 9 769 3000 BBBL Black 110 100 Asymmetrical DALI/Phase-pulse Fixed connection 100000 Wallwasher
73379-519 10 854 3000 BBBL Black 110 100 Asymmetrical On/off Ensto 3-way male Wallwasher
73379-520 9 769 3000 BBBL Black 110 100 Asymmetrical DALI/Phase-pulse Ensto 5-way male 100000 Wallwasher
73379-528 9 769 3000 BBBL Black 110 100 Asymmetrical DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Wallwasher
73379-529 9 769 3000 BBBL Black 110 100 Asymmetrical DALI/Phase-pulse Wago Winsta 5-way male 100000 Wallwasher
73380 10 880 4000 Black 110 100 Asymmetrical On/off Fixed connection Wallwasher
73380-111 10 880 4000 Black 110 100 Asymmetrical On/off Wieland GST18i3 3-way male Wallwasher
73380-3 10 880 4000 Black 110 100 Asymmetrical On/off Connection cable with plug, L=2.5 m Wallwasher
73380-340 10 880 4000 Black 110 100 Asymmetrical On/off Wago Winsta 3-way male Wallwasher
73380-402 9 792 4000 Black 110 100 Asymmetrical DALI/Phase-pulse Fixed connection 100000 Wallwasher
73380-519 10 880 4000 Black 110 100 Asymmetrical On/off Ensto 3-way male Wallwasher
73380-520 9 792 4000 Black 110 100 Asymmetrical DALI/Phase-pulse Ensto 5-way male 100000 Wallwasher
73380-528 9 792 4000 Black 110 100 Asymmetrical DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Wallwasher
73380-529 9 792 4000 Black 110 100 Asymmetrical DALI/Phase-pulse Wago Winsta 5-way male 100000 Wallwasher
73382 12 906 2700 Black 95 Narrow Beam, 21° On/off Fixed connection Flex
73382-111 12 906 2700 Black 95 Narrow Beam, 21° On/off Wieland GST18i3 3-way male Flex
73382-3 12 906 2700 Black 95 Narrow Beam, 21° On/off Connection cable with plug, L=2.5 m Flex
73382-340 12 906 2700 Black 95 Narrow Beam, 21° On/off Wago Winsta 3-way male Flex
73382-402 11 817 2700 Black 95 Narrow Beam, 21° DALI/Phase-pulse Fixed connection 100000 Flex
73382-519 12 906 2700 Black 95 Narrow Beam, 21° On/off Ensto 3-way male Flex
73382-520 11 817 2700 Black 95 Narrow Beam, 21° DALI/Phase-pulse Ensto 5-way male 100000 Flex
73382-528 11 817 2700 Black 95 Narrow Beam, 21° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Flex
73382-529 11 817 2700 Black 95 Narrow Beam, 21° DALI/Phase-pulse Wago Winsta 5-way male 100000 Flex
73383 10 1044 3000 BBBL Black 110 95 Narrow Beam, 22° On/off Fixed connection Flex
73383-111 10 1044 3000 BBBL Black 110 95 Narrow Beam, 22° On/off Wieland GST18i3 3-way male Flex
73383-3 10 1044 3000 BBBL Black 110 95 Narrow Beam, 22° On/off Connection cable with plug, L=2.5 m Flex
73383-340 10 1044 3000 BBBL Black 110 95 Narrow Beam, 22° On/off Wago Winsta 3-way male Flex
73383-402 9 940 3000 BBBL Black 110 95 Narrow Beam, 22° DALI/Phase-pulse Fixed connection 100000 Flex
73383-519 10 1044 3000 BBBL Black 110 95 Narrow Beam, 22° On/off Ensto 3-way male Flex
73383-520 9 940 3000 BBBL Black 110 95 Narrow Beam, 22° DALI/Phase-pulse Ensto 5-way male 100000 Flex
73383-528 9 940 3000 BBBL Black 110 95 Narrow Beam, 22° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Flex
73383-529 9 940 3000 BBBL Black 110 95 Narrow Beam, 22° DALI/Phase-pulse Wago Winsta 5-way male 100000 Flex
73384 10 1086 4000 Black 110 95 Narrow Beam, 22° On/off Fixed connection Flex
73384-111 10 1086 4000 Black 110 95 Narrow Beam, 22° On/off Wieland GST18i3 3-way male Flex
73384-3 10 1086 4000 Black 110 95 Narrow Beam, 22° On/off Connection cable with plug, L=2.5 m Flex
73384-340 10 1086 4000 Black 110 95 Narrow Beam, 22° On/off Wago Winsta 3-way male Flex
73384-402 9 978 4000 Black 110 95 Narrow Beam, 22° DALI/Phase-pulse Fixed connection 100000 Flex
73384-519 10 1086 4000 Black 110 95 Narrow Beam, 22° On/off Ensto 3-way male Flex
73384-520 9 978 4000 Black 110 95 Narrow Beam, 22° DALI/Phase-pulse Ensto 5-way male 100000 Flex
73384-528 9 978 4000 Black 110 95 Narrow Beam, 22° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Flex
73384-529 9 978 4000 Black 110 95 Narrow Beam, 22° DALI/Phase-pulse Wago Winsta 5-way male 100000 Flex
73386 12 845 2700 Black 95 Medium Beam, 39° On/off Fixed connection Flex
73386-111 12 845 2700 Black 95 Medium Beam, 39° On/off Wieland GST18i3 3-way male Flex
73386-3 12 845 2700 Black 95 Medium Beam, 39° On/off Connection cable with plug, L=2.5 m Flex
73386-340 12 845 2700 Black 95 Medium Beam, 39° On/off Wago Winsta 3-way male Flex
73386-402 11 762 2700 Black 95 Medium Beam, 39° DALI/Phase-pulse Fixed connection 100000 Flex
73386-519 12 845 2700 Black 95 Medium Beam, 39° On/off Ensto 3-way male Flex
73386-520 11 762 2700 Black 95 Medium Beam, 39° DALI/Phase-pulse Ensto 5-way male 100000 Flex
73386-528 11 762 2700 Black 95 Medium Beam, 39° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Flex
73386-529 11 762 2700 Black 95 Medium Beam, 39° DALI/Phase-pulse Wago Winsta 5-way male 100000 Flex
73387 10 988 3000 BBBL Black 110 95 Medium Beam, 38° On/off Fixed connection Flex
73387-111 10 988 3000 BBBL Black 110 95 Medium Beam, 38° On/off Wieland GST18i3 3-way male Flex
73387-3 10 988 3000 BBBL Black 110 95 Medium Beam, 38° On/off Connection cable with plug, L=2.5 m Flex
73387-340 10 988 3000 BBBL Black 110 95 Medium Beam, 38° On/off Wago Winsta 3-way male Flex
73387-402 9 889 3000 BBBL Black 110 95 Medium Beam, 38° DALI/Phase-pulse Fixed connection 100000 Flex
73387-519 10 988 3000 BBBL Black 110 95 Medium Beam, 38° On/off Ensto 3-way male Flex
73387-520 9 889 3000 BBBL Black 110 95 Medium Beam, 38° DALI/Phase-pulse Ensto 5-way male 100000 Flex
73387-528 9 889 3000 BBBL Black 110 95 Medium Beam, 38° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Flex
73387-529 9 889 3000 BBBL Black 110 95 Medium Beam, 38° DALI/Phase-pulse Wago Winsta 5-way male 100000 Flex
73388 10 1028 4000 Black 110 95 Medium Beam, 38° On/off Fixed connection Flex
73388-111 10 1028 4000 Black 110 95 Medium Beam, 38° On/off Wieland GST18i3 3-way male Flex
73388-3 10 1028 4000 Black 110 95 Medium Beam, 38° On/off Connection cable with plug, L=2.5 m Flex
73388-340 10 1028 4000 Black 110 95 Medium Beam, 38° On/off Wago Winsta 3-way male Flex
73388-402 9 925 4000 Black 110 95 Medium Beam, 38° DALI/Phase-pulse Fixed connection 100000 Flex
73388-519 10 1028 4000 Black 110 95 Medium Beam, 38° On/off Ensto 3-way male Flex
73388-520 9 925 4000 Black 110 95 Medium Beam, 38° DALI/Phase-pulse Ensto 5-way male 100000 Flex
73388-528 9 925 4000 Black 110 95 Medium Beam, 38° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Flex
73388-529 9 925 4000 Black 110 95 Medium Beam, 38° DALI/Phase-pulse Wago Winsta 5-way male 100000 Flex
73390 12 845 2700 White 95 Medium Beam, 39° On/off Fixed connection Flex
73390-111 12 845 2700 White 95 Medium Beam, 39° On/off Wieland GST18i3 3-way male Flex
73390-3 12 845 2700 White 95 Medium Beam, 39° On/off Connection cable with plug, L=2.5 m Flex
73390-340 12 845 2700 White 95 Medium Beam, 39° On/off Wago Winsta 3-way male Flex
73390-402 11 762 2700 White 95 Medium Beam, 39° DALI/Phase-pulse Fixed connection 100000 Flex
73390-519 12 845 2700 White 95 Medium Beam, 39° On/off Ensto 3-way male Flex
73390-520 11 762 2700 White 95 Medium Beam, 39° DALI/Phase-pulse Ensto 5-way male 100000 Flex
73390-528 11 762 2700 White 95 Medium Beam, 39° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Flex
73390-529 11 762 2700 White 95 Medium Beam, 39° DALI/Phase-pulse Wago Winsta 5-way male 100000 Flex
73391 10 988 3000 BBBL White 110 95 Medium Beam, 38° On/off Fixed connection Flex
73391-111 10 988 3000 BBBL White 110 95 Medium Beam, 38° On/off Wieland GST18i3 3-way male Flex
73391-3 10 988 3000 BBBL White 110 95 Medium Beam, 38° On/off Connection cable with plug, L=2.5 m Flex
73391-340 10 988 3000 BBBL White 110 95 Medium Beam, 38° On/off Wago Winsta 3-way male Flex
73391-402 9 889 3000 BBBL White 110 95 Medium Beam, 38° DALI/Phase-pulse Fixed connection 100000 Flex
73391-519 10 988 3000 BBBL White 110 95 Medium Beam, 38° On/off Ensto 3-way male Flex
73391-520 9 889 3000 BBBL White 110 95 Medium Beam, 38° DALI/Phase-pulse Ensto 5-way male 100000 Flex
73391-528 9 889 3000 BBBL White 110 95 Medium Beam, 38° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Flex
73391-529 9 889 3000 BBBL White 110 95 Medium Beam, 38° DALI/Phase-pulse Wago Winsta 5-way male 100000 Flex
73392 10 1028 4000 White 110 95 Medium Beam, 38° On/off Fixed connection Flex
73392-111 10 1028 4000 White 110 95 Medium Beam, 38° On/off Wieland GST18i3 3-way male Flex
73392-3 10 1028 4000 White 110 95 Medium Beam, 38° On/off Connection cable with plug, L=2.5 m Flex
73392-340 10 1028 4000 White 110 95 Medium Beam, 38° On/off Wago Winsta 3-way male Flex
73392-402 9 925 4000 White 110 95 Medium Beam, 38° DALI/Phase-pulse Fixed connection 100000 Flex
73392-519 10 1028 4000 White 110 95 Medium Beam, 38° On/off Ensto 3-way male Flex
73392-520 9 925 4000 White 110 95 Medium Beam, 38° DALI/Phase-pulse Ensto 5-way male 100000 Flex
73392-528 9 925 4000 White 110 95 Medium Beam, 38° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Flex
73392-529 9 925 4000 White 110 95 Medium Beam, 38° DALI/Phase-pulse Wago Winsta 5-way male 100000 Flex
73410 19 1540 2700 Black 95 Medium Beam, 33° On/off Fixed connection Fixed
73410-111 19 1540 2700 Black 95 Medium Beam, 33° On/off Wieland GST18i3 3-way male Fixed
73410-3 19 1540 2700 Black 95 Medium Beam, 33° On/off Connection cable with plug, L=2.5 m Fixed
73410-340 19 1540 2700 Black 95 Medium Beam, 33° On/off Wago Winsta 3-way male Fixed
73410-402 17 1386 2700 Black 95 Medium Beam, 33° DALI/Phase-pulse Fixed connection 100000 Fixed
73410-519 19 1540 2700 Black 95 Medium Beam, 33° On/off Ensto 3-way male Fixed
73410-520 17 1386 2700 Black 95 Medium Beam, 33° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
73410-528 17 1386 2700 Black 95 Medium Beam, 33° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
73410-529 17 1386 2700 Black 95 Medium Beam, 33° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
73411 16 1772 3000 BBBL Black 110 95 Medium Beam, 34° On/off Fixed connection Fixed
73411-111 16 1772 3000 BBBL Black 110 95 Medium Beam, 34° On/off Wieland GST18i3 3-way male Fixed
73411-3 16 1772 3000 BBBL Black 110 95 Medium Beam, 34° On/off Connection cable with plug, L=2.5 m Fixed
73411-340 16 1772 3000 BBBL Black 110 95 Medium Beam, 34° On/off Wago Winsta 3-way male Fixed
73411-402 14 1597 3000 BBBL Black 110 95 Medium Beam, 34° DALI/Phase-pulse Fixed connection 100000 Fixed
73411-519 16 1772 3000 BBBL Black 110 95 Medium Beam, 34° On/off Ensto 3-way male Fixed
73411-520 14 1597 3000 BBBL Black 110 95 Medium Beam, 34° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
73411-528 14 1597 3000 BBBL Black 110 95 Medium Beam, 34° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
73411-529 14 1597 3000 BBBL Black 110 95 Medium Beam, 34° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
73412 16 1825 4000 Black 110 95 Medium Beam, 34° On/off Fixed connection Fixed
73412-111 16 1825 4000 Black 110 95 Medium Beam, 34° On/off Wieland GST18i3 3-way male Fixed
73412-3 16 1825 4000 Black 110 95 Medium Beam, 34° On/off Connection cable with plug, L=2.5 m Fixed
73412-340 16 1825 4000 Black 110 95 Medium Beam, 34° On/off Wago Winsta 3-way male Fixed
73412-402 14 1645 4000 Black 110 95 Medium Beam, 34° DALI/Phase-pulse Fixed connection 100000 Fixed
73412-519 16 1825 4000 Black 110 95 Medium Beam, 34° On/off Ensto 3-way male Fixed
73412-520 14 1645 4000 Black 110 95 Medium Beam, 34° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
73412-528 14 1645 4000 Black 110 95 Medium Beam, 34° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
73412-529 14 1645 4000 Black 110 95 Medium Beam, 34° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
73413 19 1472 2700 Black 95 Wide Beam, 55° On/off Fixed connection Fixed
73413-111 19 1472 2700 Black 95 Wide Beam, 55° On/off Wieland GST18i3 3-way male Fixed
73413-3 19 1472 2700 Black 95 Wide Beam, 55° On/off Connection cable with plug, L=2.5 m Fixed
73413-340 19 1472 2700 Black 95 Wide Beam, 55° On/off Wago Winsta 3-way male Fixed
73413-402 17 1325 2700 Black 95 Wide Beam, 55° DALI/Phase-pulse Fixed connection 100000 Fixed
73413-519 19 1472 2700 Black 95 Wide Beam, 55° On/off Ensto 3-way male Fixed
73413-520 17 1325 2700 Black 95 Wide Beam, 55° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
73413-528 17 1325 2700 Black 95 Wide Beam, 55° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
73413-529 17 1325 2700 Black 95 Wide Beam, 55° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
73414 16 1711 3000 BBBL Black 110 95 Wide Beam, 51° On/off Fixed connection Fixed
73414-111 16 1711 3000 BBBL Black 110 95 Wide Beam, 51° On/off Wieland GST18i3 3-way male Fixed
73414-3 16 1711 3000 BBBL Black 110 95 Wide Beam, 51° On/off Connection cable with plug, L=2.5 m Fixed
73414-340 16 1711 3000 BBBL Black 110 95 Wide Beam, 51° On/off Wago Winsta 3-way male Fixed
73414-402 14 1542 3000 BBBL Black 110 95 Wide Beam, 51° DALI/Phase-pulse Fixed connection 100000 Fixed
73414-519 16 1711 3000 BBBL Black 110 95 Wide Beam, 51° On/off Ensto 3-way male Fixed
73414-520 14 1542 3000 BBBL Black 110 95 Wide Beam, 51° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
73414-528 14 1542 3000 BBBL Black 110 95 Wide Beam, 51° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
73414-529 14 1542 3000 BBBL Black 110 95 Wide Beam, 51° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
73415 16 1762 4000 Black 110 95 Wide Beam, 51° On/off Fixed connection Fixed
73415-111 16 1762 4000 Black 110 95 Wide Beam, 51° On/off Wieland GST18i3 3-way male Fixed
73415-3 16 1762 4000 Black 110 95 Wide Beam, 51° On/off Connection cable with plug, L=2.5 m Fixed
73415-340 16 1762 4000 Black 110 95 Wide Beam, 51° On/off Wago Winsta 3-way male Fixed
73415-402 14 1588 4000 Black 110 95 Wide Beam, 51° DALI/Phase-pulse Fixed connection 100000 Fixed
73415-519 16 1762 4000 Black 110 95 Wide Beam, 51° On/off Ensto 3-way male Fixed
73415-520 14 1588 4000 Black 110 95 Wide Beam, 51° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
73415-528 14 1588 4000 Black 110 95 Wide Beam, 51° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
73415-529 14 1588 4000 Black 110 95 Wide Beam, 51° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
73416 19 1242 2700 Black 100 Asymmetrical On/off Fixed connection Wallwasher
73416-111 19 1242 2700 Black 100 Asymmetrical On/off Wieland GST18i3 3-way male Wallwasher
73416-3 19 1242 2700 Black 100 Asymmetrical On/off Connection cable with plug, L=2.5 m Wallwasher
73416-340 19 1242 2700 Black 100 Asymmetrical On/off Wago Winsta 3-way male Wallwasher
73416-402 17 1118 2700 Black 100 Asymmetrical DALI/Phase-pulse Fixed connection 100000 Wallwasher
73416-519 19 1242 2700 Black 100 Asymmetrical On/off Ensto 3-way male Wallwasher
73416-520 17 1118 2700 Black 100 Asymmetrical DALI/Phase-pulse Ensto 5-way male 100000 Wallwasher
73416-528 17 1118 2700 Black 100 Asymmetrical DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Wallwasher
73416-529 17 1118 2700 Black 100 Asymmetrical DALI/Phase-pulse Wago Winsta 5-way male 100000 Wallwasher
73417 16 1411 3000 BBBL Black 110 100 Asymmetrical On/off Fixed connection Wallwasher
73417-111 16 1411 3000 BBBL Black 110 100 Asymmetrical On/off Wieland GST18i3 3-way male Wallwasher
73417-3 16 1411 3000 BBBL Black 110 100 Asymmetrical On/off Connection cable with plug, L=2.5 m Wallwasher
73417-340 16 1411 3000 BBBL Black 110 100 Asymmetrical On/off Wago Winsta 3-way male Wallwasher
73417-402 14 1272 3000 BBBL Black 110 100 Asymmetrical DALI/Phase-pulse Fixed connection 100000 Wallwasher
73417-519 16 1411 3000 BBBL Black 110 100 Asymmetrical On/off Ensto 3-way male Wallwasher
73417-520 14 1272 3000 BBBL Black 110 100 Asymmetrical DALI/Phase-pulse Ensto 5-way male 100000 Wallwasher
73417-528 14 1272 3000 BBBL Black 110 100 Asymmetrical DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Wallwasher
73417-529 14 1272 3000 BBBL Black 110 100 Asymmetrical DALI/Phase-pulse Wago Winsta 5-way male 100000 Wallwasher
73418 16 1453 4000 Black 110 100 Asymmetrical On/off Fixed connection Wallwasher
73418-111 16 1453 4000 Black 110 100 Asymmetrical On/off Wieland GST18i3 3-way male Wallwasher
73418-3 16 1453 4000 Black 110 100 Asymmetrical On/off Connection cable with plug, L=2.5 m Wallwasher
73418-340 16 1453 4000 Black 110 100 Asymmetrical On/off Wago Winsta 3-way male Wallwasher
73418-402 14 1310 4000 Black 110 100 Asymmetrical DALI/Phase-pulse Fixed connection 100000 Wallwasher
73418-519 16 1453 4000 Black 110 100 Asymmetrical On/off Ensto 3-way male Wallwasher
73418-520 14 1310 4000 Black 110 100 Asymmetrical DALI/Phase-pulse Ensto 5-way male 100000 Wallwasher
73418-528 14 1310 4000 Black 110 100 Asymmetrical DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Wallwasher
73418-529 14 1310 4000 Black 110 100 Asymmetrical DALI/Phase-pulse Wago Winsta 5-way male 100000 Wallwasher
76537 11 869 2700 White 110 95 Medium Beam, 33° On/off Fixed connection Fixed
76537-111 11 869 2700 White 110 95 Medium Beam, 33° On/off Wieland GST18i3, 1 connector Fixed
76537-3 11 869 2700 White 110 95 Medium Beam, 33° On/off Connection cable with plug, L=2.5 m Fixed
76537-340 11 869 2700 White 110 95 Medium Beam, 33° On/off Wago Winsta 3-way male Fixed
76537-402 10 782 2700 White 110 95 Medium Beam, 33° DALI/Phase-pulse Fixed connection 100000 Fixed
76537-519 11 869 2700 White 110 95 Medium Beam, 33° On/off Ensto 3-way male Fixed
76537-520 10 782 2700 White 110 95 Medium Beam, 33° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
76537-528 10 782 2700 White 110 95 Medium Beam, 33° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
76537-529 10 782 2700 White 110 95 Medium Beam, 33° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
76538 19 1540 2700 White 110 95 Medium Beam, 33° On/off Fixed connection Fixed
76538-111 19 1540 2700 White 110 95 Medium Beam, 33° On/off Wieland GST18i3, 1 connector Fixed
76538-3 19 1540 2700 White 110 95 Medium Beam, 33° On/off Connection cable with plug, L=2.5 m Fixed
76538-340 19 1540 2700 White 110 95 Medium Beam, 33° On/off Wago Winsta 3-way male Fixed
76538-402 17 1386 2700 White 110 95 Medium Beam, 33° DALI/Phase-pulse Fixed connection 100000 Fixed
76538-519 19 1540 2700 White 110 95 Medium Beam, 33° On/off Ensto 3-way male Fixed
76538-520 17 1386 2700 White 110 95 Medium Beam, 33° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
76538-528 17 1386 2700 White 110 95 Medium Beam, 33° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
76538-529 17 1386 2700 White 110 95 Medium Beam, 33° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
76539 10 1062 3000 BBBL White 110 95 Medium Beam, 34° On/off Fixed connection Fixed
76539-111 10 1062 3000 BBBL White 110 95 Medium Beam, 34° On/off Wieland GST18i3, 1 connector Fixed
76539-3 10 1062 3000 BBBL White 110 95 Medium Beam, 34° On/off Connection cable with plug, L=2.5 m Fixed
76539-340 10 1062 3000 BBBL White 110 95 Medium Beam, 34° On/off Wago Winsta 3-way male Fixed
76539-402 9 956 3000 BBBL White 110 95 Medium Beam, 34° DALI/Phase-pulse Fixed connection 100000 Fixed
76539-519 10 1062 3000 BBBL White 110 95 Medium Beam, 34° On/off Ensto 3-way male Fixed
76539-520 9 956 3000 BBBL White 110 95 Medium Beam, 34° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
76539-528 9 956 3000 BBBL White 110 95 Medium Beam, 34° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
76539-529 9 956 3000 BBBL White 110 95 Medium Beam, 34° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
76540 16 1772 3000 BBBL White 110 95 Medium Beam, 34° On/off Fixed connection Fixed
76540-111 16 1772 3000 BBBL White 110 95 Medium Beam, 34° On/off Wieland GST18i3, 1 connector Fixed
76540-3 16 1772 3000 BBBL White 110 95 Medium Beam, 34° On/off Connection cable with plug, L=2.5 m Fixed
76540-340 16 1772 3000 BBBL White 110 95 Medium Beam, 34° On/off Wago Winsta 3-way male Fixed
76540-402 14 1597 3000 BBBL White 110 95 Medium Beam, 34° DALI/Phase-pulse Fixed connection 100000 Fixed
76540-519 16 1772 3000 BBBL White 110 95 Medium Beam, 34° On/off Ensto 3-way male Fixed
76540-520 14 1597 3000 BBBL White 110 95 Medium Beam, 34° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
76540-528 14 1597 3000 BBBL White 110 95 Medium Beam, 34° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
76540-529 14 1597 3000 BBBL White 110 95 Medium Beam, 34° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
76541 10 1094 4000 White 110 95 Medium Beam, 34° On/off Fixed connection Fixed
76541-111 10 1094 4000 White 110 95 Medium Beam, 34° On/off Wieland GST18i3, 1 connector Fixed
76541-3 10 1094 4000 White 110 95 Medium Beam, 34° On/off Connection cable with plug, L=2.5 m Fixed
76541-340 10 1094 4000 White 110 95 Medium Beam, 34° On/off Wago Winsta 3-way male Fixed
76541-402 9 985 4000 White 110 95 Medium Beam, 34° DALI/Phase-pulse Fixed connection 100000 Fixed
76541-519 10 1094 4000 White 110 95 Medium Beam, 34° On/off Ensto 3-way male Fixed
76541-520 9 985 4000 White 110 95 Medium Beam, 34° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
76541-528 9 985 4000 White 110 95 Medium Beam, 34° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
76541-529 9 985 4000 White 110 95 Medium Beam, 34° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
76542 16 1825 4000 White 110 95 Medium Beam, 34° On/off Fixed connection Fixed
76542-111 16 1825 4000 White 110 95 Medium Beam, 34° On/off Wieland GST18i3, 1 connector Fixed
76542-3 16 1825 4000 White 110 95 Medium Beam, 34° On/off Connection cable with plug, L=2.5 m Fixed
76542-340 16 1825 4000 White 110 95 Medium Beam, 34° On/off Wago Winsta 3-way male Fixed
76542-402 14 1645 4000 White 110 95 Medium Beam, 34° DALI/Phase-pulse Fixed connection 100000 Fixed
76542-519 16 1825 4000 White 110 95 Medium Beam, 34° On/off Ensto 3-way male Fixed
76542-520 14 1645 4000 White 110 95 Medium Beam, 34° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
76542-528 14 1645 4000 White 110 95 Medium Beam, 34° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
76542-529 14 1645 4000 White 110 95 Medium Beam, 34° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
76543 11 831 2700 White 110 95 Wide Beam, 55° On/off Fixed connection Fixed
76543-111 11 831 2700 White 110 95 Wide Beam, 55° On/off Wieland GST18i3, 1 connector Fixed
76543-3 11 831 2700 White 110 95 Wide Beam, 55° On/off Connection cable with plug, L=2.5 m Fixed
76543-340 11 831 2700 White 110 95 Wide Beam, 55° On/off Wago Winsta 3-way male Fixed
76543-402 10 748 2700 White 110 95 Wide Beam, 55° DALI/Phase-pulse Fixed connection 100000 Fixed
76543-519 11 831 2700 White 110 95 Wide Beam, 55° On/off Ensto 3-way male Fixed
76543-520 10 748 2700 White 110 95 Wide Beam, 55° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
76543-528 10 748 2700 White 110 95 Wide Beam, 55° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
76543-529 10 748 2700 White 110 95 Wide Beam, 55° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
76544 19 1472 2700 White 110 95 Wide Beam, 55° On/off Fixed connection Fixed
76544-111 19 1472 2700 White 110 95 Wide Beam, 55° On/off Wieland GST18i3, 1 connector Fixed
76544-3 19 1472 2700 White 110 95 Wide Beam, 55° On/off Connection cable with plug, L=2.5 m Fixed
76544-340 19 1472 2700 White 110 95 Wide Beam, 55° On/off Wago Winsta 3-way male Fixed
76544-402 17 1325 2700 White 110 95 Wide Beam, 55° DALI/Phase-pulse Fixed connection 100000 Fixed
76544-519 19 1472 2700 White 110 95 Wide Beam, 55° On/off Ensto 3-way male Fixed
76544-520 17 1325 2700 White 110 95 Wide Beam, 55° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
76544-528 17 1325 2700 White 110 95 Wide Beam, 55° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
76544-529 17 1325 2700 White 110 95 Wide Beam, 55° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
76545 10 1023 3000 BBBL White 110 95 Wide Beam, 51° On/off Fixed connection Fixed
76545-111 10 1023 3000 BBBL White 110 95 Wide Beam, 51° On/off Wieland GST18i3, 1 connector Fixed
76545-3 10 1023 3000 BBBL White 110 95 Wide Beam, 51° On/off Connection cable with plug, L=2.5 m Fixed
76545-340 10 1023 3000 BBBL White 110 95 Wide Beam, 51° On/off Wago Winsta 3-way male Fixed
76545-402 9 921 3000 BBBL White 110 95 Wide Beam, 51° DALI/Phase-pulse Fixed connection 100000 Fixed
76545-519 10 1023 3000 BBBL White 110 95 Wide Beam, 51° On/off Ensto 3-way male Fixed
76545-520 9 921 3000 BBBL White 110 95 Wide Beam, 51° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
76545-528 9 921 3000 BBBL White 110 95 Wide Beam, 51° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
76545-529 9 921 3000 BBBL White 110 95 Wide Beam, 51° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
76546 16 1711 3000 BBBL White 110 95 Wide Beam, 51° On/off Fixed connection Fixed
76546-111 16 1711 3000 BBBL White 110 95 Wide Beam, 51° On/off Wieland GST18i3, 1 connector Fixed
76546-3 16 1711 3000 BBBL White 110 95 Wide Beam, 51° On/off Connection cable with plug, L=2.5 m Fixed
76546-340 16 1711 3000 BBBL White 110 95 Wide Beam, 51° On/off Wago Winsta 3-way male Fixed
76546-402 14 1542 3000 BBBL White 110 95 Wide Beam, 51° DALI/Phase-pulse Fixed connection 100000 Fixed
76546-519 16 1711 3000 BBBL White 110 95 Wide Beam, 51° On/off Ensto 3-way male Fixed
76546-520 14 1542 3000 BBBL White 110 95 Wide Beam, 51° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
76546-528 14 1542 3000 BBBL White 110 95 Wide Beam, 51° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
76546-529 14 1542 3000 BBBL White 110 95 Wide Beam, 51° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
76547 10 1054 4000 White 110 95 Wide Beam, 51° On/off Fixed connection Fixed
76547-111 10 1054 4000 White 110 95 Wide Beam, 51° On/off Wieland GST18i3, 1 connector Fixed
76547-3 10 1054 4000 White 110 95 Wide Beam, 51° On/off Connection cable with plug, L=2.5 m Fixed
76547-340 10 1054 4000 White 110 95 Wide Beam, 51° On/off Wago Winsta 3-way male Fixed
76547-402 9 949 4000 White 110 95 Wide Beam, 51° DALI/Phase-pulse Fixed connection 100000 Fixed
76547-519 10 1054 4000 White 110 95 Wide Beam, 51° On/off Ensto 3-way male Fixed
76547-520 9 949 4000 White 110 95 Wide Beam, 51° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
76547-528 9 949 4000 White 110 95 Wide Beam, 51° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
76547-529 9 949 4000 White 110 95 Wide Beam, 51° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
76549 16 1762 4000 White 110 95 Wide Beam, 51° On/off Fixed connection Fixed
76549-111 16 1762 4000 White 110 95 Wide Beam, 51° On/off Wieland GST18i3, 1 connector Fixed
76549-3 16 1762 4000 White 110 95 Wide Beam, 51° On/off Connection cable with plug, L=2.5 m Fixed
76549-340 16 1762 4000 White 110 95 Wide Beam, 51° On/off Wago Winsta 3-way male Fixed
76549-402 14 1588 4000 White 110 95 Wide Beam, 51° DALI/Phase-pulse Fixed connection 100000 Fixed
76549-519 16 1762 4000 White 110 95 Wide Beam, 51° On/off Ensto 3-way male Fixed
76549-520 14 1588 4000 White 110 95 Wide Beam, 51° DALI/Phase-pulse Ensto 5-way male 100000 Fixed
76549-528 14 1588 4000 White 110 95 Wide Beam, 51° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Fixed
76549-529 14 1588 4000 White 110 95 Wide Beam, 51° DALI/Phase-pulse Wago Winsta 5-way male 100000 Fixed
76594 11 702 2700 White 110 100 Asymmetrical On/off Fixed connection Wallwasher
76594-111 11 702 2700 White 110 100 Asymmetrical On/off Wieland GST18i3, 1 connector Wallwasher
76594-3 11 702 2700 White 110 100 Asymmetrical On/off Connection cable with plug, L=2.5 m Wallwasher
76594-340 11 702 2700 White 110 100 Asymmetrical On/off Wago Winsta 3-way male Wallwasher
76594-402 10 632 2700 White 110 100 Asymmetrical DALI/Phase-pulse Fixed connection 100000 Wallwasher
76594-519 11 702 2700 White 110 100 Asymmetrical On/off Ensto 3-way male Wallwasher
76594-520 10 632 2700 White 110 100 Asymmetrical DALI/Phase-pulse Ensto 5-way male 100000 Wallwasher
76594-528 10 632 2700 White 110 100 Asymmetrical DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Wallwasher
76594-529 10 632 2700 White 110 100 Asymmetrical DALI/Phase-pulse Wago Winsta 5-way male 100000 Wallwasher
76595 19 1242 2700 White 110 100 Asymmetrical On/off Fixed connection Wallwasher
76595-111 19 1242 2700 White 110 100 Asymmetrical On/off Wieland GST18i3, 1 connector Wallwasher
76595-3 19 1242 2700 White 110 100 Asymmetrical On/off Connection cable with plug, L=2.5 m Wallwasher
76595-340 19 1242 2700 White 110 100 Asymmetrical On/off Wago Winsta 3-way male Wallwasher
76595-402 17 1118 2700 White 110 100 Asymmetrical DALI/Phase-pulse Fixed connection 100000 Wallwasher
76595-519 19 1242 2700 White 110 100 Asymmetrical On/off Ensto 3-way male Wallwasher
76595-520 17 1118 2700 White 110 100 Asymmetrical DALI/Phase-pulse Ensto 5-way male 100000 Wallwasher
76595-528 17 1118 2700 White 110 100 Asymmetrical DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Wallwasher
76595-529 17 1118 2700 White 110 100 Asymmetrical DALI/Phase-pulse Wago Winsta 5-way male 100000 Wallwasher
76596 10 854 3000 BBBL White 110 100 Asymmetrical On/off Fixed connection Wallwasher
76596-111 10 854 3000 BBBL White 110 100 Asymmetrical On/off Wieland GST18i3, 1 connector Wallwasher
76596-3 10 854 3000 BBBL White 110 100 Asymmetrical On/off Connection cable with plug, L=2.5 m Wallwasher
76596-340 10 854 3000 BBBL White 110 100 Asymmetrical On/off Wago Winsta 3-way male Wallwasher
76596-402 9 769 3000 BBBL White 110 100 Asymmetrical DALI/Phase-pulse Fixed connection 100000 Wallwasher
76596-519 10 854 3000 BBBL White 110 100 Asymmetrical On/off Ensto 3-way male Wallwasher
76596-520 9 769 3000 BBBL White 110 100 Asymmetrical DALI/Phase-pulse Ensto 5-way male 100000 Wallwasher
76596-528 9 769 3000 BBBL White 110 100 Asymmetrical DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Wallwasher
76596-529 9 769 3000 BBBL White 110 100 Asymmetrical DALI/Phase-pulse Wago Winsta 5-way male 100000 Wallwasher
76597 16 1411 3000 BBBL White 110 100 Asymmetrical On/off Fixed connection Wallwasher
76597-111 16 1411 3000 BBBL White 110 100 Asymmetrical On/off Wieland GST18i3, 1 connector Wallwasher
76597-3 16 1411 3000 BBBL White 110 100 Asymmetrical On/off Connection cable with plug, L=2.5 m Wallwasher
76597-340 16 1411 3000 BBBL White 110 100 Asymmetrical On/off Wago Winsta 3-way male Wallwasher
76597-402 14 1272 3000 BBBL White 110 100 Asymmetrical DALI/Phase-pulse Fixed connection 100000 Wallwasher
76597-519 16 1411 3000 BBBL White 110 100 Asymmetrical On/off Ensto 3-way male Wallwasher
76597-520 14 1272 3000 BBBL White 110 100 Asymmetrical DALI/Phase-pulse Ensto 5-way male 100000 Wallwasher
76597-528 14 1272 3000 BBBL White 110 100 Asymmetrical DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Wallwasher
76597-529 14 1272 3000 BBBL White 110 100 Asymmetrical DALI/Phase-pulse Wago Winsta 5-way male 100000 Wallwasher
76598 10 880 4000 White 110 100 Asymmetrical On/off Fixed connection Wallwasher
76598-111 10 880 4000 White 110 100 Asymmetrical On/off Wieland GST18i3, 1 connector Wallwasher
76598-3 10 880 4000 White 110 100 Asymmetrical On/off Connection cable with plug, L=2.5 m Wallwasher
76598-340 10 880 4000 White 110 100 Asymmetrical On/off Wago Winsta 3-way male Wallwasher
76598-402 9 792 4000 White 110 100 Asymmetrical DALI/Phase-pulse Fixed connection 100000 Wallwasher
76598-519 10 880 4000 White 110 100 Asymmetrical On/off Ensto 3-way male Wallwasher
76598-520 9 792 4000 White 110 100 Asymmetrical DALI/Phase-pulse Ensto 5-way male 100000 Wallwasher
76598-528 9 792 4000 White 110 100 Asymmetrical DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Wallwasher
76598-529 9 792 4000 White 110 100 Asymmetrical DALI/Phase-pulse Wago Winsta 5-way male 100000 Wallwasher
76599 16 1453 4000 White 110 100 Asymmetrical On/off Fixed connection Wallwasher
76599-111 16 1453 4000 White 110 100 Asymmetrical On/off Wieland GST18i3, 1 connector Wallwasher
76599-3 16 1453 4000 White 110 100 Asymmetrical On/off Connection cable with plug, L=2.5 m Wallwasher
76599-340 16 1453 4000 White 110 100 Asymmetrical On/off Wago Winsta 3-way male Wallwasher
76599-402 14 1310 4000 White 110 100 Asymmetrical DALI/Phase-pulse Fixed connection 100000 Wallwasher
76599-519 16 1453 4000 White 110 100 Asymmetrical On/off Ensto 3-way male Wallwasher
76599-520 14 1310 4000 White 110 100 Asymmetrical DALI/Phase-pulse Ensto 5-way male 100000 Wallwasher
76599-528 14 1310 4000 White 110 100 Asymmetrical DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Wallwasher
76599-529 14 1310 4000 White 110 100 Asymmetrical DALI/Phase-pulse Wago Winsta 5-way male 100000 Wallwasher
76600 12 906 2700 White 110 95 Narrow Beam, 21° On/off Fixed connection Flex
76600-111 12 906 2700 White 110 95 Narrow Beam, 21° On/off Wieland GST18i3, 1 connector Flex
76600-3 12 906 2700 White 110 95 Narrow Beam, 21° On/off Connection cable with plug, L=2.5 m Flex
76600-340 12 906 2700 White 110 95 Narrow Beam, 21° On/off Wago Winsta 3-way male Flex
76600-402 11 817 2700 White 110 95 Narrow Beam, 21° DALI/Phase-pulse Fixed connection 100000 Flex
76600-519 12 906 2700 White 110 95 Narrow Beam, 21° On/off Ensto 3-way male Flex
76600-520 11 817 2700 White 110 95 Narrow Beam, 21° DALI/Phase-pulse Ensto 5-way male 100000 Flex
76600-528 11 817 2700 White 110 95 Narrow Beam, 21° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Flex
76600-529 11 817 2700 White 110 95 Narrow Beam, 21° DALI/Phase-pulse Wago Winsta 5-way male 100000 Flex
76602 10 1044 3000 BBBL White 110 95 Narrow Beam, 22° On/off Fixed connection Flex
76602-111 10 1044 3000 BBBL White 110 95 Narrow Beam, 22° On/off Wieland GST18i3, 1 connector Flex
76602-3 10 1044 3000 BBBL White 110 95 Narrow Beam, 22° On/off Connection cable with plug, L=2.5 m Flex
76602-340 10 1044 3000 BBBL White 110 95 Narrow Beam, 22° On/off Wago Winsta 3-way male Flex
76602-402 9 940 3000 BBBL White 110 95 Narrow Beam, 22° DALI/Phase-pulse Fixed connection 100000 Flex
76602-519 10 1044 3000 BBBL White 110 95 Narrow Beam, 22° On/off Ensto 3-way male Flex
76602-520 9 940 3000 BBBL White 110 95 Narrow Beam, 22° DALI/Phase-pulse Ensto 5-way male 100000 Flex
76602-528 9 940 3000 BBBL White 110 95 Narrow Beam, 22° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Flex
76602-529 9 940 3000 BBBL White 110 95 Narrow Beam, 22° DALI/Phase-pulse Wago Winsta 5-way male 100000 Flex
76604 10 1086 4000 White 110 95 Narrow Beam, 22° On/off Fixed connection Flex
76604-111 10 1086 4000 White 110 95 Narrow Beam, 22° On/off Wieland GST18i3, 1 connector Flex
76604-3 10 1086 4000 White 110 95 Narrow Beam, 22° On/off Connection cable with plug, L=2.5 m Flex
76604-340 10 1086 4000 White 110 95 Narrow Beam, 22° On/off Wago Winsta 3-way male Flex
76604-402 9 978 4000 White 110 95 Narrow Beam, 22° DALI/Phase-pulse Fixed connection 100000 Flex
76604-519 10 1086 4000 White 110 95 Narrow Beam, 22° On/off Ensto 3-way male Flex
76604-520 9 978 4000 White 110 95 Narrow Beam, 22° DALI/Phase-pulse Ensto 5-way male 100000 Flex
76604-528 9 978 4000 White 110 95 Narrow Beam, 22° DALI/Phase-pulse Wieland GST18i5 5-way male 100000 Flex
76604-529 9 978 4000 White 110 95 Narrow Beam, 22° DALI/Phase-pulse Wago Winsta 5-way male 100000 Flex
Showing 1 of 1 Accessories
Name Description Art.no. Article PDF
Mounting plate Mounting plate for soft tile ceiling, Ø 110 41964

Downloads

Kaskad Wallwasher recessed

Documents

Open PDF

3D Models

Manuals

Open PDF
Reference case

Platinan

A clear focus on sustainability, innovation and teamwork

Read more
Reference case

Humlegården

UMA workplace & Grow Hotel Best Western Plus

Read more
Reference case

Huvudkontoret Fagerhult Sweden

Read more
Return to top
