RecessoRecessed

Recesso is an efficient recessed luminaire that is budget-conscious yet provides wide light distribution and high light comfort. Four module types and two different louvres make it easy to plan lighting for various needs.

148 lm/W Sensor available

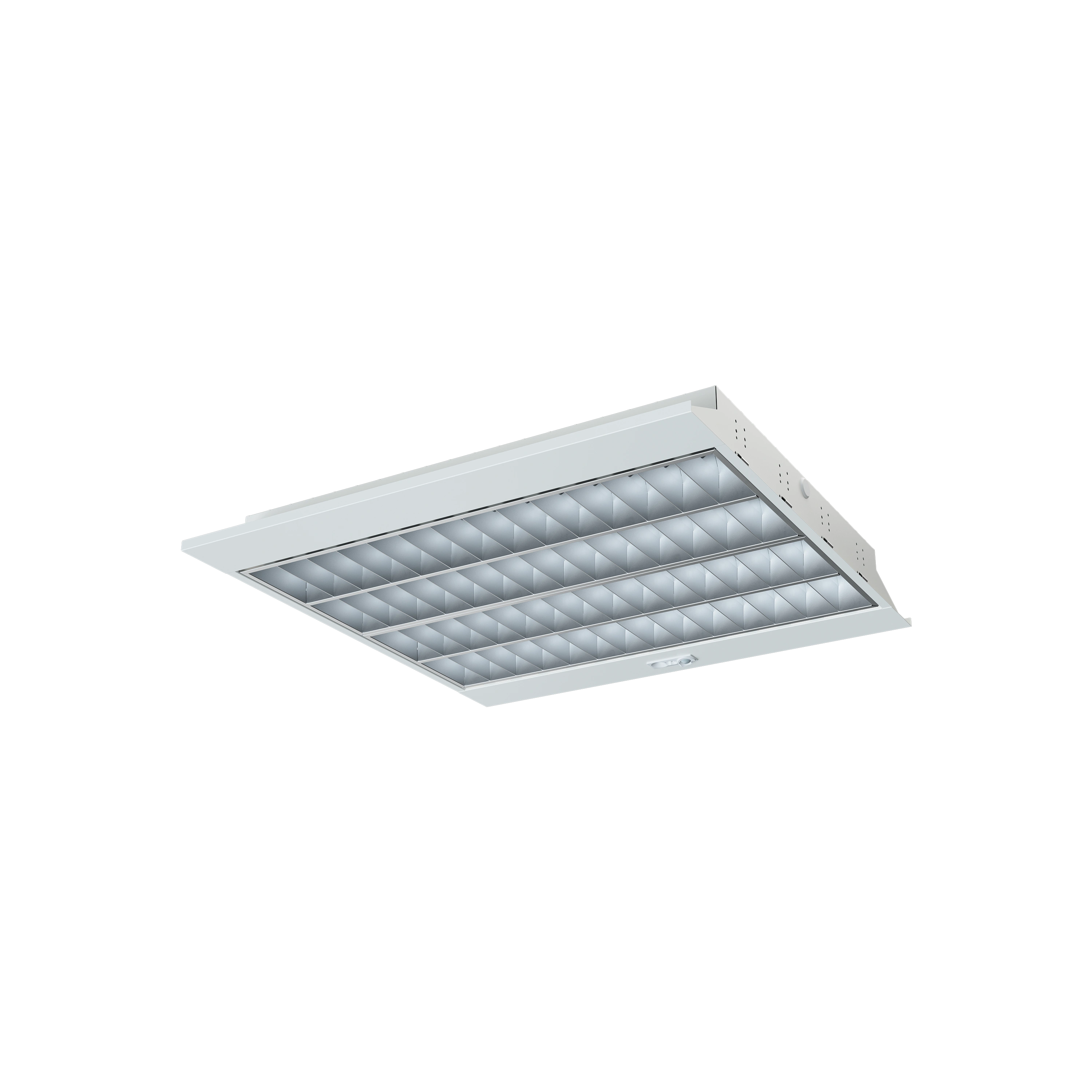

Recesso recessed 600x600 4cell betaopti OR
White RAL 9016
Recesso recessed 600x600 4cell betaopti OR Recesso Recessed Delta

RecessoRecessed

Recesso is an efficient recessed luminaire that is budget-conscious yet provides wide light distribution and high light comfort. Four module types and two different louvres make it easy to plan lighting for various needs.

148 lm/W Sensor available

Installation

Luminaire for recessed installation in suspended ceilings. Unventilated or ventilated suspended ceilings.
VTB – for suspended ceilings with visible T-bars (15 or 24 mm). For detailed information, see the installation instructions.

Connection

Delta – For permanent connection in separate driver box. Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis mounted snap-in connector in the driver where a T-splitter or earthed mains cable and plug are possible. The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III. The supplied driver must be connected to the protective earth. Beta – Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis mounted snap-in connector or earthed mains cable and plug. CLO (Constant Light Output).

Design

Luminaire body made of sheet steel. Lacquered in white (RAL 9016 G40).

Light Distribution

Direct.

Light data

CCT, K:
3000 K, 4000 K
CRI/Rf:
80
SDCM:
3
Lumen output:
2624-10162 lm
CLO:
50 000 h, 100 000 h

Optics

Beta Opti – side and crosswise semi-gloss reflectors in metallised aluminium with an integrated opal film that minimises the risk of uncomfortable glare from the LEDs. The louvre in its standard design is equipped with protective foil over the light opening. The protective foil is easily removed after final cleaning/installation.
Delta – micro-prism louvre in acrylic (PMMA).

148lm/W

Energy efficiency from the most efficient article.

Read more about our products lifecycle

High efficiency & reduced energy consumption

The product family includes models with very high efficiency – without compromising on light comfort. High efficiency gives rise to reductions in energy consumption, climate impact and operating costs. The luminaire’s good light comfort also means that fewer luminaires are needed to achieve the desired light level.

Twin Dual Driver

The product can be powered by the Twin Dual Driver, a driver that powers two luminaires. With streamlined electronics and an updated material composition, we have reduced the overall climate impact of the driver by 49%, while maintaining safety, faster installation and easier product use.

Made in Sweden

The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.

DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

Organic ResponsePIR sensor

Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.

Read more

On/Off

Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.

Articles

Showing 312 of 312 Articles
Art.no. System Wattage Lumen output CCT, K CRI Module Louvre Installation Light control Connection CLO time, h Miscellaneous Light data files Article PDF
25712 30 3944 3000 80 150x1200 Beta Opti VTB 1-cell
25712-111 30 3944 3000 80 150x1200 Beta Opti VTB Wieland GST18i3, 1 connector 1-cell
25712-3 30 3944 3000 80 150x1200 Beta Opti VTB Connection cable with plug, L=2.5 m 1-cell
25712-340 30 3944 3000 80 150x1200 Beta Opti VTB Wago Winsta, 1 connector 1-cell
25712-402 29 3800 3000 80 150x1200 Beta Opti VTB DALI/Phase-pulse 50000 1-cell
25712-454 29 3800 3000 80 150x1200 Beta Opti VTB DALI/Phase-pulse Wago Winsta, 1 connector 50000 1-cell
25712-456 29 3800 3000 80 150x1200 Beta Opti VTB DALI/Phase-pulse Wieland GST18i5, 1 connector 50000 1-cell
25713 28 3906 4000 80 150x1200 Beta Opti VTB 1-cell
25713-111 28 3906 4000 80 150x1200 Beta Opti VTB Wieland GST18i3, 1 connector 1-cell
25713-3 28 3906 4000 80 150x1200 Beta Opti VTB Connection cable with plug, L=2.5 m 1-cell
25713-340 28 3906 4000 80 150x1200 Beta Opti VTB Wago Winsta, 1 connector 1-cell
25713-402 28 3800 4000 80 150x1200 Beta Opti VTB DALI/Phase-pulse 50000 1-cell
25713-454 28 3800 4000 80 150x1200 Beta Opti VTB DALI/Phase-pulse Wago Winsta, 1 connector 50000 1-cell
25713-456 28 3800 4000 80 150x1200 Beta Opti VTB DALI/Phase-pulse Wieland GST18i5, 1 connector 50000 1-cell
25714 30 3944 3000 80 300x1200 Beta Opti VTB 1-cell
25714-111 30 3944 3000 80 300x1200 Beta Opti VTB Wieland GST18i3, 1 connector 1-cell
25714-3 30 3944 3000 80 300x1200 Beta Opti VTB Connection cable with plug, L=2.5 m 1-cell
25714-340 30 3944 3000 80 300x1200 Beta Opti VTB Wago Winsta, 1 connector 1-cell
25714-402 29 3800 3000 80 300x1200 Beta Opti VTB DALI/Phase-pulse 50000 1-cell
25714-454 29 3800 3000 80 300x1200 Beta Opti VTB DALI/Phase-pulse Wago Winsta, 1 connector 50000 1-cell
25714-456 29 3800 3000 80 300x1200 Beta Opti VTB DALI/Phase-pulse Wieland GST18i5, 1 connector 50000 1-cell
25714-533 31 3800 3000 80 300x1200 Beta Opti VTB Organic Response 50000 1-cell
25715 28 3906 4000 80 300x1200 Beta Opti VTB 1-cell
25715-111 28 3906 4000 80 300x1200 Beta Opti VTB Wieland GST18i3, 1 connector 1-cell
25715-3 28 3906 4000 80 300x1200 Beta Opti VTB Connection cable with plug, L=2.5 m 1-cell
25715-340 28 3906 4000 80 300x1200 Beta Opti VTB Wago Winsta, 1 connector 1-cell
25715-402 28 3800 4000 80 300x1200 Beta Opti VTB DALI/Phase-pulse 50000 1-cell
25715-454 28 3800 4000 80 300x1200 Beta Opti VTB DALI/Phase-pulse Wago Winsta, 1 connector 50000 1-cell
25715-456 28 3800 4000 80 300x1200 Beta Opti VTB DALI/Phase-pulse Wieland GST18i5, 1 connector 50000 1-cell
25715-533 30 3800 4000 80 300x1200 Beta Opti VTB Organic Response 50000 1-cell
25786 23 2956 3000 80 600x600 Beta Opti VTB 2-cell
25786-111 23 2956 3000 80 600x600 Beta Opti VTB Wieland GST18i3, 1 connector 2-cell
25786-3 23 2956 3000 80 600x600 Beta Opti VTB Connection cable with plug, L=2.5 m 2-cell
25786-340 23 2956 3000 80 600x600 Beta Opti VTB Wago Winsta, 1 connector 2-cell
25786-402 24 2940 3000 80 600x600 Beta Opti VTB DALI/Phase-pulse 50000 2-cell
25786-454 24 2940 3000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wago Winsta, 1 connector 50000 2-cell
25786-456 24 2940 3000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wieland GST18i5, 1 connector 50000 2-cell
25786-533 25 2940 3000 80 600x600 Beta Opti VTB Organic Response 50000
25788 22 2941 4000 80 600x600 Beta Opti VTB 2-cell
25788-111 22 2941 4000 80 600x600 Beta Opti VTB Wieland GST18i3, 1 connector 2-cell
25788-3 22 2941 4000 80 600x600 Beta Opti VTB Connection cable with plug, L=2.5 m 2-cell
25788-340 22 2941 4000 80 600x600 Beta Opti VTB Wago Winsta, 1 connector 2-cell
25788-402 23 3001 4000 80 600x600 Beta Opti VTB DALI/Phase-pulse 50000 2-cell
25788-454 23 3001 4000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wago Winsta, 1 connector 50000 2-cell
25788-456 23 3001 4000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wieland GST18i5, 1 connector 50000 2-cell
25788-533 24 3001 4000 80 600x600 Beta Opti VTB Organic Response 50000
25789 31 4333 3000 80 600x600 Beta Opti VTB 4-cell
25789-111 31 4333 3000 80 600x600 Beta Opti VTB Wieland GST18i3, 1 connector 4-cell
25789-3 31 4333 3000 80 600x600 Beta Opti VTB Connection cable with plug, L=2.5 m 4-cell
25789-340 31 4333 3000 80 600x600 Beta Opti VTB Wago Winsta, 1 connector 4-cell
25789-402 29 3950 3000 80 600x600 Beta Opti VTB DALI/Phase-pulse 50000 4-cell
25789-454 29 3950 3000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wago Winsta, 1 connector 50000 4-cell
25789-456 29 3950 3000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wieland GST18i5, 1 connector 50000 4-cell
25789-533 29 3950 3000 80 600x600 Beta Opti VTB Organic Response 50000
25791 30 4343 4000 80 600x600 Beta Opti VTB 4-cell
25791-111 30 4343 4000 80 600x600 Beta Opti VTB Wieland GST18i3, 1 connector 4-cell
25791-3 30 4343 4000 80 600x600 Beta Opti VTB Connection cable with plug, L=2.5 m 4-cell
25791-340 30 4343 4000 80 600x600 Beta Opti VTB Wago Winsta, 1 connector 4-cell
25791-402 27 3950 4000 80 600x600 Beta Opti VTB DALI/Phase-pulse 50000 4-cell
25791-454 27 3950 4000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wago Winsta, 1 connector 50000 4-cell
25791-456 27 3950 4000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wieland GST18i5, 1 connector 50000 4-cell
25791-533 28 3950 4000 80 600x600 Beta Opti VTB Organic Response 50000
25815 32 3872 3000 80 600x600 Beta Opti VTB 2-cell
25815-111 32 3872 3000 80 600x600 Beta Opti VTB Wieland GST18i3, 1 connector 2-cell
25815-3 32 3872 3000 80 600x600 Beta Opti VTB Connection cable with plug, L=2.5 m 2-cell
25815-340 32 3872 3000 80 600x600 Beta Opti VTB Wago Winsta, 1 connector 2-cell
25815-402 31 3780 3000 80 600x600 Beta Opti VTB DALI/Phase-pulse 50000 2-cell
25815-454 31 3780 3000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wago Winsta, 1 connector 50000 2-cell
25815-456 31 3780 3000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wieland GST18i5, 1 connector 50000 2-cell
25815-533 32 3780 3000 80 600x600 Beta Opti VTB Organic Response 50000
25816 30 3886 4000 80 600x600 Beta Opti VTB 2-cell
25816-111 30 3886 4000 80 600x600 Beta Opti VTB Wieland GST18i3, 1 connector 2-cell
25816-3 30 3886 4000 80 600x600 Beta Opti VTB Connection cable with plug, L=2.5 m 2-cell
25816-340 30 3886 4000 80 600x600 Beta Opti VTB Wago Winsta, 1 connector 2-cell
25816-402 29 3780 4000 80 600x600 Beta Opti VTB DALI/Phase-pulse 50000 2-cell
25816-454 29 3780 4000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wago Winsta, 1 connector 50000 2-cell
25816-456 29 3780 4000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wieland GST18i5, 1 connector 50000 2-cell
25816-533 31 3780 4000 80 600x600 Beta Opti VTB Organic Response 50000
25817 39 5431 3000 80 600x600 Beta Opti VTB 4-cell
25817-111 39 5431 3000 80 600x600 Beta Opti VTB Wieland GST18i3, 1 connector 4-cell
25817-3 39 5431 3000 80 600x600 Beta Opti VTB Connection cable with plug, L=2.5 m 4-cell
25817-340 39 5431 3000 80 600x600 Beta Opti VTB Wago Winsta, 1 connector 4-cell
25817-402 37 5000 3000 80 600x600 Beta Opti VTB DALI/Phase-pulse 50000 4-cell
25817-454 37 5000 3000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wago Winsta, 1 connector 50000 4-cell
25817-456 37 5000 3000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wieland GST18i5, 1 connector 50000 4-cell
25817-533 38 5000 3000 80 600x600 Beta Opti VTB Organic Response 50000
25818 38 5401 4000 80 600x600 Beta Opti VTB 4-cell
25818-111 38 5401 4000 80 600x600 Beta Opti VTB Wieland GST18i3, 1 connector 4-cell
25818-3 38 5401 4000 80 600x600 Beta Opti VTB Connection cable with plug, L=2.5 m 4-cell
25818-340 38 5401 4000 80 600x600 Beta Opti VTB Wago Winsta, 1 connector 4-cell
25818-402 35 5000 4000 80 600x600 Beta Opti VTB DALI/Phase-pulse 50000 4-cell
25818-454 35 5000 4000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wago Winsta, 1 connector 50000 4-cell
25818-456 35 5000 4000 80 600x600 Beta Opti VTB DALI/Phase-pulse Wieland GST18i5, 1 connector 50000 4-cell
25818-533 36 5000 4000 80 600x600 Beta Opti VTB Organic Response 50000
25823-402 63 9643 3000 80 600x600 Beta Opti VTB DALI/Phase-pulse 100000 4-cell
25824-402 63 10162 4000 80 600x600 Beta Opti VTB DALI/Phase-pulse 100000 4-cell
25825 19 2624 3000 80 150x1200 Delta VTB LL
25825-111 19 2624 3000 80 150x1200 Delta VTB Wieland GST18i3, 1 connector LL
25825-3 19 2624 3000 80 150x1200 Delta VTB Connection cable with plug, L=2.5 m LL
25825-340 19 2624 3000 80 150x1200 Delta VTB Wago Winsta, 1 connector LL
25825-402 18 2624 3000 80 150x1200 Delta VTB DALI/Phase-pulse 50000 LL
25825-519 19 2624 3000 80 150x1200 Delta VTB Ensto 3-way male LL
25825-520 18 2624 3000 80 150x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 LL
25825-528 18 2624 3000 80 150x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 LL
25825-529 18 2624 3000 80 150x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 LL
25825T1L-402 37 2624 (x2) 3000 80 150x1200 Delta VTB DALI/Phase-pulse 50000 LL, Twin 1L
25825T1L-520 37 2624 (x2) 3000 80 150x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 LL, Twin 1L
25825T1L-528 37 2624 (x2) 3000 80 150x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 LL, Twin 1L
25825T1L-529 37 2624 (x2) 3000 80 150x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 LL, Twin 1L
25826 19 2700 4000 80 150x1200 Delta VTB LL
25826-111 19 2700 4000 80 150x1200 Delta VTB Wieland GST18i3, 1 connector LL
25826-3 19 2700 4000 80 150x1200 Delta VTB Connection cable with plug, L=2.5 m LL
25826-340 19 2700 4000 80 150x1200 Delta VTB Wago Winsta, 1 connector LL
25826-402 18 2700 4000 80 150x1200 Delta VTB DALI/Phase-pulse 50000 LL
25826-519 19 2700 4000 80 150x1200 Delta VTB Ensto 3-way male LL
25826-520 18 2700 4000 80 150x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 LL
25826-528 18 2700 4000 80 150x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 LL
25826-529 18 2700 4000 80 150x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 LL
25826T1L-402 37 2700 (x2) 4000 80 150x1200 Delta VTB DALI/Phase-pulse 50000 LL, Twin 1L
25826T1L-520 37 2700 (x2) 4000 80 150x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 LL, Twin 1L
25826T1L-528 37 2700 (x2) 4000 80 150x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 LL, Twin 1L
25826T1L-529 37 2700 (x2) 4000 80 150x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 LL, Twin 1L
25827 26 3402 3000 80 150x1200 Delta VTB Organic Response 50000
25827-111 26 3402 3000 80 150x1200 Delta VTB Organic Response Wieland GST18i3, 1 connector 50000
25827-3 26 3402 3000 80 150x1200 Delta VTB Organic Response Connection cable with plug, L=2.5 m 50000
25827-340 26 3402 3000 80 150x1200 Delta VTB Organic Response Wago Winsta, 1 connector 50000
25827-519 26 3402 3000 80 150x1200 Delta VTB Organic Response Ensto 3-way male 50000
25827T1L 50 3402 (x2) 3000 80 150x1200 Delta VTB Organic Response 50000 Twin 1L
25827T1L-111 50 3402 (x2) 3000 80 150x1200 Delta VTB Organic Response Wieland GST18i3, 1 connector 50000 Twin 1L
25827T1L-3 50 3402 (x2) 3000 80 150x1200 Delta VTB Organic Response Connection cable with plug, L=2.5 m 50000 Twin 1L
25827T1L-340 50 3402 (x2) 3000 80 150x1200 Delta VTB Organic Response Wago Winsta, 1 connector 50000 Twin 1L
25827T1L-519 50 3402 (x2) 3000 80 150x1200 Delta VTB Organic Response Ensto 3-way male 50000 Twin 1L
25828 26 3500 4000 80 150x1200 Delta VTB Organic Response 50000
25828-111 26 3500 4000 80 150x1200 Delta VTB Organic Response Wieland GST18i3, 1 connector 50000
25828-3 26 3500 4000 80 150x1200 Delta VTB Organic Response Connection cable with plug, L=2.5 m 50000
25828-340 26 3500 4000 80 150x1200 Delta VTB Organic Response Wago Winsta, 1 connector 50000
25828-519 26 3500 4000 80 150x1200 Delta VTB Organic Response Ensto 3-way male 50000
25828T1L 50 3500 (x2) 4000 80 150x1200 Delta VTB Organic Response 50000 Twin 1L
25828T1L-111 50 3500 (x2) 4000 80 150x1200 Delta VTB Organic Response Wieland GST18i3, 1 connector 50000 Twin 1L
25828T1L-3 50 3500 (x2) 4000 80 150x1200 Delta VTB Organic Response Connection cable with plug, L=2.5 m 50000 Twin 1L
25828T1L-340 50 3500 (x2) 4000 80 150x1200 Delta VTB Organic Response Wago Winsta, 1 connector 50000 Twin 1L
25828T1L-519 50 3500 (x2) 4000 80 150x1200 Delta VTB Organic Response Ensto 3-way male 50000 Twin 1L
25829 19 2624 3000 80 300x1200 Delta VTB LL
25829-111 19 2624 3000 80 300x1200 Delta VTB Wieland GST18i3, 1 connector LL
25829-3 19 2624 3000 80 300x1200 Delta VTB Connection cable with plug, L=2.5 m LL
25829-340 19 2624 3000 80 300x1200 Delta VTB Wago Winsta, 1 connector LL
25829-402 18 2624 3000 80 300x1200 Delta VTB DALI/Phase-pulse 50000 LL
25829-519 19 2624 3000 80 300x1200 Delta VTB Ensto 3-way male LL
25829-520 18 2624 3000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 LL
25829-528 18 2624 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 LL
25829-529 18 2624 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 LL
25829T1L-402 37 2624 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse 50000 LL, Twin 1L
25829T1L-520 37 2624 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 LL, Twin 1L
25829T1L-528 37 2624 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 LL, Twin 1L
25829T1L-529 37 2624 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 LL, Twin 1L
25830 19 2700 4000 80 300x1200 Delta VTB LL
25830-111 19 2700 4000 80 300x1200 Delta VTB Wieland GST18i3, 1 connector LL
25830-3 19 2700 4000 80 300x1200 Delta VTB Connection cable with plug, L=2.5 m LL
25830-340 19 2700 4000 80 300x1200 Delta VTB Wago Winsta, 1 connector LL
25830-402 18 2700 4000 80 300x1200 Delta VTB DALI/Phase-pulse 50000 LL
25830-519 19 2700 4000 80 300x1200 Delta VTB Ensto 3-way male LL
25830-520 18 2700 4000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 LL
25830-528 18 2700 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 LL
25830-529 18 2700 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 LL
25830T1L-402 37 2700 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse 50000 LL, Twin 1L
25830T1L-520 37 2700 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 LL, Twin 1L
25830T1L-528 37 2700 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 LL, Twin 1L
25830T1L-529 37 2700 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 LL, Twin 1L
25831 26 3402 3000 80 300x1200 Delta VTB Organic Response 50000
25831-111 26 3402 3000 80 300x1200 Delta VTB Organic Response Wieland GST18i3, 1 connector 50000
25831-3 26 3402 3000 80 300x1200 Delta VTB Organic Response Connection cable with plug, L=2.5 m 50000
25831-340 26 3402 3000 80 300x1200 Delta VTB Organic Response Wago Winsta, 1 connector 50000
25831-519 26 3402 3000 80 300x1200 Delta VTB Organic Response Ensto 3-way male 50000
25831T1L 50 3402 (x2) 3000 80 300x1200 Delta VTB Organic Response 50000 Twin 1L
25831T1L-111 50 3402 (x2) 3000 80 300x1200 Delta VTB Organic Response Wieland GST18i3, 1 connector 50000 Twin 1L
25831T1L-3 50 3402 (x2) 3000 80 300x1200 Delta VTB Organic Response Connection cable with plug, L=2.5 m 50000 Twin 1L
25831T1L-340 50 3402 (x2) 3000 80 300x1200 Delta VTB Organic Response Wago Winsta, 1 connector 50000 Twin 1L
25831T1L-519 50 3402 (x2) 3000 80 300x1200 Delta VTB Organic Response Ensto 3-way male 50000 Twin 1L
25832 26 3500 4000 80 300x1200 Delta VTB Organic Response 50000
25832-111 26 3500 4000 80 300x1200 Delta VTB Organic Response Wieland GST18i3, 1 connector 50000
25832-3 26 3500 4000 80 300x1200 Delta VTB Organic Response Connection cable with plug, L=2.5 m 50000
25832-340 26 3500 4000 80 300x1200 Delta VTB Organic Response Wago Winsta, 1 connector 50000
25832-519 26 3500 4000 80 300x1200 Delta VTB Organic Response Ensto 3-way male 50000
25832T1L 50 3500 (x2) 4000 80 300x1200 Delta VTB Organic Response 50000 Twin 1L
25832T1L-111 50 3500 (x2) 4000 80 300x1200 Delta VTB Organic Response Wieland GST18i3, 1 connector 50000 Twin 1L
25832T1L-3 50 3500 (x2) 4000 80 300x1200 Delta VTB Organic Response Connection cable with plug, L=2.5 m 50000 Twin 1L
25832T1L-340 50 3500 (x2) 4000 80 300x1200 Delta VTB Organic Response Wago Winsta, 1 connector 50000 Twin 1L
25832T1L-519 50 3500 (x2) 4000 80 300x1200 Delta VTB Organic Response Ensto 3-way male 50000 Twin 1L
25833 23 3332 3000 80 150x1500 Delta VTB LL
25833-111 23 3332 3000 80 150x1500 Delta VTB Wieland GST18i3, 1 connector LL
25833-3 23 3332 3000 80 150x1500 Delta VTB Connection cable with plug, L=2.5 m LL
25833-340 23 3332 3000 80 150x1500 Delta VTB Wago Winsta, 1 connector LL
25833-402 23 3395 3000 80 150x1500 Delta VTB DALI/Phase-pulse 100000 LL
25833-519 23 3392 3000 80 150x1500 Delta VTB Ensto 3-way male LL
25833-520 23 3395 3000 80 150x1500 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 LL
25833-528 23 3395 3000 80 150x1500 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 LL
25833-529 23 3395 3000 80 150x1500 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 LL
25833T1L-402 46 3395 (x2) 3000 80 150x1500 Delta VTB DALI/Phase-pulse 100000 LL, Twin 1L
25833T1L-520 46 3395 (x2) 3000 80 150x1500 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 LL, Twin 1L
25833T1L-528 46 3395 (x2) 3000 80 150x1500 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 LL, Twin 1L
25833T1L-529 46 3395 (x2) 3000 80 150x1500 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 LL, Twin 1L
25834 23 3332 4000 80 150x1500 Delta VTB LL
25834-111 23 3332 4000 80 150x1500 Delta VTB Wieland GST18i3, 1 connector LL
25834-3 23 3332 4000 80 150x1500 Delta VTB Connection cable with plug, L=2.5 m LL
25834-340 23 3332 4000 80 150x1500 Delta VTB Wago Winsta, 1 connector LL
25834-402 23 3395 4000 80 150x1500 Delta VTB DALI/Phase-pulse 100000 LL
25834-519 23 3392 4000 80 150x1500 Delta VTB Ensto 3-way male LL
25834-520 23 3395 4000 80 150x1500 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 LL
25834-528 23 3395 4000 80 150x1500 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 LL
25834-529 23 3395 4000 80 150x1500 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 LL
25834T1L-402 46 3395 (x2) 4000 80 150x1500 Delta VTB DALI/Phase-pulse 100000 LL, Twin 1L
25834T1L-520 46 3395 (x2) 4000 80 150x1500 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 LL, Twin 1L
25834T1L-528 46 3395 (x2) 4000 80 150x1500 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 LL, Twin 1L
25834T1L-529 46 3395 (x2) 4000 80 150x1500 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 LL, Twin 1L
25835 31 4454 3000 80 150x1500 Delta VTB Organic Response 100000
25835-111 31 4454 3000 80 150x1500 Delta VTB Organic Response Wieland GST18i3, 1 connector 100000
25835-3 31 4454 3000 80 150x1500 Delta VTB Organic Response Connection cable with plug, L=2.5 m 100000
25835-340 31 4454 3000 80 150x1500 Delta VTB Organic Response Wago Winsta, 1 connector 100000
25835-519 31 4454 3000 80 150x1500 Delta VTB Organic Response Ensto 3-way male 100000
25835T1L 61 4454 (x2) 3000 80 150x1500 Delta VTB Organic Response 100000 Twin 1L
25835T1L-111 61 4454 (x2) 3000 80 150x1500 Delta VTB Organic Response Wieland GST18i3, 1 connector 100000 Twin 1L
25835T1L-3 61 4454 (x2) 3000 80 150x1500 Delta VTB Organic Response Connection cable with plug, L=2.5 m 100000 Twin 1L
25835T1L-340 61 4454 (x2) 3000 80 150x1500 Delta VTB Organic Response Wago Winsta, 1 connector 100000 Twin 1L
25835T1L-519 61 4454 (x2) 3000 80 150x1500 Delta VTB Organic Response Ensto 3-way male 100000 Twin 1L
25836 31 4454 4000 80 150x1500 Delta VTB Organic Response 100000
25836-111 31 4454 4000 80 150x1500 Delta VTB Organic Response Wieland GST18i3, 1 connector 100000
25836-3 31 4454 4000 80 150x1500 Delta VTB Organic Response Connection cable with plug, L=2.5 m 100000
25836-340 31 4454 4000 80 150x1500 Delta VTB Organic Response Wago Winsta, 1 connector 100000
25836-519 31 4454 4000 80 150x1500 Delta VTB Organic Response Ensto 3-way male 100000
25836T1L 61 4454 (x2) 4000 80 150x1500 Delta VTB Organic Response 100000 Twin 1L
25836T1L-111 61 4454 (x2) 4000 80 150x1500 Delta VTB Organic Response Wieland GST18i3, 1 connector 100000 Twin 1L
25836T1L-3 61 4454 (x2) 4000 80 150x1500 Delta VTB Organic Response Connection cable with plug, L=2.5 m 100000 Twin 1L
25836T1L-340 61 4454 (x2) 4000 80 150x1500 Delta VTB Organic Response Wago Winsta, 1 connector 100000 Twin 1L
25836T1L-519 61 4454 (x2) 4000 80 150x1500 Delta VTB Organic Response Ensto 3-way male 100000 Twin 1L
25856 30 4420 3000 80 150x1500 Delta VTB HL
25856-111 30 4420 3000 80 150x1500 Delta VTB Wieland GST18i3, 1 connector HL
25856-3 30 4420 3000 80 150x1500 Delta VTB Connection cable with plug, L=2.5 m HL
25856-340 30 4420 3000 80 150x1500 Delta VTB Wago Winsta, 1 connector HL
25856-402 31 4518 3000 80 150x1500 Delta VTB DALI/Phase-pulse 100000 HL
25856-519 30 4420 3000 80 150x1500 Delta VTB Ensto 3-way male HL
25856-520 31 4518 3000 80 150x1500 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 HL
25856-528 31 4518 3000 80 150x1500 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 HL
25856-529 31 4518 3000 80 150x1500 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 HL
25856T1L-402 61 4518 (x2) 3000 80 150x1500 Delta VTB DALI/Phase-pulse 100000 HL, Twin 1L
25856T1L-520 61 4518 (x2) 3000 80 150x1500 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 HL, Twin 1L
25856T1L-528 61 4518 (x2) 3000 80 150x1500 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 HL, Twin 1L
25856T1L-529 61 4518 (x2) 3000 80 150x1500 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 HL, Twin 1L
25857 30 4420 4000 80 150x1500 Delta VTB HL
25857-111 30 4420 4000 80 150x1500 Delta VTB Wieland GST18i3, 1 connector HL
25857-3 30 4420 4000 80 150x1500 Delta VTB Connection cable with plug, L=2.5 m HL
25857-340 30 4420 4000 80 150x1500 Delta VTB Wago Winsta, 1 connector HL
25857-402 31 4518 4000 80 150x1500 Delta VTB DALI/Phase-pulse 100000 HL
25857-519 30 4420 4000 80 150x1500 Delta VTB Ensto 3-way male HL
25857-520 31 4518 4000 80 150x1500 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 HL
25857-528 31 4518 4000 80 150x1500 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 HL
25857-529 31 4518 4000 80 150x1500 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 HL
25857T1L-402 61 4518 (x2) 4000 80 150x1500 Delta VTB DALI/Phase-pulse 100000 HL, Twin 1L
25857T1L-520 61 4518 (x2) 4000 80 150x1500 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000 HL, Twin 1L
25857T1L-528 61 4518 (x2) 4000 80 150x1500 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000 HL, Twin 1L
25857T1L-529 61 4518 (x2) 4000 80 150x1500 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000 HL, Twin 1L
25894 25 3324 3000 80 150x1200 Delta VTB HL
25894-111 25 3324 3000 80 150x1200 Delta VTB Wieland GST18i3, 1 connector HL
25894-3 25 3324 3000 80 150x1200 Delta VTB Connection cable with plug, L=2.5 m HL
25894-340 25 3324 3000 80 150x1200 Delta VTB Wago Winsta, 1 connector HL
25894-402 25 3464 3000 80 150x1200 Delta VTB DALI/Phase-pulse 50000 HL
25894-519 25 3324 3000 80 150x1200 Delta VTB Ensto 3-way male HL
25894-520 25 3464 3000 80 150x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 HL
25894-528 25 3464 3000 80 150x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 HL
25894-529 25 3464 3000 80 150x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 HL
25894T1L-402 50 3464 (x2) 3000 80 150x1200 Delta VTB DALI/Phase-pulse 50000 HL, Twin 1L
25894T1L-520 50 3464 (x2) 3000 80 150x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 HL, Twin 1L
25894T1L-528 50 3464 (x2) 3000 80 150x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 HL, Twin 1L
25894T1L-529 50 3464 (x2) 3000 80 150x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 HL, Twin 1L
25895 25 3420 4000 80 150x1200 Delta VTB HL
25895-111 25 3420 4000 80 150x1200 Delta VTB Wieland GST18i3, 1 connector HL
25895-3 25 3420 4000 80 150x1200 Delta VTB Connection cable with plug, L=2.5 m HL
25895-340 25 3420 4000 80 150x1200 Delta VTB Wago Winsta, 1 connector HL
25895-402 25 3564 4000 80 150x1200 Delta VTB DALI/Phase-pulse 50000 HL
25895-519 25 3420 4000 80 150x1200 Delta VTB Ensto 3-way male HL
25895-520 25 3564 4000 80 150x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 HL
25895-528 25 3564 4000 80 150x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 HL
25895-529 25 3564 4000 80 150x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 HL
25895T1L-402 50 3564 (x2) 4000 80 150x1200 Delta VTB DALI/Phase-pulse 50000 HL, Twin 1L
25895T1L-520 50 3564 (x2) 4000 80 150x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 HL, Twin 1L
25895T1L-528 50 3564 (x2) 4000 80 150x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 HL, Twin 1L
25895T1L-529 50 3564 (x2) 4000 80 150x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 HL, Twin 1L
25896 25 3324 3000 80 300x1200 Delta VTB HL
25896-111 25 3324 3000 80 300x1200 Delta VTB Wieland GST18i3, 1 connector HL
25896-3 25 3324 3000 80 300x1200 Delta VTB Connection cable with plug, L=2.5 m HL
25896-340 25 3324 3000 80 300x1200 Delta VTB Wago Winsta, 1 connector HL
25896-402 25 3464 3000 80 300x1200 Delta VTB DALI/Phase-pulse 50000 HL
25896-519 25 3324 3000 80 300x1200 Delta VTB Ensto 3-way male HL
25896-520 25 3464 3000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 HL
25896-528 25 3464 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 HL
25896-529 25 3464 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 HL
25896T1L-402 50 3464 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse 50000 HL, Twin 1L
25896T1L-520 50 3464 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 HL, Twin 1L
25896T1L-528 50 3464 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 HL, Twin 1L
25896T1L-529 50 3464 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 HL, Twin 1L
25897 25 3420 4000 80 300x1200 Delta VTB HL
25897-111 25 3420 4000 80 300x1200 Delta VTB Wieland GST18i3, 1 connector HL
25897-3 25 3420 4000 80 300x1200 Delta VTB Connection cable with plug, L=2.5 m HL
25897-340 25 3420 4000 80 300x1200 Delta VTB Wago Winsta, 1 connector HL
25897-402 25 3564 4000 80 300x1200 Delta VTB DALI/Phase-pulse 50000 HL
25897-519 25 3420 4000 80 300x1200 Delta VTB Ensto 3-way male HL
25897-520 25 3564 4000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 HL
25897-528 25 3564 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 HL
25897-529 25 3564 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 HL
25897T1L-402 50 3564 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse 50000 HL, Twin 1L
25897T1L-520 50 3564 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 HL, Twin 1L
25897T1L-528 50 3564 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 HL, Twin 1L
25897T1L-529 50 3564 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 HL, Twin 1L
Showing 38 of 38 Accessories
Name Description Art.no. Article PDF
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, suspended pipe conduit installation, 1 m cable. pipe not included. 86409
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, surface mounted, 1 m cable 86408
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, recessed, 3.2 m cable 86410
External Organic Response sensor incl. DALI PSU Extern sensor incl. DALI PSU, suspended pipe conduit installation, 3.2 m cable. Pipe not included. 86412
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, surface mounted, 3.2 m cable 86411
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, recessed, 1 m cable 86407
Wieland connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm² 91793
Wieland T-connector Wieland 5-way T-connector 91026
Organic Response EnOcean Wireless Push button panel EnOcean 4 function push button panel, labeled, white 86437
Organic Response EnOcean Wireless Push button panel EnOcean 2 function push button panel, labeled, white 86436
Organic Response I/O box I/O box with potential-free 16A relay for controlling external units. 86413
Organic Response IoT Gateway Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. 86296
Wieland connection cables, 3-way Length 1.0 m with female and male connectors, 3x1,5 mm² 91791
Wieland T-connector Wieland 3-way T-connector 91025
Organic Response EnOcean Wireless Push button panel EnOcean 4 function push button panel, white 86417
Organic Response EnOcean Wireless Push button panel EnOcean 2 function push button panel, white 86416
IR dongle for Organic Response IR dongle for Organic Response equipped luminaire. 86279
Fence Fence 600x600 white. Only for T-bars T24. 41252
Sky frame Sky frame for ceiling window effect 600x600, white. Only for T-bars T24. 41245
Fence Fence 600x600 champagne. Only for T-bars T24. 41254
Fence Fence 600x600 black. Only for T-bars T24. 41253
Organic Response I/O box I/O box with potential-free 8A relay for controlling external units. 86433
Recessed frame solid ceiling Recessed frame for VTB frame 600x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4,5kg 41051
Recessed frame solid ceiling Recessed frame for VTB frame 300x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 3kg 41048
Recessed frame solid ceiling Recessed frame for VTB frame 300x1200 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4kg 41049
WAGO T-connector WAGO T-connector, 5-way, 2 locking levers, blue 88228
WAGO T-connector WAGO T-Connector, 3-way, white 91067
no-image placeholder Ensto power cable Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. 92788
no-image placeholder Ensto power cable Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. 92787
no-image placeholder Ensto connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92785
no-image placeholder Ensto connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92786
WAGO connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 91243
WAGO connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 91244
Wieland connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92799
Ensto T-connector Ensto T-connector 3-way, white 92783
Ensto T-connector Ensto T-connector 5-way, grey 92784
Wieland connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92793
External Organic Response sensor excl. PSU. External Organic Response G3 Sensor excl. PSU. External sensor excl. PSU. 86519

Downloads

Recesso recessed 300x1200 Beta Opti

Documents

Open PDF
Open PDF
Open PDF

3D Models

Manuals

Open PDF
Open PDF
Reference case

Bodegraven City Hall

Lighting control from a human perspective

Read more
Reference case

Vålerenga stadium

A customer-based solution

Read more
Return to top
