Multilume FlatRecessed

Multiple mounting options

Multilume is a family of energy-efficient recessed luminaires that are easy to adapt to different ceilings. Multilume Flat is available with two different louvres that sit discreetly flush with the ceiling.

152 lm/W

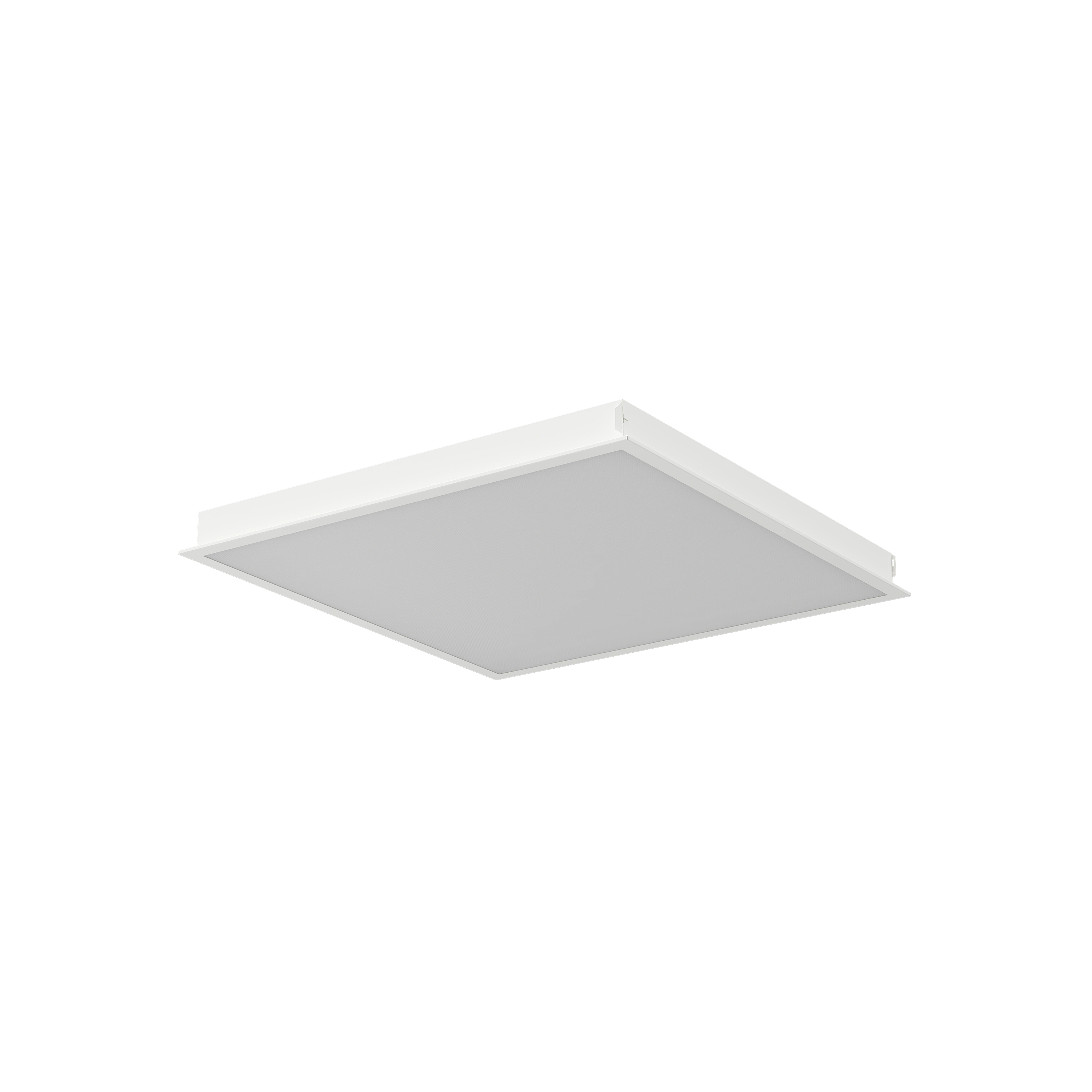

Multilume Flat recessed 600x600 HB delta
White RAL 9016 G40
Multilume Flat recessed 600x600 HB delta Multilume Flat Recessed Delta

Multilume FlatRecessed

Multiple mounting options

Multilume is a family of energy-efficient recessed luminaires that are easy to adapt to different ceilings. Multilume Flat is available with two different louvres that sit discreetly flush with the ceiling.

152 lm/W

Installation

Luminaire for recessed installation in suspended ceilings. Unventilated or ventilated suspended ceilings.
VTB – for suspended ceilings with visible T-bars (15 or 24 mm).
HB – for suspended ceilings with concealed T-bars and symmetrical ceiling tile mount (thickness 20-22 mm). Supplement with suspension fittings for fixed suspended ceilings, see Accessories.
IP44 under a suspended ceiling, IP20 above a suspended ceiling. For detailed information, see the installation instructions.

Connection

For permanent connection in separate driver box. Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis mounted snap-in connector in the driver where a T-splitter or earthed mains cable and plug are possible. The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III. The supplied driver must be connected to the protective earth. CLO (Constant Light Output).

Design

Luminaire body made of sheet steel. Lacquered in white (RAL 9016 G40).

Light Distribution

Direct.

Light data

CCT, K:
3000 K, 4000 K, 2700-6500 K (TW)
CRI/Rf:
80, 90
SDCM:
3
Lumen output:
2326-4256 lm
CLO:
50 000 h

Optics

Opal diffuser made of frosted acrylic (PMMA.)
Delta – micro-prism louvre in acrylic (PMMA).

152lm/W

Energy efficiency from the most efficient article.

Read more about our products lifecycle

Less waste material

The material that has been cut out for the light opening is used as a top cover. By reducing the amount of waste and optimising resource use, we are able to save materials and reduce overall waste. At the same time, the product benefits from a lower carbon footprint.

High efficiency & reduced energy consumption

The product family includes models with very high efficiency – without compromising on light comfort. High efficiency gives rise to reductions in energy consumption, climate impact and operating costs. The luminaire’s good light comfort also means that fewer luminaires are needed to achieve the desired light level.

Constant Light Output (CLO)

The luminaire is available with Constant Light Output (CLO), providing the right level of light throughout it’s working life and thereby reducing energy consumption. CLO can save up to 36% energy compared to L70. It is also often the case that fewer luminaires are needed, reducing investment and operating costs as well as climate impact.

DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

On/Off

Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.

Articles

Showing 565 of 565 Articles
Art.no. System Wattage Lumen output CCT, K CRI Module Louvre Installation Light control Connection CLO time, h Miscellaneous Light data files Article PDF
23718 37 4313 3000 90 300x1200 Opal VTB On/off Fixed connection
23718-111 37 4313 3000 90 300x1200 Opal VTB On/off Wieland GST18i3 3-way male
23718-3 37 4313 3000 90 300x1200 Opal VTB On/off Connection cable with plug, L=2.5 m
23718-340 37 4313 3000 90 300x1200 Opal VTB On/off Wago Winsta 3-way male
23718-402 34 4026 3000 90 300x1200 Opal VTB DALI/Phase-pulse Fixed connection 100000
23718-519 37 4313 3000 90 300x1200 Opal VTB On/off Ensto 3-way male
23718-520 34 4026 3000 90 300x1200 Opal VTB DALI/Phase-pulse Ensto 5-way male 100000
23718-528 34 4026 3000 90 300x1200 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
23718-529 34 4026 3000 90 300x1200 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
23719 37 4593 4000 90 300x1200 Opal VTB On/off Fixed connection
23719-111 37 4593 4000 90 300x1200 Opal VTB On/off Wieland GST18i3 3-way male
23719-3 37 4593 4000 90 300x1200 Opal VTB On/off Connection cable with plug, L=2.5 m
23719-340 37 4593 4000 90 300x1200 Opal VTB On/off Wago Winsta 3-way male
23719-402 34 4288 4000 90 300x1200 Opal VTB DALI/Phase-pulse Fixed connection 100000
23719-519 37 4593 4000 90 300x1200 Opal VTB On/off Ensto 3-way male
23719-520 34 4288 4000 90 300x1200 Opal VTB DALI/Phase-pulse Ensto 5-way male 100000
23719-528 34 4288 4000 90 300x1200 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
23719-529 34 4288 4000 90 300x1200 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
23720 37 4025 3000 90 300x1200 Delta VTB On/off Fixed connection
23720-111 37 4025 3000 90 300x1200 Delta VTB On/off Wieland GST18i3 3-way male
23720-3 37 4025 3000 90 300x1200 Delta VTB On/off Connection cable with plug, L=2.5 m
23720-340 37 4025 3000 90 300x1200 Delta VTB On/off Wago Winsta 3-way male
23720-402 34 3757 3000 90 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 100000
23720-519 37 4025 3000 90 300x1200 Delta VTB On/off Ensto 3-way male
23720-520 34 3757 3000 90 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
23720-528 34 3757 3000 90 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
23720-529 34 3757 3000 90 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
23721 37 4286 4000 90 300x1200 Delta VTB On/off Fixed connection
23721-111 37 4286 4000 90 300x1200 Delta VTB On/off Wieland GST18i3 3-way male
23721-3 37 4286 4000 90 300x1200 Delta VTB On/off Connection cable with plug, L=2.5 m
23721-340 37 4286 4000 90 300x1200 Delta VTB On/off Wago Winsta 3-way male
23721-402 34 4001 4000 90 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 100000
23721-519 37 4286 4000 90 300x1200 Delta VTB On/off Ensto 3-way male
23721-520 34 4001 4000 90 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
23721-528 34 4001 4000 90 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
23721-529 34 4001 4000 90 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
23781 37 4559 3000 90 600x600 Opal VTB On/off Fixed connection
23781-111 37 4559 3000 90 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23781-3 37 4559 3000 90 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23781-340 37 4559 3000 90 600x600 Opal VTB On/off Wago Winsta 3-way male
23781-402 34 4256 3000 90 600x600 Opal VTB DALI/Phase-pulse Fixed connection 100000
23781-519 37 4559 3000 90 600x600 Opal VTB On/off Ensto 3-way male
23781-520 34 4256 3000 90 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 100000
23781-528 34 4256 3000 90 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
23781-529 34 4256 3000 90 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
23782 37 4855 4000 90 600x600 Opal VTB On/off Fixed connection
23782-111 37 4855 4000 90 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23782-3 37 4855 4000 90 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23782-340 37 4855 4000 90 600x600 Opal VTB On/off Wago Winsta 3-way male
23782-402 34 4532 4000 90 600x600 Opal VTB DALI/Phase-pulse Fixed connection 100000
23782-519 37 4855 4000 90 600x600 Opal VTB On/off Ensto 3-way male
23782-520 34 4532 4000 90 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 100000
23782-528 34 4532 4000 90 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
23782-529 34 4532 4000 90 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
23783 37 4256 3000 90 600x600 Delta VTB On/off Fixed connection
23783-111 37 4256 3000 90 600x600 Delta VTB On/off Wieland GST18i3 3-way male
23783-3 37 4256 3000 90 600x600 Delta VTB On/off Connection cable with plug, L=2.5 m
23783-340 37 4256 3000 90 600x600 Delta VTB On/off Wago Winsta 3-way male
23783-402 34 3973 3000 90 600x600 Delta VTB DALI/Phase-pulse Fixed connection 100000
23783-519 37 4256 3000 90 600x600 Delta VTB On/off Ensto 3-way male
23783-520 34 3973 3000 90 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
23783-528 34 3973 3000 90 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
23783-529 34 3973 3000 90 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
23784 37 4532 4000 90 600x600 Delta VTB On/off Fixed connection
23784-111 36 3804 4000 90 600x600 VTB On/off Wieland GST18i3 3-way male
23784-3 37 4532 4000 90 600x600 Delta VTB On/off Connection cable with plug, L=2.5 m
23784-340 37 4532 4000 90 600x600 Delta VTB On/off Wago Winsta 3-way male
23784-402 34 4231 4000 90 600x600 Delta VTB DALI/Phase-pulse Fixed connection 100000
23784-519 37 4532 4000 90 600x600 Delta VTB On/off Ensto 3-way male
23784-520 34 4231 4000 90 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 100000
23784-528 34 4231 4000 90 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 100000
23784-529 34 4231 4000 90 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 100000
23785 20 2928 3000 80 600x600 Opal VTB On/off Fixed connection
23785-111 20 2928 3000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23785-3 20 2928 3000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23785-340 20 2928 3000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23785-402 18 2635 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23785-519 20 2928 3000 80 600x600 Opal VTB On/off Ensto 3-way male
23785-520 18 2635 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23785-528 18 2635 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23785-529 18 2635 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23785T1L-402 36 2635 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23785T1L-520 36 2635 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23785T1L-528 36 2635 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23785T1L-529 36 2635 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23786 20 2733 3000 80 600x600 Delta VTB On/off Fixed connection
23786-111 20 2733 3000 80 600x600 Delta VTB On/off Wieland GST18i3 3-way male
23786-3 20 2733 3000 80 600x600 Delta VTB On/off Connection cable with plug, L=2.5 m
23786-340 20 2733 3000 80 600x600 Delta VTB On/off Wago Winsta 3-way male
23786-402 18 2460 3000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 50000
23786-519 20 2733 3000 80 600x600 Delta VTB On/off Ensto 3-way male
23786-520 18 2460 3000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000
23786-528 18 2460 3000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23786-529 18 2460 3000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23786T1L-402 36 2460 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23786T1L-520 36 2460 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23786T1L-528 36 2460 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23786T1L-529 36 2460 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23787 20 2928 3000 80 600x600 Opal HB On/off Fixed connection
23787-111 20 2928 3000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23787-3 20 2928 3000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23787-340 20 2928 3000 80 600x600 Opal HB On/off Wago Winsta 3-way male
23787-402 18 2635 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23787-519 20 2928 3000 80 600x600 Opal HB On/off Ensto 3-way male
23787-520 18 2635 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23787-528 18 2635 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23787-529 18 2635 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23787T1L-402 36 2635 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin1L
23787T1L-520 36 2635 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23787T1L-528 36 2635 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23787T1L-529 36 2635 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23788 20 2733 3000 80 600x600 Delta HB On/off Fixed connection
23788-111 20 2733 3000 80 600x600 Delta HB On/off Wieland GST18i3 3-way male
23788-3 20 2733 3000 80 600x600 Delta HB On/off Connection cable with plug, L=2.5 m
23788-340 20 2733 3000 80 600x600 Delta HB On/off Wago Winsta 3-way male
23788-402 18 2460 3000 80 600x600 Delta HB DALI/Phase-pulse Fixed connection 50000
23788-519 20 2733 3000 80 600x600 Delta HB On/off Ensto 3-way male
23788-520 18 2460 3000 80 600x600 Delta HB DALI/Phase-pulse Ensto 5-way male 50000
23788-528 18 2460 3000 80 600x600 Delta HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23788-529 18 2460 3000 80 600x600 Delta HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23788T1L-402 36 2460 (x2) 3000 80 600x600 Delta HB DALI/Phase-pulse Fixed connection 50000 Twin1L
23788T1L-520 36 2460 (x2) 3000 80 600x600 Delta HB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23788T1L-528 36 2460 (x2) 3000 80 600x600 Delta HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23788T1L-529 36 2460 (x2) 3000 80 600x600 Delta HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23789 20 3012 4000 80 600x600 Opal VTB On/off Fixed connection
23789-111 20 3012 4000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23789-3 20 3012 4000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23789-340 20 3012 4000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23789-402 18 2711 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23789-519 20 3012 4000 80 600x600 Opal VTB On/off Ensto 3-way male
23789-520 18 2711 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23789-528 18 2711 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23789-529 18 2711 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23789T1L-402 36 2711 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23789T1L-520 36 2711 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23789T1L-528 36 2711 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23789T1L-529 36 2711 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23790 20 2812 4000 80 600x600 Delta VTB On/off Fixed connection
23790-111 20 2812 4000 80 600x600 Delta VTB On/off Wieland GST18i3 3-way male
23790-3 20 2812 4000 80 600x600 Delta VTB On/off Connection cable with plug, L=2.5 m
23790-340 20 2812 4000 80 600x600 Delta VTB On/off Wago Winsta 3-way male
23790-402 18 2531 4000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 50000
23790-519 20 2812 4000 80 600x600 Delta VTB On/off Ensto 3-way male
23790-520 18 2531 4000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000
23790-528 18 2531 4000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23790-529 18 2531 4000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23790T1L-402 36 2531 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23790T1L-520 36 2531 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23790T1L-528 36 2531 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23790T1L-529 36 2531 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23791 20 3012 4000 80 600x600 Opal HB On/off Fixed connection
23791-111 20 3012 4000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23791-3 20 3012 4000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23791-340 20 3012 4000 80 600x600 Opal HB On/off Wago Winsta 3-way male
23791-402 18 2711 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23791-519 20 3012 4000 80 600x600 Opal HB On/off Ensto 3-way male
23791-520 18 2711 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23791-528 18 2711 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23791-529 18 2711 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23791T1L-402 36 2711 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin1L
23791T1L-520 36 2711 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23791T1L-528 36 2711 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23791T1L-529 36 2711 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23792 20 2812 4000 80 600x600 Delta HB On/off Fixed connection
23792-111 20 2812 4000 80 600x600 Delta HB On/off Wieland GST18i3 3-way male
23792-3 20 2812 4000 80 600x600 Delta HB On/off Connection cable with plug, L=2.5 m
23792-340 20 2812 4000 80 600x600 Delta HB On/off Wago Winsta 3-way male
23792-402 18 2531 4000 80 600x600 Delta HB DALI/Phase-pulse Fixed connection 50000
23792-519 20 2812 4000 80 600x600 Delta HB On/off Ensto 3-way male
23792-520 18 2531 4000 80 600x600 Delta HB DALI/Phase-pulse Ensto 5-way male 50000
23792-528 18 2531 4000 80 600x600 Delta HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23792-529 18 2531 4000 80 600x600 Delta HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23792T1L-402 36 2531 (x2) 4000 80 600x600 Delta HB DALI/Phase-pulse Fixed connection 50000 Twin1L
23792T1L-520 36 2531 (x2) 4000 80 600x600 Delta HB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23792T1L-528 36 2531 (x2) 4000 80 600x600 Delta HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23792T1L-529 36 2531 (x2) 4000 80 600x600 Delta HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23805 32 4707 3000 80 600x600 Opal VTB On/off Fixed connection
23805-111 32 4707 3000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23805-3 32 4707 3000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23805-340 32 4707 3000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23805-402 29 4243 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23805-519 32 4707 3000 80 600x600 Opal VTB On/off Ensto 3-way male
23805-520 29 4243 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23805-528 29 4243 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23805-529 29 4243 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23805T1L-402 57 4243 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23805T1L-520 57 4243 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23805T1L-528 57 4243 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23805T1L-529 57 4243 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23806 32 4394 3000 80 600x600 Delta VTB On/off Fixed connection
23806-111 32 4394 3000 80 600x600 Delta VTB On/off Wieland GST18i3 3-way male
23806-3 32 4394 3000 80 600x600 Delta VTB On/off Connection cable with plug, L=2.5 m
23806-340 32 4394 3000 80 600x600 Delta VTB On/off Wago Winsta 3-way male
23806-402 29 3961 3000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 50000
23806-519 32 4394 3000 80 600x600 Delta VTB On/off Ensto 3-way male
23806-520 29 3961 3000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000
23806-528 29 3961 3000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23806-529 29 3961 3000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23806T1L-402 57 3961 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23806T1L-520 57 3961 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23806T1L-528 57 3961 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23806T1L-529 57 3961 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23807 32 4707 3000 80 600x600 Opal HB On/off Fixed connection
23807-111 32 4707 3000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23807-3 32 4707 3000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23807-340 32 4707 3000 80 600x600 Opal HB On/off Wago Winsta 3-way male
23807-402 29 4243 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23807-519 32 4707 3000 80 600x600 Opal HB On/off Ensto 3-way male
23807-520 29 4243 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23807-528 29 4243 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23807-529 29 4243 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23807T1L-402 57 4243 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin1L
23807T1L-520 57 4243 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23807T1L-528 57 4243 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23807T1L-529 57 4243 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23808 32 4394 3000 80 600x600 Delta HB On/off Fixed connection
23808-111 32 4394 3000 80 600x600 Delta HB On/off Wieland GST18i3 3-way male
23808-3 32 4394 3000 80 600x600 Delta HB On/off Connection cable with plug, L=2.5 m
23808-340 32 4394 3000 80 600x600 Delta HB On/off Wago Winsta 3-way male
23808-402 29 3961 3000 80 600x600 Delta HB DALI/Phase-pulse Fixed connection 50000
23808-519 32 4394 3000 80 600x600 Delta HB On/off Ensto 3-way male
23808-520 29 3961 3000 80 600x600 Delta HB DALI/Phase-pulse Ensto 5-way male 50000
23808-528 29 3961 3000 80 600x600 Delta HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23808-529 29 3961 3000 80 600x600 Delta HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23808T1L-402 57 3961 (x2) 3000 80 600x600 Delta HB DALI/Phase-pulse Fixed connection 50000 Twin1L
23808T1L-520 57 3961 (x2) 3000 80 600x600 Delta HB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23808T1L-528 57 3961 (x2) 3000 80 600x600 Delta HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23808T1L-529 57 3961 (x2) 3000 80 600x600 Delta HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23809 32 4843 4000 80 600x600 Opal VTB On/off Fixed connection
23809-111 32 4843 4000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23809-3 32 4843 4000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23809-340 32 4843 4000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23809-402 29 4365 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23809-519 32 4843 4000 80 600x600 Opal VTB On/off Ensto 3-way male
23809-520 29 4365 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23809-528 29 4365 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23809-529 29 4365 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23809T1L-402 57 4365 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23809T1L-520 57 4365 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23809T1L-528 57 4365 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23809T1L-529 57 4365 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23810 32 4521 4000 80 600x600 Delta VTB On/off Fixed connection
23810-111 32 4521 4000 80 600x600 Delta VTB On/off Wieland GST18i3 3-way male
23810-3 32 4521 4000 80 600x600 Delta VTB On/off Connection cable with plug, L=2.5 m
23810-340 32 4521 4000 80 600x600 Delta VTB On/off Wago Winsta 3-way male
23810-402 29 4075 4000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 50000
23810-519 32 4521 4000 80 600x600 Delta VTB On/off Ensto 3-way male
23810-520 29 4075 4000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000
23810-528 29 4075 4000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23810-529 29 4075 4000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23810T1L-402 57 4075 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23810T1L-520 57 4075 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23810T1L-528 57 4075 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23810T1L-529 57 4075 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23811 32 4843 4000 80 600x600 Opal HB On/off Fixed connection
23811-111 32 4843 4000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23811-3 32 4843 4000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23811-340 32 4843 4000 80 600x600 Opal HB On/off Wago Winsta 3-way male
23811-402 29 4365 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23811-519 32 4843 4000 80 600x600 Opal HB On/off Ensto 3-way male
23811-520 29 4365 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23811-528 29 4365 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23811-529 29 4365 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23811T1L-402 57 4365 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin1L
23811T1L-520 57 4365 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23811T1L-528 57 4365 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23811T1L-529 57 4365 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23812 32 4521 4000 80 600x600 Delta HB On/off Fixed connection
23812-111 32 4521 4000 80 600x600 Delta HB On/off Wieland GST18i3 3-way male
23812-3 32 4521 4000 80 600x600 Delta HB On/off Connection cable with plug, L=2.5 m
23812-340 32 4521 4000 80 600x600 Delta HB On/off Wago Winsta 3-way male
23812-402 29 4075 4000 80 600x600 Delta HB DALI/Phase-pulse Fixed connection 50000
23812-519 32 4521 4000 80 600x600 Delta HB On/off Ensto 3-way male
23812-520 29 4075 4000 80 600x600 Delta HB DALI/Phase-pulse Ensto 5-way male 50000
23812-528 29 4075 4000 80 600x600 Delta HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23812-529 29 4075 4000 80 600x600 Delta HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23812T1L-402 57 4075 (x2) 4000 80 600x600 Delta HB DALI/Phase-pulse Fixed connection 50000 Twin1L
23812T1L-520 57 4075 (x2) 4000 80 600x600 Delta HB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23812T1L-528 57 4075 (x2) 4000 80 600x600 Delta HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23812T1L-529 57 4075 (x2) 4000 80 600x600 Delta HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23867 28 4043 3000 80 600x600 Opal VTB On/off Fixed connection
23867-111 28 4043 3000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23867-3 28 4043 3000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23867-340 28 4043 3000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23867-402 25 3643 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23867-519 28 4043 3000 80 600x600 Opal VTB On/off Ensto 3-way male
23867-520 25 3643 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23867-528 25 3643 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23867-529 25 3643 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23867T1L-402 49 3643 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23867T1L-520 49 3643 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23867T1L-528 49 3643 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23867T1L-529 49 3643 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23868 28 3774 3000 80 600x600 Delta VTB On/off Fixed connection
23868-111 28 3774 3000 80 600x600 Delta VTB On/off Wieland GST18i3 3-way male
23868-3 28 3774 3000 80 600x600 Delta VTB On/off Connection cable with plug, L=2.5 m
23868-340 28 3774 3000 80 600x600 Delta VTB On/off Wago Winsta 3-way male
23868-402 25 3401 3000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 50000
23868-519 28 3774 3000 80 600x600 Delta VTB On/off Ensto 3-way male
23868-520 25 3401 3000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000
23868-528 25 3401 3000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23868-529 25 3401 3000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23868T1L-402 49 3401 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23868T1L-520 49 3401 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23868T1L-528 49 3401 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23868T1L-529 49 3401 (x2) 3000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23869 28 4043 3000 80 600x600 Opal HB On/off Fixed connection
23869-111 28 4043 3000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23869-3 28 4043 3000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23869-340 28 4043 3000 80 600x600 Opal HB On/off Wago Winsta 3-way male
23869-402 25 3643 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23869-519 28 4043 3000 80 600x600 Opal HB On/off Ensto 3-way male
23869-520 25 3643 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23869-528 25 3643 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23869-529 25 3643 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23869T1L-402 49 3643 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin1L
23869T1L-520 49 3643 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23869T1L-528 49 3643 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23869T1L-529 49 3643 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23870 28 3774 3000 80 600x600 Delta HB On/off Fixed connection
23870-111 28 3774 3000 80 600x600 Delta HB On/off Wieland GST18i3 3-way male
23870-3 28 3774 3000 80 600x600 Delta HB On/off Connection cable with plug, L=2.5 m
23870-340 28 3774 3000 80 600x600 Delta HB On/off Wago Winsta 3-way male
23870-402 25 3401 3000 80 600x600 Delta HB DALI/Phase-pulse Fixed connection 50000
23870-519 28 3774 3000 80 600x600 Delta HB On/off Ensto 3-way male
23870-520 25 3401 3000 80 600x600 Delta HB DALI/Phase-pulse Ensto 5-way male 50000
23870-528 25 3401 3000 80 600x600 Delta HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23870-529 25 3401 3000 80 600x600 Delta HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23870T1L-402 49 3401 (x2) 3000 80 600x600 Delta HB DALI/Phase-pulse Fixed connection 50000 Twin1L
23870T1L-520 49 3401 (x2) 3000 80 600x600 Delta HB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23870T1L-528 49 3401 (x2) 3000 80 600x600 Delta HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23870T1L-529 49 3401 (x2) 3000 80 600x600 Delta HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23871 28 4159 4000 80 600x600 Opal VTB On/off Fixed connection
23871-111 28 4159 4000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23871-3 28 4159 4000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23871-340 28 4159 4000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23871-402 25 3748 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23871-519 28 4159 4000 80 600x600 Opal VTB On/off Ensto 3-way male
23871-520 25 3748 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23871-528 25 3748 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23871-529 25 3748 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23871T1L-402 49 3748 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23871T1L-520 49 3748 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23871T1L-528 49 3748 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23871T1L-529 49 3748 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23872 28 3883 4000 80 600x600 Delta VTB On/off Fixed connection
23872-111 28 3883 4000 80 600x600 Delta VTB On/off Wieland GST18i3 3-way male
23872-3 28 3883 4000 80 600x600 Delta VTB On/off Connection cable with plug, L=2.5 m
23872-340 28 3883 4000 80 600x600 Delta VTB On/off Wago Winsta 3-way male
23872-402 25 3499 4000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 50000
23872-519 28 3883 4000 80 600x600 Delta VTB On/off Ensto 3-way male
23872-520 25 3499 4000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000
23872-528 25 3499 4000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23872-529 25 3499 4000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23872T1L-402 49 3499 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23872T1L-520 49 3499 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23872T1L-528 49 3499 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23872T1L-529 49 3499 (x2) 4000 80 600x600 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23873 28 4159 4000 80 600x600 Opal HB On/off Fixed connection
23873-111 28 4159 4000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23873-3 28 4159 4000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23873-340 28 4159 4000 80 600x600 Opal HB On/off Wago Winsta 3-way male
23873-402 25 3748 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23873-519 28 4159 4000 80 600x600 Opal HB On/off Ensto 3-way male
23873-520 25 3748 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23873-528 25 3748 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23873-529 25 3748 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23873T1L-402 49 3748 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin1L
23873T1L-520 49 3748 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23873T1L-528 49 3748 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23873T1L-529 49 3748 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23874 28 3883 4000 80 600x600 Delta HB On/off Fixed connection
23874-111 28 3883 4000 80 600x600 Delta HB On/off Wieland GST18i3 3-way male
23874-3 31 4054 4000 80 600x600 HB On/off Connection cable with plug, L=2.5 m
23874-340 28 3883 4000 80 600x600 Delta HB On/off Wago Winsta 3-way male
23874-402 25 3499 4000 80 600x600 Delta HB DALI/Phase-pulse Fixed connection 50000
23874-519 28 3883 4000 80 600x600 Delta HB On/off Ensto 3-way male
23874-520 25 3499 4000 80 600x600 Delta HB DALI/Phase-pulse Ensto 5-way male 50000
23874-528 25 3499 4000 80 600x600 Delta HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23874-529 25 3499 4000 80 600x600 Delta HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23874T1L-402 49 3499 (x2) 4000 80 600x600 Delta HB DALI/Phase-pulse Fixed connection 50000 Twin1L
23874T1L-520 49 3499 (x2) 4000 80 600x600 Delta HB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23874T1L-528 49 3499 (x2) 4000 80 600x600 Delta HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23874T1L-529 49 3499 (x2) 4000 80 600x600 Delta HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23905 20 2770 3000 80 300x1200 Opal VTB On/off Fixed connection
23905-111 20 2770 3000 80 300x1200 Opal VTB On/off Wieland GST18i3 3-way male
23905-3 20 2770 3000 80 300x1200 Opal VTB On/off Connection cable with plug, L=2.5 m
23905-340 20 2770 3000 80 300x1200 Opal VTB On/off Wago Winsta 3-way male
23905-402 18 2493 3000 80 300x1200 Opal VTB DALI/Phase-pulse Fixed connection 50000
23905-519 20 2770 3000 80 300x1200 Opal VTB On/off Ensto 3-way male
23905-520 18 2493 3000 80 300x1200 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23905-528 18 2493 3000 80 300x1200 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23905-529 18 2493 3000 80 300x1200 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23905T1L-402 36 2493 (x2) 3000 80 300x1200 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23905T1L-520 36 2493 (x2) 3000 80 300x1200 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23905T1L-528 36 2493 (x2) 3000 80 300x1200 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23905T1L-529 36 2493 (x2) 3000 80 300x1200 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23906 20 2850 4000 80 300x1200 Opal VTB On/off Fixed connection
23906-111 20 2850 4000 80 300x1200 Opal VTB On/off Wieland GST18i3 3-way male
23906-3 20 2850 4000 80 300x1200 Opal VTB On/off Connection cable with plug, L=2.5 m
23906-340 20 2850 4000 80 300x1200 Opal VTB On/off Wago Winsta 3-way male
23906-402 18 2565 4000 80 300x1200 Opal VTB DALI/Phase-pulse Fixed connection 50000
23906-519 20 2850 4000 80 300x1200 Opal VTB On/off Ensto 3-way male
23906-520 18 2565 4000 80 300x1200 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23906-528 18 2565 4000 80 300x1200 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23906-529 18 2565 4000 80 300x1200 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23906T1L-402 36 2565 (x2) 4000 80 300x1200 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23906T1L-520 36 2565 (x2) 4000 80 300x1200 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23906T1L-528 36 2565 (x2) 4000 80 300x1200 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23906T1L-529 36 2565 (x2) 4000 80 300x1200 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23907 28 3824 3000 80 300x1200 Opal VTB On/off Fixed connection
23907-111 28 3824 3000 80 300x1200 Opal VTB On/off Wieland GST18i3 3-way male
23907-3 28 3824 3000 80 300x1200 Opal VTB On/off Connection cable with plug, L=2.5 m
23907-340 28 3824 3000 80 300x1200 Opal VTB On/off Wago Winsta 3-way male
23907-402 25 3446 3000 80 300x1200 Opal VTB DALI/Phase-pulse Fixed connection 50000
23907-519 28 3824 3000 80 300x1200 Opal VTB On/off Ensto 3-way male
23907-520 25 3446 3000 80 300x1200 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23907-528 25 3446 3000 80 300x1200 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23907-529 25 3446 3000 80 300x1200 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23907T1L-402 49 3446 (x2) 3000 80 300x1200 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23907T1L-520 49 3446 (x2) 3000 80 300x1200 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23907T1L-528 49 3446 (x2) 3000 80 300x1200 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23907T1L-529 49 3446 (x2) 3000 80 300x1200 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23908 28 3935 4000 80 300x1200 Opal VTB On/off Fixed connection
23908-111 28 3935 4000 80 300x1200 Opal VTB On/off Wieland GST18i3 3-way male
23908-3 28 3935 4000 80 300x1200 Opal VTB On/off Connection cable with plug, L=2.5 m
23908-340 28 3935 4000 80 300x1200 Opal VTB On/off Wago Winsta 3-way male
23908-402 25 3546 4000 80 300x1200 Opal VTB DALI/Phase-pulse Fixed connection 50000
23908-519 28 3935 4000 80 300x1200 Opal VTB On/off Ensto 3-way male
23908-520 25 3546 4000 80 300x1200 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23908-528 25 3546 4000 80 300x1200 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23908-529 25 3546 4000 80 300x1200 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23908T1L-402 49 3546 (x2) 4000 80 300x1200 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23908T1L-520 49 3546 (x2) 4000 80 300x1200 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23908T1L-528 49 3546 (x2) 4000 80 300x1200 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23908T1L-529 49 3546 (x2) 4000 80 300x1200 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23909 32 4453 3000 80 300x1200 Opal VTB On/off Fixed connection
23909-111 32 4453 3000 80 300x1200 Opal VTB On/off Wieland GST18i3 3-way male
23909-3 32 4453 3000 80 300x1200 Opal VTB On/off Connection cable with plug, L=2.5 m
23909-340 32 4453 3000 80 300x1200 Opal VTB On/off Wago Winsta 3-way male
23909-402 29 4014 3000 80 300x1200 Opal VTB DALI/Phase-pulse Fixed connection 50000
23909-519 32 4453 3000 80 300x1200 Opal VTB On/off Ensto 3-way male
23909-520 29 4014 3000 80 300x1200 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23909-528 29 4014 3000 80 300x1200 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23909-529 29 4014 3000 80 300x1200 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23909T1L-402 57 4014 (x2) 3000 80 300x1200 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23909T1L-520 57 4014 (x2) 3000 80 300x1200 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23909T1L-528 57 4014 (x2) 3000 80 300x1200 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23909T1L-529 57 4014 (x2) 3000 80 300x1200 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23910 32 4581 4000 80 300x1200 Opal VTB On/off Fixed connection
23910-111 32 4581 4000 80 300x1200 Opal VTB On/off Wieland GST18i3 3-way male
23910-3 32 4581 4000 80 300x1200 Opal VTB On/off Connection cable with plug, L=2.5 m
23910-340 32 4581 4000 80 300x1200 Opal VTB On/off Wago Winsta 3-way male
23910-402 29 4129 4000 80 300x1200 Opal VTB DALI/Phase-pulse Fixed connection 50000
23910-519 32 4581 4000 80 300x1200 Opal VTB On/off Ensto 3-way male
23910-520 29 4129 4000 80 300x1200 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23910-528 29 4129 4000 80 300x1200 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23910-529 29 4129 4000 80 300x1200 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23910T1L-402 57 4129 (x2) 4000 80 300x1200 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23910T1L-520 57 4129 (x2) 4000 80 300x1200 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23910T1L-528 57 4129 (x2) 4000 80 300x1200 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23910T1L-529 57 4129 (x2) 4000 80 300x1200 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23911 20 2584 3000 80 300x1200 Delta VTB On/off Fixed connection
23911-111 20 2584 3000 80 300x1200 Delta VTB On/off Wieland GST18i3 3-way male
23911-3 20 2584 3000 80 300x1200 Delta VTB On/off Connection cable with plug, L=2.5 m
23911-340 20 2584 3000 80 300x1200 Delta VTB On/off Wago Winsta 3-way male
23911-402 18 2326 3000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 50000
23911-519 20 2584 3000 80 300x1200 Delta VTB On/off Ensto 3-way male
23911-520 18 2326 3000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000
23911-528 18 2326 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23911-529 18 2326 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23911T1L-402 36 2326 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23911T1L-520 36 2326 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23911T1L-528 36 2326 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23911T1L-529 36 2326 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23912 20 2659 4000 80 300x1200 Delta VTB On/off Fixed connection
23912-111 20 2659 4000 80 300x1200 Delta VTB On/off Wieland GST18i3 3-way male
23912-3 20 2659 4000 80 300x1200 Delta VTB On/off Connection cable with plug, L=2.5 m
23912-340 20 2659 4000 80 300x1200 Delta VTB On/off Wago Winsta 3-way male
23912-402 18 2393 4000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 50000
23912-519 20 2659 4000 80 300x1200 Delta VTB On/off Ensto 3-way male
23912-520 18 2393 4000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000
23912-528 18 2393 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23912-529 18 2393 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23912T1L-402 36 2393 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23912T1L-520 36 2393 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23912T1L-528 36 2393 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23912T1L-529 36 2393 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23913 28 3569 3000 80 300x1200 Delta VTB On/off Fixed connection
23913-111 28 3569 3000 80 300x1200 Delta VTB On/off Wieland GST18i3 3-way male
23913-3 28 3569 3000 80 300x1200 Delta VTB On/off Connection cable with plug, L=2.5 m
23913-340 28 3569 3000 80 300x1200 Delta VTB On/off Wago Winsta 3-way male
23913-402 25 3216 3000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 50000
23913-519 28 3569 3000 80 300x1200 Delta VTB On/off Ensto 3-way male
23913-520 25 3216 3000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000
23913-528 25 3216 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23913-529 25 3216 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23913T1L-402 49 3216 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23913T1L-520 49 3216 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23913T1L-528 49 3216 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23913T1L-529 49 3216 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23914 28 3672 4000 80 300x1200 Delta VTB On/off Fixed connection
23914-111 28 3672 4000 80 300x1200 Delta VTB On/off Wieland GST18i3 3-way male
23914-3 28 3672 4000 80 300x1200 Delta VTB On/off Connection cable with plug, L=2.5 m
23914-340 28 3672 4000 80 300x1200 Delta VTB On/off Wago Winsta 3-way male
23914-402 25 3309 4000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 50000
23914-519 28 3672 4000 80 300x1200 Delta VTB On/off Ensto 3-way male
23914-520 25 3309 4000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000
23914-528 25 3309 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23914-529 25 3309 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23914T1L-402 49 3309 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23914T1L-520 49 3309 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23914T1L-528 49 3309 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23914T1L-529 49 3309 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23915 32 4155 3000 80 300x1200 Delta VTB On/off Fixed connection
23915-111 32 4155 3000 80 300x1200 Delta VTB On/off Wieland GST18i3 3-way male
23915-3 32 4155 3000 80 300x1200 Delta VTB On/off Connection cable with plug, L=2.5 m
23915-340 32 4155 3000 80 300x1200 Delta VTB On/off Wago Winsta 3-way male
23915-402 29 3746 3000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 50000
23915-519 32 4155 3000 80 300x1200 Delta VTB On/off Ensto 3-way male
23915-520 29 3746 3000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000
23915-528 29 3746 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23915-529 29 3746 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23915T1L-402 57 3746 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23915T1L-520 57 3746 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23915T1L-528 57 3746 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23915T1L-529 57 3746 (x2) 3000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23916 32 4275 4000 80 300x1200 Delta VTB On/off Fixed connection
23916-111 32 4275 4000 80 300x1200 Delta VTB On/off Wieland GST18i3 3-way male
23916-3 32 4275 4000 80 300x1200 Delta VTB On/off Connection cable with plug, L=2.5 m
23916-340 32 4275 4000 80 300x1200 Delta VTB On/off Wago Winsta 3-way male
23916-402 29 3853 4000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 50000
23916-519 32 4275 4000 80 300x1200 Delta VTB On/off Ensto 3-way male
23916-520 29 3853 4000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000
23916-528 29 3853 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23916-529 29 3853 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23916T1L-402 57 3853 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Fixed connection 50000 Twin1L
23916T1L-520 57 3853 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin1L
23916T1L-528 57 3853 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin1L
23916T1L-529 57 3853 (x2) 4000 80 300x1200 Delta VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin1L
23993 44 4739 90 600x600 Delta VTB DALI Fixed connection 50000 Tunable White
23993-520 44 4739 90 600x600 Delta VTB DALI Ensto 5-way male 50000 Tunable White
23993-528 44 4739 90 600x600 Delta VTB DALI Wieland GST18i5 5-way male 50000 Tunable White
23993-529 44 4739 90 600x600 Delta VTB DALI Wago Winsta 5-way male 50000 Tunable White
23994 44 4566 90 300x1200 Delta DALI Fixed connection 50000 Tunable White
23997 29 3961 3000 80 600x600 Delta VTB Organic Response Fixed connection 50000
23997-111 30 3961 3000 80 600x600 Delta VTB Organic Response Wieland GST18i3 3-way male 50000
23997-3 29 3961 3000 80 600x600 Delta VTB Organic Response Connection cable with plug, L=2.5 m 50000
23997-340 30 3961 3000 80 600x600 Delta VTB Organic Response Wago Winsta 3-way male 50000
23997-519 30 3961 3000 80 600x600 Delta VTB Organic Response Ensto 3-way male 50000
23997T1L 58 3961 (x2) 3000 80 600x600 Delta VTB Organic Response Fixed connection 50000 Twin1L
23997T1L-111 58 3961 (x2) 3000 80 600x600 Delta VTB Organic Response Wieland GST18i3 3-way male 50000 Twin1L
23997T1L-3 58 3961 (x2) 3000 80 600x600 Delta VTB Organic Response Connection cable with plug, L=2.5 m 50000 Twin1L
23997T1L-340 58 3961 (x2) 3000 80 600x600 Delta VTB Organic Response Wago Winsta 3-way male 50000 Twin1L
23997T1L-519 58 3961 (x2) 3000 80 600x600 Delta VTB Organic Response Ensto 3-way male 50000 Twin1L
23998 29 4075 4000 80 600x600 Delta VTB Organic Response Fixed connection 50000
23998-111 30 4075 4000 80 600x600 Delta VTB Organic Response Wieland GST18i3 3-way male 50000
23998-3 29 4075 4000 80 600x600 Delta VTB Organic Response Connection cable with plug, L=2.5 m 50000
23998-340 30 4075 4000 80 600x600 Delta VTB Organic Response Wago Winsta 3-way male 50000
23998-519 30 4075 4000 80 600x600 Delta VTB Organic Response Ensto 3-way male 50000
23998T1L 58 4075 (x2) 4000 80 600x600 Delta VTB Organic Response Fixed connection 50000 Twin1L
23998T1L-111 58 4075 (x2) 4000 80 600x600 Delta VTB Organic Response Wieland GST18i3 3-way male 50000 Twin1L
23998T1L-3 58 4075 (x2) 4000 80 600x600 Delta VTB Organic Response Connection cable with plug, L=2.5 m 50000 Twin1L
23998T1L-340 58 4075 (x2) 4000 80 600x600 Delta VTB Organic Response Wago Winsta 3-way male 50000 Twin1L
23998T1L-519 58 4075 (x2) 4000 80 600x600 Delta VTB Organic Response Ensto 3-way male 50000 Twin1L
Showing 45 of 45 Accessories
Name Description Art.no. Article PDF
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, suspended pipe conduit installation, 1 m cable. pipe not included. 86409
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, surface mounted, 1 m cable 86408
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, recessed, 3.2 m cable 86410
External Organic Response sensor incl. DALI PSU Extern sensor incl. DALI PSU, suspended pipe conduit installation, 3.2 m cable. Pipe not included. 86412
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, surface mounted, 3.2 m cable 86411
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, recessed, 1 m cable 86407
Frame for surface mounting Frame for surface mounting (300x1200 VTB). Fits Multilume Flat, Dwide, (only standard and DALI). 41027
Control panels, Lunatone DALI Switch Cross 86354
Fixing brackets Fixing brackets/4 pcs. For fixed ceiling. Only for concealed T-bars (HB-body). 91279
WAGO T-connector WAGO T-connector, 5-way, 2 locking levers, blue 88228
WAGO T-connector WAGO T-Connector, 3-way, white 91067
Wieland T-connector Wieland 5-way T-connector 91026
Organic Response EnOcean Wireless Push button panel EnOcean 4 function push button panel, labeled, white 86437
Organic Response EnOcean Wireless Push button panel EnOcean 2 function push button panel, labeled, white 86436
Organic Response I/O box I/O box with potential-free 16A relay for controlling external units. 86413
Organic Response IoT Gateway Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. 86296
no-image placeholder Ensto power cable Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. 92788
no-image placeholder Ensto power cable Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. 92787
no-image placeholder Ensto connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92785
no-image placeholder Ensto connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92786
Frame for surface mounting Frame for surface mounting (600x600 VTB). Fits Multilume Flat (only standard and DALI), Dwide as well as Multilume Slim, Multilume Slim Hygiene & Multilume Re:Think with Organic Response. 41026
Input unit, Tridonic DALI XC 86132
WAGO connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 91243
Wieland T-connector Wieland 3-way T-connector 91025
Organic Response EnOcean Wireless Push button panel EnOcean 4 function push button panel, white 86417
Organic Response EnOcean Wireless Push button panel EnOcean 2 function push button panel, white 86416
WAGO connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 91244
no-image placeholder Recessed frame Recessed frame to Multilume Flat 600x600 VTB body for installation in suspended ceilings with concealed T-bars and symmetrical ceiling tiles (thickness 20-22 mm). 41038
Wieland connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92799
Ensto T-connector Ensto T-connector 3-way, white 92783
Ensto T-connector Ensto T-connector 5-way, grey 92784
Wieland connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92793
IR dongle for Organic Response IR dongle for Organic Response equipped luminaire. 86279
Fence Fence 600x600 white. Only for T-bars T24. 41252
Sky frame Sky frame for ceiling window effect 600x600, white. Only for T-bars T24. 41245
Circle Ice Circle Ice 600x600 White. 41248
Circle Edge Circle with bevelled edge 600x600, White. 41246
Circle Circle with straight edge 600x600, White. 41247
Compago Compago framework 600x600, Grey. Only for T-bars T24. 41250
Compago Compago framework 600x600, white. Only for T-bars T24. 41249
Fence Fence 600x600 champagne. Only for T-bars T24. 41254
Fence Fence 600x600 black. Only for T-bars T24. 41253
Organic Response I/O box I/O box with potential-free 8A relay for controlling external units. 86433
Recessed frame solid ceiling Recessed frame for VTB frame 600x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4,5kg 41051
External Organic Response sensor excl. PSU. External Organic Response G3 Sensor excl. PSU. External sensor excl. PSU. 86519

Downloads

Multilume Flat recessed

Documents

Open PDF
Open PDF

3D Models

Manuals

Open PDF
Reference case

Skaraborgs Sjukhus Skövde

Human centric lighting in practice

Read more
Reference case

Hospital Nova

Sustainable and cost-effective lighting in a modern hospital

Read more
Reference case

Haga Teaching Hospital

In line with human centric lighting

Read more
Reference case

SCANIA Smart Factory

Light for bright innovations

Read more
Reference case

Skejby Psyk

Promoting health with light

Read more
Reference case

Svalöv Sportcenter

Sports and exhibitions

Read more
Return to top
