Multilume FlowRecessed

Multiple mounting options

Multilume is a family of energy-efficient recessed luminaires that are easy to adapt to different ceilings. Multilume Flow features a drop-shaped louvre that creates a visual illusion and provides pleasant ceiling illumination.

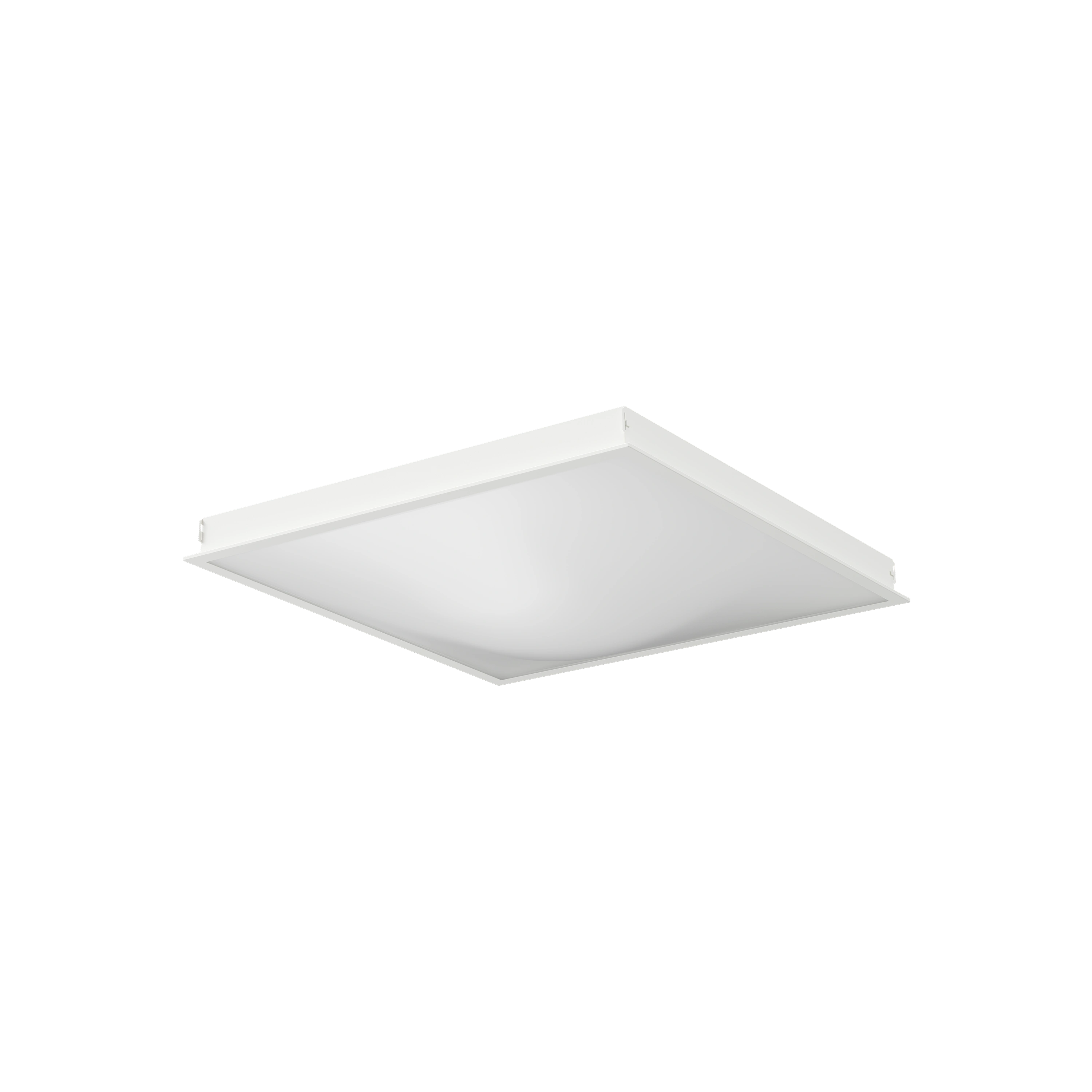

Multilume Flow recessed 600x600 opal
Multilume Flow recessed 600x600 opal Multilume Flow Recessed Opal

Multilume FlowRecessed

Multiple mounting options

Multilume is a family of energy-efficient recessed luminaires that are easy to adapt to different ceilings. Multilume Flow features a drop-shaped louvre that creates a visual illusion and provides pleasant ceiling illumination.


Installation

Luminaire for recessed installation in suspended ceilings. Unventilated or ventilated suspended ceilings.
VTB – for suspended ceilings with visible T-bars (15 or 24 mm).
HB – for suspended ceilings with concealed T-bars and symmetrical ceiling tile mount (thickness 20-22 mm). Supplement with suspension fittings for fixed suspended ceilings, see Accessories.
IP44 under a suspended ceiling, IP20 above a suspended ceiling. For detailed information, see the installation instructions.

Connection

For permanent connection in separate driver box. Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis-mounted snap-in connector in the driver where a T-splitter or mains cable and plug are possible. The luminaire body and driver are interconnected with a snap-in connector. Luminaire body Class III. CLO (Constant Light Output).

Design

Luminaire body made of sheet steel. Lacquered in white (RAL 9016 G40).


Light Distribution

Direct.

Light data

CCT, K:
3000 K, 4000 K
CRI/Rf:
80
SDCM:
3
Lumen output:
2779-4964 lm
CLO:
50 000 h

Optics

Opal – frosted acrylic (PMMA) disc.

160lm/W

Energy efficiency from the most efficient article.

Read more about our products lifecycle

Less waste material

The material that has been cut out for the light opening is used as a top cover. By reducing the amount of waste and optimising resource use, we are able to save materials and reduce overall waste. At the same time, the product benefits from a lower carbon footprint.

High efficiency & reduced energy consumption

The product family includes models with very high efficiency – without compromising on light comfort. High efficiency gives rise to reductions in energy consumption, climate impact and operating costs. The luminaire’s good light comfort also means that fewer luminaires are needed to achieve the desired light level.

Constant Light Output (CLO)

The luminaire is available with Constant Light Output (CLO), providing the right level of light throughout it’s working life and thereby reducing energy consumption. CLO can save up to 36% energy compared to L70. It is also often the case that fewer luminaires are needed, reducing investment and operating costs as well as climate impact.


DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

On/Off

Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.

Articles

Showing 156 of 156 Articles
Art.no. System Wattage Lumen output CCT, K CRI Module Louvre Installation Light control Connection CLO time, h Miscellaneous Light data files Article PDF
23849 20 3087 3000 80 600x600 Opal VTB On/off Fixed connection
23849-111 20 3087 3000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23849-3 20 3087 3000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23849-340 20 3087 3000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23849-402 18 2779 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23849-519 20 3087 3000 80 600x600 Opal VTB On/off Ensto 3-way male
23849-520 18 2779 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23849-528 18 2779 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23849-529 18 2779 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23849T1L-402 36 2779 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23849T1L-520 36 2779 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23849T1L-528 36 2779 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23849T1L-529 36 2779 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23850 20 3087 3000 80 600x600 Opal HB On/off Fixed connection
23850-111 20 3087 3000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23850-3 20 3087 3000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23850-340 20 3087 3000 80 600x600 Opal HB On/off Wago Winsta 3-way male
23850-402 18 2779 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23850-519 20 3087 3000 80 600x600 Opal HB On/off Ensto 3-way male
23850-520 18 2779 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23850-528 18 2779 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23850-529 18 2779 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23850T1L-402 36 2779 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23850T1L-520 36 2779 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23850T1L-528 36 2779 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23850T1L-529 36 2779 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23851 20 3177 4000 80 600x600 Opal VTB On/off Fixed connection
23851-111 20 3177 4000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23851-3 20 3177 4000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23851-340 20 3177 4000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23851-402 18 2859 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23851-519 20 3177 4000 80 600x600 Opal VTB On/off Ensto 3-way male
23851-520 18 2859 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23851-528 18 2859 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23851-529 18 2859 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23851T1L-402 36 2859 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23851T1L-520 36 2859 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23851T1L-528 36 2859 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23851T1L-529 36 2859 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23852 20 3177 4000 80 600x600 Opal HB On/off Fixed connection
23852-111 20 3177 4000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23852-3 20 3177 4000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23852-340 20 3177 4000 80 600x600 Opal HB On/off Wago Winsta 3-way male
23852-402 18 2859 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23852-519 20 3177 4000 80 600x600 Opal HB On/off Ensto 3-way male
23852-520 18 2859 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23852-528 18 2859 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23852-529 18 2859 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23852T1L-402 36 2859 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23852T1L-520 36 2859 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23852T1L-528 36 2859 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23852T1L-529 36 2859 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23853 32 4964 3000 80 600x600 Opal VTB On/off Fixed connection
23853-111 32 4964 3000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23853-3 32 4964 3000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23853-340 32 4964 3000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23853-402 29 4474 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23853-519 32 4964 3000 80 600x600 Opal VTB On/off Ensto 3-way male
23853-520 29 4474 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23853-528 29 4474 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23853-529 29 4474 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23853T1L-402 57 4474 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23853T1L-520 57 4474 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23853T1L-528 57 4474 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23853T1L-529 57 4474 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23854 32 4964 3000 80 600x600 Opal HB On/off Fixed connection
23854-111 32 4964 3000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23854-3 32 4964 3000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23854-340 32 4964 3000 80 600x600 Opal HB On/off Wago Winsta 3-way male
23854-402 29 4474 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23854-519 32 4964 3000 80 600x600 Opal HB On/off Ensto 3-way male
23854-520 29 4474 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23854-528 29 4474 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23854-529 29 4474 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23854T1L-402 57 4474 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23854T1L-520 57 4474 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23854T1L-528 57 4474 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23854T1L-529 57 4474 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23855 32 5107 4000 80 600x600 Opal VTB On/off Fixed connection
23855-111 32 5107 4000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23855-3 32 5107 4000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23855-340 32 5107 4000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23855-402 29 4603 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23855-519 32 5107 4000 80 600x600 Opal VTB On/off Ensto 3-way male
23855-520 29 4603 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23855-528 29 4603 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23855-529 29 4603 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23855T1L-402 57 4603 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23855T1L-520 57 4603 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23855T1L-528 57 4603 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23855T1L-529 57 4603 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23856 32 5107 4000 80 600x600 Opal HB On/off Fixed connection
23856-111 32 5107 4000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23856-3 32 5107 4000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23856-340 32 5107 4000 80 600x600 Opal HB On/off Wago Winsta 3-way male
23856-402 29 4603 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23856-519 32 5107 4000 80 600x600 Opal HB On/off Ensto 3-way male
23856-520 29 4603 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23856-528 29 4603 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23856-529 29 4603 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23856T1L-402 57 4603 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23856T1L-520 57 4603 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23856T1L-528 57 4603 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23856T1L-529 57 4603 (x2) 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23889 28 4263 3000 80 600x600 Opal VTB On/off Fixed connection
23889-111 28 4263 3000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23889-3 28 4263 3000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23889-340 28 4263 3000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23889-402 25 3842 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23889-519 28 4263 3000 80 600x600 Opal VTB On/off Ensto 3-way male
23889-520 25 3842 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23889-528 25 3842 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23889-529 25 3842 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23889T1L-402 49 3842 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23889T1L-520 49 3842 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23889T1L-528 49 3842 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23889T1L-529 49 3842 (x2) 3000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23890 28 4263 3000 80 600x600 Opal HB On/off Fixed connection
23890-111 28 4263 3000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23890-3 28 4263 3000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23890-340 28 4263 3000 80 600x600 Opal HB On/off Wago Winsta 3-way male
23890-402 25 3842 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23890-519 28 4263 3000 80 600x600 Opal HB On/off Ensto 3-way male
23890-520 25 3842 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23890-528 25 3842 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23890-529 25 3842 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23890T1L-402 49 3842 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23890T1L-520 49 3842 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23890T1L-528 49 3842 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23890T1L-529 49 3842 (x2) 3000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23891 28 4386 4000 80 600x600 Opal VTB On/off Fixed connection
23891-111 28 4386 4000 80 600x600 Opal VTB On/off Wieland GST18i3 3-way male
23891-3 28 4386 4000 80 600x600 Opal VTB On/off Connection cable with plug, L=2.5 m
23891-340 28 4386 4000 80 600x600 Opal VTB On/off Wago Winsta 3-way male
23891-402 25 3953 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000
23891-519 28 4386 4000 80 600x600 Opal VTB On/off Ensto 3-way male
23891-520 25 3953 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000
23891-528 25 3953 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23891-529 25 3953 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000
23891T1L-402 49 3953 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23891T1L-520 49 3953 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23891T1L-528 49 3953 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23891T1L-529 49 3953 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L
23892 28 4386 4000 80 600x600 Opal HB On/off Fixed connection
23892-111 28 4386 4000 80 600x600 Opal HB On/off Wieland GST18i3 3-way male
23892-3 28 4386 4000 80 600x600 Opal HB On/off Connection cable with plug, L=2.5 m
23892-340 28 4386 4000 80 600x600 Opal HB On/off Wago Winsta 3-way male
23892-402 25 3953 4000 80 600x600 Opal HB DALI/Phase-pulse Fixed connection 50000
23892-519 28 4386 4000 80 600x600 Opal HB On/off Ensto 3-way male
23892-520 25 3953 4000 80 600x600 Opal HB DALI/Phase-pulse Ensto 5-way male 50000
23892-528 25 3953 4000 80 600x600 Opal HB DALI/Phase-pulse Wieland GST18i5 5-way male 50000
23892-529 25 3953 4000 80 600x600 Opal HB DALI/Phase-pulse Wago Winsta 5-way male 50000
23892T1L-402 49 3953 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Fixed connection 50000 Twin 1L
23892T1L-520 49 3953 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Ensto 5-way male 50000 Twin 1L
23892T1L-528 49 3953 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wieland GST18i5 5-way male 50000 Twin 1L
23892T1L-529 49 3953 (x2) 4000 80 600x600 Opal VTB DALI/Phase-pulse Wago Winsta 5-way male 50000 Twin 1L


Showing 22 of 22 Accessories
Name Description Art.no. Article PDF
Fixing brackets Fixing brackets/4 pcs. For fixed ceiling. Only for concealed T-bars (HB-body). 91279
WAGO T-connector WAGO T-connector, 5-way, 2 locking levers, blue 88228
WAGO T-connector WAGO T-Connector, 3-way, white 91067
Wieland T-connector Wieland 5-way T-connector 91026
no-image placeholder Ensto power cable Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. 92788
no-image placeholder Ensto power cable Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. 92787
no-image placeholder Ensto connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92785
no-image placeholder Ensto connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92786
Frame for surface mounting Frame for surface mounting (600x600 VTB). Fits Multilume Flat (only standard and DALI), Dwide as well as Multilume Slim, Multilume Slim Hygiene & Multilume Re:Think with Organic Response. 41026
WAGO connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 91243
Wieland T-connector Wieland 3-way T-connector 91025
WAGO connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 91244
no-image placeholder Recessed frame Recessed frame to Multilume Flat 600x600 VTB body for installation in suspended ceilings with concealed T-bars and symmetrical ceiling tiles (thickness 20-22 mm). 41038
Wieland connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92799
Ensto T-connector Ensto T-connector 3-way, white 92783
Ensto T-connector Ensto T-connector 5-way, grey 92784
Wieland connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92793
Fence Fence 600x600 white. Only for T-bars T24. 41252
Sky frame Sky frame for ceiling window effect 600x600, white. Only for T-bars T24. 41245
Fence Fence 600x600 champagne. Only for T-bars T24. 41254
Fence Fence 600x600 black. Only for T-bars T24. 41253
Recessed frame solid ceiling Recessed frame for VTB frame 600x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4,5kg 41051

Downloads

Multilume Flow recessed

Documents

Open PDF
Open PDF

3D Models

Manuals

Open PDF
Return to top
