IndigoRecessed

Indigo is a recessed luminaire for all types of suspended ceiling, combining high energy efficiency with indirect light and good visual comfort. Flexible installation makes Indigo an excellent choice for renovations, conversions and extensions.

IndigoRecessed

125 lm/W Sensor available

Installation

Luminaire for recessed installation in suspended ceilings. Unventilated or ventilated suspended ceilings.
VTB – for suspended ceilings with visible T-bars (15 or 24 mm).
HB – for suspended ceilings with concealed T-bars and symmetrical ceiling tile mount (thickness 20-22 mm). IP40 under a suspended ceiling, IP20 above a suspended ceiling. For detailed information, see the installation instructions.

Connection

Indigo Combo - For permanent connection in a separate driver box. Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis mounted snap-in connector in the driver where a T-splitter or earthed mains cable and plug are possible. The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III. The supplied driver must be connected to the protective earth. CLO (Constant Light Output).
Indigo – Snap-in terminal block in the luminaire 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) when dimming. Can also be supplied with chassis mounted snap-in connector or earthed mains cable and plug.

Design

Luminaire body made of sheet steel. Lacquered in white (RAL 9016).

Light Distribution

Direct.

Light data

CCT, K:

3000 K, 4000 K

CRI/Rf:

SDCM:

Lumen output:

2136-4761 lm

CLO:

50 000 h

Optics

Opal – diffuser made of frosted acrylic (PMMA.)

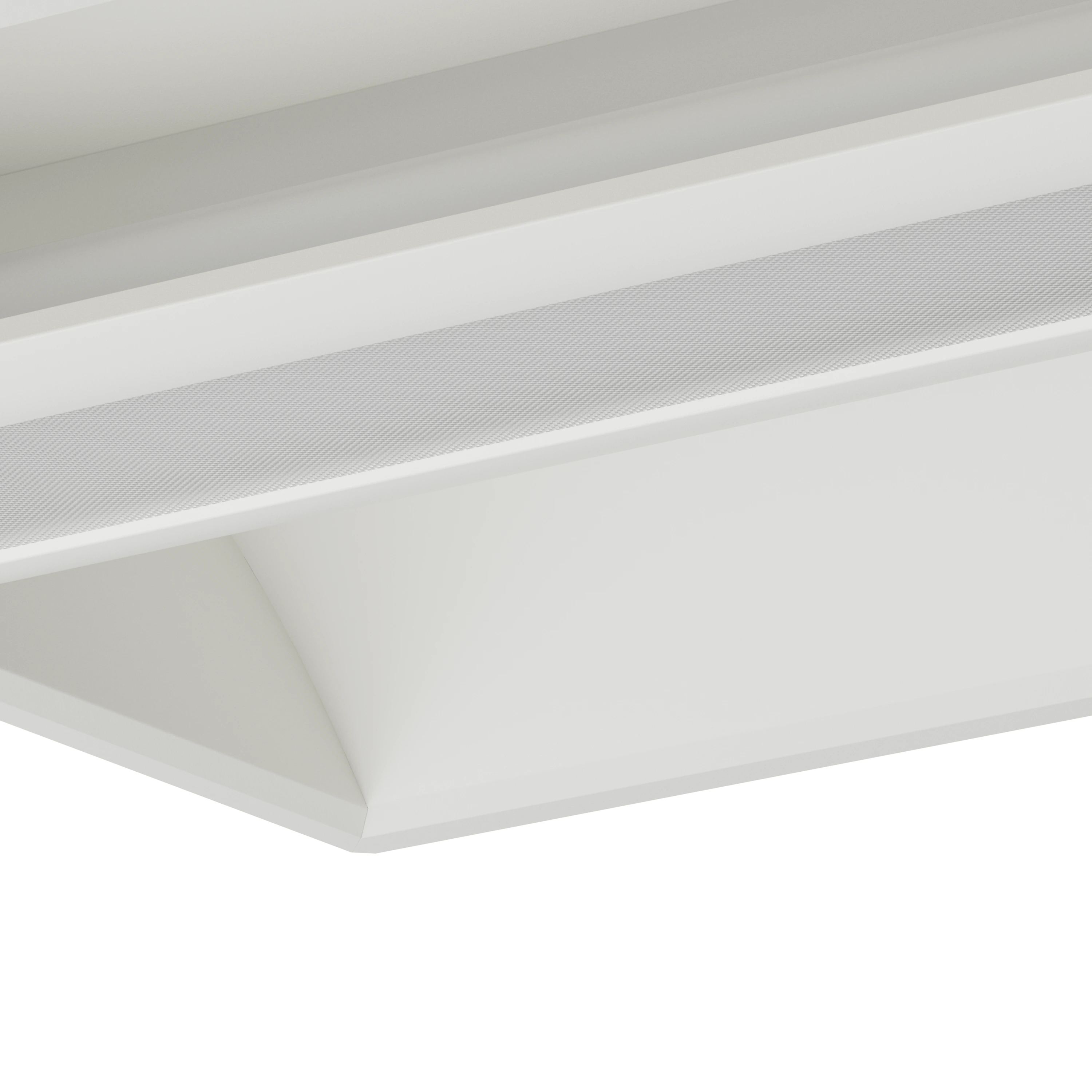

Delta – micro-prism louvre in acrylic (PMMA).

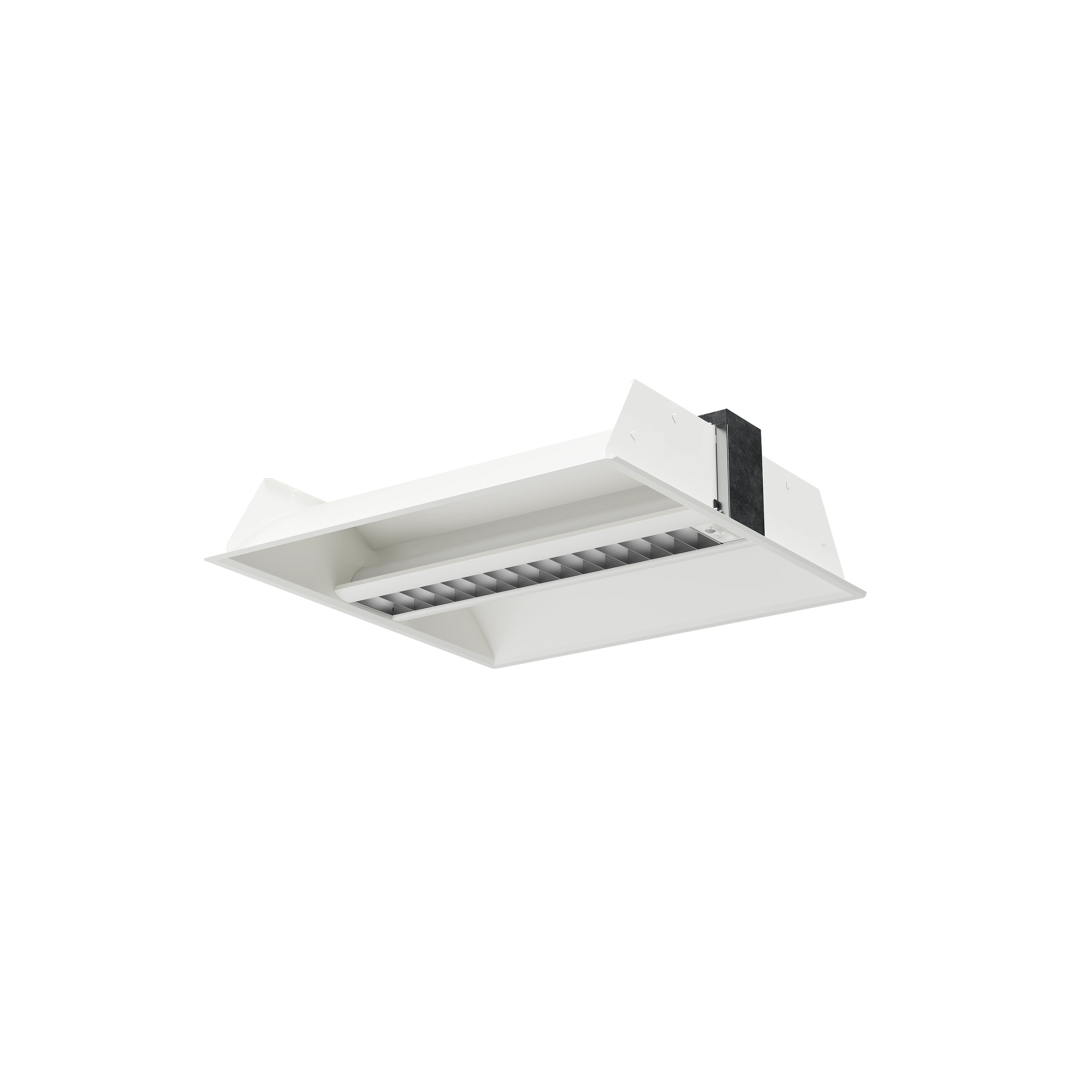

Beta Opti – side and crosswise semi-gloss reflectors in metallised aluminium with an integrated Opal film that minimises the risk of uncomfortable glare from the LEDs.

125lm/W

Energy efficiency from the most efficient article.

Easy to recycle & ready to upgrade

The product is made from fewer material types and without glue, making it easy to dismantle. Screw and snap-in features allow components to be easily separated. This increases the potential for of end-of-life recycling. The design also allows parts to be replaced rather than having to replace the entire product. This extends the product’s working life and reduces waste.

Constant Light Output (CLO)

The luminaire is available with Constant Light Output (CLO), providing the right level of light throughout it’s working life and thereby reducing energy consumption. CLO can save up to 36% energy compared to L70. It is also often the case that fewer luminaires are needed, reducing investment and operating costs as well as climate impact.

Made in Sweden

The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.

DALI

Enables flexible and precise control of luminaires – easy installation with two-wire system for both power and control.

DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

Organic ResponsePIR sensor

Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.

On/Off

Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.

Articles

Showing 290 of 290 Articles

Art.no.	System Wattage	Lumen output	CCT, K	CRI	Module	Louvre	Installation	Light control	Connection	CLO time, h	Miscellaneous
24168	23	2681	3000	80	600x600	Beta Opti	VTB	On/off	Fixed connection		Combo, LL
24168-111	23	2681	3000	80	600x600	Beta Opti	VTB	On/off	Wieland GST18i3 3-way male		Combo, LL
24168-3	23	2681	3000	80	600x600	Beta Opti	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, LL
24168-340	23	2681	3000	80	600x600	Beta Opti	VTB	On/off	Wago Winsta 3-way male		Combo, LL
24168-402	20	2414	3000	80	600x600	Beta Opti	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL
24168-519	23	2681	3000	80	600x600	Beta Opti	VTB	On/off	Ensto 3-way male		Combo, LL
24168T1L-402	39	2414 (x2)	3000	80	600x600	Beta Opti	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL, Twin1L
24169	23	2758	4000	80	600x600	Beta Opti	VTB	On/off	Fixed connection		Combo, LL
24169-111	23	2758	4000	80	600x600	Beta Opti	VTB	On/off	Wieland GST18i3 3-way male		Combo, LL
24169-3	23	2758	4000	80	600x600	Beta Opti	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, LL
24169-340	23	2758	4000	80	600x600	Beta Opti	VTB	On/off	Wago Winsta 3-way male		Combo, LL
24169-402	20	2484	4000	80	600x600	Beta Opti	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL
24169-519	23	2758	4000	80	600x600	Beta Opti	VTB	On/off	Ensto 3-way male		Combo, LL
24169T1L-402	39	2484 (x2)	4000	80	600x600	Beta Opti	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL, Twin1L
24170	21	2175	3000	80	600x600	Delta	VTB	On/off	Fixed connection		Combo, LL
24170-111	21	2175	3000	80	600x600	Delta	VTB	On/off	Wieland GST18i3 3-way male		Combo, LL
24170-3	21	2175	3000	80	600x600	Delta	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, LL
24170-340	21	2175	3000	80	600x600	Delta	VTB	On/off	Wago Winsta 3-way male		Combo, LL
24170-402	20	2136	3000	80	600x600	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL
24170-519	21	2175	3000	80	600x600	Delta	VTB	On/off	Ensto 3-way male		Combo, LL
24170T1L-402	39	2136 (x2)	3000	80	600x600	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL, Twin1L
24171	21	2238	4000	80	600x600	Delta	VTB	On/off	Fixed connection		Combo, LL
24171-111	21	2238	4000	80	600x600	Delta	VTB	On/off	Wieland GST18i3 3-way male		Combo, LL
24171-3	21	2238	4000	80	600x600	Delta	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, LL
24171-340	21	2238	4000	80	600x600	Delta	VTB	On/off	Wago Winsta 3-way male		Combo, LL
24171-402	20	2198	4000	80	600x600	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL
24171-519	21	2238	4000	80	600x600	Delta	VTB	On/off	Ensto 3-way male		Combo, LL
24171T1L-402	39	2198 (x2)	4000	80	600x600	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL, Twin1L
24172	23	2681	3000	80	600x600	Beta Opti	HB	On/off	Fixed connection		Combo, LL
24172-111	23	2681	3000	80	600x600	Beta Opti	HB	On/off	Wieland GST18i3 3-way male		Combo, LL
24172-3	23	2681	3000	80	600x600	Beta Opti	HB	On/off	Connection cable with plug, L=2.5 m		Combo, LL
24172-340	23	2681	3000	80	600x600	Beta Opti	HB	On/off	Wago Winsta 3-way male		Combo, LL
24172-402	20	2414	3000	80	600x600	Beta Opti	HB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL
24172-519	23	2681	3000	80	600x600	Beta Opti	HB	On/off	Ensto 3-way male		Combo, LL
24172T1L-402	39	2414 (x2)	3000	80	600x600	Beta Opti	HB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL, Twin1L
24173	23	2758	4000	80	600x600	Beta Opti	HB	On/off	Fixed connection		Combo, LL
24173-111	23	2758	4000	80	600x600	Beta Opti	HB	On/off	Wieland GST18i3 3-way male		Combo, LL
24173-3	23	2758	4000	80	600x600	Beta Opti	HB	On/off	Connection cable with plug, L=2.5 m		Combo, LL
24173-340	23	2758	4000	80	600x600	Beta Opti	HB	On/off	Wago Winsta 3-way male		Combo, LL
24173-402	20	2484	4000	80	600x600	Beta Opti	HB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL
24173-519	23	2758	4000	80	600x600	Beta Opti	HB	On/off	Ensto 3-way male		Combo, LL
24173T1L-402	39	2484 (x2)	4000	80	600x600	Beta Opti	HB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL, Twin1L
24174	21	2175	3000	80	600x600	Delta	HB	On/off	Fixed connection		Combo, LL
24174-111	21	2175	3000	80	600x600	Delta	HB	On/off	Wieland GST18i3 3-way male		Combo, LL
24174-3	21	2175	3000	80	600x600	Delta	HB	On/off	Connection cable with plug, L=2.5 m		Combo, LL
24174-340	21	2175	3000	80	600x600	Delta	HB	On/off	Wago Winsta 3-way male		Combo, LL
24174-402	20	2136	3000	80	600x600	Delta	HB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL
24174-519	21	2175	3000	80	600x600	Delta	HB	On/off	Ensto 3-way male		Combo, LL
24174T1L-402	39	2136 (x2)	3000	80	600x600	Delta	HB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL, Twin1L
24175	21	2238	4000	80	600x600	Delta	HB	On/off	Fixed connection		Combo, LL
24175-111	21	2238	4000	80	600x600	Delta	HB	On/off	Wieland GST18i3 3-way male		Combo, LL
24175-3	21	2238	4000	80	600x600	Delta	HB	On/off	Connection cable with plug, L=2.5 m		Combo, LL
24175-340	21	2238	4000	80	600x600	Delta	HB	On/off	Wago Winsta 3-way male		Combo, LL
24175-402	20	2198	4000	80	600x600	Delta	HB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL
24175-519	21	2238	4000	80	600x600	Delta	HB	On/off	Ensto 3-way male		Combo, LL
24175T1L-402	39	2198 (x2)	4000	80	600x600	Delta	HB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL, Twin1L
24176	20	2628	3000	80	300x1200	Beta Opti	VTB	On/off	Fixed connection		Combo, LL
24176-111	20	2628	3000	80	300x1200	Beta Opti	VTB	On/off	Wieland GST18i3 3-way male		Combo, LL
24176-3	20	2628	3000	80	300x1200	Beta Opti	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, LL
24176-340	20	2628	3000	80	300x1200	Beta Opti	VTB	On/off	Wago Winsta 3-way male		Combo, LL
24176-402	18	2373	3000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL
24176-519	20	2628	3000	80	300x1200	Beta Opti	VTB	On/off	Ensto 3-way male		Combo, LL
24176T1L-402	37	2373 (x2)	3000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL, Twin1L
24177	20	2704	4000	80	300x1200	Beta Opti	VTB	On/off	Fixed connection		Combo, LL
24177-111	20	2704	4000	80	300x1200	Beta Opti	VTB	On/off	Wieland GST18i3 3-way male		Combo, LL
24177-3	20	2704	4000	80	300x1200	Beta Opti	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, LL
24177-340	20	2704	4000	80	300x1200	Beta Opti	VTB	On/off	Wago Winsta 3-way male		Combo, LL
24177-402	18	2441	4000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL
24177-519	20	2704	4000	80	300x1200	Beta Opti	VTB	On/off	Ensto 3-way male		Combo, LL
24177T1L-402	37	2441 (x2)	4000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL, Twin1L
24178	19	2223	3000	80	300x1200	Delta	VTB	On/off	Fixed connection		Combo, LL
24178-111	19	2223	3000	80	300x1200	Delta	VTB	On/off	Wieland GST18i3 3-way male		Combo, LL
24178-3	19	2223	3000	80	300x1200	Delta	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, LL
24178-340	19	2223	3000	80	300x1200	Delta	VTB	On/off	Wago Winsta 3-way male		Combo, LL
24178-402	18	2008	3000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL
24178-519	19	2223	3000	80	300x1200	Delta	VTB	On/off	Ensto 3-way male		Combo, LL
24178T1L-402	35	2008 (x2)	3000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL, Twin1L
24179	19	2287	4000	80	300x1200	Delta	VTB	On/off	Fixed connection		Combo, LL
24179-111	19	2287	4000	80	300x1200	Delta	VTB	On/off	Wieland GST18i3 3-way male		Combo, LL
24179-3	19	2287	4000	80	300x1200	Delta	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, LL
24179-340	19	2287	4000	80	300x1200	Delta	VTB	On/off	Wago Winsta 3-way male		Combo, LL
24179-402	18	2066	4000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL
24179-519	19	2287	4000	80	300x1200	Delta	VTB	On/off	Ensto 3-way male		Combo, LL
24179T1L-402	35	2066 (x2)	4000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, LL, Twin1L
24188	39	4628	3000	80	600x600	Beta Opti	VTB	On/off	Fixed connection		Combo, HL
24188-111	39	4628	3000	80	600x600	Beta Opti	VTB	On/off	Wieland GST18i3 3-way male		Combo, HL
24188-3	39	4628	3000	80	600x600	Beta Opti	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, HL
24188-340	39	4628	3000	80	600x600	Beta Opti	VTB	On/off	Wago Winsta 3-way male		Combo, HL
24188-402	36	4369	3000	80	600x600	Beta Opti	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL
24188-519	39	4628	3000	80	600x600	Beta Opti	VTB	On/off	Ensto 3-way male		Combo, HL
24188-520	36	4369	3000	80	600x600	Beta Opti	VTB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL
24188-528	36	4369	3000	80	600x600	Beta Opti	VTB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL
24188-529	36	4369	3000	80	600x600	Beta Opti	VTB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL
24188-533	37	4369	3000	80	600x600	Beta Opti	VTB	Organic Response	Fixed connection	50000	Combo, HL
24189	39	4761	4000	80	600x600	Beta Opti	VTB	On/off	Fixed connection		Combo, HL
24189-111	39	4761	4000	80	600x600	Beta Opti	VTB	On/off	Wieland GST18i3 3-way male		Combo, HL
24189-3	39	4761	4000	80	600x600	Beta Opti	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, HL
24189-340	39	4761	4000	80	600x600	Beta Opti	VTB	On/off	Wago Winsta 3-way male		Combo, HL
24189-402	36	4495	4000	80	600x600	Beta Opti	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL
24189-519	39	4761	4000	80	600x600	Beta Opti	VTB	On/off	Ensto 3-way male		Combo, HL
24189-520	36	4495	4000	80	600x600	Beta Opti	VTB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL
24189-528	36	4495	4000	80	600x600	Beta Opti	VTB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL
24189-529	36	4495	4000	80	600x600	Beta Opti	VTB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL
24189-533	37	4495	4000	80	600x600	Beta Opti	VTB	Organic Response	Fixed connection	50000	Combo, HL
24190	35	3714	3000	80	600x600	Delta	VTB	On/off	Fixed connection		Combo, HL
24190-111	35	3714	3000	80	600x600	Delta	VTB	On/off	Wieland GST18i3 3-way male		Combo, HL
24190-3	35	3714	3000	80	600x600	Delta	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, HL
24190-340	35	3714	3000	80	600x600	Delta	VTB	On/off	Wago Winsta 3-way male		Combo, HL
24190-402	31	3351	3000	80	600x600	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL
24190-519	35	3714	3000	80	600x600	Delta	VTB	On/off	Ensto 3-way male		Combo, HL
24190-520	31	3351	3000	80	600x600	Delta	VTB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL
24190-528	31	3351	3000	80	600x600	Delta	VTB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL
24190-529	31	3351	3000	80	600x600	Delta	VTB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL
24190-533	32	3351	3000	80	600x600	Delta	VTB	Organic Response	Fixed connection	50000	Combo, HL
24190T1L-402	63	3351 (x2)	3000	80	600x600	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL, Twin1L
24190T1L-520	63	3351 (x2)	3000	80	600x600	Delta	VTB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL, Twin1L
24190T1L-528	63	3351 (x2)	3000	80	600x600	Delta	VTB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL, Twin1L
24190T1L-529	63	3351 (x2)	3000	80	600x600	Delta	VTB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL, Twin1L
24191	35	3821	4000	80	600x600	Delta	VTB	On/off	Fixed connection		Combo, HL
24191-111	35	3821	4000	80	600x600	Delta	VTB	On/off	Wieland GST18i3 3-way male		Combo, HL
24191-3	35	3821	4000	80	600x600	Delta	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, HL
24191-340	35	3821	4000	80	600x600	Delta	VTB	On/off	Wago Winsta 3-way male		Combo, HL
24191-402	31	3448	4000	80	600x600	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL
24191-519	35	3821	4000	80	600x600	Delta	VTB	On/off	Ensto 3-way male		Combo, HL
24191-520	31	3448	4000	80	600x600	Delta	VTB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL
24191-528	31	3448	4000	80	600x600	Delta	VTB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL
24191-529	31	3448	4000	80	600x600	Delta	VTB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL
24191-533	32	3448	4000	80	600x600	Delta	VTB	Organic Response	Fixed connection	50000	Combo, HL
24191T1L-402	63	3448 (x2)	4000	80	600x600	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL, Twin1L
24191T1L-520	63	3448 (x2)	4000	80	600x600	Delta	VTB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL, Twin1L
24191T1L-528	63	3448 (x2)	4000	80	600x600	Delta	VTB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL, Twin1L
24191T1L-529	63	3448 (x2)	4000	80	600x600	Delta	VTB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL, Twin1L
24192	39	4628	3000	80	600x600	Beta Opti	HB	On/off	Fixed connection		Combo, HL
24192-111	39	4628	3000	80	600x600	Beta Opti	HB	On/off	Wieland GST18i3 3-way male		Combo, HL
24192-3	39	4628	3000	80	600x600	Beta Opti	HB	On/off	Connection cable with plug, L=2.5 m		Combo, HL
24192-340	39	4628	3000	80	600x600	Beta Opti	HB	On/off	Wago Winsta 3-way male		Combo, HL
24192-402	36	4369	3000	80	600x600	Beta Opti	HB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL
24192-519	39	4628	3000	80	600x600	Beta Opti	HB	On/off	Ensto 3-way male		Combo, HL
24192-520	36	4369	3000	80	600x600	Beta Opti	HB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL
24192-528	36	4369	3000	80	600x600	Beta Opti	HB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL
24192-529	36	4369	3000	80	600x600	Beta Opti	HB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL
24193	39	4761	4000	80	600x600	Beta Opti	HB	On/off	Fixed connection		Combo, HL
24193-111	39	4761	4000	80	600x600	Beta Opti	HB	On/off	Wieland GST18i3 3-way male		Combo, HL
24193-3	39	4761	4000	80	600x600	Beta Opti	HB	On/off	Connection cable with plug, L=2.5 m		Combo, HL
24193-340	39	4761	4000	80	600x600	Beta Opti	HB	On/off	Wago Winsta 3-way male		Combo, HL
24193-402	36	4495	4000	80	600x600	Beta Opti	HB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL
24193-519	39	4761	4000	80	600x600	Beta Opti	HB	On/off	Ensto 3-way male		Combo, HL
24193-520	36	4495	4000	80	600x600	Beta Opti	HB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL
24193-528	36	4495	4000	80	600x600	Beta Opti	HB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL
24193-529	36	4495	4000	80	600x600	Beta Opti	HB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL
24194	35	3714	3000	80	600x600	Delta	HB	On/off	Fixed connection		Combo, HL
24194-111	35	3714	3000	80	600x600	Delta	HB	On/off	Wieland GST18i3 3-way male		Combo, HL
24194-3	35	3714	3000	80	600x600	Delta	HB	On/off	Connection cable with plug, L=2.5 m		Combo, HL
24194-340	35	3714	3000	80	600x600	Delta	HB	On/off	Wago Winsta 3-way male		Combo, HL
24194-402	31	3351	3000	80	600x600	Delta	HB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL
24194-519	35	3714	3000	80	600x600	Delta	HB	On/off	Ensto 3-way male		Combo, HL
24194-520	31	3351	3000	80	600x600	Delta	HB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL
24194-528	31	3351	3000	80	600x600	Delta	HB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL
24194-529	31	3351	3000	80	600x600	Delta	HB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL
24194T1L-402	63	3351 (x2)	3000	80	600x600	Delta	HB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL, Twin1L
24194T1L-520	63	3351 (x2)	3000	80	600x600	Delta	HB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL, Twin1L
24194T1L-528	63	3351 (x2)	3000	80	600x600	Delta	HB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL, Twin1L
24194T1L-529	63	3351 (x2)	3000	80	600x600	Delta	HB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL, Twin1L
24195	35	3821	4000	80	600x600	Delta	HB	On/off	Fixed connection		Combo, HL
24195-111	35	3821	4000	80	600x600	Delta	HB	On/off	Wieland GST18i3 3-way male		Combo, HL
24195-3	35	3821	4000	80	600x600	Delta	HB	On/off	Connection cable with plug, L=2.5 m		Combo, HL
24195-340	35	3821	4000	80	600x600	Delta	HB	On/off	Wago Winsta 3-way male		Combo, HL
24195-402	31	3448	4000	80	600x600	Delta	HB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL
24195-519	35	3821	4000	80	600x600	Delta	HB	On/off	Ensto 3-way male		Combo, HL
24195-520	31	3448	4000	80	600x600	Delta	HB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL
24195-528	31	3448	4000	80	600x600	Delta	HB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL
24195-529	31	3448	4000	80	600x600	Delta	HB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL
24195T1L-402	63	3448 (x2)	4000	80	600x600	Delta	HB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL, Twin1L
24195T1L-520	63	3448 (x2)	4000	80	600x600	Delta	HB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL, Twin1L
24195T1L-528	63	3448 (x2)	4000	80	600x600	Delta	HB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL, Twin1L
24195T1L-529	63	3448 (x2)	4000	80	600x600	Delta	HB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL, Twin1L
24196	35	4380	3000	80	300x1200	Beta Opti	VTB	On/off	Fixed connection		Combo, HL
24196-111	35	4380	3000	80	300x1200	Beta Opti	VTB	On/off	Wieland GST18i3 3-way male		Combo, HL
24196-3	35	4380	3000	80	300x1200	Beta Opti	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, HL
24196-340	35	4380	3000	80	300x1200	Beta Opti	VTB	On/off	Wago Winsta 3-way male		Combo, HL
24196-402	31	3975	3000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL
24196-519	35	4380	3000	80	300x1200	Beta Opti	VTB	On/off	Ensto 3-way male		Combo, HL
24196-520	31	3975	3000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL
24196-528	31	3975	3000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL
24196-529	31	3975	3000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL
24196-533	32	3975	3000	80	300x1200	Beta Opti	VTB	Organic Response	Fixed connection	50000	Combo, HL
24196T1L-402	63	3975 (x2)	3000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL, Twin1L
24196T1L-520	63	3975 (x2)	3000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL, Twin1L
24196T1L-528	63	3975 (x2)	3000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL, Twin1L
24196T1L-529	63	3975 (x2)	3000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL, Twin1L
24197	35	4506	4000	80	300x1200	Beta Opti	VTB	On/off	Fixed connection		Combo, HL
24197-111	35	4506	4000	80	300x1200	Beta Opti	VTB	On/off	Wieland GST18i3 3-way male		Combo, HL
24197-3	35	4506	4000	80	300x1200	Beta Opti	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, HL
24197-340	35	4506	4000	80	300x1200	Beta Opti	VTB	On/off	Wago Winsta 3-way male		Combo, HL
24197-402	31	4089	4000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL
24197-519	35	4506	4000	80	300x1200	Beta Opti	VTB	On/off	Ensto 3-way male		Combo, HL
24197-520	31	4089	4000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL
24197-528	31	4089	4000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL
24197-529	31	4089	4000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL
24197-533	32	4089	4000	80	300x1200	Beta Opti	VTB	Organic Response	Fixed connection	50000	Combo, HL
24197T1L-402	63	4089 (x2)	4000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL, Twin1L
24197T1L-520	63	4089 (x2)	4000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL, Twin1L
24197T1L-528	63	4089 (x2)	4000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL, Twin1L
24197T1L-529	63	4089 (x2)	4000	80	300x1200	Beta Opti	VTB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL, Twin1L
24198	31	3498	3000	80	300x1200	Delta	VTB	On/off	Fixed connection		Combo, HL
24198-111	31	3498	3000	80	300x1200	Delta	VTB	On/off	Wieland GST18i3 3-way male		Combo, HL
24198-3	31	3498	3000	80	300x1200	Delta	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, HL
24198-340	31	3498	3000	80	300x1200	Delta	VTB	On/off	Wago Winsta 3-way male		Combo, HL
24198-402	28	3175	3000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL
24198-519	31	3498	3000	80	300x1200	Delta	VTB	On/off	Ensto 3-way male		Combo, HL
24198-520	28	3175	3000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL
24198-528	28	3175	3000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL
24198-529	28	3175	3000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL
24198-533	29	3175	3000	80	300x1200	Delta	VTB	Organic Response	Fixed connection	50000	Combo, HL
24198T1L-402	56.5	3175 (x2)	3000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL, Twin1L
24198T1L-520	56.5	3175 (x2)	3000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL, Twin1L
24198T1L-528	56.5	3175 (x2)	3000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL, Twin1L
24198T1L-529	56.5	3175 (x2)	3000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL, Twin1L
24199	31	3599	4000	80	300x1200	Delta	VTB	On/off	Fixed connection		Combo, HL
24199-111	31	3599	4000	80	300x1200	Delta	VTB	On/off	Wieland GST18i3 3-way male		Combo, HL
24199-3	31	3599	4000	80	300x1200	Delta	VTB	On/off	Connection cable with plug, L=2.5 m		Combo, HL
24199-340	31	3599	4000	80	300x1200	Delta	VTB	On/off	Wago Winsta 3-way male		Combo, HL
24199-402	28	3266	4000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL
24199-519	31	3599	4000	80	300x1200	Delta	VTB	On/off	Ensto 3-way male		Combo, HL
24199-520	28	3266	4000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL
24199-528	28	3266	4000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL
24199-529	28	3266	4000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL
24199-533	29	3266	4000	80	300x1200	Delta	VTB	Organic Response	Fixed connection	50000	Combo, HL
24199T1L-402	56.5	3266 (x2)	4000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Fixed connection	50000	Combo, HL, Twin1L
24199T1L-520	56.5	3266 (x2)	4000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Ensto 5-way male	50000	Combo, HL, Twin1L
24199T1L-528	56.5	3266 (x2)	4000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Wieland GST18i5 5-way male	50000	Combo, HL, Twin1L
24199T1L-529	56.5	3266 (x2)	4000	80	300x1200	Delta	VTB	DALI/Phase-pulse	Wago Winsta 5-way male	50000	Combo, HL, Twin1L
24650	36	3756	3000	80	600x600	Opal	VTB	On/off	Fixed connection		HL
24650-111	36	3756	3000	80	600x600	Opal	VTB	On/off	Wieland GST18i3, 1 connector		HL
24650-3	36	3756	3000	80	600x600	Opal	VTB	On/off	Connection cable with plug, L=2.5 m		HL
24650-340	36	3756	3000	80	600x600	Opal	VTB	On/off	Wago Winsta, 1 connector		HL
24650-402	32	3305	3000	80	600x600	Opal	VTB	DALI/Phase-pulse	Fixed connection	50000	HL
24650-454	32	3305	3000	80	600x600	Opal	VTB	DALI	Wago Winsta, 1 connector	50000	HL
24650-456	32	3305	3000	80	600x600	Opal	VTB	DALI	Wieland GST18i5, 1 connector	50000	HL
24650-533	32	3305	3000	80	600x600	Opal	VTB	Organic Response	Fixed connection	50000	HL
24651	36	3864	4000	80	600x600	Opal	VTB	On/off	Fixed connection		HL
24651-111	36	3864	4000	80	600x600	Opal	VTB	On/off	Wieland GST18i3, 1 connector		HL
24651-3	36	3864	4000	80	600x600	Opal	VTB	On/off	Connection cable with plug, L=2.5 m		HL
24651-340	36	3864	4000	80	600x600	Opal	VTB	On/off	Wago Winsta, 1 connector		HL
24651-402	32	3400	4000	80	600x600	Opal	VTB	DALI/Phase-pulse	Fixed connection	50000	HL
24651-454	32	3400	4000	80	600x600	Opal	VTB	DALI	Wago Winsta, 1 connector	50000	HL
24651-456	32	3400	4000	80	600x600	Opal	VTB	DALI	Wieland GST18i5, 1 connector	50000	HL
24651-533	32	3400	4000	80	600x600	Opal	VTB	Organic Response	Fixed connection	50000	HL
24652	36	3756	3000	80	600x600	Opal	HB	On/off	Fixed connection		HL
24652-111	36	3756	3000	80	600x600	Opal	HB	On/off	Wieland GST18i3, 1 connector		HL
24652-3	36	3756	3000	80	600x600	Opal	HB	On/off	Connection cable with plug, L=2.5 m		HL
24652-340	36	3756	3000	80	600x600	Opal	HB	On/off	Wago Winsta, 1 connector		HL
24652-402	32	3305	3000	80	600x600	Opal	HB	DALI/Phase-pulse	Fixed connection	50000	HL
24652-454	32	3305	3000	80	600x600	Opal	HB	DALI	Wago Winsta, 1 connector	50000	HL
24652-456	32	3305	3000	80	600x600	Opal	HB	DALI	Wieland GST18i5, 1 connector	50000	HL
24653	36	3864	4000	80	600x600	Opal	HB	On/off	Fixed connection		HL
24653-111	36	3864	4000	80	600x600	Opal	HB	On/off	Wieland GST18i3, 1 connector		HL
24653-3	36	3864	4000	80	600x600	Opal	HB	On/off	Connection cable with plug, L=2.5 m		HL
24653-340	36	3864	4000	80	600x600	Opal	HB	On/off	Wago Winsta, 1 connector		HL
24653-402	32	3400	4000	80	600x600	Opal	HB	DALI/Phase-pulse	Fixed connection	50000	HL
24653-454	32	3400	4000	80	600x600	Opal	HB	DALI	Wago Winsta, 1 connector	50000	HL
24653-456	32	3400	4000	80	600x600	Opal	HB	DALI	Wieland GST18i5, 1 connector	50000	HL
24654	25	2664	3000	80	600x600	Opal	VTB	On/off	Fixed connection		LL
24654-111	25	2664	3000	80	600x600	Opal	VTB	On/off	Wieland GST18i3, 1 connector		LL
24654-3	25	2664	3000	80	600x600	Opal	VTB	On/off	Connection cable with plug, L=2.5 m		LL
24654-340	25	2664	3000	80	600x600	Opal	VTB	On/off	Wago Winsta, 1 connector		LL
24654-402	22	2333	3000	80	600x600	Opal	VTB	DALI/Phase-pulse	Fixed connection	50000	LL
24654-454	22	2333	3000	80	600x600	Opal	VTB	DALI	Wago Winsta, 1 connector	50000	LL
24654-456	22	2333	3000	80	600x600	Opal	VTB	DALI	Wieland GST18i5, 1 connector	50000	LL
24655	25	2741	4000	80	600x600	Opal	VTB	On/off	Fixed connection		LL
24655-111	25	2741	4000	80	600x600	Opal	VTB	On/off	Wieland GST18i3, 1 connector		LL
24655-3	25	2741	4000	80	600x600	Opal	VTB	On/off	Connection cable with plug, L=2.5 m		LL
24655-340	25	2741	4000	80	600x600	Opal	VTB	On/off	Wago Winsta, 1 connector		LL
24655-402	22	2400	4000	80	600x600	Opal	VTB	DALI/Phase-pulse	Fixed connection	50000	LL
24655-454	22	2400	4000	80	600x600	Opal	VTB	DALI	Wago Winsta, 1 connector	50000	LL
24655-456	22	2400	4000	80	600x600	Opal	VTB	DALI	Wieland GST18i5, 1 connector	50000	LL
24656	25	2664	3000	80	600x600	Opal	HB	On/off	Fixed connection		LL
24656-111	25	2664	3000	80	600x600	Opal	HB	On/off	Wieland GST18i3, 1 connector		LL
24656-3	25	2664	3000	80	600x600	Opal	HB	On/off	Connection cable with plug, L=2.5 m		LL
24656-340	25	2664	3000	80	600x600	Opal	HB	On/off	Wago Winsta, 1 connector		LL
24656-402	22	2333	3000	80	600x600	Opal	HB	DALI/Phase-pulse	Fixed connection	50000	LL
24656-454	22	2333	3000	80	600x600	Opal	HB	DALI	Wago Winsta, 1 connector	50000	LL
24656-456	22	2333	3000	80	600x600	Opal	HB	DALI	Wieland GST18i5, 1 connector	50000	LL
24657	25	2741	4000	80	600x600	Opal	HB	On/off	Fixed connection		LL
24657-111	25	2741	4000	80	600x600	Opal	HB	On/off	Wieland GST18i3, 1 connector		LL
24657-3	25	2741	4000	80	600x600	Opal	HB	On/off	Connection cable with plug, L=2.5 m		LL
24657-340	25	2741	4000	80	600x600	Opal	HB	On/off	Wago Winsta, 1 connector		LL
24657-402	22	2400	4000	80	600x600	Opal	HB	DALI/Phase-pulse	Fixed connection	50000	LL
24657-454	22	2400	4000	80	600x600	Opal	HB	DALI	Wago Winsta, 1 connector	50000	LL
24657-456	22	2400	4000	80	600x600	Opal	HB	DALI	Wieland GST18i5, 1 connector	50000	LL

Showing 35 of 35 Accessories

Name	Description	Art.no.
External Organic Response sensor incl. DALI PSU	External sensor incl. DALI PSU, suspended pipe conduit installation, 1 m cable. pipe not included.	86409
External Organic Response sensor incl. DALI PSU	External sensor incl. DALI PSU, surface mounted, 1 m cable	86408
External Organic Response sensor incl. DALI PSU	External sensor incl. DALI PSU, recessed, 3.2 m cable	86410
External Organic Response sensor incl. DALI PSU	Extern sensor incl. DALI PSU, suspended pipe conduit installation, 3.2 m cable. Pipe not included.	86412
External Organic Response sensor incl. DALI PSU	External sensor incl. DALI PSU, surface mounted, 3.2 m cable	86411
External Organic Response sensor incl. DALI PSU	External sensor incl. DALI PSU, recessed, 1 m cable	86407
WAGO T-connector	WAGO T-connector, 5-way, 2 locking levers, blue	88228
WAGO T-connector	WAGO T-Connector, 3-way, white	91067
Fixing brackets	Fixing brackets/4 pcs.	91272
Wieland T-connector	Wieland 5-way T-connector	91026
Organic Response EnOcean Wireless Push button panel	EnOcean 4 function push button panel, labeled, white	86437
Organic Response EnOcean Wireless Push button panel	EnOcean 2 function push button panel, labeled, white	86436
Organic Response I/O box	I/O box with potential-free 16A relay for controlling external units.	86413
Organic Response IoT Gateway	Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors.	86296
Ensto power cable	Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free.	92788
Ensto power cable	Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free.	92787
Ensto connection cables, 3-way	Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free.	92785
Ensto connection cables, 5-way	Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free.	92786
WAGO connection cables, 5-way	Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free.	91243
Wieland T-connector	Wieland 3-way T-connector	91025
Organic Response EnOcean Wireless Push button panel	EnOcean 4 function push button panel, white	86417
Organic Response EnOcean Wireless Push button panel	EnOcean 2 function push button panel, white	86416
WAGO connection cables, 3-way	Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free.	91244
Wieland connection cables, 5-way	Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free.	92799
Ensto T-connector	Ensto T-connector 3-way, white	92783
Ensto T-connector	Ensto T-connector 5-way, grey	92784
Wieland connection cables, 3-way	Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free.	92793
IR dongle for Organic Response	IR dongle for Organic Response equipped luminaire.	86279
Fence	Fence 600x600 white. Only for T-bars T24.	41252
Sky frame	Sky frame for ceiling window effect 600x600, white. Only for T-bars T24.	41245
Fence	Fence 600x600 champagne. Only for T-bars T24.	41254
Fence	Fence 600x600 black. Only for T-bars T24.	41253
Organic Response I/O box	I/O box with potential-free 8A relay for controlling external units.	86433
Recessed frame solid ceiling	Recessed frame for VTB frame 600x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4,5kg	41051
External Organic Response G3 Sensor excl. PSU.	External sensor excl. PSU.	86519
