SidelightRecessed

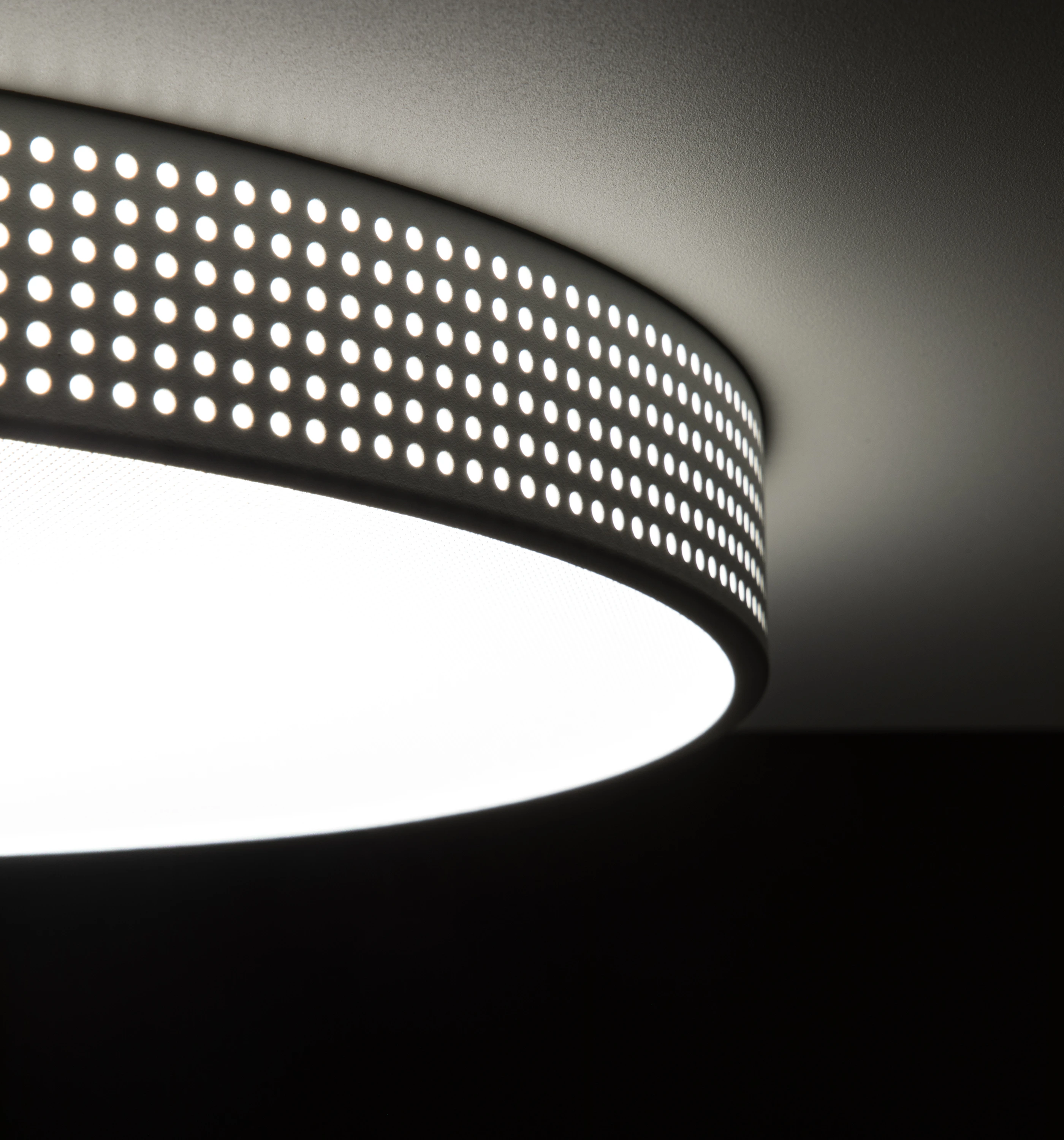

Sidelight is a recessed luminaire suitable for both work lighting in offices and schools and general lighting in communication areas. The circular light opening provides a glare-free direct light and a soft ambient light on the ceiling.
SidelightRecessed
Sidelight is a recessed luminaire suitable for both work lighting in offices and schools and general lighting in communication areas. The circular light opening provides a glare-free direct light and a soft ambient light on the ceiling.
Installation

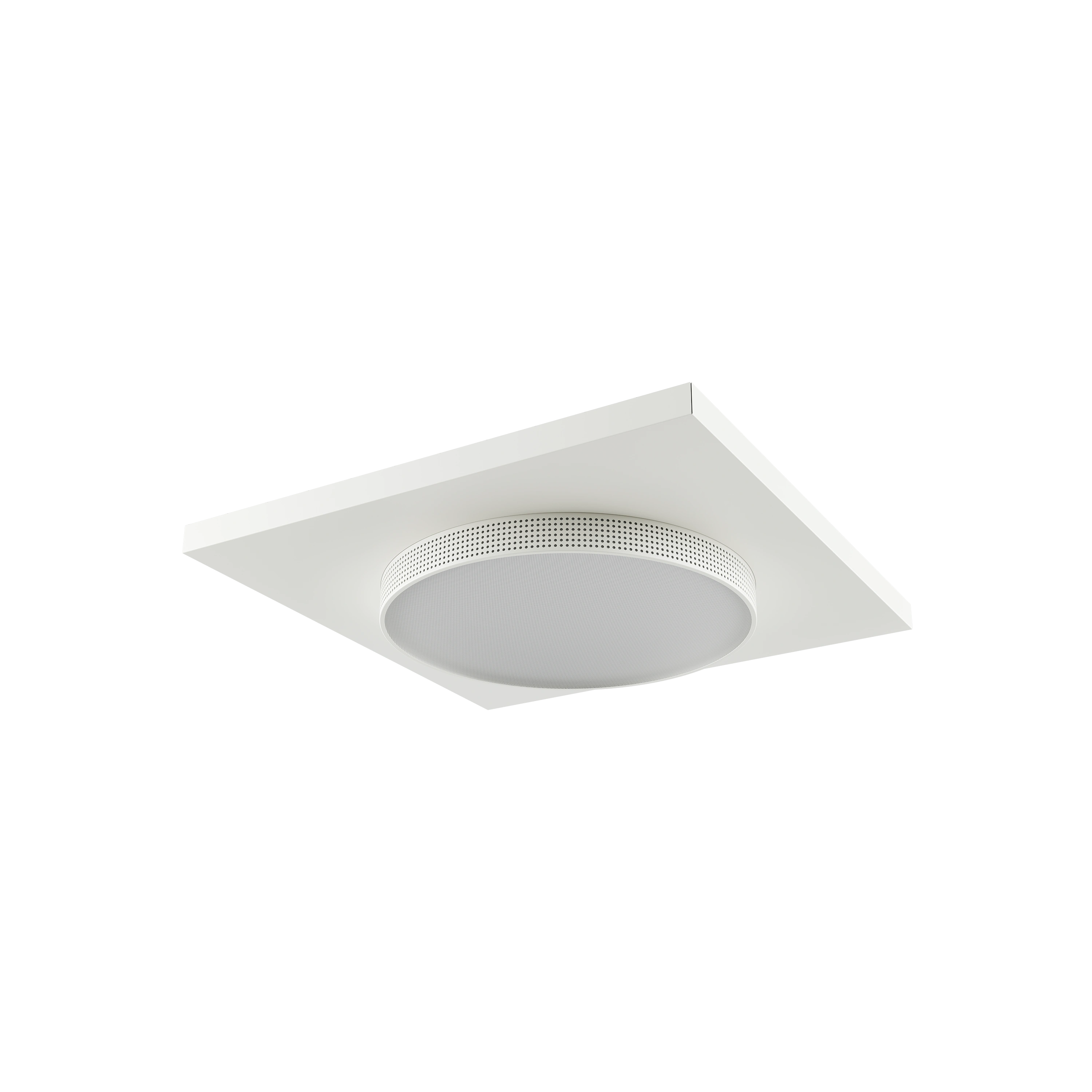

Luminaire for recessed installation in suspended ceilings. Unventilated or ventilated suspended ceilings. VTB – for suspended ceilings with visible T-bars (15 or 24 mm). For detailed information, see the installation instructions.
Connection
For permanent connection in separate driver box. Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis mounted snap-in connector in the driver where a T-splitter or earthed mains cable and plug are possible. The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III. The supplied driver must be connected to the protective earth. CLO (Constant Light Output).
Design
Luminaire body made of sheet steel. Lacquered in white (RAL 9016 G40).

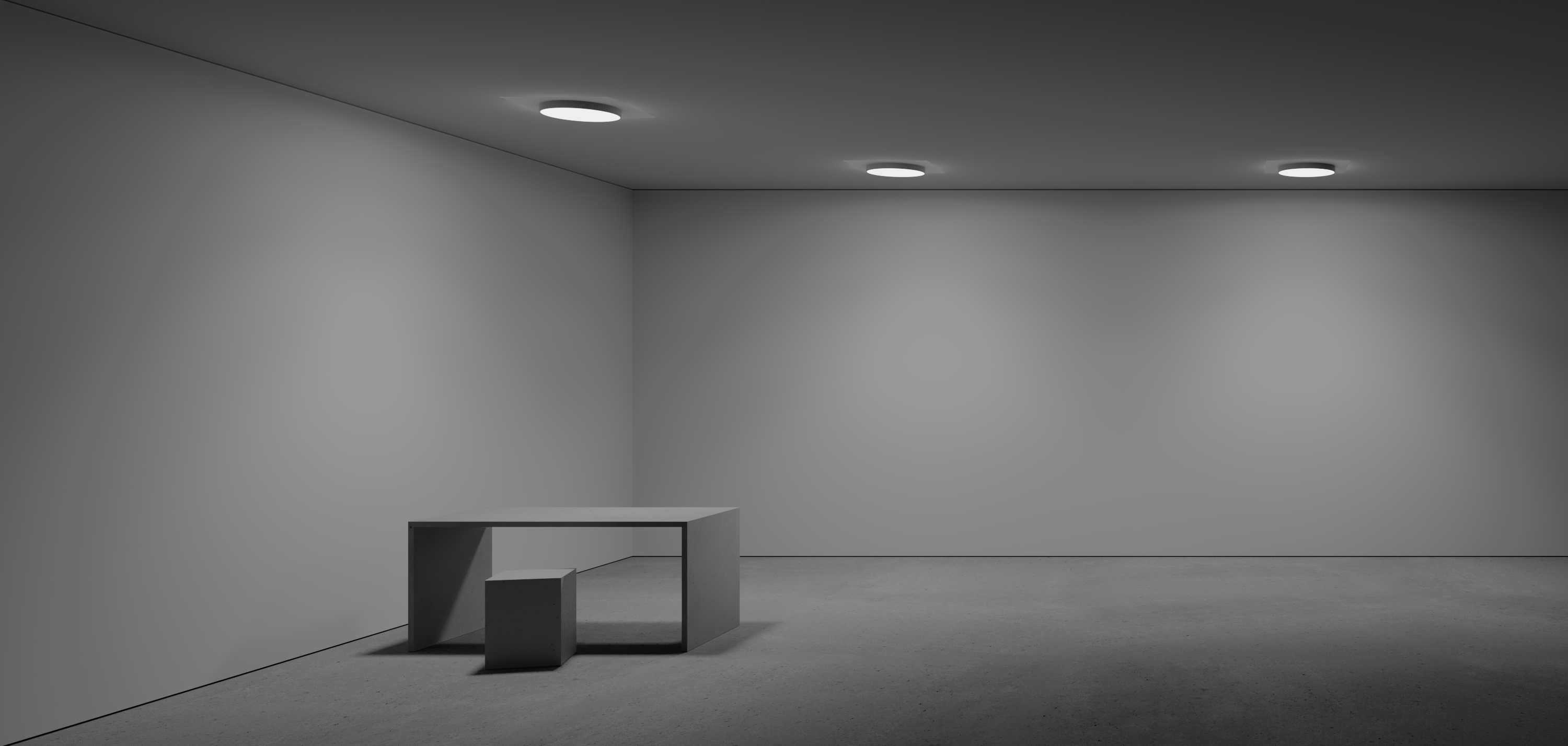

Light Distribution
Direct.
Light data
Optics

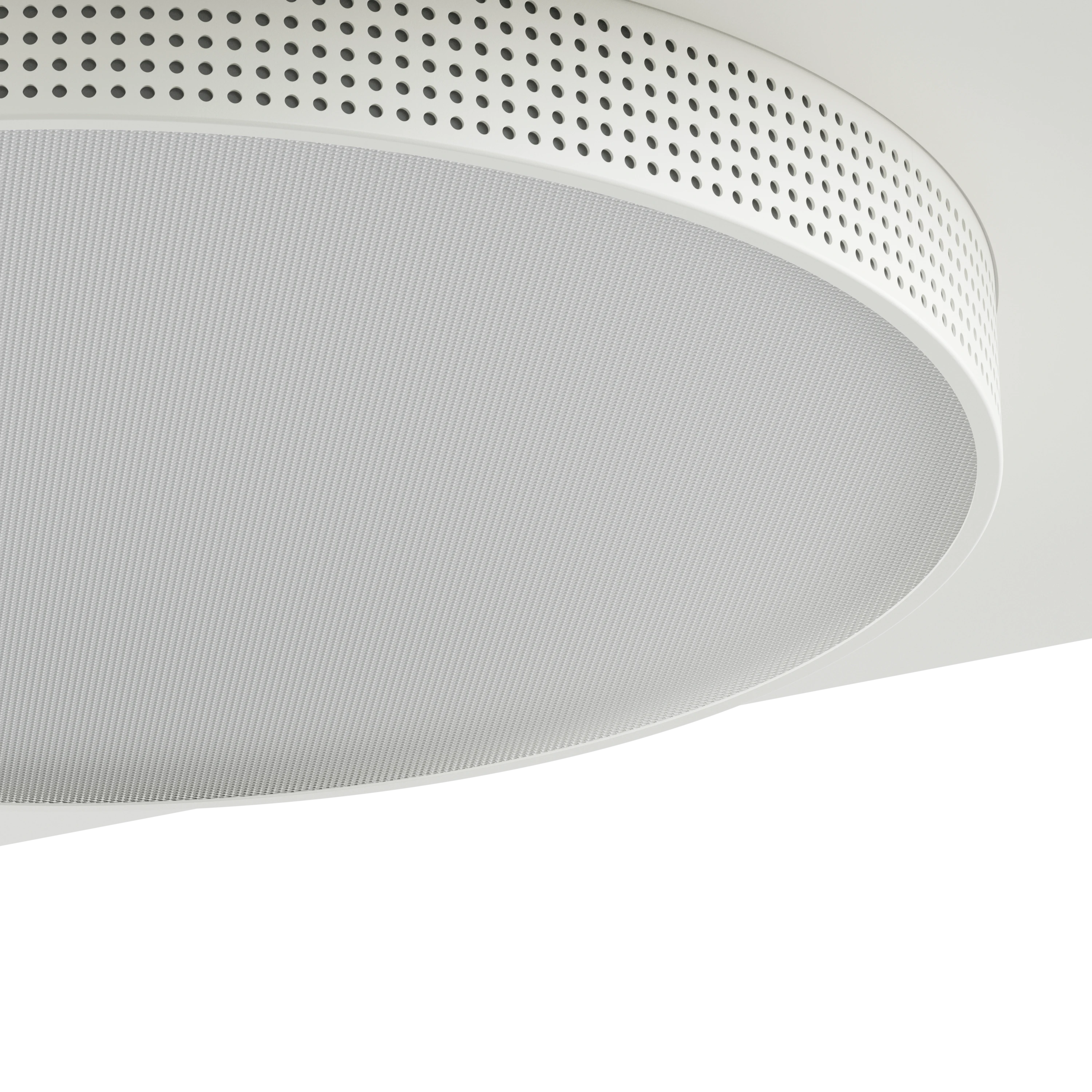

Delta – micro-prism louvre in UV-stable acrylic (PMMA).
Twin Dual Driver
The product can be powered by the Twin Dual Driver, a driver that powers two luminaires. With streamlined electronics and an updated material composition, we have reduced the overall climate impact of the driver by 49%, while maintaining safety, faster installation and easier product use.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
Constant Light Output (CLO)
The luminaire is available with Constant Light Output (CLO), providing the right level of light throughout it’s working life and thereby reducing energy consumption. CLO can save up to 36% energy compared to L70. It is also often the case that fewer luminaires are needed, reducing investment and operating costs as well as climate impact.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

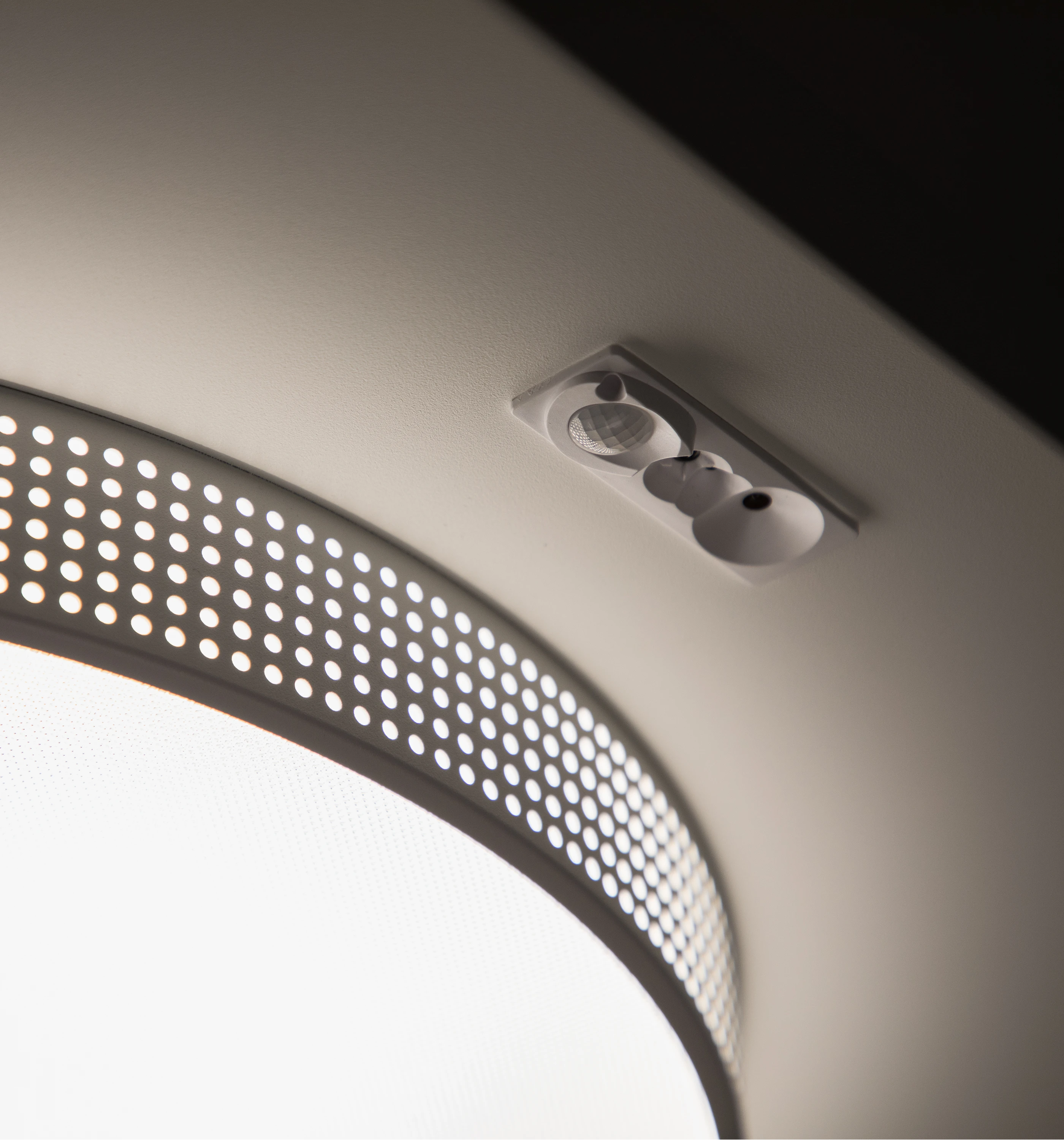

Organic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read moreOn/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
Articles
Configure your Sidelight
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
WAGO T-connector | WAGO T-connector, 5-way, 2 locking levers, blue | 88228 | |
|
WAGO T-connector | WAGO T-Connector, 3-way, white | 91067 | |
|
Wieland T-connector | Wieland 5-way T-connector | 91026 | |
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. | 92788 | |
|
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. | 92787 | |
|
|
Ensto connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92785 | |
|
|
Ensto connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92786 | |
|
Frame for surface mounting | Frame for surface mounting (600x600 VTB). Fits Multilume Flat (only standard and DALI), Dwide as well as Multilume Slim, Multilume Slim Hygiene & Multilume Re:Think with Organic Response. | 41026 | |
|
WAGO connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 91243 | |
|
Wieland T-connector | Wieland 3-way T-connector | 91025 | |
|
WAGO connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 91244 | |
|
Wieland connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92799 | |
|
Ensto T-connector | Ensto T-connector 3-way, white | 92783 | |
|
Ensto T-connector | Ensto T-connector 5-way, grey | 92784 | |
|
Wieland connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92793 | |
|
Fence | Fence 600x600 white. Only for T-bars T24. | 41252 | |
|
Sky frame | Sky frame for ceiling window effect 600x600, white. Only for T-bars T24. | 41245 | |
|
Fence | Fence 600x600 champagne. Only for T-bars T24. | 41254 | |
|
Fence | Fence 600x600 black. Only for T-bars T24. | 41253 | |
|
Recessed frame solid ceiling | Recessed frame for VTB frame 600x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4,5kg | 41051 |
