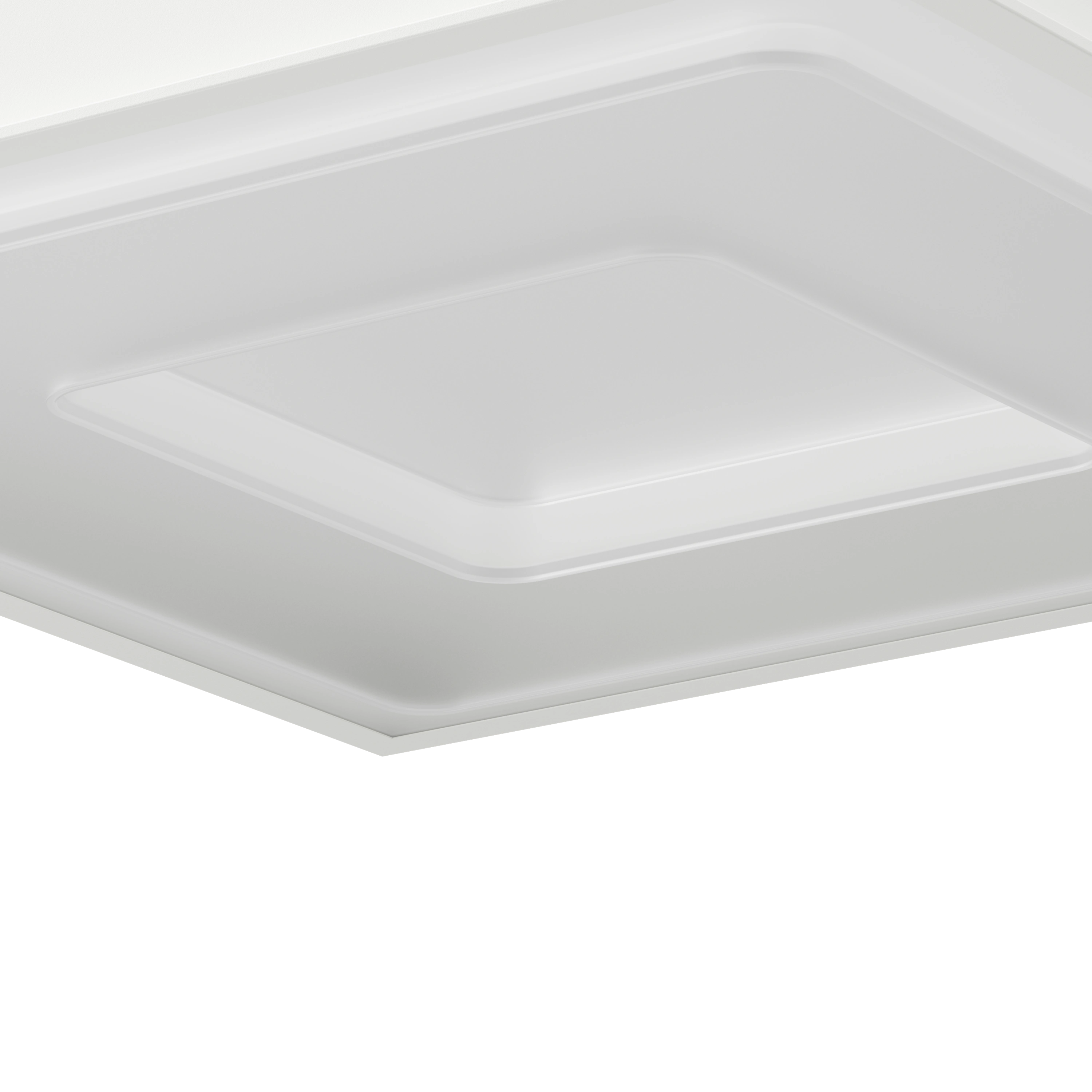

ClaricoRecessed
Clarico is a recessed ceiling luminaire for complete general lighting and provides a gentle ambient light that creates soft luminance transitions. Available in two variants with either a convex or concave design, which adds a unique expression to the room.
White RAL 9016 G40

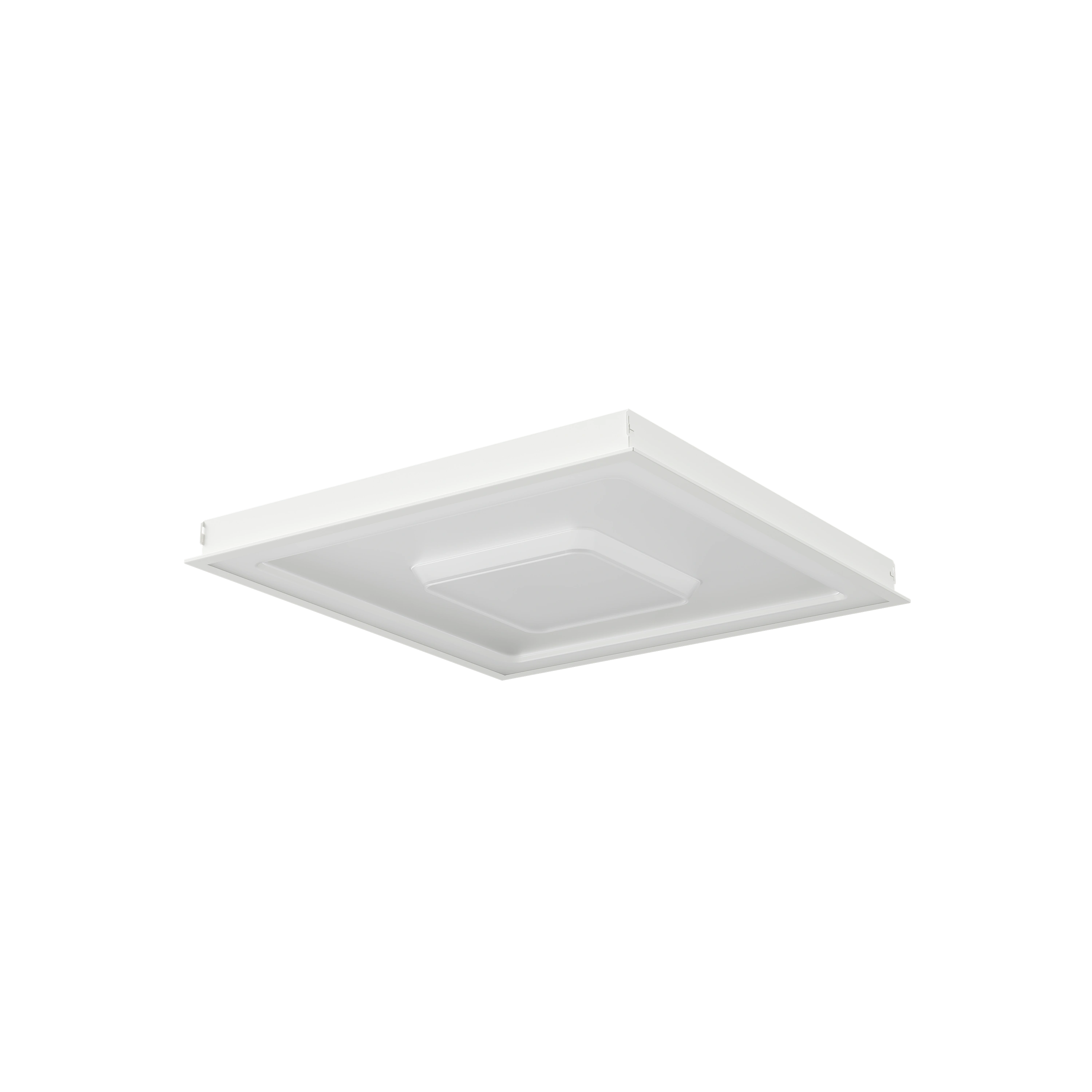

ClaricoRecessed
Clarico is a recessed ceiling luminaire for complete general lighting and provides a gentle ambient light that creates soft luminance transitions. Available in two variants with either a convex or concave design, which adds a unique expression to the room.
Installation
Luminaire for recessed installation in suspended ceilings. Unventilated or ventilated suspended ceilings. VTB – for suspended ceilings with visible T-bars (15 or 24 mm). HB – for suspended ceilings with concealed T-bars and symmetrical ceiling tile mount (thickness 20-22 mm). IP40 under a suspended ceiling, IP20 above a suspended ceiling. For detailed information, see the installation instructions.
Connection
For permanent connection in separate driver box. Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis mounted snap-in connector in the driver where a T-splitter or earthed mains cable and plug are possible. The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III. The supplied driver must be connected to the protective earth. CLO (Constant Light Output).
Design
Luminaire body made of sheet steel. Lacquered in white (RAL 9016 G40).

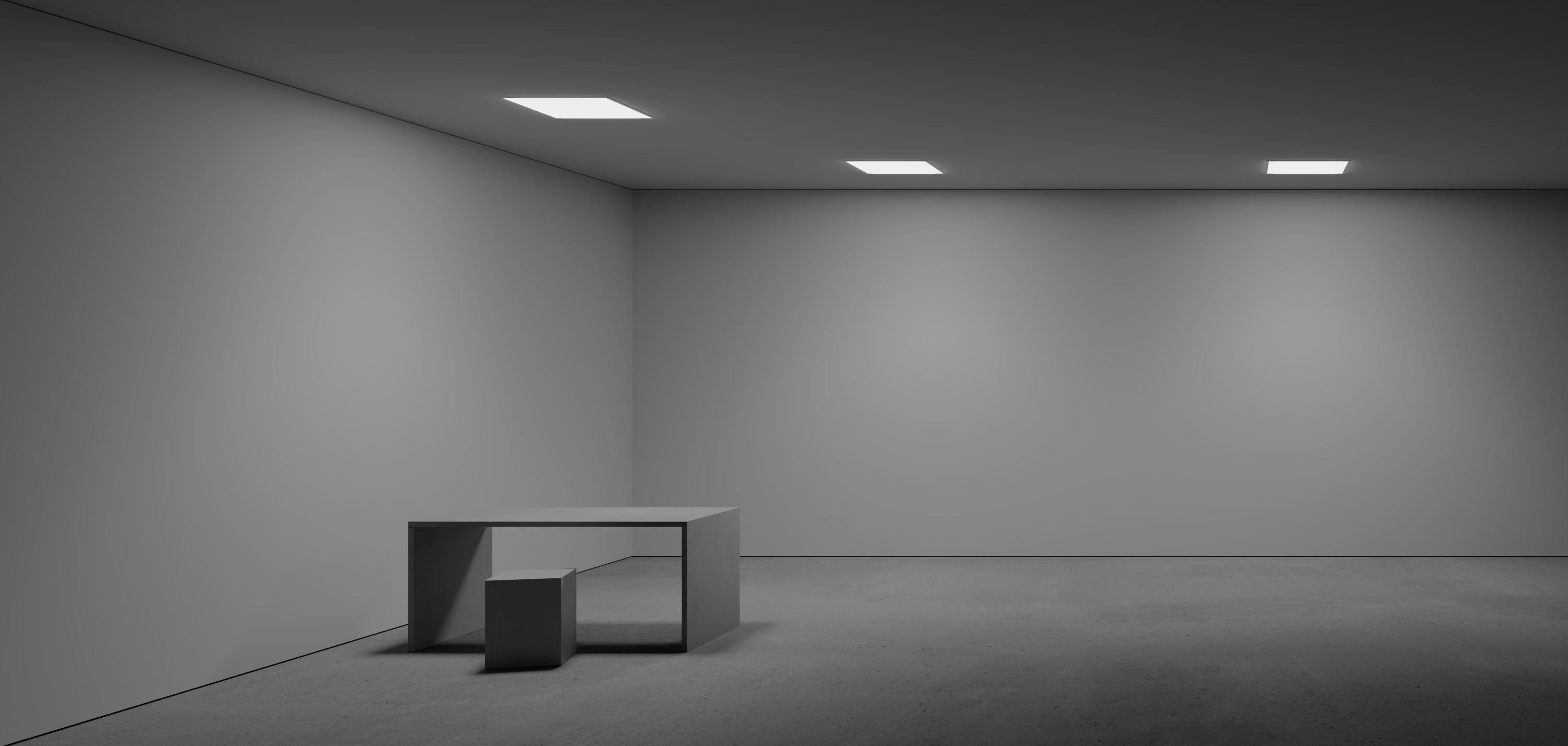

Light Distribution
Direct.
Light data
CCT, K:
3000 K, 4000 K
CRI/Rf:
80
SDCM:
3
Lumen output:
2322-4267 lm
CLO:
100 000 h
Optics
A combination of micro-prism and frosted opal surfaces in acrylic (PMMA).
Less waste material
The material that has been cut out for the light opening is used as a top cover. By reducing the amount of waste and optimising resource use, we are able to save materials and reduce overall waste. At the same time, the product benefits from a lower carbon footprint.
Twin Dual Driver
The product can be powered by the Twin Dual Driver, a driver that powers two luminaires. With streamlined electronics and an updated material composition, we have reduced the overall climate impact of the driver by 49%, while maintaining safety, faster installation and easier product use.
Constant Light Output (CLO)
The luminaire is available with Constant Light Output (CLO), providing the right level of light throughout it’s working life and thereby reducing energy consumption. CLO can save up to 36% energy compared to L70. It is also often the case that fewer luminaires are needed, reducing investment and operating costs as well as climate impact.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
On/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
Articles
Showing 288 of 288 Articles
| Art.no. | System Wattage | Lumen output | CCT, K | CRI | Module | Louvre | Installation | Light control | Connection | CLO time, h | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 23793 | 20 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Fixed connection | Up |
|
||
| 23793-111 | 20 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wieland GST18i3 3-way male | Up |
|
||
| 23793-3 | 20 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Connection cable with plug, L=2.5 m | Up |
|
||
| 23793-340 | 20 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wago Winsta 3-way male | Up |
|
||
| 23793-402 | 18 | 2320 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Up |
|
|
| 23793-519 | 20 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Ensto 3-way male | Up |
|
||
| 23793-520 | 18 | 2320 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up |
|
|
| 23793-528 | 18 | 2320 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up |
|
|
| 23793-529 | 18 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up |
|
|
| 23793T1L-402 | 36 | 2320 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Up, Twin 1L |
|
|
| 23793T1L-520 | 36 | 2320 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up, Twin 1L |
|
|
| 23793T1L-528 | 36 | 2320 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up, Twin 1L |
|
|
| 23793T1L-529 | 36 | 2320 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up, Twin 1L |
|
|
| 23794 | 20 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Fixed connection | Up |
|
||
| 23794-111 | 20 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wieland GST18i3 3-way male | Up |
|
||
| 23794-3 | 20 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Connection cable with plug, L=2.5 m | Up |
|
||
| 23794-340 | 20 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wago Winsta 3-way male | Up |
|
||
| 23794-402 | 18 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Up |
|
|
| 23794-519 | 20 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Ensto 3-way male | Up |
|
||
| 23794-520 | 18 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up |
|
|
| 23794-528 | 18 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up |
|
|
| 23794-529 | 18 | 2578 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up |
|
|
| 23794T1L-402 | 36 | 2578 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Up, Twin 1L |
|
|
| 23794T1L-520 | 36 | 2578 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up, Twin 1L |
|
|
| 23794T1L-528 | 36 | 2578 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up, Twin 1L |
|
|
| 23794T1L-529 | 36 | 2578 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up, Twin 1L |
|
|
| 23795 | 20 | 2652 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Fixed connection | Up |
|
||
| 23795-111 | 20 | 2652 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wieland GST18i3 3-way male | Up |
|
||
| 23795-3 | 20 | 2652 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Connection cable with plug, L=2.5 m | Up |
|
||
| 23795-340 | 20 | 2652 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wago Winsta 3-way male | Up |
|
||
| 23795-402 | 18 | 2387 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Up |
|
|
| 23795-519 | 20 | 2652 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Ensto 3-way male | Up |
|
||
| 23795-520 | 18 | 2387 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up |
|
|
| 23795-528 | 18 | 2387 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up |
|
|
| 23795-529 | 18 | 2387 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up |
|
|
| 23795T1L-402 | 36 | 2387 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Up, Twin 1L |
|
|
| 23795T1L-520 | 36 | 2387 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up, Twin 1L |
|
|
| 23795T1L-528 | 36 | 2387 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up, Twin 1L |
|
|
| 23795T1L-529 | 36 | 2387 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up, Twin 1L |
|
|
| 23796 | 20 | 2652 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Fixed connection | Up |
|
||
| 23796-111 | 20 | 2652 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wieland GST18i3 3-way male | Up |
|
||
| 23796-3 | 20 | 2652 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Connection cable with plug, L=2.5 m | Up |
|
||
| 23796-340 | 20 | 2652 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wago Winsta 3-way male | Up |
|
||
| 23796-402 | 18 | 2387 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Up |
|
|
| 23796-519 | 20 | 2652 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Ensto 3-way male | Up |
|
||
| 23796-520 | 18 | 2387 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up |
|
|
| 23796-528 | 18 | 2387 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up |
|
|
| 23796-529 | 18 | 2387 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up |
|
|
| 23796T1L-402 | 36 | 2387 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Up, Twin 1L |
|
|
| 23796T1L-520 | 36 | 2387 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up, Twin 1L |
|
|
| 23796T1L-528 | 36 | 2387 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up, Twin 1L |
|
|
| 23796T1L-529 | 36 | 2387 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up, Twin 1L |
|
|
| 23797 | 20 | 2580 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Fixed connection | Down |
|
||
| 23797-111 | 20 | 2580 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wieland GST18i3 3-way male | Down |
|
||
| 23797-3 | 20 | 2580 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Connection cable with plug, L=2.5 m | Down |
|
||
| 23797-340 | 20 | 2580 | 3000 | 80 | 600x600 | Opal | VTB | On/off | Wago Winsta 3-way male | Down |
|
||
| 23797-402 | 18 | 2322 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Down |
|
|
| 23797-519 | 20 | 2580 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Ensto 3-way male | Down |
|
||
| 23797-520 | 18 | 2322 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down |
|
|
| 23797-528 | 18 | 2322 | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down |
|
|
| 23797-529 | 18 | 2322 | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down |
|
|
| 23797T1L-402 | 36 | 2322 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Down, Twin 1L |
|
|
| 23797T1L-520 | 36 | 2322 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down, Twin 1L |
|
|
| 23797T1L-528 | 36 | 2322 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down, Twin 1L |
|
|
| 23797T1L-529 | 36 | 2322 (x2) | 3000 | 80 | 600x600 | Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down, Twin 1L |
|
|
| 23798 | 20 | 2580 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Fixed connection | Down |
|
||
| 23798-111 | 20 | 2580 | 3000 | 80 | 600x600 | Opal | HB | On/off | Wieland GST18i3 3-way male | Down |
|
||
| 23798-3 | 20 | 2580 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Connection cable with plug, L=2.5 m | Down |
|
||
| 23798-340 | 20 | 2580 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wago Winsta 3-way male | Down |
|
||
| 23798-402 | 18 | 2322 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Down |
|
|
| 23798-519 | 20 | 2580 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Ensto 3-way male | Down |
|
||
| 23798-520 | 18 | 2322 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down |
|
|
| 23798-528 | 18 | 2322 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down |
|
|
| 23798-529 | 18 | 2322 | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down |
|
|
| 23798T1L-402 | 36 | 2322 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Down, Twin 1L |
|
|
| 23798T1L-520 | 36 | 2322 (x2) | 3000 | 80 | 600x600 | Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down, Twin 1L |
|
|
| 23798T1L-528 | 36 | 2322 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down, Twin 1L |
|
|
| 23798T1L-529 | 36 | 2322 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down, Twin 1L |
|
|
| 23799 | 20 | 2654 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Fixed connection | Down |
|
||
| 23799-111 | 20 | 2654 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wieland GST18i3 3-way male | Down |
|
||
| 23799-3 | 20 | 2654 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Connection cable with plug, L=2.5 m | Down |
|
||
| 23799-340 | 20 | 2654 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wago Winsta 3-way male | Down |
|
||
| 23799-402 | 18 | 2389 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Down |
|
|
| 23799-519 | 20 | 2654 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Ensto 3-way male | Down |
|
||
| 23799-520 | 18 | 2389 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down |
|
|
| 23799-528 | 18 | 2389 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down |
|
|
| 23799-529 | 18 | 2389 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down |
|
|
| 23799T1L-402 | 36 | 2389 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Down, Twin 1L |
|
|
| 23799T1L-520 | 36 | 2389 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down, Twin 1L |
|
|
| 23799T1L-528 | 36 | 2389 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down, Twin 1L |
|
|
| 23799T1L-529 | 36 | 2389 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down, Twin 1L |
|
|
| 23800 | 20 | 2654 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Fixed connection | Down |
|
||
| 23800-111 | 20 | 2654 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wieland GST18i3 3-way male | Down |
|
||
| 23800-3 | 20 | 2654 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Connection cable with plug, L=2.5 m | Down |
|
||
| 23800-340 | 20 | 2654 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wago Winsta 3-way male | Down |
|
||
| 23800-402 | 18 | 2389 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Down |
|
|
| 23800-519 | 20 | 2654 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Ensto 3-way male | Down |
|
||
| 23800-520 | 18 | 2389 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down |
|
|
| 23800-528 | 18 | 2389 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down |
|
|
| 23800-529 | 18 | 2389 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down |
|
|
| 23800T1L-402 | 36 | 2389 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Down, Twin 1L |
|
|
| 23800T1L-520 | 36 | 2389 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down, Twin 1L |
|
|
| 23800T1L-528 | 36 | 2389 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down, Twin 1L |
|
|
| 23800T1L-529 | 36 | 2389 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down, Twin 1L |
|
|
| 23813 | 32 | 4145 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Fixed connection | Up |
|
||
| 23813-111 | 32 | 4145 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wieland GST18i3 3-way male | Up |
|
||
| 23813-3 | 32 | 4145 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Connection cable with plug, L=2.5 m | Up |
|
||
| 23813-340 | 32 | 4145 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wago Winsta 3-way male | Up |
|
||
| 23813-402 | 29 | 3736 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Up |
|
|
| 23813-519 | 32 | 4145 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Ensto 3-way male | Up |
|
||
| 23813-520 | 29 | 3736 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up |
|
|
| 23813-528 | 29 | 3736 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up |
|
|
| 23813-529 | 29 | 3736 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up |
|
|
| 23813T1L-402 | 57 | 3736 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Up, Twin 1L |
|
|
| 23814 | 32 | 4145 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Fixed connection | Up |
|
||
| 23814-111 | 32 | 4145 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wieland GST18i3 3-way male | Up |
|
||
| 23814-3 | 32 | 4145 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Connection cable with plug, L=2.5 m | Up |
|
||
| 23814-340 | 32 | 4145 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wago Winsta 3-way male | Up |
|
||
| 23814-402 | 29 | 3736 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Up |
|
|
| 23814-519 | 32 | 4145 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Ensto 3-way male | Up |
|
||
| 23814-520 | 29 | 3736 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up |
|
|
| 23814-528 | 29 | 3736 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up |
|
|
| 23814-529 | 29 | 3736 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up |
|
|
| 23814T1L-402 | 57 | 3736 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Up, Twin 1L |
|
|
| 23815 | 32 | 4265 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Fixed connection | Up |
|
||
| 23815-111 | 32 | 4265 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wieland GST18i3 3-way male | Up |
|
||
| 23815-3 | 32 | 4265 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Connection cable with plug, L=2.5 m | Up |
|
||
| 23815-340 | 32 | 4265 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wago Winsta 3-way male | Up |
|
||
| 23815-402 | 29 | 3844 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Up |
|
|
| 23815-519 | 32 | 4265 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Ensto 3-way male | Up |
|
||
| 23815-520 | 29 | 3844 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up |
|
|
| 23815-528 | 29 | 3844 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up |
|
|
| 23815-529 | 29 | 3844 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up |
|
|
| 23815T1L-402 | 57 | 3844 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Up, Twin 1L |
|
|
| 23816 | 32 | 4265 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Fixed connection | Up |
|
||
| 23816-111 | 32 | 4265 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wieland GST18i3 3-way male | Up |
|
||
| 23816-3 | 32 | 4265 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Connection cable with plug, L=2.5 m | Up |
|
||
| 23816-340 | 32 | 4265 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wago Winsta 3-way male | Up |
|
||
| 23816-402 | 29 | 3844 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Up |
|
|
| 23816-519 | 32 | 4265 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Ensto 3-way male | Up |
|
||
| 23816-520 | 29 | 3844 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up |
|
|
| 23816-528 | 29 | 3844 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up |
|
|
| 23816-529 | 29 | 3844 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up |
|
|
| 23816T1L-402 | 57 | 3844 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Up, Twin 1L |
|
|
| 23817 | 32 | 4148 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Fixed connection | Down |
|
||
| 23817-111 | 32 | 4148 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wieland GST18i3 3-way male | Down |
|
||
| 23817-3 | 32 | 4148 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Connection cable with plug, L=2.5 m | Down |
|
||
| 23817-340 | 32 | 4148 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wago Winsta 3-way male | Down |
|
||
| 23817-402 | 29 | 3739 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Down |
|
|
| 23817-519 | 32 | 4148 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Ensto 3-way male | Down |
|
||
| 23817-520 | 29 | 3739 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down |
|
|
| 23817-528 | 29 | 3739 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down |
|
|
| 23817-529 | 29 | 3739 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down |
|
|
| 23817T1L-402 | 57 | 3739 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Down, Twin 1L |
|
|
| 23818 | 32 | 4148 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Fixed connection | Down |
|
||
| 23818-111 | 32 | 4148 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wieland GST18i3 3-way male | Down |
|
||
| 23818-3 | 32 | 4148 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Connection cable with plug, L=2.5 m | Down |
|
||
| 23818-340 | 32 | 4148 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wago Winsta 3-way male | Down |
|
||
| 23818-402 | 29 | 3739 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Down |
|
|
| 23818-519 | 32 | 4148 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Ensto 3-way male | Down |
|
||
| 23818-520 | 29 | 3739 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down |
|
|
| 23818-528 | 29 | 3739 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down |
|
|
| 23818-529 | 29 | 3739 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down |
|
|
| 23818T1L-402 | 57 | 3739 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Down, Twin 1L |
|
|
| 23819 | 32 | 4267 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Fixed connection | Down |
|
||
| 23819-111 | 32 | 4267 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wieland GST18i3 3-way male | Down |
|
||
| 23819-3 | 32 | 4267 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Connection cable with plug, L=2.5 m | Down |
|
||
| 23819-340 | 32 | 4267 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wago Winsta 3-way male | Down |
|
||
| 23819-402 | 29 | 3846 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Down |
|
|
| 23819-519 | 32 | 4267 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Ensto 3-way male | Down |
|
||
| 23819-520 | 29 | 3846 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down |
|
|
| 23819-528 | 29 | 3846 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down |
|
|
| 23819-529 | 29 | 3846 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down |
|
|
| 23819T1L-402 | 57 | 3846 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Down, Twin 1L |
|
|
| 23820 | 32 | 4267 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Fixed connection | Down |
|
||
| 23820-111 | 32 | 4267 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wieland GST18i3 3-way male | Down |
|
||
| 23820-3 | 32 | 4267 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Connection cable with plug, L=2.5 m | Down |
|
||
| 23820-340 | 32 | 4267 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wago Winsta 3-way male | Down |
|
||
| 23820-402 | 29 | 3846 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Down |
|
|
| 23820-519 | 32 | 4267 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Ensto 3-way male | Down |
|
||
| 23820-520 | 29 | 3846 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down |
|
|
| 23820-528 | 29 | 3846 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down |
|
|
| 23820-529 | 29 | 3846 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down |
|
|
| 23820T1L-402 | 57 | 3846 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Down, Twin 1L |
|
|
| 23875 | 28 | 3560 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Fixed connection | Up |
|
||
| 23875-111 | 28 | 3560 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wieland GST18i3 3-way male | Up |
|
||
| 23875-3 | 28 | 3560 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Connection cable with plug, L=2.5 m | Up |
|
||
| 23875-340 | 28 | 3560 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wago Winsta 3-way male | Up |
|
||
| 23875-402 | 25 | 3208 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Up |
|
|
| 23875-519 | 28 | 3560 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Ensto 3-way male | Up |
|
||
| 23875-520 | 25 | 3208 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up |
|
|
| 23875-528 | 25 | 3208 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up |
|
|
| 23875-529 | 25 | 3208 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up |
|
|
| 23875T1L-402 | 49 | 3208 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Up, Twin 1L |
|
|
| 23875T1L-520 | 49 | 3208 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up, Twin 1L |
|
|
| 23875T1L-528 | 49 | 3208 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up, Twin 1L |
|
|
| 23875T1L-529 | 49 | 3208 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up, Twin 1L |
|
|
| 23876 | 28 | 3560 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Fixed connection | Up |
|
||
| 23876-111 | 28 | 3560 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wieland GST18i3 3-way male | Up |
|
||
| 23876-3 | 28 | 3560 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Connection cable with plug, L=2.5 m | Up |
|
||
| 23876-340 | 28 | 3560 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wago Winsta 3-way male | Up |
|
||
| 23876-402 | 25 | 3208 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Up |
|
|
| 23876-519 | 28 | 3560 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Ensto 3-way male | Up |
|
||
| 23876-520 | 25 | 3208 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up |
|
|
| 23876-528 | 25 | 3208 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up |
|
|
| 23876-529 | 25 | 3208 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up |
|
|
| 23876T1L-402 | 49 | 3208 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Up, Twin 1L |
|
|
| 23876T1L-520 | 49 | 3208 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up, Twin 1L |
|
|
| 23876T1L-528 | 49 | 3208 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up, Twin 1L |
|
|
| 23876T1L-529 | 49 | 3208 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up, Twin 1L |
|
|
| 23877 | 28 | 3663 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Fixed connection | Up |
|
||
| 23877-111 | 28 | 3663 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wieland GST18i3 3-way male | Up |
|
||
| 23877-3 | 28 | 3663 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Connection cable with plug, L=2.5 m | Up |
|
||
| 23877-340 | 28 | 3663 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wago Winsta 3-way male | Up |
|
||
| 23877-402 | 25 | 3301 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Up |
|
|
| 23877-519 | 28 | 3663 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Ensto 3-way male | Up |
|
||
| 23877-520 | 25 | 3301 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up |
|
|
| 23877-528 | 25 | 3301 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up |
|
|
| 23877-529 | 25 | 3301 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up |
|
|
| 23877T1L-402 | 49 | 3301 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Up, Twin 1L |
|
|
| 23877T1L-520 | 49 | 3301 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up, Twin 1L |
|
|
| 23877T1L-528 | 49 | 3301 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up, Twin 1L |
|
|
| 23877T1L-529 | 49 | 3301 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up, Twin 1L |
|
|
| 23878 | 28 | 3663 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Fixed connection | Up |
|
||
| 23878-111 | 28 | 3663 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wieland GST18i3 3-way male | Up |
|
||
| 23878-3 | 28 | 3663 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Connection cable with plug, L=2.5 m | Up |
|
||
| 23878-340 | 28 | 3663 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wago Winsta 3-way male | Up |
|
||
| 23878-402 | 25 | 3301 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Up |
|
|
| 23878-519 | 28 | 3663 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Ensto 3-way male | Up |
|
||
| 23878-520 | 25 | 3301 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up |
|
|
| 23878-528 | 25 | 3301 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up |
|
|
| 23878-529 | 25 | 3301 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up |
|
|
| 23878T1L-402 | 49 | 3301 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Up, Twin 1L |
|
|
| 23878T1L-520 | 49 | 3301 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Up, Twin 1L |
|
|
| 23878T1L-528 | 49 | 3301 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Up, Twin 1L |
|
|
| 23878T1L-529 | 49 | 3301 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Up, Twin 1L |
|
|
| 23879 | 28 | 3562 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Fixed connection | Down |
|
||
| 23879-111 | 28 | 3562 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wieland GST18i3 3-way male | Down |
|
||
| 23879-3 | 28 | 3562 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Connection cable with plug, L=2.5 m | Down |
|
||
| 23879-340 | 28 | 3562 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wago Winsta 3-way male | Down |
|
||
| 23879-402 | 25 | 3210 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Down |
|
|
| 23879-519 | 28 | 3562 | 3000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Ensto 3-way male | Down |
|
||
| 23879-520 | 25 | 3210 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down |
|
|
| 23879-528 | 25 | 3210 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down |
|
|
| 23879-529 | 25 | 3210 | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down |
|
|
| 23879T1L-402 | 49 | 3210 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Down, Twin 1L |
|
|
| 23879T1L-520 | 49 | 3210 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down, Twin 1L |
|
|
| 23879T1L-528 | 49 | 3210 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down, Twin 1L |
|
|
| 23879T1L-529 | 49 | 3210 (x2) | 3000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down, Twin 1L |
|
|
| 23880 | 28 | 3562 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Fixed connection | Down |
|
||
| 23880-111 | 28 | 3562 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wieland GST18i3 3-way male | Down |
|
||
| 23880-3 | 28 | 3562 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Connection cable with plug, L=2.5 m | Down |
|
||
| 23880-340 | 28 | 3562 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wago Winsta 3-way male | Down |
|
||
| 23880-402 | 25 | 3210 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Down |
|
|
| 23880-519 | 28 | 3562 | 3000 | 80 | 600x600 | Delta/Opal | HB | On/off | Ensto 3-way male | Down |
|
||
| 23880-520 | 25 | 3210 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down |
|
|
| 23880-528 | 25 | 3210 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down |
|
|
| 23880-529 | 25 | 3210 | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down |
|
|
| 23880T1L-402 | 49 | 3210 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Down, Twin 1L |
|
|
| 23880T1L-520 | 49 | 3210 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down, Twin 1L |
|
|
| 23880T1L-528 | 49 | 3210 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down, Twin 1L |
|
|
| 23880T1L-529 | 49 | 3210 (x2) | 3000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down, Twin 1L |
|
|
| 23881 | 28 | 3665 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Fixed connection | Down |
|
||
| 23881-111 | 28 | 3665 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wieland GST18i3 3-way male | Down |
|
||
| 23881-3 | 28 | 3665 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Connection cable with plug, L=2.5 m | Down |
|
||
| 23881-340 | 28 | 3665 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Wago Winsta 3-way male | Down |
|
||
| 23881-402 | 25 | 3303 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Down |
|
|
| 23881-519 | 28 | 3665 | 4000 | 80 | 600x600 | Delta/Opal | VTB | On/off | Ensto 3-way male | Down |
|
||
| 23881-520 | 25 | 3303 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down |
|
|
| 23881-528 | 25 | 3303 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down |
|
|
| 23881-529 | 25 | 3303 | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down |
|
|
| 23881T1L-402 | 49 | 3303 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Fixed connection | 50000 | Down, Twin 1L |
|
|
| 23881T1L-520 | 49 | 3303 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down, Twin 1L |
|
|
| 23881T1L-528 | 49 | 3303 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down, Twin 1L |
|
|
| 23881T1L-529 | 49 | 3303 (x2) | 4000 | 80 | 600x600 | Delta/Opal | VTB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down, Twin 1L |
|
|
| 23882 | 28 | 3665 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Fixed connection | Down |
|
||
| 23882-111 | 28 | 3665 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wieland GST18i3 3-way male | Down |
|
||
| 23882-3 | 28 | 3665 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Connection cable with plug, L=2.5 m | Down |
|
||
| 23882-340 | 28 | 3665 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Wago Winsta 3-way male | Down |
|
||
| 23882-402 | 25 | 3303 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Down |
|
|
| 23882-519 | 28 | 3665 | 4000 | 80 | 600x600 | Delta/Opal | HB | On/off | Ensto 3-way male | Down |
|
||
| 23882-520 | 25 | 3303 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down |
|
|
| 23882-528 | 25 | 3303 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down |
|
|
| 23882-529 | 25 | 3303 | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down |
|
|
| 23882T1L-402 | 49 | 3303 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Fixed connection | 50000 | Down, Twin 1L |
|
|
| 23882T1L-520 | 49 | 3303 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Ensto 5-way male | 50000 | Down, Twin 1L |
|
|
| 23882T1L-528 | 49 | 3303 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wieland GST18i5 5-way male | 50000 | Down, Twin 1L |
|
|
| 23882T1L-529 | 49 | 3303 (x2) | 4000 | 80 | 600x600 | Delta/Opal | HB | DALI/Phase-pulse | Wago Winsta 5-way male | 50000 | Down, Twin 1L |
|
Showing 22 of 22 Accessories
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Fixing brackets | Fixing brackets/4 pcs. For fixed ceiling. Only for concealed T-bars (HB-body). | 91279 | |
|
WAGO T-connector | WAGO T-connector, 5-way, 2 locking levers, blue | 88228 | |
|
WAGO T-connector | WAGO T-Connector, 3-way, white | 91067 | |
|
Wieland T-connector | Wieland 5-way T-connector | 91026 | |
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. | 92788 | |
|
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. | 92787 | |
|
|
Ensto connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92785 | |
|
|
Ensto connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92786 | |
|
Frame for surface mounting | Frame for surface mounting (600x600 VTB). Fits Multilume Flat (only standard and DALI), Dwide as well as Multilume Slim, Multilume Slim Hygiene & Multilume Re:Think with Organic Response. | 41026 | |
|
WAGO connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 91243 | |
|
Wieland T-connector | Wieland 3-way T-connector | 91025 | |
|
WAGO connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 91244 | |
|
|
Recessed frame | Recessed frame to Multilume Flat 600x600 VTB body for installation in suspended ceilings with concealed T-bars and symmetrical ceiling tiles (thickness 20-22 mm). | 41038 | |
|
Wieland connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92799 | |
|
Ensto T-connector | Ensto T-connector 3-way, white | 92783 | |
|
Ensto T-connector | Ensto T-connector 5-way, grey | 92784 | |
|
Wieland connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92793 | |
|
Fence | Fence 600x600 white. Only for T-bars T24. | 41252 | |
|
Sky frame | Sky frame for ceiling window effect 600x600, white. Only for T-bars T24. | 41245 | |
|
Fence | Fence 600x600 champagne. Only for T-bars T24. | 41254 | |
|
Fence | Fence 600x600 black. Only for T-bars T24. | 41253 | |
|
Recessed frame solid ceiling | Recessed frame for VTB frame 600x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4,5kg | 41051 |
Downloads
Return to top
