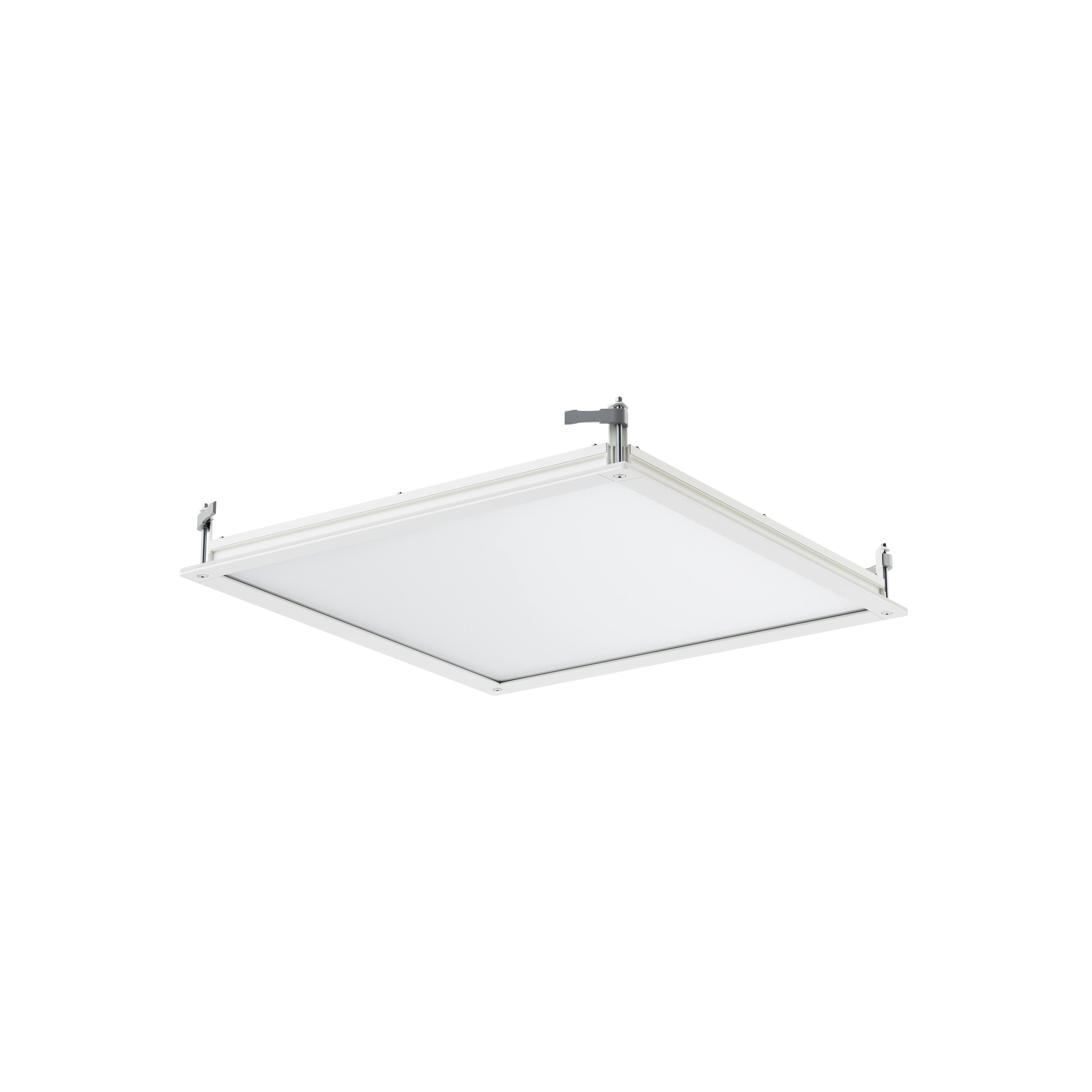

Multilume Hydro G3Recessed
Multilume Hydro is an efficient, highly ergonomic luminaire for recessed installation in environments with high hygiene requirements. The recessed luminaire is ISO 14644 cleanroom-rated, features a tempered glass cover, and has a high IP rating. It withstands alcohol-based cleaning.
Multilume Hydro G3Recessed
Multilume Hydro is an efficient, highly ergonomic luminaire for recessed installation in environments with high hygiene requirements. The recessed luminaire is ISO 14644 cleanroom-rated, features a tempered glass cover, and has a high IP rating. It withstands alcohol-based cleaning.
Installation
Luminaire for recessed installation in suspended or fixed suspended ceilings. Unventilated or ventilated suspended ceilings. VTB – for suspended ceilings with visible T-bars (15 or 24 mm). IP65 under a suspended ceiling, IP20 above a suspended ceiling. For detailed information, see the installation instructions.
Connection
For permanent connection in separate driver box. Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis-mounted snap-in connector in the driver where a T-splitter or mains cable and plug are possible. The luminaire body and driver are interconnected with a snap-in connector. Luminaire body Class III. The supplied driver must be connected to the protective earth. Luminaires with Tunable White (2700–6500K) and Tunable White Melanopic (1800/2700–6500K) are equipped with DALI Device Type 8 driver. CLO (Constant Light Output).
Design
Extruded aluminium luminaire body, made from 75% post-consumer recycled material. Die-cast aluminium corner fittings, made from post-consumer recycled material. Lacquered in white (RAL 9016 G40).
Light Distribution
Direct.
Light data
Optics

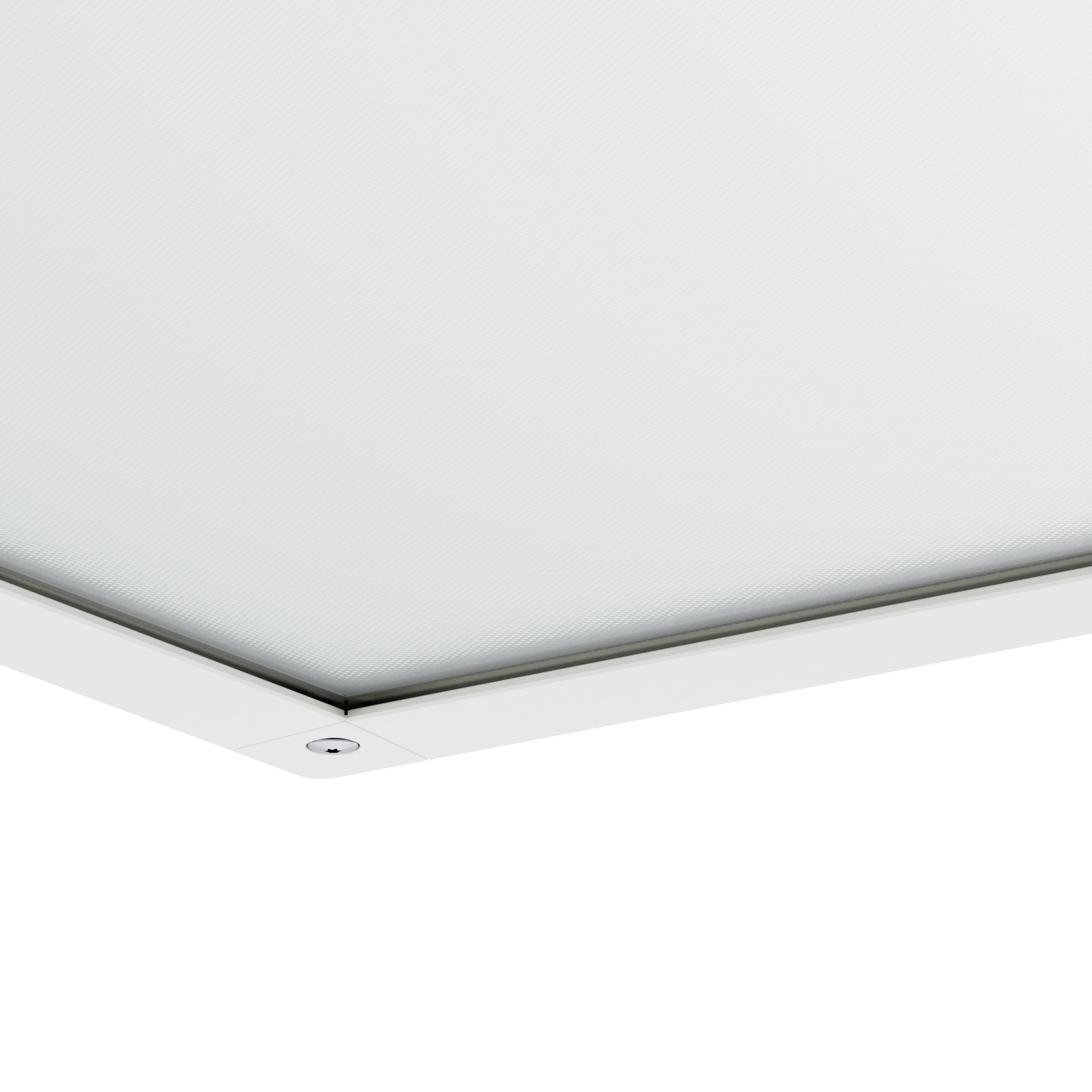

Delta – micro-prism louvre made of acrylic (PMMA) above hardened 4 mm glass cover.
Made of recycled aluminium
The luminaire body is made of recycled aluminium, which consists of 75% post-consumer material (end-of-life scrap) from Europe. This aluminium (excluding extrusion) has a 71% lower climate impact compared to average primary aluminium from Europe (Source: European Aluminium). These calculations are based on the climate impact reported in the EPD compared to the average values.
High efficiency – precise light direction
The edge-lit diffuser, together with the specially etched surface of the louvre, directs the light exactly where it is needed – without light loss. The light distribution can be shaped with a high level of precision, minimising energy consumption without compromising on light comfort.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
On/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
Articles
Configure your Multilume Hydro G3
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
Downloads
