StreamerRecessed

Streamer is a family of spotlights offering high efficiency and colour rendering for dynamic retail environments. Streamer Recessed is a spotlight for recessed ceilings.

159 lm/W

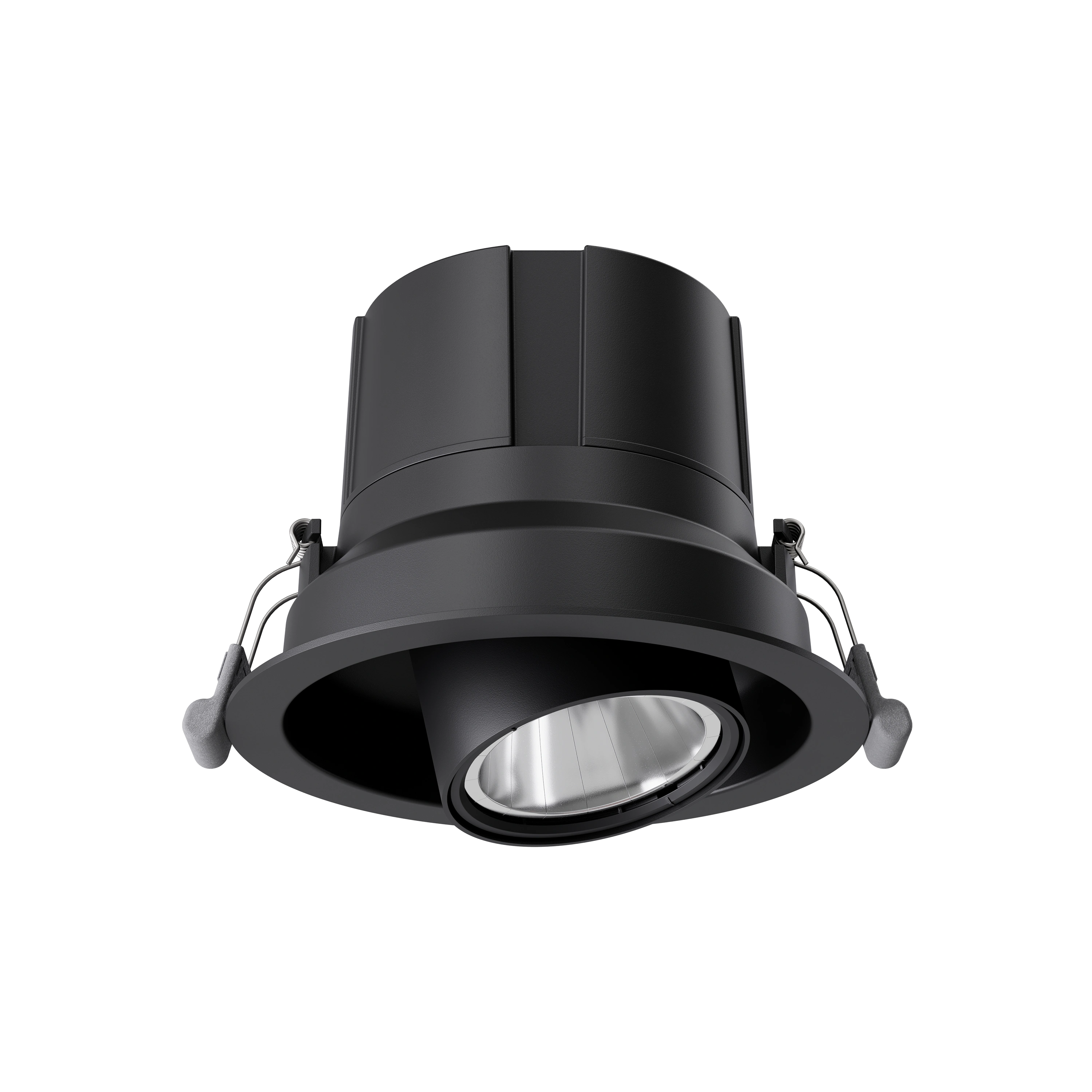

Streamer round recessed black
Responsible materials
Black RAL 9017 (structure)
White RAL 9016 (structure)
Streamer round recessed black Streamer Recessed Reflector

StreamerRecessed

Streamer is a family of spotlights offering high efficiency and colour rendering for dynamic retail environments. Streamer Recessed is a spotlight for recessed ceilings.

159 lm/W

Installation

Luminaire for recessed mounting in suspended ceilings. A mounting plate must be used when mounting on soft tile ceilings. See Accessories. For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation.  Do not cover with insulation. For detailed information, see the installation instructions.

Connection

The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III. Permanent connection in the supplied driver. Option with 2.5 m connection cable with earthed plug (-3) or 2.5 m connection cable with 3-way Wieland connector (-111) for on/off. CLO (Constant Light Output).

Design

Aluminium luminaire housing, made of 99% post-consumer recycled material. White (RAL 9016) or black (RAL 9017) structured lacquer. Rotatable 360°, tiltable 50°.

Light Distribution

Narrow, medium, wide or extra wide beam.

Light data

CCT, K:
3000 K
CRI/Rf:
90, BBBL
SDCM:
3
Lumen output:
2576-2959 lm

Optics

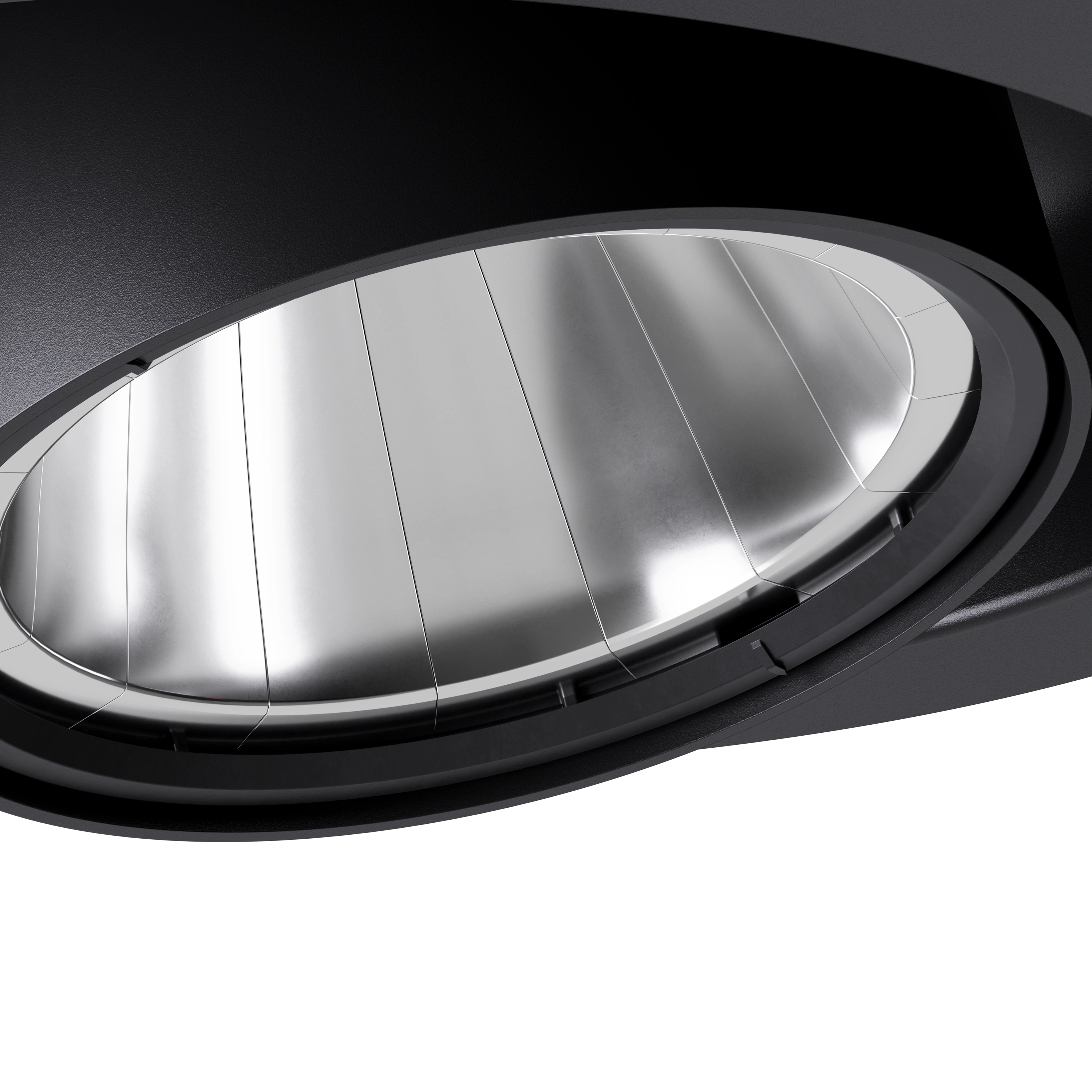

Segmented MIRO reflector.

Streamer

Spotlights with outstanding efficiency and sustainable design.

Read more
159lm/W

Energy efficiency from the most efficient article.

Read more about our products lifecycle

Made of recycled aluminium

The product contains die-cast aluminium, a material that in our products consists of approximately 85% recycled content. By using recycled aluminium, energy consumption is reduced by up to 95% compared to virgin aluminium (Source: European Aluminium). This entails a significantly lower carbon footprint.

Minimised design

The luminaire’s minimised design, with its high luminous efficacy, means that less material is used in manufacturing. This contributes to a low climate impact and more efficient use of resources compared to traditional, larger luminaires, without compromising on function or light quality.

Optimised packaging

Multiple products can be packaged together, reducing the amount of packaging material and cutting resource use and climate impact in both production and transportation. This makes the logistics more efficient and simplifies the handling and recycling of the packaging, as fewer types of material are used.

DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

On/Off

Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.

Articles

Showing 64 of 64 Articles
Art.no. System Wattage Lumen output CCT, K CRI Colour Diameter, mm Dimensions, mm Light distribution Light control Connection CLO time, h Light data files Article PDF
80280 18 2881 3000 BBBL 90 White 176 131 Narrow Beam, 22°
80280-111 20 2881 3000 BBBL 90 White 176 131 Narrow Beam, 22° Wieland GST18i3 3-way male
80280-3 18 2881 3000 BBBL 90 White 176 131 Narrow Beam, 22° Connection cable with plug, L=2.5 m
80280-402 17 2616 3000 BBBL 90 White 176 131 Narrow Beam, 22° DALI/Phase-pulse 50000
80281 18 2847 3000 BBBL 90 White 176 131 Medium Beam, 30°
80281-111 20 2847 3000 BBBL 90 White 176 131 Medium Beam, 30° Wieland GST18i3 3-way male
80281-3 18 2847 3000 BBBL 90 White 176 131 Medium Beam, 30° Connection cable with plug, L=2.5 m
80281-402 17 2585 3000 BBBL 90 White 176 131 Medium Beam, 30° DALI/Phase-pulse 50000
80282 18 2843 3000 BBBL 90 White 176 131 Wide Beam, 41°
80282-111 20 2843 3000 BBBL 90 White 176 131 Wide Beam, 41° Wieland GST18i3 3-way male
80282-3 18 2843 3000 BBBL 90 White 176 131 Wide Beam, 41° Connection cable with plug, L=2.5 m
80282-402 17 2576 3000 BBBL 90 White 176 131 Wide Beam, 41° DALI/Phase-pulse 50000
80283 18 2810 3000 BBBL 90 White 176 131 Wide flood, 55°
80283-111 20 2810 3000 BBBL 90 White 176 131 Extra wide beam, 55° Wieland GST18i3 3-way male
80283-3 18 2810 3000 BBBL 90 White 176 131 Wide flood, 55° Connection cable with plug, L=2.5 m
80283-402 17 2546 3000 BBBL 90 White 176 131 Wide flood, 55° DALI/Phase-pulse 50000
80284 18 2881 3000 BBBL 90 Black 176 131 Narrow Beam, 22°
80284-111 20 2881 3000 BBBL 90 Black 176 131 Narrow Beam, 22° Wieland GST18i3 3-way male
80284-3 18 2881 3000 BBBL 90 Black 176 131 Narrow Beam, 22° Connection cable with plug, L=2.5 m
80284-402 17 2616 3000 BBBL 90 Black 176 131 Narrow Beam, 22° DALI/Phase-pulse 50000
80285 18 2847 3000 BBBL 90 Black 176 131 Medium Beam, 30°
80285-111 20 2847 3000 BBBL 90 Black 176 131 Medium Beam, 30° Wieland GST18i3 3-way male
80285-3 18 2847 3000 BBBL 90 Black 176 131 Medium Beam, 30° Connection cable with plug, L=2.5 m
80285-402 17 2585 3000 BBBL 90 Black 176 131 Medium Beam, 30° DALI/Phase-pulse 50000
80286 18 2843 3000 BBBL 90 Black 176 131 Wide Beam, 41°
80286-111 20 2843 3000 BBBL 90 Black 176 131 Wide Beam, 41° Wieland GST18i3 3-way male
80286-3 18 2843 3000 BBBL 90 Black 176 131 Wide Beam, 41° Connection cable with plug, L=2.5 m
80286-402 17 2576 3000 BBBL 90 Black 176 131 Wide Beam, 41° DALI/Phase-pulse 50000
80287 18 2810 3000 BBBL 90 Black 176 131 Wide flood, 55°
80287-111 20 2810 3000 BBBL 90 Black 176 131 Extra wide beam, 55° Wieland GST18i3 3-way male
80287-3 18 2810 3000 BBBL 90 Black 176 131 Wide flood, 55° Connection cable with plug, L=2.5 m
80287-402 17 2546 3000 BBBL 90 Black 176 131 Wide flood, 55° DALI/Phase-pulse 50000
80288 18 2959 4000 BBBL 90 White 176 131 Narrow Beam, 22°
80288-111 20 2959 4000 BBBL 90 White 176 131 Narrow Beam, 22° Wieland GST18i3 3-way male
80288-3 18 2959 4000 BBBL 90 White 176 131 Narrow Beam, 22° Connection cable with plug, L=2.5 m
80288-402 17 2687 4000 BBBL 90 White 176 131 Narrow Beam, 22° DALI/Phase-pulse 50000
80289 18 2924 4000 BBBL 90 White 176 131 Medium Beam, 30°
80289-111 20 2924 4000 BBBL 90 White 176 131 Medium Beam, 30° Wieland GST18i3 3-way male
80289-3 18 2924 4000 BBBL 90 White 176 131 Medium Beam, 30° Connection cable with plug, L=2.5 m
80289-402 17 2655 4000 BBBL 90 White 176 131 Medium Beam, 30° DALI/Phase-pulse 50000
80290 18 2920 4000 BBBL 90 White 176 131 Wide Beam, 41°
80290-111 20 2920 4000 BBBL 90 White 176 131 Wide Beam, 41° Wieland GST18i3 3-way male
80290-3 18 2920 4000 BBBL 90 White 176 131 Wide Beam, 41° Connection cable with plug, L=2.5 m
80290-402 17 2645 4000 BBBL 90 White 176 131 Wide Beam, 41° DALI/Phase-pulse 50000
80291 18 2886 4000 BBBL 90 White 176 131 Wide flood, 55°
80291-111 20 2886 4000 BBBL 90 White 176 131 Extra wide beam, 55° Wieland GST18i3 3-way male
80291-3 18 2886 4000 BBBL 90 White 176 131 Wide flood, 55° Connection cable with plug, L=2.5 m
80291-402 17 2615 4000 BBBL 90 White 176 131 Wide flood, 55° DALI/Phase-pulse 50000
80292 18 2959 4000 BBBL 90 Black 176 131 Narrow Beam, 22°
80292-111 20 2959 4000 BBBL 90 Black 176 131 Narrow Beam, 22° Wieland GST18i3 3-way male
80292-3 18 2959 4000 BBBL 90 Black 176 131 Narrow Beam, 22° Connection cable with plug, L=2.5 m
80292-402 17 2687 4000 BBBL 90 Black 176 131 Narrow Beam, 22° DALI/Phase-pulse 50000
80293 18 2924 4000 BBBL 90 Black 176 131 Medium Beam, 30°
80293-111 20 2924 4000 BBBL 90 Black 176 131 Medium Beam, 30° Wieland GST18i3 3-way male
80293-3 18 2924 4000 BBBL 90 Black 176 131 Medium Beam, 30° Connection cable with plug, L=2.5 m
80293-402 17 2655 4000 BBBL 90 Black 176 131 Medium Beam, 30° DALI/Phase-pulse 50000
80294 18 2920 4000 BBBL 90 Black 176 131 Wide Beam, 41°
80294-111 20 2920 4000 BBBL 90 Black 176 131 Wide Beam, 41° Wieland GST18i3 3-way male
80294-3 18 2920 4000 BBBL 90 Black 176 131 Wide Beam, 41° Connection cable with plug, L=2.5 m
80294-402 17 2645 4000 BBBL 90 Black 176 131 Wide Beam, 41° DALI/Phase-pulse 50000
80295 18 2886 4000 BBBL 90 Black 176 131 Wide flood, 55°
80295-111 20 2886 4000 BBBL 90 Black 176 131 Extra wide beam, 55° Wieland GST18i3 3-way male
80295-3 18 2886 4000 BBBL 90 Black 176 131 Wide flood, 55° Connection cable with plug, L=2.5 m
80295-402 17 2615 4000 BBBL 90 Black 176 131 Wide flood, 55° DALI/Phase-pulse 50000
Showing 1 of 1 Accessories
Name Description Art.no. Article PDF
Mounting Plate Ø 163 mm Mounting plate Mounting plate Ø 163 mm 96820

Downloads

Streamer round recessed

Documents

Open PDF
Open PDF

3D Models

Manuals

Open PDF
