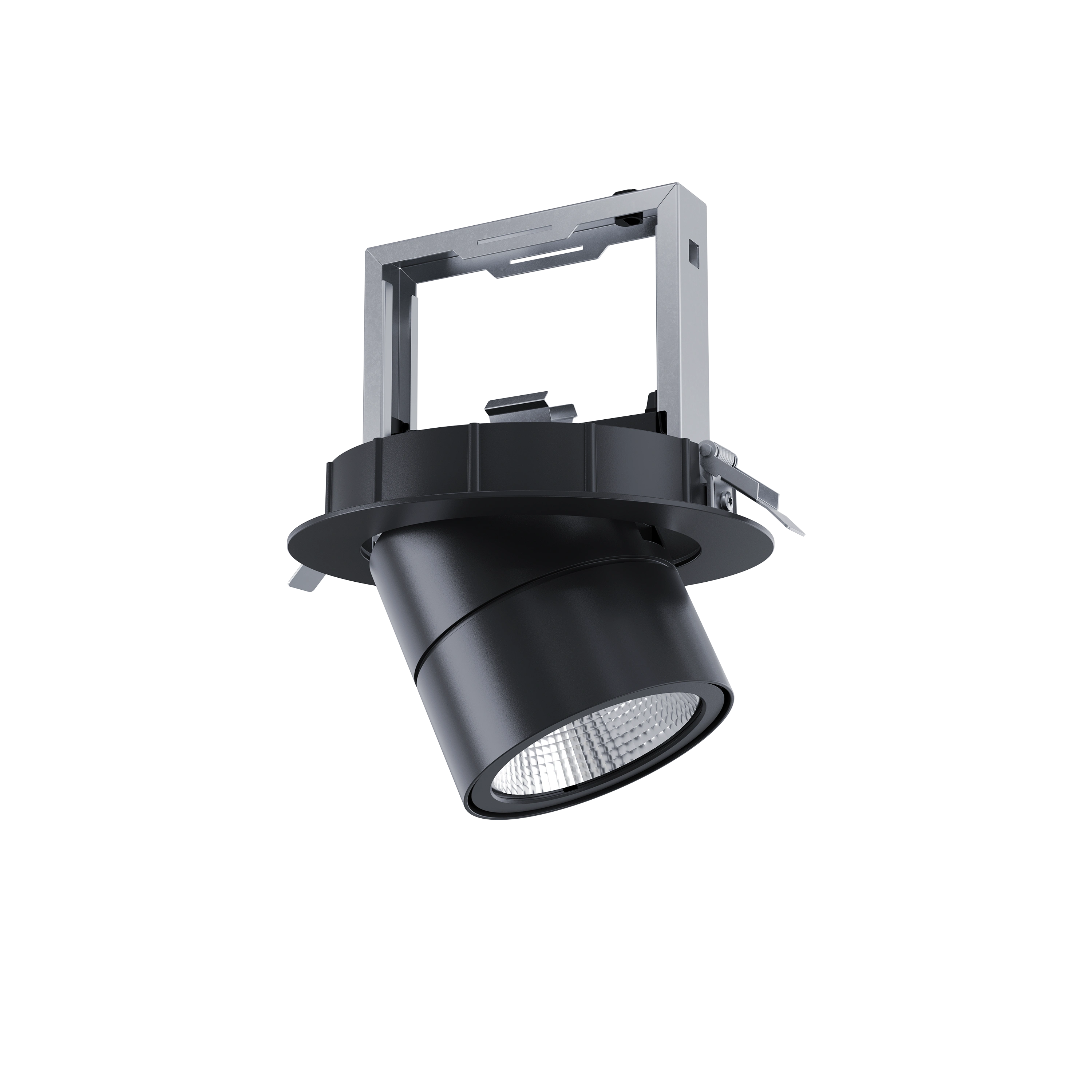

Touch Midi G2Recessed
Touch G2 is an elegant and versatile family of spotlights ideally suited for any retail environment. Touch Midi Round is a recessed spotlight for higher flows, with good colour rendering and effective glare control.
Touch Midi G2Recessed
Touch G2 is an elegant and versatile family of spotlights ideally suited for any retail environment. Touch Midi Round is a recessed spotlight for higher flows, with good colour rendering and effective glare control.
Installation
Luminaire for recessed mounting in suspended ceilings. A mounting plate must be used when mounting on soft tile ceilings. See Accessories. For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation. Do not cover with insulation. For detailed information, see the installation instructions.
Connection
The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III. Permanent connection in the supplied driver. Option with 2.5 m connection cable with earthed plug or 2.5 m connection cable with 3-way Wieland connector for on/off. CLO (Constant Light Output).
Design
Aluminium luminaire housing, made of 85% post-consumer recycled material. White (RAL 9016) or black (RAL 9017) structured lacquer. Rotatable 360°, tiltable 90°.
Light Distribution
Narrow, medium, wide or extra wide beam.
Light data

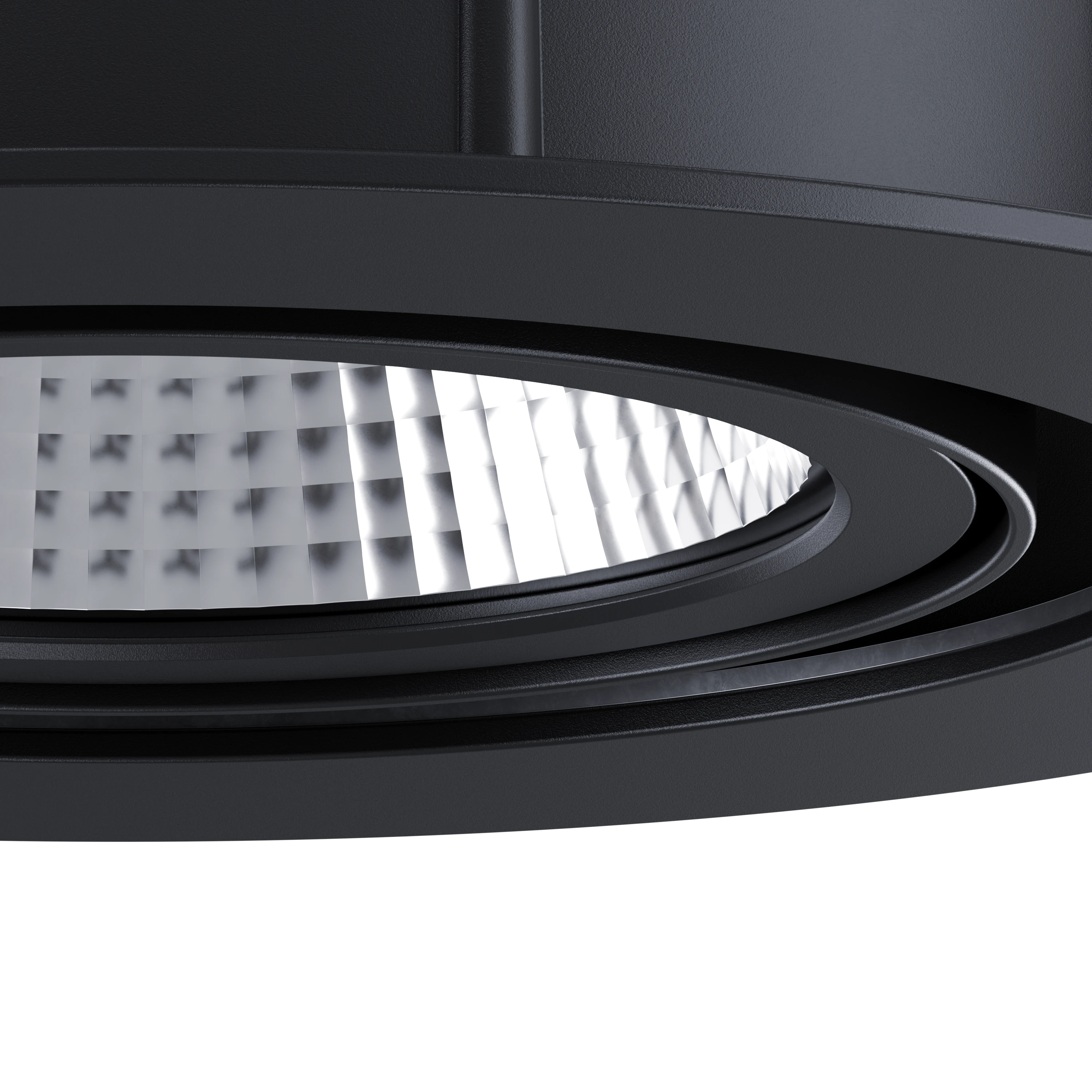

Optics
Spun reflector.
Made of recycled aluminium
The product contains die-cast aluminium, a material that in our products consists of approximately 85% recycled content. By using recycled aluminium, energy consumption is reduced by up to 95% compared to virgin aluminium (Source: European Aluminium). This entails a significantly lower carbon footprint.
Flexible installation & longer working life
The luminaire is mounted on a track and designed to be easily moved, adapted and reused to meet changing needs – rather than being replaced with a new one. Disconnecting and reinstalling the luminaire in a new location extends its working life and reduces resource use.
Optimised packaging
Multiple products can be packaged together, reducing the amount of packaging material and cutting resource use and climate impact in both production and transportation. This makes the logistics more efficient and simplifies the handling and recycling of the packaging, as fewer types of material are used.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
e-Sense StagePIR sensor
Dynamic system for e.g. retail and showrooms, which uses Casambi technology to easily create and control various lighting scenarios via an app.
Read more
Articles
Configure your Touch Midi G2
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Barndoors | Barndoors | 51907 | |
|
Anti glare | Anti glare | 98954 | |
|
Elliptic filter | Elliptic filter | 51769 | |
|
e-Sense Stage RTC Backup | e-Sense Stage Stand-Alone Control Box RTC Backup | 99816 | |
|
|
e-Sense Stage Relay | e-Sense Stage Stand-Alone Control Box Relay | 99814 | |
|
|
e-Sense Stage Trailing Edge | e-Sense Stage Stand-Alone Control Box Trailing Edge | 99813 | |
|
e-Sense Stage 4CH PWM | e-Sense Stage Stand-Alone Control Box 4 CH PWM | 99815 | |
|
|
e-Sense Stage Stand-alone DALI | e-Sense Stage Stand-Alone Control Box DALI | 99812 | |
|
Mounting plate | Mounting plate Ø 180 mm | 96821 | |
|
Barndoors | Barndoors | 98957 | |
|
Anti glare | Anti glare, black | 98955 | |
|
Xpress push button panel | Xpress push button panel with long range, white. | 82178 | |
|
Xpress push button panel | Xpress push button panel with long range, black. | 82179 |
