Pleiad G4Surface
Pleiad G4 is Fagerhult’s classic surface-mounted downlight with several options for light distributions, flows and reflectors. High energy efficiency and ease of installation make Pleiad a cost-effective choice.
Pleiad G4Surface
Pleiad G4 is Fagerhult’s classic surface-mounted downlight with several options for light distributions, flows and reflectors. High energy efficiency and ease of installation make Pleiad a cost-effective choice.
Installation
Luminaire for surface-mounted ceiling installation. For pendant installation, see Accessories.
See installation video Pleiad G4Connection
Connection via snap-in terminal block (3x2.5 mm²/5x2.5 mm²), through-wiring possible. The luminaire is supplied with a cable entry on the top. Surface-mounted mains cable possible. Bayonet fitting of luminaire housing in two heights permits entry of the surface-mounted cable from three directions.
Design

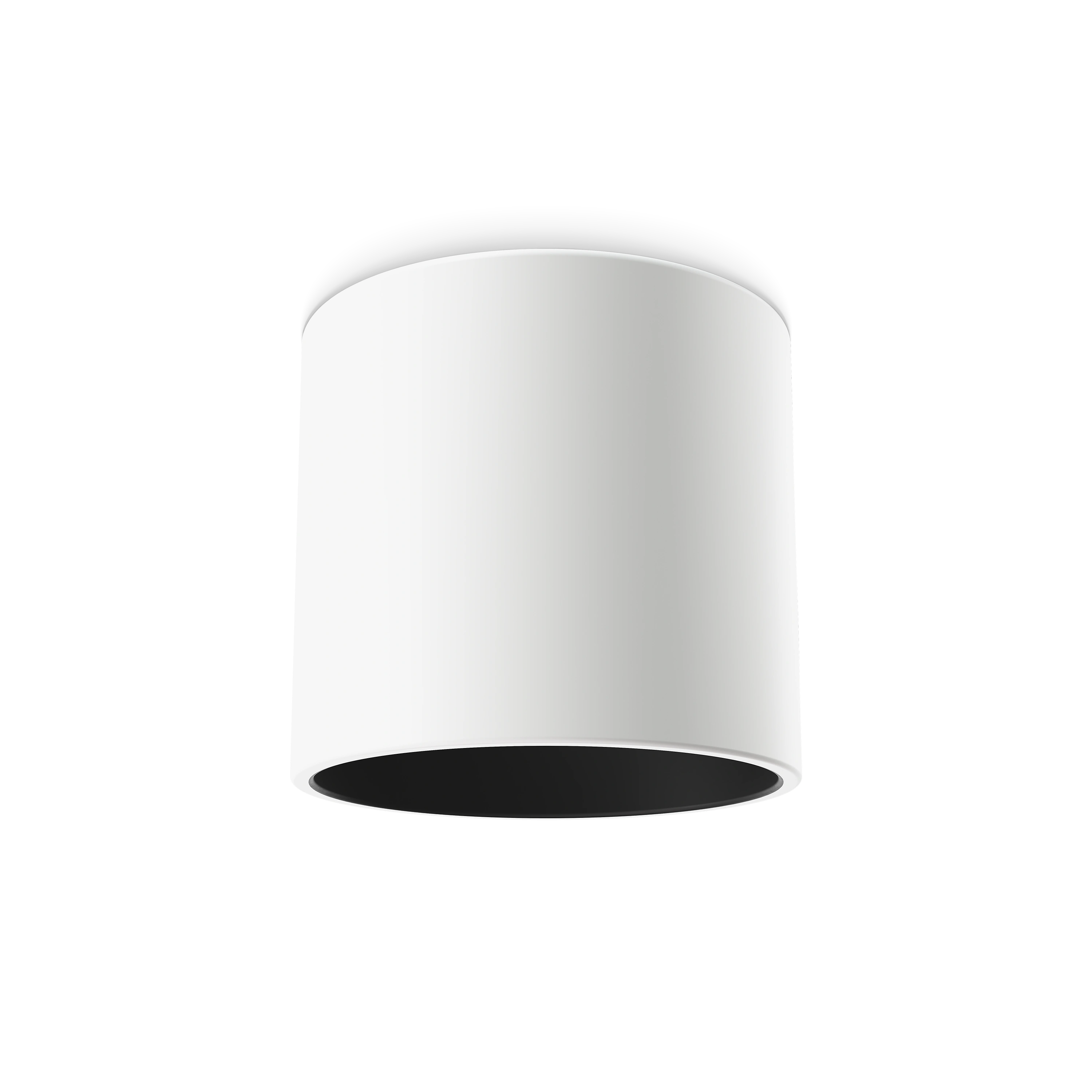

Luminaire body made of aluminium. Lacquered in white (RAL 9016 G40) or black (RAL 9005 G30). Reflector of matt metallised aluminium, white (RAL 9003) or black (RAL 9005) finish. Lens of clear acrylic.
Light Distribution

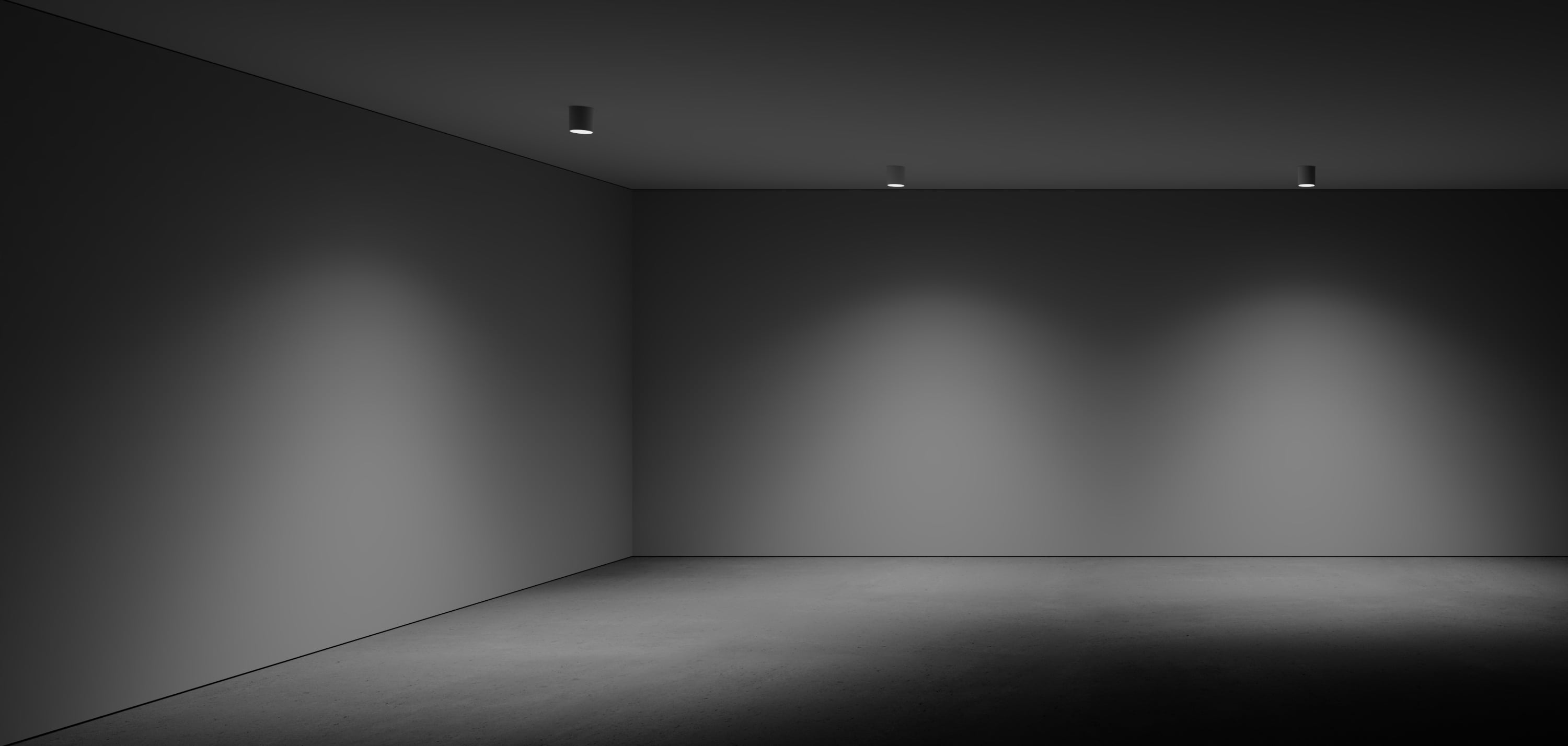

Direct. Medium or wide beam.
Light data
Optics

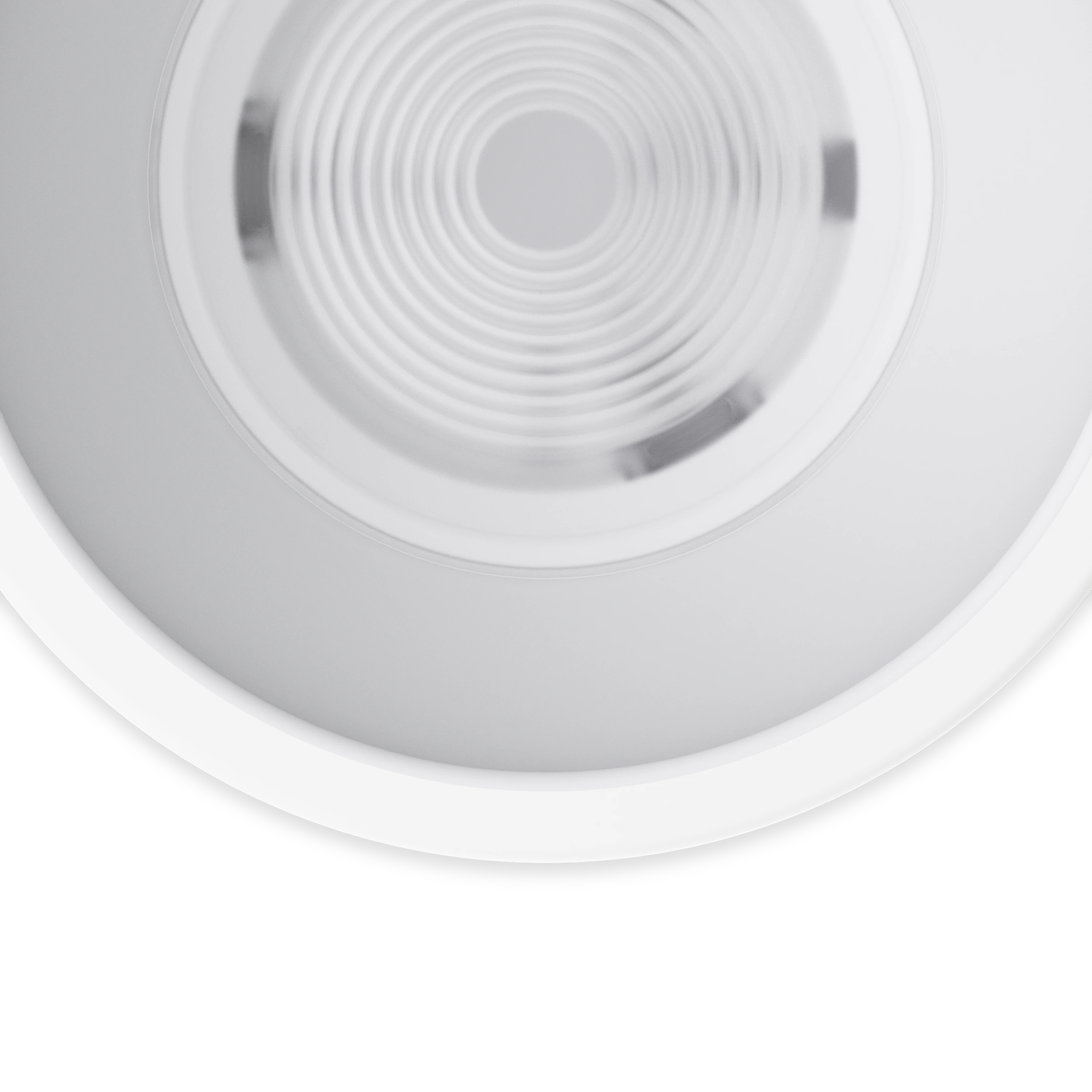

Reflector of matt metallised aluminium, enamelled in white (RAL 9003) or black (RAL 9005) finish. Lens of clear acrylic.
High efficiency & reduced energy consumption
The product family includes models with very high efficiency – without compromising on light comfort. High efficiency gives rise to reductions in energy consumption, climate impact and operating costs. The luminaire’s good light comfort also means that fewer luminaires are needed to achieve the desired light level.
No additional heat sink
The luminaire’s optimised design efficiently conducts heat away from the LED module, with the result that no separate heat sink is required. This solution saves materials and reduces the carbon footprint.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
On/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
Articles
Configure your Pleiad G4
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Cover plate IP 23 | Cover plate IP 23, Ø168 | 41058 | |
|
Cable pendant | Ø 168 Cable pendant. Supplemented with wire suspension, ordered separately. | 41055 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup, white mains cable/each | 96387 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, white mains cable/each | 96388 | |
|
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup, white mains cable/each | 96386 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, white mains cable/each | 96389 | |
|
Sloping ceiling cylinder | Sloping ceiling cylinder Ø 168 | 41054 |
