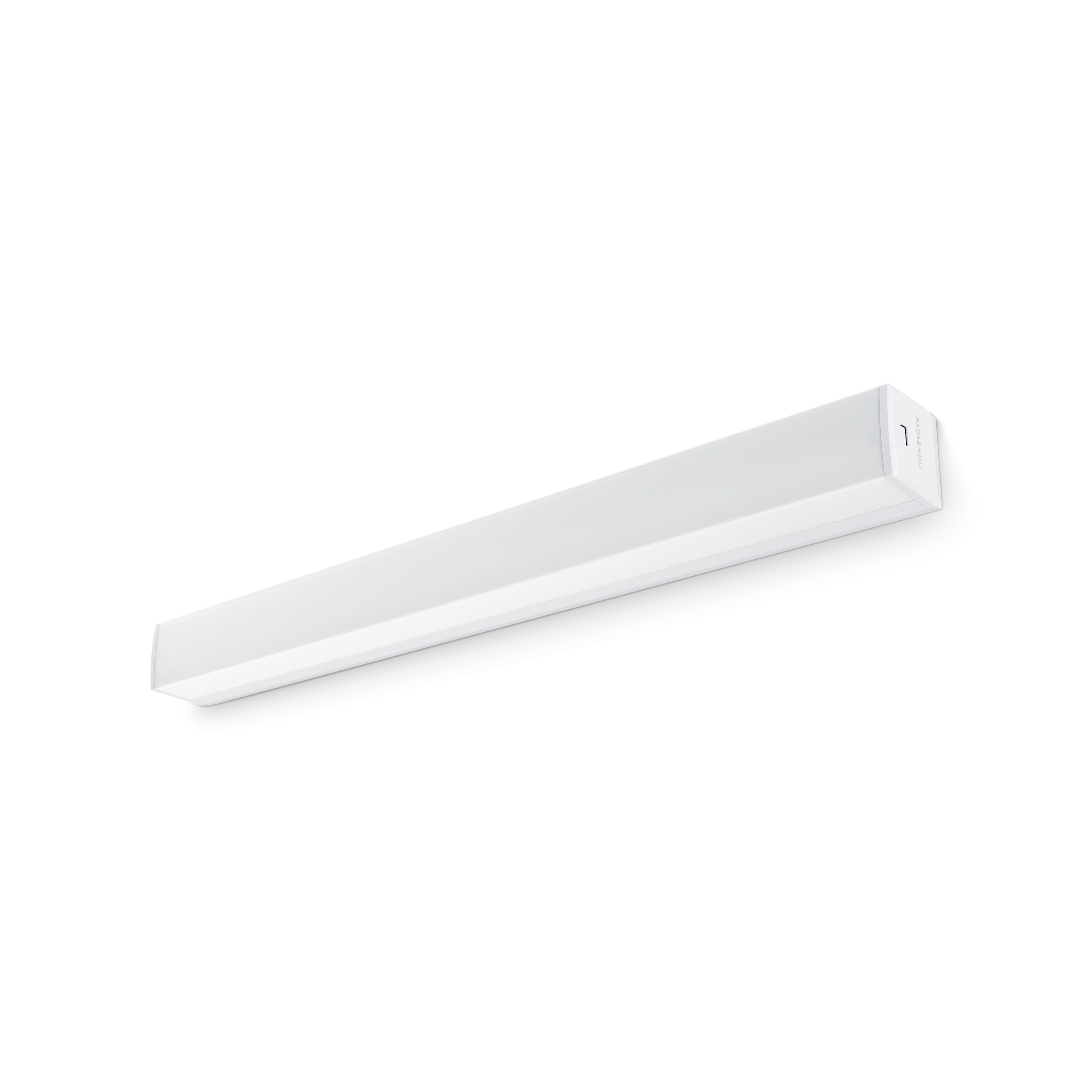

AquaSurface

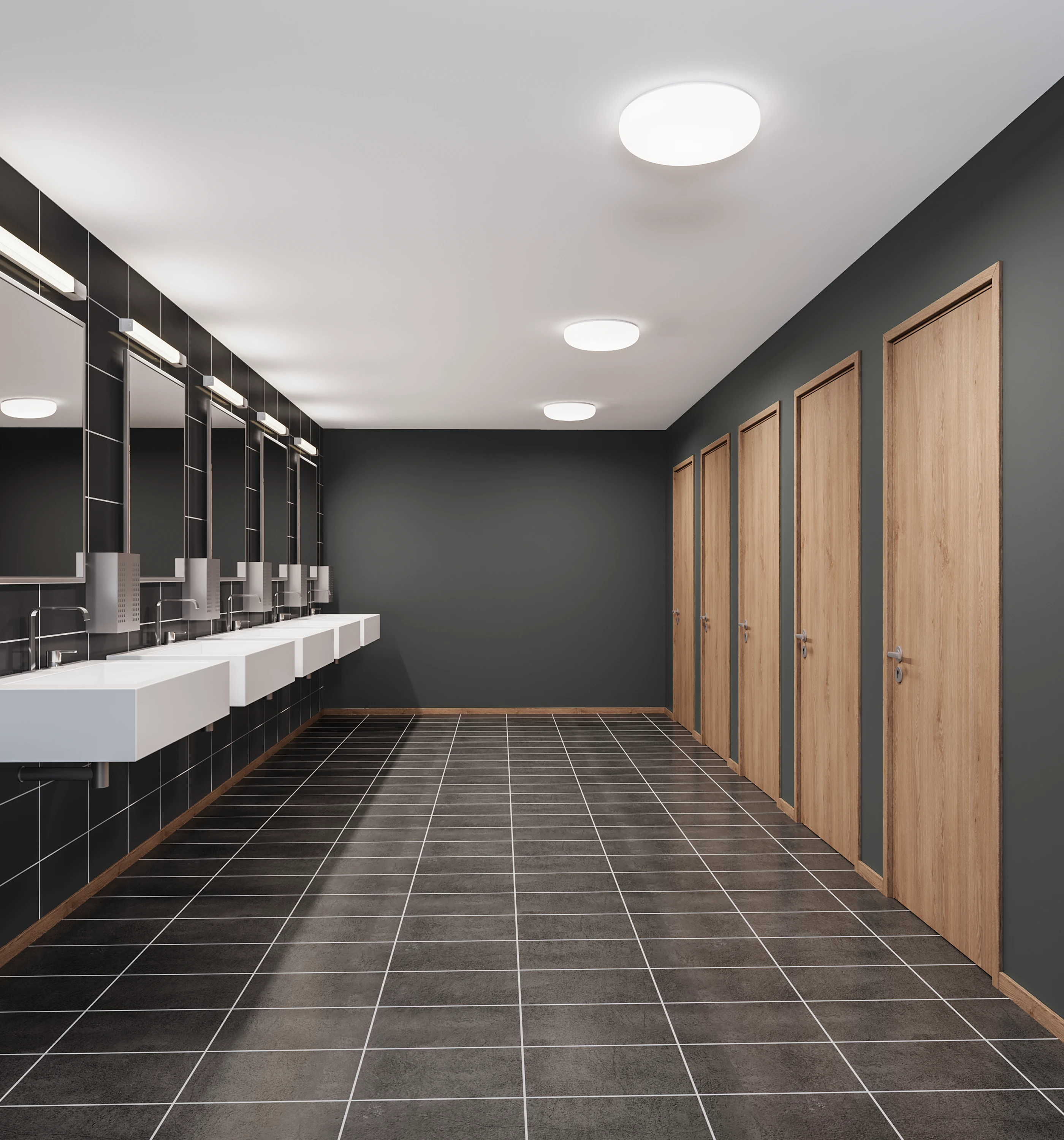

Aqua is a wall luminaire in a timeless design for hygienic areas, cloakrooms and corridors. It can be mounted horizontally or vertically and features soft ambient light suitable for mirror lighting. Outlet unit available as an option.
AquaSurface
Aqua is a wall luminaire in a timeless design for hygienic areas, cloakrooms and corridors. It can be mounted horizontally or vertically and features soft ambient light suitable for mirror lighting. Outlet unit available as an option.
Installation
Luminaire for wall installation. Can be mounted horizontally or vertically. Luminaire with outlet socket, only for horizontal installation. If used, an outlet module can be placed on either the right or left. The diffuser is installed and removed without tools. For detailed information, see the installation instructions.
Connection
For permanent connection; integrated driver in the luminaire. Surface-mounted mains cable possible. Snap-in terminal block 3x2.5 mm². The luminaire with outlet socket has a 4-way terminal block with the possibility of constant voltage to the outlet socket.
Design
Luminaire body made of white polycarbonate (PC). Diffuser in opal acrylic (PMMA) Self-closing cover on the outlet module.

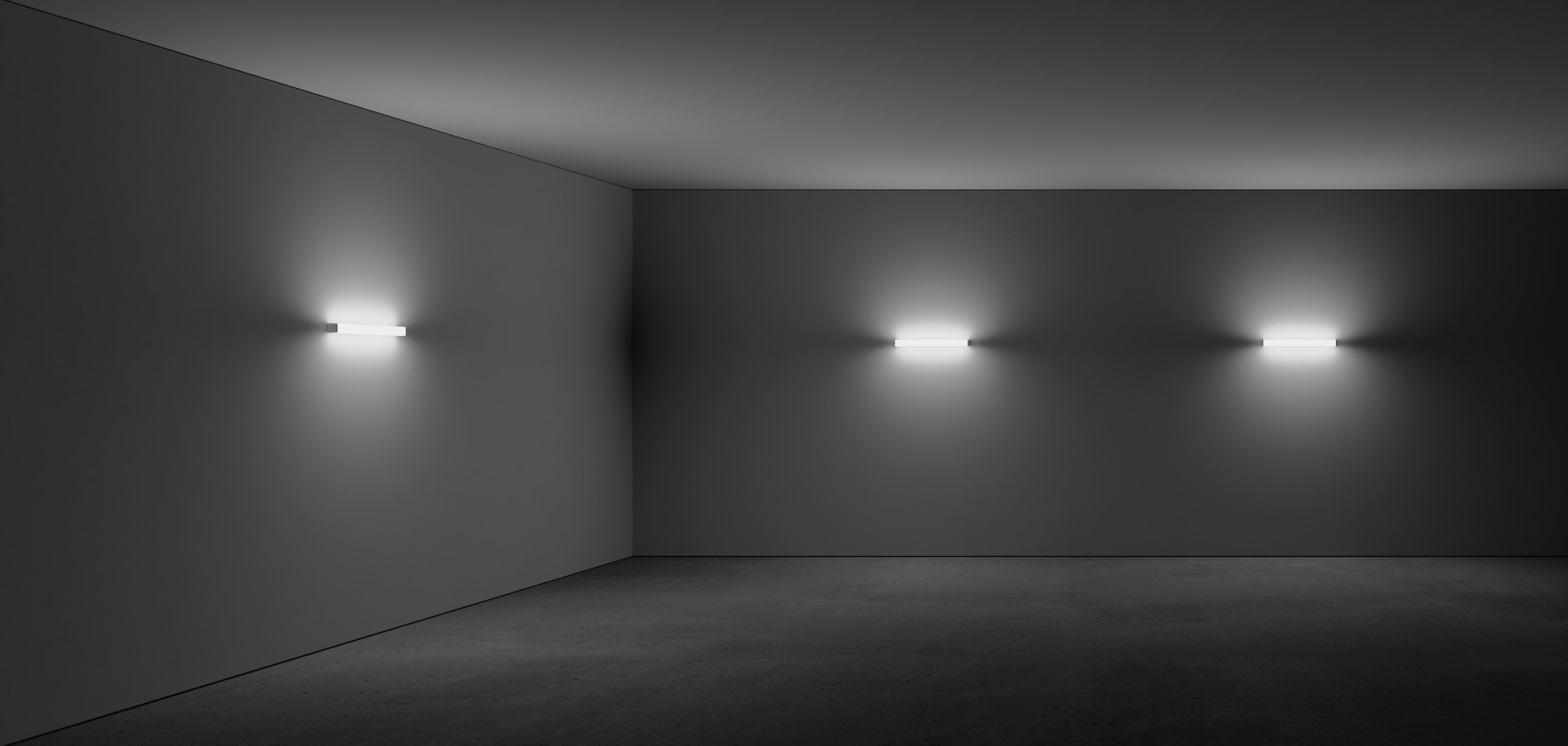

Light Distribution
Omnidirectional.
Light data
Optics
Opal – frosted acrylic (PMMA) disc.
Verified environmental information
The product’s environmental and climate impact has been analysed from a life cycle perspective and documented in a third‑party verified Environmental Product Declaration (EPD). The purpose is to provide reliable environmental information and to clearly identify where impacts occur, thereby supporting insights that can help reduce the climate impact.
e-Sense BrightSwitchPIR sensor
Simple control system that provides automatic on/off or dimming between high/low level that is controlled by presence or ambient light.
Read moreDALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | CRI | Colour | Dimensions, mm | Louvre | Light distribution | Light control | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 19135 | 14 | 1656 | 3000 | 80 | White | 599x54x55 | Opal | Direct |
|
|||
| 19135-402 | 14 | 1610 | 3000 | 80 | White | 599x54x55 | Opal | Direct | DALI |
|
||
| 19135-515 | 15 | 1656 | 3000 | 80 | White | 701x54x55 | Opal | Direct | e-Sense BrightSwitch on/off |
|
||
| 19136 | 14 | 1773 | 4000 | 80 | White | 599x54x55 | Opal | Direct |
|
|||
| 19136-402 | 14 | 1725 | 4000 | 80 | White | 599x54x55 | Opal | Direct | DALI |
|
||
| 19136-515 | 15 | 1773 | 4000 | 80 | White | 701x54x55 | Opal | Direct | e-Sense BrightSwitch on/off |
|
||
| 19137 | 14 | 1656 | 3000 | 80 | White | 701x54x55 | Opal | Direct | Socket outlet |
|
||
| 19137-402 | 14 | 1610 | 3000 | 80 | White | 701x54x55 | Opal | Direct | DALI | Socket outlet |
|
|
| 19138 | 14 | 1773 | 4000 | 80 | White | 701x54x55 | Opal | Direct | Socket outlet |
|
||
| 19138-402 | 14 | 1725 | 4000 | 80 | White | 701x54x55 | Opal | Direct | DALI | Socket outlet |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Spare diffuser | Spare diffuser incl. LED 3000k | 95675 | |
|
|
Spare diffuser | Spare diffuser incl. LED 4000k | 95676 | |
|
Remote control e-Sense BrightSwitch | Remote control | 86359 | |
|
|
Spare diffuser | Aqua spare cover for sensor/outlet incl. LED 3000k | 95677 | |
|
|
Spare diffuser | Aqua spare cover for sensor/outlet incl. LED 4000k | 95678 |
