Telescope AquaSurface

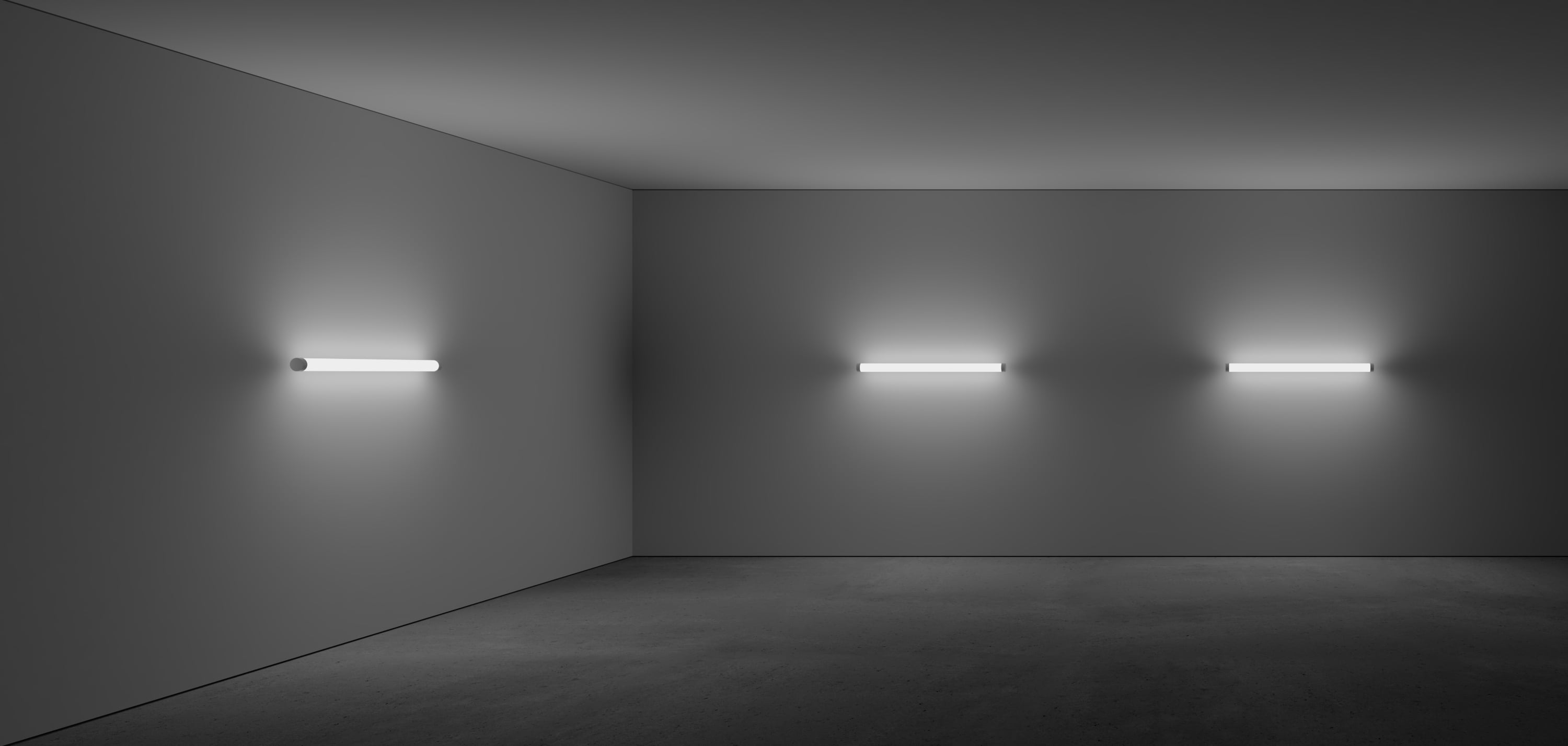

Telescope Aqua is an omnidirectional luminaire in a timeless design for general and mirror lighting in wet areas, cloakrooms and stairwells. It can be mounted both horizontally and vertically, enabling creative lighting solutions.
Telescope AquaSurface
Telescope Aqua is an omnidirectional luminaire in a timeless design for general and mirror lighting in wet areas, cloakrooms and stairwells. It can be mounted both horizontally and vertically, enabling creative lighting solutions.
Installation
Luminaire for wall installation. Can be mounted horizontally or vertically. For detailed information, see the installation instructions.
Connection
For permanent connection; integrated driver in the luminaire. Snap-in terminal block 5x1.5 mm². 1-phase through-wiring possible. CLO (Constant Light Output).
Design
Luminaire body made of extruded aluminium. Lacquered in white (RAL 9016). Luminaire bracket in white (RAL 9016) galvanised sheet metal. End caps in matt white plastic, attached by means of a magnet.
Light Distribution
Omnidirectional.
Light data
Optics
Opal acrylic diffuser (PMMA).
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | CRI | Colour | Dimensions, mm | Louvre | Light distribution | Light control | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 17130-402 | 6 | 754 | 3000 | 80 | White | 602x72x86 | Opal | Round beam | DALI/Phase-pulse |
|
|
| 17131-402 | 10 | 1253 | 3000 | 80 | White | 902x72x86 | Opal | Round beam | DALI/Phase-pulse |
|
|
| 17132-402 | 14 | 1774 | 3000 | 80 | White | 1202x72x86 | Opal | Round beam | DALI/Phase-pulse |
|
|
| 17133-402 | 17 | 2188 | 3000 | 80 | White | 1502x72x86 | Opal | Round beam | DALI/Phase-pulse |
|
|
| 17134-402 | 6 | 793 | 4000 | 80 | White | 602x72x86 | Opal | Round beam | DALI/Phase-pulse |
|
|
| 17135-402 | 10 | 1319 | 4000 | 80 | White | 902x72x86 | Opal | Round beam | DALI/Phase-pulse |
|
|
| 17136-402 | 14 | 1868 | 4000 | 80 | White | 1202x72x86 | Opal | Round beam | DALI/Phase-pulse |
|
|
| 17137-402 | 17 | 2303 | 4000 | 80 | White | 1502x72x86 | Opal | Round beam | DALI/Phase-pulse |
|
