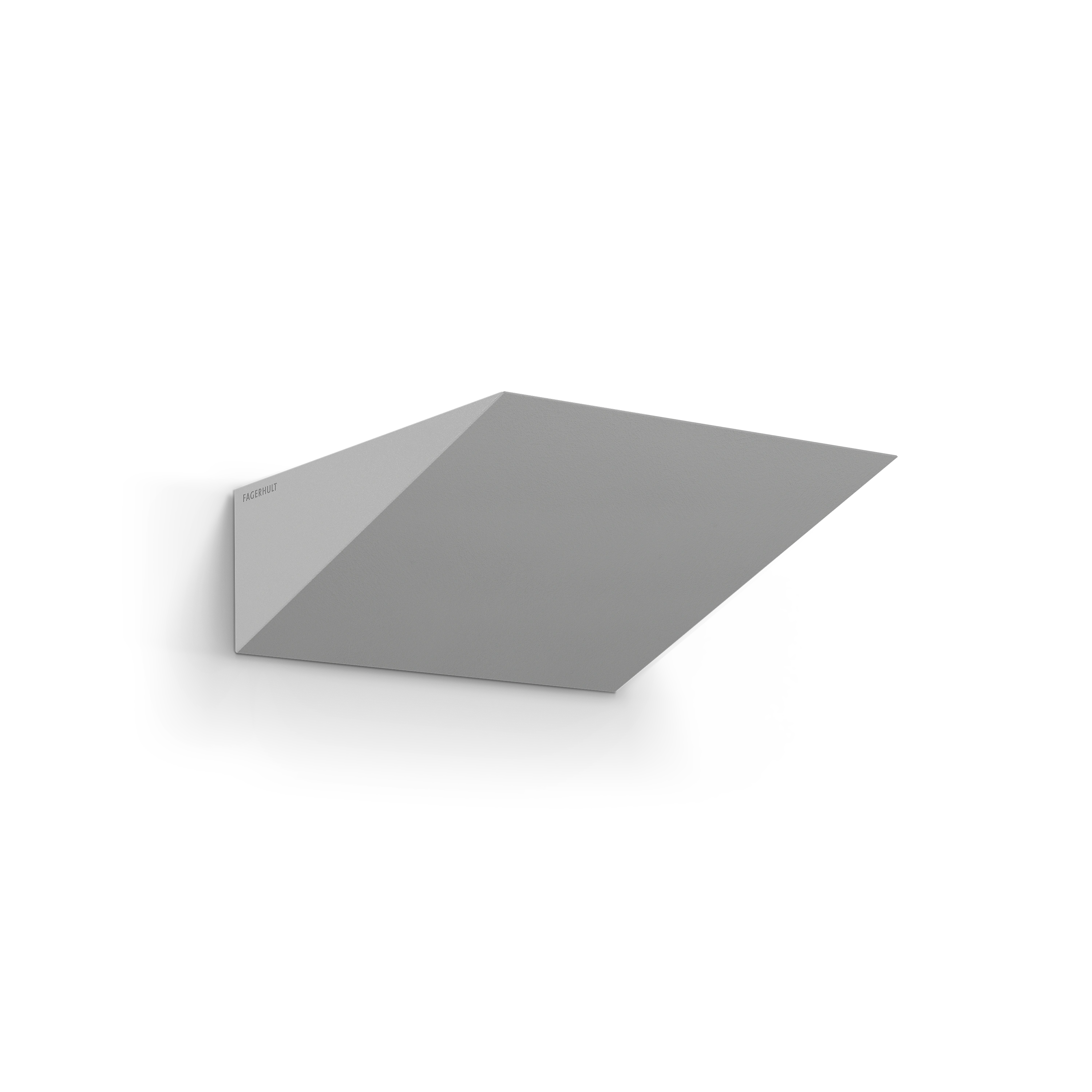

Wall 1Surface

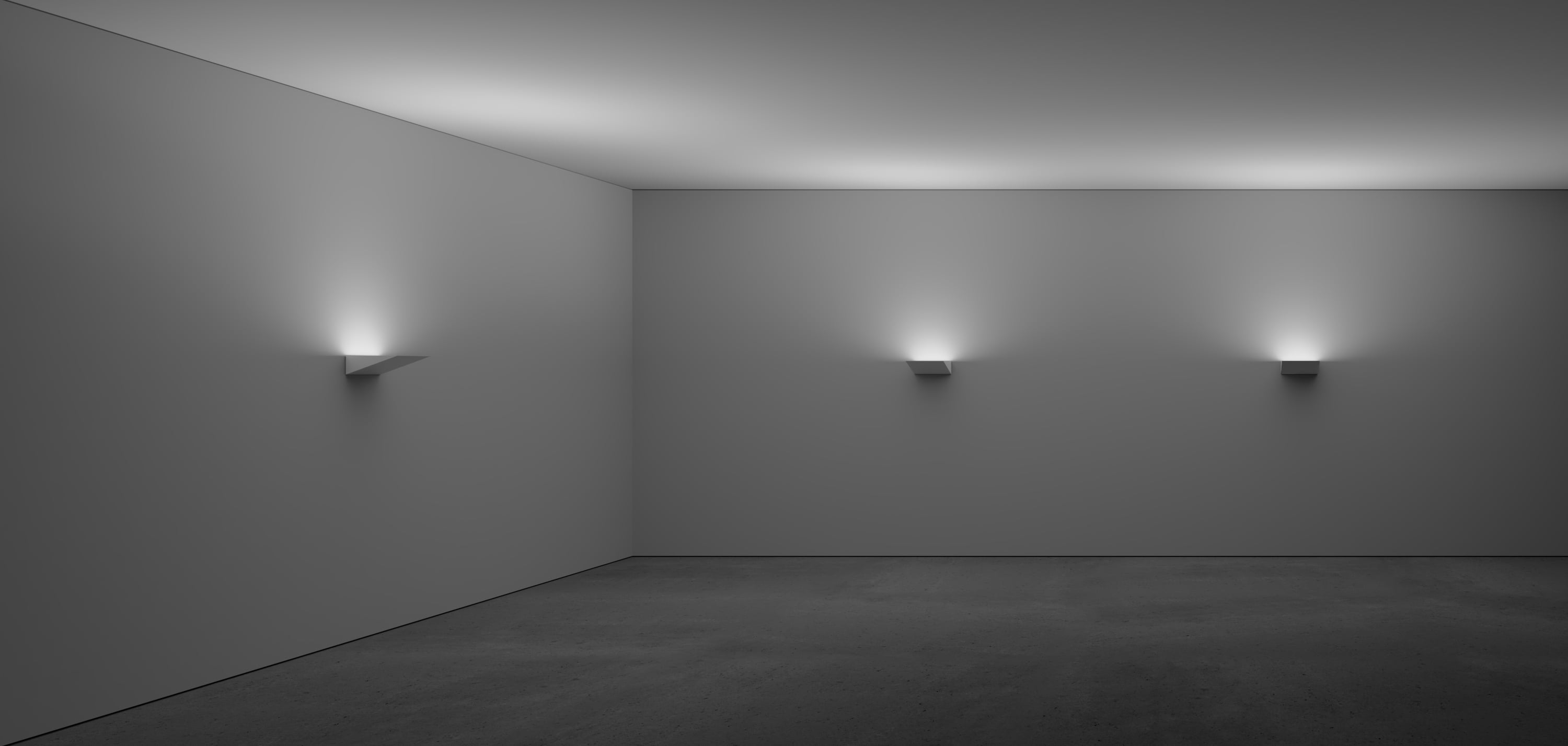

Wall is a family of wall luminaires in a minimalist design with precision details. Wall 1 features a wide-beam indirect light and an asymmetric distribution that provides a pleasant uplight on the wall.
Wall 1Surface
Wall is a family of wall luminaires in a minimalist design with precision details. Wall 1 features a wide-beam indirect light and an asymmetric distribution that provides a pleasant uplight on the wall.
Installation
Luminaire for wall installation. For detailed information, see the installation instructions.
Connection
For permanent connection; integrated driver in the luminaire. Snap-in terminal block 5x2.5 mm². 1-phase through-wiring possible with recessed mains cable. Surface-mounted mains cable possible. CLO (Constant Light Output).
Design
Luminaire body of sheet steel, white (RAL 9016) or alu-grey (RAL 9006) structured lacquer. Light opening is covered by a frosted acrylic (PMMA) disc. Designed by Claesson Koivisto Rune.
Light Distribution
Indirect asymmetrical.
Light data
Optics
Asymmetrical aluminium reflector with a frosted acrylic (PMMA) disc.
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | CRI | Colour | Dimensions, mm | Light distribution | Light control | CLO time, h | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 64927-402 | 27 | 3455 | 2700 | 90 | White | 300x287x104 | Indirect | DALI/Phase-pulse | 100000 |
|
|
| 64928-402 | 27 | 3455 | 2700 | 90 | Grey | 300x287x104 | DALI/Phase-pulse | 100000 |
|
||
| 64931-402 | 27 | 3891 | 3000 | 80 | White | 300x287x104 | Indirect | DALI/Phase-pulse | 100000 |
|
|
| 64932-402 | 27 | 3891 | 3000 | 80 | Grey | 300x287x104 | DALI/Phase-pulse | 100000 |
|
||
| 64933-402 | 27 | 4036 | 4000 | 80 | White | 300x287x104 | DALI/Phase-pulse | 100000 |
|
||
| 64934-402 | 27 | 4036 | 4000 | 80 | Grey | 300x287x104 | DALI/Phase-pulse | 100000 |
|
