Zoft WallSurface

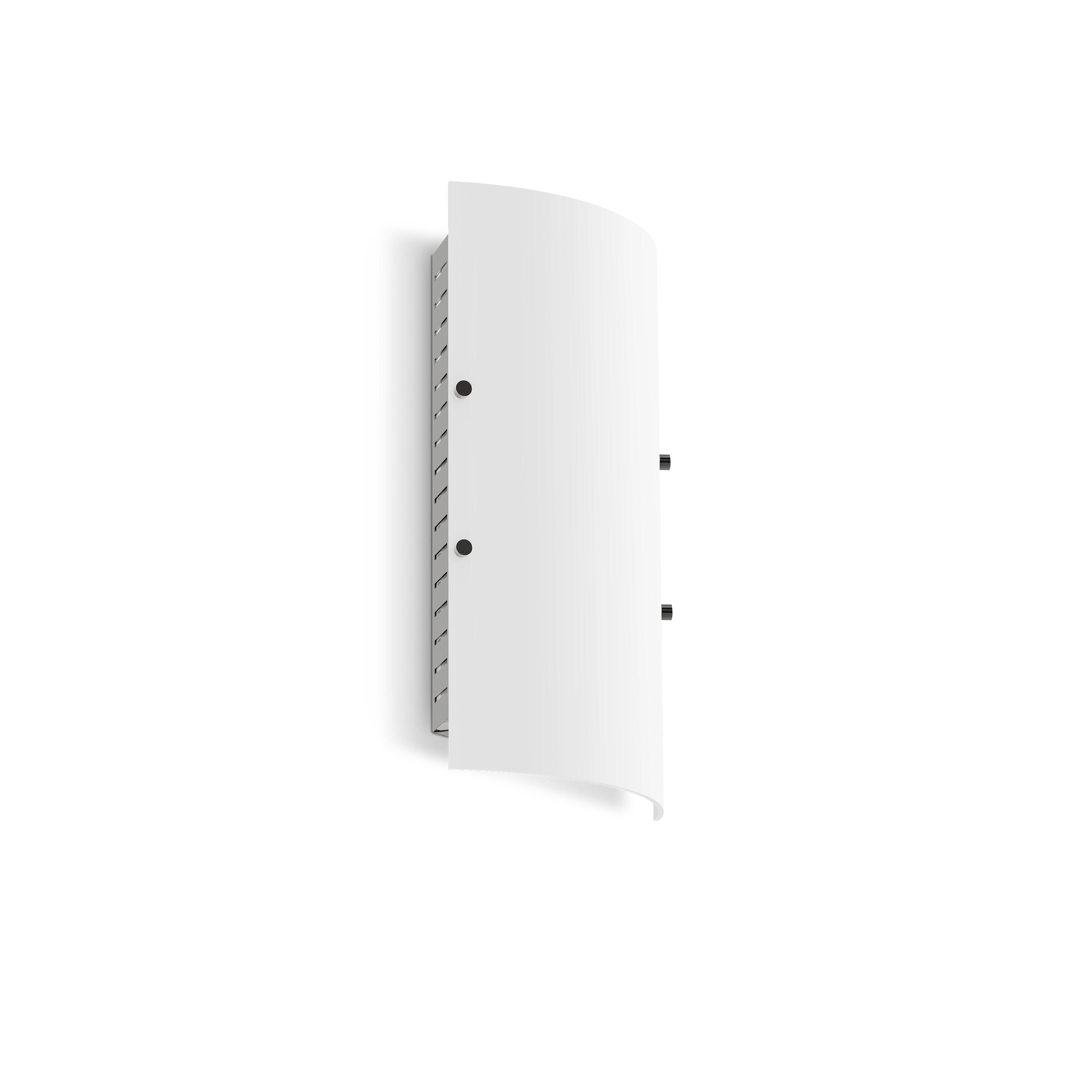

Zoft is an omnidirectional wall luminaire with a pleasant light for a range of different environments. The luminaire can also be mounted in stairwells and is available with an opal glass or acrylic diffuser.
Zoft WallSurface
Zoft is an omnidirectional wall luminaire with a pleasant light for a range of different environments. The luminaire can also be mounted in stairwells and is available with an opal glass or acrylic diffuser.
Installation
Luminaire for wall installation. Mounting via keyhole slots. For detailed information, see the installation instructions.
Connection
For permanent connection; integrated driver in the luminaire. Snap-in terminal block 5x1.5 mm². 1-phase through-wiring possible. The luminaire is equipped with two cable entries on the top and two cable entries on the side. Surface-mounted mains cable possible.
Design
Luminaire body of alu-grey sheet steel. Diffuser made of matt opal acrylic or matt opal glass.

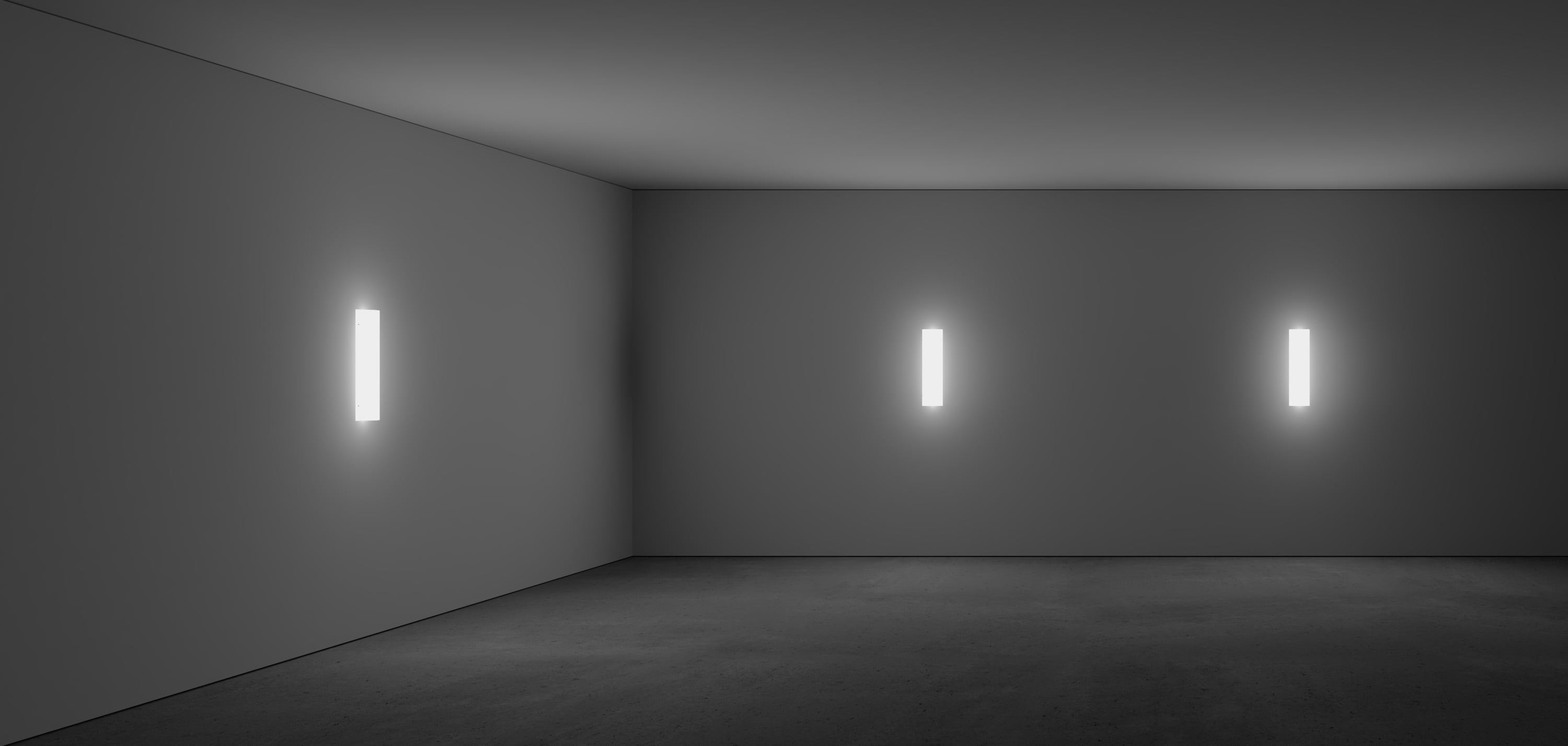

Light Distribution
Direct.
Light data
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | CRI | Dimensions, mm | Louvre | Light distribution | Light control | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 55990-402 | 20 | 1666 | 3000 | 80 | 220x370 | Opal | Direct | DALI/Phase-pulse | Glass |
|
|
| 55991-402 | 20 | 1716 | 3000 | 80 | 220x370 | Opal | Direct | DALI/Phase-pulse | Acrylic |
|
|
| 55992-402 | 20 | 1736 | 4000 | 80 | 220x370 | Opal | Direct | DALI/Phase-pulse | Glass |
|
|
| 55993-402 | 20 | 1788 | 4000 | 80 | 220x370 | Opal | Direct | DALI/Phase-pulse | Acrylic |
|
|
| 55994-402 | 15 | 1646 | 3000 | 80 | 165x620 | Opal | Direct | DALI/Phase-pulse | Glass |
|
|
| 55995-402 | 15 | 1697 | 3000 | 80 | 165x620 | Opal | Direct | DALI/Phase-pulse | Acrylic |
|
|
| 55996-402 | 15 | 1715 | 4000 | 80 | 165x620 | Opal | Direct | DALI/Phase-pulse | Glass |
|
|
| 55997-402 | 15 | 1768 | 4000 | 80 | 165x620 | Opal | Direct | DALI/Phase-pulse | Acrylic |
|
