AllFiveSurface
AllFive is one of our best-selling and most appreciated universal luminaires. The latest version is carefully designed and future-proofed, with a focus on efficiency and simplicity at every stage.
AllFiveSurface
AllFive is one of our best-selling and most appreciated universal luminaires. The latest version is carefully designed and future-proofed, with a focus on efficiency and simplicity at every stage.
Installation
Luminaire for surface-mounted ceiling installation or for wall mounting. For mounting on wire or cable, see Accessories. When installed using the gaskets provided, enclosure class IP44 is achieved; without gaskets or when mounted on the surface of the wall, IP40. For detailed information, see the installation instructions.
See installation video AllFiveConnection
For permanent connection; integrated driver in the luminaire. Connection via snap-in terminal block (5x2.5 mm²) in the middle of the luminaire makes through-wiring possible. Also available in design with 3-phase (or 1-phase+DALI) through-wire 5x1.5 mm² or 5x2.5 mm² and snap-in terminal block at each end cap. CLO (Constant Light Output).
Design

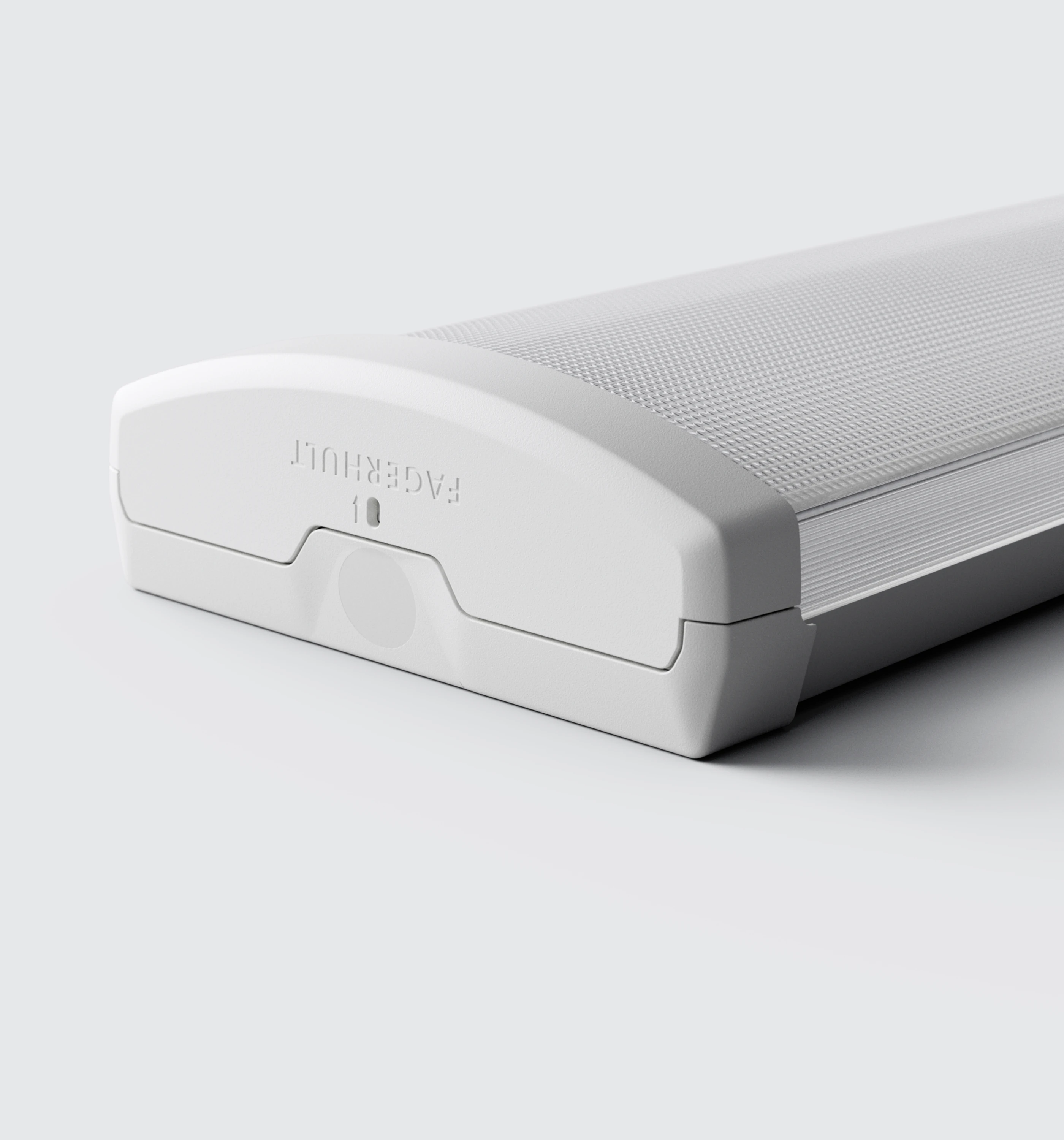

Luminaire body of hot-dip galvanized steel sheet. Lacquered in white (RAL 9016 G40). Polypropylene (PP) end caps.
Light Distribution
Direct.
Light data
Optics

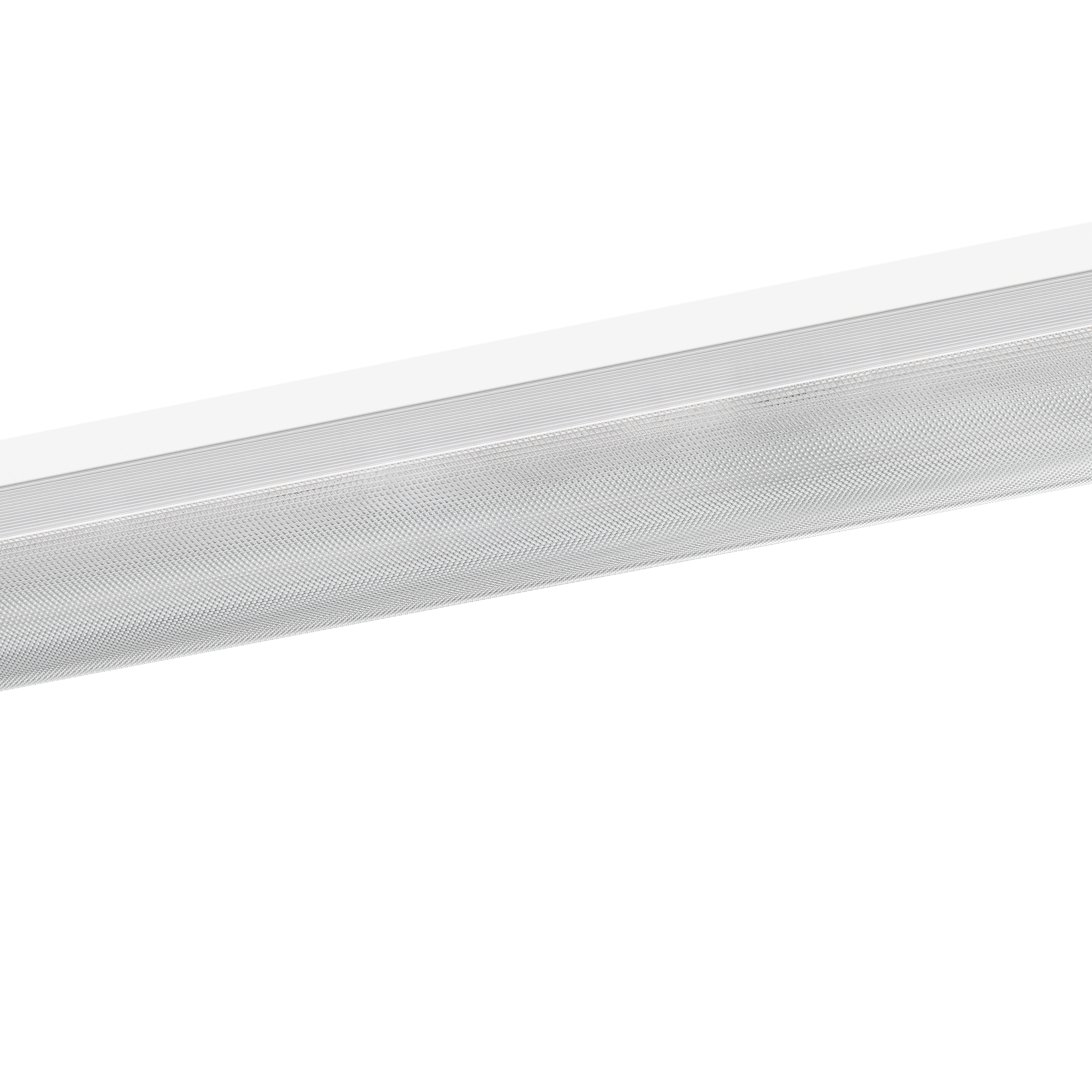

Clear extruded acrylic (PMMA) diffuser with prismatic underside and lined sides. Opal diffuser available as an accessory.
Ready for reuse

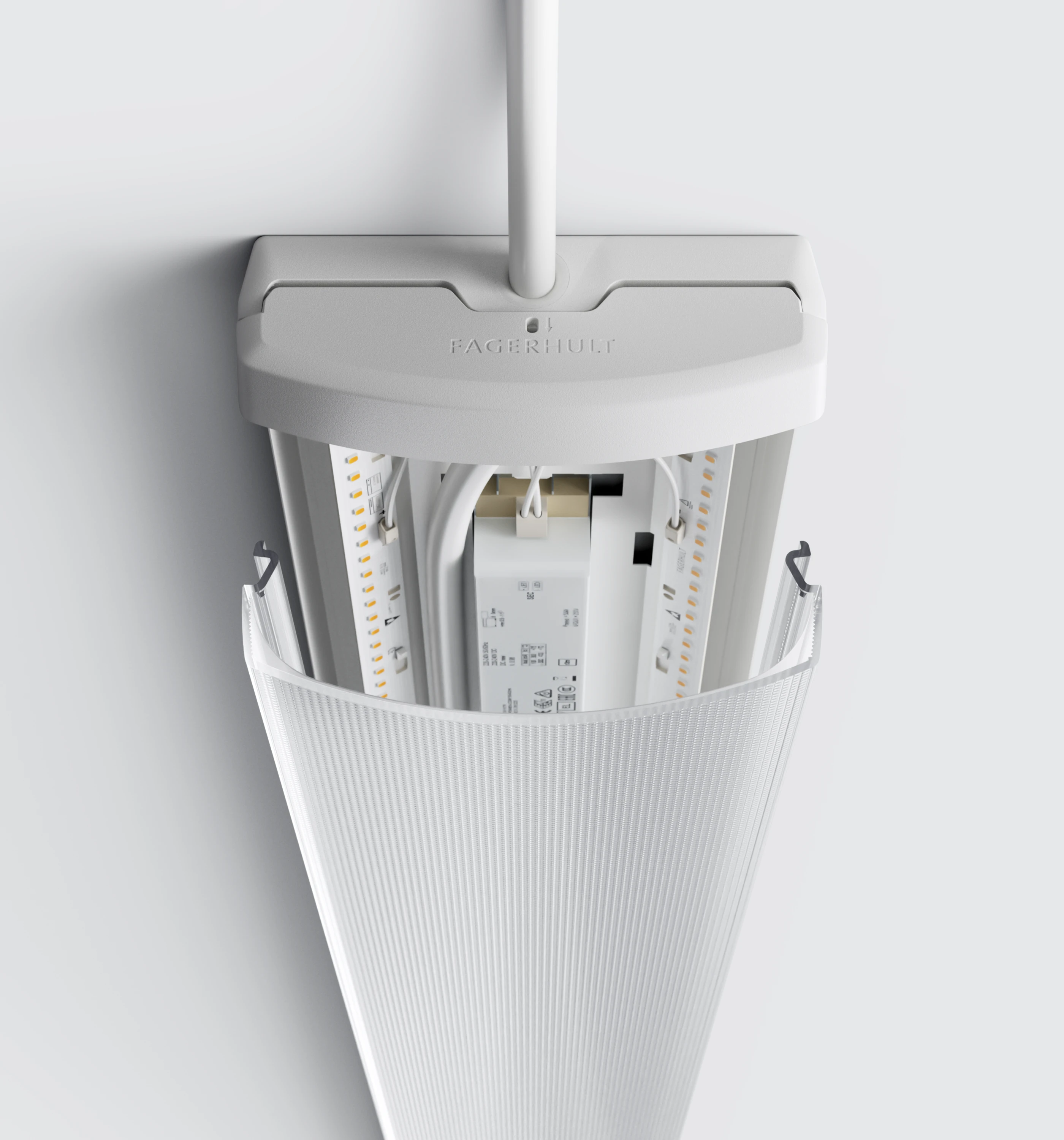

The end caps can be opened with a gentle press, and driver and LED boards are easy to replace. The luminaire has a long working life, but is designed to be easy to reuse and upgrade in the future.
IP44 luminaire with maximum efficiency
Designed with a focus on maximum energy efficiency. The driver is recessed into the body, which reduces shadows in the diffuser. Premium LEDs and CLO 100,000 h produce an installation with a high maintenance factor and a long working life, with lower energy consumption and reduced costs over its working life.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
e-Sense BrightSwitchPIR sensor
Simple control system that provides automatic on/off or dimming between high/low level that is controlled by presence or ambient light.
Read moree-Sense DetectMicrowave sensor
Sensor-based system without the need for programming, designed for IP rated environments such as garages and industry.
Read moree-Sense FlexMicrowave sensor
Wireless Bluetooth mesh control with easy installation and full adaptability for IP rated environments, such as garages and stairwells.
Read moreDALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Organic Response MicrowaveMicrowave sensor
Compatible with Organic Response’s other solutions. Wireless Bluetooth mesh control with easy installation and full adaptability for IP rated environments, such as garages and stairwells.
Read moreOrganic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read moreOn/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
Articles
Configure your AllFive
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Opal diffuser | AllFive opal diffuser 600 mm | 90470 | |
|
|
Opal diffuser | AllFive opal diffuser for PIR sensor 600 mm | 90471 | |
|
Opal diffuser | AllFive opal diffuser 1200 mm | 90472 | |
|
|
Opal diffuser | AllFive opal diffuser for PIR sensor 1200 mm | 90473 | |
|
Opal diffuser | AllFive opal diffuser 1500 mm | 90474 | |
|
|
Opal diffuser | AllFive opal diffuser for PIR sensor 1500 mm | 90475 | |
|
Spare cover | AllFive spare cover 600 mm | 90480 | |
|
|
Spare cover | AllFive spare cover for PIR sensor 600 mm | 90481 | |
|
Spare cover | AllFive spare cover 1200 mm | 90482 | |
|
|
Spare cover | AllFive spare cover for PIR sensor 1200 mm | 90483 | |
|
Spare cover | AllFive spare cover 1500 mm | 90484 | |
|
|
Spare cover | AllFive spare cover for PIR sensor 1500 mm | 90485 | |
|
Shelter bracket | AllFive Shelter bracket/pair | 90491 | |
|
Wire suspension | AllFive wire suspension/pairs. (incl. friction locks and small round ceiling cup) | 90490 | |
|
Wallbracket | Wall bracket/pair | 90493 | |
|
Wire catenary bracket | Wire catenary bracket/pair. | 90492 |
