KapturSurface

Multiple mounting options

Kaptur is a robust, enclosed luminaire with a high protection rating (IP67) and low maintenance requirements. The luminaire is particularly suitable for exposed, extreme-temperature environments such as car parks, culverts, or warehouses.

27.7 kg CO₂e 161 lm/W Sensor available

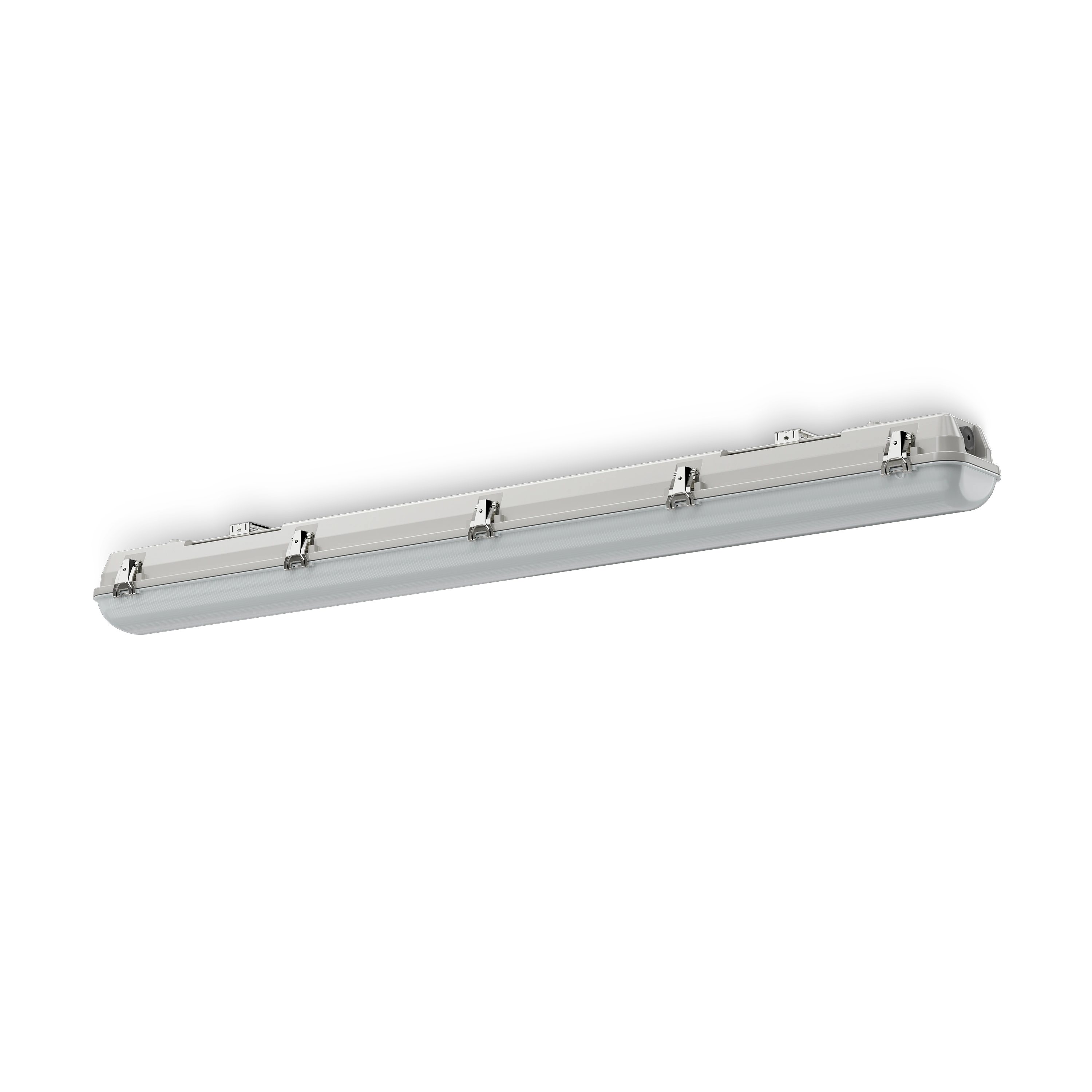

Kaptur 1200 standard

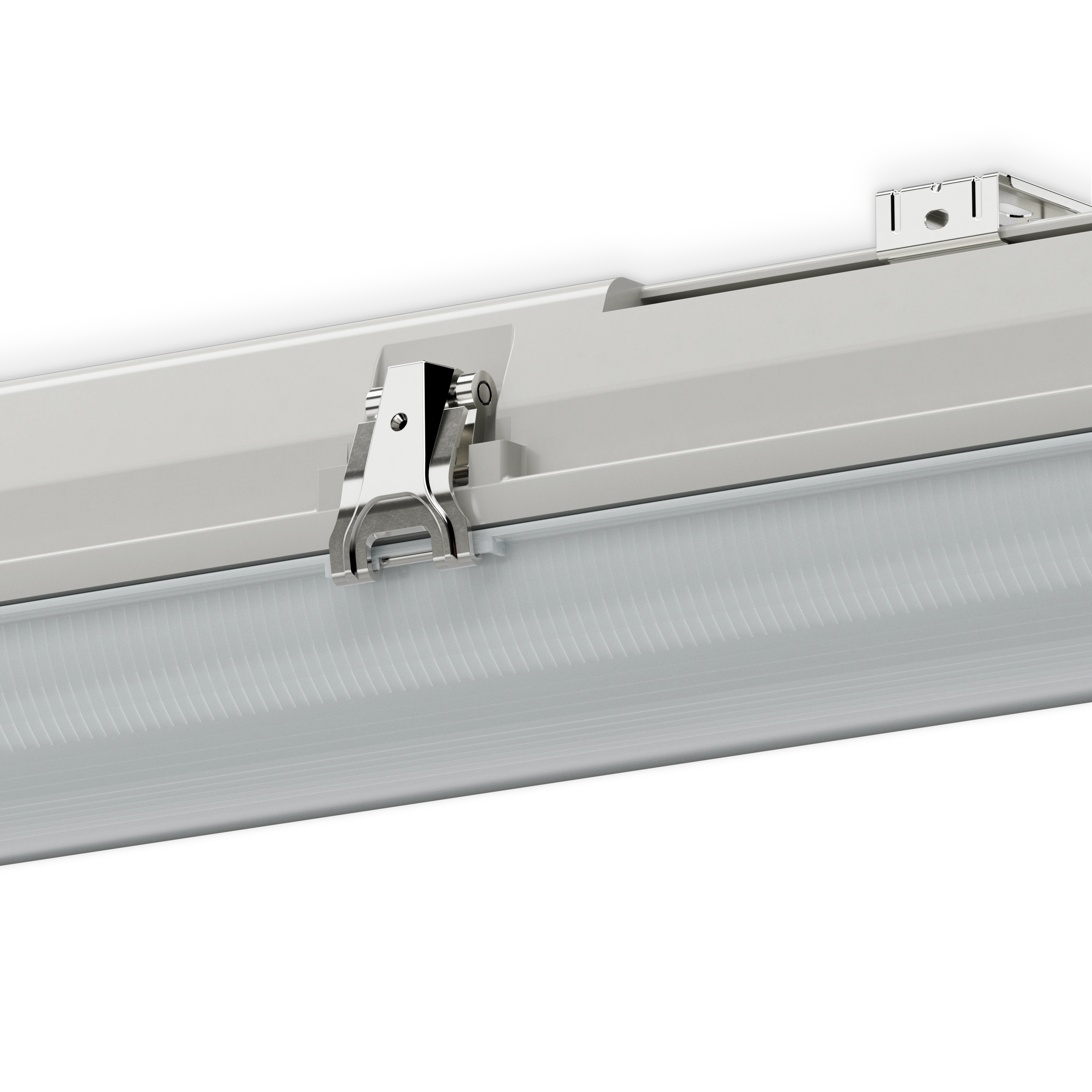

Kaptur 1200 standard Kaptur surface Opal

KapturSurface

Multiple mounting options

Kaptur is a robust, enclosed luminaire with a high protection rating (IP67) and low maintenance requirements. The luminaire is particularly suitable for exposed, extreme-temperature environments such as car parks, culverts, or warehouses.

27.7 kg CO₂e 161 lm/W Sensor available

Installation

The luminaire is surface-mounted on the ceiling/wall, or alternatively on a cable with the supplied bracket. Bracket ordered separately, see Accessories. For detailed information, see the installation instructions.

Connection

Two cable entries fitted with blanking grommets Ø22 mm – one in each end cap. Snap-in terminal block 5x2.5 mm²; through-wiring possible. CLO (Constant Light Output).

Design

Luminaire body made of glass fibre reinforced plastic GRP. Mounting plate in white enamelled steel sheet. Opal diffuser made of acrylic (PMMA, IK03) or polycarbonate (PC, IK08) with stainless steel shade catch. The diffuser has internal, longitudinal grooves. The luminaire is available in lengths of 600 mm, 1200 mm and 1500 mm.

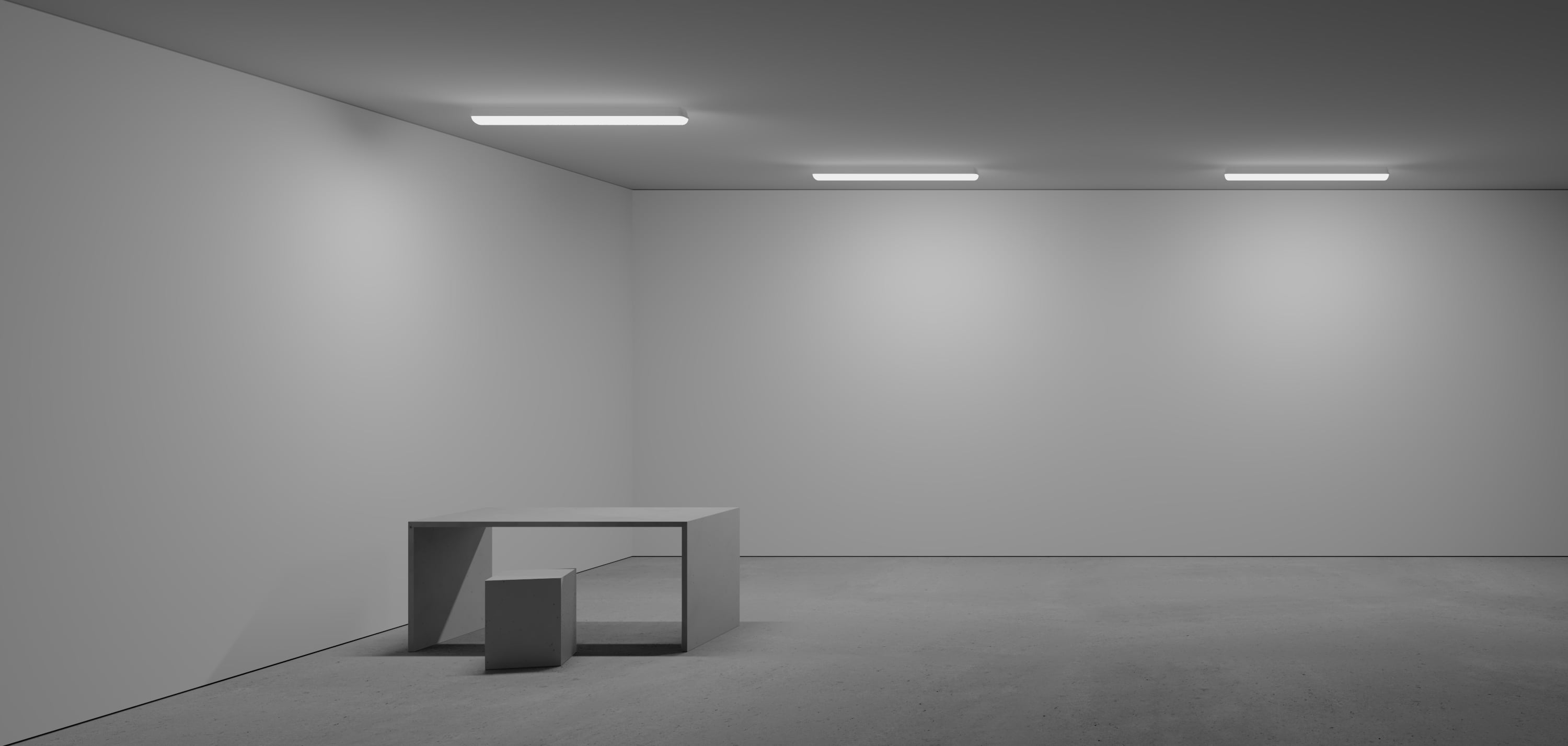

Light Distribution

Direct wide beam.

Light data

CCT, K:
3000 K, 4000 K
CRI/Rf:
80
SDCM:
3
Lumen output:
2530-10525 lm
CLO:
50000, 100 000 h

27.7kg CO₂e

(Based on 39321)

Climate impact (GWP fossil) A1–A3 based on results from the EPD.

Read more about EPD
EPD Icon Kaptur surface

Verified environmental information

The product’s environmental and climate impact has been analysed from a life cycle perspective and documented in a third‑party verified Environmental Product Declaration (EPD). The purpose is to provide reliable environmental information and to clearly identify where impacts occur, thereby supporting insights that can help reduce the climate impact.

e-Sense DetectMicrowave sensor

Sensor-based system without the need for programming, designed for IP rated environments such as garages and industry.

Read more

e-Sense FlexMicrowave sensor

Wireless Bluetooth mesh control with easy installation and full adaptability for IP rated environments, such as garages and stairwells.

Read more

DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

Organic Response MicrowaveMicrowave sensor

Compatible with Organic Response’s other solutions. Wireless Bluetooth mesh control with easy installation and full adaptability for IP rated environments, such as garages and stairwells.

Read more

On/Off

Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.

Articles

Showing 176 of 176 Articles
Art.no. System Wattage Lumen output CCT, K Dimensions, mm Louvre Light distribution Diffuser Light control CLO time, h Miscellaneous Light data files Article PDF
39320 19 2918 4000 600x123x100 Opal Direct Acrylic On/off
39320-402 18 2741 4000 600x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 CLO 50 000 h
39321 39 6136 4000 1200x123x100 Opal Direct Acrylic On/off
39321-35 39 6136 4000 1200x123x100 Opal Direct Acrylic On/off Through-wiring 5x2,5 mm²
39321-402 35 5522 4000 1200x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 CLO 50 000 h
39321-469 40 6136 4000 1200x123x100 Opal Direct Acrylic e-Sense Detect on/off
39321-495 36 5522 4000 1200x127x107 Opal Direct Acrylic e-Sense Detect DALI absence 50000 CLO 50 000 h
39321-553 35 5522 4000 1200x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h.
39321-569 36 5522 4000 1200x127x107 Opal Direct Acrylic e-Sense Flex 50000
39322 45 7229 4000 1500x123x100 Opal Direct Acrylic On/off
39322-35 45 7229 4000 1500x123x100 Opal Direct Acrylic On/off Through-wiring 5x2,5 mm²
39322-402 41 6389 4000 1500x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 CLO 50 000 h
39322-469 46 7229 4000 1500x123x100 Opal Direct Acrylic e-Sense Detect on/off
39322-495 41 6389 4000 1500x127x107 Opal Direct Acrylic e-Sense Detect DALI absence 50000 CLO 50 000 h
39322-553 41 6389 4000 1500x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h.
39322-569 42 6389 4000 1500x127x107 Opal Direct Acrylic e-Sense Flex 50000
39323 19 2836 3000 600x123x100 Opal Direct Acrylic On/off
39323-402 18 2664 3000 600x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 CLO 50 000 h
39324 39 5964 3000 1200x123x100 Opal Direct Acrylic On/off
39324-35 39 5964 3000 1200x123x100 Opal Direct Acrylic On/off Through-wiring 5x2,5 mm²
39324-402 35 5367 3000 1200x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 CLO 50 000 h
39324-469 40 5964 3000 1200x123x100 Opal Direct Acrylic e-Sense Detect on/off
39324-495 36 5367 3000 1200x127x107 Opal Direct Acrylic e-Sense Detect DALI absence 50000 CLO 50 000 h
39324-553 35 5367 3000 1200x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h.
39324-569 36 5367 3000 1200x127x107 Opal Direct Acrylic e-Sense Flex 50000
39325 45 7027 3000 1500x123x100 Opal Direct Acrylic On/off
39325-35 45 7027 3000 1500x123x100 Opal Direct Acrylic On/off Through-wiring 5x2,5 mm²
39325-402 41 6210 3000 1500x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 CLO 50 000 h
39325-469 46 7027 3000 1500x123x100 Opal Direct Acrylic e-Sense Detect on/off
39325-495 41 6210 3000 1500x127x107 Opal Direct Acrylic e-Sense Detect DALI absence 50000 CLO 50 000 h
39325-553 41 6210 3000 1500x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h.
39325-569 42 6210 3000 1500x127x107 Opal Direct Acrylic e-Sense Flex 50000
39330 19 2771 4000 600x123x100 Opal Direct PC On/off
39330-402 18 2603 4000 600x127x107 Opal Direct PC DALI/Phase-pulse 50000 CLO 50 000 h
39331 39 5806 4000 1200x123x100 Opal Direct PC On/off
39331-35 39 5806 4000 1200x123x100 Opal Direct PC On/off Through-wiring 5x2,5 mm²
39331-402 35 5225 4000 1200x127x107 Opal Direct PC DALI/Phase-pulse 50000 CLO 50 000 h
39331-469 40 5806 4000 1200x123x100 Opal Direct PC e-Sense Detect on/off
39331-495 36 5225 4000 1200x127x107 Opal Direct PC e-Sense Detect DALI absence 50000 CLO 50 000 h
39331-553 35 5225 4000 1200x127x107 Opal Direct PC DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h.
39331-569 36 5225 4000 1200x127x107 Opal Direct PC e-Sense Flex 50000
39332 45 6785 4000 1500x123x100 Opal Direct PC On/off
39332-35 45 6785 4000 1500x123x100 Opal Direct PC On/off Through-wiring 5x2,5 mm²
39332-402 41 5997 4000 1500x127x107 Opal Direct PC DALI/Phase-pulse 50000 CLO 50 000 h
39332-469 46 6785 4000 1500x123x100 Opal Direct PC e-Sense Detect on/off
39332-495 41 5997 4000 1500x127x107 Opal Direct PC e-Sense Detect DALI absence 50000 CLO 50 000 h
39332-553 41 5997 4000 1500x127x107 Opal Direct PC DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h.
39332-569 42 5997 4000 1500x127x107 Opal Direct PC e-Sense Flex 50000
39333 19 2693 3000 600x123x100 Opal Direct PC On/off
39333-402 18 2530 3000 600x127x107 Opal Direct PC DALI/Phase-pulse 50000 CLO 50 000 h
39334 39 5643 3000 1200x123x100 Opal Direct PC On/off
39334-35 39 5643 3000 1200x123x100 Opal Direct PC On/off Through-wiring 5x2,5 mm²
39334-402 35 5079 3000 1200x127x107 Opal Direct PC DALI/Phase-pulse 50000 CLO 50 000 h
39334-469 40 5643 3000 1200x123x100 Opal Direct PC e-Sense Detect on/off
39334-495 36 5079 3000 1200x127x107 Opal Direct PC e-Sense Detect DALI absence 50000 CLO 50 000 h
39334-553 35 5079 3000 1200x127x107 Opal Direct PC DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h.
39334-569 36 5079 3000 1200x127x107 Opal Direct PC e-Sense Flex 50000
39335 45 6595 3000 1500x123x100 Opal Direct PC On/off
39335-35 45 6595 3000 1500x123x100 Opal Direct PC On/off Through-wiring 5x2,5 mm²
39335-402 41 5829 3000 1500x127x107 Opal Direct PC DALI/Phase-pulse 50000 CLO 50 000 h
39335-469 46 6595 3000 1500x123x100 Opal Direct PC e-Sense Detect on/off
39335-495 41 5829 3000 1500x127x107 Opal Direct PC e-Sense Detect DALI absence 50000 CLO 50 000 h
39335-553 41 5829 3000 1500x127x107 Opal Direct PC DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h.
39335-569 42 5829 3000 1500x127x107 Opal Direct PC e-Sense Flex 50000
39341 63 9304 4000 1200x123x100 Opal Direct Acrylic On/off
39341-35 63 9304 4000 1200x123x100 Opal Direct Acrylic On/off Through-wiring 5x2,5 mm²
39341-402 50 7671 4000 1200x127x107 Opal Direct Acrylic DALI/Phase-pulse 100000 CLO 100 000 h
39341-469 64 9304 4000 1200x123x100 Opal Direct Acrylic e-Sense Detect on/off
39341-495 51 7671 4000 1200x127x107 Opal Direct Acrylic e-Sense Detect DALI absence 100000 CLO 100 000 h
39341-553 50 7671 4000 1200x127x107 Opal Direct Acrylic DALI/Phase-pulse 100000 Through-wiring 5x2,5 mm². CLO 100 000 h.
39341-569 52 7671 4000 1200x127x107 Opal Direct Acrylic e-Sense Flex 100000
39342 63 8829 3000 1200x123x100 Opal Direct Acrylic On/off
39342-35 63 8829 3000 1200x123x100 Opal Direct Acrylic On/off Through-wiring 5x2,5 mm²
39342-402 50 7280 3000 1200x127x107 Opal Direct Acrylic DALI/Phase-pulse 100000 CLO 100 000 h
39342-469 64 8829 3000 1200x123x100 Opal Direct Acrylic e-Sense Detect on/off
39342-495 51 7280 3000 1200x127x107 Opal Direct Acrylic e-Sense Detect DALI absence 100000 CLO 100 000 h
39342-553 50 7280 3000 1200x127x107 Opal Direct Acrylic DALI/Phase-pulse 100000 Through-wiring 5x2,5 mm². CLO 100 000 h.
39342-569 52 7280 3000 1200x127x107 Opal Direct Acrylic e-Sense Flex 100000
39343 63 8783 4000 1200x123x100 Opal Direct PC On/off
39343-35 63 8783 4000 1200x123x100 Opal Direct PC On/off Through-wiring 5x2,5 mm²
39343-402 50 7241 4000 1200x127x107 Opal Direct PC DALI/Phase-pulse 100000 CLO 100 000 h
39343-469 64 8783 4000 1200x123x100 Opal Direct PC e-Sense Detect on/off
39343-495 51 7241 4000 1200x127x107 Opal Direct PC e-Sense Detect DALI absence 100000 CLO 100 000 h
39343-553 50 7241 4000 1200x127x107 Opal Direct PC DALI/Phase-pulse 100000 Through-wiring 5x2,5 mm². CLO 100 000 h.
39343-569 52 7241 4000 1200x127x107 Opal Direct PC e-Sense Flex 100000
39344 63 8335 3000 1200x123x100 Opal Direct PC On/off
39344-35 63 8335 3000 1200x123x100 Opal Direct PC On/off Through-wiring 5x2,5 mm²
39344-402 50 6872 3000 1200x127x107 Opal Direct PC DALI/Phase-pulse 100000 CLO 100 000 h
39344-469 64 8335 3000 1200x123x100 Opal Direct PC e-Sense Detect on/off
39344-495 51 6872 3000 1200x127x107 Opal Direct PC e-Sense Detect DALI absence 100000 CLO 100 000 h
39344-553 50 6872 3000 1200x127x107 Opal Direct PC DALI/Phase-pulse 100000 Through-wiring 5x2,5 mm². CLO 100 000 h.
39344-569 52 6872 3000 1200x127x107 Opal Direct PC e-Sense Flex 100000
39345 62 10525 4000 1500x123x100 Opal Direct Acrylic On/off
39345-35 62 10525 4000 1500x123x100 Opal Direct Acrylic On/off Through-wiring 5x2,5 mm²
39345-402 50 8715 4000 1500x127x107 Opal Direct Acrylic DALI/Phase-pulse 100000 CLO 100 000 h
39345-469 64 10525 4000 1500x123x100 Opal Direct Acrylic e-Sense Detect on/off
39345-495 50 8715 4000 1500x127x107 Opal Direct Acrylic e-Sense Detect DALI absence 100000 CLO 100 000 h
39345-553 50 8715 4000 1500x127x107 Opal Direct Acrylic DALI/Phase-pulse 100000 Through-wiring 5x2,5 mm². CLO 100 000 h.
39345-569 51 8715 4000 1500x127x107 Opal Direct Acrylic e-Sense Flex 100000
39346 62 9988 3000 1500x123x100 Opal Direct Acrylic On/off
39346-35 62 9988 3000 1500x123x100 Opal Direct Acrylic On/off Through-wiring 5x2,5 mm²
39346-402 50 8271 3000 1500x127x107 Opal Direct Acrylic DALI/Phase-pulse 100000 CLO 100 000 h
39346-469 64 9988 3000 1500x123x100 Opal Direct Acrylic e-Sense Detect on/off
39346-495 50 8271 3000 1500x127x107 Opal Direct Acrylic e-Sense Detect DALI absence 100000 CLO 100 000 h
39346-553 50 8271 3000 1500x127x107 Opal Direct Acrylic DALI/Phase-pulse 100000 Through-wiring 5x2,5 mm². CLO 100 000 h.
39346-569 51 8271 3000 1500x127x107 Opal Direct Acrylic e-Sense Flex 100000
39347 62 9038 4000 1500x123x100 Opal Direct PC On/off
39347-35 62 9038 4000 1500x123x100 Opal Direct PC On/off Through-wiring 5x2,5 mm²
39347-402 50 7484 4000 1500x127x107 Opal Direct PC DALI/Phase-pulse 100000 CLO 100 000 h
39347-469 62 9038 4000 1500x123x100 Opal Direct PC e-Sense Detect on/off
39347-495 50 7484 4000 1500x127x107 Opal Direct PC e-Sense Detect DALI absence 100000 CLO 100 000 h
39347-553 50 7484 4000 1500x127x107 Opal Direct PC DALI/Phase-pulse 100000 Through-wiring 5x2,5 mm². CLO 100 000 h.
39347-569 51 7484 4000 1500x127x107 Opal Direct PC e-Sense Flex 100000
39348 62 8577 3000 1500x123x100 Opal Direct PC On/off
39348-35 62 8577 3000 1500x123x100 Opal Direct PC On/off Through-wiring 5x2,5 mm²
39348-402 50 7102 3000 1500x127x107 Opal Direct PC DALI/Phase-pulse 100000 CLO 100 000 h
39348-469 62 8577 3000 1500x123x100 Opal Direct PC e-Sense Detect on/off
39348-495 50 7102 3000 1500x127x107 Opal Direct PC e-Sense Detect DALI absence 100000 CLO 100 000 h
39348-553 50 7102 3000 1500x127x107 Opal Direct PC DALI/Phase-pulse 100000 Through-wiring 5x2,5 mm². CLO 100 000 h.
39348-569 51 7102 3000 1500x127x107 Opal Direct PC e-Sense Flex 100000
39349 32 5162 4000 1200x123x100 Opal Direct Acrylic On/off Max ambient temperature + 50° C
39349-35 32 5162 4000 1200x123x100 Opal Direct Acrylic On/off Through-wiring 5x2,5 mm². Max ambient temperature + 50° C
39349-402 30 4687 4000 1200x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 CLO 50 000 h. Max ambient temperature + 50° C
39349-469 34 5162 4000 1200x123x100 Opal Direct Acrylic e-Sense Detect on/off Max ambient temperature + 50° C
39349-495 31 4687 4000 1200x127x107 Opal Direct Acrylic e-Sense Detect DALI absence 50000 CLO 50 000 h. Max ambient temperature + 50° C
39349-553 30 4687 4000 1200x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h. Max ambient temperature + 50° C
39349-569 31 4687 4000 1200x127x107 Opal Direct Acrylic e-Sense Flex 50000 Max ambient temperature + 50° C
39350 32 4899 3000 1200x123x100 Opal Direct Acrylic On/off Max ambient temperature + 50° C
39350-35 32 4899 3000 1200x123x100 Opal Direct Acrylic On/off Through-wiring 5x2,5 mm². Max ambient temperature + 50° C
39350-402 30 4448 3000 1200x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 CLO 50 000 h. Max ambient temperature + 50° C
39350-469 34 4899 3000 1200x123x100 Opal Direct Acrylic e-Sense Detect on/off Max ambient temperature + 50° C
39350-495 31 4448 3000 1200x127x107 Opal Direct Acrylic e-Sense Detect DALI absence 50000 CLO 50 000 h. Max ambient temperature + 50° C
39350-553 30 4448 3000 1200x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h. Max ambient temperature + 50° C
39350-569 31 4448 3000 1200x127x107 Opal Direct Acrylic e-Sense Flex 50000 Max ambient temperature + 50° C
39351 32 4873 4000 1200x123x100 Opal Direct PC On/off Max ambient temperature + 50° C
39351-35 32 4873 4000 1200x123x100 Opal Direct PC On/off Through-wiring 5x2,5 mm². Max ambient temperature + 50° C
39351-402 30 4425 4000 1200x127x107 Opal Direct PC DALI/Phase-pulse 50000 CLO 50 000 h. Max ambient temperature + 50° C
39351-469 34 4873 4000 1200x123x100 Opal Direct PC e-Sense Detect on/off Max ambient temperature + 50° C
39351-495 31 4425 4000 1200x127x107 Opal Direct PC e-Sense Detect DALI absence 50000 CLO 50 000 h. Max ambient temperature + 50° C
39351-553 30 4425 4000 1200x127x107 Opal Direct PC DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h. Max ambient temperature + 50° C
39351-569 31 4425 4000 1200x127x107 Opal Direct PC e-Sense Flex 50000 Max ambient temperature + 50° C
39352 32 4624 3000 1200x123x100 Opal Direct PC On/off Max ambient temperature + 50° C
39352-35 32 4624 3000 1200x123x100 Opal Direct PC On/off Through-wiring 5x2,5 mm². Max ambient temperature + 50° C
39352-402 30 4199 3000 1200x127x107 Opal Direct PC DALI/Phase-pulse 50000 CLO 50 000 h. Max ambient temperature + 50° C
39352-469 34 4624 3000 1200x123x100 Opal Direct PC e-Sense Detect on/off Max ambient temperature + 50° C
39352-495 31 4199 3000 1200x127x107 Opal Direct PC e-Sense Detect DALI absence 50000 CLO 50 000 h. Max ambient temperature + 50° C
39352-553 30 4199 3000 1200x127x107 Opal Direct PC DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h. Max ambient temperature + 50° C
39352-569 31 4199 3000 1200x127x107 Opal Direct PC e-Sense Flex 50000 Max ambient temperature + 50° C
39353 32 5922 4000 1500x123x100 Opal Direct Acrylic On/off Max ambient temperature + 50° C
39353-35 32 5922 4000 1500x123x100 Opal Direct Acrylic On/off Through-wiring 5x2,5 mm². Max ambient temperature + 50° C
39353-402 30 5377 4000 1500x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 CLO 50 000 h. Max ambient temperature + 50° C
39353-469 33 5922 4000 1500x123x100 Opal Direct Acrylic e-Sense Detect on/off Max ambient temperature + 50° C
39353-495 30 5377 4000 1500x127x107 Opal Direct Acrylic e-Sense Detect DALI absence 50000 CLO 50 000 h. Max ambient temperature + 50° C
39353-553 30 5377 4000 1500x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h. Max ambient temperature + 50° C
39353-569 31 5377 4000 1500x127x107 Opal Direct Acrylic e-Sense Flex 50000 Max ambient temperature + 50° C
39354 32 5620 3000 1500x123x100 Opal Direct Acrylic On/off Max ambient temperature + 50° C
39354-35 32 5620 3000 1500x123x100 Opal Direct Acrylic On/off Through-wiring 5x2,5 mm². Max ambient temperature + 50° C
39354-402 30 5103 3000 1500x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 CLO 50 000 h. Max ambient temperature + 50° C
39354-469 33 5620 3000 1500x123x100 Opal Direct Acrylic e-Sense Detect on/off Max ambient temperature + 50° C
39354-495 30 5103 3000 1500x127x107 Opal Direct Acrylic e-Sense Detect DALI absence 50000 CLO 50 000 h. Max ambient temperature + 50° C
39354-553 30 5103 3000 1500x127x107 Opal Direct Acrylic DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h. Max ambient temperature + 50° C
39354-569 31 5103 3000 1500x127x107 Opal Direct Acrylic e-Sense Flex 50000 Max ambient temperature + 50° C
39355 32 5590 4000 1500x123x100 Opal Direct PC On/off Max ambient temperature + 50° C
39355-35 32 5590 4000 1500x123x100 Opal Direct PC On/off Through-wiring 5x2,5 mm². Max ambient temperature + 50° C
39355-402 30 4617 4000 1500x127x107 Opal Direct PC DALI/Phase-pulse 50000 CLO 50 000 h. Max ambient temperature + 50° C
39355-469 33 5590 4000 1500x123x100 Opal Direct PC e-Sense Detect on/off Max ambient temperature + 50° C
39355-495 30 4617 4000 1500x127x107 Opal Direct PC e-Sense Detect DALI absence 50000 CLO 50 000 h. Max ambient temperature + 50° C
39355-553 30 4617 4000 1500x127x107 Opal Direct PC DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h. Max ambient temperature + 50° C
39355-569 31 4617 4000 1500x127x107 Opal Direct PC e-Sense Flex 50000 Max ambient temperature + 50° C
39356 32 5305 3000 1500x123x100 Opal Direct PC On/off Max ambient temperature + 50° C
39356-35 32 5305 3000 1500x123x100 Opal Direct PC On/off Through-wiring 5x2,5 mm². Max ambient temperature + 50° C
39356-402 30 4382 3000 1500x127x107 Opal Direct PC DALI/Phase-pulse 50000 CLO 50 000 h. Max ambient temperature + 50° C
39356-469 33 5305 3000 1500x123x100 Opal Direct PC e-Sense Detect on/off Max ambient temperature + 50° C
39356-495 30 4382 3000 1500x127x107 Opal Direct PC e-Sense Detect DALI absence 50000 CLO 50 000 h. Max ambient temperature + 50° C
39356-553 30 4382 3000 1500x127x107 Opal Direct PC DALI/Phase-pulse 50000 Through-wiring 5x2,5 mm². CLO 50 000 h. Max ambient temperature + 50° C
39356-569 31 4382 3000 1500x127x107 Opal Direct PC e-Sense Flex 50000 Max ambient temperature + 50° C
Showing 11 of 11 Accessories
Name Description Art.no. Article PDF
Adjustable wall bracket Adjustable wall bracket/pair 91375
Wall bracket L=150 mm (apiece) 91508
Wall bracket Length 250 mm 91509
Wall bracket 135 °, L=200 mm/st 91313
Adjustable ceiling bracket Adjustable ceiling bracket/pair 91374
no-image placeholder Spare shade Spare shade polycarbonate 1500 mm. 95425
no-image placeholder Spare shade Spare shade acrylic 1500 mm. 95422
no-image placeholder Spare shade Spare shade acrylic 1200 mm. 95421
no-image placeholder Spare shade Spare shade polycarbonate 600 mm. 95423
no-image placeholder Spare shade Spare shade acrylic 600 mm. 95420
no-image placeholder Spare shade Spare shade polycarbonate 1200 mm. 95424

Downloads

Kaptur surface

Documents

Open PDF
Open PDF

3D Models

Manuals

Open PDF
Open PDF
Open PDF
Open PDF
Reference case

Platinan

A clear focus on sustainability, innovation and teamwork

Read more
Reference case

Unilever Foods Innovation Center 'Hive'

One of the world's most sustainable buildings

Read more
Reference case

Birdies

A playful and dynamic lighting concept

Read more
Reference case

Bauhaus

Professional light for do-it-yourselfers

Read more
Reference case

New Olympia Arena

More than just football

Read more
Reference case

Ormhuset at Strandängen

The shining crown jewel

Read more
Reference case

Vålerenga stadium

A customer-based solution

Read more
Reference case

Prioritet Serneke Arena

Indoor skiing in LED light

Read more
Return to top
