SektorSurface

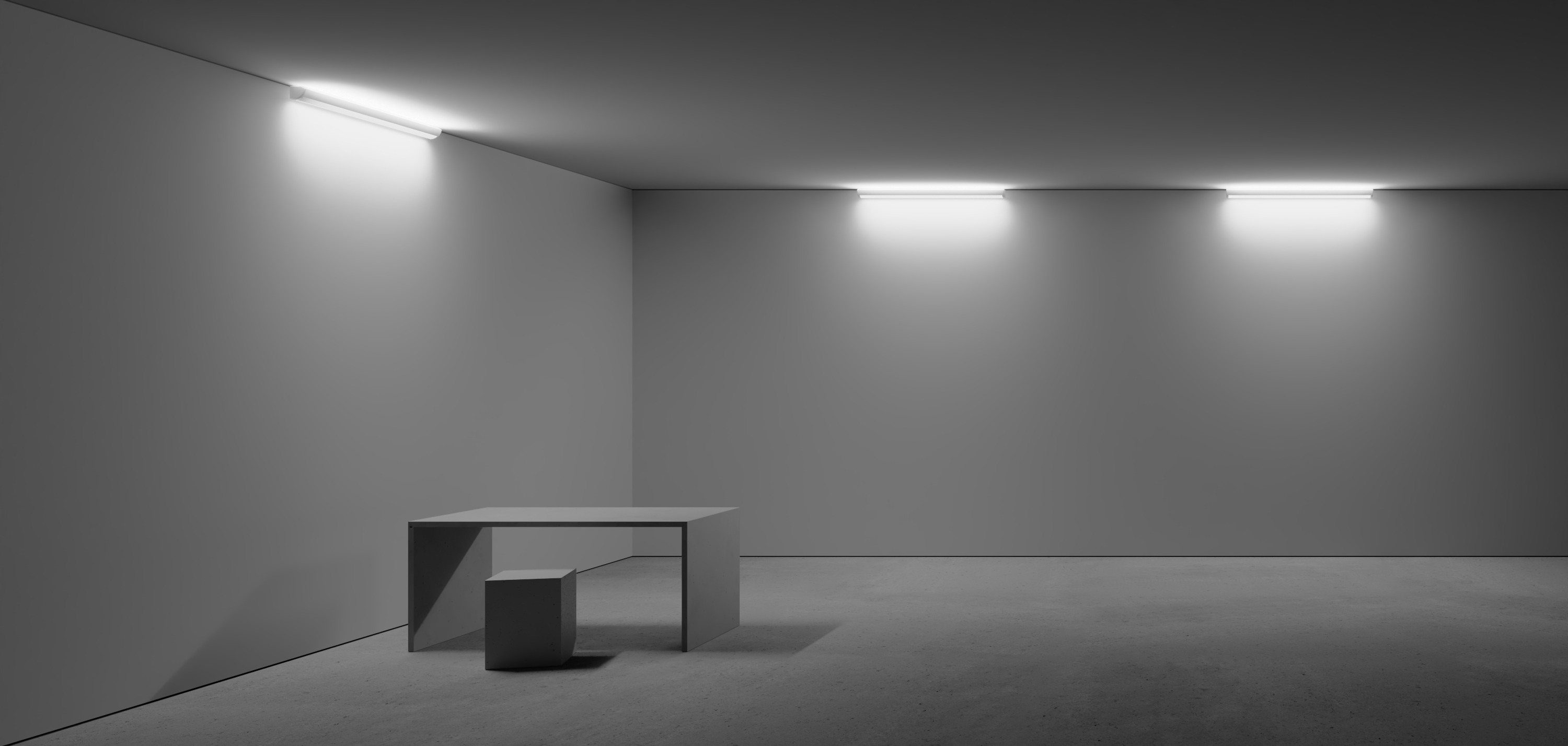

Sektor is a discreet corner luminaire providing optimal lighting in corridors and other communication areas. The light is distributed efficiently between the ceiling and the wall, illuminating the corridor surfaces asymmetrically.
SektorSurface
Sektor is a discreet corner luminaire providing optimal lighting in corridors and other communication areas. The light is distributed efficiently between the ceiling and the wall, illuminating the corridor surfaces asymmetrically.
Installation
Luminaire for installation at the junction between ceiling and wall. Can be mounted to the wall or ceiling. For detailed information, see the installation instructions.
Connection
For permanent connection; integrated driver in the luminaire. The luminaire is equipped with cable entries facing the ceiling and wall. For surface-mounted cable, there are knockouts at each end cap. Connection via snap-in terminal block (5x1.5 mm²) in the middle of the luminaire. When dimming, 1-phase through-wiring possible. On special request, can be supplied with through-wiring (3-core or 5-core cable) and terminal block at each end. CLO (Constant Light Output).
Design
Luminaire body made of sheet steel. Lacquered in white (RAL 9016 G40). Die-cast aluminium end caps, made from post-consumer recycled material.
Light Distribution
Asymmetrical.
Light data
Optics
Asymmetrical aluminium reflector. Lamell – white enamelled cross-blade louvre with perforated front.
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Dimensions, mm | Module | Light distribution | Light control | CLO time, h | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 17426-402 | 15 | 1957 | 3000 | White | 1187x95x76 | 1200 | Direct | DALI/Phase-pulse | 100000 |
|
|
| 17427-402 | 26 | 3344 | 3000 | White | 1187x95x76 | 1200 | Direct | DALI/Phase-pulse | 100000 |
|
|
| 17428-402 | 15 | 2030 | 4000 | White | 1187x95x76 | 1200 | Direct | DALI/Phase-pulse | 100000 |
|
|
| 17429-402 | 26 | 3469 | 4000 | White | 1187x95x76 | 1200 | Direct | DALI/Phase-pulse | 100000 |
|
