InduflexSurface

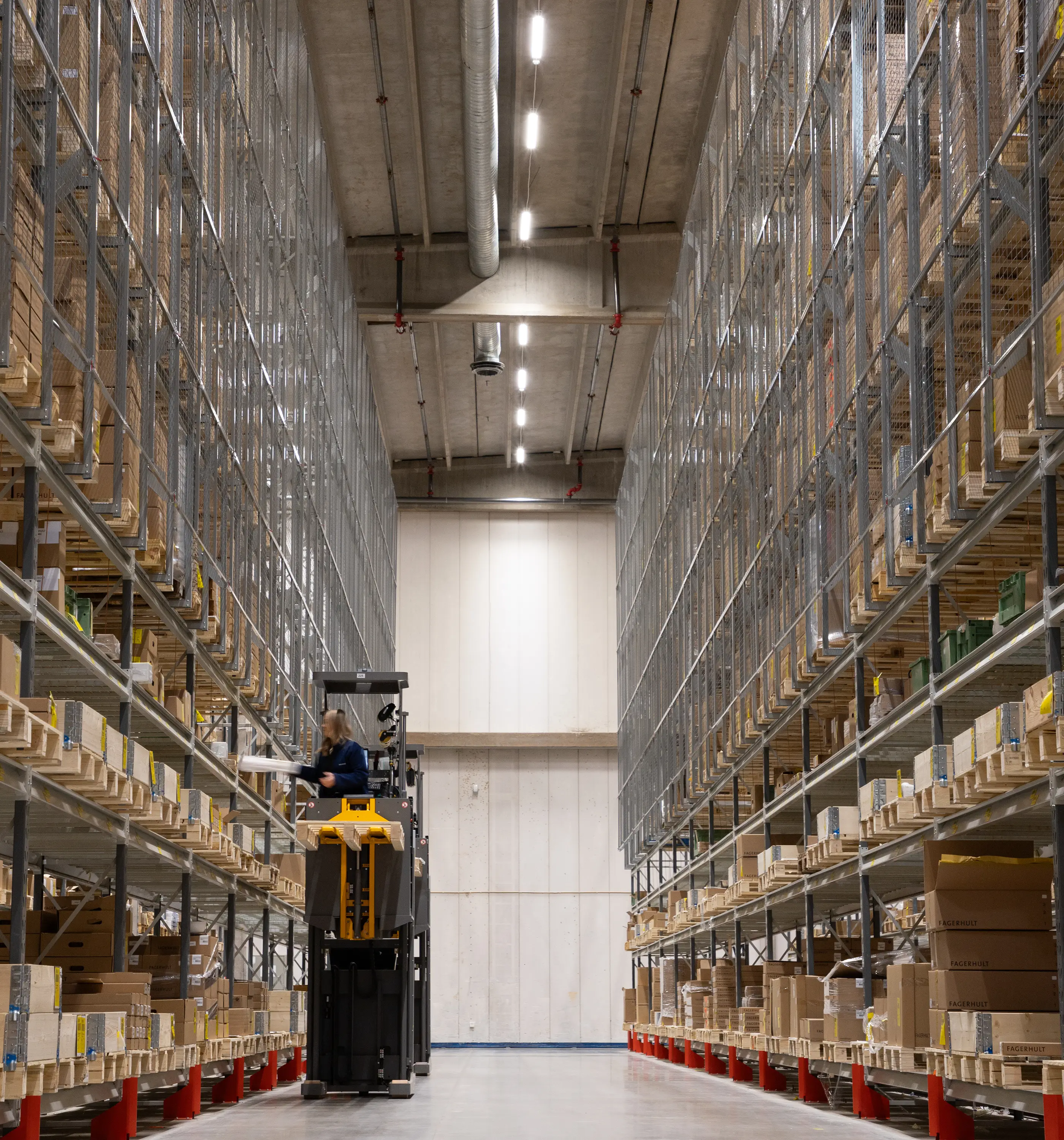

Induflex is a reliable luminaire ideally suited to industrial facilities, warehouses and retail premises. High luminous fluxes, three light distribution options and innovative installation make Induflex an efficient solution.
InduflexSurface
Induflex is a reliable luminaire ideally suited to industrial facilities, warehouses and retail premises. High luminous fluxes, three light distribution options and innovative installation make Induflex an efficient solution.
Installation

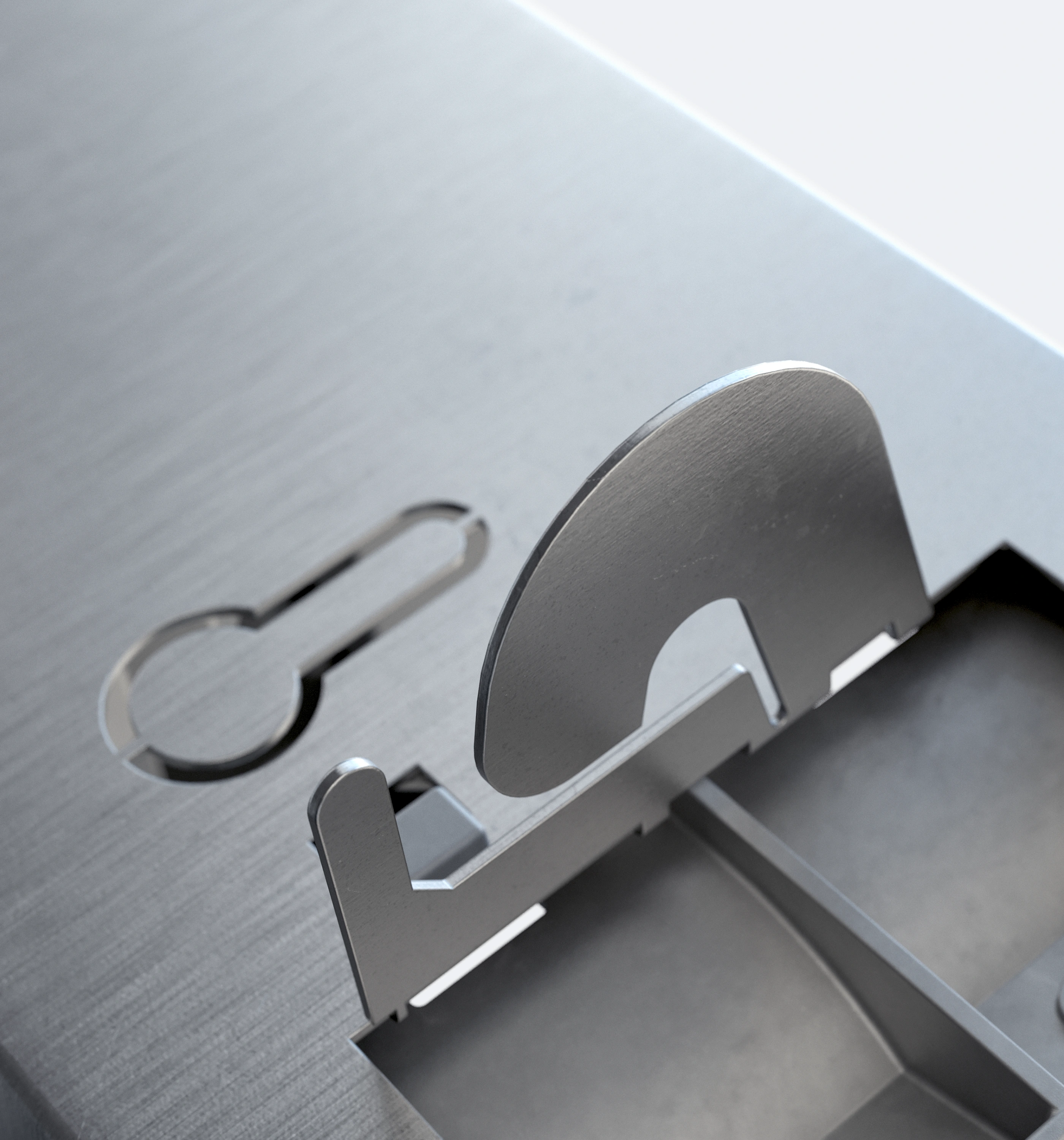

Luminaire for surface-mounted ceiling installation, or cable via integrated bracket. Mounting on tube with separate tube bracket, or wall with separate wall bracket, see Accessories. For detailed information, see the installation instructions.
See installation video InduflexConnection
Openable luminaire where the mains cable is inserted via end cap. For different connection options, use Fagerhult Configure. CLO (Constant Light Output). The luminaire is available in three different luminous flux levels: low lumen, medium lumen and high lumen.
Design
Hot-dip galvanized steel sheet luminaire body, made from 20% post-consumer recycled material. Also cast zinc end caps, made from 40% post-consumer recycled material. High-flow variants have a lacquered body (RAL 9006). Available in 1200 mm and 1500 mm lengths.
Light Distribution
Direct. Narrow, medium or wide beam.
Light data
Optics
Acrylic lenses for optimal light distribution and glare reduction.
High efficiency and fewer installation points
Lenses and louvres are placed together, providing high energy efficiency and good luminous flux. This allows 30% fewer installation points as well as reduced material use and energy consumption. In larger facilities, 30% of energy can be saved compared to the product’s predecessor (InduLED) and 60% compared to previous fluorescent lighting.
Recycled materials
The product contains die-cast zinc (approximately 40% recycled). Recycled raw materials reduce energy consumption compared to virgin metal, resulting in a lower carbon footprint. Recycling also promotes a circular economy and reduces the amount of waste.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
Organic Response HighbayPIR/Microwave sensor
Compatible with Organic Response’s other solutions. Wireless system that, in one and the same device, you can switch between PIR and microwave sensor for occupancy detection, or use both at the same time.
Read moree-Sense Move HighbayPIR/Microwave sensor
Wireless system that, in one and the same device, you can switch between PIR and microwave sensor for occupancy detection, or use both at the same time.
Read moreDALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Articles
Configure your Induflex
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Adjustable wall bracket | Adjustable wall bracket/pair | 91375 | |
|
Tube bracket | Conduit bracket/pair | 91198 | |
|
Adjustable ceiling bracket | Adjustable ceiling bracket/pair | 91374 | |
|
Remote control e-Sense Move Highbay/Customised Stand-alone | Remote control | 86368 | |
|
Strain relief | Strain relief | 92615 |
