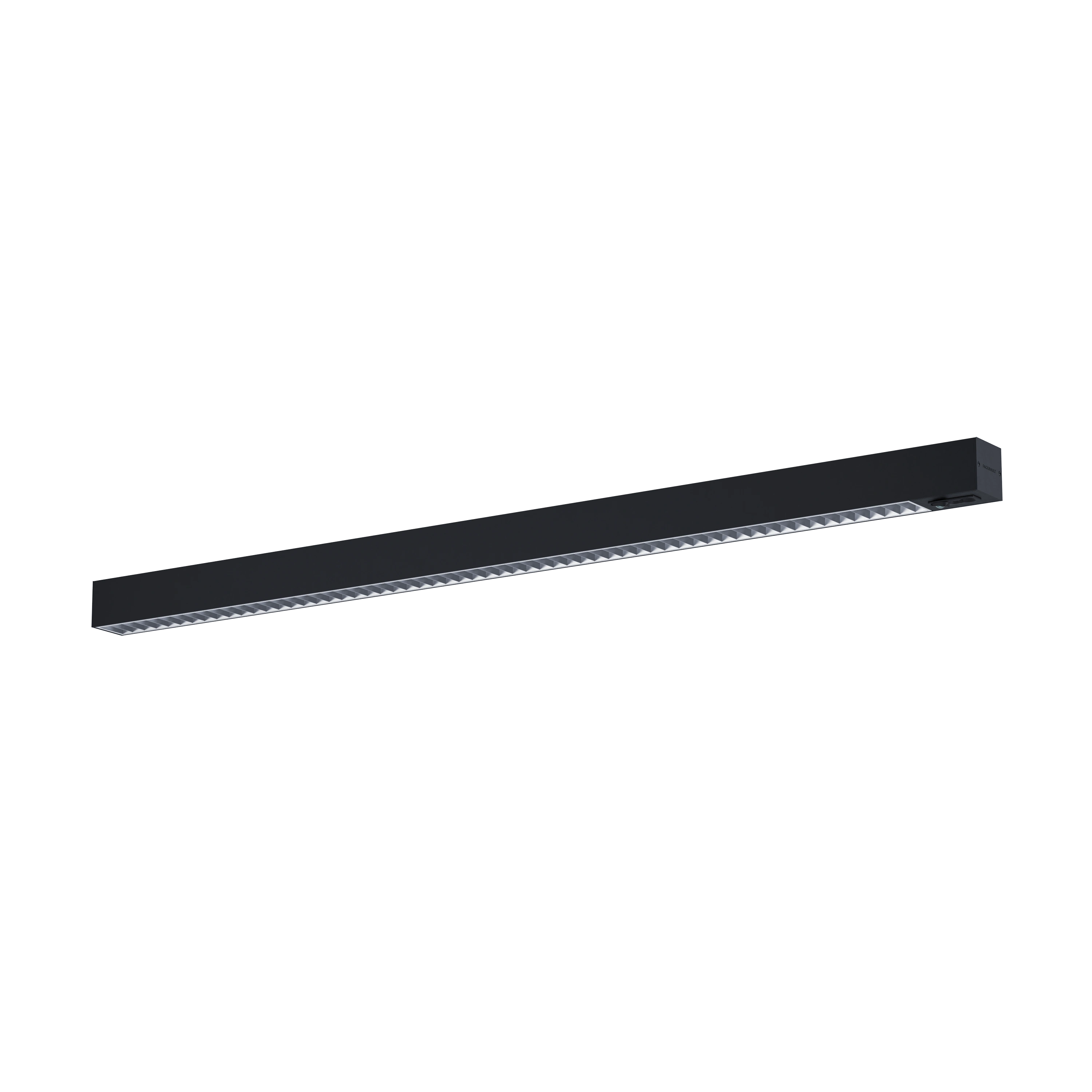

Notor 65Surface
Notor 65 is a luminaire family that combines design aesthetics with highlighting comfort and performance. The wide variety of louvres, lengths, colours and control options provides great flexibility and many possibilities for creating unique lighting environments.
Notor 65Surface
Notor 65 is a luminaire family that combines design aesthetics with highlighting comfort and performance. The wide variety of louvres, lengths, colours and control options provides great flexibility and many possibilities for creating unique lighting environments.
Installation
Luminaire for surface-mounted ceiling installation, single or continuous. Can also be mounted on walls or bookcases with bracket or console; see Accessories. Can also be suspended. For various for wire suspension and mounting options, use Fagerhult Configure. To obtain an item list and calculate continuous installation length, use our configurator. For detailed information, see the installation instructions.
Connection
For permanent connection; integrated driver in the luminaire. The luminaire is supplied with a cable entry on the top. For external wiring, a special end cap with cable entry is used; see Accessories. For continuous installation, the luminaire row must always begin with a start luminaire. Continuous luminaires are equipped with a through-wire (5x1.5 mm²) and a snap-in connector in each end cap. Luminaires with Tunable White (2700–6500K) are equipped with the DALI Device Type 8 driver. CLO (Constant Light Output).
Design
Extruded aluminium luminaire body, made from 75% post-consumer recycled material. Lacquered in white (RAL 9016 G40), Black (RAL 9005 G30) or natural anodised extruded aluminium. End caps included with start/single luminaires. In the case of continuous installation, one end cap is moved to the end of the system. Indirect light is covered by an opal film that generates a wide/extra wide beam and also serves as a dust cover.
Light Distribution
Direct.
Light data
Optics

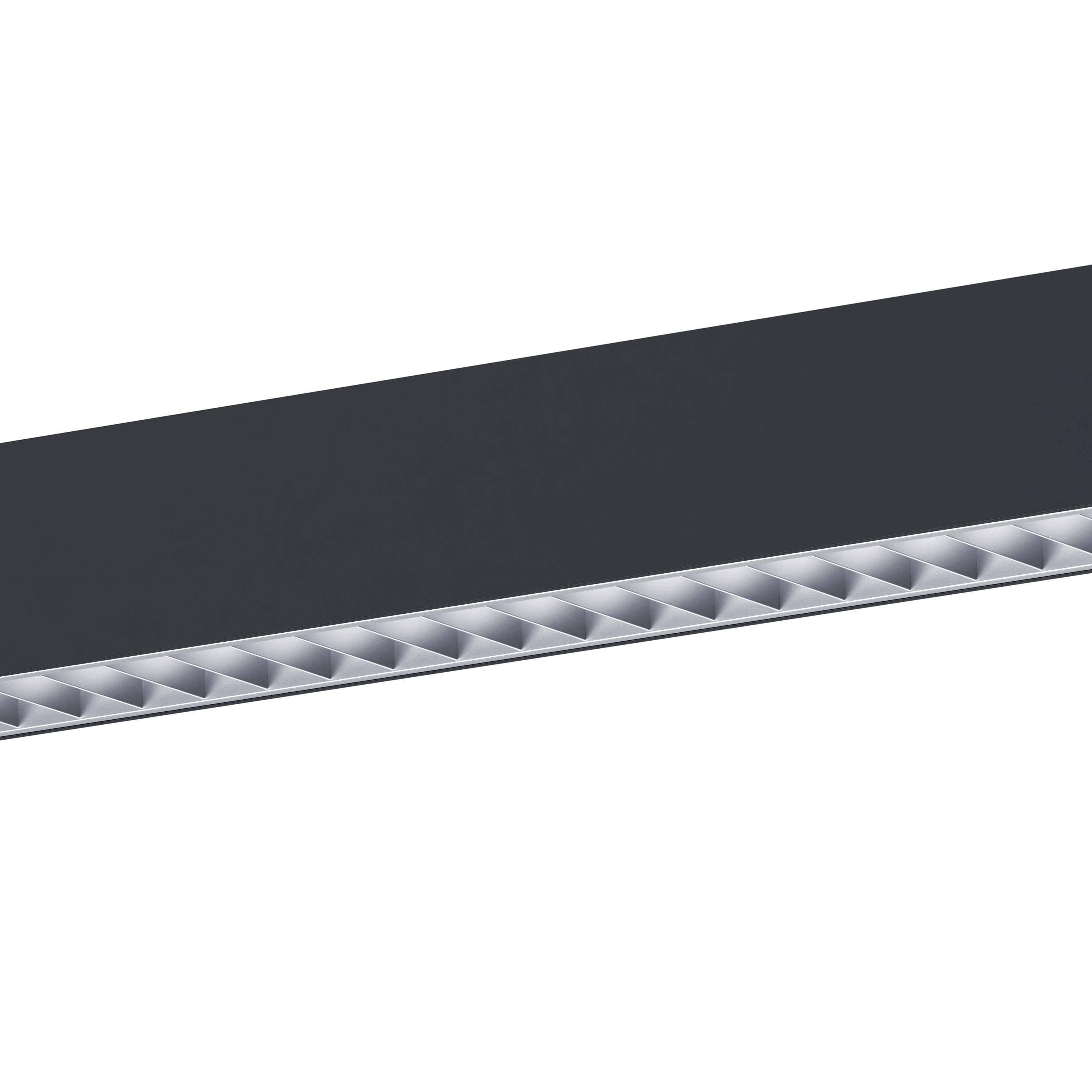

Beta Opti – side and crosswise semi-gloss reflectors in metallised aluminium with an integrated opal film that minimises the risk of uncomfortable glare from the LEDs. Delta – micro-prism louvre in acrylic (PMMA). Opal – frosted acrylic (PMMA) disc.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
Timeless design & long-term use
A timeless design results in a classic product that is less sensitive to trends. This increases the likelihood of reuse, making the luminaire a sensible choice for construction projects with a long-term sustainability perspective.
Made of recycled aluminium
The luminaire body is made of recycled aluminium, which consists of 75% post-consumer material (end-of-life scrap) from Europe. This aluminium (excluding extrusion) has a 71% lower climate impact compared to average primary aluminium from Europe (Source: European Aluminium). These calculations are based on the climate impact reported in the EPD compared to the average values.
Organic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read moreDALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Pull dim
Dimming via a cord with stepped or hold‑to‑dim activation.
Push dim
Manual dimming via a momentary pushbutton. A short press turns the luminaire on/off, while a long press adjusts the light level.
Articles
Configure your Notor 65
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Dimensions, mm | Module | Light distribution | Installation | Light control | CLO time, h | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13660-20043 | 16 | 2200 | 4000 | White | 1267x65x65 | 1200 | Direct | Single | DALI/Phase-pulse | 50000 | LL |
|
|
| 13660-20045 | 31 | 4400 | 4000 | White | 2528x65x65 | 2400 | Direct | Single | DALI/Phase-pulse | 50000 | LL |
|
|
| 13660-20047 | 8 | 1033 | 4000 | White | 840x65x65 | 800 | Direct | Single | DALI/Phase-pulse | 50000 | LL |
|
|
| 13660-20048 | 11 | 1550 | 4000 | White | 1256x65x65 | 1200 | Direct | Single | DALI/Phase-pulse | 50000 | LL |
|
|
| 13660-20050 | 23 | 3100 | 4000 | White | 2506x65x65 | 2400 | Direct | Single | DALI/Phase-pulse | 50000 | LL |
|
|
| 13660-20052 | 12 | 1667 | 4000 | White | 840x65x65 | 800 | Direct | Single | DALI/Phase-pulse | 50000 | HL |
|
|
| 13660-20053 | 17 | 2500 | 4000 | White | 1256x65x65 | 1200 | Direct | Single | DALI/Phase-pulse | 50000 | HL |
|
|
| 13660-20054 | 34 | 5000 | 4000 | White | 2506x65x65 | 2400 | Direct | Single | DALI/Phase-pulse | 50000 | HL |
|
|
| 13660-20919 | 8 | 1033 | 4000 | White | 840x65x65 | 800 | Direct | Start | DALI/Phase-pulse | 50000 | LL |
|
|
| 13660-20927 | 11 | 1550 | 4000 | White | 1256x65x65 | 1200 | Direct | Start | DALI/Phase-pulse | 50000 | LL |
|
|
| 13660-20955 | 23 | 3100 | 4000 | White | 2506x65x65 | 2400 | Direct | Start | DALI/Phase-pulse | 50000 | LL |
|
|
| 13660-20971 | 8 | 1033 | 4000 | White | 836x65x65 | 800 | Direct | Continuous | DALI/Phase-pulse | 50000 | LL |
|
|
| 13660-20979 | 11 | 1550 | 4000 | White | 1252x65x65 | 1200 | Direct | Continuous | DALI/Phase-pulse | 50000 | LL |
|
|
| 13660-20995 | 23 | 3100 | 4000 | White | 2502x65x65 | 2400 | Direct | Continuous | DALI/Phase-pulse | 50000 | LL |
|
|
| 13660-21008 | 12 | 1667 | 4000 | White | 840x65x65 | 800 | Direct | Start | DALI/Phase-pulse | 50000 | HL |
|
|
| 13660-21012 | 17 | 2500 | 4000 | White | 1256x65x65 | 1200 | Direct | Start | DALI/Phase-pulse | 50000 | HL |
|
|
| 13660-21016 | 34 | 5000 | 4000 | White | 2506x65x65 | 2400 | Direct | Start | DALI/Phase-pulse | 50000 | HL |
|
|
| 13660-21020 | 12 | 1667 | 4000 | White | 836x65x65 | 800 | Direct | Continuous | DALI/Phase-pulse | 50000 | HL |
|
|
| 13660-21024 | 17 | 2500 | 4000 | White | 1252x65x65 | 1200 | Direct | Continuous | DALI/Phase-pulse | 50000 | HL |
|
|
| 13660-21028 | 34 | 5000 | 4000 | White | 2502x65x65 | 2400 | Direct | Continuous | DALI/Phase-pulse | 50000 | HL |
|
|
| 92694 | Anodised | 800 | Continuous |
|
|||||||||
| 92695 | White | 800 | Continuous |
|
|||||||||
| 92696 | Black | 800 | Continuous |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
IR dongle for Organic Response | IR dongle for Organic Response equipped luminaire. | 86279 | |
|
Organic Response IoT Gateway | Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. | 86296 | |
|
Organic Response I/O box | I/O box with potential-free 16A relay for controlling external units. | 86413 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, white | 86416 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, white | 86417 | |
|
|
Organic Response I/O box | I/O box with potential-free 8A relay for controlling external units. | 86433 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, labeled, white | 86436 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, labeled, white | 86437 | |
|
Support rail (cat. no./pair) | L=600/650, section: 15, max. load: 75N/pair | 90015 | |
|
|
Support rail (cat. no./pair) | L=200/1250, section: 15, max. load: 120/30N/pair | 90016 | |
|
Wire suspension for support rails L: 1,5m | Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 | 91426 | |
|
Ceiling bracket in chrome with wire | Wire suspension with ceiling bracket in chrome, L=1.5 m/pair | 91696 | |
|
Spacers | Spacers 200 mm | 92660 | |
|
Spacers | Spacers 200 mm | 92661 | |
|
|
Spacers | Spacers 400 mm | 92662 | |
|
|
Spacers | Spacers 400 mm | 92663 | |
|
|
Spacers | Spacers 600 mm | 92664 | |
|
|
Spacers | Spacers 600 mm | 92665 | |
|
|
Spacers | Spacers 800 mm | 92666 | |
|
|
Spacers | Spacers 800 mm | 92667 | |
|
|
Spacers | Spacers 1000 mm | 92668 | |
|
|
Spacers | Spacers 1000 mm | 92669 | |
|
|
Spacers | Spacers 1200 mm | 92670 | |
|
|
Spacers | Spacers 1200 mm | 92671 | |
|
Wall socket | Wall socket Notor 65/pair | 92673 | |
|
Wall bracket Notor 65 | Wall bracket 1 piece, 200 mm. Anodised. | 92674 | |
|
Wall bracket Notor 65 | Wall bracket 1 piece, 200 mm. White. | 92675 | |
|
End-cap Notor 65 | End-cap with hole for surface mounted cable/each. Anodised. | 92676 | |
|
End-cap Notor 65 | End-cap with hole for surface mounted cable/each. White. | 92677 | |
|
emLED-unit | Continuous luminaire emLED-unit, 270 mm | 92678 | |
|
emLED-unit | Continuous luminaire emLED-unit, 270 mm | 92679 | |
|
Wire bracket incl. friction locks | Wire bracket/pair | 92682 | |
|
Wire bracket incl. friction locks | Wire bracket/pair | 92683 | |
|
Wire bracket incl. friction locks | Wire bracket/pair | 92684 | |
|
|
Wall bracket Notor 65 | Wall bracket 1 piece with terminal block, 200 mm. Anodised. | 92685 | |
|
|
Wall bracket Notor 65 | Wall bracket 1 piece with terminal block, 200 mm. White. | 92686 | |
|
Organic Response-unit Notor 65 | Organic Response-unit, alu. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI in both directions. 200 mm. | 92688 | |
|
|
Organic Response-unit Notor 65 | Organic Response-unit, alu. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the right and breaks DALI to the left. 200 mm. | 92689 | |
|
|
Organic Response-unit Notor 65 | Organic Response-unit, alu. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the left and breaks DALI to the right. 200 mm. | 92690 | |
|
Organic Response-unit Notor 65 | Organic Response-unit, white. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI in both directions. 200 mm. | 92691 | |
|
|
Organic Response-unit Notor 65 | Organic Response-unit, white. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the right and breaks DALI to the left. 200 mm. | 92692 | |
|
|
Organic Response-unit Notor 65 | Organic Response-unit, white. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the left and breaks DALI to the right. 200 mm. | 92693 | |
|
|
Support rail (cat. no./pair) | L=600/625, section: 25, max. load: 75N/pair | 94067 | |
|
|
Support rail (cat. no./pair) | L=1200/1250, section: 25, max. load: 120/30N/pair | 94068 | |
|
Cutters | Cutters, each | 94248 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96374) | 95358 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96378) | 95359 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376) | 95360 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379) | 95361 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96374) | 95362 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96378) | 95363 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376) | 95364 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379) | 95365 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96375) | 95374 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96380) | 95375 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377) | 95376 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381) | 95377 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96375) | 95378 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96380) | 95379 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377) | 95380 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381) | 95381 | |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup/each | 96370 | |
|
Wire suspension for continuous installation L: 1,4m | Large square ceiling cup/each | 96371 | |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup for T-bars 25 mm/each | 96372 | |
|
Wire suspension for continuous installation L: 1,4m | Large square ceiling cup for T-bars 25 mm/each | 96373 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup, white mains cable/each | 96374 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup, white mains cable/each | 96375 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, white mains cable/each | 96376 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, white mains cable/each | 96377 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup, transparent mains cable/each | 96378 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, transparent mains cable/each | 96379 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup, transparent mains cable/each | 96380 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, transparent mains cable/each | 96381 |
