Notor 65Pendant

Multiple mounting options

Notor 65 is a luminaire family that combines design aesthetics with highlighting comfort and performance. The wide variety of louvres, lengths, colours and control options provides great flexibility and many possibilities for creating unique lighting environments.

Responsible materials

Black RAL 9005

Anodised aluminium

White RAL 9016

Notor 65Pendant

Multiple mounting options

22.9 kg CO₂e 141 lm/W Sensor available

Installation

Luminaire for pendant installation, single or continuous. Wire bracket providing flexible c/c and wire lock included in delivery. Wire suspension ordered separately; see Accessories. Can also be mounted on walls or bookcases with bracket or console; see Accessories. For various for wire suspension and mounting options, use Fagerhult Configure. To obtain an item list and calculate continuous installation length, use our configurator. For detailed information, see the installation instructions.

See installation video – Pendant See installation video – Installation clips

Connection

For permanent connection; integrated driver in the luminaire. The luminaire is supplied with a cable entry on the top. For external wiring, a special end cap with cable entry is used; see Accessories. For continuous installation, the luminaire row must always begin with a start luminaire. Continuous luminaires are equipped with a through-wire (5x1.5 mm²) and a snap-in connector in each end cap. Luminaires with Tunable White (2700–6500K) are equipped with the DALI Device Type 8 driver. For 2400 direct/indirect luminaires, there are also two DALI addresses per luminaire, where one DALI address controls the direct/indirect light on the first 1200 module and the other DALI address controls the other 1200 module. CLO (Constant Light Output).

Design

Extruded aluminium luminaire body, made from 75% post-consumer recycled material. Lacquered in white (RAL 9016 G40), Black (RAL 9005 G30) or natural anodised extruded aluminium. End caps included with start/single luminaires. In the case of continuous installation, one end cap is moved to the end of the system. Indirect light is covered by an opal film that generates a wide/extra wide beam and also serves as a dust cover.

Light Distribution

Direct. Direct/indirect 50/50, 30/70.

Light data

CCT, K:

3000 K, 4000 K

CRI/Rf:

80, 90

SDCM:

Lumen output:

1007-5520 lm

CLO:

50 000 h

Optics

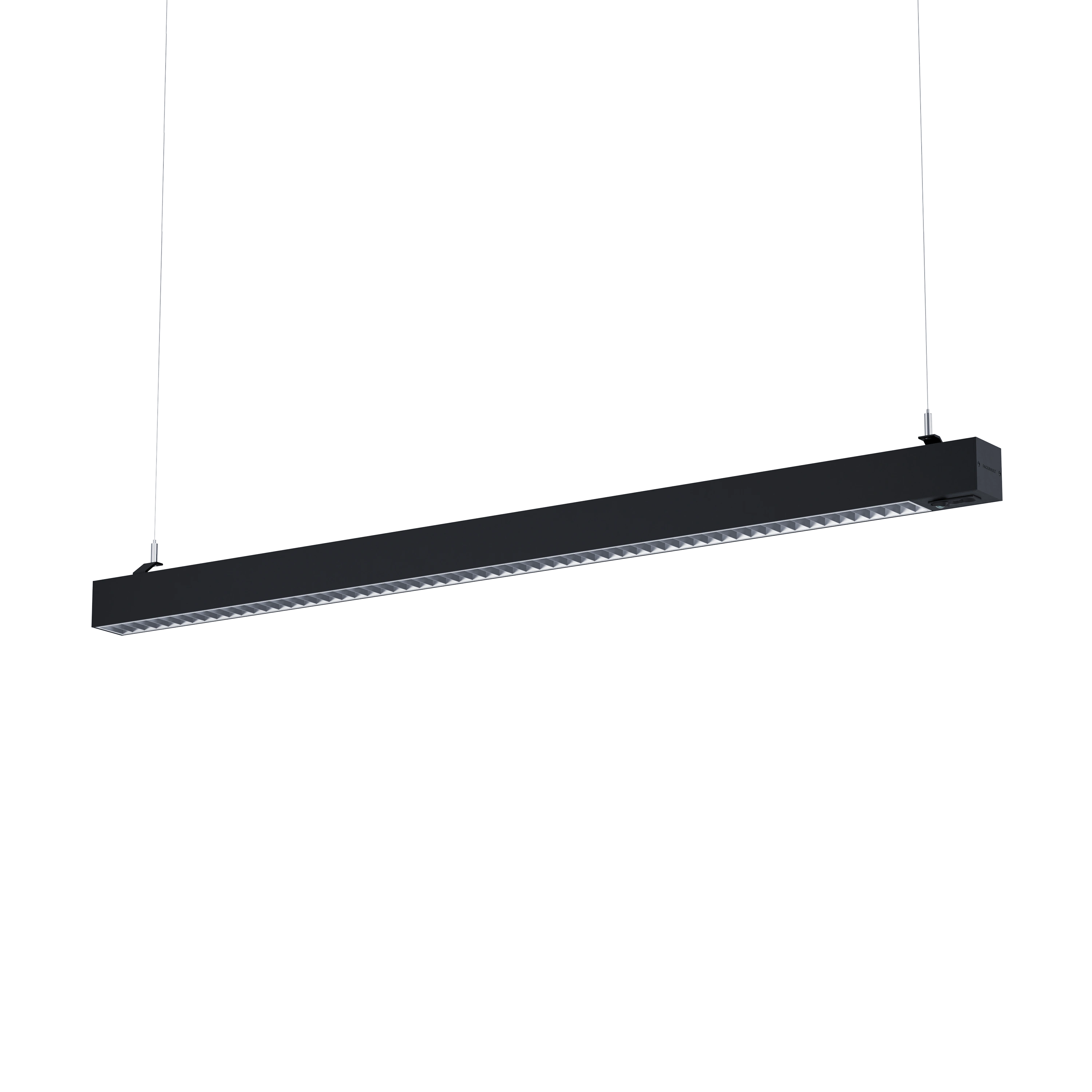

Beta Opti – side and crosswise semi-gloss reflectors in metallised aluminium with an integrated opal film that minimises the risk of uncomfortable glare from the LEDs.
Delta – micro-prism louvre in acrylic (PMMA).
Opal – frosted acrylic (PMMA) disc.

Notor 65

Explore our lighting for offices and workplaces.

22.9kg CO₂e

(Based on 13660-20185)

Climate impact (GWP fossil) A1–A3 based on results from the EPD.

Made of recycled aluminium

The luminaire body is made of recycled aluminium, which consists of 75% post-consumer material (end-of-life scrap) from Europe. This aluminium (excluding extrusion) has a 71% lower climate impact compared to average primary aluminium from Europe (Source: European Aluminium). These calculations are based on the climate impact reported in the EPD compared to the average values.

Timeless design & long-term use

A timeless design results in a classic product that is less sensitive to trends. This increases the likelihood of reuse, making the luminaire a sensible choice for construction projects with a long-term sustainability perspective.

Made in Sweden

The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.

DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

Pull dim

Dimming via a cord with stepped or hold‑to‑dim activation.

Push dim

Manual dimming via a momentary pushbutton. A short press turns the luminaire on/off, while a long press adjusts the light level.

Organic ResponsePIR sensor

Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.

Articles

Configure your Notor 65

Adapt and optimise the luminaire in Fagerhult's configurator.

Start configuration

Need more information?

Download a collection of light data files to guide you in your decision.

Example file

Revit

Showing 54 of 54 Articles

Art.no.	System Wattage	Lumen output	CCT, K	Colour	Dimensions, mm	Module	Louvre	Light distribution	Installation	Light control	CLO time, h	Miscellaneous
13500-402	21	2755	3000	Anodised	1256x65x65	1200	Opal	Indirect	Start/Single	DALI/Phase-pulse	50000
13501-402	21	2900	4000	Anodised	1256x65x65	1200	Opal	Indirect	Start/Single	DALI/Phase-pulse	50000
13502-402	21	2755	3000	White	1256x65x65	1200	Opal	Indirect	Start/Single	DALI/Phase-pulse	50000
13503-402	21	2900	4000	White	1256x65x65	1200	Opal	Indirect	Start/Single	DALI/Phase-pulse	50000
13504-402	41	5510	3000	Anodised	2505x65x65	2400	Opal	Indirect	Start/Single	DALI/Phase-pulse	50000
13505-402	41	5800	4000	Anodised	2505x65x65	2400	Opal	Indirect	Start/Single	DALI/Phase-pulse	50000
13506-402	41	5510	3000	White	2505x65x65	2400	Opal	Indirect	Start/Single	DALI/Phase-pulse	50000
13507-402	41	5800	4000	White	2505x65x65	2400	Opal	Indirect	Start/Single	DALI/Phase-pulse	50000
13508-402	21	2755	3000	Anodised	1250x65x65	1200	Opal	Indirect	Continuous	DALI/Phase-pulse	50000
13509-402	21	2900	4000	Anodised	1250x65x65	1200	Opal	Indirect	Continuous	DALI/Phase-pulse	50000
13510-402	21	2755	3000	White	1250x65x65	1200	Opal	Indirect	Continuous	DALI/Phase-pulse	50000
13511-402	21	2900	4000	White	1250x65x65	1200	Opal	Indirect	Continuous	DALI/Phase-pulse	50000
13512-402	41	5510	3000	Anodised	2499x65x65	2400	Opal	Indirect	Continuous	DALI/Phase-pulse	50000
13513-402	41	5800	4000	Anodised	2499x65x65	2400	Opal	Indirect	Continuous	DALI/Phase-pulse	50000
13514-402	41	5510	3000	White	2499x65x65	2400	Opal	Indirect	Continuous	DALI/Phase-pulse	50000
13515-402	41	5800	4000	White	2499x65x65	2400	Opal	Indirect	Continuous	DALI/Phase-pulse	50000
13660-20013	51	6568	4000	White	1267x65x65	1200	Beta Opti	30/70	Single	DALI/Phase-pulse	50000	LL
13660-20025	54	5619		White	1267x65x65	1200	Beta Opti	Direct/indirect	Single	DALI	50000	Tunable White
13660-20026	55	5619		White	1358x65x65	1200	Beta Opti	Direct/indirect	Single	Organic Response	50000	Tunable White
13660-20027	39	5883	4000	White	1256x65x65	1200	Delta	30/70	Single	DALI/Phase-pulse	50000	LL
13660-20032	55	7910	4000	White	1673x65x65	1700	Delta	30/70	Single	DALI/Phase-pulse	50000	LL
13660-20037	52	6568	4000	White	1358x65x65	1200	Beta Opti	30/70	Single	Organic Response	50000	LL
13660-20038	51	6568	4000	White	1328x65x65	1200	Beta Opti	30/70	Single	DALI/Phase-pulse	50000	LL, Double Push Dim
13660-20043	19	2200	4000	White	1267x65	1200	Beta Opti	Direct	Single	DALI/Phase-pulse	100000	LL
13660-20044	35	4800	4000	White	1267x65x65	1200	Beta Opti	Direct/indirect	Single	DALI/Phase-pulse	50000	LL
13660-20045	33	4400	4000	White	2528x65x65	2400	Beta Opti	Direct	Single	DALI/Phase-pulse	50000	LL
13660-20046	74	9600	4000	White	2528x65	2400	Beta Opti	Direct/indirect	Single	DALI/Phase-pulse	100000	LL
13660-20047	8.8	1033	4000	White	840x65x65	800	Delta	Direct	Single	DALI/Phase-pulse	50000	LL
13660-20048	11	1550	4000	White	1256x65x65	1200	Delta	Direct	Single	DALI/Phase-pulse	50000	LL
13660-20049	22	3050	4000	White	1256x65x65	1200	Delta	Direct/indirect	Single	DALI/Phase-pulse	50000	LL
13660-20050	23	3100	4000	White	2506x65x65	2400	Delta	Direct	Single	DALI/Phase-pulse	50000	LL
13660-20051	44	6100	4000	White	2506x65x65	2400	Delta	Direct/indirect	Single	DALI/Phase-pulse	50000	LL
13660-20052	12	1667	4000	White	840x65x65	800	Opal	Direct	Single	DALI/Phase-pulse	50000	HL
13660-20053	17	2500	4000	White	1256x65x65	1200	Opal	Direct	Single	DALI/Phase-pulse	50000	HL
13660-20054	34	5000	4000	White	2506x65x65	2400	Opal	Direct	Single	DALI/Phase-pulse	50000	HL
13660-20919	8.8	1033	4000	White	840x65x65	800	Delta	Direct	Start	DALI/Phase-pulse	50000	LL
13660-20927	11	1550	4000	White	1256x65x65	1200	Delta	Direct	Start	DALI/Phase-pulse	50000	LL
13660-20944	22	3050	4000	White	1256x65x65	1200	Delta	Direct/indirect	Start	DALI/Phase-pulse	50000	LL
13660-20955	23	3100	4000	White	2506x65x65	2400	Delta	Direct	Start	DALI/Phase-pulse	50000	LL
13660-20963	44	6100	4000	White	2506x65x65	2400	Delta	Direct/indirect	Start	DALI/Phase-pulse	50000	LL
13660-20971	8.8	1033	4000	White	836x65x65	800	Delta	Direct	Continuous	DALI/Phase-pulse	50000	LL
13660-20979	11	1550	4000	White	1252x65x65	1200	Delta	Direct	Continuous	DALI/Phase-pulse	50000	LL
13660-20987	22	3050	4000	White	1252x65x65	1200	Delta	Direct/indirect	Continuous	DALI/Phase-pulse	50000	LL
13660-20995	23	3100	4000	White	2502x65x65	2400	Delta	Direct	Continuous	DALI/Phase-pulse	50000	LL
13660-21003	44	6100	4000	White	2502x65x65	2400	Delta	Direct/indirect	Continuous		50000	LL
13660-21008	12	1667	4000	White	840x65x65	800	Opal	Direct	Start	DALI/Phase-pulse	50000	HL
13660-21012	17	2500	4000	White	1256x65x65	1200	Opal	Direct	Start	DALI/Phase-pulse	50000	HL
13660-21016	34	5000	4000	White	2506x65x65	2400	Opal	Direct	Start	DALI/Phase-pulse	50000	HL
13660-21020	12	1667	4000	White	836x65x65	800	Opal	Direct	Continuous	DALI/Phase-pulse	50000	HL
13660-21024	17	2500	4000	White	1252x65x65	1200	Opal	Direct	Continuous	DALI/Phase-pulse	50000	HL
13660-21028	34	5000	4000	White	2502x65x65	2400	Opal	Direct	Continuous	DALI/Phase-pulse	50000	HL
92694				Anodised	800				Continuous
92695				White	800				Continuous
92696				Black	800				Continuous

Showing 102 of 102 Accessories

Name	Description	Art.no.
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large square ceiling cup for T-bars 25 mm, transparent mains cable/each	96381
Wire suspension for continuous installation L: 1,4m	Large square ceiling cup for T-bars 25 mm/each	96373
Wire suspension for continuous installation L: 1,4m	Small round ceiling cup for T-bars 25 mm/each	96384
Wire suspension for continuous installation L: 1,4m	Large round ceiling cup/each	96383
Wire suspension for continuous installation L: 1,4m	Large round ceiling cup for T-bars 25 mm/each	96385
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381)	95381
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377)	95380
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – small + large, transparent mains cable (96370+96380)	95379
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – small + large, white mains cable (96370+96375)	95378
Wire suspension for continuous installation L: 1,4m	Small round ceiling cup/each	96382
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377)	95376
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389)	95372
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – small + large, white mains cable (96382+96387)	95370
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96389)	95368
Wire suspension for continuous installation L: 1,4m	Small square ceiling cup/each	96370
Wire suspension for continuous installation L: 1,4m	Large square ceiling cup/each	96371
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376)	95364
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381)	95377
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – small + large, white mains cable (96370+96374)	95362
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376)	95360
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – large, transparent mains cable (96371+96378)	95359
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – large, transparent mains cable (96383+96392)	95367
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – large, transparent mains cable (96371+96380)	95375
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – small + large, transparent mains cable (96382+96392)	95371
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – small + large, transparent mains cable (96370+96378)	95363
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – large, white mains cable (96371+96374)	95358
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379)	95365
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379)	95361
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – large, white mains cable (96383+96387)	95366
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – large, white mains cable (96371+96375)	95374
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96393)	95369
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391)	95357
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393)	95373
Spacers	Spacers 600 mm	92664
Spacers	Spacers 400 mm	92662
Spacers	Spacers 200 mm	92660
End-cap Notor 65	End-cap with hole for surface mounted cable/each. White.	92677
Wall bracket Notor 65	Wall bracket 1 piece, 200 mm. White.	92675
Spacers	Spacers 200 mm	92661
End-cap Notor 65	End-cap with hole for surface mounted cable/each. Anodised.	92676
Wall bracket Notor 65	Wall bracket 1 piece, 200 mm. Anodised.	92674
Spacers	Spacers 400 mm	92663
Wall socket	Wall socket Notor 65/pair	92673
Support rail (cat. no./pair)	L=600/625, section: 25, max. load: 75N/pair	94067
Organic Response EnOcean Wireless Push button panel	EnOcean 4 function push button panel, labeled, white	86437
Organic Response EnOcean Wireless Push button panel	EnOcean 2 function push button panel, labeled, white	86436
Organic Response-unit Notor 65	Organic Response-unit, white. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the left and breaks DALI to the right. 200 mm.	92693
Organic Response-unit Notor 65	Organic Response-unit, white. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI in both directions. 200 mm.	92691
Organic Response-unit Notor 65	Organic Response-unit, alu. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI in both directions. 200 mm.	92688
Organic Response-unit Notor 65	Organic Response-unit, alu. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the left and breaks DALI to the right. 200 mm.	92690
Organic Response-unit Notor 65	Organic Response-unit, white. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the right and breaks DALI to the left. 200 mm.	92692
Organic Response-unit Notor 65	Organic Response-unit, alu. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the right and breaks DALI to the left. 200 mm.	92689
Organic Response I/O box	I/O box with potential-free 16A relay for controlling external units.	86413
Organic Response IoT Gateway	Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors.	86296
Wall bracket Notor 65	Wall bracket 1 piece with terminal block, 200 mm. Anodised.	92685
Wall bracket Notor 65	Wall bracket 1 piece with terminal block, 200 mm. White.	92686
emLED-unit	Continuous luminaire emLED-unit, 270 mm	92679
emLED-unit	Continuous luminaire emLED-unit, 270 mm	92678
Wire bracket incl. friction locks	Wire bracket/pair	92684
Wire suspension for support rails L: 1,5m	Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068	91426
Support rail (cat. no./pair)	L=1200/1250, section: 25, max. load: 120/30N/pair	94068
Support rail (cat. no./pair)	L=600/650, section: 15, max. load: 75N/pair	90015
Organic Response EnOcean Wireless Push button panel	EnOcean 4 function push button panel, white	86417
Organic Response EnOcean Wireless Push button panel	EnOcean 2 function push button panel, white	86416
Wire bracket incl. friction locks	Wire bracket/pair	92683
Wire bracket incl. friction locks	Wire bracket/pair	92682
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large round ceiling cup for T-bars 25 mm, transparent mains cable/each	96393
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large round ceiling cup, white mains cable/each	96387
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large square ceiling cup for T-bars 25 mm, white mains cable/each	96376
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large square ceiling cup, white mains cable/each	96374
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large round ceiling cup, white mains cable/each	96386
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – small + large, white mains cable (96382+96386)	95354
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388)	95352
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large round ceiling cup, transparent mains cable/each	96392
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – large, transparent mains cable (96383+96390)	95351
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large square ceiling cup for T-bars 25 mm, white mains cable/each	96377
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large square ceiling cup, transparent mains cable/each	96380
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large round ceiling cup for T-bars 25 mm, white mains cable/each	96388
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large square ceiling cup, white mains cable/each	96375
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large square ceiling cup for T-bars 25 mm, transparent mains cable/each	96379
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large square ceiling cup, transparent mains cable/each	96378
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large round ceiling cup for T-bars 25 mm, transparent mains cable/each	96391
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large round ceiling cup, transparent mains cable/each	96390
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – small + large, transparent mains cable (96382+96390)	95355
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391)	95353
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388)	95356
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large round ceiling cup for T-bars 25 mm, white mains cable/each	96389
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – large, white mains cable (96383+96386)	95350
Wire suspension for continuous installation L: 1,4m	Small square ceiling cup for T-bars 25 mm/each	96372
Spacers	Spacers 1200 mm	92671
Spacers	Spacers 1000 mm	92669
Spacers	Spacers 800 mm	92667
Spacers	Spacers 800 mm	92666
Spacers	Spacers 1200 mm	92670
Spacers	Spacers 1000 mm	92668
Spacers	Spacers 600 mm	92665
IR dongle for Organic Response	IR dongle for Organic Response equipped luminaire.	86279
Support rail (cat. no./pair)	L=200/1250, section: 15, max. load: 120/30N/pair	90016
Cutters	Cutters, each	94248
Ceiling bracket in chrome with wire	Wire suspension with ceiling bracket in chrome, L=1.5 m/pair	91696
Organic Response I/O box	I/O box with potential-free 8A relay for controlling external units.	86433
End-cap Notor 65	End-cap with hole for surface mounted cable/each. Black.	92687
