ScootPendant

Scoot is a decorative pendant luminaire for office environments and social areas. It’s part of Fagerhult’s Scoot family. Scoot has a soft design language with direct/indirect light distribution and is available in five colours.

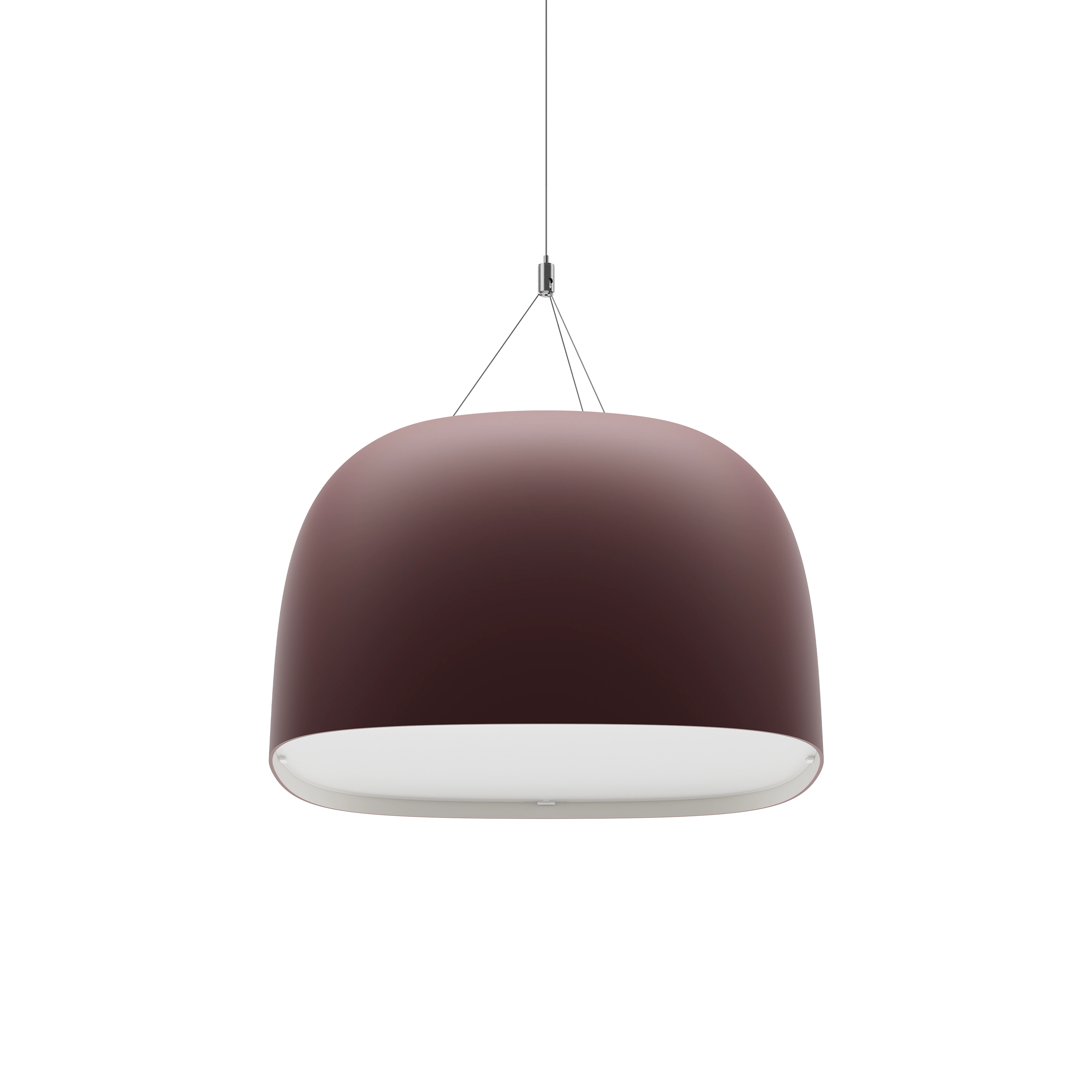

Scoot pendant plum
Dusty Plum NCS S5020-R (matt)
Green NCS S 3010-G (matt)
Black NCS S 8500-N (matt)
White NCS S 0300-N (matt)
Blue NCS S 3030-B10G (matt)
Scoot pendant plum Scoot pendant opal Scoot Scoot

ScootPendant

Scoot is a decorative pendant luminaire for office environments and social areas. It’s part of Fagerhult’s Scoot family. Scoot has a soft design language with direct/indirect light distribution and is available in five colours.

Installation

Two-point wire pendant. Supplied with ceiling cup. For detailed information, see the installation instructions.

See installation video – Installation clips

Connection

For permanent connection; integrated driver in the luminaire. Snap-in terminal block 5x2.5 mm² in ceiling cup. 1-phase through-wiring possible. Surface-mounted mains cable possible 180°. Using cutters (94248), a cut-out is made in the ceiling cup for a surface-mounted mains cable. Wire length 4 m. The luminaire is supplied with a 2.8 metre transparent mains cable, 5x0.75 mm². CLO (Constant Light Output).

Design

Luminaire body in ABS plastic lacquered in black (NCS S 8500-N matt), blue (NCS S 3030-B10G matt), Dusty Plum (NCS S5020-R matt), white (NCS S 0300-N matt) or green (NCS S 3010-G matt). Indirect light is covered by an opal film that generates a wide beam that also serves as a dust cover. White, plastic ceiling cup. Design by PetterssonRudberg.

Light Distribution

Direct/indirect 65/35.

Light data

CCT, K:
3000 K, 4000 K, 2700-6500 K (TW)
CRI/Rf:
80, 90
SDCM:
3
Lumen output:
2956-3202 lm
CLO:
50 000 h

Optics

Delta – micro-prism louvre in acrylic (PMMA).
Opal – frosted acrylic (PMMA) disc.

Scoot

Form, function and light in perfect balance.

Read more
Smart Lighting

Find the right lighting control for your project

Optimise your energy savings and create efficient spaces that are easy to manage. Use our guide to find the right lighting control for your project.

Optimise your energy savings and create efficient spaces that are easy to manage. Use our guide to find the right lighting control for your project.

Compare our systems Read more about the value of Smart lighting

DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

Articles

Showing 30 of 30 Articles
Art.no. System Wattage Lumen output CCT, K Colour Diameter, mm Dimensions, mm Louvre Light distribution Light control CLO time, h Miscellaneous Light data files Article PDF
54890-402 25 3112 3000 Dusty Plum 450 275 Opal 65/35 DALI/Phase-pulse 50000
54891-402 25 3202 4000 Dusty Plum 450 275 Opal 65/35 DALI/Phase-pulse 50000
54892-402 25 2956 3000 Dusty Plum 450 275 Delta 65/35 DALI/Phase-pulse 50000
54893-402 25 3041 4000 Dusty Plum 450 275 Delta 65/35 DALI/Phase-pulse 50000
54894 33 3235 Dusty Plum 450 275 Opal 65/35 DALI 50000 Tunable White
54895 33 3040 Dusty Plum 450 275 Delta 65/35 DALI 50000 Tunable White
54940-402 25 3112 3000 Black 450 275 Opal 65/35 DALI/Phase-pulse 50000
54941-402 25 3112 3000 White 450 275 Opal 65/35 DALI/Phase-pulse 50000
54942-402 25 3112 3000 Green 450 275 Opal 65/35 DALI/Phase-pulse 50000
54943-402 25 3112 3000 Blue 450 275 Opal 65/35 DALI/Phase-pulse 50000
54945-402 25 3202 4000 Black 450 275 Opal 65/35 DALI/Phase-pulse 50000
54946-402 25 3202 4000 White 450 275 Opal 65/35 DALI/Phase-pulse 50000
54947-402 25 3202 4000 Green 450 275 Opal 65/35 DALI/Phase-pulse 50000
54948-402 25 3202 4000 Blue 450 275 Opal 65/35 DALI/Phase-pulse 50000
54950-402 25 2956 3000 Black 450 275 Delta 65/35 DALI/Phase-pulse 50000
54951-402 25 2956 3000 White 450 275 Delta 65/35 DALI/Phase-pulse 50000
54952-402 25 2956 3000 Green 450 275 Delta 65/35 DALI/Phase-pulse 50000
54953-402 25 2956 3000 Blue 450 275 Delta 65/35 DALI/Phase-pulse 50000
54955-402 25 3041 4000 Black 450 275 Delta 65/35 DALI/Phase-pulse 50000
54956-402 25 3041 4000 White 450 275 Delta 65/35 DALI/Phase-pulse 50000
54957-402 25 3041 4000 Green 450 275 Delta 65/35 DALI/Phase-pulse 50000
54958-402 25 3041 4000 Blue 450 275 Delta 65/35 DALI/Phase-pulse 50000
54972 33 3235 Black 450 275 Opal Direct/indirect DALI 50000 Tunable White
54973 33 3235 White 450 275 Opal Direct/indirect DALI 50000 Tunable White
54974 33 3235 Green 450 275 Opal Direct/indirect DALI 50000 Tunable White
54975 33 3235 Blue 450 275 Opal Direct/indirect DALI 50000 Tunable White
54977 33 3040 Black 450 275 Delta Direct/indirect DALI 50000 Tunable White
54978 33 3040 White 450 275 Delta Direct/indirect DALI 50000 Tunable White
54979 33 3040 Green 450 275 Delta Direct/indirect DALI 50000 Tunable White
54980 33 3040 Blue 450 275 Delta Direct/indirect DALI 50000 Tunable White
Showing 1 of 1 Accessories
Name Description Art.no. Article PDF
Cutters Cutters, each 94248

Downloads

Scoot

Documents

Open PDF
Open PDF
Open PDF

3D Models

Manuals

Open PDF
