Scoot linearPendant
Scoot Linear is a linear workplace luminaire for offices and is part of Fagerhult’s Scoot family. The luminaire has an extra-wide indirect light that provides even luminance in the ceiling and minimises dark areas.
Scoot linearPendant
Scoot Linear is a linear workplace luminaire for offices and is part of Fagerhult’s Scoot family. The luminaire has an extra-wide indirect light that provides even luminance in the ceiling and minimises dark areas.
Installation
Luminaire for pendant installation, single. For detailed information, see the installation instructions.
See installation video – Installation clipsConnection
For permanent connection; integrated driver in the luminaire. The luminaire is equipped with a 1.5 metre transparent mains cable, 5x0.75 mm². For options on the type of connection cable, use Fagerhult Configure. CLO (Constant Light Output). Luminaires with Tunable White (2700–6500K) are equipped with the DALI Device Type 8 driver.
Design
Luminaire body made of extruded aluminium. ABS plastic diffuser, made from 80% recycled plastic. Lacquered in black (NCS S 8500-N matt), blue (NCS S 3030-B10G matt), Dusty Plum (NCS S 5020-R matt), white (NCS S 0300-N matt) or green (NCS S 3010-G matt). Indirect light is covered by an opal film that generates a wide beam that also serves as a dust cover. Design by PetterssonRudberg.
Light Distribution
Direct/indirect 40/60.
Light data
Optics

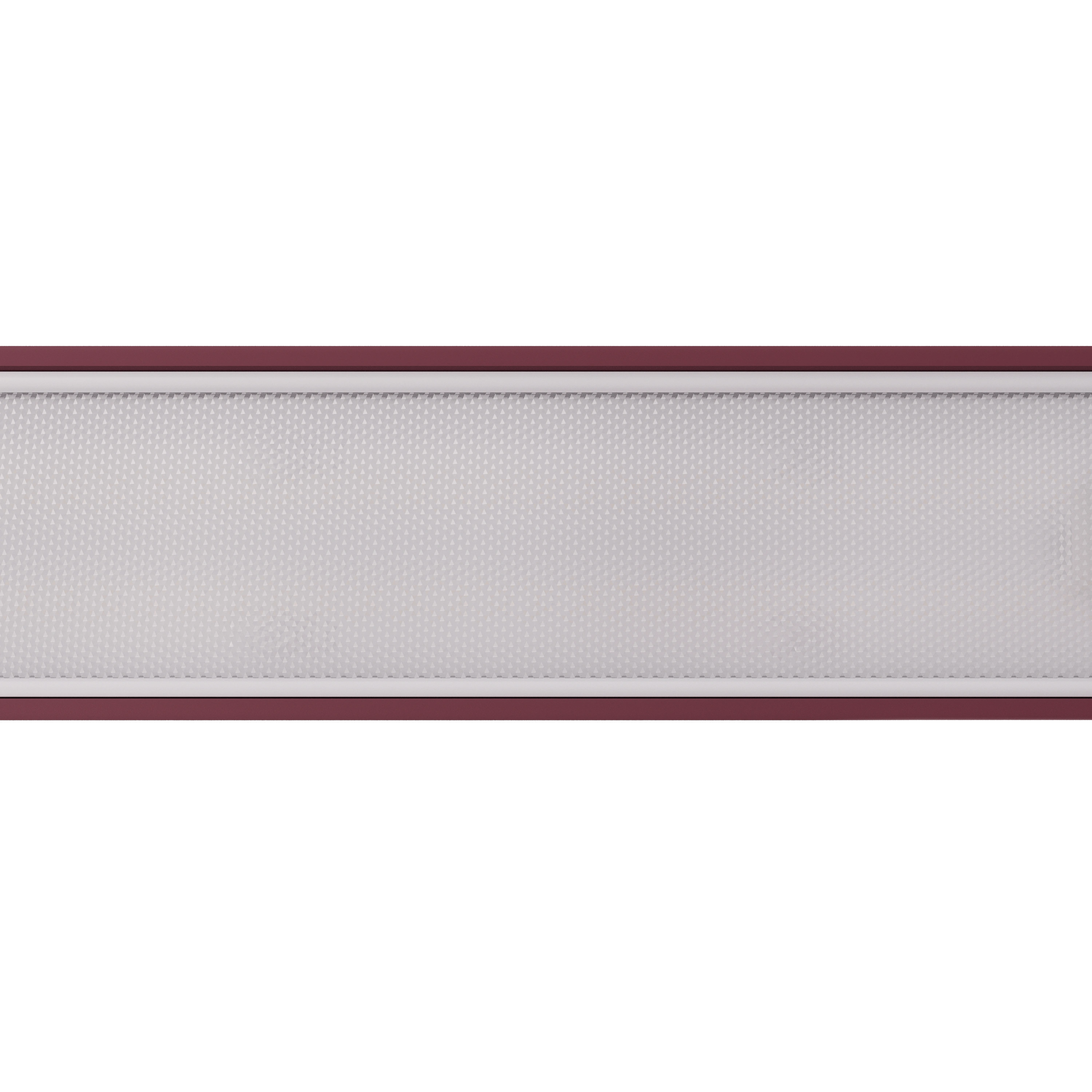

Delta – micro-prism louvre in acrylic (PMMA).
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Push dim
Manual dimming via a momentary pushbutton. A short press turns the luminaire on/off, while a long press adjusts the light level.
Organic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read more
Articles
Configure your Scoot linear
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Support rail (cat. no./pair) | L=600/625, section: 25, max. load: 75N/pair | 94067 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, labeled, white | 86437 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, labeled, white | 86436 | |
|
Wire | Wire with ball, 1.5 m/pair | 91425 | |
|
Ceiling cup | Large square ceiling cup without wire and mains cable/each. White | 96398 | |
|
Ceiling cup | Large round ceiling cup without wire and mains cable for T-bars 25 mm/each | 96395 | |
|
Ceiling cup | Large square ceiling cup without wire and mains cable for T-bars 25 mm/each. White | 96399 | |
|
Ceiling cup | Large round ceiling cup without wire and mains cable/each | 96394 | |
|
Organic Response I/O box | I/O box with potential-free 16A relay for controlling external units. | 86413 | |
|
Organic Response IoT Gateway | Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. | 86296 | |
|
Wire suspension for support rails L: 1,5m | Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 | 91426 | |
|
|
Support rail (cat. no./pair) | L=1200/1250, section: 25, max. load: 120/30N/pair | 94068 | |
|
Ceiling cup | Small round ceiling cup for T-bars 25 mm/each without wire. | 96397 | |
|
Ceiling cup | Small round ceiling cup/each without wire. | 96396 | |
|
Ceiling cup | Small square ceiling cup for T-bars 25 mm/each without wire. White | 96401 | |
|
Ceiling cup | Small square ceiling cup/each without wire. White | 96400 | |
|
|
Support rail (cat. no./pair) | L=600/650, section: 15, max. load: 75N/pair | 90015 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, white | 86417 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, white | 86416 | |
|
|
Support rail (cat. no./pair) | L=200/1250, section: 15, max. load: 120/30N/pair | 90016 | |
|
Ceiling bracket in chrome with wire | Wire suspension with ceiling bracket in chrome, L=1.5 m/pair | 91696 | |
|
|
Organic Response I/O box | I/O box with potential-free 8A relay for controlling external units. | 86433 |
