Notor 36Pendant
Notor 36 is a family of luminaires with minimal material use and high light comfort and performance, along with a range of louvre, length, and shape options. Made from recycled aluminium for a low carbon footprint. Pendant luminaire for single- and system-installation.
Notor 36Pendant
Notor 36 is a family of luminaires with minimal material use and high light comfort and performance, along with a range of louvre, length, and shape options. Made from recycled aluminium for a low carbon footprint. Pendant luminaire for single- and system-installation.
Installation
Luminaire for pendant installation, single or in a system. Wire bracket providing flexible c/c and wire lock included in delivery. Wire suspension ordered separately; see Accessories. For various for wire suspension and mounting options, use Fagerhult Configure. To obtain an item list and calculate system length, use our configurator. Can also be mounted on wall via bracket, see Accessories. For detailed information, see the installation instructions.
See installation video – Installation clipsConnection
For permanent connection; integrated driver in the luminaire. Single and start luminaires in systems are equipped with a 2.5 m mains cable, 5x0.75 mm². For system installation, the luminaire row must always begin with a start luminaire. System luminaires are equipped with a through-wire (5x1.5 mm²) and a snap-in connector in each end cap. CLO (Constant Light Output).
Design
Extruded aluminium luminaire body, made from 75% post-consumer recycled material. End caps included with start/single luminaires. In the case of continuous installation, one end cap is moved to the end of the system. Lacquered in white (RAL 9016 G40), light grey (RAL 7035 metallic) or black (RAL 9005 G30).
Light Distribution

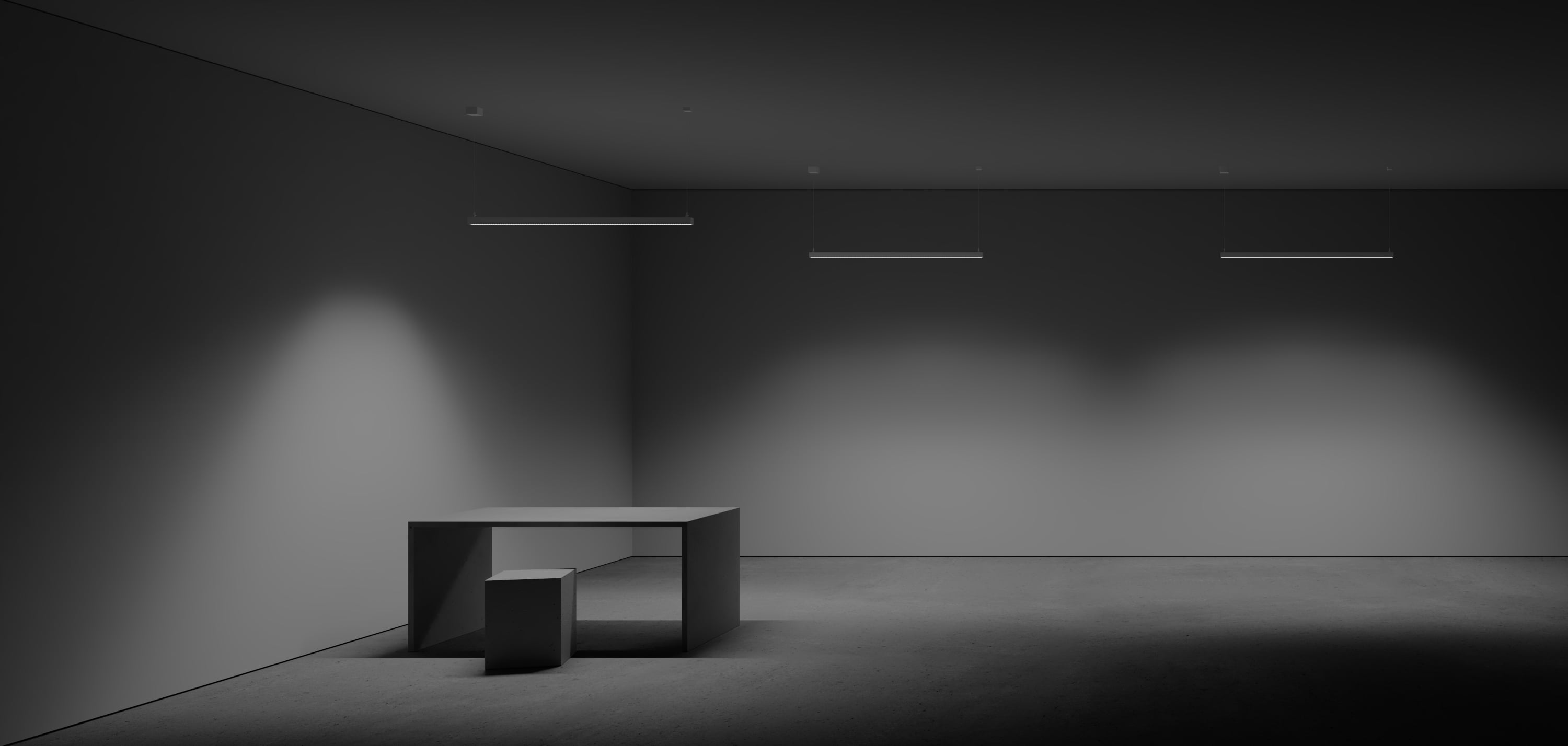

Direct. Direct/indirect.
Light data
Optics

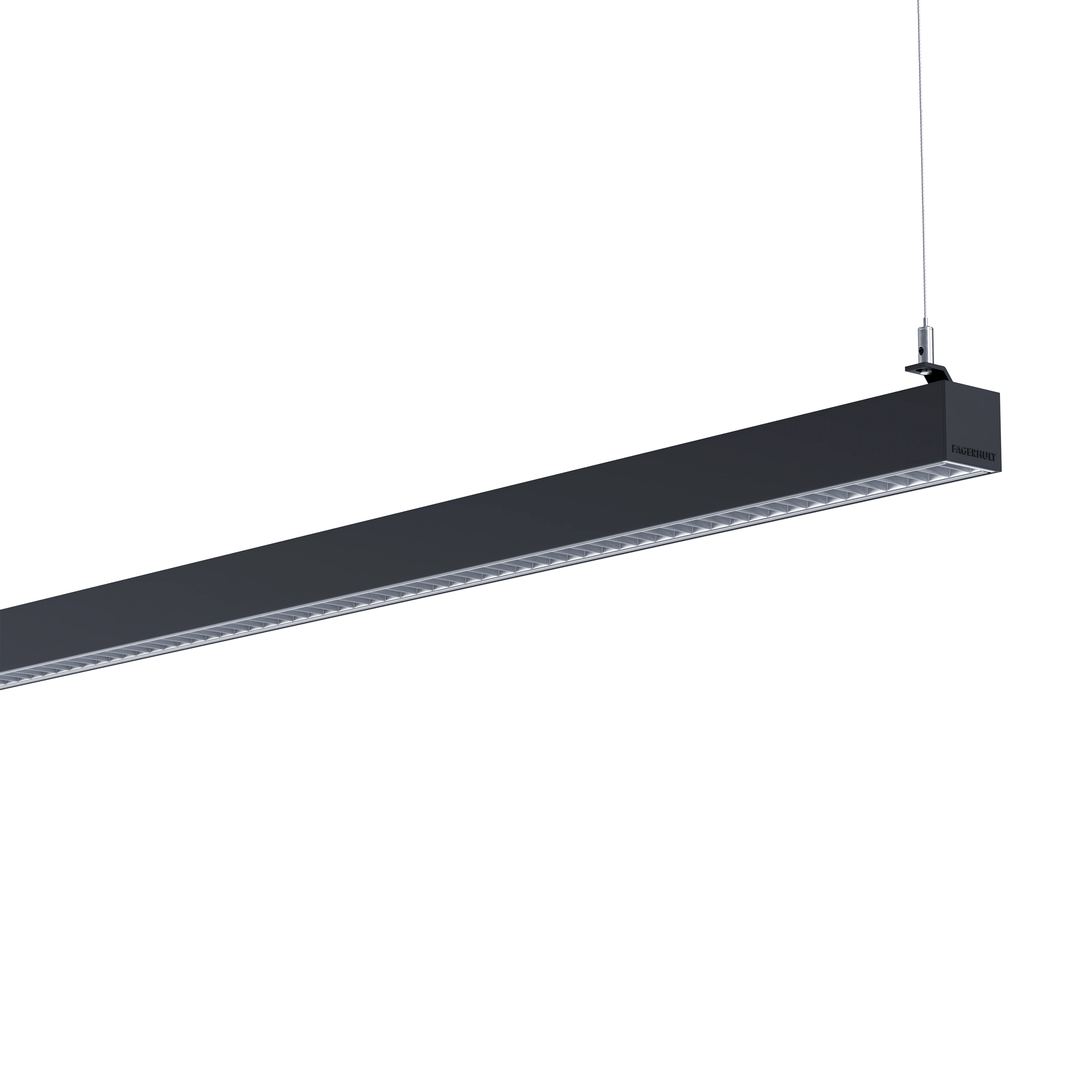

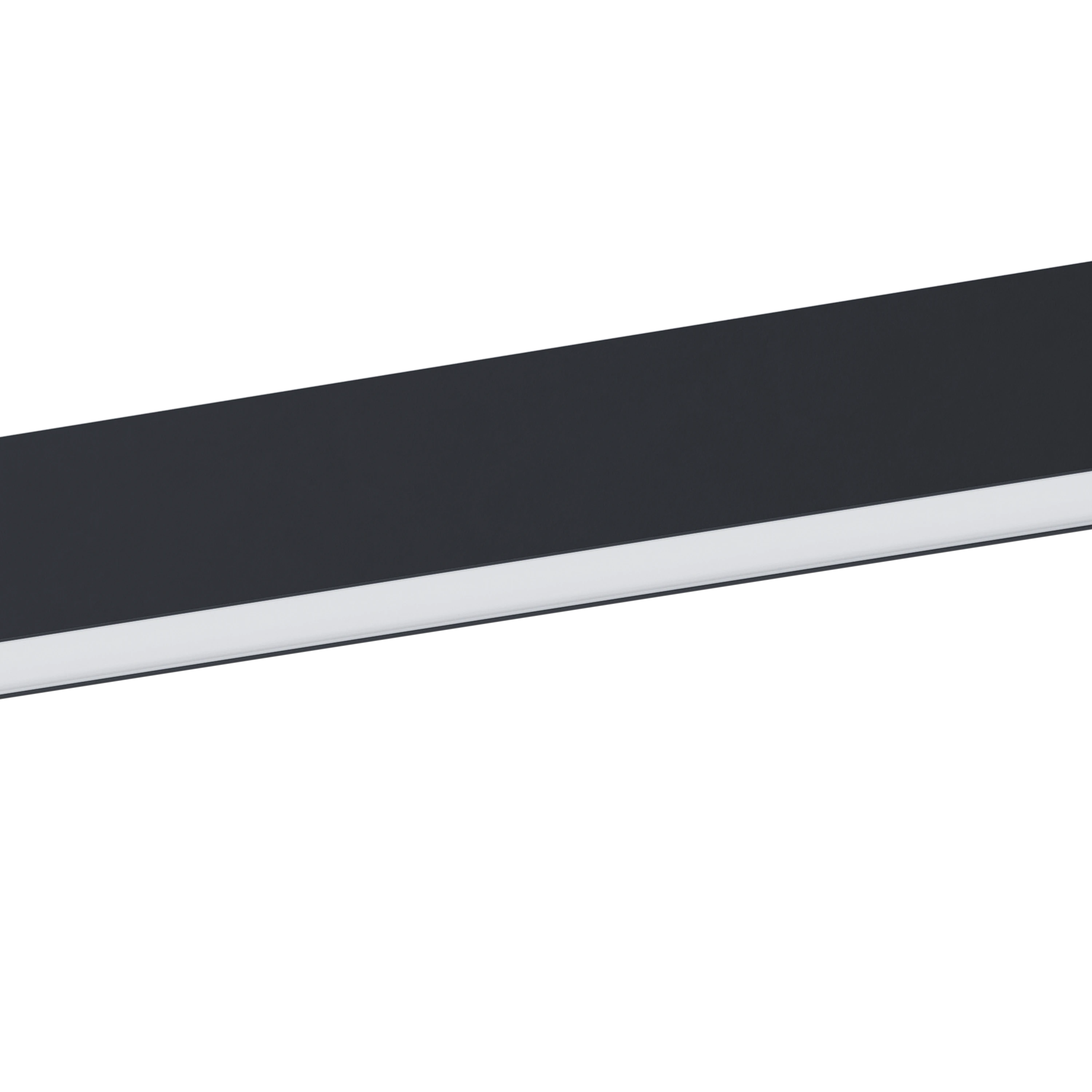

Beta Opti Nano – side and crosswise semi-gloss reflectors in metallised aluminium with an integrated opal film that minimises the risk of uncomfortable glare from the LEDs. Opal – frosted acrylic (PMMA) disc.
Made of recycled aluminium
The luminaire body is made of recycled aluminium, which consists of 75% post-consumer material (end-of-life scrap) from Europe. This aluminium (excluding extrusion) has a 71% lower climate impact compared to average primary aluminium from Europe (Source: European Aluminium). These calculations are based on the climate impact reported in the EPD compared to the average values.
Minimised design
The luminaire’s minimised design, with its high luminous efficacy, means that less material is used in manufacturing. This contributes to a low climate impact and more efficient use of resources compared to traditional, larger luminaires, without compromising on function or light quality.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Organic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read more
Articles
Configure your Notor 36
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup for T-bars 25 mm/each | 96384 | |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup/each | 96382 | |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup/each | 96370 | |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup for T-bars 25 mm/each | 96372 | |
|
Ceiling cup with wire suspension | Large round ceiling cup with wire 1,5 m for T-bars 25 mm/each, without mains cable. | 95345 | |
|
Ceiling cup with wire suspension | Large round ceiling cup with wire 1,5 m, without mains cable. | 95346 | |
|
Ceiling cup with wire suspension | Large square ceiling cup with wire 1,5 m for T-bars 25 mm/each, without mains cable. | 95347 | |
|
Ceiling cup with wire suspension | Large square ceiling cup with wire 1,5 m, without mains cable. | 95348 | |
|
Wall socket | Wall socket Notor 36, alu-grey. | 92726 | |
|
Wall socket | Wall socket Notor 36, white. | 92727 | |
|
Wall socket | Wall socket Notor 36, black. | 92728 | |
|
Wire bracket incl. friction locks | Wire bracket incl. friction lock, silver/each | 92752 | |
|
Wire bracket incl. friction locks | Wire bracket incl. friction lock, white/each. | 92753 | |
|
Wire bracket incl. friction locks | Wire bracket incl. friction lock, black/each. | 92754 | |
|
Organic Response sensor Notor 36 | Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the left and breaks DALI to the right. White, 400 mm, for pendant Beta Opti Nano, continuous. | 16085-20439 | |
|
|
Organic Response sensor Notor 36 | Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the right and breaks DALI to the left. White, 400 mm, for pendant Beta Opti Nano, continuous. | 16085-20434 | |
|
|
Organic Response sensor Notor 36 | Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI in both directions. White, 400 mm, for pendant Beta Opti Nano, continuous. | 16085-20274 | |
|
|
Organic Response sensor Notor 36 | Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the left and breaks DALI to the right. White, 400 mm, for pendant Opal, continuous. | 16085-20446 | |
|
|
Organic Response sensor Notor 36 | Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the right and breaks DALI to the left. White, 400 mm, for pendant Opal, continuous. | 16085-20423 | |
|
|
Organic Response sensor Notor 36 | Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI in both directions. White, 400 mm, for pendant Opal, continuous. | 16085-20422 | |
|
|
Organic Response sensor Notor 36 | Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the left and breaks DALI to the right. White, 400 mm, for pendant Opal, end. | 16085-20271 | |
|
Spacers incl. through-wiring Notor 36 | Spacers 200 mm, pendant, Opal, continuous. | 16085-20447 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 400 mm, pendant, Opal, continuous. | 16085-20448 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 600 mm, pendant, Opal, continuous. | 16085-20449 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 800 mm, pendant, Opal, continuous. | 16085-20450 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 1000 mm, pendant, Opal, continuous. | 16085-20451 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 1200 mm, pendant, Opal, continuous. | 16085-20452 | |
|
Spacers incl. through-wiring Notor 36 | Spacers 1200 mm, pendant, Opal, end. | 16085-20453 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 200 mm, pendant, Opal, end. | 16085-20455 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 400 mm, pendant, Opal, end. | 16085-20456 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 600 mm, pendant, Opal, end. | 16085-20457 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 800 mm, pendant, Opal, end. | 16085-20458 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 1000 mm, pendant, Opal, end. | 16085-20459 |
