DTI ReLight kitPendant

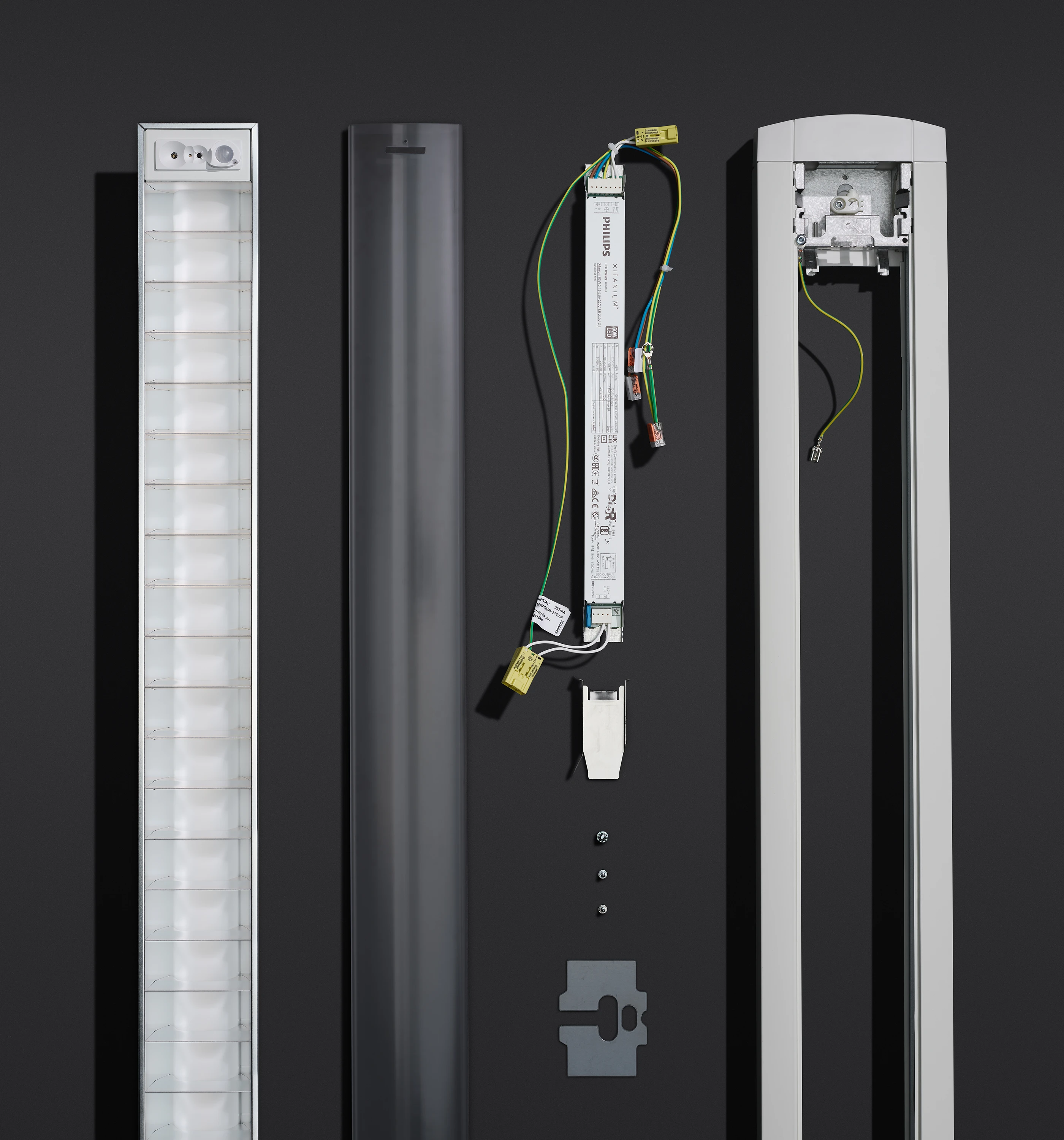

DTI ReLight kit is a complete LED kit for the replacement of T5 light sources, focusing on high efficiency and light comfort. The kit is fitted in an existing luminaire body. A sustainable and cost-effective method of reuse.
DTI ReLight kitPendant
DTI ReLight kit is a complete LED kit for the replacement of T5 light sources, focusing on high efficiency and light comfort. The kit is fitted in an existing luminaire body. A sustainable and cost-effective method of reuse.
Installation
For mounting in an existing luminaire body. For detailed information, see the installation instructions.
See installation video – Type 1 DALI See installation video – Installation clipsConnection
For permanent connection; driver ballast in the kit. Connection via snap-in terminal block (5x1.5 mm²) at the end of the luminaire. CLO (Constant Light Output).
Light Distribution

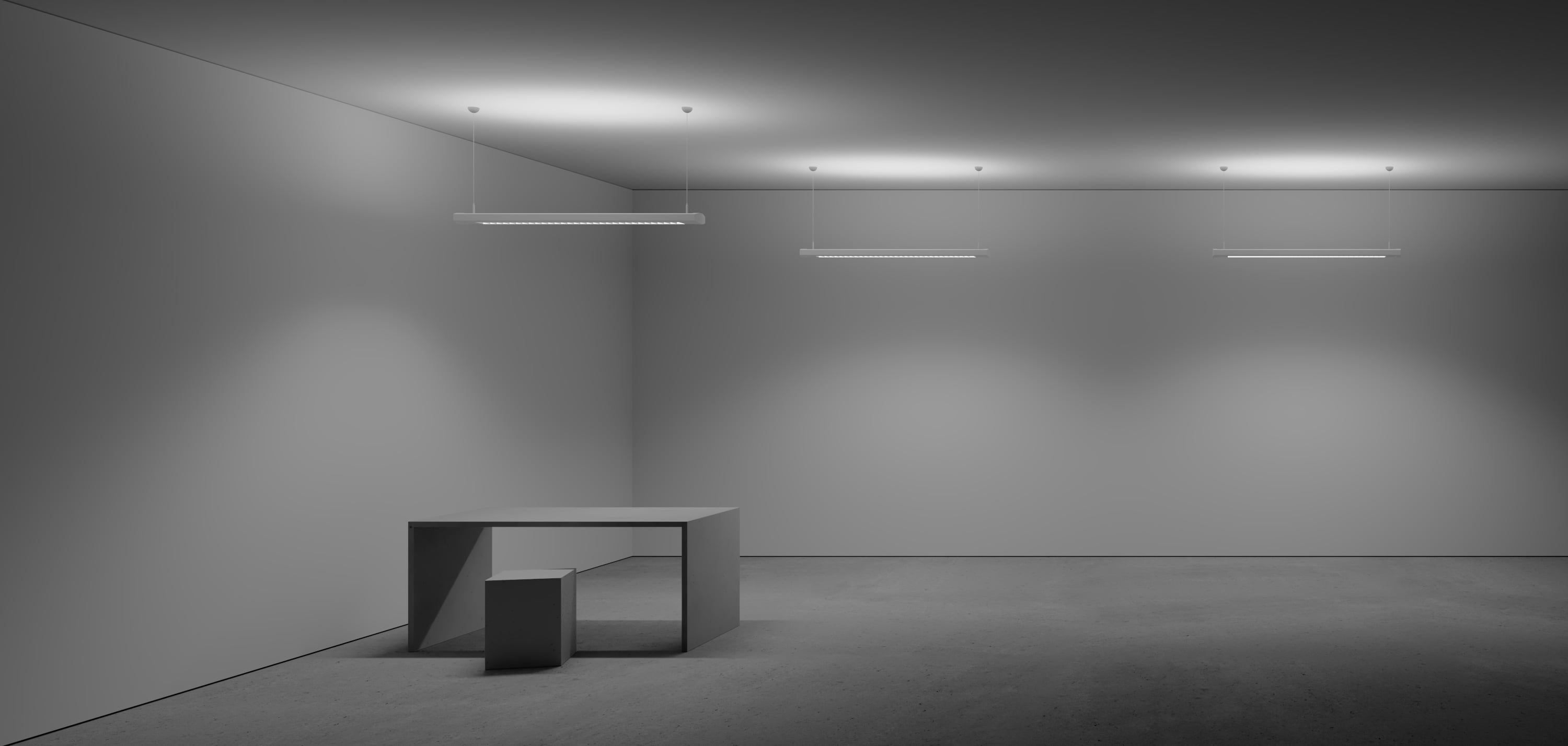

Direct. Direct/indirect 50/50, 30/70.
Light data
Optics
For versions using lamell louver, an opal diffuser film is included with the LED kit. The existing louver is reused.
Promoting reuse – ReLight
Reuse kits make it possible to reuse bodies and components from end-of-life DTI luminaires (T5 and LED). By only replacing critical parts such as light sources and ballasts, it is possible to avoid having to manufacture completely new luminaires, saving resources and reducing the carbon footprint.
30% lower carbon footprint during production
The DTI ReLight Kit has an approximately 30% lower climate impact compared to a newly manufactured DTI. This is based on an LCA for the ReLight kit compared to the EPD for the DTI Type 1 without sensor.
60% less material
By reusing the body, end caps and small components, fewer newly manufactured parts are required, reducing material use. A ReLight kit saves approximately 60% of material weight compared to a newly manufactured luminaire: DTI Surface mounted (Beta Opti, Direct).
e-Sense BrightSwitchPIR sensor
Simple control system that provides automatic on/off or dimming between high/low level that is controlled by presence or ambient light.
Read moreDALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

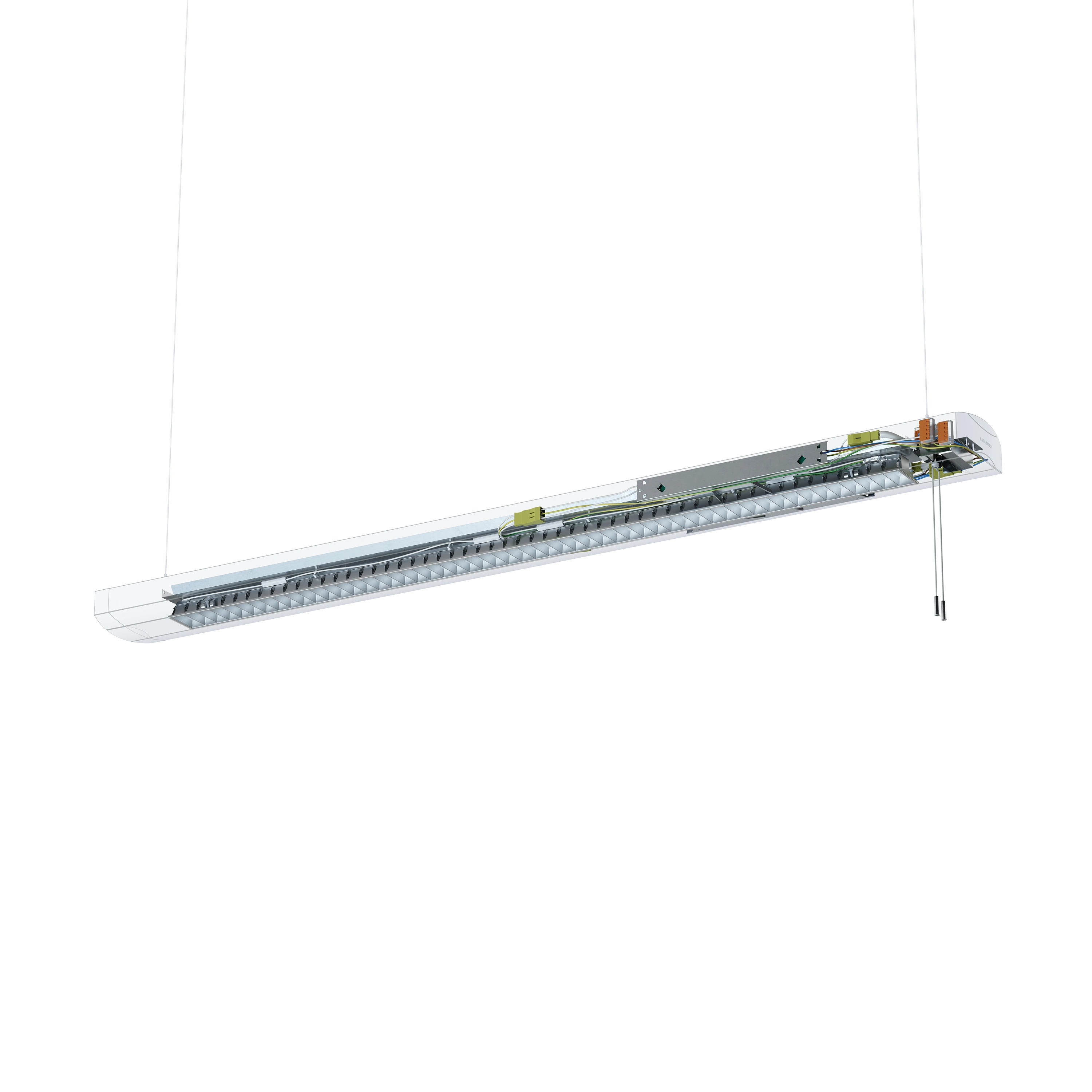

Pull dim
Dimming via a cord with stepped or hold‑to‑dim activation.
Organic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read more
Articles
Configure your DTI ReLight kit
Adapt and optimise the luminaire in Fagerhult's configurator.
