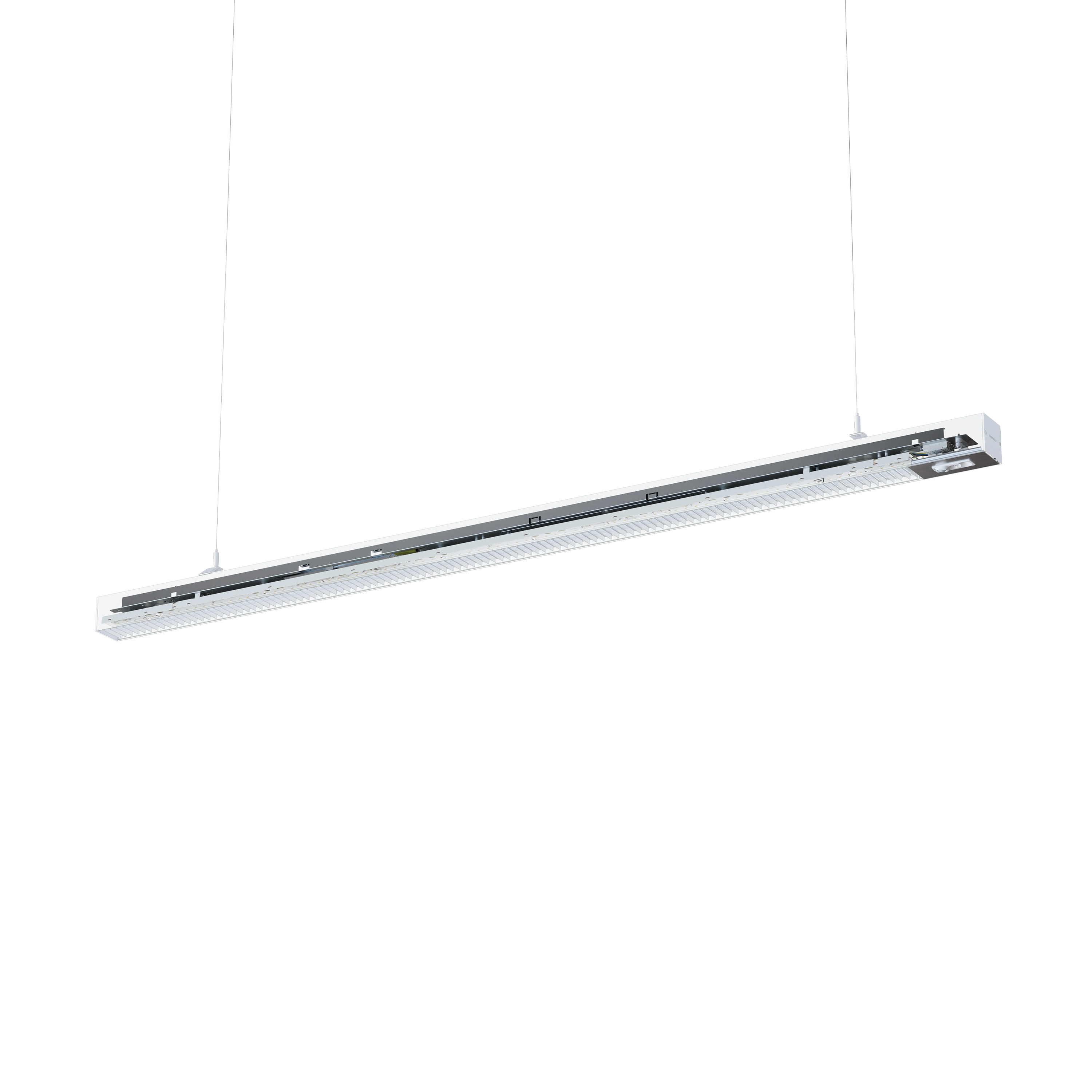

Notor G2 ReLight kitPendant

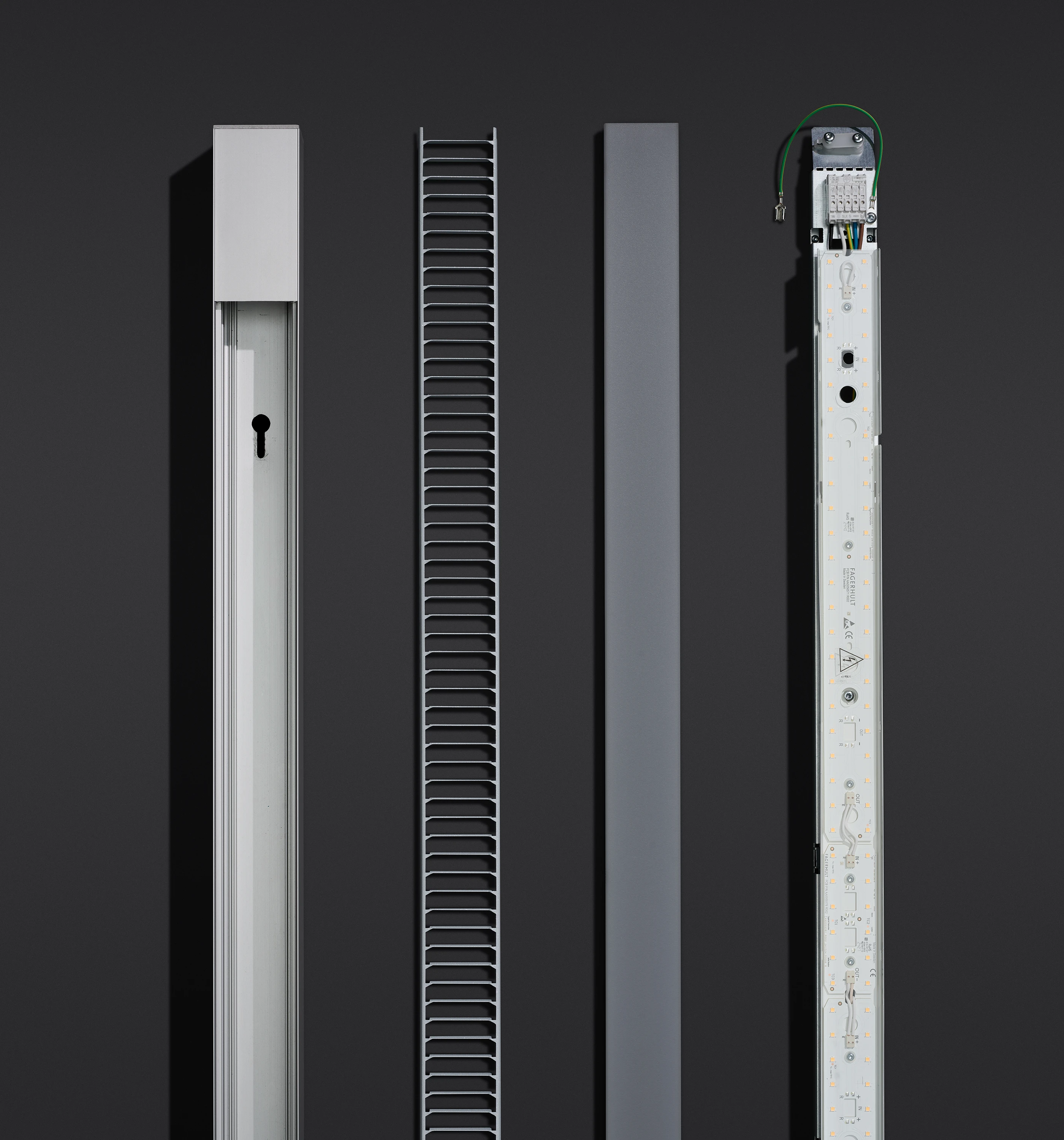

Notor ReLight kit is an LED kit for replacing T5 light sources. The kit is mounted in the existing luminaire body, and the louvre is reused. A sustainable and cost-effective method of reuse.
Notor G2 ReLight kitPendant
Notor ReLight kit is an LED kit for replacing T5 light sources. The kit is mounted in the existing luminaire body, and the louvre is reused. A sustainable and cost-effective method of reuse.
Installation
For mounting in an existing luminaire body. For detailed information, see the installation instructions.
See installation video – Installation clipsConnection
The start and continuous luminaires in the system are equipped with through-wiring (5x1.5 mm²) and quick connections between luminaire units. CLO (Constant Light Output).
Light Distribution
Direct.
Light data
Optics
For versions using lamell louver, an opal diffuser film is included with the LED kit. The existing louver is reused.
Promoting reuse – ReLight
Reuse kits make it possible to reuse bodies and components from end-of-life Notor luminaires. By only replacing critical parts such as light sources and ballasts, it is possible to avoid having to manufacture completely new luminaires, saving resources and reducing the carbon footprint.
40% lower carbon footprint during production
Using reused components results in a reduced climate footprint in the manufacturing of a new solution. When reusing Notor with a ReLight Kit, the climate impact is reduced by approximately 40% compared to a newly manufactured Notor 65 made from primary aluminium. The calculation is based on an LCA analysis (GWP, A1–A3) of the ReLight Kit and the Notor 65 pendant.
50% less material
By reusing the body, end caps and small components, fewer newly manufactured parts are required, reducing material use. A ReLight kit saves approximately 50% of material weight compared to a newly manufactured luminaire: Notor 65 Pendant (Delta, Direct).
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Organic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read more
Articles
Configure your Notor G2 ReLight kit
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Notor G2 ReLight Opal Shade | Notor G2 Relight Opal Shade 1200mm | 96500 | |
|
|
Notor G2 ReLight Opal Shade | Notor G2 Relight Opal Shade 1500mm | 96501 | |
|
Notor G2 ReLight cover plate | Notor G2 ReLight cover plate 100mm Anodized | 96509 | |
|
Notor G2 Relight Connectors | Organic Response-unit, anodized. For connecting max. 4 Notor G2 Relight DALI luminaires in continuous installation. Connects DALI in both directions. 200 mm. | 96510 | |
|
|
Notor G2 Relight Connectors | Organic Response-unit, Anodized. For connecting max. 4 Notor G2 Relight DALI luminaires in continuous installation. Connects DALI to the left and breaks DALI to the right. 200 mm. | 96511 | |
|
|
Notor G2 Relight Connectors | Organic Response-unit, anodized. For connecting max. 4 Notor G2 Relight DALI luminaires in continuous installation. Connects DALI to the right and breaks DALI to the left. 200 mm. | 96512 | |
|
Notor G2 Relight Connectors | Notor G2 ReLight L-Connector Right. | 96513 | |
|
Notor G2 Relight Connectors | Notor G2 ReLight L-Connector Left. | 96514 | |
|
|
Notor G2 Relight Connectors | Notor G2 ReLight X-Connector. | 96515 | |
|
Notor G2 Relight Connectors | Notor G2 ReLight T-Connector Right. | 96517 | |
|
Notor G2 Relight Connectors | Notor G2 ReLight T-Connector left. | 96518 | |
|
Notor G2 Relight Connectors | Notor G2 ReLight T-Connector Middle. | 96519 |
