Notor 78Pendant

Multiple mounting options

Notor 78 combines design aesthetics with a focus on comfort and performance. The Notor 78 features a wider profile than the other luminaires in the family, allowing for higher luminous fluxes and a wider spread of indirect light. An optical film generates a broad uplight.

Sensor available
Notor 78 pendant startsingle 1200 alu or
Anodised aluminium
White RAL 9016
Notor 78 pendant startsingle 1200 alu or Notor 78 pendant delta

Notor 78Pendant

Multiple mounting options

Notor 78 combines design aesthetics with a focus on comfort and performance. The Notor 78 features a wider profile than the other luminaires in the family, allowing for higher luminous fluxes and a wider spread of indirect light. An optical film generates a broad uplight.

Sensor available

Installation

Luminaire for pendant installation, single or continuous. Wire bracket providing flexible c/c and wire lock included in delivery. Wire suspension ordered separately; see Accessories. For various for wire suspension and mounting options, use Fagerhult Configure. To obtain an item list and calculate continuous installation length, use our configurator. For detailed information, see the installation instructions.

See installation video – Installation clips

Connection

For permanent connection; integrated driver in the luminaire. Single and start luminaires in systems are equipped with a 2.4 m mains cable, 5x0.75 mm². For continuous installation, the luminaire row must always begin with a start luminaire. Continuous luminaires are equipped with a through-wire (5x1.5 mm²) and a snap-in connector in each end cap. For 1200 30/70 and 1200 Tunable White direct/indirect, there are two DALI addresses per luminaire. For 2400 direct/indirect luminaires, there are also two DALI addresses per luminaire, where one DALI address controls the direct/indirect light on the first 1200 module and the other DALI address controls the other 1200 module. CLO (Constant Light Output).

Design

Luminaire body made of extruded aluminium. Lacquered in white (RAL 9016 G40) or natural anodised extruded aluminium. Indirect light is covered by an active film that generates a wide beam that also serves as a dust cover.

Light Distribution

Direct. Direct/indirect 50/50, 30/70, 70/30.

Light data

CCT, K:
3000 K, 4000 K, 2700-6500 K (TW)
CRI/Rf:
80, 90
SDCM:
3
Lumen output:
1681-10702 lm
CLO:
50 000 h

Optics

Delta – micro-prism louvre in acrylic (PMMA).

Notor 78

Explore our lighting for offices and workplaces.

Read more
Smart Lighting

Find the right lighting control for your project

Optimise your energy savings and create efficient spaces that are easy to manage. Use our guide to find the right lighting control for your project.

Optimise your energy savings and create efficient spaces that are easy to manage. Use our guide to find the right lighting control for your project.

Compare our systems Read more about the value of Smart lighting

DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

Pull dim

Dimming via a cord with stepped or hold‑to‑dim activation.

Organic ResponsePIR sensor

Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.

Read more

Articles

Showing 114 of 114 Articles
Art.no. System Wattage Lumen output CCT, K Colour Dimensions, mm Module Louvre Light distribution Installation Light control CLO time, h Miscellaneous Light data files Article PDF
13110-402 41 4226 Anodised 1174x78x78 1200 Delta 50/50 Start/Single DALI 50000 Tunable White
13111-402 41 4226 Anodised 1167x78x78 1200 Delta 50/50 Continuous DALI 50000 Tunable White
13112-402 82 8452 Anodised 2341x78x78 2400 Delta 50/50 Start/Single DALI 50000 Tunable White
13113-402 82 8452 Anodised 2335x78x78 2400 Delta 50/50 Continuous DALI 50000 Tunable White
13114-402 37 3157 Anodised 1174x78x78 1200 Delta 70/30 Start/Single DALI 50000 Tunable White
13115-402 37 3157 Anodised 1167x78x78 1200 Delta 70/30 Continuous DALI 50000 Tunable White
13116-402 65 6314 Anodised 2341x78x78 2400 Delta 70/30 Start/Single DALI 50000 Tunable White
13117-402 65 6314 Anodised 2335x78x78 2400 Delta 70/30 Continuous DALI 50000 Tunable White
13118-402 41 4226 White 1174x78x78 1200 Delta 50/50 Start/Single DALI 50000 Tunable White
13119-402 41 4226 White 1167x78x78 1200 Delta 50/50 Continuous DALI 50000 Tunable White
13120-402 82 8452 White 2341x78x78 2400 Delta 50/50 Start/Single DALI 50000 Tunable White
13121-402 82 8452 White 2335x78x78 2400 Delta 50/50 Continuous DALI 50000 Tunable White
13122-402 37 3157 White 1174x78x78 1200 Delta 70/30 Start/Single DALI 50000 Tunable White
13123-402 37 3157 White 1167x78x78 1200 Delta 70/30 Continuous DALI 50000 Tunable White
13124-402 65 6314 White 2341x78x78 2400 Delta 70/30 Start/Single DALI 50000 Tunable White
13125-402 65 6314 White 2335x78x78 2400 Delta 70/30 Continuous DALI 50000 Tunable White
13130-402 29 3403 3000 White 1174x78x78 1200 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13131-402 29 3403 3000 White 1167x78x78 1200 Delta 70/30 Continuous DALI/Phase-pulse 50000
13132-402 43 5008 3000 White 1174x78x78 1200 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13133-402 43 5008 3000 White 1167x78x78 1200 Delta 70/30 Continuous DALI/Phase-pulse 50000
13134-402 56 6806 3000 White 2341x78x78 2400 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13135-402 56 6806 3000 White 2335x78x78 2400 Delta 70/30 Continuous DALI/Phase-pulse 50000
13136-402 83 10016 3000 White 2341x78x78 2400 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13136-533 84 10016 3000 White 2841x78x78 2400 Delta 70/30 Start/Single Organic Response 50000
13137-402 83 10016 3000 White 2335x78x78 2400 Delta 70/30 Continuous DALI/Phase-pulse 50000
13138-402 31 4154 3000 White 1174x78x78 1200 Delta 50/50 Start/Single DALI/Phase-pulse 50000
13138-449 31 4154 3000 White 1174x78x78 1200 Delta 50/50 Single DALI/Phase-pulse 50000 1 pull dim
13138-474 32 4154 3000 White 1174x78x78 1200 Delta 50/50 Single DALI/Phase-pulse 50000 2 pull dim
13139-402 31 4154 3000 White 1167x78x78 1200 Delta 50/50 Continuous DALI/Phase-pulse 50000
13140-402 63 8308 3000 White 2341x78x78 2400 Delta 50/50 Start/Single DALI/Phase-pulse 50000
13141-402 63 8308 3000 White 2335x78x78 2400 Delta 50/50 Continuous DALI/Phase-pulse 50000
13142-402 40 5201 3000 White 1174x78x78 1200 Delta 30/70 Start/Single DALI/Phase-pulse 50000
13142-449 40 5201 3000 White 1174x78x78 1200 Delta 30/70 Single DALI/Phase-pulse 50000 1 pull dim
13142-474 40 5201 3000 White 1174x78x78 1200 Delta 30/70 Single DALI/Phase-pulse 50000 2 pull dim
13142-533 40 5201 3000 White 1273x78x78 1200 Delta 30/70 Start/Single Organic Response 50000
13143-402 40 5201 3000 White 1167x78x78 1200 Delta 30/70 Continuous DALI/Phase-pulse 50000
13144-402 78 10402 3000 White 2341x78x78 2400 Delta 30/70 Start/Single DALI/Phase-pulse 50000
13145-402 78 10402 3000 White 2335x78x78 2400 Delta 30/70 Continuous DALI/Phase-pulse 50000
13146-402 29 3501 4000 White 1174x78x78 1200 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13147-402 29 3501 4000 White 1167x78x78 1200 Delta 70/30 Continuous DALI/Phase-pulse 50000
13148-402 43 5152 4000 White 1174x78x78 1200 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13149-402 43 5152 4000 White 1167x78x78 1200 Delta 70/30 Continuous DALI/Phase-pulse 50000
13150-402 56 7002 4000 White 2341x78x78 2400 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13151-402 56 7002 4000 White 2335x78x78 2400 Delta 70/30 Continuous DALI/Phase-pulse 50000
13152-402 83 10302 4000 White 2341x78x78 2400 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13152-533 84 10302 4000 White 2841x78x78 2400 Delta 70/30 Start/Single Organic Response 50000
13153-402 83 10302 4000 White 2335x78x78 2400 Delta 70/30 Continuous DALI/Phase-pulse 50000
13154-402 31 4273 4000 White 1174x78x78 1200 Delta 50/50 Start/Single DALI/Phase-pulse 50000
13154-449 31 4273 4000 White 1174x78x78 1200 Delta 50/50 Single DALI/Phase-pulse 50000 1 pull dim
13154-474 32 4273 4000 White 1174x78x78 1200 Delta 50/50 Single DALI/Phase-pulse 50000 2 pull dim
13155-402 31 4273 4000 White 1167x78x78 1200 Delta 50/50 Continuous DALI/Phase-pulse 50000
13156-402 63 8546 4000 White 2341x78x78 2400 Delta 50/50 Start/Single DALI/Phase-pulse 50000
13157-402 63 8546 4000 White 2335x78x78 2400 Delta 50/50 Continuous DALI/Phase-pulse 50000
13158-402 40 5351 4000 White 1174x78x78 1200 Delta 30/70 Start/Single DALI/Phase-pulse 50000
13158-449 40 5351 4000 White 1174x78x78 1200 Delta 30/70 Single DALI/Phase-pulse 50000 1 pull dim
13158-474 40 5351 4000 White 1174x78x78 1200 Delta 30/70 Single DALI/Phase-pulse 50000 2 pull dim
13158-533 40 5351 4000 White 1273x78x78 1200 Delta 30/70 Start/Single Organic Response 50000
13159-402 40 5351 4000 White 1167x78x78 1200 Delta 30/70 Continuous DALI/Phase-pulse 50000
13160-402 78 10702 4000 White 2341x78x78 2400 Delta 30/70 Start/Single DALI/Phase-pulse 50000
13161-402 78 10702 4000 White 2335x78x78 2400 Delta 30/70 Continuous DALI/Phase-pulse 50000
13162-402 29 3403 3000 Anodised 1174x78x78 1200 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13163-402 29 3403 3000 Anodised 1167x78x78 1200 Delta 70/30 Continuous DALI/Phase-pulse 50000
13164-402 43 5008 3000 Anodised 1174x78x78 1200 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13165-402 43 5008 3000 Anodised 1167x78x78 1200 Delta 70/30 Continuous DALI/Phase-pulse 50000
13166-402 56 6806 3000 Anodised 2341x78x78 2400 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13167-402 56 6806 3000 Anodised 2335x78x78 2400 Delta 70/30 Continuous DALI/Phase-pulse 50000
13168-402 83 10016 3000 Anodised 2341x78x78 2400 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13169-402 83 10016 3000 Anodised 2335x78x78 2400 Delta 70/30 Continuous DALI/Phase-pulse 50000
13170-402 31 4154 3000 Anodised 1174x78x78 1200 Delta 50/50 Start/Single DALI/Phase-pulse 50000
13170-449 31 4154 3000 Anodised 1174x78x78 1200 Delta 50/50 Single DALI/Phase-pulse 50000 1 pull dim
13170-474 32 4154 3000 Anodised 1174x78x78 1200 Delta 50/50 Single DALI/Phase-pulse 50000 2 pull dim
13171-402 31 4154 3000 Anodised 1167x78x78 1200 Delta 50/50 Continuous DALI/Phase-pulse 50000
13172-402 63 8308 3000 Anodised 2341x78x78 2400 Delta 50/50 Start/Single DALI/Phase-pulse 50000
13173-402 63 8308 3000 Anodised 2335x78x78 2400 Delta 50/50 Continuous DALI/Phase-pulse 50000
13174-402 40 5201 3000 Anodised 1174x78x78 1200 Delta 30/70 Start/Single DALI/Phase-pulse 50000
13174-449 40 5201 3000 Anodised 1174x78x78 1200 Delta 30/70 Single DALI/Phase-pulse 50000 1 pull dim
13174-474 40 5201 3000 Anodised 1174x78x78 1200 Delta 30/70 Single DALI/Phase-pulse 50000 2 pull dim
13174-533 40 5201 3000 Anodised 1273x78x78 1200 Delta 30/70 Start/Single Organic Response 50000
13175-402 40 5201 3000 Anodised 1167x78x78 1200 Delta 30/70 Continuous DALI/Phase-pulse 50000
13176-402 78 10402 3000 Anodised 2341x78x78 2400 Delta 30/70 Start/Single DALI/Phase-pulse 50000
13177-402 78 10402 3000 Anodised 2335x78x78 2400 Delta 30/70 Continuous DALI/Phase-pulse 50000
13178-402 29 3501 4000 Anodised 1174x78x78 1200 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13179-402 29 3501 4000 Anodised 1167x78x78 1200 Delta 70/30 Continuous DALI/Phase-pulse 50000
13180-402 43 5152 4000 Anodised 1174x78x78 1200 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13181-402 43 5152 4000 Anodised 1167x78x78 1200 Delta 70/30 Continuous DALI/Phase-pulse 50000
13182-402 56 7002 4000 Anodised 2341x78x78 2400 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13183-402 56 7002 4000 Anodised 2335x78x78 2400 Delta 70/30 Continuous DALI/Phase-pulse 50000
13184-402 83 10302 4000 Anodised 2341x78x78 2400 Delta 70/30 Start/Single DALI/Phase-pulse 50000
13185-402 83 10302 4000 Anodised 2335x78x78 2400 Delta 70/30 Continuous DALI/Phase-pulse 50000
13186-402 31 4273 4000 Anodised 1174x78x78 1200 Delta 50/50 Start/Single DALI/Phase-pulse 50000
13186-449 31 4273 4000 Anodised 1174x78x78 1200 Delta 50/50 Single DALI/Phase-pulse 50000 1 pull dim
13186-474 32 4273 4000 Anodised 1174x78x78 1200 Delta 50/50 Single DALI/Phase-pulse 50000 2 pull dim
13187-402 31 4273 4000 Anodised 1167x78x78 1200 Delta 50/50 Continuous DALI/Phase-pulse 50000
13188-402 63 8546 4000 Anodised 2341x78x78 2400 Delta 50/50 Start/Single DALI/Phase-pulse 50000
13189-402 63 8546 4000 Anodised 2335x78x78 2400 Delta 50/50 Continuous DALI/Phase-pulse 50000
13190-402 40 5351 4000 Anodised 1174x78x78 1200 Delta 30/70 Start/Single DALI/Phase-pulse 50000
13190-449 40 5351 4000 Anodised 1174x78x78 1200 Delta 30/70 Single DALI/Phase-pulse 50000 1 pull dim
13190-474 40 5351 4000 Anodised 1174x78x78 1200 Delta 30/70 Single DALI/Phase-pulse 50000 2 pull dim
13190-533 40 5351 4000 Anodised 1273x78x78 1200 Delta 30/70 Start/Single Organic Response 50000
13191-402 40 5351 4000 Anodised 1167x78x78 1200 Delta 30/70 Continuous DALI/Phase-pulse 50000
13192-402 78 10702 4000 Anodised 2341x78x78 2400 Delta 30/70 Start/Single DALI/Phase-pulse 50000
13193-402 78 10702 4000 Anodised 2335x78x78 2400 Delta 30/70 Continuous DALI/Phase-pulse 50000
13204-402 15 1681 3000 Anodised 1174x78x78 1200 Delta Direct Start/Single DALI/Phase-pulse 50000
13206-402 24 2726 4000 White 1174x78x78 1200 Delta Direct Start/Single DALI/Phase-pulse 50000
13207-402 24 2726 4000 White 1167x78x78 1200 Delta Direct Continuous DALI/Phase-pulse 50000
13208-402 45 5452 4000 White 2341x78x78 2400 Delta Direct Start/Single DALI/Phase-pulse 50000
13209-402 45 5452 4000 White 2335x78x78 2400 Delta Direct Continuous DALI/Phase-pulse 50000
13211-402 24 2726 4000 Anodised 1167x78x78 1200 Delta Direct Continuous DALI/Phase-pulse 50000
13224-402 15 1729 4000 Anodised 1174x78x78 1200 Delta Direct Start/Single DALI/Phase-pulse 50000
13225-402 15 1729 4000 Anodised 1167x78x78 Delta Direct Continuous DALI/Phase-pulse 50000
13226-402 29 3458 4000 Anodised 2341x78x78 2400 Delta Direct Start/Single DALI/Phase-pulse 50000
13227-402 29 3458 4000 Anodised 2335x78x78 2400 Delta Direct Continuous DALI/Phase-pulse 50000
13228-402 24 2726 4000 Anodised 1174x78x78 1200 Delta Direct Start/Single DALI/Phase-pulse 50000
13229-402 45 5452 4000 Anodised 2341x78x78 2400 Delta Direct Start/Single DALI/Phase-pulse 50000
Showing 79 of 79 Accessories
Name Description Art.no. Article PDF
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large square ceiling cup for T-bars 25 mm, transparent mains cable/each 96381
Wire suspension for continuous installation L: 1,4m Large square ceiling cup for T-bars 25 mm/each 96373
Wire suspension for continuous installation L: 1,4m Small round ceiling cup for T-bars 25 mm/each 96384
Wire suspension for continuous installation L: 1,4m Large round ceiling cup/each 96383
Wire suspension for continuous installation L: 1,4m Large round ceiling cup for T-bars 25 mm/each 96385
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381) 95381
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377) 95380
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – small + large, transparent mains cable (96370+96380) 95379
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – small + large, white mains cable (96370+96375) 95378
Ceiling Cup Round small wire Wire suspension for continuous installation L: 1,4m Small round ceiling cup/each 96382
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377) 95376
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389) 95372
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – small + large, white mains cable (96382+96387) 95370
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96389) 95368
Wire suspension for continuous installation L: 1,4m Small square ceiling cup/each 96370
Wire suspension for continuous installation L: 1,4m Large square ceiling cup/each 96371
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376) 95364
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381) 95377
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – small + large, white mains cable (96370+96374) 95362
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376) 95360
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – large, transparent mains cable (96371+96378) 95359
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – large, transparent mains cable (96383+96392) 95367
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – large, white mains cable (96383+96387) 95366
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391) 95357
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96393) 95369
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – large, transparent mains cable (96371+96380) 95375
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – small + large, transparent mains cable (96382+96392) 95371
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – small + large, transparent mains cable (96370+96378) 95363
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – large, white mains cable (96371+96374) 95358
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379) 95365
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379) 95361
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – large, white mains cable (96371+96375) 95374
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393) 95373
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, suspended pipe conduit installation, 1 m cable. pipe not included. 86409
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, surface mounted, 1 m cable 86408
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, recessed, 3.2 m cable 86410
External Organic Response sensor incl. DALI PSU Extern sensor incl. DALI PSU, suspended pipe conduit installation, 3.2 m cable. Pipe not included. 86412
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, surface mounted, 3.2 m cable 86411
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, recessed, 1 m cable 86407
Support rail (cat. no./pair) L=600/625, section: 25, max. load: 75N/pair 94067
Organic Response EnOcean Wireless Push button panel EnOcean 4 function push button panel, labeled, white 86437
Organic Response EnOcean Wireless Push button panel EnOcean 2 function push button panel, labeled, white 86436
Organic Response I/O box I/O box with potential-free 16A relay for controlling external units. 86413
Organic Response IoT Gateway Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. 86296
Wire suspension for support rails L: 1,5m Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 91426
Support rail (cat. no./pair) L=1200/1250, section: 25, max. load: 120/30N/pair 94068
Support rail (cat. no./pair) L=600/650, section: 15, max. load: 75N/pair 90015
Organic Response EnOcean Wireless Push button panel EnOcean 4 function push button panel, white 86417
Organic Response EnOcean Wireless Push button panel EnOcean 2 function push button panel, white 86416
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large round ceiling cup for T-bars 25 mm, transparent mains cable/each 96393
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large round ceiling cup, transparent mains cable/each 96392
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large round ceiling cup, white mains cable/each 96387
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large square ceiling cup for T-bars 25 mm, white mains cable/each 96376
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large square ceiling cup, white mains cable/each 96374
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large round ceiling cup for T-bars 25 mm, white mains cable/each 96388
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large round ceiling cup, white mains cable/each 96386
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – small + large, white mains cable (96382+96386) 95354
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388) 95352
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – large, transparent mains cable (96383+96390) 95351
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large square ceiling cup for T-bars 25 mm, white mains cable/each 96377
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large square ceiling cup, transparent mains cable/each 96380
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large square ceiling cup, white mains cable/each 96375
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large round ceiling cup for T-bars 25 mm, white mains cable/each 96389
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large square ceiling cup for T-bars 25 mm, transparent mains cable/each 96379
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large square ceiling cup, transparent mains cable/each 96378
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large round ceiling cup for T-bars 25 mm, transparent mains cable/each 96391
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large round ceiling cup, transparent mains cable/each 96390
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – small + large, transparent mains cable (96382+96390) 95355
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391) 95353
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388) 95356
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – large, white mains cable (96383+96386) 95350
Wire suspension for continuous installation L: 1,4m Small square ceiling cup for T-bars 25 mm/each 96372
Wall socket Wall socket 5 pairs 92703
Wall socket Wall socket 5 pairs 92704
IR dongle for Organic Response IR dongle for Organic Response equipped luminaire. 86279
Support rail (cat. no./pair) L=200/1250, section: 15, max. load: 120/30N/pair 90016
Cutters Cutters, each 94248
Ceiling bracket in chrome with wire Wire suspension with ceiling bracket in chrome, L=1.5 m/pair 91696
Organic Response I/O box I/O box with potential-free 8A relay for controlling external units. 86433

Downloads

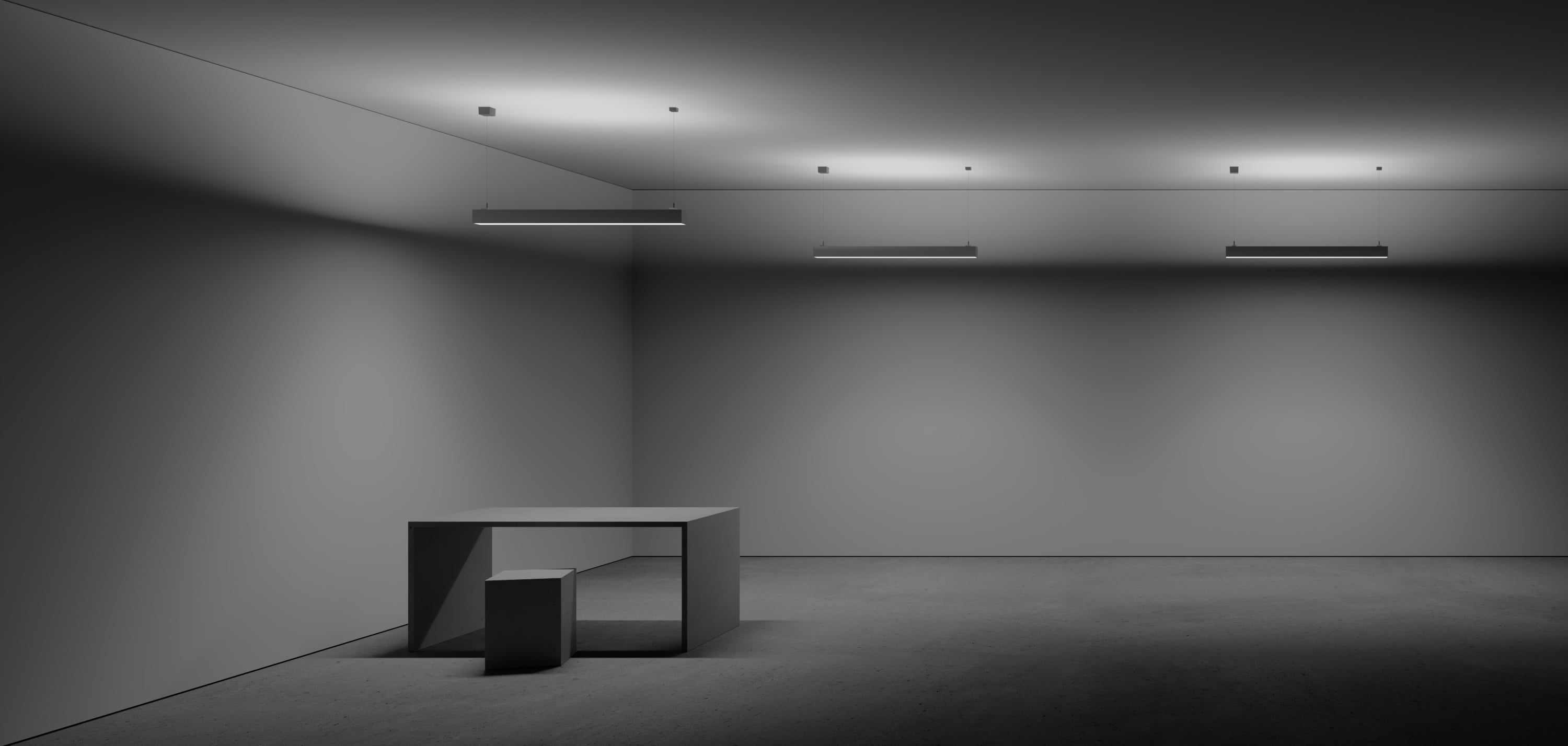

Notor 78 pendant

Documents

Open PDF

3D Models

Manuals

Open PDF
Open PDF
Reference case

22 Handyside, King Cross

A smart and energy efficient building concept

Read more
Reference case

Humlegården

UMA workplace & Grow Hotel Best Western Plus

Read more
Reference case

Campus Bornholm

Challenge the norm – dare to use more light

Read more
Reference case

District Court Lund

Law and order in new light

Read more
Reference case

Rydebäcksskolan

Enhance the learning environment

Read more
Reference case

Statistics Finland

Statistics in a new light

Read more
Return to top
