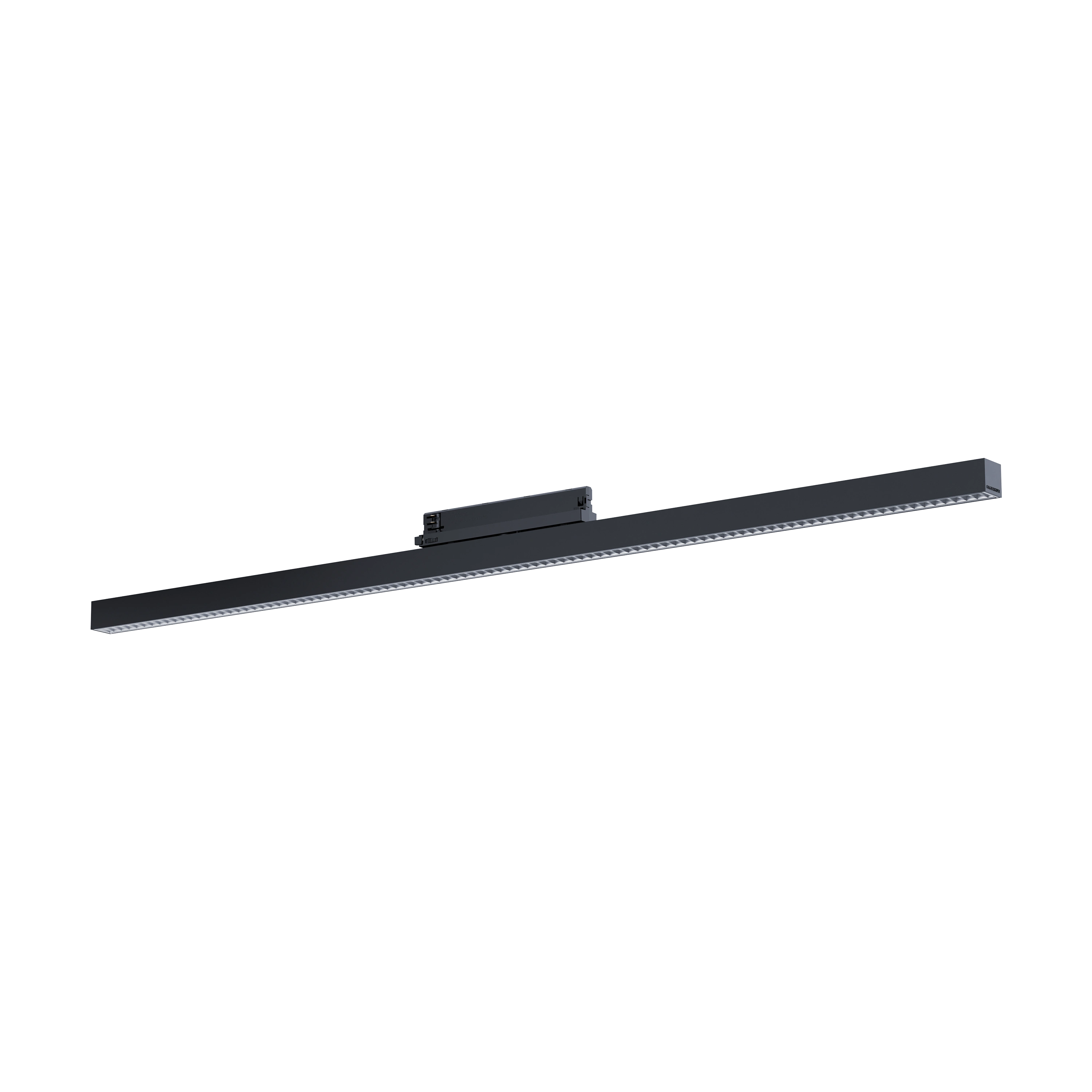

Notor 36Track
Notor 36 is a luminaire family with minimal use of material and high light comfort and performance, along with a range of louvres, lengths and shape options. Made from recycled aluminium for a low carbon footprint. For flexible mounting in the lighting track.
Notor 36Track
Notor 36 is a luminaire family with minimal use of material and high light comfort and performance, along with a range of louvres, lengths and shape options. Made from recycled aluminium for a low carbon footprint. For flexible mounting in the lighting track.
Installation
Luminaire for installation in Lighting Track Pro 3-phase track, Control Track or Control Track Dual. The adapter locks mechanically to the track with a knob. Phase 1, 2 or 3 can then be selected with the phase selector knob. A balance weight may be required to ensure correct horizontal positioning. Balance weight available as an accessory. For detailed information, see the installation instructions.
Connection
Adapter for 3-phase track or Control Track (DALI). Integrated driver in luminaire. CLO (Constant Light Output).
Design
Extruded aluminium luminaire body, made from 75% post-consumer recycled material. Lacquered in white (RAL 9016 G40) or black (RAL 9005 G30).
Light Distribution
Direct.
Light data
Optics

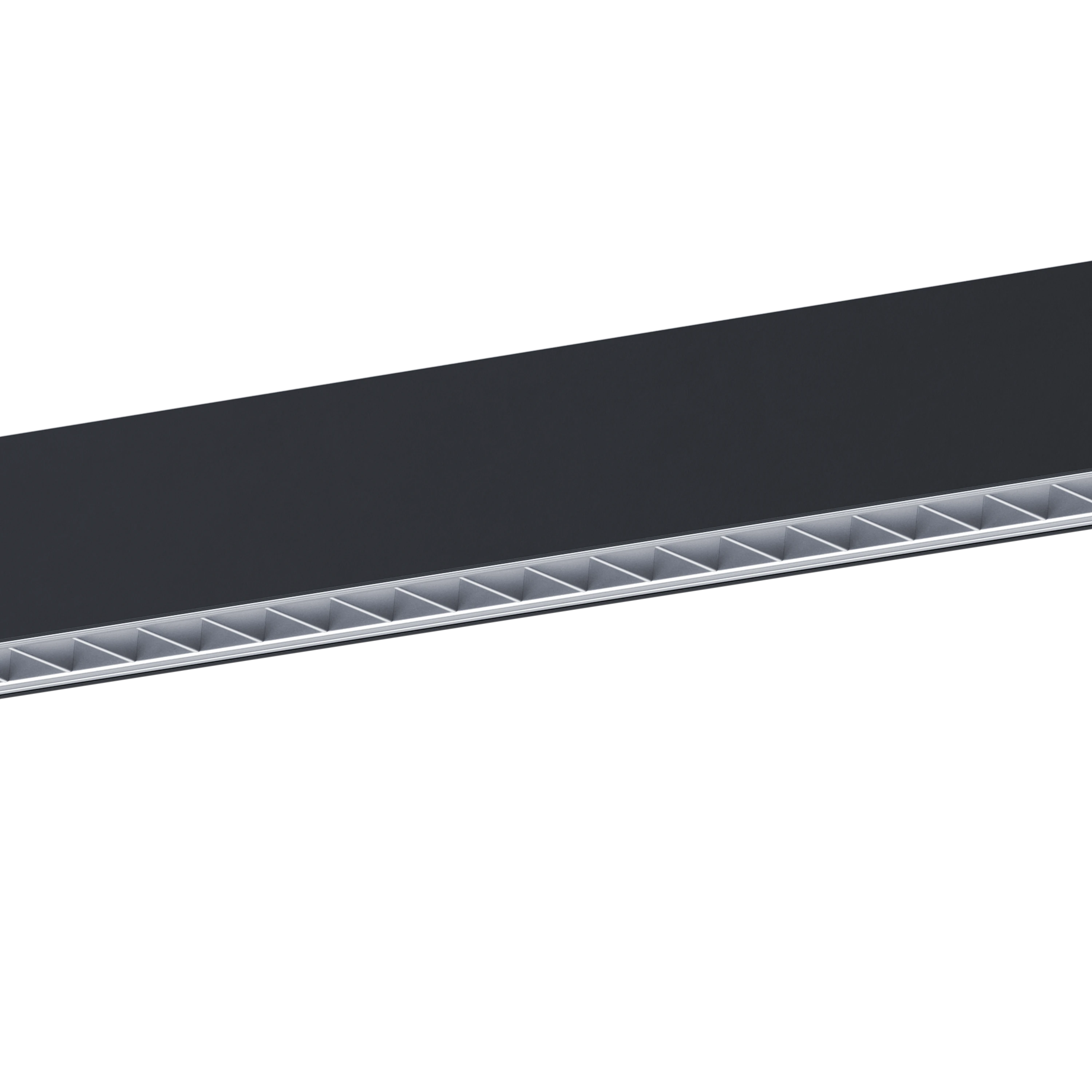

Beta Opti Nano – side and crosswise semi-gloss reflectors in metallised aluminium with an integrated opal film that minimises the risk of uncomfortable glare from the LEDs. Opal – frosted acrylic (PMMA) disc.
Made of recycled aluminium
The luminaire body is made of recycled aluminium, which consists of 75% post-consumer material (end-of-life scrap) from Europe. This aluminium (excluding extrusion) has a 71% lower climate impact compared to average primary aluminium from Europe (Source: European Aluminium). These calculations are based on the climate impact reported in the EPD compared to the average values.
Minimised design
The luminaire’s minimised design, with its high luminous efficacy, means that less material is used in manufacturing. This contributes to a low climate impact and more efficient use of resources compared to traditional, larger luminaires, without compromising on function or light quality.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
e-Sense StagePIR sensor
Dynamic system for e.g. retail and showrooms, which uses Casambi technology to easily create and control various lighting scenarios via an app.
Read moreOrganic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read moreOn/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
