Notor 65 WallSurface

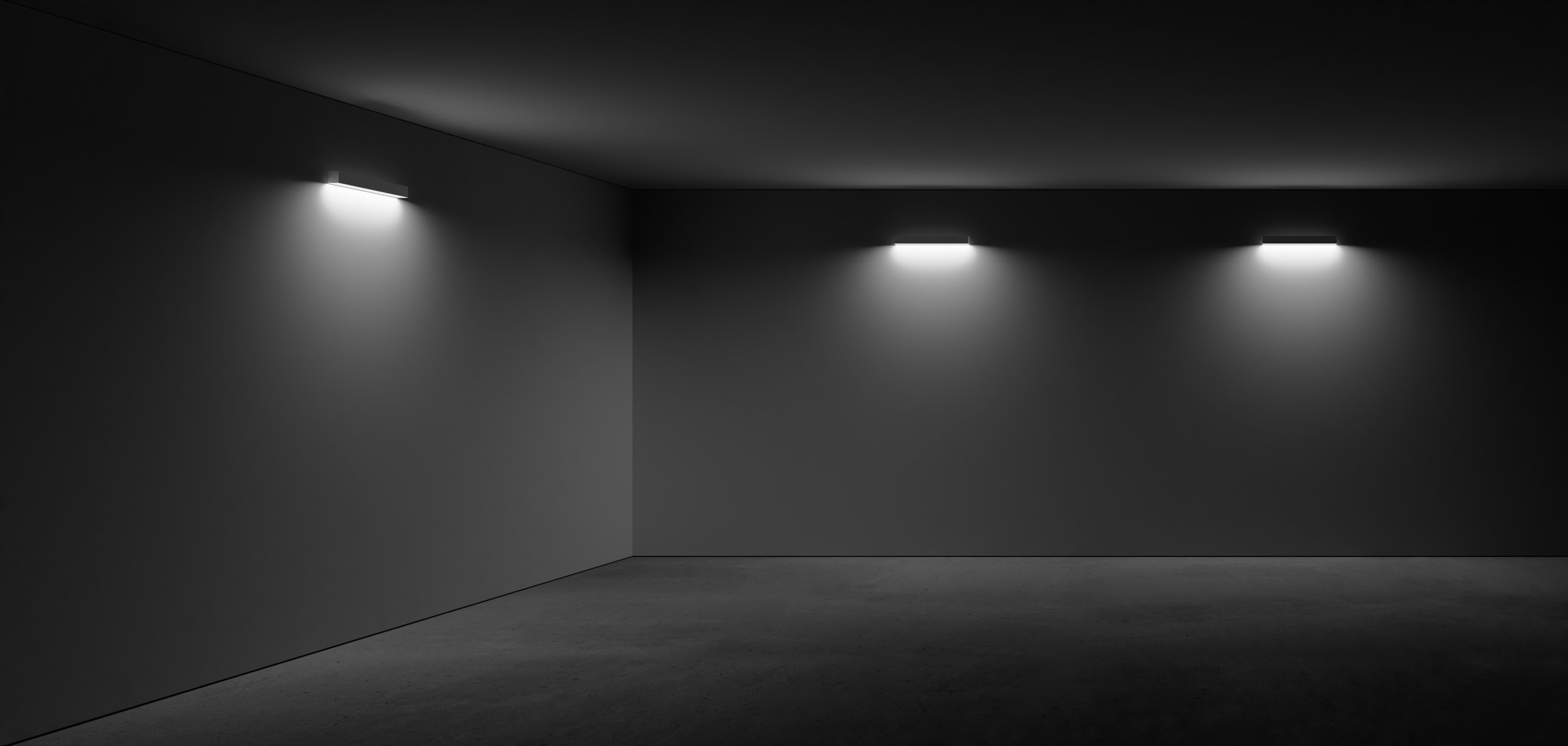

Notor 65 is a luminaire family that combines design aesthetics with high lighting comfort and performance. The luminaire spreads a soft light on the wall and is suitable for everything from stairwells to social areas.
Notor 65 WallSurface
Notor 65 is a luminaire family that combines design aesthetics with high lighting comfort and performance. The luminaire spreads a soft light on the wall and is suitable for everything from stairwells to social areas.
Installation
Single installation horizontally on wall. Wall bracket, with flexible c/c, and spacers included. For detailed information, see the installation instructions.
Connection
For permanent connection; integrated driver in the luminaire. Connection via cable entry Ø16 on the back of the luminaire. Snap-in terminal block 5x2.5 mm². CLO (Constant Light Output).
Design
Extruded aluminium luminaire body, made from 75% post-consumer recycled material. Lacquered in white (RAL 9016 G40) or natural anodised extruded aluminium. End caps included.
Light Distribution
Direct.
Light data
Optics

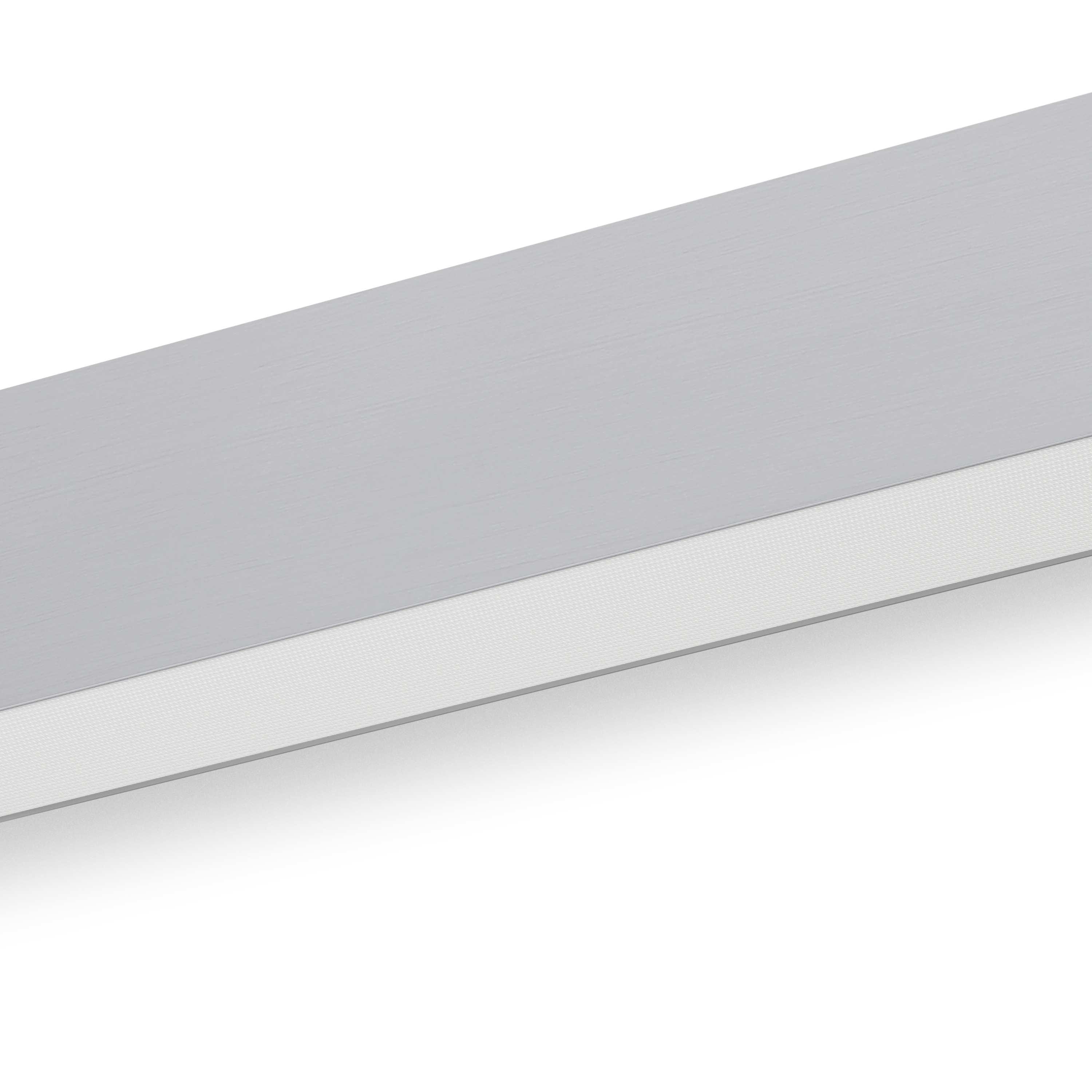

Opal – frosted acrylic (PMMA) disc.
Made of recycled aluminium
The luminaire body is made of recycled aluminium, which consists of 75% post-consumer material (end-of-life scrap) from Europe. This aluminium (excluding extrusion) has a 71% lower climate impact compared to average primary aluminium from Europe (Source: European Aluminium). These calculations are based on the climate impact reported in the EPD compared to the average values.
Timeless design & long-term use
A timeless design results in a classic product that is less sensitive to trends. This increases the likelihood of reuse, making the luminaire a sensible choice for construction projects with a long-term sustainability perspective.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Dimensions, mm | Light distribution | Installation | Light control | CLO time, h | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 13572-402 | 11 | 1074 | 3000 | Anodised | 600x65x65 | Direct | Single | DALI/Phase-pulse | 50000 |
|
|
| 13573-402 | 11 | 1074 | 3000 | White | 600x65x65 | Direct | Start | DALI/Phase-pulse | 50000 |
|
|
| 13574-402 | 11 | 1128 | 4000 | Anodised | 600x65x65 | Direct | Single | DALI/Phase-pulse | 50000 |
|
|
| 13575-402 | 11 | 1128 | 4000 | White | 600x65x65 | Direct | Start | DALI/Phase-pulse | 50000 |
|
|
| 13576-402 | 15 | 1578 | 3000 | Anodised | 900x65x65 | Direct | Single | DALI/Phase-pulse | 50000 |
|
|
| 13577-402 | 15 | 1578 | 3000 | White | 900x65x65 | Direct | Start | DALI/Phase-pulse | 50000 |
|
|
| 13578-402 | 15 | 1657 | 4000 | Anodised | 900x65x65 | Direct | Single | DALI/Phase-pulse | 50000 |
|
|
| 13579-402 | 15 | 1657 | 4000 | White | 900x65x65 | Direct | Start | DALI/Phase-pulse | 50000 |
|
