Aluflex MedicaSurface

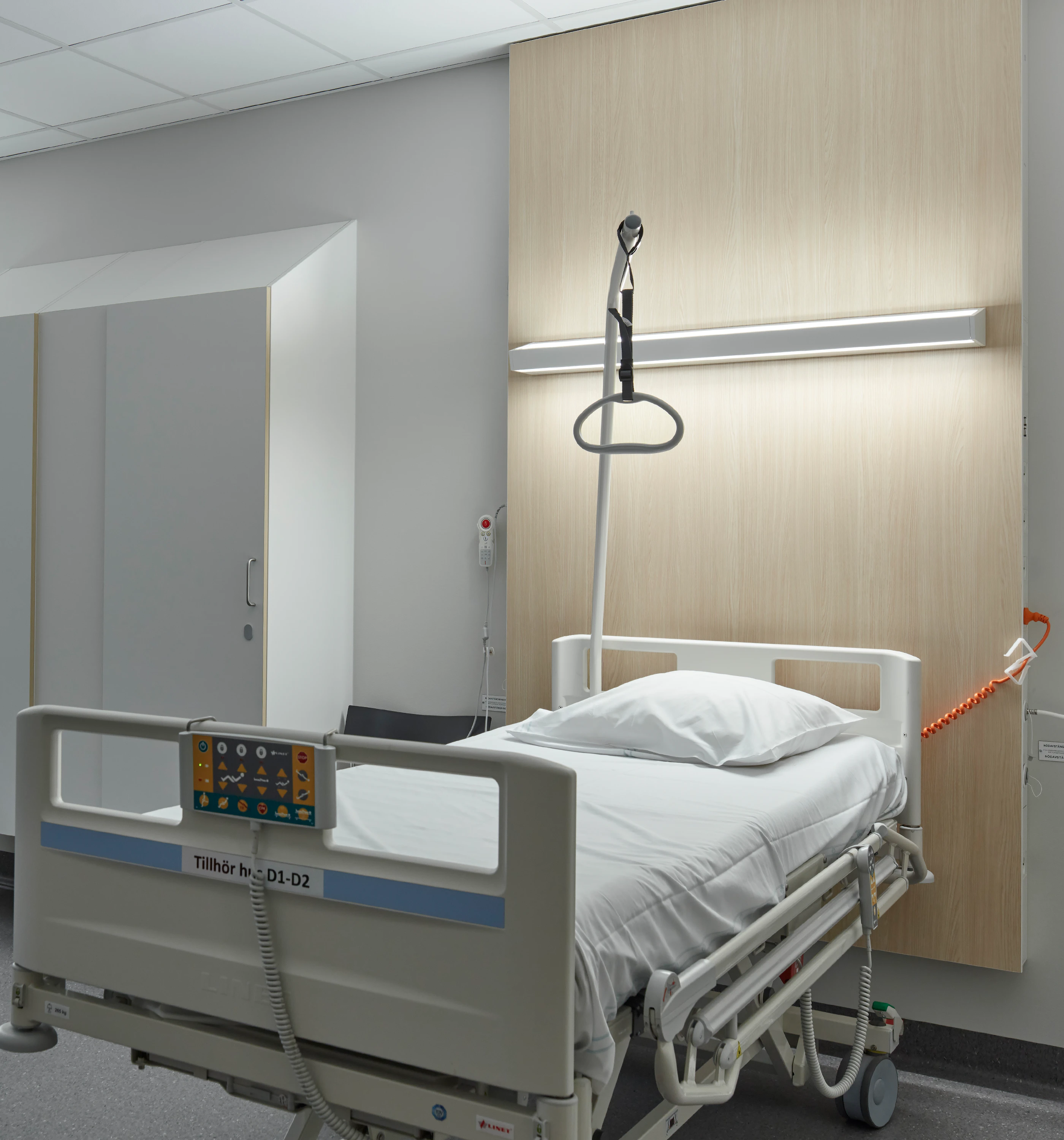

Aluflex Medica is a versatile surface-mounted luminaire for healthcare settings and nursing homes. Asymmetric light distribution, combined with direct/indirect light, provides both good reading light and an evenly lit ceiling.
Aluflex MedicaSurface
Aluflex Medica is a versatile surface-mounted luminaire for healthcare settings and nursing homes. Asymmetric light distribution, combined with direct/indirect light, provides both good reading light and an evenly lit ceiling.
Installation
Luminaire for wall installation on bracket. For detailed information, see the installation instructions.
Connection
For permanent connection; integrated driver in the luminaire. Connection via snap-in terminal block (5x1.5 mm²) in the middle of the luminaire. 1-phase through-wiring possible. All variants with direct/indirect light require two DALI addresses; variants with Amber night light require three DALI addresses. CLO (Constant Light Output).
Design

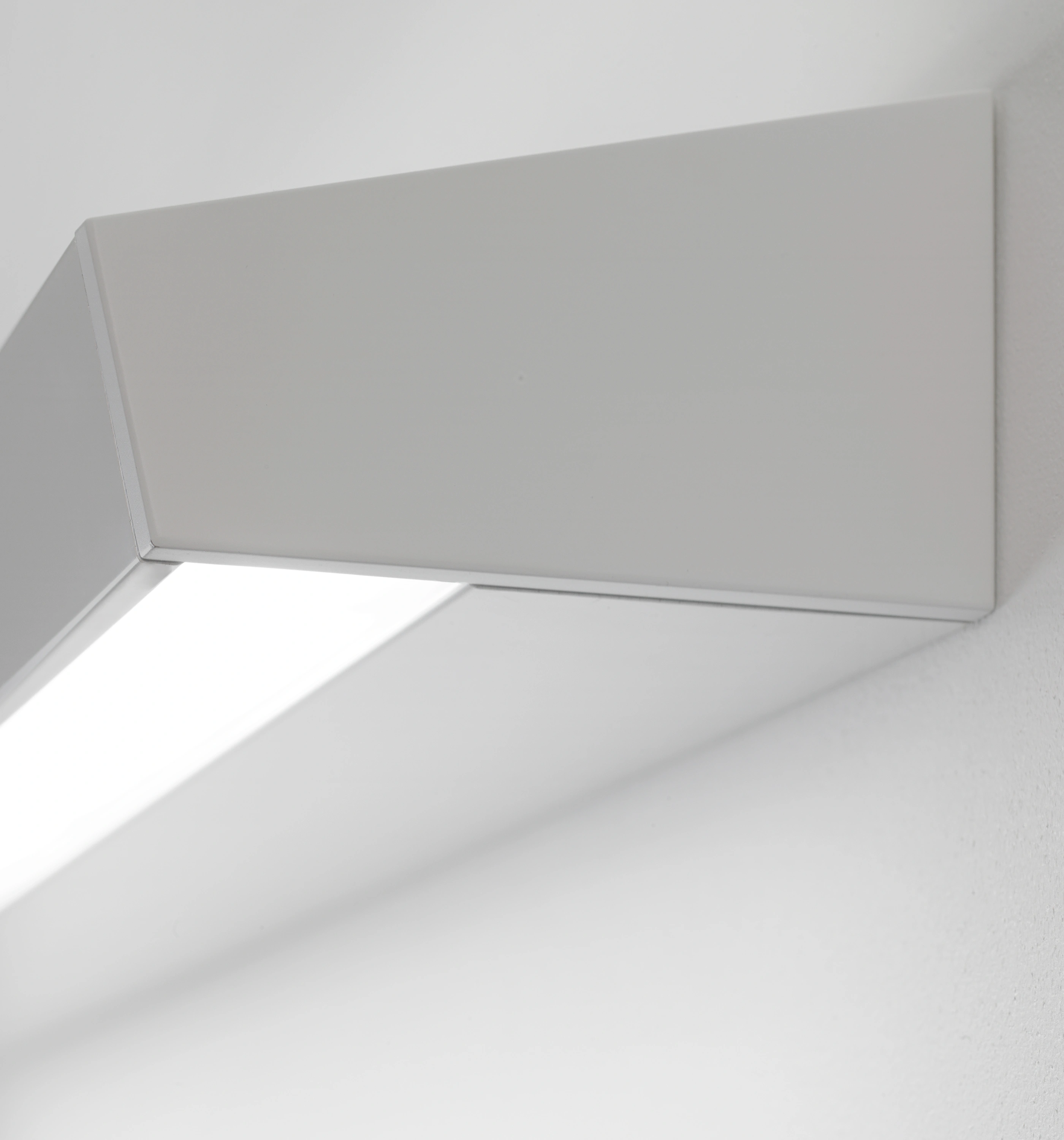

Luminaire body made of extruded aluminium. Die-cast aluminium end caps, made from post-consumer recycled material. Lacquered in white (RAL 9016 G40). Indirect light is covered by a clear acrylic (PMMA) disc.
Light Distribution

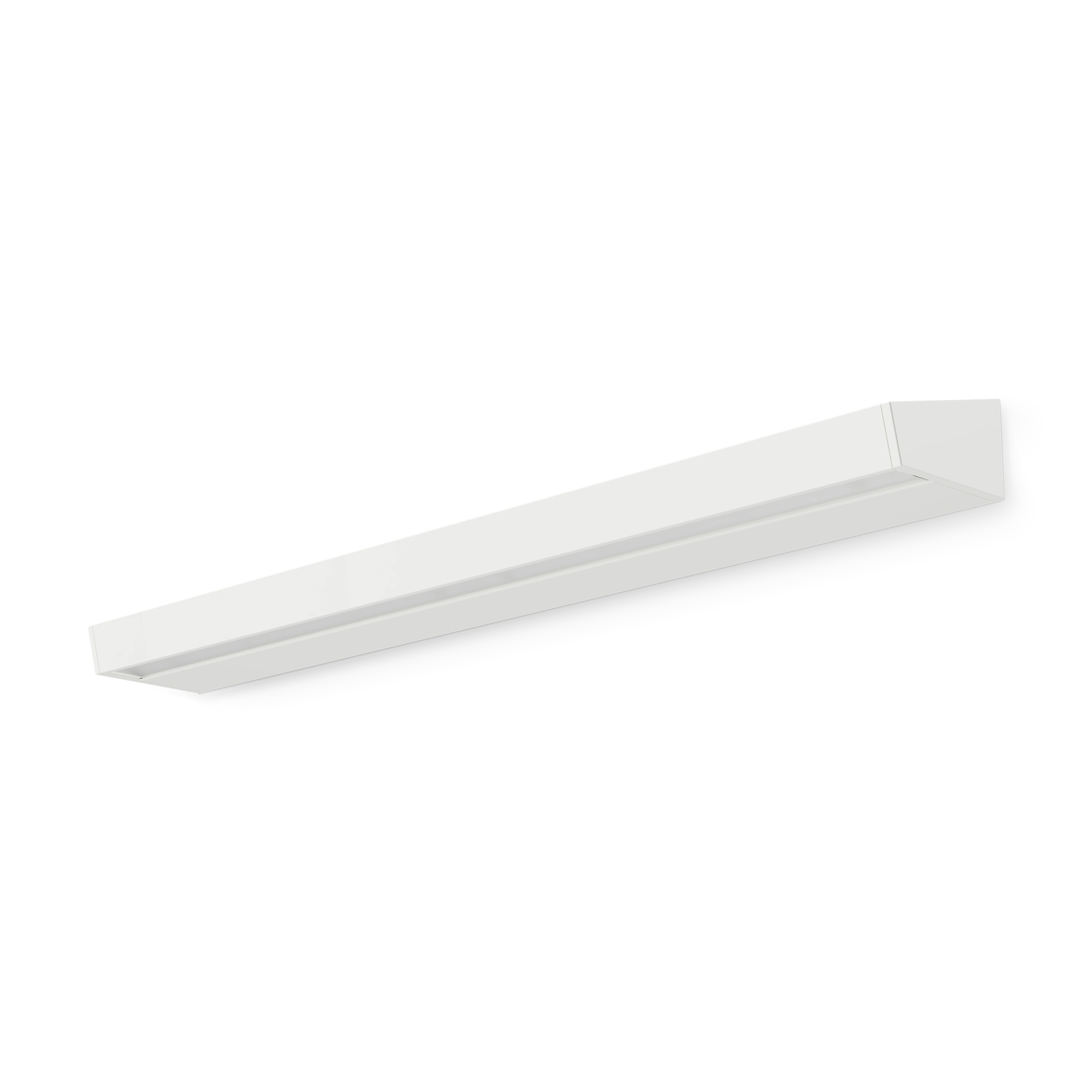

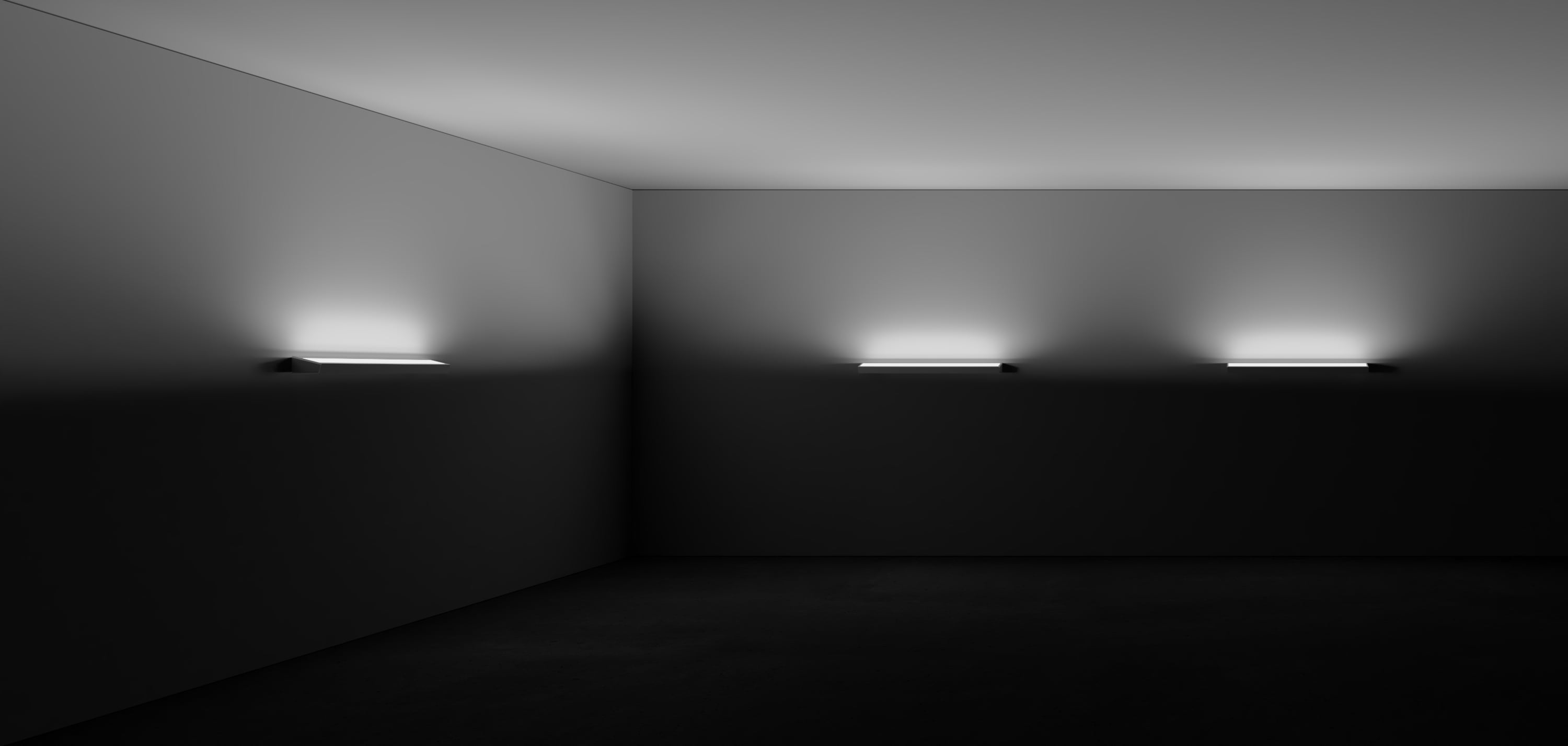

Asymmetrical direct. Asymmetrical direct/indirect.
Light data
Optics
Asymmetrical aluminium reflector.
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | CRI | Dimensions, mm | Light distribution | Light control | CLO time, h | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 18600-402 | 52 | 6209 | 3000 | 90 | 1130x156x92 | 36/64 | DALI/Phase-pulse | 100000 |
|
||
| 18601-402 | 52 | 6349 | 4000 | 90 | 1130x156x92 | 36/64 | DALI/Phase-pulse | 100000 |
|
||
| 18602 | 51 | 5171 | 90 | 1130x156x92 | Direct/indirect | DALI | 50000 | Tunable White |
|
||
| 18603-402 | 56 | 6209 | 3000 | 90 | 1190x156x92 | 36/64 | DALI/Phase-pulse | 100000 | Amber |
|
|
| 18604-402 | 56 | 6349 | 4000 | 90 | 1190x156x92 | 36/64 | DALI/Phase-pulse | 100000 | Amber |
|
|
| 18605 | 51 | 5171 | 90 | 1230x156x92 | Direct/indirect | DALI | 50000 | Tunable White + Amber |
|
||
| 18606-402 | 36 | 3992 | 3000 | 90 | 1130x156x92 | Indirect | DALI/Phase-pulse | 100000 |
|
||
| 18607-402 | 36 | 4082 | 4000 | 90 | 1130x156x92 | Indirect | DALI/Phase-pulse | 100000 |
|
||
| 18608 | 26 | 2469 | 90 | 1130x156x92 | Indirect | DALI | 50000 | Tunable White |
|
