DwideSurface

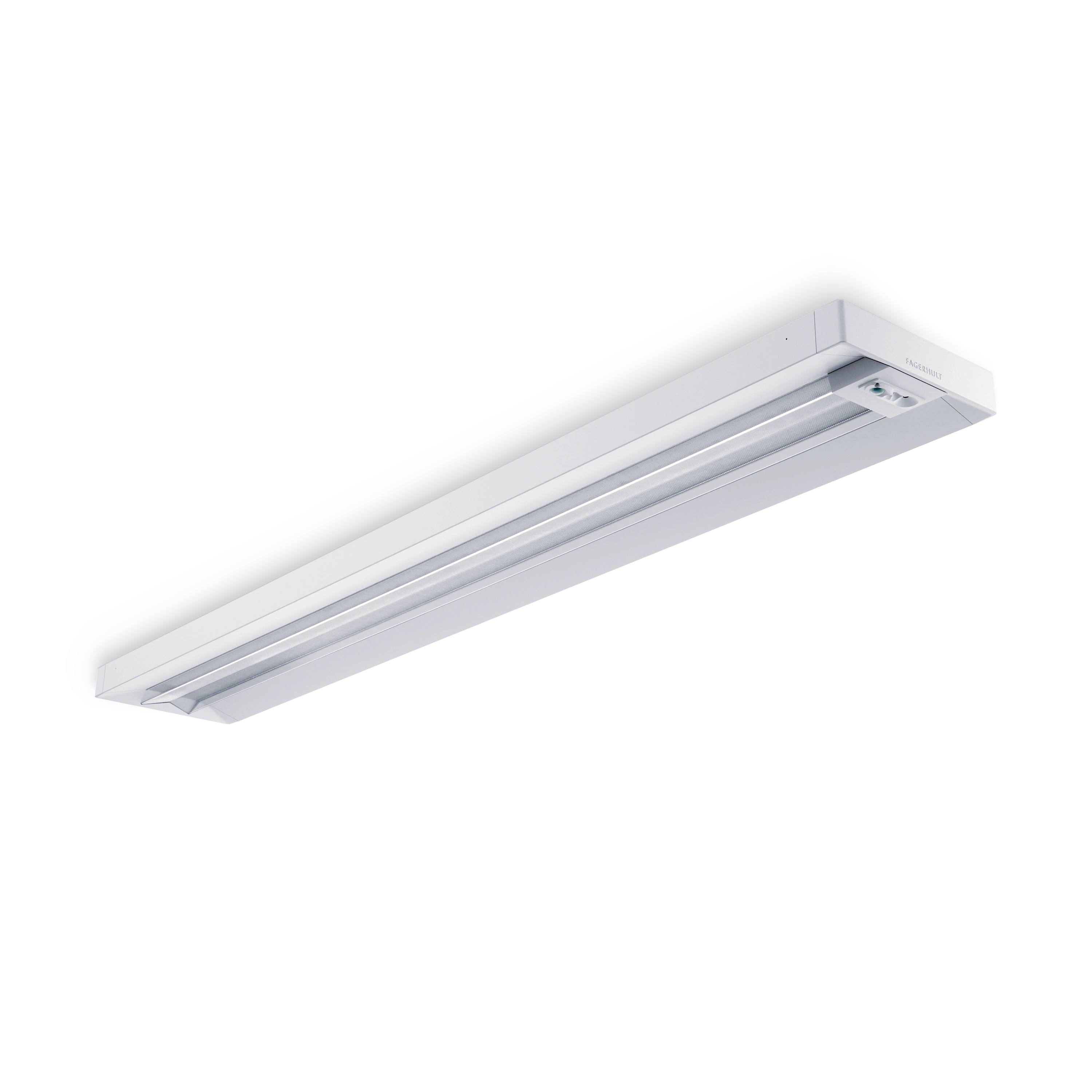

Dwide is a luminaire family that meets the needs of office, school and healthcare settings. The light management is unique, with a divider that provides a smooth transition between surfaces. Dwide Surface mounted has high luminous fluxes and is available in several variants.
DwideSurface
Dwide is a luminaire family that meets the needs of office, school and healthcare settings. The light management is unique, with a divider that provides a smooth transition between surfaces. Dwide Surface mounted has high luminous fluxes and is available in several variants.
Installation
Luminaire for surface-mounted ceiling installation, single. Luminaire that only provides direct light can also be suspended, see wire suspension 91008 in Accessories. For detailed information, see the installation instructions.
See installation video – Ceiling 600x600 See installation video – Ceiling See installation video – Pendant DirectConnection

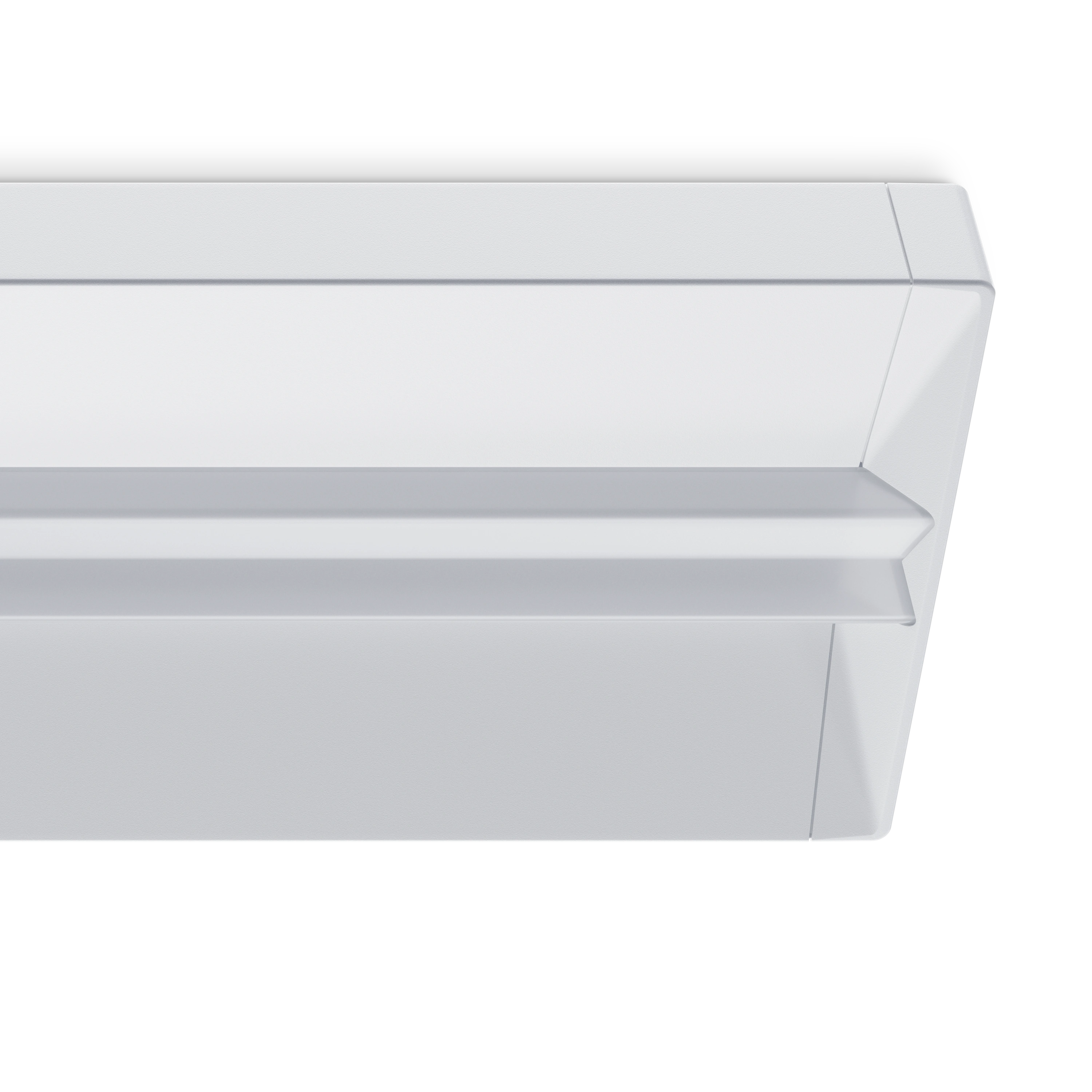

For permanent connection; integrated driver in the luminaire. The luminaire is supplied with a cable entry on the top. For surface-mounted cable, there are knockouts at each end cap. Connection via snap-in terminal block (5x1.5 mm²) at the end of the luminaire. 1-phase through-wiring possible. With indirect light, there is a covering in the form of an opal film that generates a wide beam and also serves as a dust cover. CLO (Constant Light Output).
Design

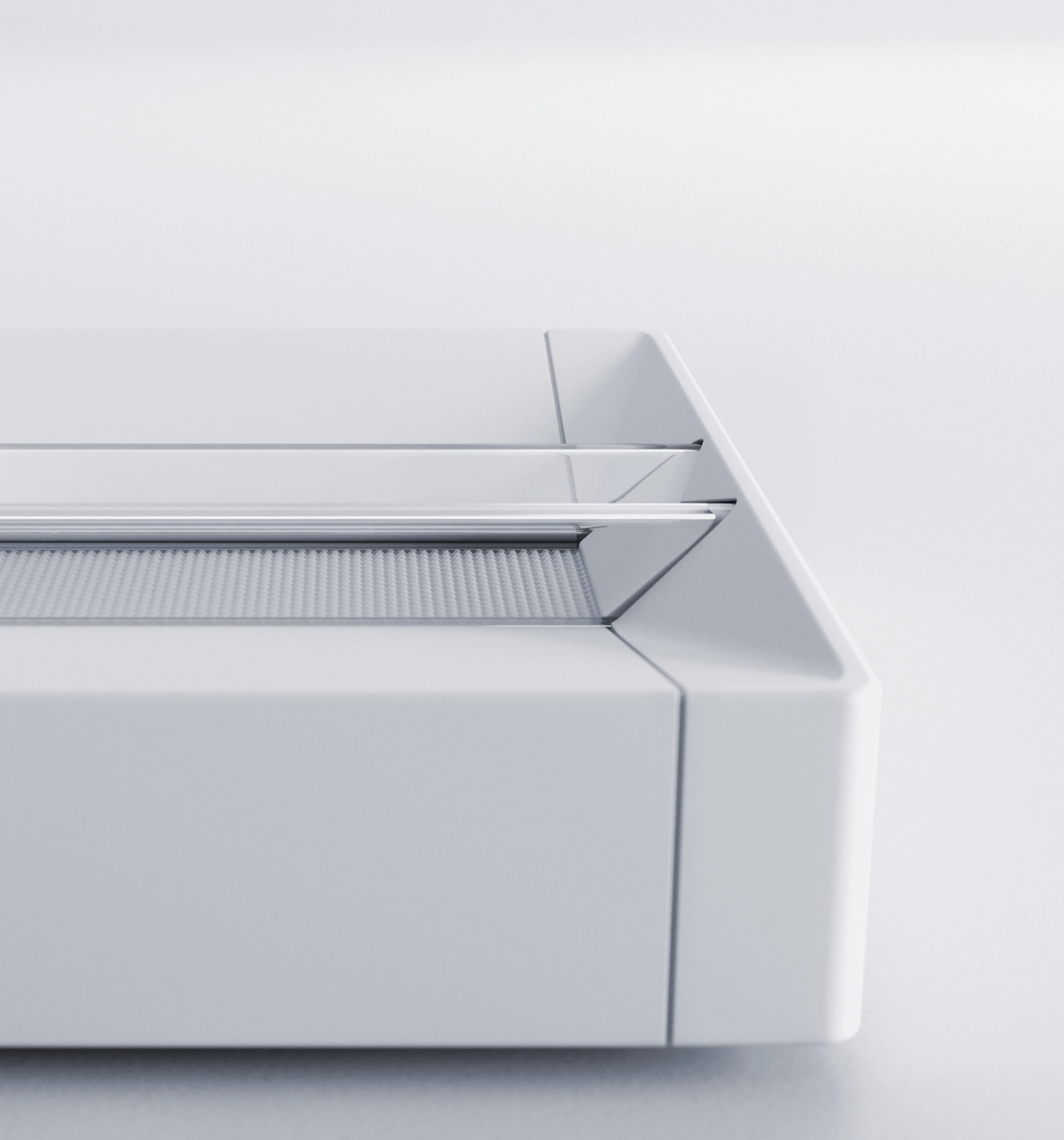

Luminaire body made of sheet steel. Die-cast aluminium end caps, made from post-consumer recycled material. White (RAL 9016) structured lacquer. Design by Yellon.
Light Distribution

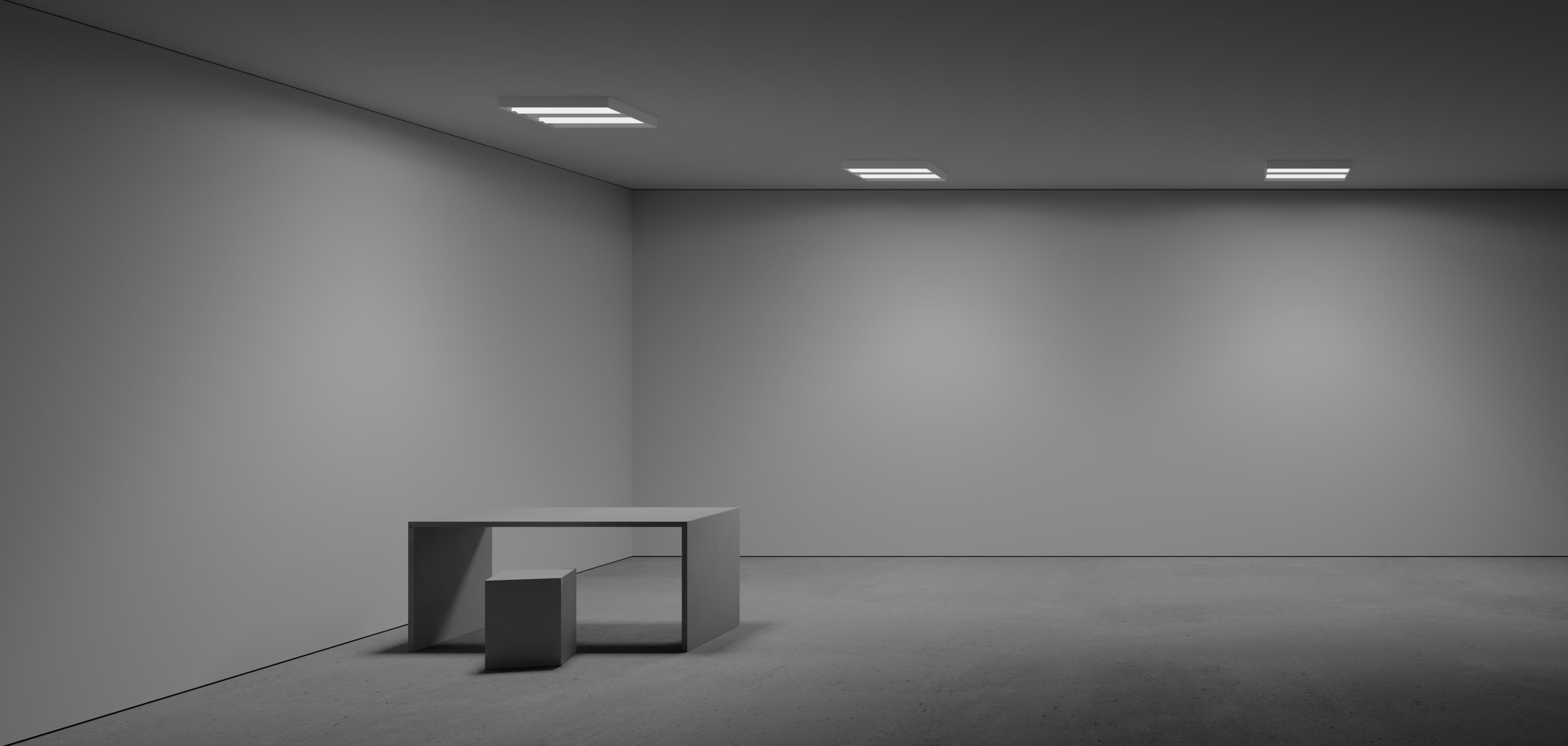

Direct. Direct/indirect 90/10.
Light data
CCT, K:
3000 K, 4000 K
CRI/Rf:
80
SDCM:
3
Lumen output:
1884-6000 lm
CLO:
100 000 h
Optics

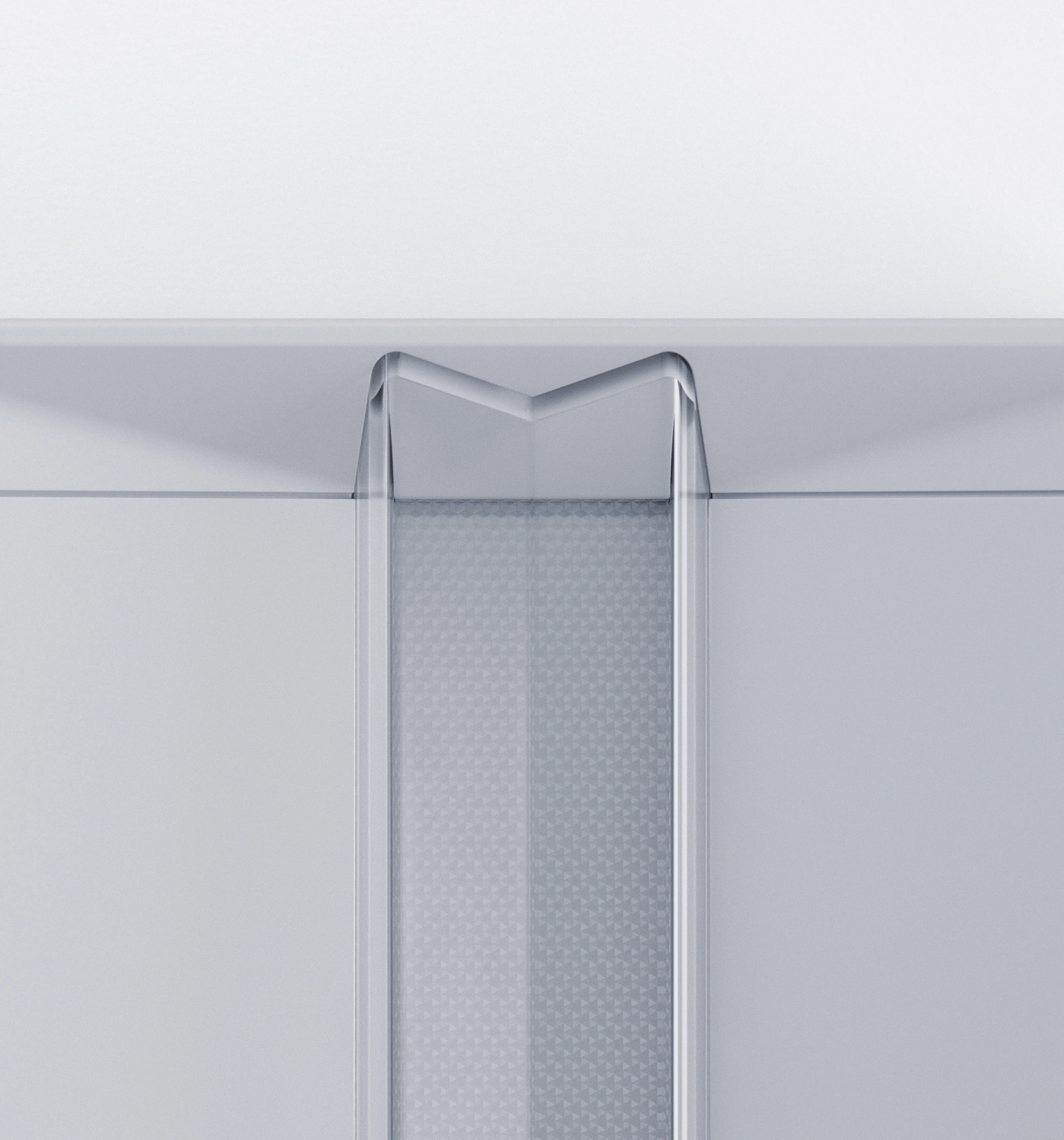

Delta – micro-prism louvre in acrylic (PMMA). Light divider in acrylic (PMMA).
High efficiency & reduced energy consumption
The product family includes models with very high efficiency – without compromising on light comfort. High efficiency gives rise to reductions in energy consumption, climate impact and operating costs. The luminaire’s good light comfort also means that fewer luminaires are needed to achieve the desired light level.
Easy to recycle & ready to upgrade
The product is made from fewer material types and without glue, making it easy to dismantle. Screw and snap-in features allow components to be easily separated. This increases the potential for of end-of-life recycling. The design also allows parts to be replaced rather than having to replace the entire product. This extends the product’s working life and reduces waste.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
e-Sense BrightSwitchPIR sensor
Simple control system that provides automatic on/off or dimming between high/low level that is controlled by presence or ambient light.
Read moree-Sense FlexMicrowave sensor
Wireless Bluetooth mesh control with easy installation and full adaptability for IP rated environments, such as garages and stairwells.
Read moreDALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Organic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read more
Articles
Showing 38 of 38 Articles
| Art.no. | System Wattage | Lumen output | CCT, K | CRI | Colour | Dimensions, mm | Louvre | Light distribution | Light control | CLO time, h | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22255-402 | 33 | 4367 | 3000 | 80 | White | 609x609x59 | Delta | Direct | DALI/Phase-pulse | 100000 |
|
|
| 22256-402 | 22 | 3047 | 3000 | 80 | White | 609x609x59 | Delta | Direct | DALI/Phase-pulse | 100000 |
|
|
| 22257-402 | 28 | 4393 | 4000 | 80 | White | 609x609x59 | Delta | Direct | DALI/Phase-pulse | 100000 |
|
|
| 22258-402 | 19 | 3010 | 4000 | 80 | White | 609x609x59 | Delta | Direct | DALI/Phase-pulse | 100000 |
|
|
| 22326-402 | 15 | 1884 | 3000 | 80 | White | 588x177x56 | Delta | Direct/indirect | DALI/Phase-pulse | 50000 |
|
|
| 22326-515 | 15 | 1884 | 3000 | 80 | White | 656x177x63 | Delta | Direct/indirect | e-Sense BrightSwitch on/off | 50000 |
|
|
| 22326-569 | 16 | 1884 | 3000 | 80 | White | 656x177x56 | Delta | Direct/indirect | e-Sense Flex | 50000 |
|
|
| 22327-402 | 15 | 2000 | 4000 | 80 | White | 588x177x56 | Delta | Direct/indirect | DALI/Phase-pulse | 50000 |
|
|
| 22327-515 | 15 | 2000 | 4000 | 80 | White | 656x177x63 | Delta | Direct/indirect | e-Sense BrightSwitch on/off | 50000 |
|
|
| 22327-569 | 16 | 2000 | 4000 | 80 | White | 656x177x56 | Delta | Direct/indirect | e-Sense Flex | 50000 |
|
|
| 22330-402 | 23 | 2916 | 3000 | 80 | White | 1246x200x41 | Delta | Direct | DALI/Phase-pulse | 50000 |
|
|
| 22330-515 | 23 | 2916 | 3000 | 80 | White | 1276x200x41 | Delta | Direct | e-Sense BrightSwitch on/off | 50000 |
|
|
| 22330-533 | 24 | 2916 | 3000 | 80 | White | 1276x200x41 | Delta | Direct | Organic Response | 50000 |
|
|
| 22330-569 | 24 | 2916 | 3000 | 80 | White | 1276x200x41 | Delta | Direct | e-Sense Flex | 50000 |
|
|
| 22331-402 | 23 | 3000 | 4000 | 80 | White | 1246x200x41 | Delta | Direct | DALI/Phase-pulse | 50000 |
|
|
| 22331-515 | 23 | 3000 | 4000 | 80 | White | 1276x200x41 | Delta | Direct | e-Sense BrightSwitch on/off | 50000 |
|
|
| 22331-533 | 24 | 3000 | 4000 | 80 | White | 1276x200x41 | Delta | Direct | Organic Response | 50000 |
|
|
| 22331-569 | 24 | 3000 | 4000 | 80 | White | 1276x200x41 | Delta | Direct | e-Sense Flex | 50000 |
|
|
| 22332-402 | 36 | 4374 | 3000 | 80 | White | 1246x200x41 | Delta | Direct | DALI/Phase-pulse | 50000 |
|
|
| 22332-515 | 36 | 4374 | 3000 | 80 | White | 1276x200x41 | Delta | Direct | e-Sense BrightSwitch on/off | 50000 |
|
|
| 22332-533 | 36 | 4374 | 3000 | 80 | White | 1276x200x41 | Delta | Direct | Organic Response | 50000 |
|
|
| 22333-402 | 36 | 4500 | 4000 | 80 | White | 1246x200x41 | Delta | Direct | DALI/Phase-pulse | 50000 |
|
|
| 22333-515 | 36 | 4500 | 4000 | 80 | White | 1276x200x41 | Delta | Direct | e-Sense BrightSwitch on/off | 50000 |
|
|
| 22333-533 | 36 | 4500 | 4000 | 80 | White | 1276x200x41 | Delta | Direct | Organic Response | 50000 |
|
|
| 22334-402 | 46 | 5832 | 3000 | 80 | White | 1246x200x41 | Delta | Direct | DALI/Phase-pulse | 50000 |
|
|
| 22334-515 | 47 | 5832 | 3000 | 80 | White | 1276x200x41 | Delta | Direct | e-Sense BrightSwitch on/off | 50000 |
|
|
| 22335-402 | 46 | 6000 | 4000 | 80 | White | 1246x200x41 | Delta | Direct | DALI/Phase-pulse | 50000 |
|
|
| 22335-515 | 47 | 6000 | 4000 | 80 | White | 1276x200x41 | Delta | Direct | e-Sense BrightSwitch on/off | 50000 |
|
|
| 22336-402 | 43 | 5443 | 3000 | 80 | White | 1498x200x41 | Delta | Direct | DALI/Phase-pulse | 50000 |
|
|
| 22336-515 | 44 | 5443 | 3000 | 80 | White | 1528x200x41 | Delta | Direct | e-Sense BrightSwitch on/off | 50000 |
|
|
| 22337-402 | 43 | 5600 | 4000 | 80 | White | 1498x200x41 | Delta | Direct | DALI/Phase-pulse | 50000 |
|
|
| 22337-515 | 44 | 5600 | 4000 | 80 | White | 1528x200x41 | Delta | Direct | e-Sense BrightSwitch on/off | 50000 |
|
|
| 22338-402 | 29 | 3208 | 3000 | 80 | White | 1246x200x60 | Delta | Direct/indirect | DALI/Phase-pulse | 50000 |
|
|
| 22339-402 | 29 | 3300 | 4000 | 80 | White | 1246x200x60 | Delta | Direct/indirect | DALI/Phase-pulse | 50000 |
|
|
| 22340-402 | 40 | 4374 | 3000 | 80 | White | 1246x200x60 | Delta | Direct/indirect | DALI/Phase-pulse | 50000 |
|
|
| 22341-402 | 40 | 4500 | 4000 | 80 | White | 1246x200x60 | Delta | Direct/indirect | DALI/Phase-pulse | 50000 |
|
|
| 22342-402 | 49 | 5540 | 3000 | 80 | White | 1498x200x60 | Delta | Direct/indirect | DALI/Phase-pulse | 50000 |
|
|
| 22343-402 | 49 | 5700 | 4000 | 80 | White | 1498x200x60 | Delta | Direct/indirect | DALI/Phase-pulse | 50000 |
|
Showing 80 of 80 Accessories
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, transparent mains cable/each | 96381 | |
|
Wire suspension for continuous installation L: 1,4m | Large square ceiling cup for T-bars 25 mm/each | 96373 | |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup for T-bars 25 mm/each | 96384 | |
|
Wire suspension for continuous installation L: 1,4m | Large round ceiling cup/each | 96383 | |
|
Wire suspension for continuous installation L: 1,4m | Large round ceiling cup for T-bars 25 mm/each | 96385 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381) | 95381 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377) | 95380 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96380) | 95379 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96375) | 95378 | |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup/each | 96382 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377) | 95376 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389) | 95372 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96387) | 95370 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96389) | 95368 | |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup/each | 96370 | |
|
Wire suspension for continuous installation L: 1,4m | Large square ceiling cup/each | 96371 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376) | 95364 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381) | 95377 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96374) | 95362 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376) | 95360 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96378) | 95359 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96392) | 95367 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96387) | 95366 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391) | 95357 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96393) | 95369 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96380) | 95375 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96392) | 95371 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96378) | 95363 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96374) | 95358 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379) | 95365 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379) | 95361 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96375) | 95374 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393) | 95373 | |
|
Wire Suspension Dwide | Wire suspension with strain relief & friction lock/pair | 91008 | |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, suspended pipe conduit installation, 1 m cable. pipe not included. | 86409 | |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, surface mounted, 1 m cable | 86408 | |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, recessed, 3.2 m cable | 86410 | |
|
|
External Organic Response sensor incl. DALI PSU | Extern sensor incl. DALI PSU, suspended pipe conduit installation, 3.2 m cable. Pipe not included. | 86412 | |
|
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, surface mounted, 3.2 m cable | 86411 | |
|
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, recessed, 1 m cable | 86407 | |
|
Support rail (cat. no./pair) | L=600/625, section: 25, max. load: 75N/pair | 94067 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, labeled, white | 86437 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, labeled, white | 86436 | |
|
Organic Response I/O box | I/O box with potential-free 16A relay for controlling external units. | 86413 | |
|
Organic Response IoT Gateway | Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. | 86296 | |
|
Wire suspension for support rails L: 1,5m | Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 | 91426 | |
|
|
Support rail (cat. no./pair) | L=1200/1250, section: 25, max. load: 120/30N/pair | 94068 | |
|
|
Support rail (cat. no./pair) | L=600/650, section: 15, max. load: 75N/pair | 90015 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, white | 86417 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, white | 86416 | |
|
Remote control e-Sense BrightSwitch | Remote control | 86359 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, transparent mains cable/each | 96393 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup, transparent mains cable/each | 96392 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup, white mains cable/each | 96387 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, white mains cable/each | 96376 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup, white mains cable/each | 96374 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, white mains cable/each | 96388 | |
|
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup, white mains cable/each | 96386 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96386) | 95354 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388) | 95352 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96390) | 95351 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, white mains cable/each | 96377 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup, transparent mains cable/each | 96380 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup, white mains cable/each | 96375 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, white mains cable/each | 96389 | |
|
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, transparent mains cable/each | 96379 | |
|
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup, transparent mains cable/each | 96378 | |
|
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, transparent mains cable/each | 96391 | |
|
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup, transparent mains cable/each | 96390 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96390) | 95355 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391) | 95353 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388) | 95356 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96386) | 95350 | |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup for T-bars 25 mm/each | 96372 | |
|
IR dongle for Organic Response | IR dongle for Organic Response equipped luminaire. | 86279 | |
|
|
Support rail (cat. no./pair) | L=200/1250, section: 15, max. load: 120/30N/pair | 90016 | |
|
Cutters | Cutters, each | 94248 | |
|
Ceiling bracket in chrome with wire | Wire suspension with ceiling bracket in chrome, L=1.5 m/pair | 91696 | |
|
|
Organic Response I/O box | I/O box with potential-free 8A relay for controlling external units. | 86433 | |
|
Recessed frame solid ceiling | Recessed frame for VTB frame 600x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4,5kg | 41051 |
