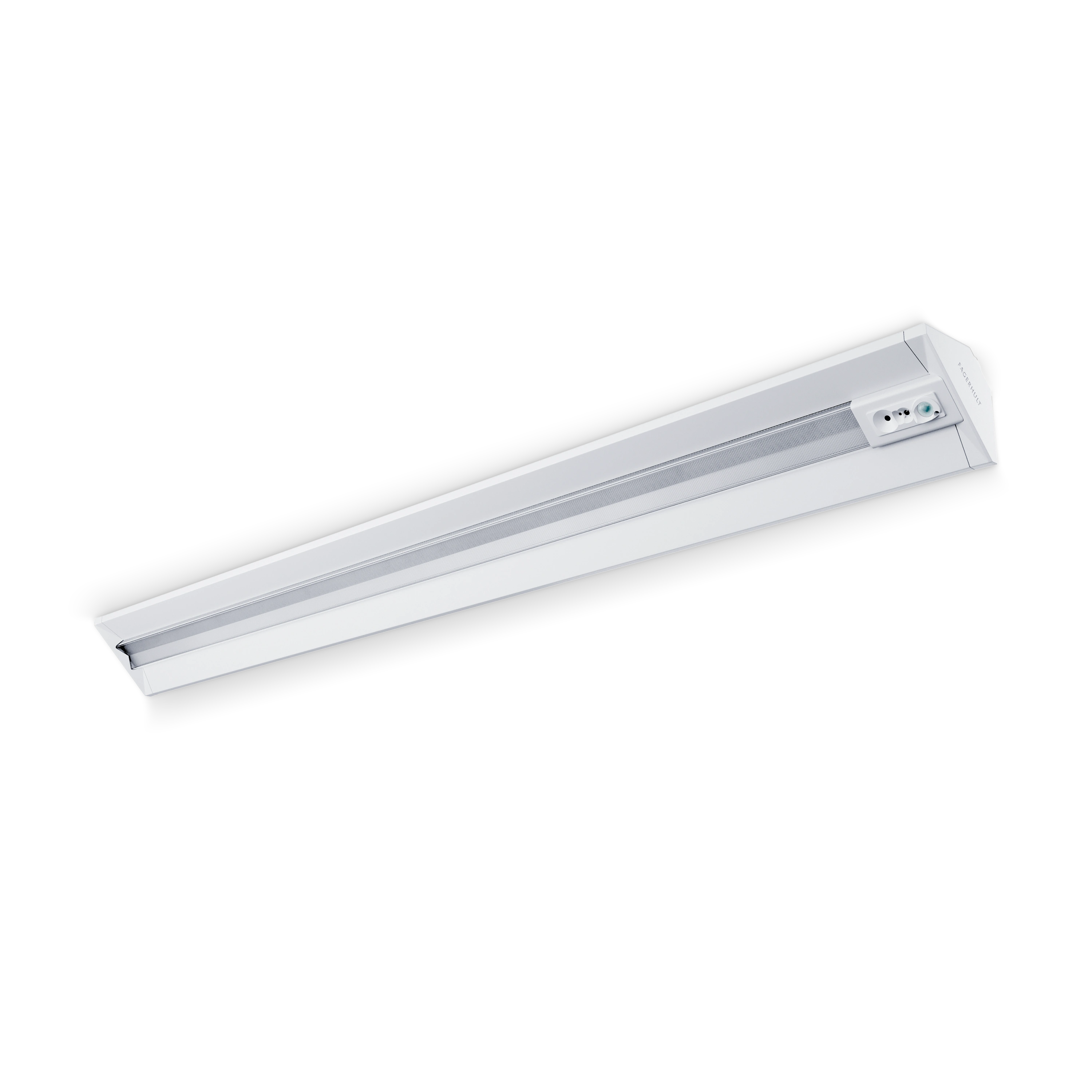

Dwide cornerSurface

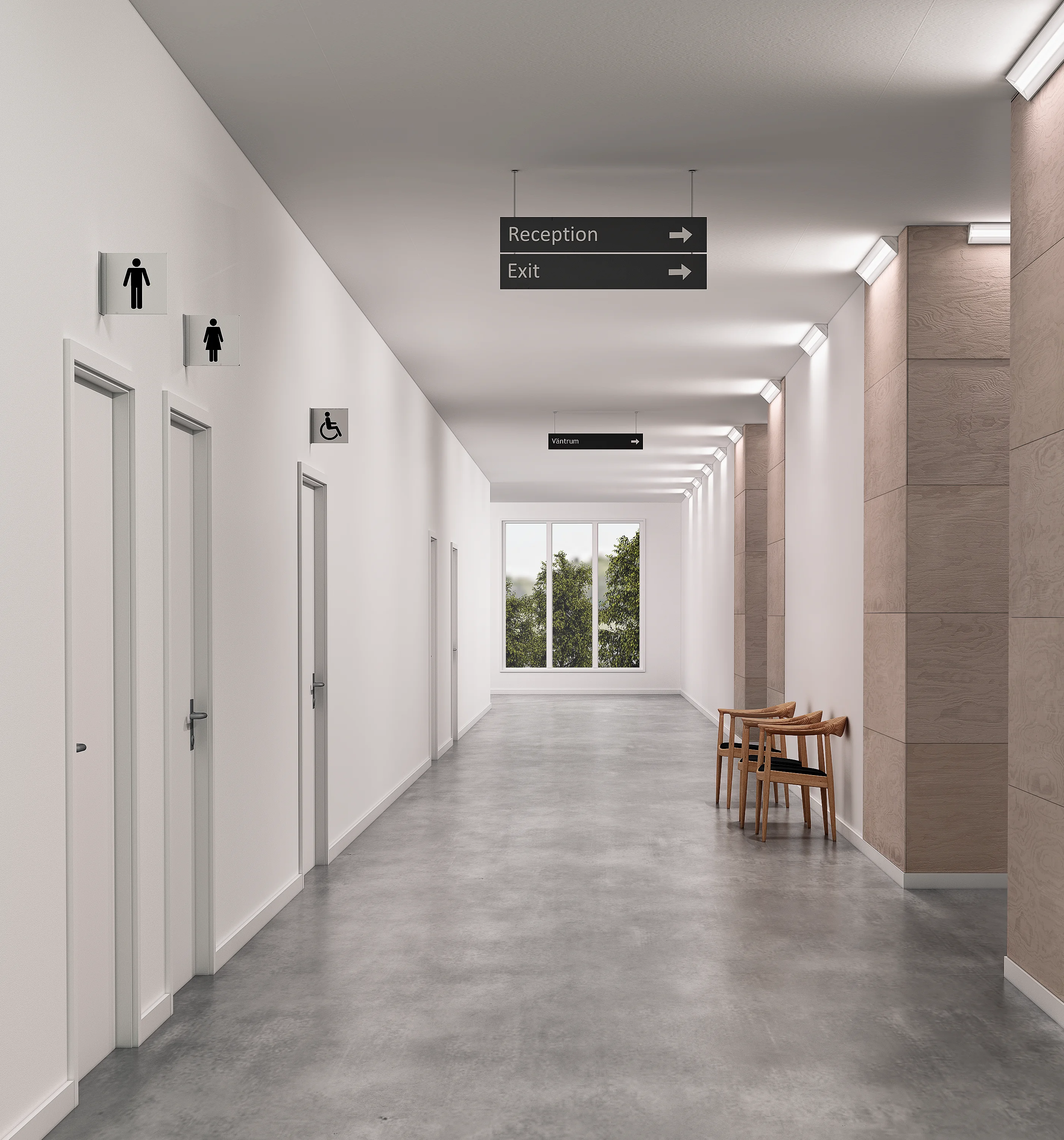

Dwide is a luminaire family that meets the needs of offices, schools and healthcare settings. The light management is unique, with a divider that provides a smooth transition between surfaces. Dwide Corner is particularly suitable in corridors, where it provides a soft ambient light.
Dwide cornerSurface
Dwide is a luminaire family that meets the needs of offices, schools and healthcare settings. The light management is unique, with a divider that provides a smooth transition between surfaces. Dwide Corner is particularly suitable in corridors, where it provides a soft ambient light.
Installation

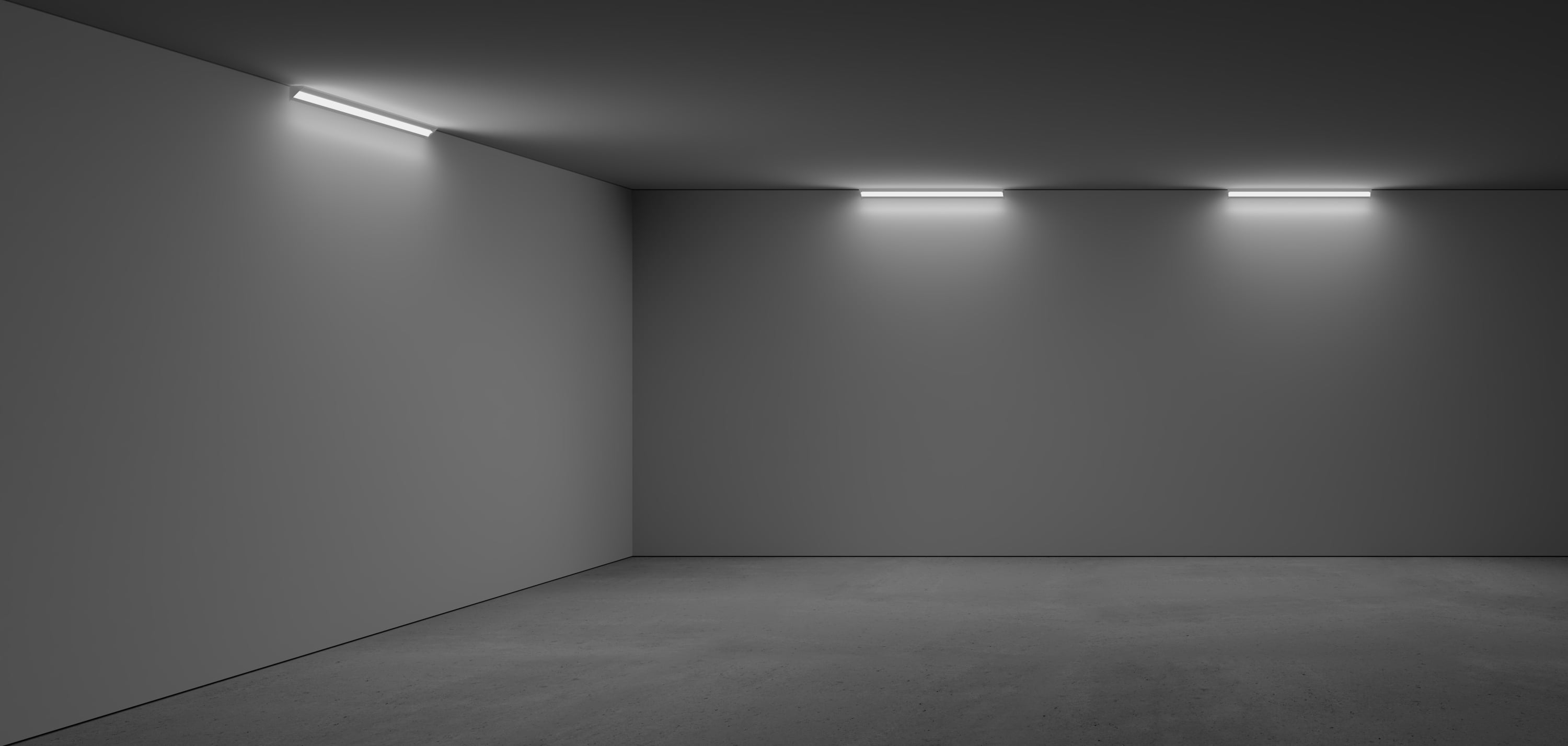

Luminaire for installation at the junction between ceiling and wall. Can be mounted to the wall or ceiling. For detailed information, see the installation instructions.
See installation video Dwide CornerConnection
For permanent connection; integrated driver in the luminaire. Connection via snap-in terminal block (5x1.5 mm²) in the middle of the luminaire. 1-phase through-wiring possible. Cable entry at both ends, double entry in the middle towards the wall or ceiling. CLO (Constant Light Output).
Design
Luminaire body made of sheet steel. Die-cast aluminium end caps, made from post-consumer recycled material. White (RAL 9016) structured lacquer. Design by Yellon.
Light Distribution
Direct.
Light data
Optics

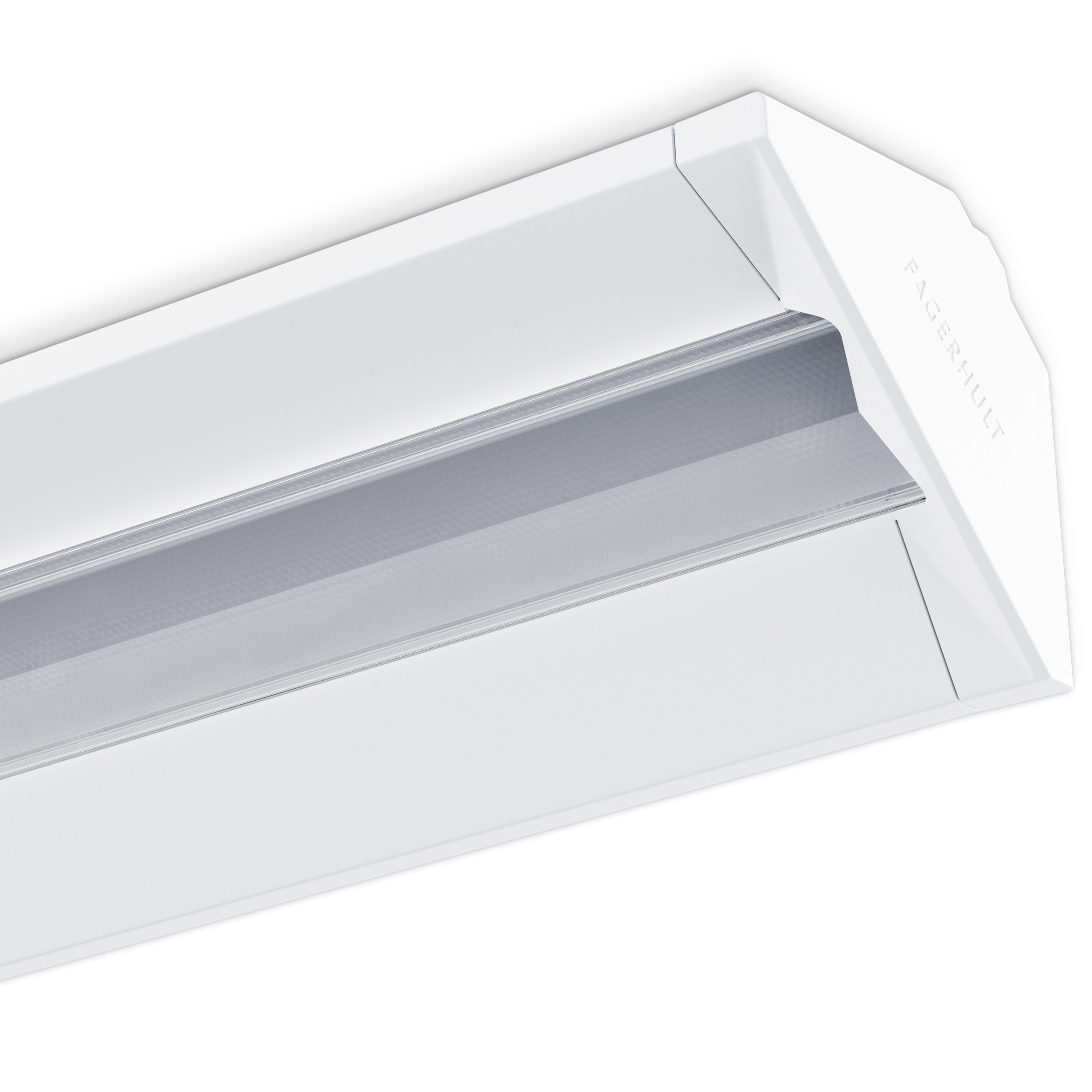

Delta – micro-prism louvre in acrylic (PMMA). Light divider in acrylic (PMMA).
High efficiency & reduced energy consumption
The product family includes models with very high efficiency – without compromising on light comfort. High efficiency gives rise to reductions in energy consumption, climate impact and operating costs. The luminaire’s good light comfort also means that fewer luminaires are needed to achieve the desired light level.
Easy to recycle & ready to upgrade
The product is made from fewer material types and without glue, making it easy to dismantle. Screw and snap-in features allow components to be easily separated. This increases the potential for of end-of-life recycling. The design also allows parts to be replaced rather than having to replace the entire product. This extends the product’s working life and reduces waste.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.

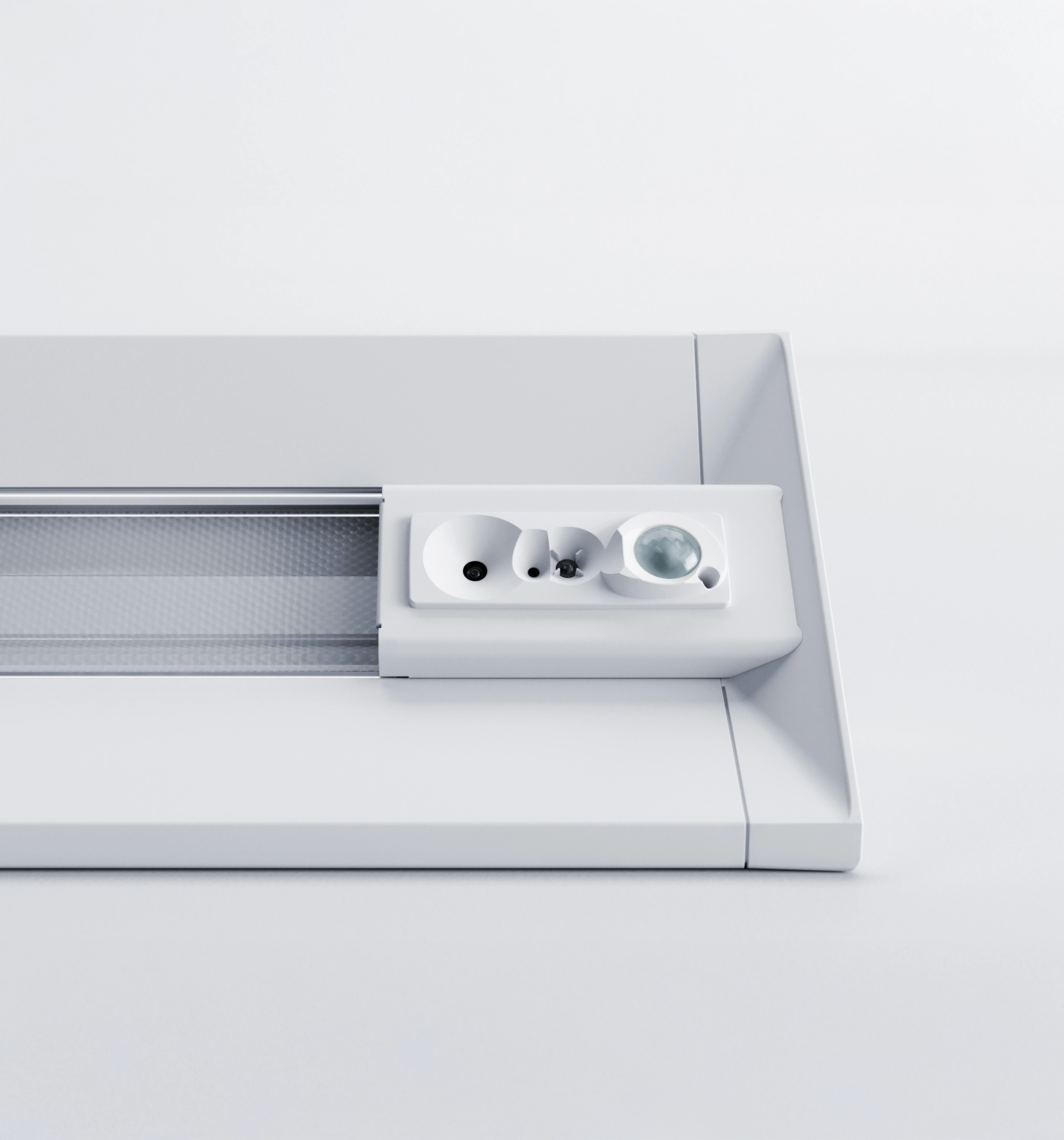

e-Sense FlexMicrowave sensor
Wireless Bluetooth mesh control with easy installation and full adaptability for IP rated environments, such as garages and stairwells.
Read moreDALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Organic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read more
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Dimensions, mm | Module | Light distribution | Light control | CLO time, h | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22344-402 | 14 | 1971 | 3000 | White | 1164x126x66 | 1200 | Direct | DALI/Phase-pulse | 100000 |
|
|
| 22344-533 | 14 | 1971 | 3000 | White | 1240x126x71 | 1200 | Direct | Organic Response | 100000 |
|
|
| 22344-569 | 15 | 1971 | 3000 | White | 1240x126x66 | 1200 | Direct | e-Sense Flex | 100000 |
|
|
| 22345-402 | 13 | 1980 | 4000 | White | 1164x126x66 | 1200 | Direct | DALI/Phase-pulse | 100000 |
|
|
| 22345-533 | 14 | 1980 | 4000 | White | 1240x126x71 | 1200 | Direct | Organic Response | 100000 |
|
|
| 22345-569 | 14 | 1980 | 4000 | White | 1240x126x66 | 1200 | Direct | e-Sense Flex | 100000 |
|
|
| 22346-402 | 20 | 2880 | 3000 | White | 1164x126x66 | 1200 | Direct | DALI/Phase-pulse | 100000 |
|
|
| 22346-533 | 20 | 2880 | 3000 | White | 1240x126x71 | 1200 | Direct | Organic Response | 100000 |
|
|
| 22346-569 | 21 | 2880 | 3000 | White | 1240x126x66 | 1200 | Direct | e-Sense Flex | 100000 |
|
|
| 22347-402 | 19 | 2935 | 4000 | White | 1164x126x66 | 1200 | Direct | DALI/Phase-pulse | 100000 |
|
|
| 22347-533 | 20 | 2935 | 4000 | White | 1240x126x71 | 1200 | Direct | Organic Response | 100000 |
|
|
| 22347-569 | 20 | 2935 | 4000 | White | 1240x126x66 | 1200 | Direct | e-Sense Flex | 100000 |
|
