ExcisSurface
Excis is specially developed for sports halls. The luminaire is certified for ball impact resistance and has high luminous fluxes and several light distribution options. Good lighting makes it easy to follow the game.
ExcisSurface
Excis is specially developed for sports halls. The luminaire is certified for ball impact resistance and has high luminous fluxes and several light distribution options. Good lighting makes it easy to follow the game.
Installation
Luminaire for surface-mounted ceiling installation, on cable with cable brackets, tube with tube bracket or adjustable ceiling bracket. See brackets under Accessories. For detailed information, see the installation instructions.
Connection
Luminaire provided with four cable entries, two at each end cap. Through-wiring 5+2x2.5 mm² with snap-in terminal blocks at each end. CLO (Constant Light Output).
Design

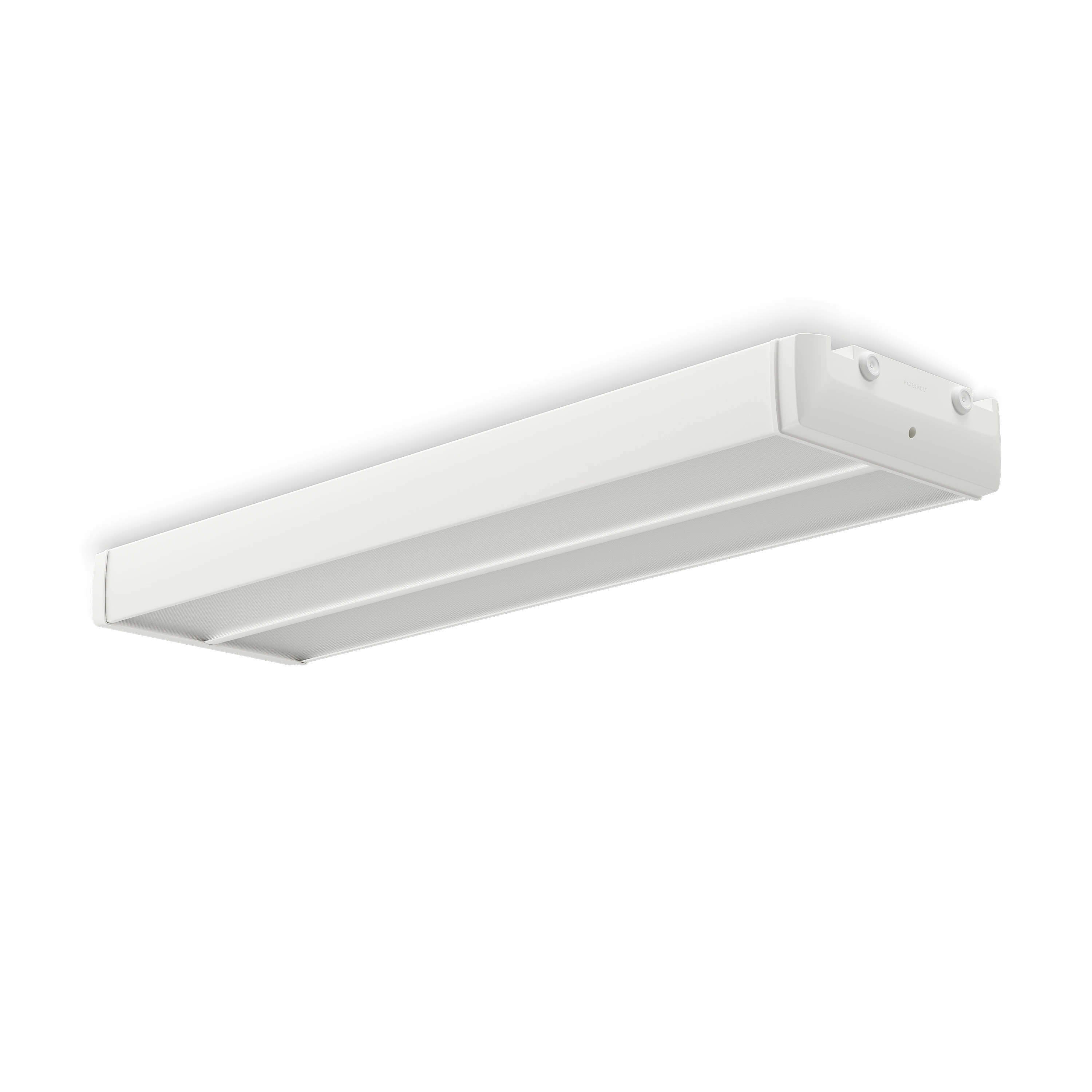

Luminaire body of extruded aluminium, lacquered in white (RAL 9016). The outer end caps are in polycarbonate. Excis is certified for ball impact resistance according to VDE 0710-13. All versions comply with UGR 22.
Light Distribution

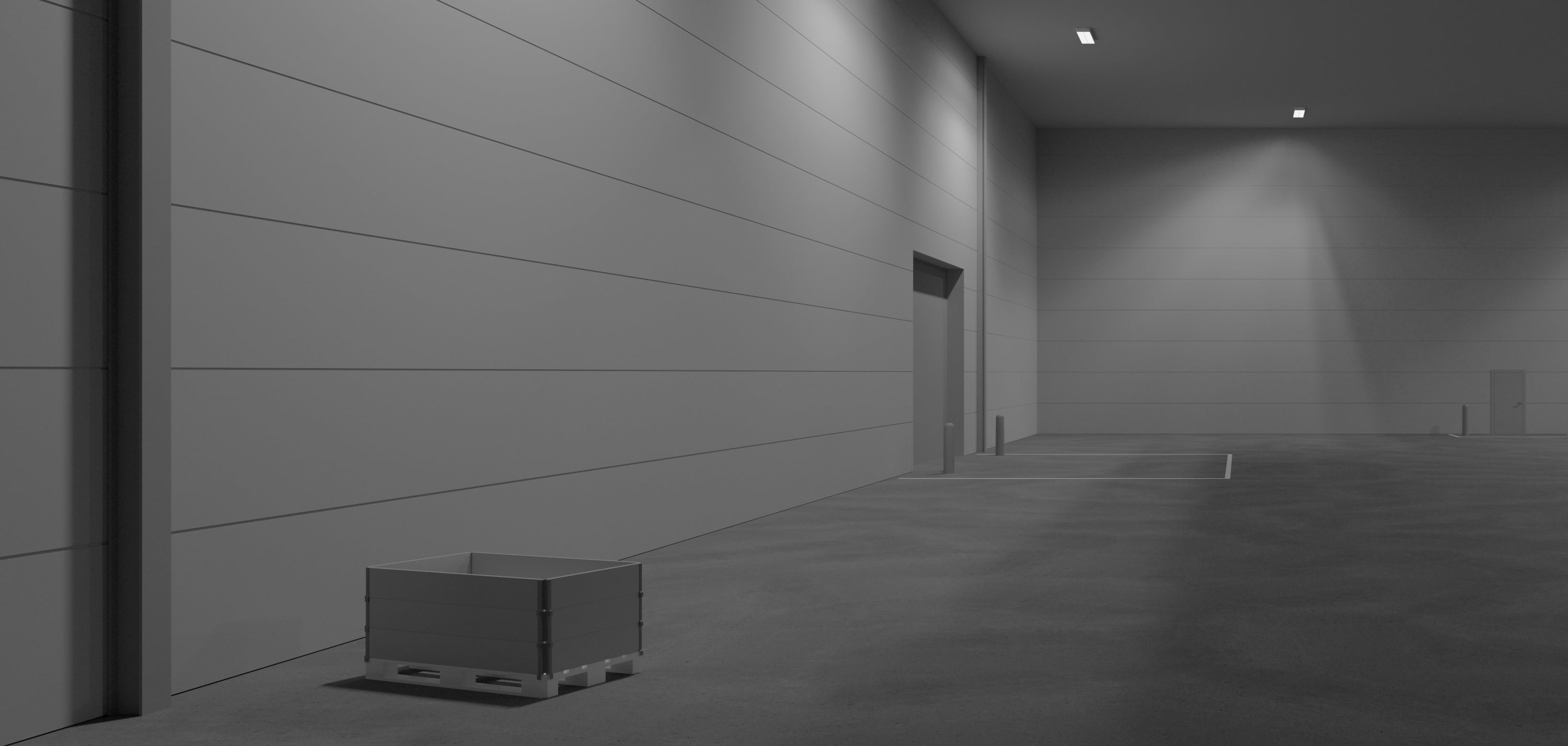

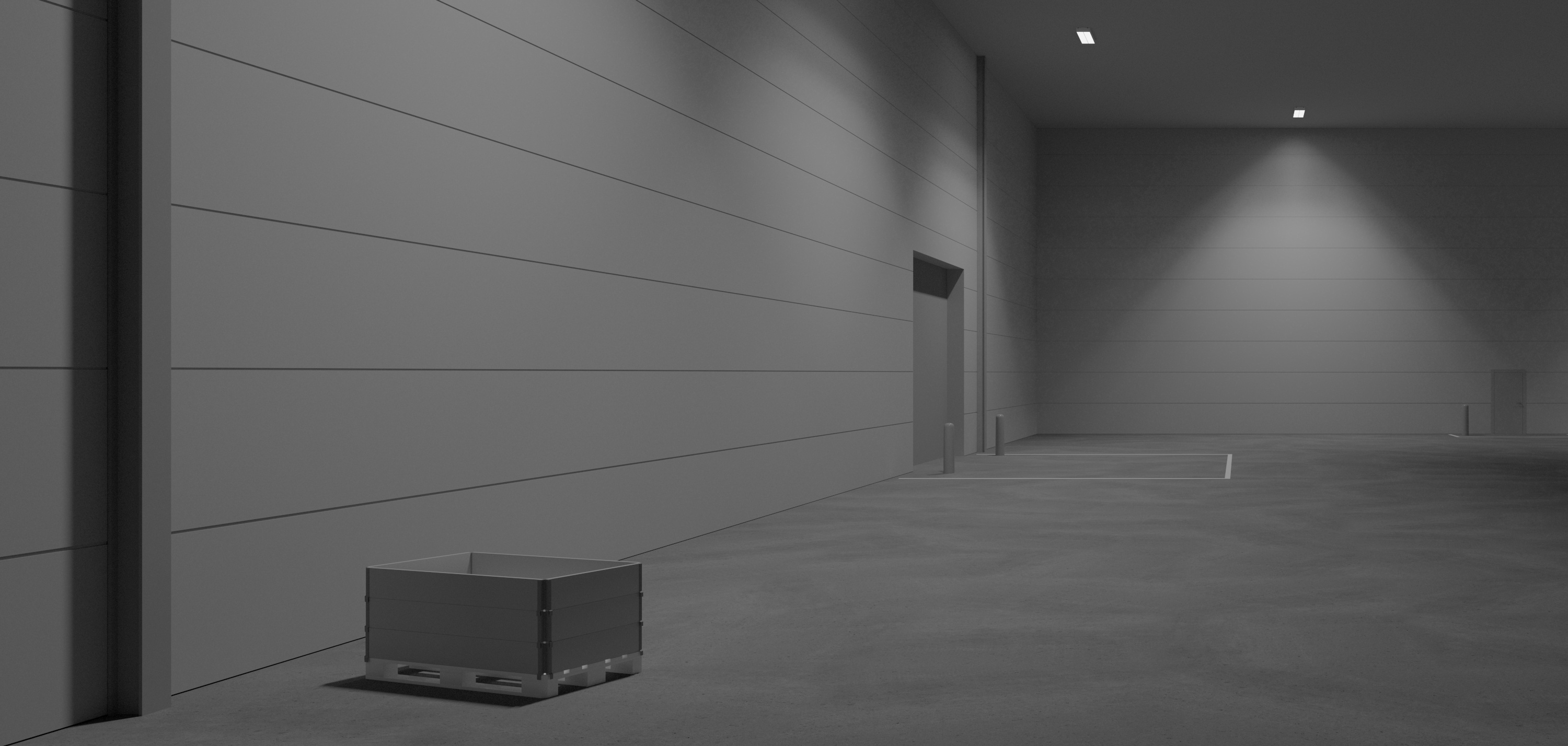

Asymmetrical. Medium or wide beam.
Light data
Optics

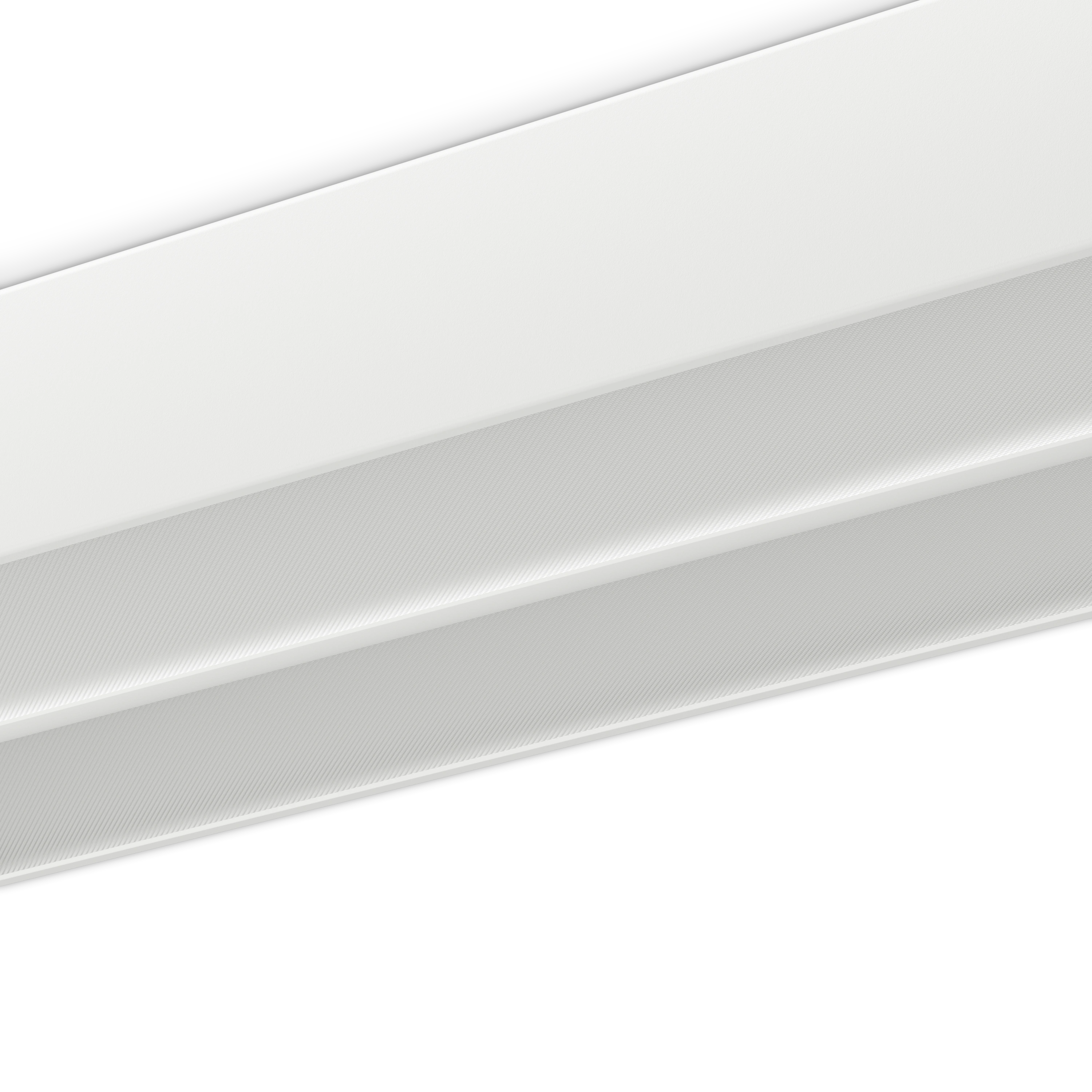

Symmetrical reflectors made of semi-gloss metallised aluminium. Optical lined diffuser for optimal light distribution and glare control at relevant angles.
Made of recycled aluminium
The product’s aluminium profile consists of 80% post-consumer material from Europe. This means that the material has been used and reached the end of its life before being recycled, resulting in a significantly lower climate impact than virgin aluminium – approximately six times lower than the global average for primary production (source: EPD from the supplier compared to the global average from International Aluminium).
High efficiency – fewer luminaires
Designed to use fewer luminaires (fewer installation points). The light distribution is optimised for sports facilities and similar environments.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Dimensions, mm | Louvre | Light distribution | Light control | CLO time, h | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 18440-402 | 40 | 6283 | 3000 | 1156x324x94 | Line prism | Medium Beam | DALI/Phase-pulse | 100000 |
|
||
| 18441-402 | 73 | 11182 | 3000 | 1156x324x94 | Line prism | Medium Beam | DALI/Phase-pulse | 100000 |
|
||
| 18442-402 | 132 | 20142 | 3000 | 1156x324x94 | Line prism | Medium Beam | DALI/Phase-pulse | 100000 | Requires 2 DALI addresses |
|
|
| 18443-402 | 40 | 6201 | 3000 | 1156x324x94 | Line prism | Wide Beam | DALI/Phase-pulse | 100000 |
|
||
| 18444-402 | 73 | 11630 | 3000 | 1156x324x94 | Line prism | Wide Beam | DALI/Phase-pulse | 100000 |
|
||
| 18445-402 | 132 | 19880 | 3000 | 1156x324x94 | Line prism | Wide Beam | DALI/Phase-pulse | 100000 | Requires 2 DALI addresses |
|
|
| 18446-402 | 40 | 6176 | 3000 | 1156x324x94 | Line prism | Asymmetrical | DALI/Phase-pulse | 100000 |
|
||
| 18447-402 | 73 | 10992 | 4000 | 1156x324x94 | Line prism | Asymmetrical | DALI/Phase-pulse | 100000 |
|
||
| 18448-402 | 132 | 19799 | 3000 | 1156x324x94 | Line prism | Asymmetrical | DALI/Phase-pulse | 100000 | Requires 2 DALI addresses |
|
|
| 18449-402 | 40 | 6621 | 4000 | 1156x324x94 | Line prism | Medium Beam | DALI/Phase-pulse | 100000 |
|
||
| 18450-402 | 73 | 11783 | 4000 | 1156x324x94 | Line prism | Medium Beam | DALI/Phase-pulse | 100000 |
|
||
| 18451-402 | 132 | 20549 | 4000 | 1156x324x94 | Line prism | Medium Beam | DALI/Phase-pulse | 100000 | Requires 2 DALI addresses |
|
|
| 18452-402 | 40 | 6535 | 4000 | 1156x324x94 | Line prism | Wide Beam | DALI/Phase-pulse | 100000 |
|
||
| 18453-402 | 73 | 11630 | 4000 | 1156x324x94 | Line prism | Wide Beam | DALI/Phase-pulse | 100000 |
|
||
| 18454-402 | 132 | 20282 | 4000 | 1156x324x94 | Line prism | Wide Beam | DALI/Phase-pulse | 100000 | Requires 2 DALI addresses |
|
|
| 18455-402 | 40 | 6508 | 4000 | 1156x324x94 | Line prism | Asymmetrical | DALI/Phase-pulse | 100000 |
|
||
| 18456-402 | 73 | 11583 | 4000 | 1156x324x94 | Line prism | Asymmetrical | DALI/Phase-pulse | 100000 |
|
||
| 18457-402 | 132 | 20863 | 4000 | 1156x324x94 | Line prism | Asymmetrical | DALI/Phase-pulse | 100000 | Requires 2 DALI addresses |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Wire suspension Excis LED | Wire suspension 2x2,5 m/pair. Adjustable with friction locks on the luminaire. | 94887 | |
|
Tube bracket | Conduit bracket/pair | 91198 | |
|
Adjustable ceiling bracket | Adjustable ceiling bracket/pair | 91374 | |
|
Wire cable bracket | Wire cable bracket/pair | 91196 |
