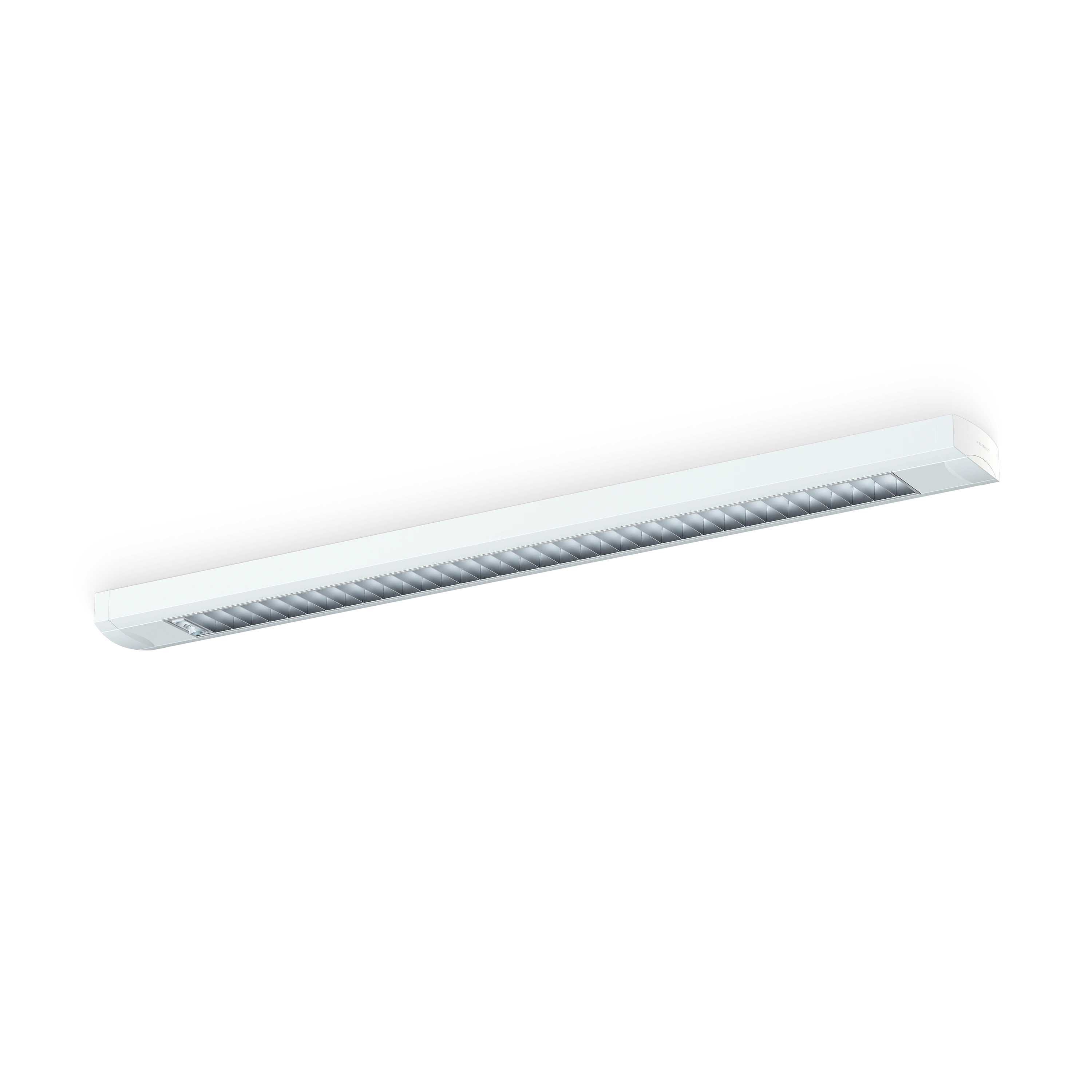

DTISurface
DTI is a versatile luminaire family offering high energy efficiency and easy installation for workplaces and schools. The louvre provides good visual comfort and the possibility of high luminous fluxes.
DTISurface
DTI is a versatile luminaire family offering high energy efficiency and easy installation for workplaces and schools. The louvre provides good visual comfort and the possibility of high luminous fluxes.
Installation
Luminaire for surface-mounted or pendant installation. For installation in wire pendant, a wire suspension and wire bracket 91685 are required; see Accessories. For detailed information, see the installation instructions.
Connection
For permanent connection; integrated driver in the luminaire. Connection via snap-in terminal block (5x1.5 mm²) at the end of the luminaire, option of cable entry in the end caps and middle of the luminaire. 1-phase through-wiring possible (not e-Sense). CLO (Constant Light Output).
Design
Luminaire body made of sheet steel. Lacquered in white (RAL 9016 G40). Polypropylene (PP) end caps. Variants with additional cross-blades for lower UGR are available.

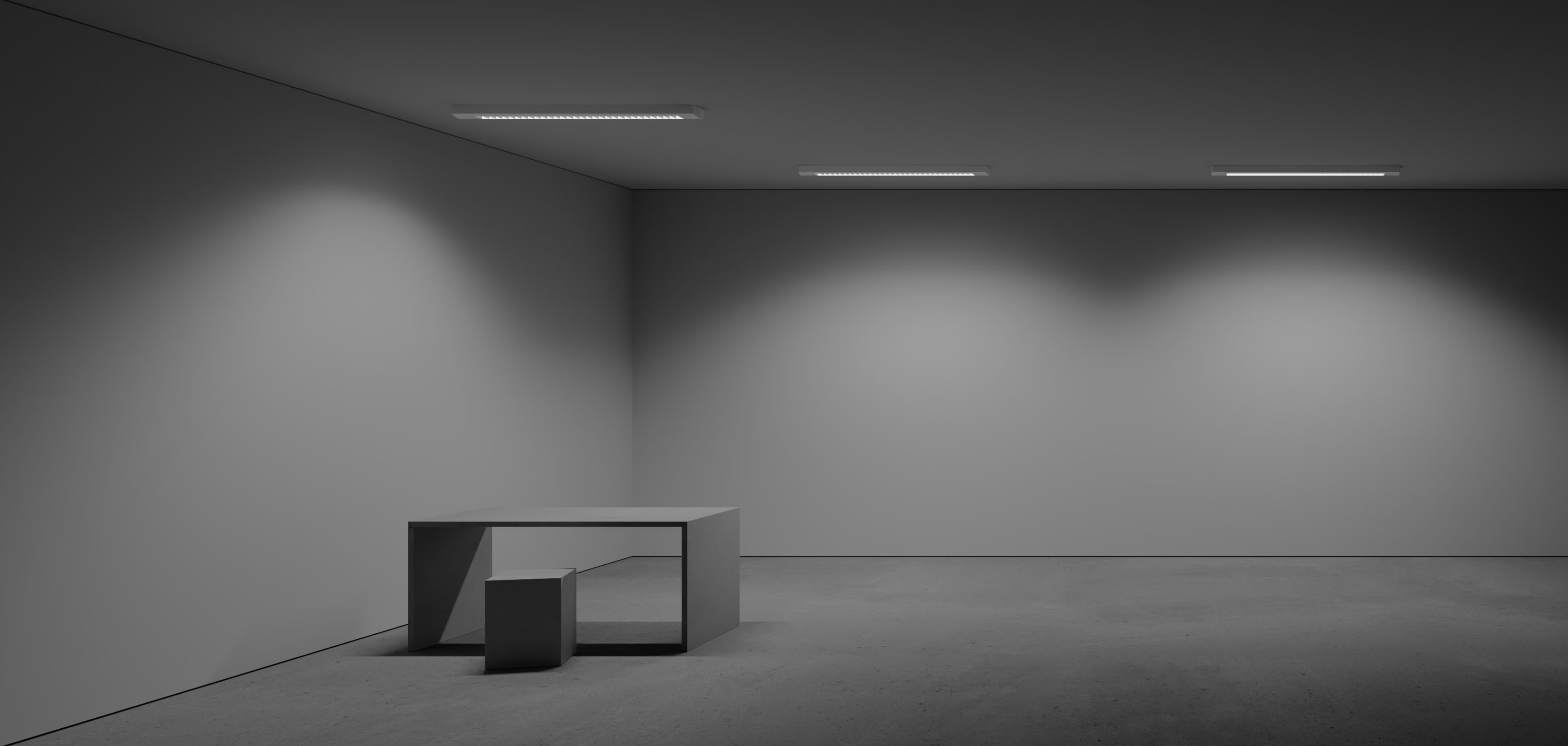

Light Distribution
Direct.
Light data
CCT, K:
3000 K, 4000 K
CRI/Rf:
80
SDCM:
3
Lumen output:
900-5503 lm
CLO:
50 000 h
Optics

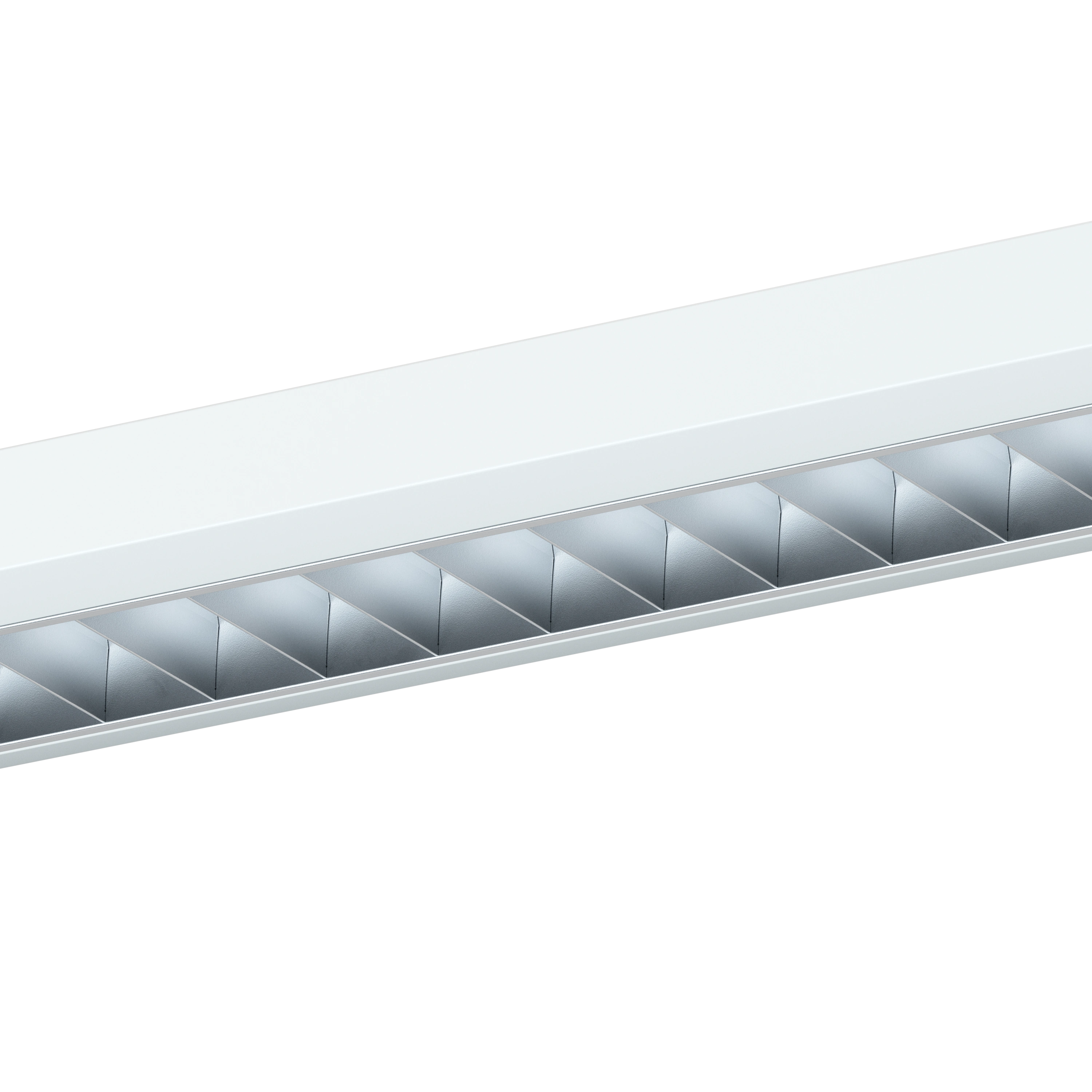

Beta Opti – side and crosswise semi-gloss reflectors in metallised aluminium with an integrated opal film that minimises the risk of uncomfortable glare from the LEDs. Variants with additional cross-blades for lower UGR are available.
Ready for reuse/ReLight
The product has a working life of 100,000 hours (L100), but once it reaches the end of its life, it is designed to be easy to reuse and upgrade (with a ReLight kit) – as opposed to being replaced with a brand new luminaire. This is a smart and cost-effective solution that saves resources, reduces waste and extends the product’s working life.
Easy to recycle & ready to upgrade
The product is made from fewer material types and without glue, making it easy to dismantle. Screw and snap-in features allow components to be easily separated. This increases the potential for of end-of-life recycling. The design also allows parts to be replaced rather than having to replace the entire product. This extends the product’s working life and reduces waste.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
e-Sense BrightSwitchPIR sensor
Simple control system that provides automatic on/off or dimming between high/low level that is controlled by presence or ambient light.
Read moreDALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Organic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read more
Articles
Showing 32 of 32 Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Dimensions, mm | Module | Light distribution | Installation | Light control | CLO time, h | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 29460 | 8 | 900 | 3000 | White | 765x141x59 | 600 | Direct | Single |
|
||||
| 29460-402 | 8 | 900 | 3000 | White | 765x141x59 | 600 | Direct | Single | DALI/Phase-pulse | 50000 |
|
||
| 29461 | 15 | 1970 | 3000 | White | 1365x141x59 | 1200 | Direct | Single |
|
||||
| 29461-402 | 15 | 1970 | 3000 | White | 1365x141x59 | 1200 | Direct | Single | DALI/Phase-pulse | 50000 |
|
||
| 29462 | 22 | 2934 | 3000 | White | 1365x141x59 | 1200 | Direct | Single |
|
||||
| 29462-402 | 21 | 2934 | 3000 | White | 1365x141x59 | 1200 | Direct | Single | DALI/Phase-pulse | 50000 |
|
||
| 29462-533 | 24 | 2900 | 3000 | White | 1365x141x59 | 1200 | Direct | Single | Organic Response |
|
|||
| 29463 | 30 | 3755 | 3000 | White | 1365x141x59 | 1200 | Direct | Single | Extra lamellas for lower UGR. |
|
|||
| 29463-402 | 29 | 3711 | 3000 | White | 1365x141x59 | 1200 | Direct | Single | DALI/Phase-pulse | 50000 | Extra lamellas for lower UGR. |
|
|
| 29463-515 | 31 | 3755 | 3000 | White | 1365x141x59 | 1200 | Direct | Single | e-Sense BrightSwitch on/off | Extra lamellas for lower UGR. |
|
||
| 29464 | 40 | 5348 | 3000 | White | 1365x141x59 | 1200 | Direct | Single |
|
||||
| 29464-402 | 40 | 5348 | 3000 | White | 1365x141x59 | 1200 | Direct | Single | DALI/Phase-pulse | 50000 |
|
||
| 29464-515 | 41 | 5348 | 3000 | White | 1365x141x59 | 1200 | Direct | Single | e-Sense BrightSwitch on/off |
|
|||
| 29464-533 | 42 | 5348 | 3000 | White | 1365x141x59 | 1200 | Direct | Single | Organic Response | 50000 |
|
||
| 29465 | 8 | 926 | 4000 | White | 765x141x59 | 600 | Direct | Single |
|
||||
| 29465-402 | 8 | 926 | 4000 | White | 765x141x59 | 600 | Direct | Single | DALI/Phase-pulse | 50000 |
|
||
| 29466 | 15 | 2027 | 4000 | White | 1365x141x59 | 1200 | Direct | Single |
|
||||
| 29466-402 | 15 | 2027 | 4000 | White | 1365x141x59 | 1200 | Direct | Single | DALI/Phase-pulse | 50000 |
|
||
| 29467 | 22 | 3019 | 4000 | White | 1365x141x59 | 1200 | Direct | Single |
|
||||
| 29467-402 | 21 | 3019 | 4000 | White | 1365x141x59 | 1200 | Direct | Single | DALI/Phase-pulse | 50000 |
|
||
| 29467-533 | 22 | 3019 | 4000 | White | 1365x141x59 | 1200 | Direct | Single | Organic Response | 50000 |
|
||
| 29468 | 30 | 3864 | 4000 | White | 1365x141x59 | 1200 | Direct | Single | Extra lamellas for lower UGR. |
|
|||
| 29468-402 | 29 | 3818 | 4000 | White | 1365x141x59 | 1200 | Direct | Single | DALI/Phase-pulse | 50000 | Extra lamellas for lower UGR. |
|
|
| 29468-515 | 31 | 3864 | 4000 | White | 1365x141x59 | 1200 | Direct | Single | e-Sense BrightSwitch on/off | Extra lamellas for lower UGR. |
|
||
| 29469 | 40 | 5503 | 4000 | White | 1365x141x59 | 1200 | Direct | Single |
|
||||
| 29469-402 | 40 | 5503 | 4000 | White | 1365x141x59 | 1200 | Direct | Single | DALI/Phase-pulse | 50000 |
|
||
| 29469-515 | 41 | 5503 | 4000 | White | 1365x141x59 | 1200 | Direct | Single | e-Sense BrightSwitch on/off |
|
|||
| 29469-533 | 42 | 5503 | 4000 | White | 1365x141x59 | 1200 | Direct | Single | Organic Response | 50000 |
|
||
| 29667 | 36 | 4721 | 4000 | White | 1665x141x59 | 1500 | Direct | Single | Extra lamellas for lower UGR. |
|
|||
| 29667-402 | 36 | 4778 | 4000 | White | 1665x141x59 | 1500 | Direct | Single | DALI/Phase-pulse | 50000 | Extra lamellas for lower UGR. |
|
|
| 29669 | 35 | 4590 | 3000 | White | 1665x141x59 | 1500 | Direct | Single | Extra lamellas for lower UGR. |
|
|||
| 29669-402 | 36 | 4644 | 3000 | White | 1665x141x59 | 1500 | Direct | Single | DALI/Phase-pulse | 50000 | Extra lamellas for lower UGR. |
|
Showing 74 of 74 Accessories
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, transparent mains cable/each | 96381 | |
|
Wire suspension for continuous installation L: 1,4m | Large square ceiling cup for T-bars 25 mm/each | 96373 | |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup for T-bars 25 mm/each | 96384 | |
|
Wire suspension for continuous installation L: 1,4m | Large round ceiling cup/each | 96383 | |
|
Wire suspension for continuous installation L: 1,4m | Large round ceiling cup for T-bars 25 mm/each | 96385 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381) | 95381 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377) | 95380 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96380) | 95379 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96375) | 95378 | |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup/each | 96382 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377) | 95376 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389) | 95372 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96387) | 95370 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96389) | 95368 | |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup/each | 96370 | |
|
Wire suspension for continuous installation L: 1,4m | Large square ceiling cup/each | 96371 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376) | 95364 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381) | 95377 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96374) | 95362 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376) | 95360 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96378) | 95359 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96392) | 95367 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96387) | 95366 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391) | 95357 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96393) | 95369 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96380) | 95375 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96392) | 95371 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96378) | 95363 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96374) | 95358 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379) | 95365 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379) | 95361 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96375) | 95374 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393) | 95373 | |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, suspended pipe conduit installation, 1 m cable. pipe not included. | 86409 | |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, surface mounted, 1 m cable | 86408 | |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, recessed, 3.2 m cable | 86410 | |
|
|
External Organic Response sensor incl. DALI PSU | Extern sensor incl. DALI PSU, suspended pipe conduit installation, 3.2 m cable. Pipe not included. | 86412 | |
|
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, surface mounted, 3.2 m cable | 86411 | |
|
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, recessed, 1 m cable | 86407 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, labeled, white | 86437 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, labeled, white | 86436 | |
|
Organic Response I/O box | I/O box with potential-free 16A relay for controlling external units. | 86413 | |
|
Organic Response IoT Gateway | Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. | 86296 | |
|
Wire suspension bracket | Wire suspension bracket incl. strain relief and friction lock/pair | 91685 | |
|
Wire suspension for support rails L: 1,5m | Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 | 91426 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, white | 86417 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, white | 86416 | |
|
Remote control e-Sense BrightSwitch | Remote control | 86359 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, transparent mains cable/each | 96393 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup, transparent mains cable/each | 96392 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup, white mains cable/each | 96387 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, white mains cable/each | 96376 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup, white mains cable/each | 96374 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, white mains cable/each | 96388 | |
|
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup, white mains cable/each | 96386 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96386) | 95354 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388) | 95352 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96390) | 95351 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, white mains cable/each | 96377 | |
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup, transparent mains cable/each | 96380 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup, white mains cable/each | 96375 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, white mains cable/each | 96389 | |
|
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, transparent mains cable/each | 96379 | |
|
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup, transparent mains cable/each | 96378 | |
|
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, transparent mains cable/each | 96391 | |
|
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup, transparent mains cable/each | 96390 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96390) | 95355 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391) | 95353 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388) | 95356 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96386) | 95350 | |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup for T-bars 25 mm/each | 96372 | |
|
IR dongle for Organic Response | IR dongle for Organic Response equipped luminaire. | 86279 | |
|
Ceiling bracket in chrome with wire | Wire suspension with ceiling bracket in chrome, L=1.5 m/pair | 91696 | |
|
|
Organic Response I/O box | I/O box with potential-free 8A relay for controlling external units. | 86433 |
