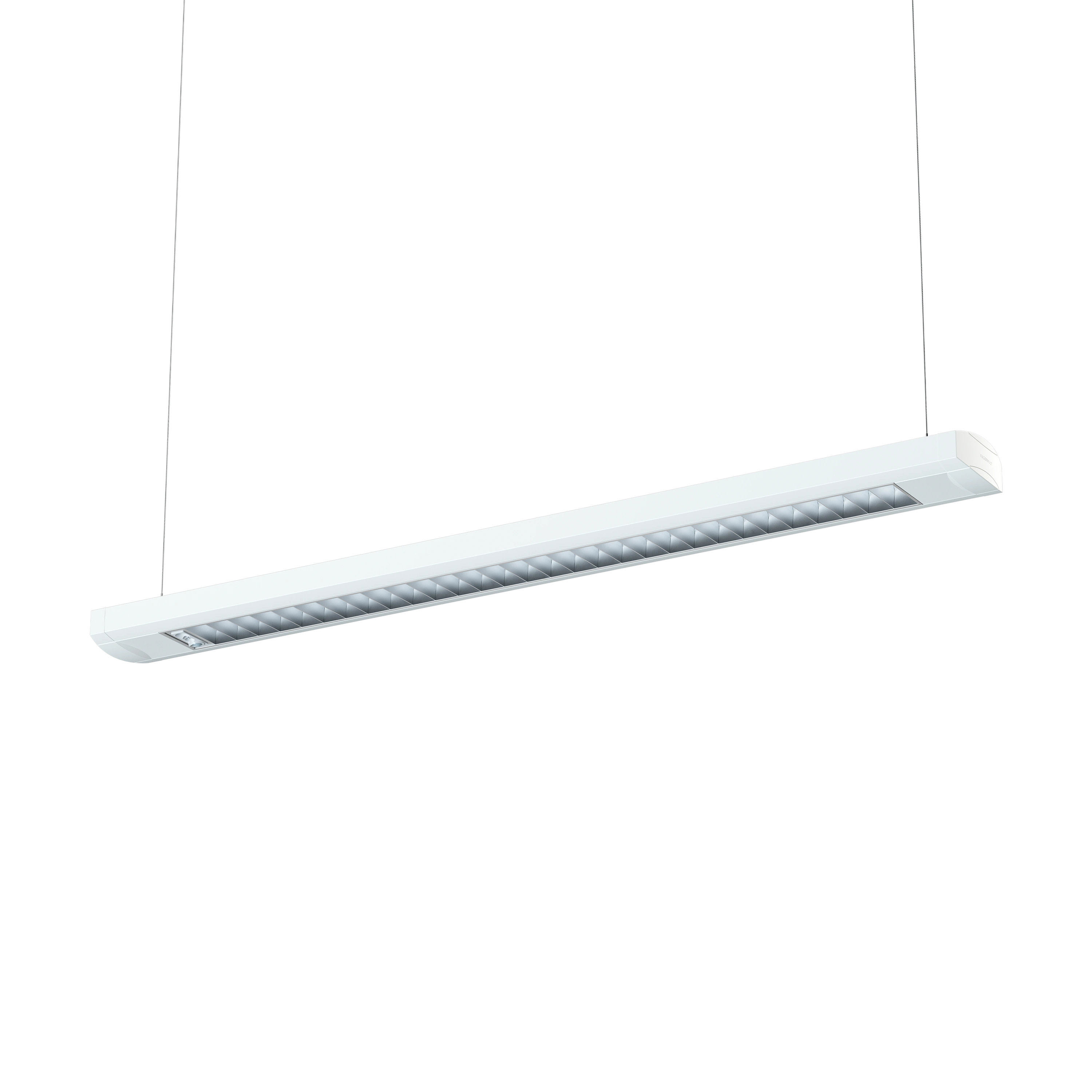

DTIPendant

DTI is a versatile luminaire family offering high energy efficiency and easy installation for workplaces and schools. The luminaire is available with high luminous fluxes, comfortable direct/indirect lighting, control options, and the option of continuous installation.

DTIPendant

29.6 kg CO₂e 161 lm/W Sensor available

Installation

Luminaire for pendant installation, single or continuous. Wire suspension ordered separately; see Accessories. When continuous installation is required the luminaire is supplemented with continuous connector and end-caps, see Accessories. For detailed information, see the installation instructions.

See installation video – Installation clips

Connection

For permanent connection; driver ballast in the luminaire. Single – Connection via snap-in terminal block (5x1.5 mm²) at the end of the luminaire. Continuous – Continuous luminaires are equipped with a through-wire 3x1.5 mm² (5x1.5 mm² DALI) and a snap-in connector in each end cap. Fagerhult Plus luminaires are equipped with halogen-free mains cables and wires with eyelets. CLO (Constant Light Output).

Design

Luminaire body made of sheet steel. Lacquered in white (RAL 9016 G40). Polypropylene (PP) end caps.

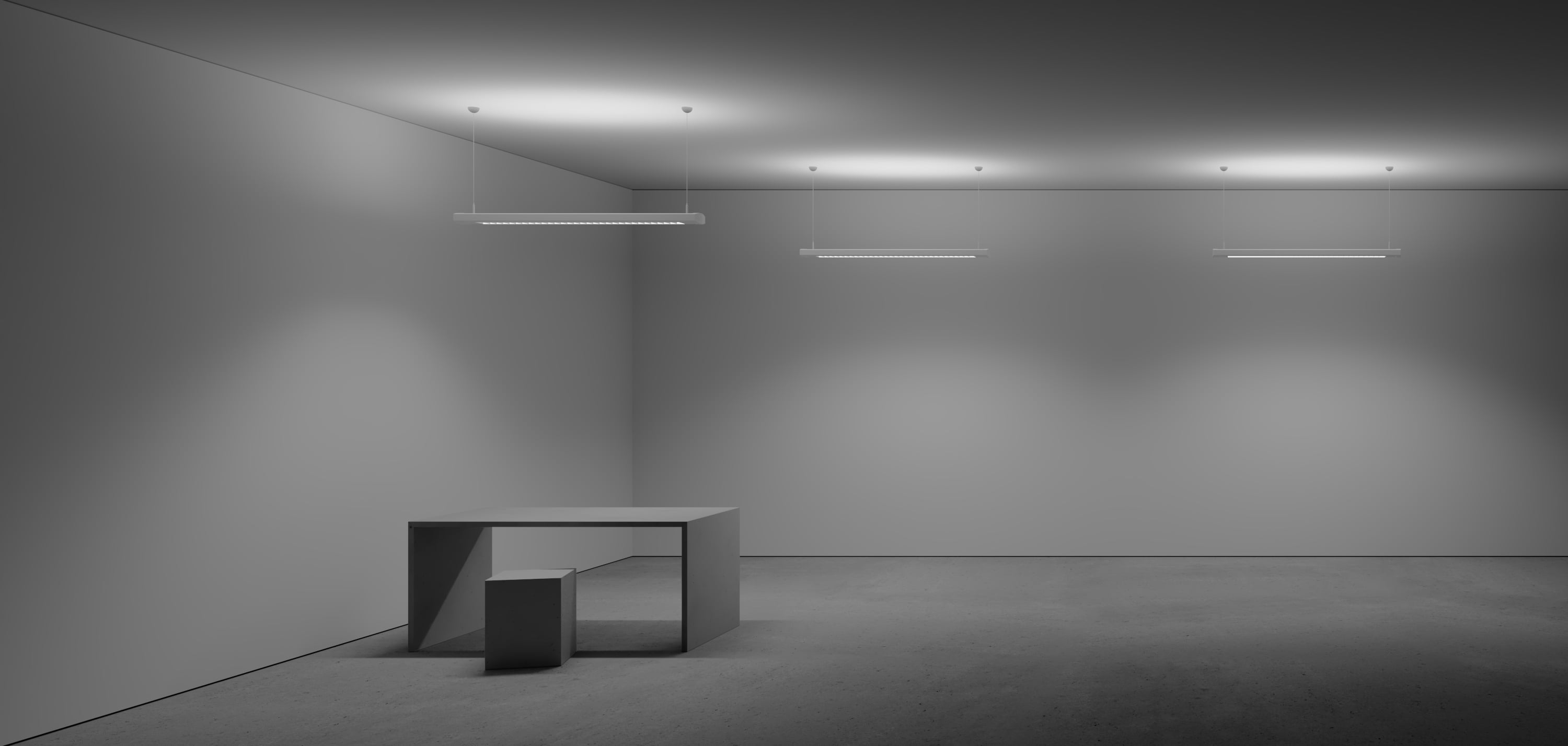

Light Distribution

Direct/indirect 50/50, 30/70.

Light data

CCT, K:

3000 K, 4000 K

CRI/Rf:

SDCM:

Lumen output:

2936-7705 lm

CLO:

50 000 h

Optics

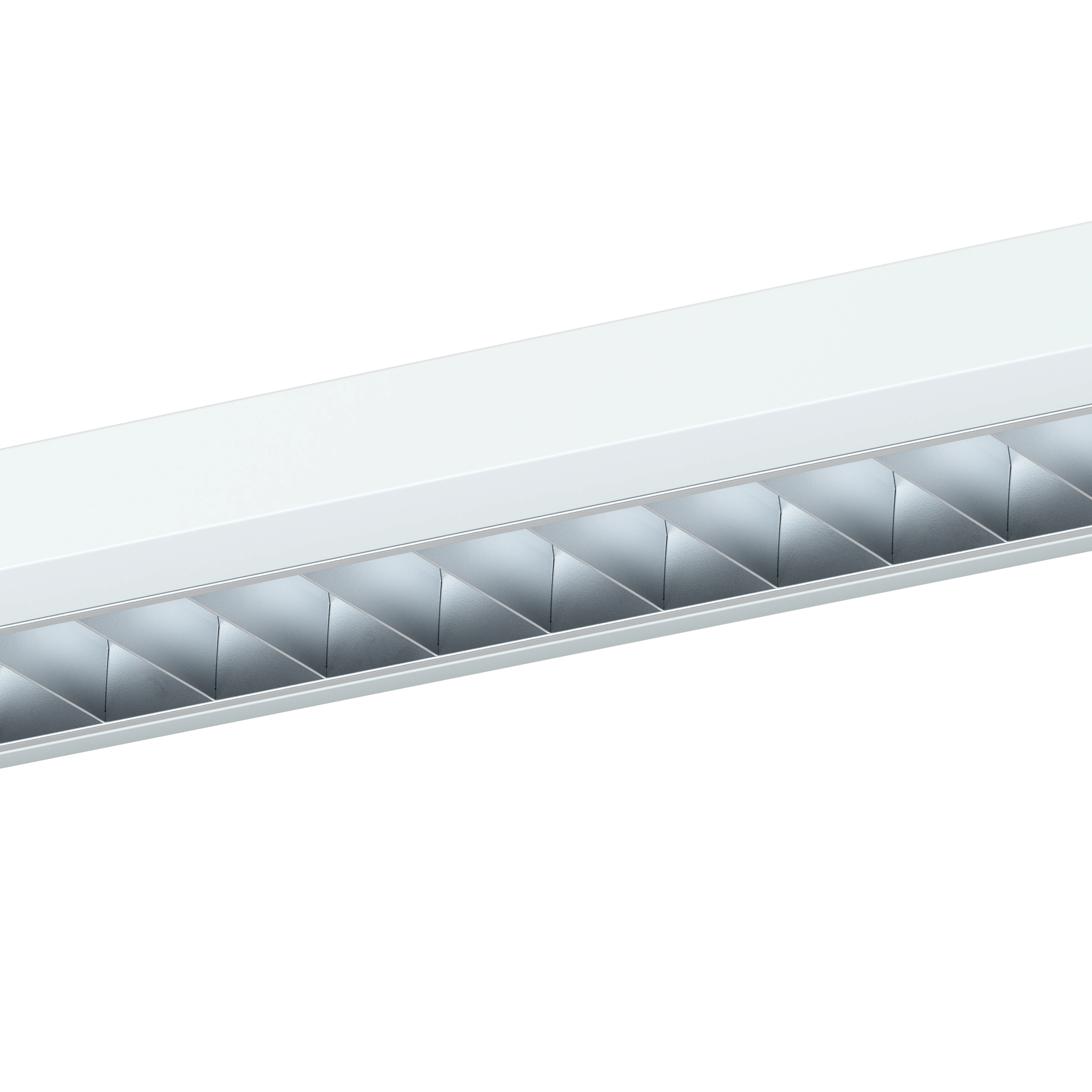

Beta Opti – side and crosswise semi-gloss reflectors in metallised aluminium with an integrated opal film that minimises the risk of uncomfortable glare from the LEDs.

DTI

Explore our lighting for offices and workplaces.

29.6kg CO₂e

(Based on 29491-402)

Climate impact (GWP fossil) A1–A3 based on results from the EPD.

Ready for reuse/ReLight

The product has a working life of 100,000 hours (L100), but once it reaches the end of its life, it is designed to be easy to reuse and upgrade (with a ReLight kit) – as opposed to being replaced with a brand new luminaire. This is a smart and cost-effective solution that saves resources, reduces waste and extends the product’s working life.

Easy to recycle & ready to upgrade

The product is made from fewer material types and without glue, making it easy to dismantle. Screw and snap-in features allow components to be easily separated. This increases the potential for of end-of-life recycling. The design also allows parts to be replaced rather than having to replace the entire product. This extends the product’s working life and reduces waste.

Made in Sweden

The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.

e-Sense BrightSwitchPIR sensor

Simple control system that provides automatic on/off or dimming between high/low level that is controlled by presence or ambient light.

DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

Pull dim

Dimming via a cord with stepped or hold‑to‑dim activation.

Organic ResponsePIR sensor

Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.

Pull cord

Easy on/off function via a cord.

Articles

Showing 78 of 78 Articles

Art.no.	System Wattage	Lumen output	CCT, K	Colour	Dimensions, mm	Module	Louvre	Light distribution	Installation	Light control	CLO time, h	Miscellaneous
29470	19	2936	3000	White	1365x141x59	1200	Beta Opti	50/50	Single
29470-16	19	2936	3000	White	1365x141x59	1200	Beta Opti	50/50	Single			1 pull cord
29470-402	20	2936	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000
29470-449	20	2936	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000	1 pull dim
29470-515	19	2936	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	e-Sense BrightSwitch on/off
29470-570	21	2936	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	Organic Response	50000	1 Pull dim
29471	32	4851	3000	White	1365x141x59	1200	Beta Opti	50/50	Single
29471-16	32	4851	3000	White	1365x141x59	1200	Beta Opti	50/50	Single			1 pull cord
29471-402	33	4851	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000
29471-449	33	4851	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000	1 pull dim
29471-515	33	4851	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	e-Sense BrightSwitch on/off
29471-570	35	4851	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	Organic Response	50000	1 Pull dim
29472	37	5781	3000	White	1365x141x59	1200	Beta Opti	50/50	Single
29472-16	37	5781	3000	White	1365x141x59	1200	Beta Opti	50/50	Single			1 pull cord
29472-402	38	5781	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000
29472-449	38	5781	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000	1 pull dim
29472-515	37	5781	3000	White	1365x141x82	1200	Beta Opti	50/50	Single	e-Sense BrightSwitch on/off
29472-533	38	5781	3000	White	1365x141x82	1200	Beta Opti	50/50	Single	Organic Response	50000
29473	42	6519	3000	White	1365x141x59	1200	Beta Opti	50/50	Single
29473-402	42	6519	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000
29473-449	42	6519	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000	1 pull dim
29473-474	43	6519	3000		1365x141x59	1200		50/50	Single	DALI/Phase-pulse	50000	2 pull dim
29473-515	42	6519	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	e-Sense BrightSwitch on/off
29473-533	43	6519	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	Organic Response	50000
29474	19	3021	4000	White	1365x141x59	1200	Beta Opti	50/50	Single
29474-16	19	3021	4000	White	1365x141x59	1200	Beta Opti	50/50	Single			1 pull cord
29474-402	20	3021	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000
29474-449	20	3021	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000	1 pull dim
29474-515	19	3021	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	e-Sense BrightSwitch on/off
29474-570	21	3021	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	Organic Response	50000	1 Pull dim
29475	32	4991	4000	White	1365x141x59	1200	Beta Opti	50/50	Single
29475-16	32	4991	4000	White	1365x141x59	1200	Beta Opti	50/50	Single			1 pull cord
29475-402	33	4991	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000
29475-449	33	4991	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000	1 pull dim
29475-515	33	4991	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	e-Sense BrightSwitch on/off
29475-570	35	4991	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	Organic Response	50000	1 Pull dim
29476	37	5947	4000	White	1365x141x59	1200	Beta Opti	50/50	Single
29476-16	37	5947	4000	White	1365x141x59	1200	Beta Opti	50/50	Single			1 pull cord
29476-402	38	5947	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000
29476-449	38	5947	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000	1 pull dim
29476-515	37	5947	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	e-Sense BrightSwitch on/off
29476-533	38	5947	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	Organic Response	50000
29477	42	6706	4000	White	1365x141x59	1200	Beta Opti	50/50	Single
29477-402	42	6706	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000
29477-449	42	6706	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	DALI/Phase-pulse	50000	1 pull dim
29477-515	42	6706	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	e-Sense BrightSwitch on/off
29477-533	43	6706	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	Organic Response	50000
29478-533	43	6519	3000	White	1365x141x59	1200	Beta Opti	50/50	Single	Organic Response	50000	Plus
29479-533	43	6706	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	Organic Response	50000	Plus
29480	19	2936	3000	White	1365x141x59	1200	Beta Opti	50/50	Continuous
29480-402	20	2936	3000	White	1365x141x59	1200	Beta Opti	50/50	Continuous	DALI/Phase-pulse	50000
29481	32	4851	3000	White	1365x141x59	1200	Beta Opti	50/50	Continuous
29481-402	33	4851	3000	White	1365x141x59	1200	Beta Opti	50/50	Continuous	DALI/Phase-pulse	50000
29482	37	5781	3000	White	1365x141x59	1200	Beta Opti	50/50	Continuous
29482-402	38	5781	3000	White	1365x141x59	1200	Beta Opti	50/50	Continuous	DALI/Phase-pulse	50000
29483	42	6519	3000	White	1365x141x59	1200	Beta Opti	50/50	Continuous
29483-402	42	6519	3000	White	1365x141x59	1200	Beta Opti	50/50	Continuous	DALI/Phase-pulse	50000
29484	19	3021	4000	White	1365x141x59	1200	Beta Opti	50/50	Continuous
29484-402	20	3021	4000	White	1365x141x59	1200	Beta Opti	50/50	Continuous	DALI/Phase-pulse	50000
29485	32	4991	4000	White	1365x141x59	1200	Beta Opti	50/50	Continuous
29485-402	33	4991	4000	White	1365x141x59	1200	Beta Opti	50/50	Continuous	DALI/Phase-pulse	50000
29486	37	5947	4000	White	1365x141x59	1200	Beta Opti	50/50	Continuous
29486-402	38	5947	4000	White	1365x141x59	1200	Beta Opti	50/50	Continuous	DALI/Phase-pulse	50000
29487	42	6706	4000	White	1365x141x59	1200	Beta Opti	50/50	Continuous
29487-402	42	6706	4000	White	1365x141x59	1200	Beta Opti	50/50	Continuous	DALI/Phase-pulse	50000
29489	47	5657		White	1365x141x59	1200	Beta Opti	50/50	Single	DALI	50000	Tunable white
29493-570	39	5947	4000	White	1365x141x59	1200	Beta Opti	50/50	Single	Organic Response	50000	1 Pulldim, Plus
29668	37	5970	4000	White	1665x141x59	1500	Beta Opti	50/50	Single
29668-402	38	5970	4000	White	1665x141x59	1500	Beta Opti	50/50	Single	DALI/Phase-pulse	50000
29668-449	38	5970	4000	White	1665x141x59	1500	Beta Opti	50/50	Single	DALI/Phase-pulse	50000
29670	37	5803	3000	White	1665x141x59	1500	Beta Opti	50/50	Single
29670-402	38	5803	3000	White	1665x141x59	1500	Beta Opti	50/50	Single	DALI/Phase-pulse	50000
29670-449	38	5803	3000	White	1665x141x59	1500	Beta Opti	50/50	Single	DALI/Phase-pulse	50000
29671	48	7489	3000	White	1665x141x59	1500	Beta Opti	50/50	Single
29671-402	49	7489	3000	White	1665x141x59	1500	Beta Opti	50/50	Single	DALI/Phase-pulse	50000
29672	48	7705	4000	White	1665x141x59	1500	Beta Opti	50/50	Single
29672-402	49	7705	4000	White	1665x141x59	1500	Beta Opti	50/50	Single	DALI/Phase-pulse	50000
29672-533	49	7505	4000	White	1665x141x59	1500	Beta Opti	50/50	Single	Organic Response	50000

Showing 80 of 80 Accessories

Name	Description	Art.no.
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large square ceiling cup for T-bars 25 mm, transparent mains cable/each	96381
Wire suspension for continuous installation L: 1,4m	Large square ceiling cup for T-bars 25 mm/each	96373
Wire suspension for continuous installation L: 1,4m	Small round ceiling cup for T-bars 25 mm/each	96384
Wire suspension for continuous installation L: 1,4m	Large round ceiling cup/each	96383
Wire suspension for continuous installation L: 1,4m	Large round ceiling cup for T-bars 25 mm/each	96385
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381)	95381
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377)	95380
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – small + large, transparent mains cable (96370+96380)	95379
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – small + large, white mains cable (96370+96375)	95378
Wire suspension for continuous installation L: 1,4m	Small round ceiling cup/each	96382
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377)	95376
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389)	95372
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – small + large, white mains cable (96382+96387)	95370
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96389)	95368
Wire suspension for continuous installation L: 1,4m	Small square ceiling cup/each	96370
Wire suspension for continuous installation L: 1,4m	Large square ceiling cup/each	96371
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376)	95364
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381)	95377
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – small + large, white mains cable (96370+96374)	95362
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376)	95360
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – large, transparent mains cable (96371+96378)	95359
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – large, transparent mains cable (96383+96392)	95367
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – large, white mains cable (96383+96387)	95366
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391)	95357
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96393)	95369
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – large, transparent mains cable (96371+96380)	95375
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – small + large, transparent mains cable (96382+96392)	95371
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – small + large, transparent mains cable (96370+96378)	95363
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – large, white mains cable (96371+96374)	95358
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379)	95365
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379)	95361
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Square ceiling cups – large, white mains cable (96371+96375)	95374
Wire suspension for single installation, 5x0.75 mm² L: 1,4m	Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393)	95373
External Organic Response sensor incl. DALI PSU	External sensor incl. DALI PSU, suspended pipe conduit installation, 1 m cable. pipe not included.	86409
External Organic Response sensor incl. DALI PSU	External sensor incl. DALI PSU, surface mounted, 1 m cable	86408
External Organic Response sensor incl. DALI PSU	External sensor incl. DALI PSU, recessed, 3.2 m cable	86410
External Organic Response sensor incl. DALI PSU	Extern sensor incl. DALI PSU, suspended pipe conduit installation, 3.2 m cable. Pipe not included.	86412
External Organic Response sensor incl. DALI PSU	External sensor incl. DALI PSU, surface mounted, 3.2 m cable	86411
External Organic Response sensor incl. DALI PSU	External sensor incl. DALI PSU, recessed, 1 m cable	86407
Support rail (cat. no./pair)	L=600/625, section: 25, max. load: 75N/pair	94067
End-cap	End-plate, white/pair (35mm)	91683
Continuous coupler	Continuous coupler including wire lock - white/each	91681
Organic Response EnOcean Wireless Push button panel	EnOcean 4 function push button panel, labeled, white	86437
Organic Response EnOcean Wireless Push button panel	EnOcean 2 function push button panel, labeled, white	86436
Organic Response I/O box	I/O box with potential-free 16A relay for controlling external units.	86413
Organic Response IoT Gateway	Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors.	86296
Wire suspension for support rails L: 1,5m	Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068	91426
Support rail (cat. no./pair)	L=1200/1250, section: 25, max. load: 120/30N/pair	94068
Support rail (cat. no./pair)	L=600/650, section: 15, max. load: 75N/pair	90015
Organic Response EnOcean Wireless Push button panel	EnOcean 4 function push button panel, white	86417
Organic Response EnOcean Wireless Push button panel	EnOcean 2 function push button panel, white	86416
Remote control e-Sense BrightSwitch	Remote control	86359
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large round ceiling cup for T-bars 25 mm, transparent mains cable/each	96393
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large round ceiling cup, transparent mains cable/each	96392
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large round ceiling cup, white mains cable/each	96387
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large square ceiling cup for T-bars 25 mm, white mains cable/each	96376
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large square ceiling cup, white mains cable/each	96374
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large round ceiling cup for T-bars 25 mm, white mains cable/each	96388
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large round ceiling cup, white mains cable/each	96386
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – small + large, white mains cable (96382+96386)	95354
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388)	95352
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – large, transparent mains cable (96383+96390)	95351
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large square ceiling cup for T-bars 25 mm, white mains cable/each	96377
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large square ceiling cup, transparent mains cable/each	96380
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large square ceiling cup, white mains cable/each	96375
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m	Large round ceiling cup for T-bars 25 mm, white mains cable/each	96389
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large square ceiling cup for T-bars 25 mm, transparent mains cable/each	96379
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large square ceiling cup, transparent mains cable/each	96378
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large round ceiling cup for T-bars 25 mm, transparent mains cable/each	96391
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m	Large round ceiling cup, transparent mains cable/each	96390
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – small + large, transparent mains cable (96382+96390)	95355
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391)	95353
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388)	95356
Wire suspension for single installation, 3x0.75 mm² L: 1,4m	Round ceiling cups – large, white mains cable (96383+96386)	95350
Wire suspension for continuous installation L: 1,4m	Small square ceiling cup for T-bars 25 mm/each	96372
IR dongle for Organic Response	IR dongle for Organic Response equipped luminaire.	86279
Support rail (cat. no./pair)	L=200/1250, section: 15, max. load: 120/30N/pair	90016
Cutters	Cutters, each	94248
Ceiling bracket in chrome with wire	Wire suspension with ceiling bracket in chrome, L=1.5 m/pair	91696
Organic Response I/O box	I/O box with potential-free 8A relay for controlling external units.	86433
