NoveSurface

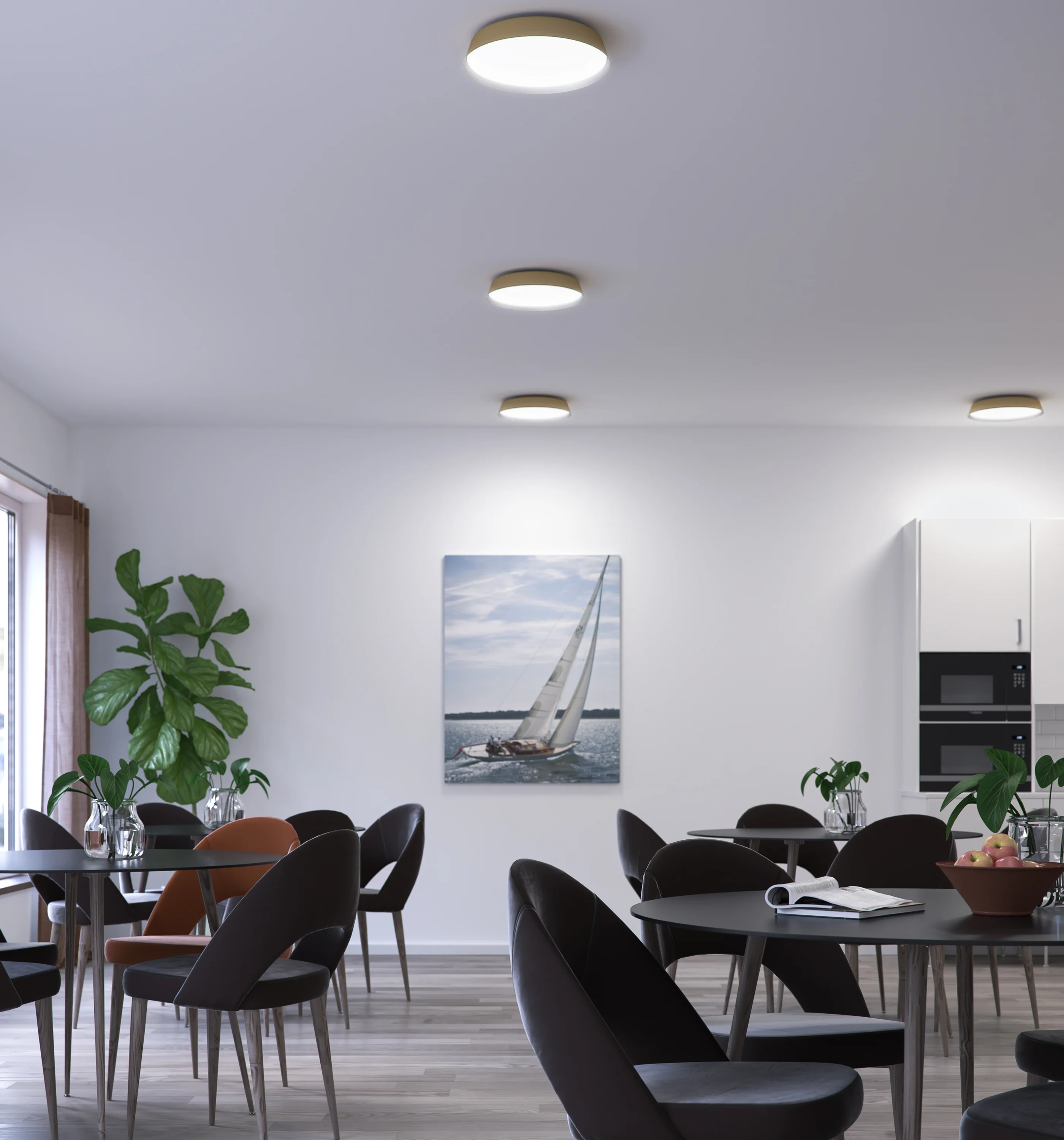

Nove is a versatile and decorative ceiling- or wall-mounted luminaire that is a natural fit for any interior. The luminaire is available in three sizes and the elegant decorative ring comes in a range of colours.
NoveSurface
Nove is a versatile and decorative ceiling- or wall-mounted luminaire that is a natural fit for any interior. The luminaire is available in three sizes and the elegant decorative ring comes in a range of colours.
Installation
Luminaire for surface-mounted ceiling installation or for wall mounting. Surface-mounted ceiling installation with decor ring – IP44. Surface-mounted ceiling installation with decor ring – IP41. Wall mounting – IP40. For detailed information, see the installation instructions.
Connection
For permanent connection; integrated driver in the luminaire. Snap-in terminal block 5x1.5 mm². 1-phase through-wiring possible. The luminaire is equipped with two cable entries on the top and two cable entries on the side. Surface-mounted mains cable possible, through-wiring 180°. CLO (Constant Light Output).
Design

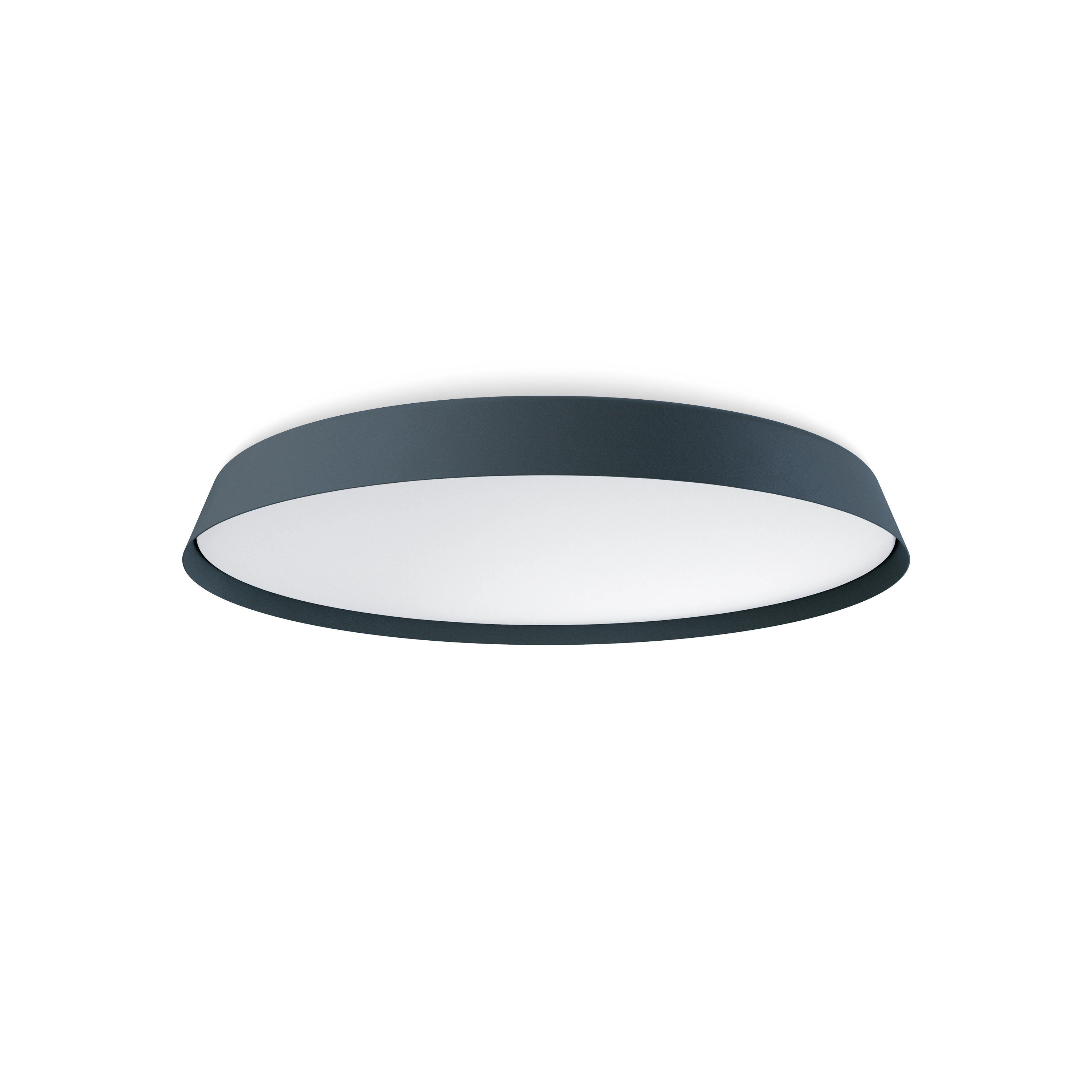

Luminaire body of sheet steel finished in matt white (RAL 9016). Diffuser in matt opal acrylic. Decor ring in white (RAL 9016), sand (RAL 1019) or azurite (RAL 5008). Available in sizes Ø360 mm, Ø420 mm and Ø520 mm.

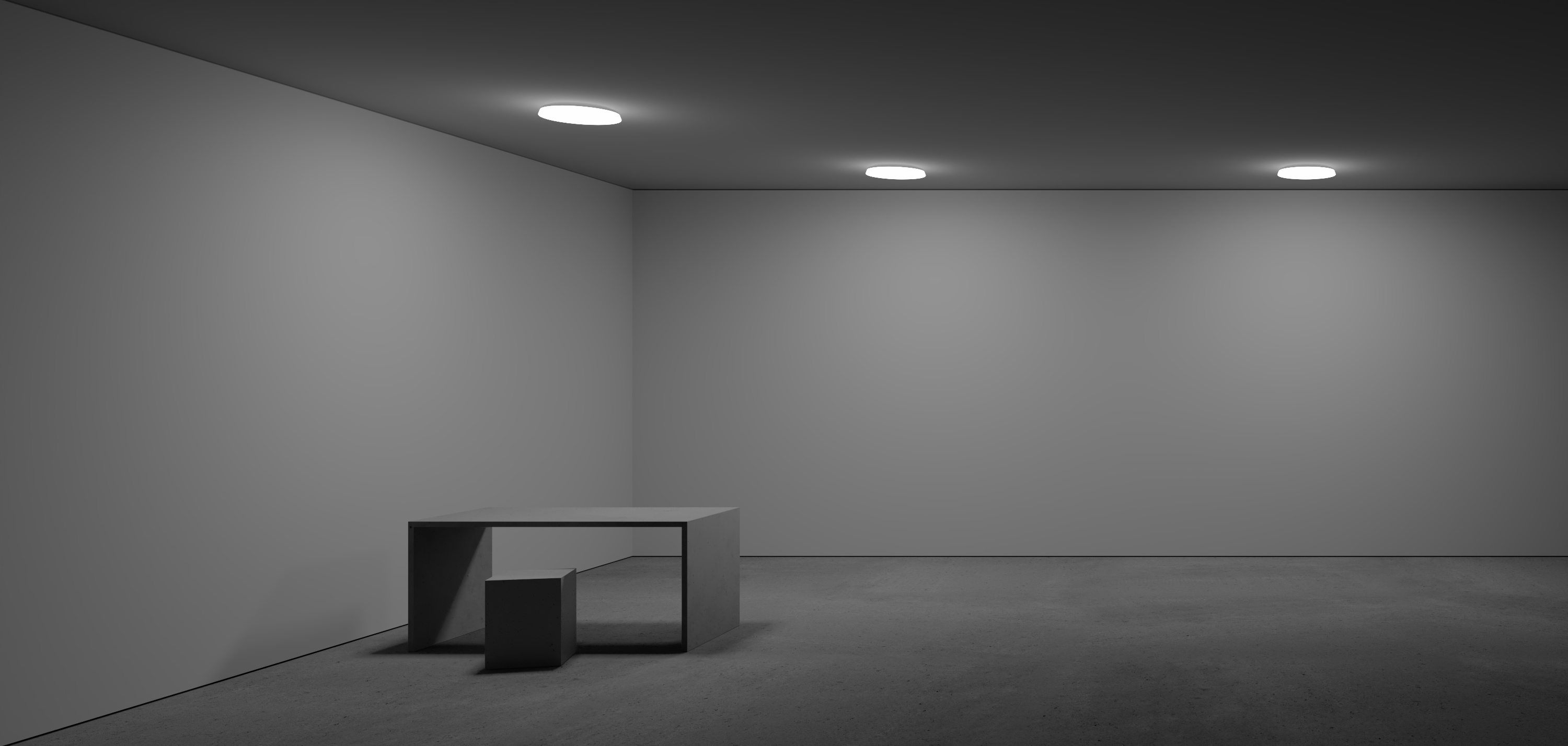

Light Distribution
Direct.
Light data
Optics
Opal acrylic diffuser (PMMA).
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
e-Sense DetectMicrowave sensor
Sensor-based system without the need for programming, designed for IP rated environments such as garages and industry.
Read moree-Sense FlexMicrowave sensor
Wireless Bluetooth mesh control with easy installation and full adaptability for IP rated environments, such as garages and stairwells.
Read moreDALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Diameter, mm | Dimensions, mm | Louvre | Light control | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 59200-402 | 13 | 1679 | 3000 | White | 360 | 73 | Opal | DALI/Phase-pulse | Without decor ring |
|
|
| 59200-495 | 14 | 1679 | 3000 | White | 360 | 73 | Opal | e-Sense Detect DALI absence | Without decor ring |
|
|
| 59200-569 | 15 | 1679 | 3000 | White | 360 | 73 | Opal | e-Sense Flex | Without decor ring |
|
|
| 59201-402 | 13 | 1775 | 4000 | White | 360 | 73 | Opal | DALI/Phase-pulse | Without decor ring |
|
|
| 59201-495 | 14 | 1775 | 4000 | White | 360 | 73 | Opal | e-Sense Detect DALI absence | Without decor ring |
|
|
| 59201-569 | 15 | 1775 | 4000 | White | 360 | 73 | Opal | e-Sense Flex | Without decor ring |
|
|
| 59202-402 | 22 | 2764 | 3000 | White | 420 | 73 | Opal | DALI/Phase-pulse | Without decor ring |
|
|
| 59202-495 | 22 | 2764 | 3000 | White | 420 | 73 | Opal | e-Sense Detect DALI absence | Without decor ring |
|
|
| 59202-569 | 23 | 2764 | 3000 | White | 420 | 73 | Opal | e-Sense Flex | Without decor ring |
|
|
| 59203-402 | 22 | 2922 | 4000 | White | 420 | 73 | Opal | DALI/Phase-pulse | Without decor ring |
|
|
| 59203-495 | 22 | 2922 | 4000 | White | 420 | 73 | Opal | e-Sense Detect DALI absence | Without decor ring |
|
|
| 59203-569 | 23 | 2922 | 4000 | White | 420 | 73 | Opal | e-Sense Flex | Without decor ring |
|
|
| 59204-402 | 39 | 4498 | 3000 | White | 520 | 73 | Opal | DALI/Phase-pulse | Without decor ring |
|
|
| 59204-495 | 39 | 4498 | 3000 | White | 520 | 73 | Opal | e-Sense Detect DALI absence | Without decor ring |
|
|
| 59204-569 | 40 | 4498 | 3000 | White | 520 | 73 | Opal | e-Sense Flex | Without decor ring |
|
|
| 59205-402 | 39 | 4755 | 4000 | White | 520 | 73 | Opal | DALI/Phase-pulse | Without decor ring |
|
|
| 59205-495 | 39 | 4755 | 4000 | White | 520 | 73 | Opal | e-Sense Detect DALI absence | Without decor ring |
|
|
| 59205-569 | 40 | 4755 | 4000 | White | 520 | 73 | Opal | e-Sense Flex | Without decor ring |
|
|
| 59206-402 | 13 | 1588 | 3000 | White | 375 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59206-495 | 14 | 1588 | 3000 | White | 375 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59206-569 | 15 | 1588 | 3000 | White | 375 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59207-402 | 13 | 1679 | 4000 | White | 375 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59207-495 | 14 | 1679 | 4000 | White | 375 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59207-569 | 15 | 1679 | 4000 | White | 375 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59208-402 | 22 | 2615 | 3000 | White | 437 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59208-495 | 22 | 2615 | 3000 | White | 437 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59208-569 | 23 | 2615 | 3000 | White | 437 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59209-402 | 22 | 2764 | 4000 | White | 437 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59209-495 | 22 | 2764 | 4000 | White | 437 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59209-569 | 23 | 2764 | 4000 | White | 437 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59210-402 | 39 | 4255 | 3000 | White | 537 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59210-495 | 39 | 4255 | 3000 | White | 537 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59210-569 | 40 | 4255 | 3000 | White | 537 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59211-402 | 39 | 4498 | 4000 | White | 537 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59211-495 | 39 | 4498 | 4000 | White | 537 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59211-569 | 40 | 4498 | 4000 | White | 537 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59212-402 | 13 | 1511 | 3000 | Sand | 375 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59212-495 | 14 | 1511 | 3000 | Sand | 375 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59212-569 | 15 | 1511 | 3000 | Sand | 375 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59213-402 | 13 | 1598 | 4000 | Sand | 375 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59213-495 | 14 | 1598 | 4000 | Sand | 375 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59213-569 | 15 | 1598 | 4000 | Sand | 375 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59214-402 | 22 | 2488 | 3000 | Sand | 437 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59214-495 | 22 | 2488 | 3000 | Sand | 437 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59214-569 | 23 | 2488 | 3000 | Sand | 437 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59215-402 | 22 | 2630 | 4000 | Sand | 437 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59215-495 | 22 | 2630 | 4000 | Sand | 437 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59215-569 | 23 | 2630 | 4000 | Sand | 437 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59216-402 | 39 | 4048 | 3000 | Sand | 537 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59216-495 | 39 | 4048 | 3000 | Sand | 537 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59216-569 | 40 | 4048 | 3000 | Sand | 537 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59217-402 | 39 | 4280 | 4000 | Sand | 537 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59217-495 | 39 | 4280 | 4000 | Sand | 537 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59217-569 | 40 | 4280 | 4000 | Sand | 537 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59218-402 | 13 | 1478 | 3000 | Azurite | 375 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59218-495 | 14 | 1478 | 3000 | Azurite | 375 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59218-569 | 15 | 1478 | 3000 | Azurite | 375 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59219-402 | 13 | 1562 | 4000 | Azurite | 375 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59219-495 | 14 | 1562 | 4000 | Azurite | 375 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59219-569 | 15 | 1562 | 4000 | Azurite | 375 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59220-402 | 22 | 2433 | 3000 | Azurite | 437 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59220-495 | 22 | 2433 | 3000 | Azurite | 437 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59220-569 | 23 | 2433 | 3000 | Azurite | 437 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59221-402 | 22 | 2571 | 4000 | Azurite | 437 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59221-495 | 22 | 2571 | 4000 | Azurite | 437 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59221-569 | 23 | 2571 | 4000 | Azurite | 437 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59222-402 | 39 | 3958 | 3000 | Azurite | 537 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59222-495 | 39 | 3958 | 3000 | Azurite | 537 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59222-569 | 40 | 3958 | 3000 | Azurite | 537 | 73 | Opal | e-Sense Flex | With decor ring |
|
|
| 59223-402 | 39 | 4184 | 4000 | Azurite | 537 | 73 | Opal | DALI/Phase-pulse | With decor ring |
|
|
| 59223-495 | 39 | 4184 | 4000 | Azurite | 537 | 73 | Opal | e-Sense Detect DALI absence | With decor ring |
|
|
| 59223-569 | 40 | 4184 | 4000 | Azurite | 537 | 73 | Opal | e-Sense Flex | With decor ring |
|
