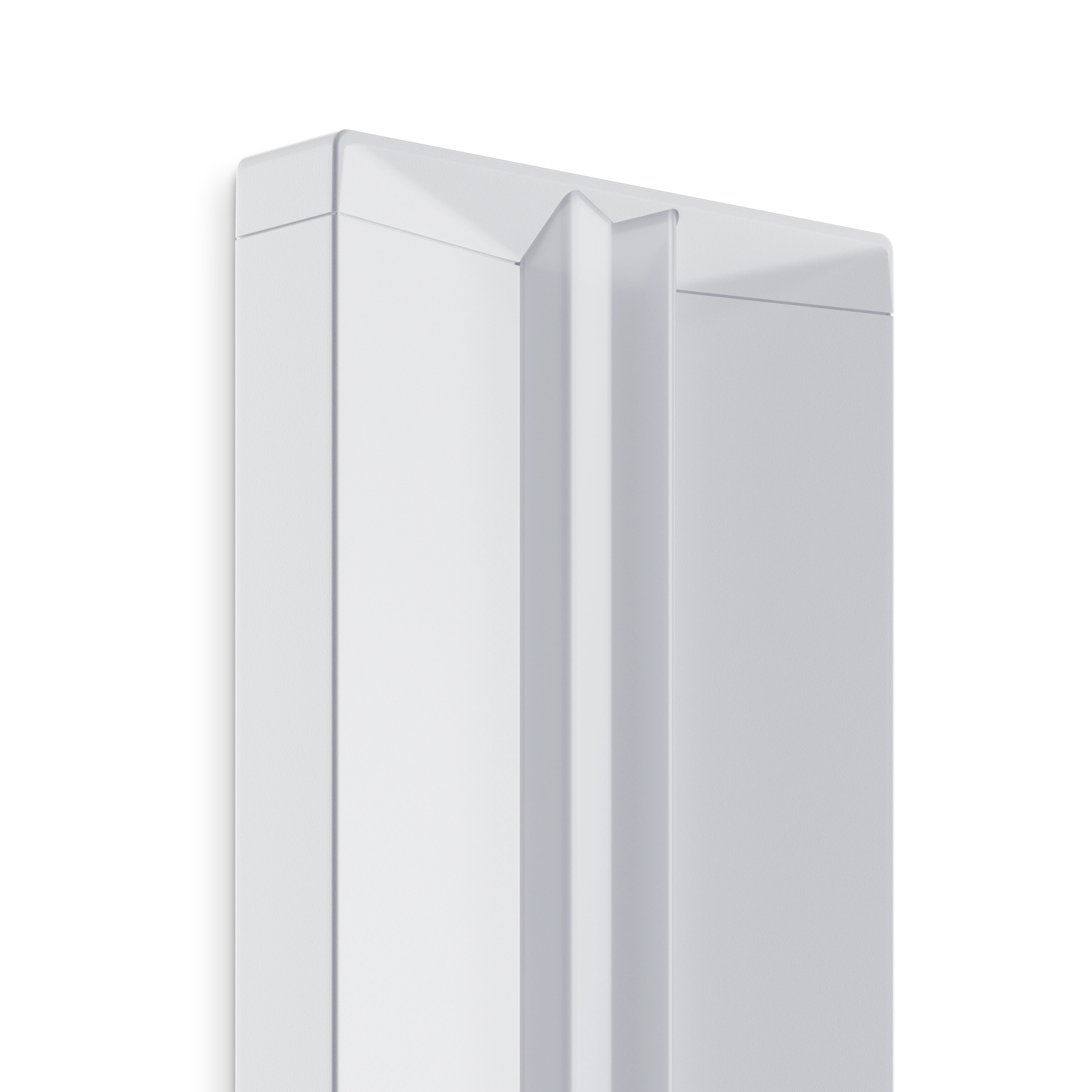

Dwide wallSurface
Dwide is a luminaire family that meets the needs of office, school and healthcare settings. The light management is unique, with a divider that provides a smooth transition between surfaces. Dwide Wall provides a gentle, indirect light that softens the contrasts.

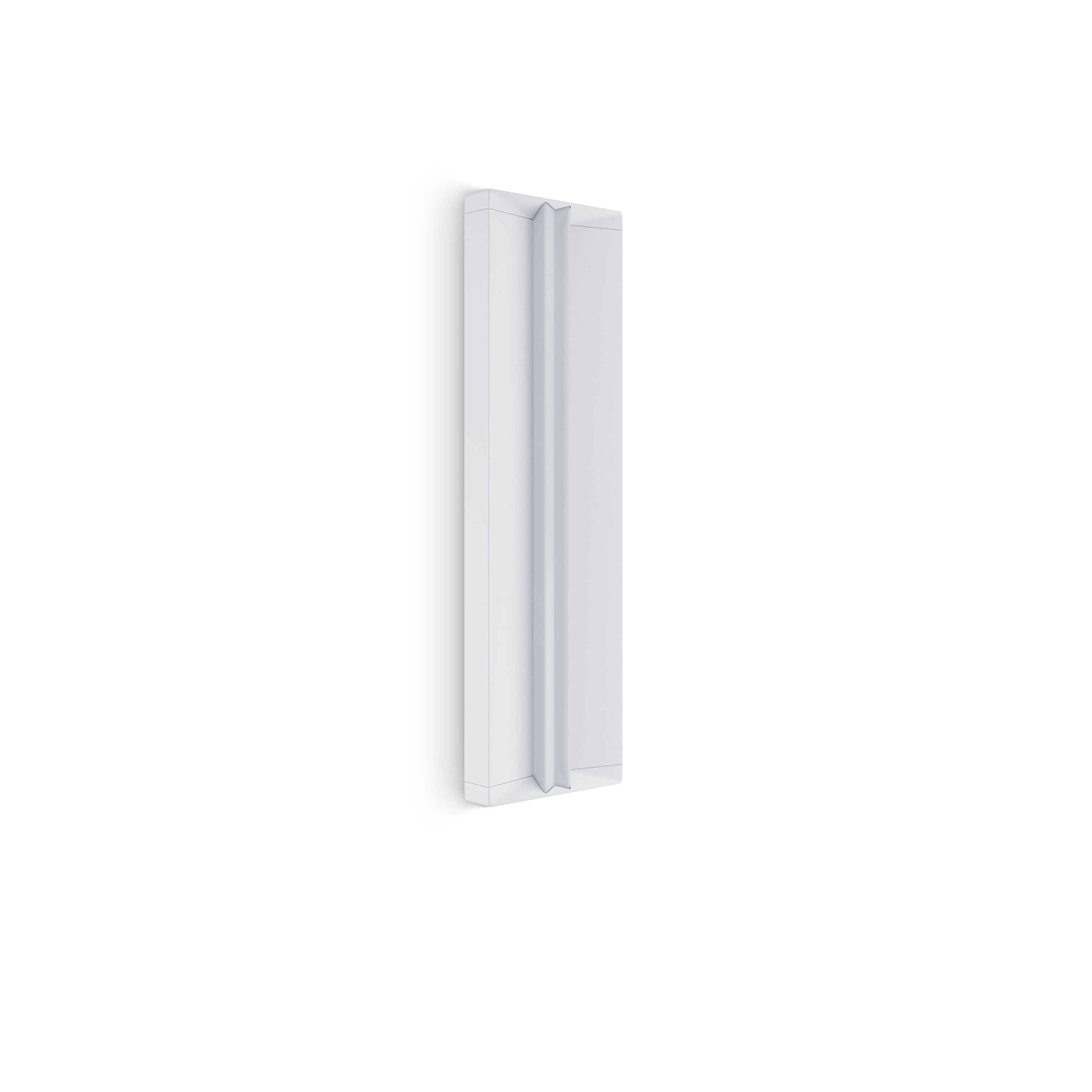

Dwide wallSurface
Dwide is a luminaire family that meets the needs of office, school and healthcare settings. The light management is unique, with a divider that provides a smooth transition between surfaces. Dwide Wall provides a gentle, indirect light that softens the contrasts.
Installation
Luminaire for wall installation. For detailed information, see the installation instructions.
See installation video Dwide WallConnection
For permanent connection; integrated driver in the luminaire. Snap-in terminal block 5x1.5 mm². 1-phase through-wiring possible. Cable entry from rear or external cable. CLO (Constant Light Output).
Design
Luminaire body made of sheet steel. Die-cast aluminium end caps, made from post-consumer recycled material. White (RAL 9016) structured lacquer. Design by Yellon.
Light Distribution

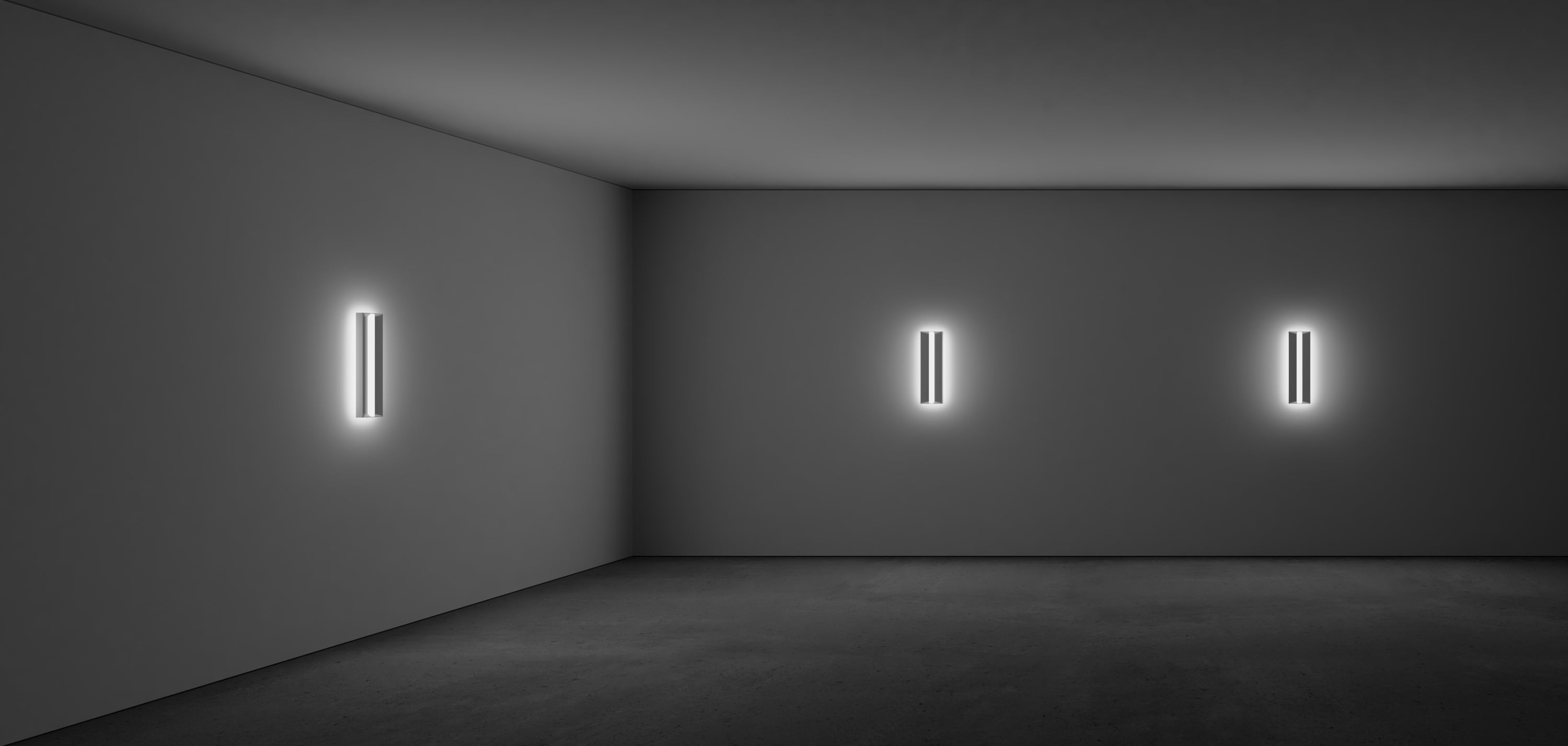

Direct/indirect 90/10.
Light data
Optics
Light divider in acrylic (PMMA).
High efficiency & reduced energy consumption
The product family includes models with very high efficiency – without compromising on light comfort. High efficiency gives rise to reductions in energy consumption, climate impact and operating costs. The luminaire’s good light comfort also means that fewer luminaires are needed to achieve the desired light level.
Easy to recycle & ready to upgrade
The product is made from fewer material types and without glue, making it easy to dismantle. Screw and snap-in features allow components to be easily separated. This increases the potential for of end-of-life recycling. The design also allows parts to be replaced rather than having to replace the entire product. This extends the product’s working life and reduces waste.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
e-Sense FlexMicrowave sensor

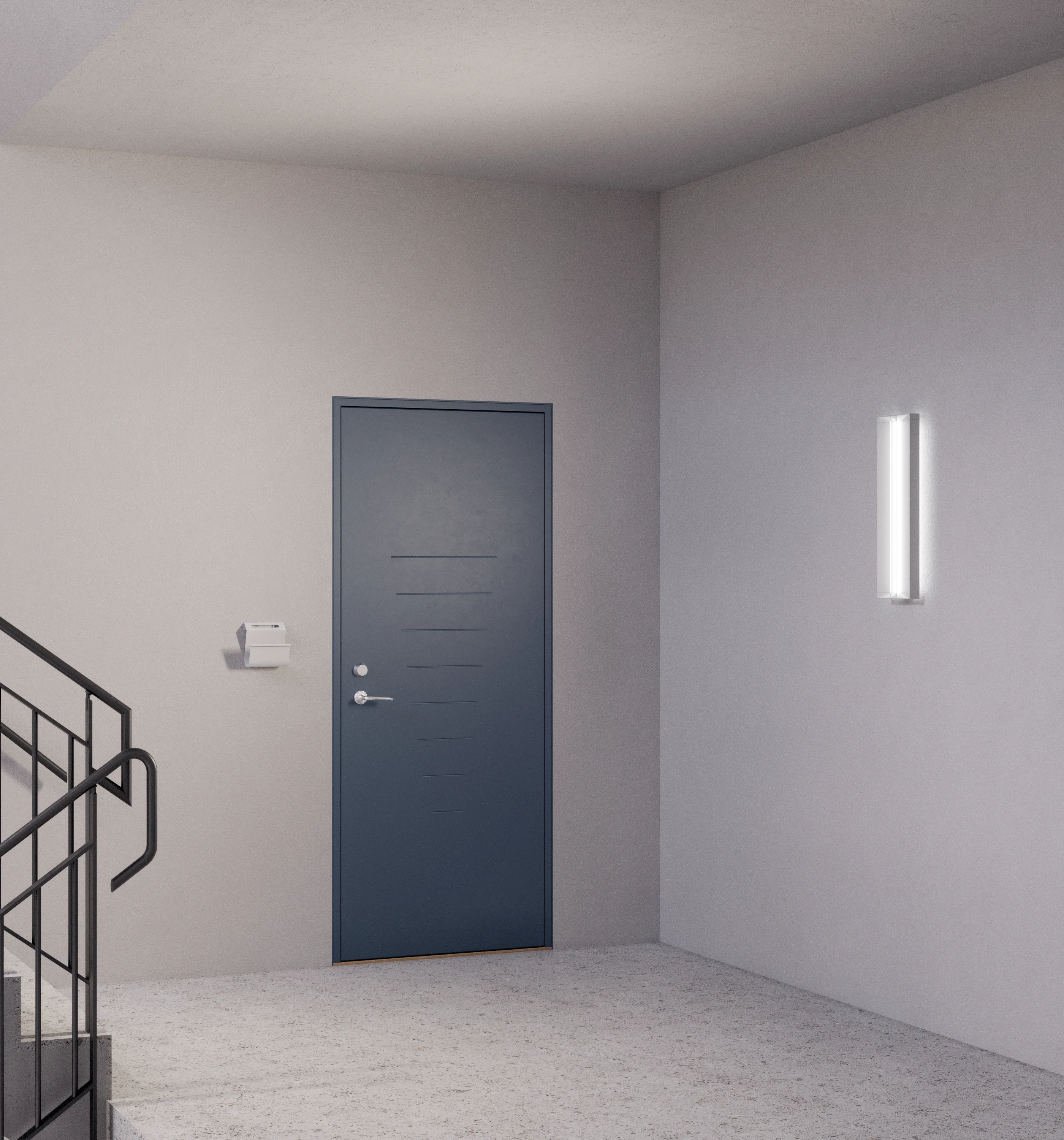

Wireless Bluetooth mesh control with easy installation and full adaptability for IP rated environments, such as garages and stairwells.
Read moreDALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Dimensions, mm | Module | Light distribution | Light control | CLO time, h | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22328-402 | 13 | 1624 | 3000 | White | 588x177x56 | 200x600 | Direct/indirect | DALI/Phase-pulse | 50000 |
|
|
| 22328-569 | 13 | 1624 | 3000 | White | 656x177x56 | 200x600 | Direct/indirect | e-Sense Flex | 50000 |
|
|
| 22329-402 | 13 | 1724 | 4000 | White | 588x177x56 | 200x600 | Direct/indirect | DALI/Phase-pulse | 50000 |
|
|
| 22329-569 | 13 | 1724 | 4000 | White | 656x177x56 | 200x600 | Direct/indirect | e-Sense Flex | 50000 |
|
