Pozzo ScaleSurface

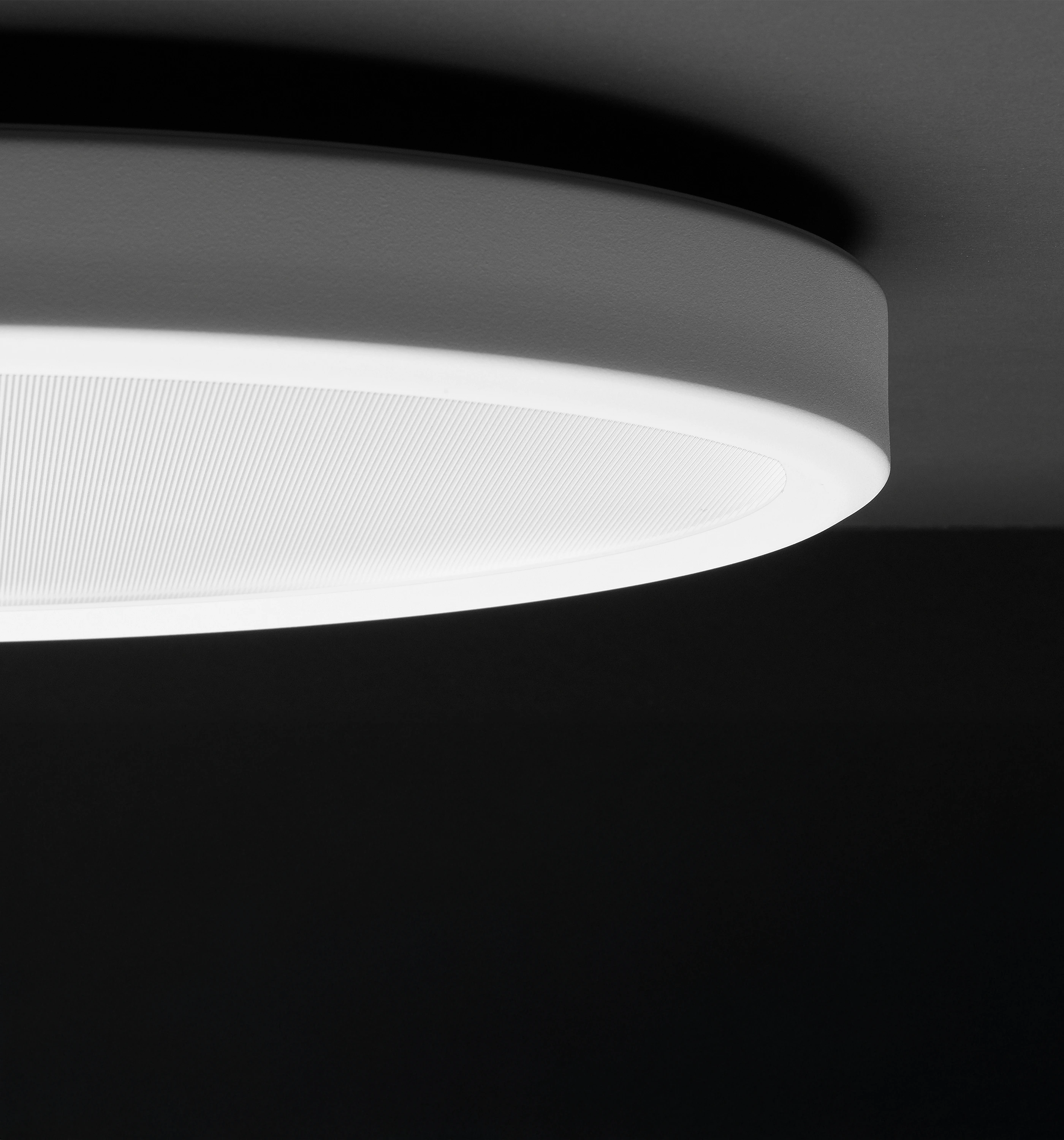

Pozzo Scale is a ceiling-mounted luminaire in Fagerhult’s Pozzo family, with soft shapes and gradients that create pleasant islands of light in the room. It can also be equipped with Tunable White for daylight imitation.
Pozzo ScaleSurface
Pozzo Scale is a ceiling-mounted luminaire in Fagerhult’s Pozzo family, with soft shapes and gradients that create pleasant islands of light in the room. It can also be equipped with Tunable White for daylight imitation.
Installation
Luminaire for surface-mounted ceiling installation or for wall mounting. For detailed information, see the installation instructions.
Connection
For permanent connection; integrated driver in the luminaire. Snap-in terminal block 5x1.5 mm². 1-phase through-wiring possible. Surface-mounted mains cable possible, through-wiring 180°. CLO (Constant Light Output).
Design
Luminaire body made of aluminium. White (RAL 9016) structured lacquer.
Light Distribution
Direct.
Light data
Optics
Opal – opal acrylic diffuser.

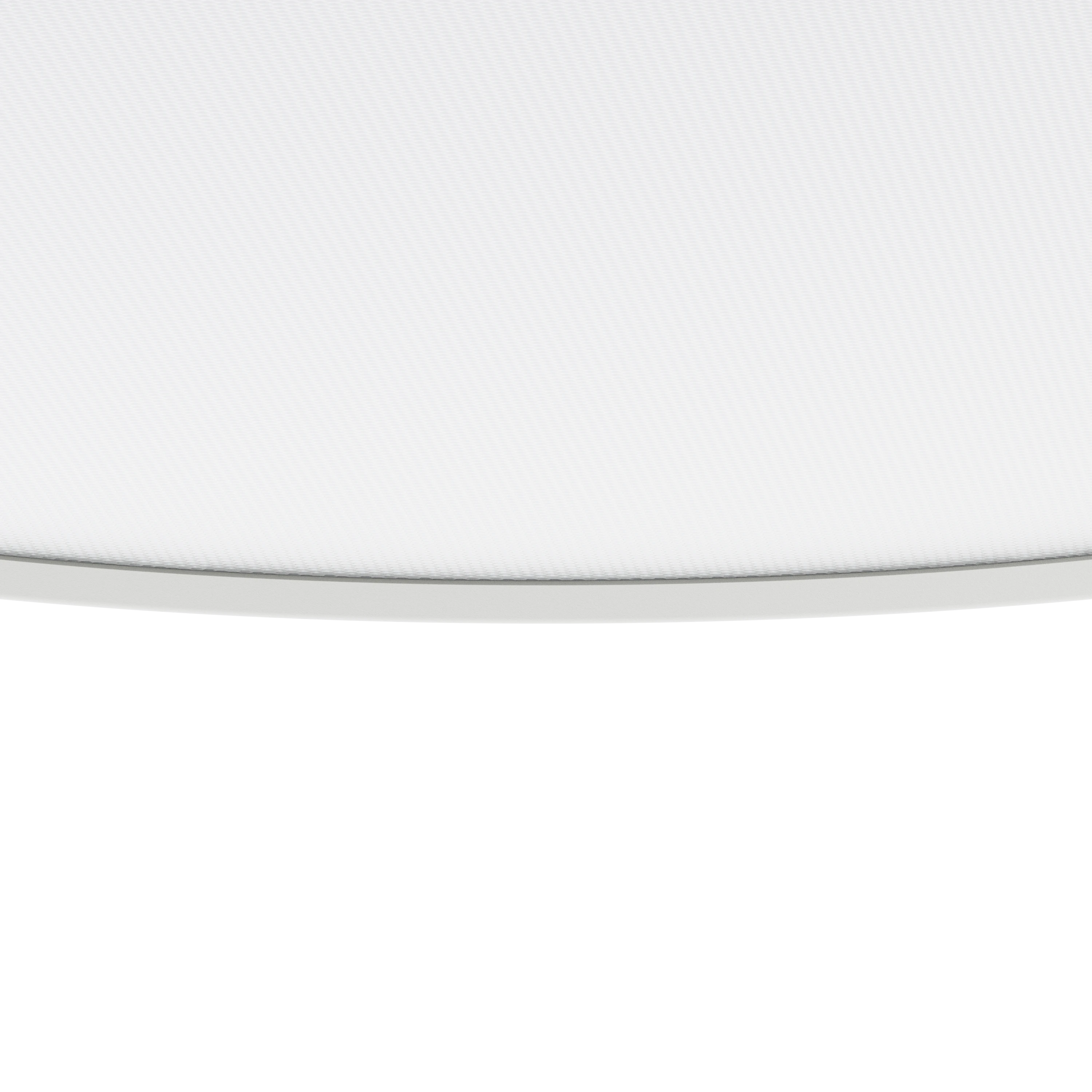

Delta – micro-prism louvre in acrylic (PMMA).
Timeless design & long-term use
A timeless design results in a classic product that is less sensitive to trends. This increases the likelihood of reuse, making the luminaire a sensible choice for construction projects with a long-term sustainability perspective.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
Constant Light Output (CLO)
The luminaire is available with Constant Light Output (CLO), providing the right level of light throughout it’s working life and thereby reducing energy consumption. CLO can save up to 36% energy compared to L70. It is also often the case that fewer luminaires are needed, reducing investment and operating costs as well as climate impact.
e-Sense FlexMicrowave sensor
Wireless Bluetooth mesh control with easy installation and full adaptability for IP rated environments, such as garages and stairwells.
Read moreDALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Organic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read more
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Diameter, mm | Dimensions, mm | Louvre | Light control | CLO time, h | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 56130-402 | 17 | 2321 | 3000 | White | 500 | 65 | Opal | DALI/Phase-pulse | 50000 |
|
|
| 56130-533 | 18 | 2256 | 3000 | White | 500 | 52 | Opal | Organic Response | 50000 |
|
|
| 56130-569 | 18 | 2321 | 3000 | White | 500 | 65 | Opal | e-Sense Flex | 50000 |
|
|
| 56132-402 | 27.7 | 3907 | 3000 | White | 650 | 65 | Opal | DALI/Phase-pulse | 50000 |
|
|
| 56132-533 | 28 | 3798 | 3000 | White | 650 | 52 | Opal | Organic Response | 50000 |
|
|
| 56133-402 | 17 | 2388 | 4000 | White | 500 | 65 | Opal | DALI/Phase-pulse | 50000 |
|
|
| 56133-533 | 18 | 2321 | 4000 | White | 500 | 52 | Opal | Organic Response | 50000 |
|
|
| 56133-569 | 18 | 2388 | 4000 | White | 500 | 65 | Opal | e-Sense Flex | 50000 |
|
|
| 56135-402 | 27.7 | 4020 | 4000 | White | 650 | 65 | Opal | DALI/Phase-pulse | 50000 |
|
|
| 56135-533 | 28 | 3907 | 4000 | White | 650 | 52 | Opal | Organic Response | 50000 |
|
|
| 56136-402 | 17 | 2170 | 3000 | White | 500 | 65 | Delta | DALI/Phase-pulse | 50000 |
|
|
| 56136-533 | 18 | 2028 | 3000 | White | 500 | 52 | Delta | Organic Response | 50000 |
|
|
| 56136-569 | 18 | 2170 | 3000 | White | 500 | 65 | Delta | e-Sense Flex | 50000 |
|
|
| 56138-402 | 30.1 | 3957 | 3000 | White | 650 | 65 | Delta | DALI/Phase-pulse | 50000 |
|
|
| 56138-533 | 31 | 3794 | 3000 | White | 650 | 52 | Delta | Organic Response | 50000 |
|
|
| 56139-402 | 17 | 2233 | 4000 | White | 500 | 65 | Delta | DALI/Phase-pulse | 50000 |
|
|
| 56139-533 | 18 | 2087 | 4000 | White | 500 | 52 | Delta | Organic Response | 50000 |
|
|
| 56139-569 | 18 | 2233 | 4000 | White | 500 | 65 | Delta | e-Sense Flex | 50000 |
|
|
| 56141-402 | 30.1 | 4071 | 4000 | White | 650 | 65 | Delta | DALI/Phase-pulse | 50000 |
|
|
| 56141-533 | 31 | 3904 | 4000 | White | 650 | 52 | Delta | Organic Response | 50000 |
|
|

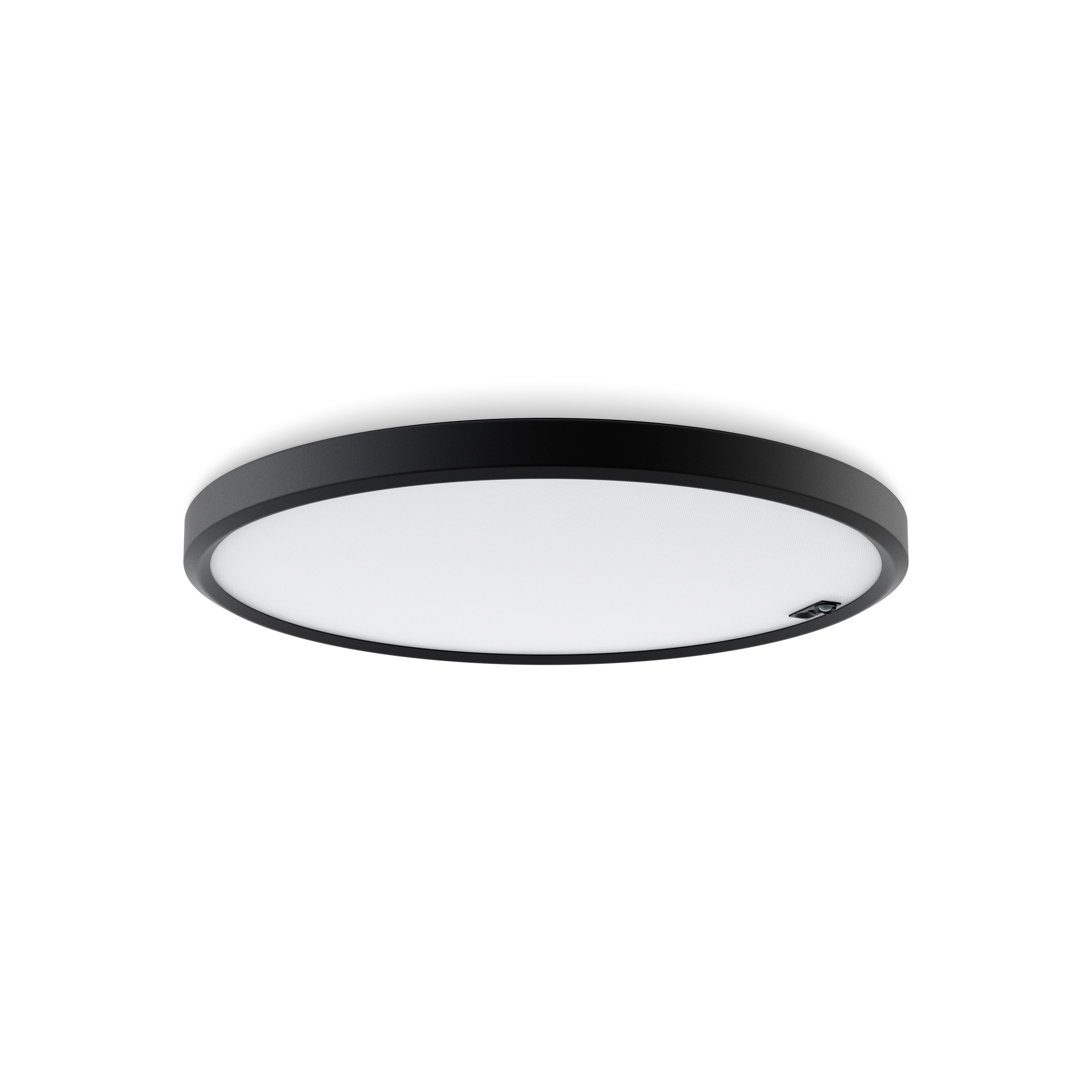

| 57170-402 | 17 | 2116 | 3000 | Black | 500 | 52 | Delta | DALI/Phase-pulse | 50000 |
|
|
| 57170-533 | 18 | 1978 | 3000 | Black | 500 | 52 | Delta | Organic Response | 50000 |
|
|
| 57171-402 | 30 | 3865 | 3000 | Black | 650 | 52 | Delta | DALI/Phase-pulse | 50000 |
|
|
| 57171-533 | 31 | 3706 | 3000 | Black | 650 | 52 | Delta | Organic Response | 50000 |
|
|
| 57172-402 | 17 | 2177 | 4000 | Black | 500 | 52 | Delta | DALI/Phase-pulse | 50000 |
|
|
| 57172-533 | 18 | 2036 | 4000 | Black | 500 | 52 | Delta | Organic Response | 50000 |
|
|
| 57173-402 | 30 | 3977 | 4000 | Black | 650 | 52 | Delta | DALI/Phase-pulse | 50000 |
|
|
| 57173-533 | 31 | 3813 | 4000 | Black | 650 | 52 | Delta | Organic Response | 50000 |
|
