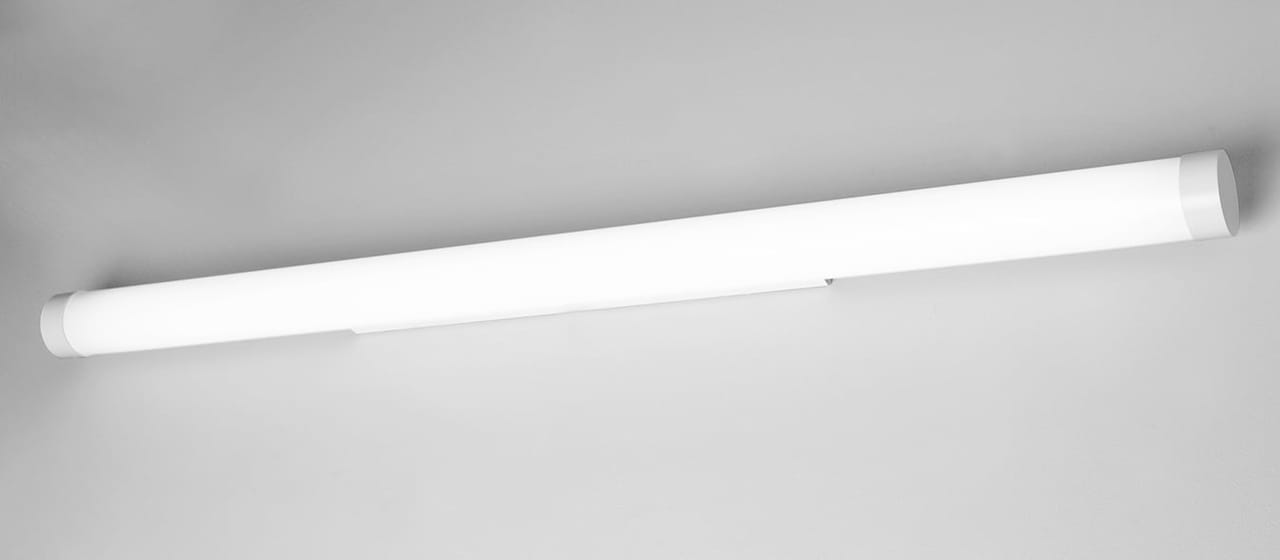

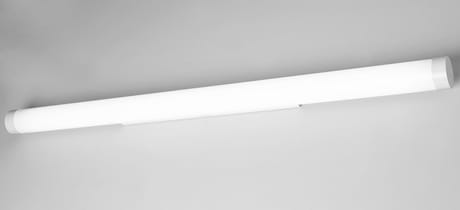

17131-402 Telescope Aqua

Light distribution

Round beam

Louvre

Opal

Colour

White

Lumen output

1253

lm/W

131

CCT, K

3000

CRI

80

SDCM

3

Melanopic DER

0.450

Lumen maintenance 50 000 h

L91

Lumen maintenance 75 000 h

L86

Lumen maintenance 100 000 h

L82

Lumen maintenance L80 B50, h

100000

Lumen maintenance L90 B50, h

55000

LED driver, h/max failure %

100000/10

Energy class, LED module

C

Light control

DALI/Phase-pulse

Driver brand

Osram

Power on last level

Yes

Switch control, max no.

20

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

44

IK rating

03

System Wattage

10

Stand by W

0.15

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

80

MCB B16A

130

MCB C10A

133

MCB C16A

221

THD, %

13

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.98

Length, mm

902

Width, mm

72

Height, mm

86

Weight, kg

1.300
