Pleiad G4 125

Efficient downlight with excellent technical lighting properties. Choose between several luminous fluxes, reflector options and distribution angles.

Installation

Recessed mounting in unventilated or ventilated suspended ceilings. Separate driver and installation clip for easy and tool-free installation supplied as standard. An assembly plate must be used when mounting on soft tile ceilings, see accessories. For detailed information, see the installation instructions.

Connection

Connection in separate driver box. Snap-in terminal block 3x1.5 mmm² (x2), onward connection possible. 5x1.5 mm² (x2) when dimming. Can also be supplied with chassis mounted snap-in connector in the ballast where a T-splitter or mains cable and plug are possible. The luminaire body and driver are interconnected with a snap-in connector.

Design

Luminaire body in cast aluminium. Visible reflector ring in white aluminium (RAL 9003).

Reflector

Reflector of matt metallised aluminium, white (RAL 9003) or black (RAL 9005) finish. Reflector ring in white aluminium (RAL 9003). Lens of clear acrylic.

Miscellaneous

The luminaire is supplied with dust protection over the light opening. IP 44 under a suspended ceiling, IP 20 above a suspended ceiling. Luminaire body Class III. The supplied driver must be connected to the protective earth. For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation. CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life."

Media

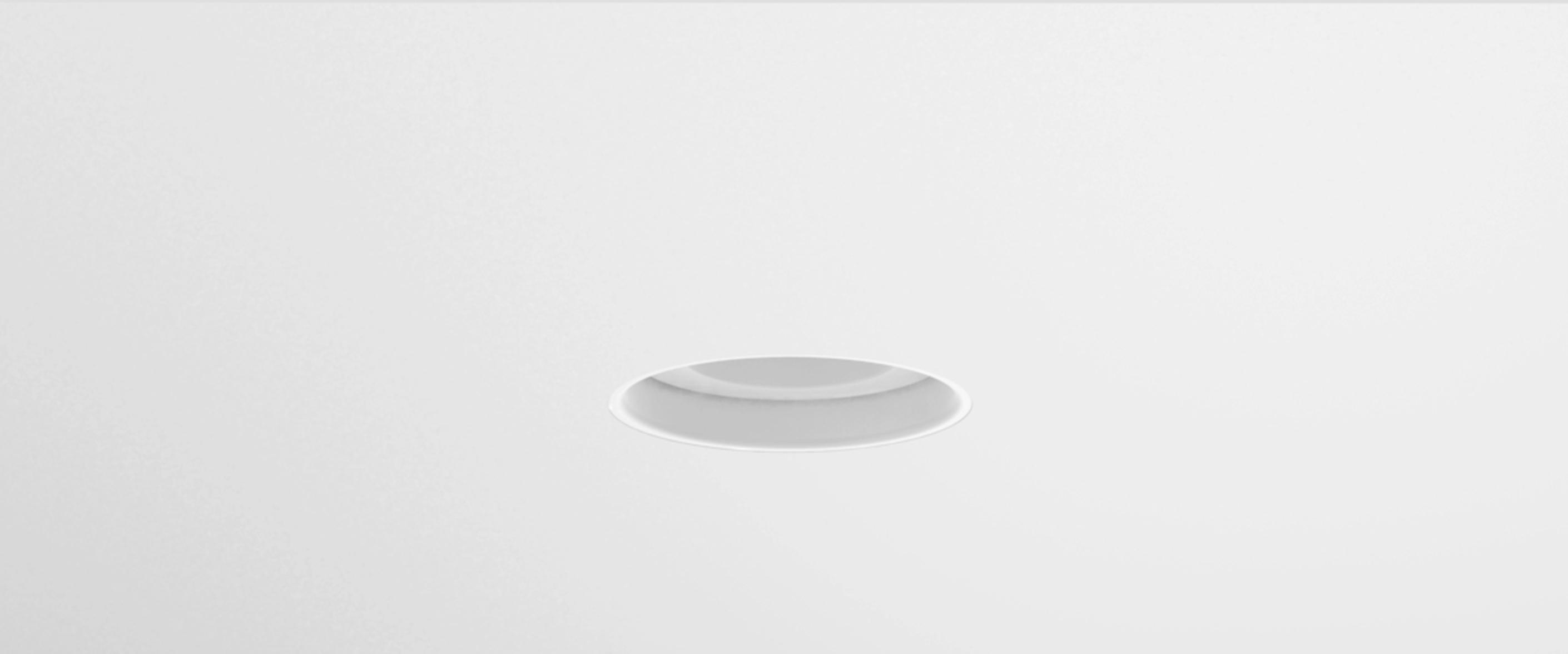

Pleiad G4

Pleiad G4 is the latest evolution of Fagerhult's classic downlight series. Even more efficient. Even better visual comfort. Even quicker to install. Pleiad G4 simplifies and streamlines advanced lighting planning for entire...

More about the family Pleiad G4

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K CRI Diameter, mm Reflector Light distribution Light control Connection CLO function on
Art.no. Effect, W Lumen output CCT, K CRI Diameter, mm Reflector Light distribution Light control Connection CLO function on
73000 10 1060 3000 80 143 Black Medium Beam
73000-111 10 1060 3000 80 143 Black Medium Beam Wieland GST18i3 3-way male
73000-3 10 1060 3000 80 143 Black Medium Beam Connection cable with plug, L=2.5 m
73000-340 10 1060 3000 80 143 Black Medium Beam Wago Winsta 3-way male
73000-402 9 954 3000 80 143 Black Medium Beam DALI/Phase-pulse Yes
73000-519 10 1060 3000 80 143 Black Medium Beam Ensto 3-way male
73000-520 9 954 3000 80 143 Black Medium Beam DALI/Phase-pulse Ensto 5-way male Yes
73000-528 9 954 3000 80 143 Black Medium Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73000-529 9 954 3000 80 143 Black Medium Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73001 10 924 3000 90 143 Black Medium Beam
73001-111 10 924 3000 90 143 Black Medium Beam Wieland GST18i3 3-way male
73001-3 10 924 3000 90 143 Black Medium Beam Connection cable with plug, L=2.5 m
73001-340 10 924 3000 90 143 Black Medium Beam Wago Winsta 3-way male
73001-402 9 831 3000 90 143 Black Medium Beam DALI/Phase-pulse Yes
73001-519 10 924 3000 90 143 Black Medium Beam Ensto 3-way male
73001-520 9 831 3000 90 143 Black Medium Beam DALI/Phase-pulse Ensto 5-way male Yes
73001-528 9 831 3000 90 143 Black Medium Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73001-529 9 831 3000 90 143 Black Medium Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73002 10 1140 4000 80 143 Black Medium Beam
73002-111 10 1140 4000 80 143 Black Medium Beam Wieland GST18i3 3-way male
73002-3 10 1140 4000 80 143 Black Medium Beam Connection cable with plug, L=2.5 m
73002-340 10 1140 4000 80 143 Black Medium Beam Wago Winsta 3-way male
73002-402 9 1026 4000 80 143 Black Medium Beam DALI/Phase-pulse Yes
73002-519 10 1140 4000 80 143 Black Medium Beam Ensto 3-way male
73002-520 9 1026 4000 80 143 Black Medium Beam DALI/Phase-pulse Ensto 5-way male Yes
73002-528 9 1026 4000 80 143 Black Medium Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73002-529 9 1026 4000 80 143 Black Medium Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73003 10 992 4000 90 143 Black Medium Beam
73003-111 10 992 4000 90 143 Black Medium Beam Wieland GST18i3 3-way male
73003-3 10 992 4000 90 143 Black Medium Beam Connection cable with plug, L=2.5 m
73003-340 10 992 4000 90 143 Black Medium Beam Wago Winsta 3-way male
73003-402 9 893 4000 90 143 Black Medium Beam DALI/Phase-pulse Yes
73003-519 10 992 4000 90 143 Black Medium Beam Ensto 3-way male
73003-520 9 893 4000 90 143 Black Medium Beam DALI/Phase-pulse Ensto 5-way male Yes
73003-528 9 893 4000 90 143 Black Medium Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73003-529 9 893 4000 90 143 Black Medium Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73004 10 1050 3000 80 143 Black Wide Beam
73004-111 10 1050 3000 80 143 Black Wide Beam Wieland GST18i3 3-way male
73004-3 10 1050 3000 80 143 Black Wide Beam Connection cable with plug, L=2.5 m
73004-340 10 1050 3000 80 143 Black Wide Beam Wago Winsta 3-way male
73004-402 9 945 3000 80 143 Black Wide Beam DALI/Phase-pulse Yes
73004-519 10 1050 3000 80 143 Black Wide Beam Ensto 3-way male
73004-520 9 945 3000 80 143 Black Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73004-528 9 945 3000 80 143 Black Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73004-529 9 945 3000 80 143 Black Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73005 10 915 3000 90 143 Black Wide Beam
73005-111 10 915 3000 90 143 Black Wide Beam Wieland GST18i3 3-way male
73005-3 10 915 3000 90 143 Black Wide Beam Connection cable with plug, L=2.5 m
73005-340 10 915 3000 90 143 Black Wide Beam Wago Winsta 3-way male
73005-402 9 823 3000 90 143 Black Wide Beam DALI/Phase-pulse Yes
73005-519 10 915 3000 90 143 Black Wide Beam Ensto 3-way male
73005-520 9 823 3000 90 143 Black Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73005-528 9 823 3000 90 143 Black Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73005-529 9 823 3000 90 143 Black Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73006 10 1130 4000 80 143 Black Wide Beam
73006-111 10 1130 4000 80 143 Black Wide Beam Wieland GST18i3 3-way male
73006-3 10 1130 4000 80 143 Black Wide Beam Connection cable with plug, L=2.5 m
73006-340 10 1130 4000 80 143 Black Wide Beam Wago Winsta 3-way male
73006-402 9 1017 4000 80 143 Black Wide Beam DALI/Phase-pulse Yes
73006-519 10 1130 4000 80 143 Black Wide Beam Ensto 3-way male
73006-520 9 1017 4000 80 143 Black Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73006-528 9 1017 4000 80 143 Black Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73006-529 9 1017 4000 80 143 Black Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73007 10 983 4000 90 143 Black Wide Beam
73007-111 10 983 4000 90 143 Black Wide Beam Wieland GST18i3 3-way male
73007-3 10 983 4000 90 143 Black Wide Beam Connection cable with plug, L=2.5 m
73007-340 10 983 4000 90 143 Black Wide Beam Wago Winsta 3-way male
73007-402 9 884 4000 90 143 Black Wide Beam DALI/Phase-pulse Yes
73007-519 10 983 4000 90 143 Black Wide Beam Ensto 3-way male
73007-520 9 884 4000 90 143 Black Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73007-528 9 884 4000 90 143 Black Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73007-529 9 884 4000 90 143 Black Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73008 10 1201 3000 80 143 Matt Medium Beam
73008-111 10 1201 3000 80 143 Matt Medium Beam Wieland GST18i3 3-way male
73008-3 10 1201 3000 80 143 Matt Medium Beam Connection cable with plug, L=2.5 m
73008-340 10 1201 3000 80 143 Matt Medium Beam Wago Winsta 3-way male
73008-402 9 1081 3000 80 143 Matt Medium Beam DALI/Phase-pulse Yes
73008-519 10 1201 3000 80 143 Matt Medium Beam Ensto 3-way male
73008-520 9 1081 3000 80 143 Matt Medium Beam DALI/Phase-pulse Ensto 5-way male Yes
73008-528 9 1081 3000 80 143 Matt Medium Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73008-529 9 1081 3000 80 143 Matt Medium Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73009 10 1046 3000 90 143 Matt Medium Beam
73009-111 10 1046 3000 90 143 Matt Medium Beam Wieland GST18i3 3-way male
73009-3 10 1046 3000 90 143 Matt Medium Beam Connection cable with plug, L=2.5 m
73009-340 10 1046 3000 90 143 Matt Medium Beam Wago Winsta 3-way male
73009-402 9 942 3000 90 143 Matt Medium Beam DALI/Phase-pulse Yes
73009-519 10 1046 3000 90 143 Matt Medium Beam Ensto 3-way male
73009-520 9 942 3000 90 143 Matt Medium Beam DALI/Phase-pulse Ensto 5-way male Yes
73009-528 9 942 3000 90 143 Matt Medium Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73009-529 9 942 3000 90 143 Matt Medium Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73010 10 1292 4000 80 143 Matt Medium Beam
73010-111 10 1292 4000 80 143 Matt Medium Beam Wieland GST18i3 3-way male
73010-3 10 1292 4000 80 143 Matt Medium Beam Connection cable with plug, L=2.5 m
73010-340 10 1292 4000 80 143 Matt Medium Beam Wago Winsta 3-way male
73010-402 9 1162 4000 80 143 Matt Medium Beam DALI/Phase-pulse Yes
73010-519 10 1292 4000 80 143 Matt Medium Beam Ensto 3-way male
73010-520 9 1162 4000 80 143 Matt Medium Beam DALI/Phase-pulse Ensto 5-way male Yes
73010-528 9 1162 4000 80 143 Matt Medium Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73010-529 9 1162 4000 80 143 Matt Medium Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73011 10 1124 4000 90 143 Matt Medium Beam
73011-111 10 1124 4000 90 143 Matt Medium Beam Wieland GST18i3 3-way male
73011-3 10 1124 4000 90 143 Matt Medium Beam Connection cable with plug, L=2.5 m
73011-340 10 1124 4000 90 143 Matt Medium Beam Wago Winsta 3-way male
73011-402 9 1011 4000 90 143 Matt Medium Beam DALI/Phase-pulse Yes
73011-519 10 1124 4000 90 143 Matt Medium Beam Ensto 3-way male
73011-520 9 1011 4000 90 143 Matt Medium Beam DALI/Phase-pulse Ensto 5-way male Yes
73011-528 9 1011 4000 90 143 Matt Medium Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73011-529 9 1011 4000 90 143 Matt Medium Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73012 10 1200 3000 80 143 Matt Wide Beam
73012-111 10 1200 3000 80 143 Matt Wide Beam Wieland GST18i3 3-way male
73012-3 10 1200 3000 80 143 Matt Wide Beam Connection cable with plug, L=2.5 m
73012-340 10 1200 3000 80 143 Matt Wide Beam Wago Winsta 3-way male
73012-402 9 1080 3000 80 143 Matt Wide Beam DALI/Phase-pulse Yes
73012-519 10 1200 3000 80 143 Matt Wide Beam Ensto 3-way male
73012-520 9 1080 3000 80 143 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73012-528 9 1080 3000 80 143 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73012-529 9 1080 3000 80 143 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73013 10 1045 3000 90 143 Matt Wide Beam
73013-111 10 1045 3000 90 143 Matt Wide Beam Wieland GST18i3 3-way male
73013-3 10 1045 3000 90 143 Matt Wide Beam Connection cable with plug, L=2.5 m
73013-340 10 1045 3000 90 143 Matt Wide Beam Wago Winsta 3-way male
73013-402 9 940 3000 90 143 Matt Wide Beam DALI/Phase-pulse Yes
73013-519 10 1045 3000 90 143 Matt Wide Beam Ensto 3-way male
73013-520 9 940 3000 90 143 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73013-528 9 940 3000 90 143 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73013-529 9 940 3000 90 143 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73014 10 1290 4000 80 143 Matt Wide Beam
73014-111 10 1290 4000 80 143 Matt Wide Beam Wieland GST18i3 3-way male
73014-3 10 1290 4000 80 143 Matt Wide Beam Connection cable with plug, L=2.5 m
73014-340 10 1290 4000 80 143 Matt Wide Beam Wago Winsta 3-way male
73014-402 9 1161 4000 80 143 Matt Wide Beam DALI/Phase-pulse Yes
73014-519 10 1290 4000 80 143 Matt Wide Beam Ensto 3-way male
73014-520 9 1161 4000 80 143 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73014-528 9 1161 4000 80 143 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73014-529 9 1161 4000 80 143 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73015 10 1122 4000 90 143 Matt Wide Beam
73015-111 10 1122 4000 90 143 Matt Wide Beam Wieland GST18i3 3-way male
73015-3 10 1122 4000 90 143 Matt Wide Beam Connection cable with plug, L=2.5 m
73015-340 10 1122 4000 90 143 Matt Wide Beam Wago Winsta 3-way male
73015-402 9 1010 4000 90 143 Matt Wide Beam DALI/Phase-pulse Yes
73015-519 10 1122 4000 90 143 Matt Wide Beam Ensto 3-way male
73015-520 9 1010 4000 90 143 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73015-528 9 1010 4000 90 143 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73015-529 9 1010 4000 90 143 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73016 10 1177 3000 80 143 White Medium Beam
73016-111 10 1177 3000 80 143 White Medium Beam Wieland GST18i3 3-way male
73016-3 10 1177 3000 80 143 White Medium Beam Connection cable with plug, L=2.5 m
73016-340 10 1177 3000 80 143 White Medium Beam Wago Winsta 3-way male
73016-402 9 1059 3000 80 143 White Medium Beam DALI/Phase-pulse Yes
73016-519 10 1177 3000 80 143 White Medium Beam Ensto 3-way male
73016-520 9 1059 3000 80 143 White Medium Beam DALI/Phase-pulse Ensto 5-way male Yes
73016-528 9 1059 3000 80 143 White Medium Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73016-529 9 1059 3000 80 143 White Medium Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73017 10 1025 3000 90 143 White Medium Beam
73017-111 10 1025 3000 90 143 White Medium Beam Wieland GST18i3 3-way male
73017-3 10 1025 3000 90 143 White Medium Beam Connection cable with plug, L=2.5 m
73017-340 10 1025 3000 90 143 White Medium Beam Wago Winsta 3-way male
73017-402 9 922 3000 90 143 White Medium Beam DALI/Phase-pulse Yes
73017-519 10 1025 3000 90 143 White Medium Beam Ensto 3-way male
73017-520 9 922 3000 90 143 White Medium Beam DALI/Phase-pulse Ensto 5-way male Yes
73017-528 9 922 3000 90 143 White Medium Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73017-529 9 922 3000 90 143 White Medium Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73018 10 1265 4000 80 143 White Medium Beam
73018-111 10 1265 4000 80 143 White Medium Beam Wieland GST18i3 3-way male
73018-3 10 1265 4000 80 143 White Medium Beam Connection cable with plug, L=2.5 m
73018-340 10 1265 4000 80 143 White Medium Beam Wago Winsta 3-way male
73018-402 9 1139 4000 80 143 White Medium Beam DALI/Phase-pulse Yes
73018-519 10 1265 4000 80 143 White Medium Beam Ensto 3-way male
73018-520 9 1139 4000 80 143 White Medium Beam DALI/Phase-pulse Ensto 5-way male Yes
73018-528 9 1139 4000 80 143 White Medium Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73018-529 9 1139 4000 80 143 White Medium Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73019 10 1101 4000 90 143 White Medium Beam
73019-111 10 1101 4000 90 143 White Medium Beam Wieland GST18i3 3-way male
73019-3 10 1101 4000 90 143 White Medium Beam Connection cable with plug, L=2.5 m
73019-340 10 1101 4000 90 143 White Medium Beam Wago Winsta 3-way male
73019-402 9 991 4000 90 143 White Medium Beam DALI/Phase-pulse Yes
73019-519 10 1101 4000 90 143 White Medium Beam Ensto 3-way male
73019-520 9 991 4000 90 143 White Medium Beam DALI/Phase-pulse Ensto 5-way male Yes
73019-528 9 991 4000 90 143 White Medium Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73019-529 9 991 4000 90 143 White Medium Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73020 10 1174 3000 80 143 White Wide Beam
73020-111 10 1174 3000 80 143 White Wide Beam Wieland GST18i3 3-way male
73020-3 10 1174 3000 80 143 White Wide Beam Connection cable with plug, L=2.5 m
73020-340 10 1174 3000 80 143 White Wide Beam Wago Winsta 3-way male
73020-402 9 1056 3000 80 143 White Wide Beam DALI/Phase-pulse Yes
73020-519 10 1174 3000 80 143 White Wide Beam Ensto 3-way male
73020-520 9 1056 3000 80 143 White Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73020-528 9 1056 3000 80 143 White Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73020-529 9 1056 3000 80 143 White Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73021 10 1022 3000 90 143 White Wide Beam
73021-111 10 1022 3000 90 143 White Wide Beam Wieland GST18i3 3-way male
73021-3 10 1022 3000 90 143 White Wide Beam Connection cable with plug, L=2.5 m
73021-340 10 1022 3000 90 143 White Wide Beam Wago Winsta 3-way male
73021-402 9 920 3000 90 143 White Wide Beam DALI/Phase-pulse Yes
73021-519 10 1022 3000 90 143 White Wide Beam Ensto 3-way male
73021-520 9 920 3000 90 143 White Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73021-528 9 920 3000 90 143 White Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73021-529 9 920 3000 90 143 White Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73022 10 1262 4000 80 143 White Wide Beam
73022-111 10 1262 4000 80 143 White Wide Beam Wieland GST18i3 3-way male
73022-3 10 1262 4000 80 143 White Wide Beam Connection cable with plug, L=2.5 m
73022-340 10 1262 4000 80 143 White Wide Beam Wago Winsta 3-way male
73022-402 9 1136 4000 80 143 White Wide Beam DALI/Phase-pulse Yes
73022-519 10 1262 4000 80 143 White Wide Beam Ensto 3-way male
73022-520 9 1136 4000 80 143 White Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73022-528 9 1136 4000 80 143 White Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73022-529 9 1136 4000 80 143 White Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73023 10 1098 4000 90 143 White Wide Beam
73023-111 10 1098 4000 90 143 White Wide Beam Wieland GST18i3 3-way male
73023-3 10 1098 4000 90 143 White Wide Beam Connection cable with plug, L=2.5 m
73023-340 10 1098 4000 90 143 White Wide Beam Wago Winsta 3-way male
73023-402 9 988 4000 90 143 White Wide Beam DALI/Phase-pulse Yes
73023-519 10 1098 4000 90 143 White Wide Beam Ensto 3-way male
73023-520 9 988 4000 90 143 White Wide Beam DALI/Phase-pulse Ensto 5-way male Yes
73023-528 9 988 4000 90 143 White Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
73023-529 9 988 4000 90 143 White Wide Beam DALI/Phase-pulse Wago Winsta 5-way male Yes
73250 21 2061 3000 80 143 Black Medium Beam
73250-111 21 2061 3000 80 143 Black Medium Beam Wieland GST18i3 3-way male
73250-3 21 2061 3000 80 143 Black Medium Beam Connection cable with plug, L=2.5 m
73250-340 21 2061 3000 80 143 Black Medium Beam Wago Winsta 3-way male
73250-402 18 1855 3000 80 143 Black Medium Beam DALI/Phase-pulse Yes
73250-519 21 2061 3000 80 143 Black Medium Beam Ensto 3-way male
73250-520 18 1855 3000 80 143 Black Medium Beam DALI/Phase-pulse Ensto 5-way male Yes
73250-528 18 1855 3000 80 143 Black Medium Beam DALI/Phase-pulse Wieland GST18i5 5-way male Yes
