Dwide recessed

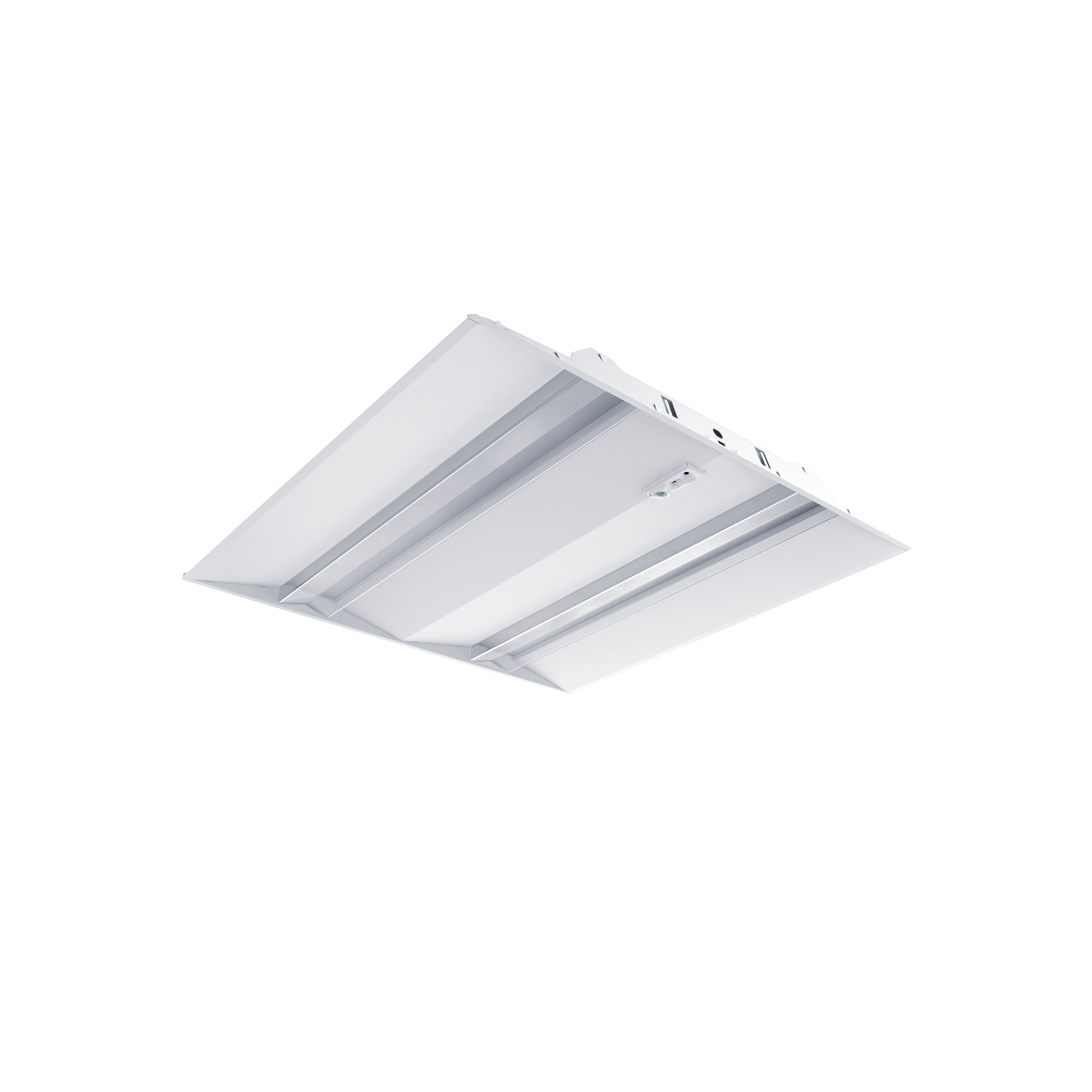

Recessed workplace luminaire in three sizes. The delta louvre provides efficiency and optimal light comfort, light divider in acrylic distributes light evenly in the reflector.

Installation

Recessed mounting in suspended ceilings. Unventilated or ventilated ceilings.
VTB – for suspended ceilings with visible T-bars 15 or 24 mm.

HB – recessed frame allows 600x600 to be installed in suspended ceilings with concealed T-bars and symmetrical ceiling tiles (thickness 20-22 mm).

Connection

Connection in separate ballast box. Snap-in terminal block 3x1,5 mm² (x2), through-wiring possible. 5x1,5 mm² (x2) when dimming. Can also be supplied with mains cable and earthed plug or chassis mounted snap-in connector. The luminaire housing and driver are connected via a Quick Connection System.

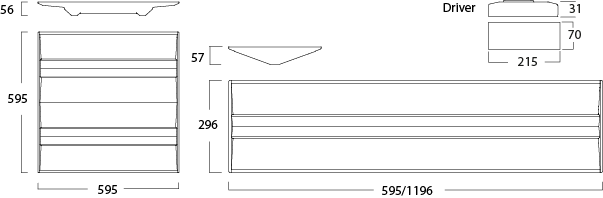

Design

Luminaire body of white enamelled sheet steel (RAL 9016).

Louvre

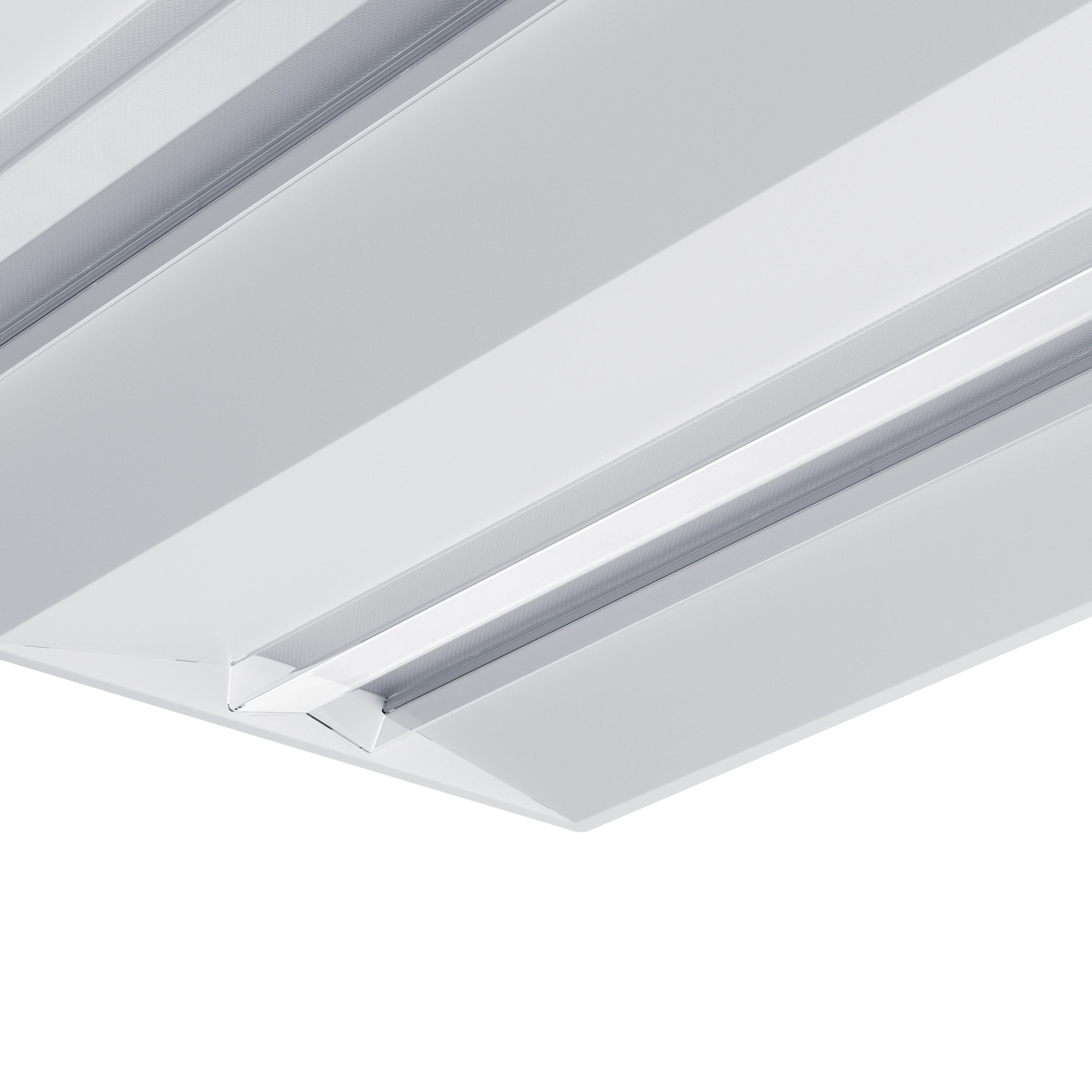

Delta – microprism louvre in acrylic (PMMA) with a thin opal diffuser in acrylic (PMMA) on the inside (PMMA). Light divider in acrylic (PMMA).

Dimming

Organic Response – PIR sensor with presence and daylight control. All luminaires act as master/slave with IR communication.

Miscellaneous

Class III applies to the luminaire body only. The supplied driver should be connected to protective earth. e-Sense Organic G3 is available in multiple variants on request.
Ra (CRI) 90 on request.

Media

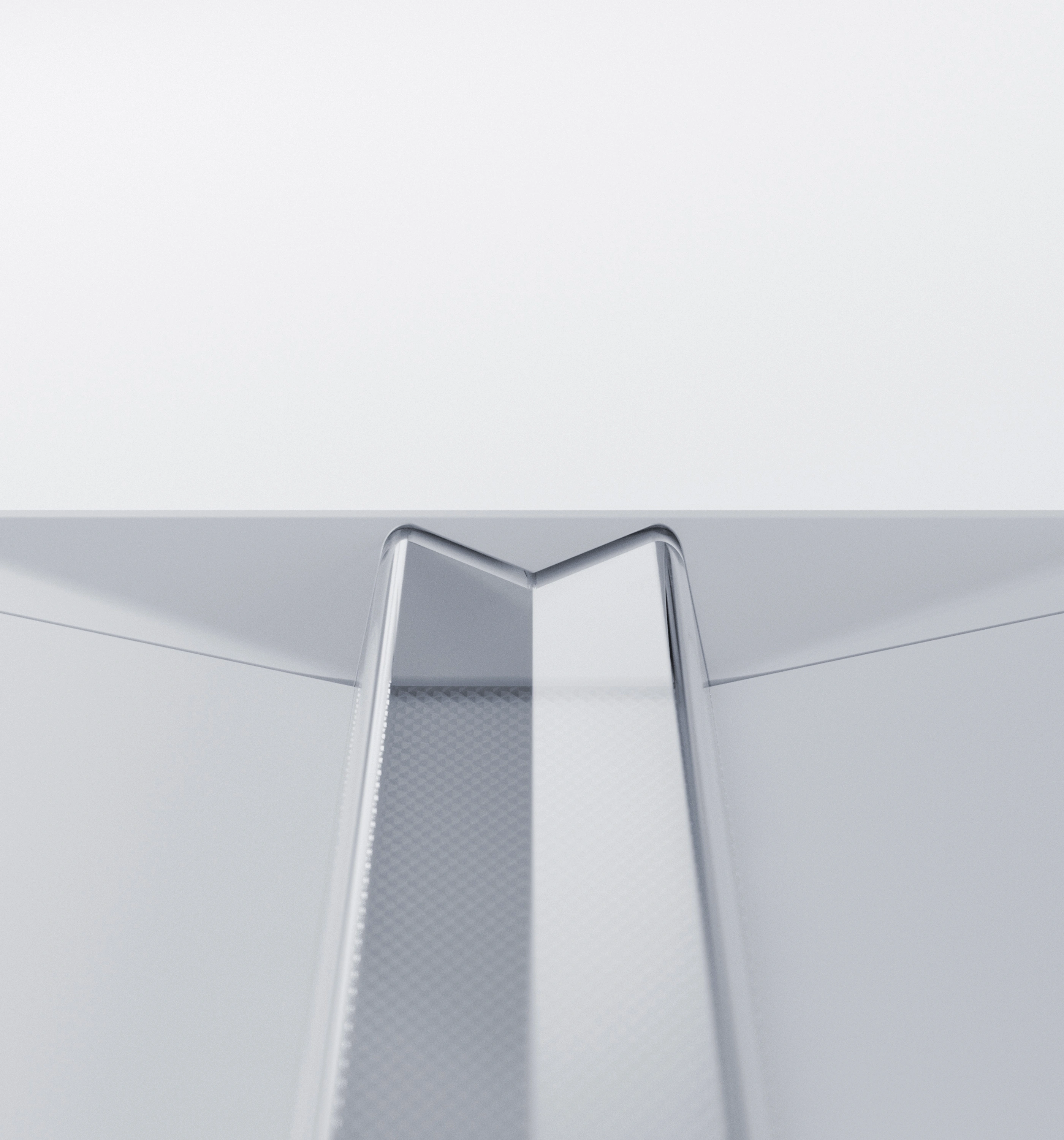

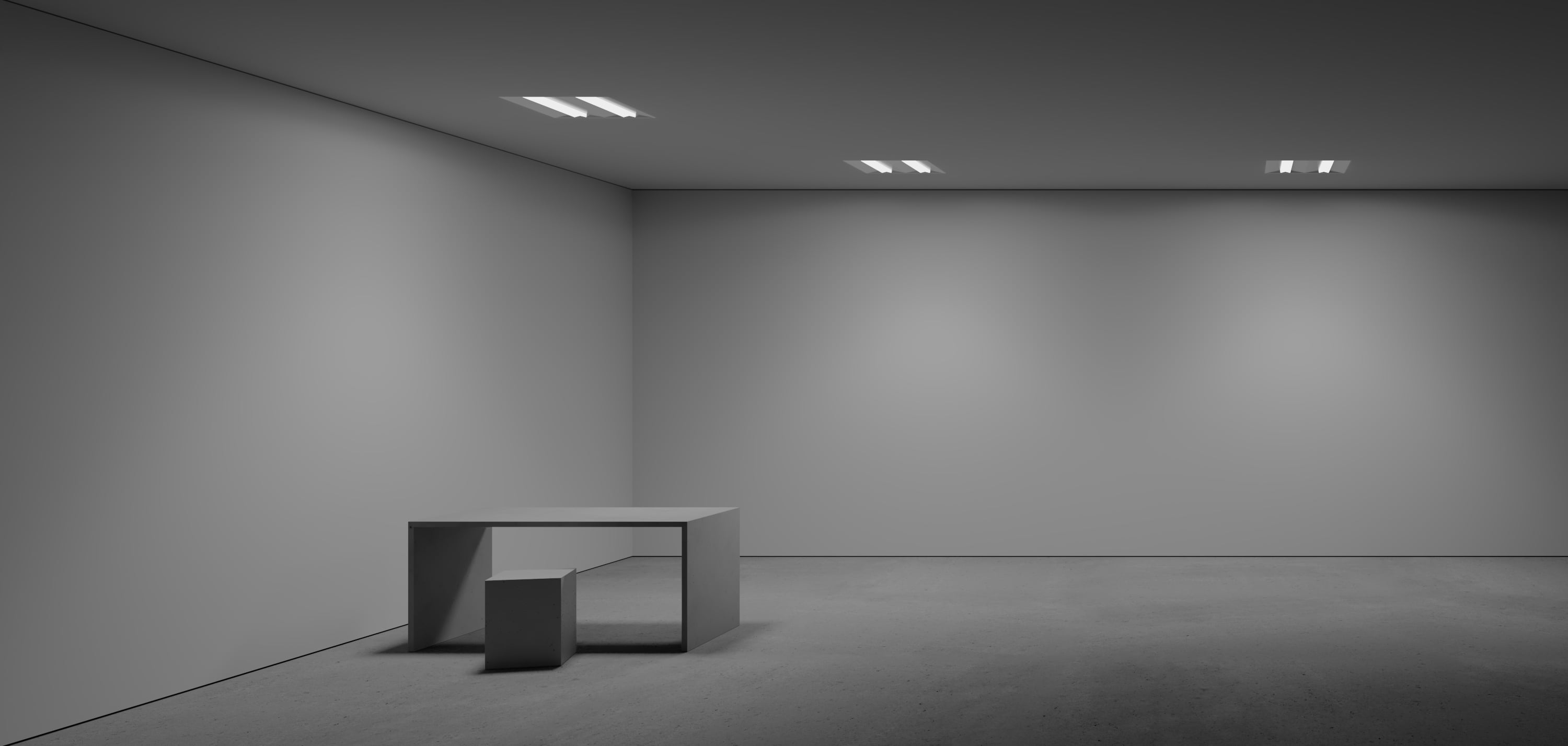

The delta louvre provides efficiency and optimal light comfort, light divider in acrylic distributes and spreads the light evenly in the reflector.

The delta louvre provides efficiency and optimal light comfort, light divider in acrylic distributes and spreads the light evenly in the reflector.

Organic Response – How it works

Dwide

Dwide is a complete, versatile product family that meets all lighting requirements – whether for office, school or hospital projects. Recessed, ceiling-mounted and pendant luminaires with different light distributions are...

More about the family Dwide

Document

Customise with Fagerhult Configure

Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.

  • Adapt and optimise the luminaire
  • Download unique data sheet and light data files
  • To order, contact your sales representative
Start configuration

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Wieland T-connector Wieland 5-way T-connector 91026
Wieland T-connector Wieland 3-way T-connector 91025
Frame for surface mounting Frame for surface mounting (600x600 VTB). Fits Multilume Flat (only standard and DALI), Dwide as well as Multilume Slim, Multilume Slim Hygiene & Multilume Re:Think with Organic Response. 41026
WAGO connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 91244
WAGO connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 91243
Wieland connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92793
WAGO T-connector WAGO T-Connector, 3-way, white 91067
WAGO T-connector WAGO T-connector, 5-way, 2 locking levers, blue 88228
Wieland connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92799
Recessed frame Recessed frame to Dwide 600x600 VTB body for installation in suspended ceilings with concealed T-bars and symmetrical ceiling tiles (thickness 20-22 mm). 41050
Frame for surface mounting Frame for surface mounting (300x1200 VTB). Fits Multilume Flat, Dwide, (only standard and DALI), as well as Multilume Slim with DALI and Organic Response. 41027
Organic Response I/O box I/O box with potential-free 16A relay for controlling external units. 86413
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, recessed, 1 m cable 86407
Organic Response IoT Gateway Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. 86296
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, surface mounted, 1 m cable 86408
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, suspended pipe conduit installation, 1 m cable. pipe not included. 86409
External Organic Response sensor incl. DALI PSU Extern sensor incl. DALI PSU, suspended pipe conduit installation, 3.2 m cable. Pipe not included. 86412
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, surface mounted, 3.2 m cable 86411
External Organic Response sensor incl. DALI PSU External sensor incl. DALI PSU, recessed, 3.2 m cable 86410
Organic Response EnOcean Wireless Push button panel EnOcean 2 function push button panel, white 86416
Organic Response EnOcean Wireless Push button panel EnOcean 4 function push button panel, white 86417
Organic Response EnOcean Wireless Push button panel EnOcean 4 function push button panel, labeled, white 86437
Organic Response EnOcean Wireless Push button panel EnOcean 2 function push button panel, labeled, white 86436
Cover plate for flat upper surface Cover plate for flat upper surface, white (RAL 9016). 41039
Frame for surface mounting Dwide Multilume Re:Think & Multilume Slim, Surface mounted frame, 600x600. 41033
Frame for pendant installation H=60 mm Dwide & Multilume Slim pendant frame 600x600 incl. wires 41034
Organic Response I/O box I/O box with potential-free 8A relay for controlling external units. 86433
Recessed frame solid ceiling Recessed frame for VTB frame 600x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4,5kg 41051
Recessed frame solid ceiling Recessed frame for VTB frame 300x600 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 3kg 41048
Recessed frame solid ceiling Recessed frame for VTB frame 300x1200 in solid ceiling (ceiling thickness 5 – 50 mm) Max. weight 4kg 41049
