AllFive LED

A universal luminaire, developed for industrial use with IP 44 to withstand moisture and mechanical stress. AllFive is just as suitable for garages and culverts as laundry rooms and kitchens.

Installation

Surface mounted, cable wire, wire suspension or on a wall. Installation using the seal supplied with the luminaire provides protection classification IP 44. With wall mounting or installation without seals the luminaire is classified IP 40.

Connection

Connects via 230 V, built-in LED driver. Four Ø 19 mm access holes with blanking grommets on top of the luminaire and one Ø 16 mm knock-out in each end. The centrally positioned snap-in terminal block 5x2.5 mm² provides through-wiring. The luminaire is also available with 5x1.5 mm² through-wiring and snap-in terminal blocks at each end (-34).

Design

Body in white enamelled, corrosion resistant aluzinc (RAL 9016). End-caps of ASA plastic.

Louvre

Clear cover of extruded acrylic plastic with prismatic underside and lined sides. Opal diffuser available as an accessory to place in clear cover, not suitable with additional number -515. Article marked with ”UGR < 19 compliance” has an added technical inside the prismatic diffuser.

Dimming

e-Sense BrightSwitch – PIR sensors with lux threshold. Presence control on/off. Absence dimming high/low available on request.
e-Sense Detect – microwave sensors with lux threshold. Presence control on/off via relay or high/low, alternatively high/low/off via DALI.
e-Sense Move – microwave sensors with lux threshold. Presence control high/low/off. All luminaires have master/slave functionality with RF communications.

Miscellaneous

Luminaire 1200 mm has a switch for high/low flow. Always delivered set at low flow and need to be adjusted for high flow.

Media

Opal diffuser is available as an accessory to supplement the clear cover.

AllFive

AllFive is a universal luminaire which is just as suitable for garages and conduits as laundry rooms and kitchens. The neat and carefully thought-out design hides the fact that this is a luminaire which has been developed for...

More about the family AllFive

Document

Specification

Luminaire with opal diffuser provides approx. 15 % lower efficiency and luminous flux.

Filter

Art.no. Effect, W Lumen output CCT, K Colour Length, mm Louvre Light control Miscellaneous
Art.no. Effect, W Lumen output CCT, K Colour Length, mm Louvre Light control Miscellaneous
33492 21 3000 4000 White 1200 Prismatic UGR < 19 compliance
33493-402 30 4200 4000 White 1200 Prismatic DALI/Phase-pulse UGR < 19 compliance
33494-402 36 4900 4000 White 1200 Prismatic DALI/Phase-pulse UGR < 19 compliance
33495-402 34 4900 4000 White 1500 Prismatic DALI/Phase-pulse UGR < 19 compliance
33497 22 3200 4000 White 1500 Prismatic DALI/Phase-pulse UGR < 19 compliance
33506 30 4487 3000 White 1145 Prismatic
33506-34 30 4487 3000 White 1145 Prismatic Through-wiring 5x1.5 mm²
33506-402 30 4487 3000 White 1145 Prismatic DALI/Phase-pulse
33506-469 31 4487 3000 White 1145 Prismatic e-Sense Detect on/off
33506-495 31 4487 3000 White 1145 Prismatic e-Sense Detect DALI absence
33506-496 31 4487 3000 White 1145 Prismatic e-Sense Move DALI absence
33506-515 30 4487 3000 White 1145 Prismatic e-Sense BrightSwitch on/off
33507 30 4724 4000 White 1145 Prismatic
33507-34 30 4724 4000 White 1145 Prismatic Through-wiring 5x1.5 mm²
33507-402 30 4724 4000 White 1145 Prismatic DALI/Phase-pulse
33507-469 31 4724 4000 White 1145 Prismatic e-Sense Detect on/off
33507-495 31 4724 4000 White 1145 Prismatic e-Sense Detect DALI absence
33507-496 31 4724 4000 White 1145 Prismatic e-Sense Move DALI absence
33507-515 30 4724 4000 White 1145 Prismatic e-Sense BrightSwitch on/off
33508 40 5895 3000 White 1145 Prismatic
33508-34 40 5895 3000 White 1145 Prismatic Through-wiring 5x1.5 mm²
33508-402 40 5895 3000 White 1145 Prismatic DALI/Phase-pulse
33508-469 41 5895 3000 White 1145 Prismatic e-Sense Detect on/off
33508-515 40 5895 3000 White 1145 Prismatic e-Sense BrightSwitch on/off
33509 40 6205 4000 White 1145 Prismatic
33509-34 40 6205 4000 White 1145 Prismatic Through-wiring 5x1.5 mm²
33509-402 40 6205 4000 White 1145 Prismatic DALI/Phase-pulse
33509-469 41 6205 4000 White 1145 Prismatic e-Sense Detect on/off
33509-515 40 6205 4000 White 1145 Prismatic e-Sense BrightSwitch on/off
33511 21 2845 3000 White 610 Prismatic
33511-402 21 2845 3000 White 610 Prismatic DALI/Phase-pulse
33511-469 22 2845 3000 White 610 Prismatic e-Sense Detect on/off
33512 21 2995 4000 White 610 Prismatic
33512-402 21 2995 4000 White 610 Prismatic DALI/Phase-pulse
33512-469 22 2995 4000 White 610 Prismatic e-Sense Detect on/off

Filter

Name Description Art.no.
Name Description Art.no.

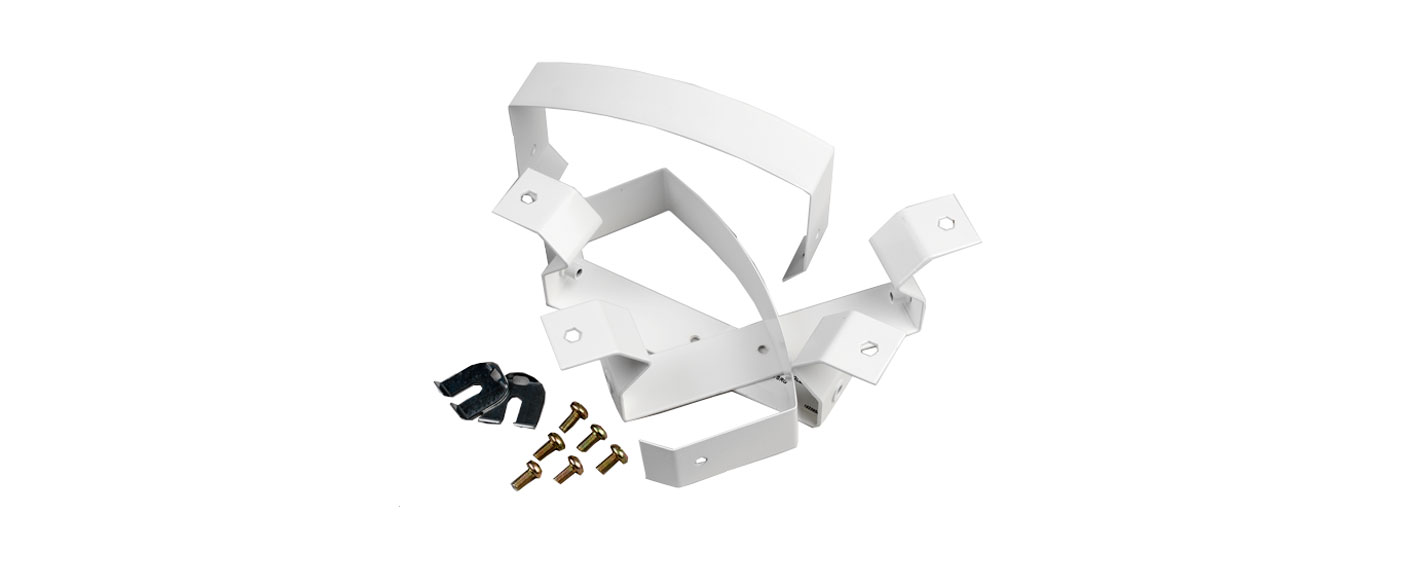

Shelter bracketShelter bracket/pair 91210
Wall bracketL=150 mm (apiece)91508
iTrack luminaire fixing iTrack luminaire fixing (pair), white78257
Opal diffuser AllFive LEDOpal diffuser 600 mm90308
Opal diffuser AllFive LEDOpal diffuser 1200 mm90309
Remote control e-Sense BrightSwitchRemote control86359
Spare coverSpare cover 1200 mm, AllFive LED90319
Spare coverSpare cover 600 mm, AllFive LED90318
Cable wireCable wire bracket/pair91334
Wire suspensionWire suspension parallel wires incl. friction locks/pair 90305
Remote control e-Sense Move DALIRemote control e-Sense Move DALI86305
Ceiling bracketCeiling bracket, flexible c/c/pair91213
iTrack connector, pendantConnector, pendant with 2,5 m cable, white78244
Spare coverSpare cover for PIR sensor 1200 mm, AllFive LED90347
