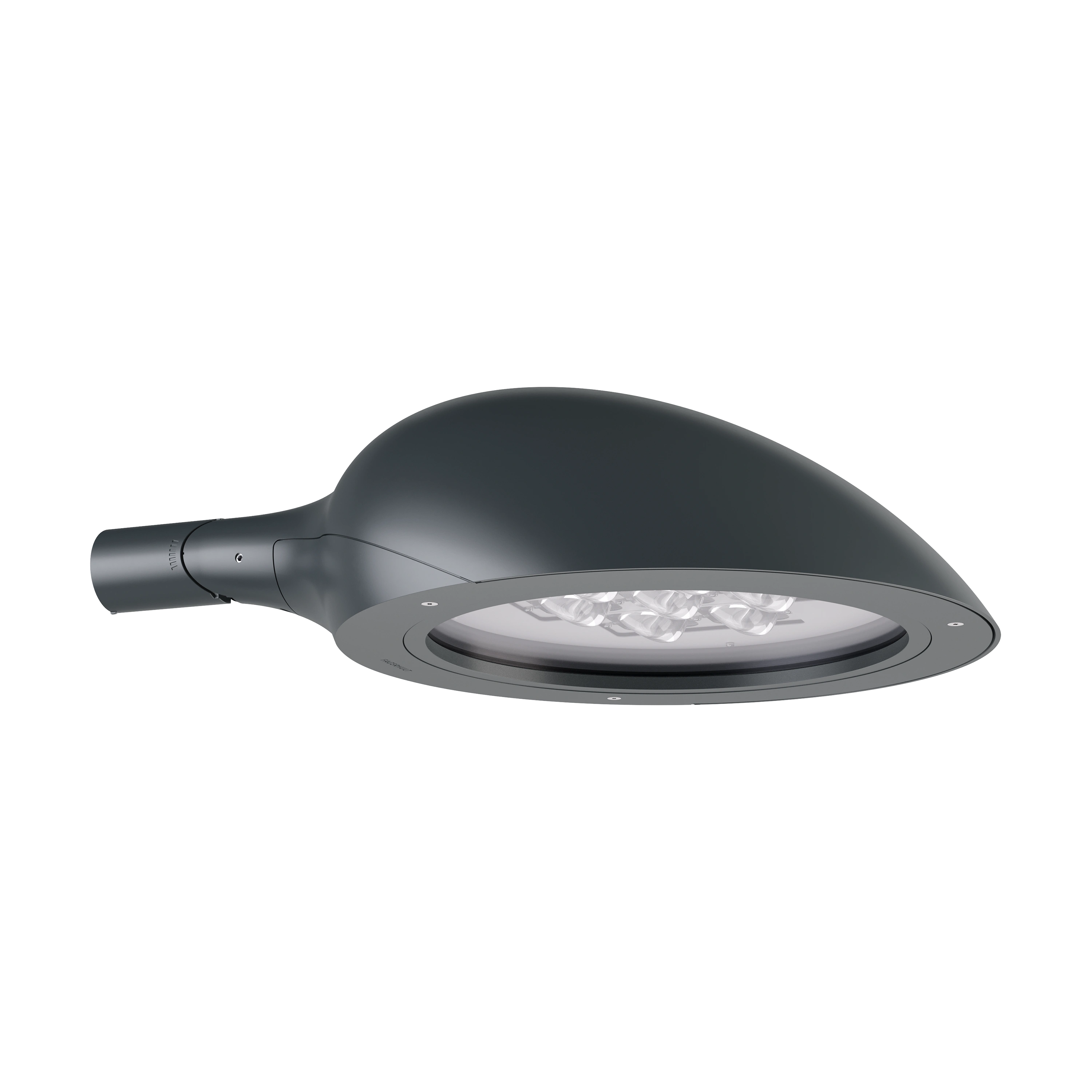

Vialume 1Post
Vialume is a family of post-top luminaires in a Nordic design with specially developed AGC lenses for an optimised light pattern. Vialume 1 is suitable for urban and suburban streets, footpaths and cycle paths, as well as smaller car parks.
Vialume 1Post
Vialume is a family of post-top luminaires in a Nordic design with specially developed AGC lenses for an optimised light pattern. Vialume 1 is suitable for urban and suburban streets, footpaths and cycle paths, as well as smaller car parks.
Installation
Post top luminaire that, in its standard version, can be mounted on Ø48 mm post arm. Accessories for other installation options are ordered separately; see Accessories. Variable tilt function ±15º for perfect adjustment. Post height 5-8 m. For detailed information, see the installation instructions.
Connection
The luminaire is supplied with a mains cable; select the type and length in Fagerhult Configure. Integrated driver with integrated surge protection, CM 8 kV, DM 6 kV. Additional surge protection of 10 kV (CM, DM) on request. CLO (Constant Light Output). DALI variant equipped with overheating protection, NTC. Available in Class I and II.
Design
Luminaire housing and post bracket made of die-cast aluminium. Aluzinc-treated stainless steel screws. A selection of colours is available in Fagerhult Configure, other colours (RAL) on request. Design by ÅF Lighting and Tuxen Design.
Light Distribution
Choose the light distribution by selecting the AGC lens.
Light data
Optics

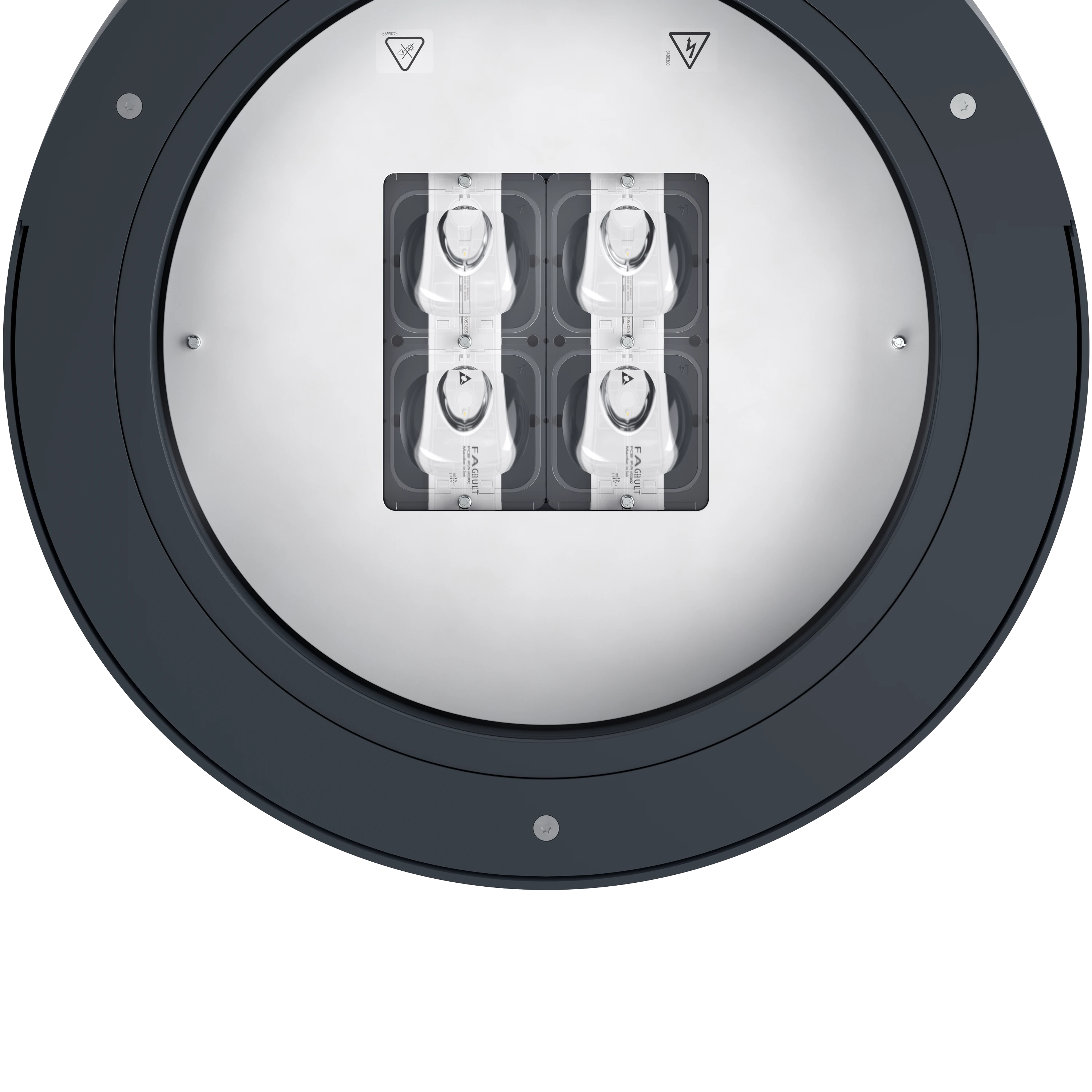

AGC lenses (Advanced Glare Control). The E-lenses are designed with a focus on illuminance. The L lenses are the choice if the luminance from the roadway is in focus.
Bioinclusive Lighting
The product can create lighting environments that are kind to nocturnal species and pollinators, and that benefit biodiversity. With light in warm colour temperatures and a low proportion of blue wavelengths, as well as complementary smart controls such as occupancy detectors and night-time dimming, sensitive ecosystems are spared.
Made of recycled aluminium
The product contains die-cast aluminium, a material that in our products consists of approximately 85% recycled content. By using recycled aluminium, energy consumption is reduced by up to 95% compared to virgin aluminium (Source: European Aluminium). This entails a significantly lower carbon footprint.
Resilient over time
The aluminium alloy that is used is of high quality, ensuring good corrosion protection. Together with other material choices that counteract galvanic corrosion, the design can withstand exposed conditions over time. A pressure equalisation valve regulates the air pressure and ensures that moisture cannot enter the luminaire – only escape.
DALI
Enables flexible and precise control of luminaires – easy installation with two-wire system for both power and control.
Read moreNight-time dimming
Simple dimming where the light level is automatically reduced at preset times during the night, without the need for sensors or more advanced control technology.
Read moreNEMA (on request)Socket
Enables easy integration of sensors and control in smart lighting systems. NEMA socket available on request.
Read moreZhaga Book 18Socket
Enables easy integration of sensors and communication modules via Zhaga socket.
Read moreArticles
Configure your Vialume 1
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
Downloads
