PoleLITEPost
PoleLITE is a pole-mounted spotlight that enhances safety and security in playgrounds, parks, squares, and along footpaths. The luminaire is easy to adjust and is available with different distribution angles.
PoleLITEPost
PoleLITE is a pole-mounted spotlight that enhances safety and security in playgrounds, parks, squares, and along footpaths. The luminaire is easy to adjust and is available with different distribution angles.
Installation

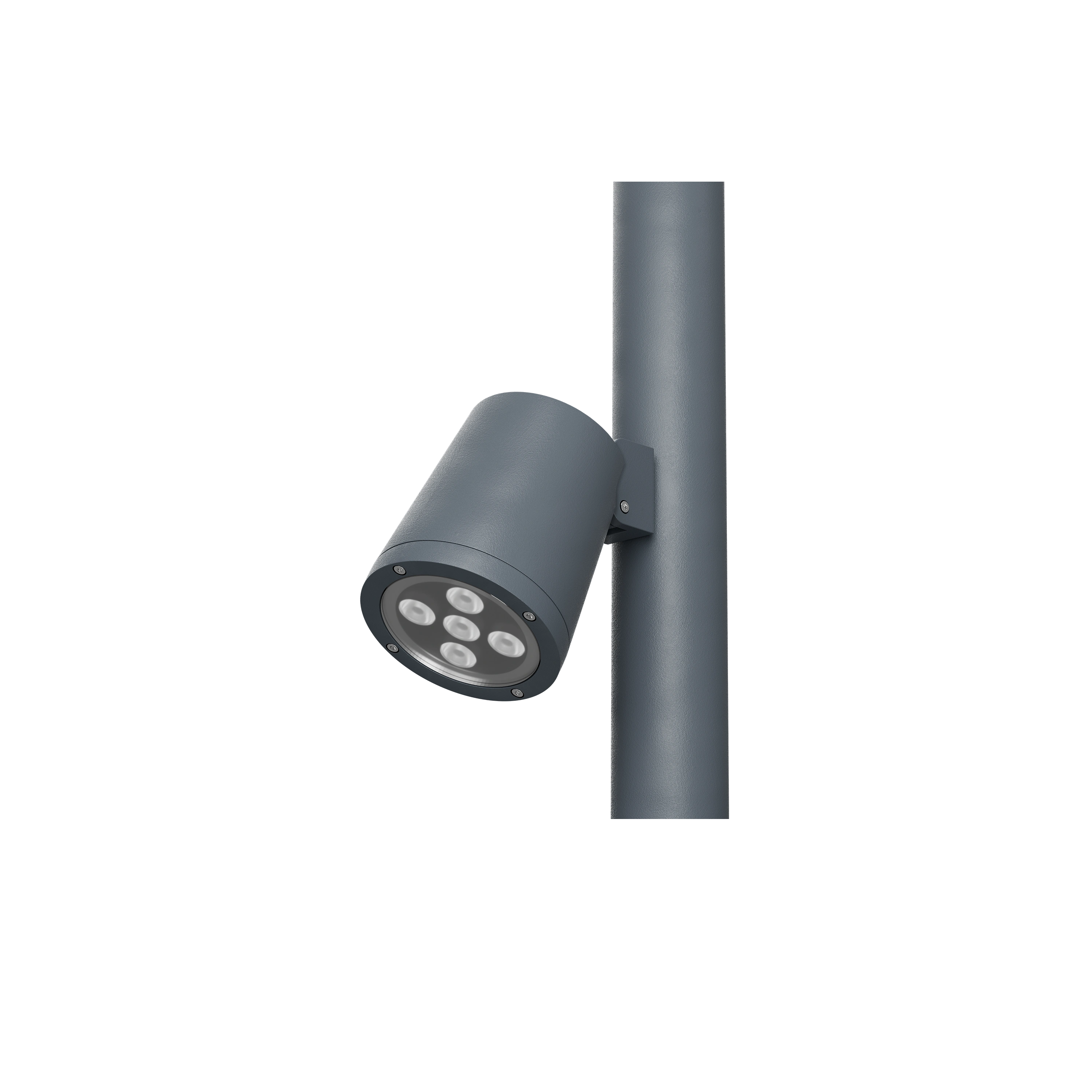

Luminaire for mounting on a post, with Ø60 mm and upwards. Mounted using the included post bracket. Drill two holes (Ø12 mm) in the post – one for the cable and one for the post bracket. Can be installed facing upwards or downwards. It is possible to fit multiple PoleLITE units on the post at the same height. For detailed information, see the installation instructions.
Connection
Supplied with a 5 m 1.5 mm² connection cable H05RN-F.
Design

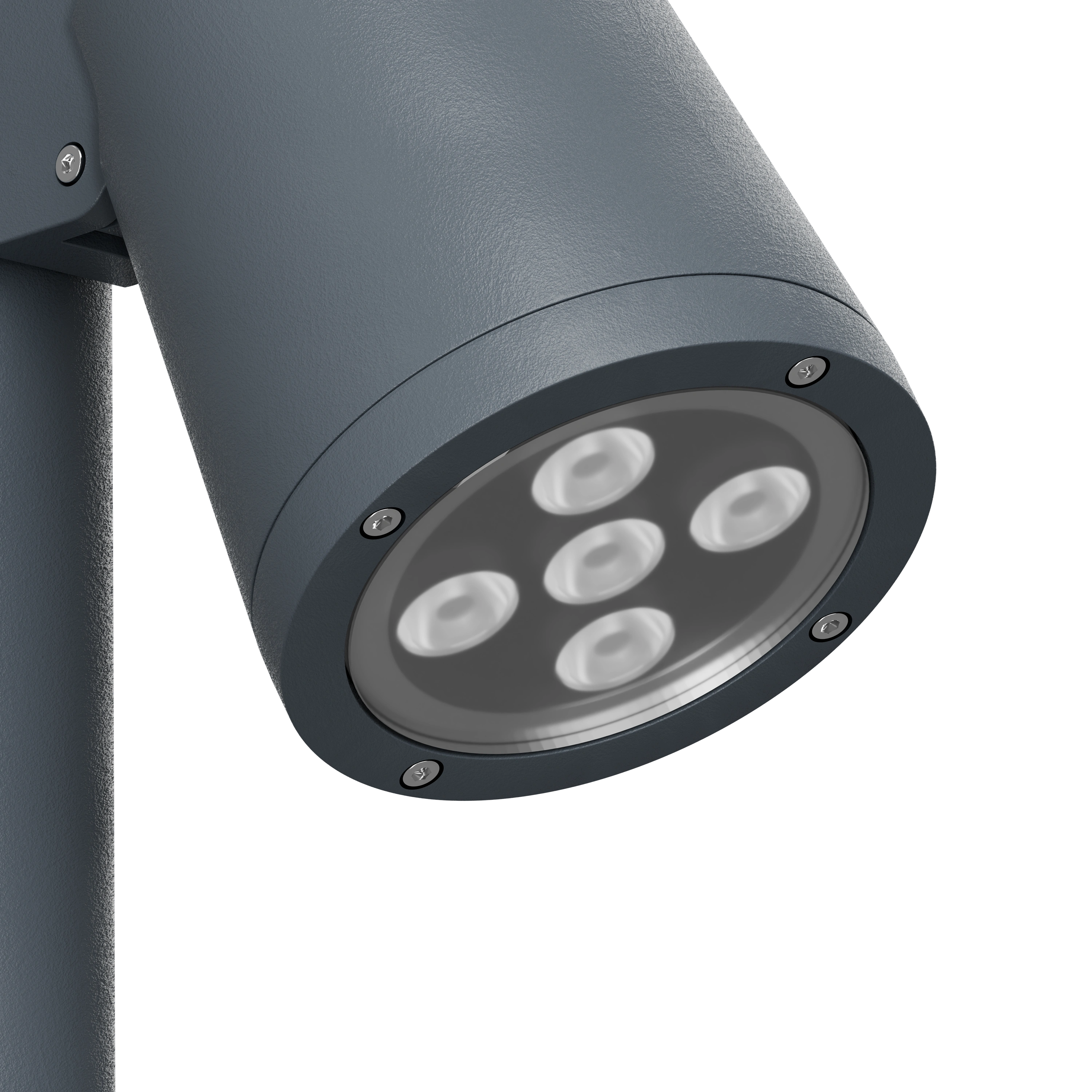

Body of die-cast aluminium with high corrosion resistance. Clear hardened glass, 8 mm. Stainless steel screws. Silicone seals. UV and weather-resistant powder coated. The head of the luminaire sits on a double-hinged bracket and can be rotated to whatever position you require. Anthracite grey (Gris 900 Sablé) or alu-grey (RAL 9006 G70) structured lacquer.
Light Distribution
Narrow, medium or wide beam.
Light data
Optics
Lens.
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI (on request)
Enables flexible and precise control of luminaires – easy installation with two-wire system for both power and control. DALI is available on request.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Dimensions, mm | Light distribution | Protective class | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|
| 305001-236 | 17 | 1090 | 3000 | Alu grey | 153 | 8° | 2 |
|
|
| 305001-329 | 17 | 1091 | 3000 | Anthracite grey | 153 | 8° | 2 |
|
|
| 305002-236 | 17 | 1197 | 4000 | Alu grey | 153 | 8° | 2 |
|
|
| 305002-329 | 17 | 1197 | 4000 | Anthracite grey | 153 | 8° | 2 |
|
|
| 305003-236 | 17 | 1218 | 3000 | Alu grey | 153 | 29° | 2 |
|
|
| 305003-329 | 17 | 1218 | 3000 | Anthracite grey | 153 | 29° | 2 |
|
|
| 305004-236 | 17 | 1336 | 4000 | Alu grey | 153 | 29° | 2 |
|
|
| 305004-329 | 17 | 1336 | 4000 | Anthracite grey | 153 | 29° | 2 |
|
|
| 305005-236 | 17 | 1164 | 3000 | Alu grey | 153 | 61° | 2 |
|
|
| 305005-329 | 17 | 1164 | 3000 | Anthracite grey | 153 | 61° | 2 |
|
|
| 305006-236 | 17 | 1291 | 4000 | Alu grey | 153 | 61° | 2 |
|
|
| 305006-329 | 17 | 1291 | 4000 | Anthracite grey | 153 | 61° | 2 |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Anti-glare shield PoleLITE | Anti-glare shield to PoleLITE. Aluminium, powder-coated black. | 305000 |
